HGLRC Sector X5 FPV Racing Drone Analog Version SPECIFICATIONS
Warranty: Not include
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 1080p FHD
Type: Airplane
State of Assembly: Ready-to-Go
Remote Distance: 2000 meters
Remote Control: Yes
Recommend Age: 12+y,14+y
Power Source: Electric
Plugs Type: XT60
Package Includes: Original Box,Camera
Origin: Mainland China
Operator Skill Level: Intermediate,Expert
Model Number: HGLRC Sector X5 FPV Racing Drone Analog Version
Material: Metal,Plastic,Carbon Fiber
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 5 minutes
Features: App-Controlled,FPV Capable,Integrated Camera,Other
Dimensions: 5inch
Controller Mode: MODE2,MODE1
Controller Battery: Not include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 30 minutes
Certification: CE
Camera Mount Type: Fixed Camera Mount
CE: Certificate
Brand Name: HGLRC
Features:
-Replaceable arms for quick disassembly without taking apart the whole frame
-A fixed power outlet for convenience and protecting your power cable from cutting by propellers
-GPS pre-installed for more safety in the distance with GPS Rescue Mode
-Dust-proof straps covering both sides to better protect your rig and keep them clean
-CNC aluminum side plates combined with 3D printed parts to make your drone look dope!
Specification:
Product Name:HGLRC Sector X5 FPV Racing Drone Analog Version

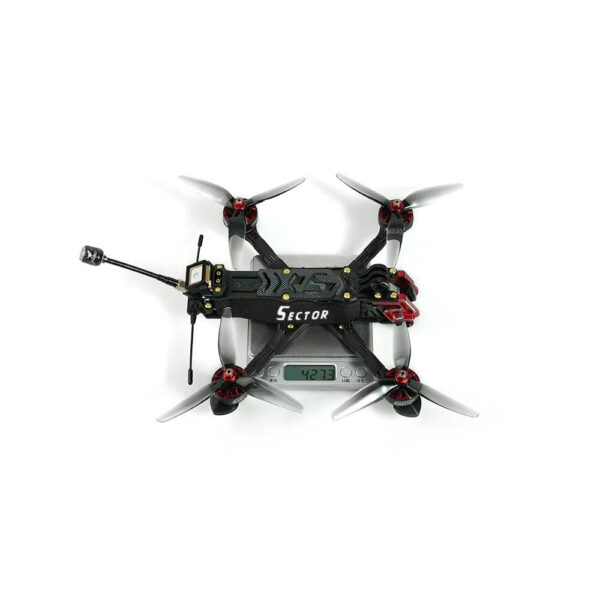

Weight:407.7g
HGLRC Sector X5 FR Freestyle Frame
Model:5 inches Frame
Wheelbase:210mm
Size:199*178mm
Zeus F722 mini FC
CPU:STM32F722 RET6
FC Firmware:BF HGLRCF722
Input Voltage:3-6S Lipo
Zeus 45A V2 4in1 ESC
Input Voltage:3-6S Lipo
Steady Current:45A
Peak Current:55A（10 Sec）
ESC firmware:BL_S (F-H-40)
Zeus 800mW VTX
Output Power:PIT/25/100/200/400/800mW
Input Voltage:DC6-26V
Antenna:MMCX
Caddx Ratel 2 FPV Camera
Input Power:DC 5-40V
Dimensions:19mm*19mm*20mm
AEOLUS 2306.5 Motor
Motor:KV2550 4S / KV1900 6S
Input voltage:3-6S
Recommended blade:5 inches
AEOLUS 2207.5 Motor
Motor:KV2550 4S / KV1750 6S
Input voltage:3-6S
Recommended blade:5 inches
HQProp&Ethix S5 5 inch 3-blades Propeller
Quantity:4 CW & 4 CCW

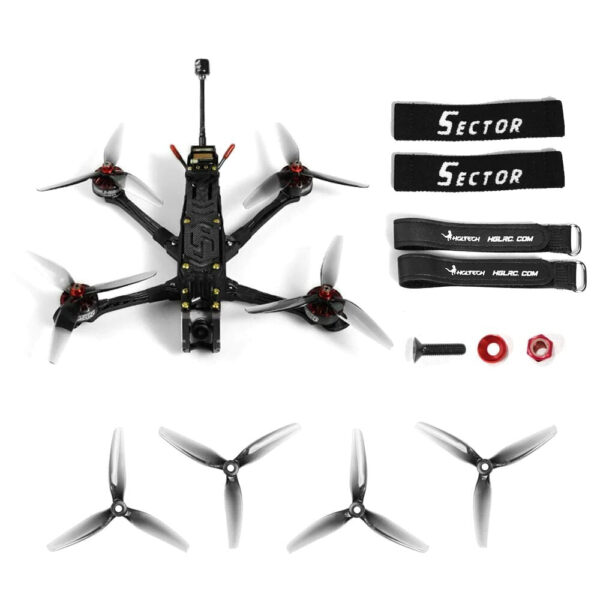

Include:
1x HGLRC Sector X5 FR Frame
1x Zeus F722 mini FC
1x Zeus 45A V2 4in1 ESC
1x Zeus 800mW VTX
1x Caddx Ratel 2 FPV Cam
4x AEOLUS 2306.5 Motor/AEOLUS 2207.5 Motor
8x HQProp&Ethix S5 Propellers
1x SMA Hammer Antenna (RHCP)
1x M80 GPS
1x Receiver (optional)
Recommended Battery:
4S:1300mah-1500mAh
6S:1260mah-1300mAh
The HGLRC Sector X5 FPV Racing Drone (Analog Version) features a high-definition camera, a wide-angle lens of 50mm, and DC models available. The drone’s head is equipped with CNC-machined aluminum parts and a 3D-printed protective seat, enhancing its overall look and durability.
