SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Grinded
Technical parameters: Value 3
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 14+y
Recommend Age: 12+y
RC Parts & Accs: Transmitters
Quantity: 1 pcs
Origin: Mainland China
Model Number: BN220 BN-220 / BN880 BN-880 GPS
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: Readytosky
BN880 use for: APM 2.6 APM2.8 / Pixhawk 2.4.7 PIXHAWK 2.4.8
BN220 use for: F3 / F4 / F7 Flight controller
readytosky is a professional FPV RC Module accessories company . if you want to know more about trade for wholesale and bulk purchase, please contact us freely .

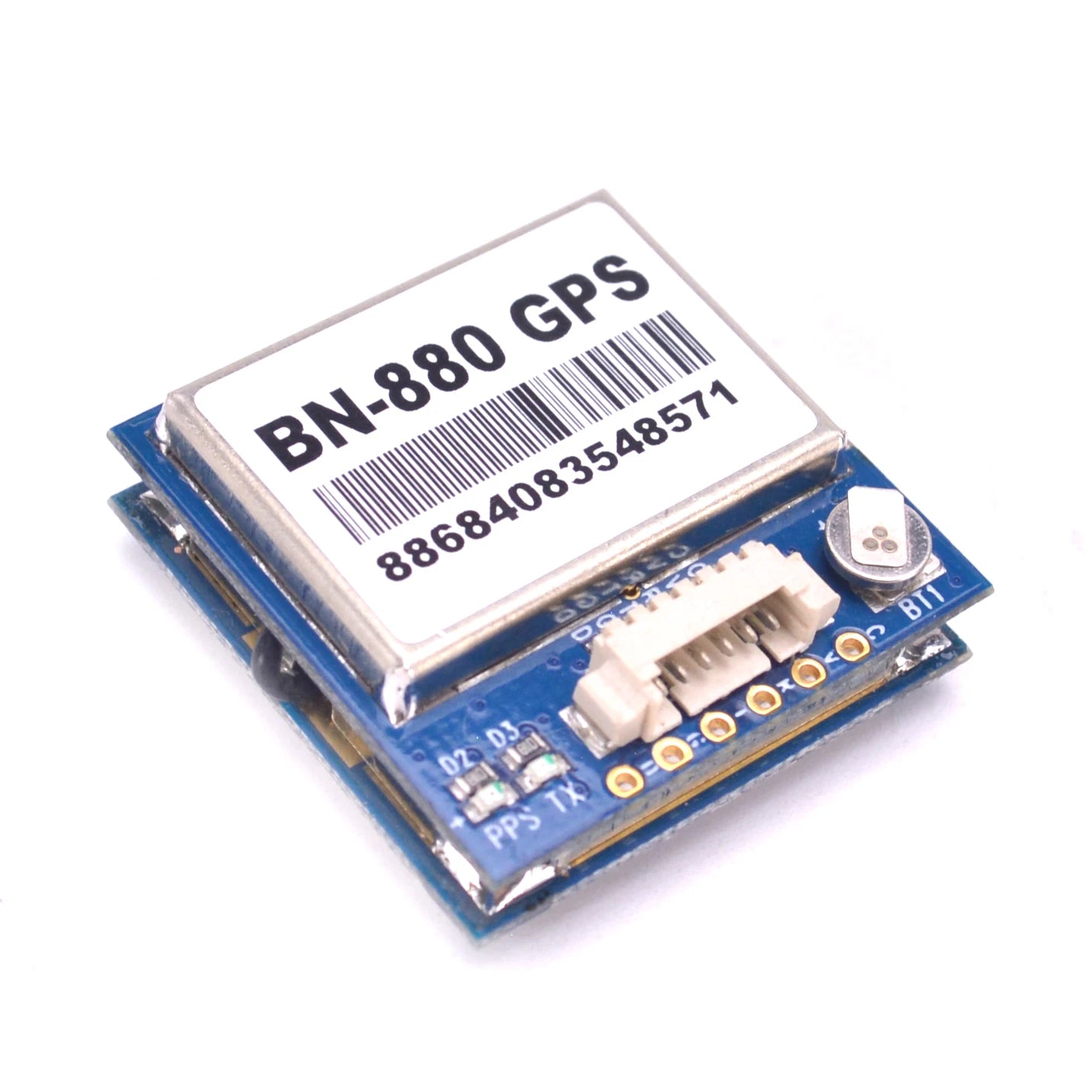

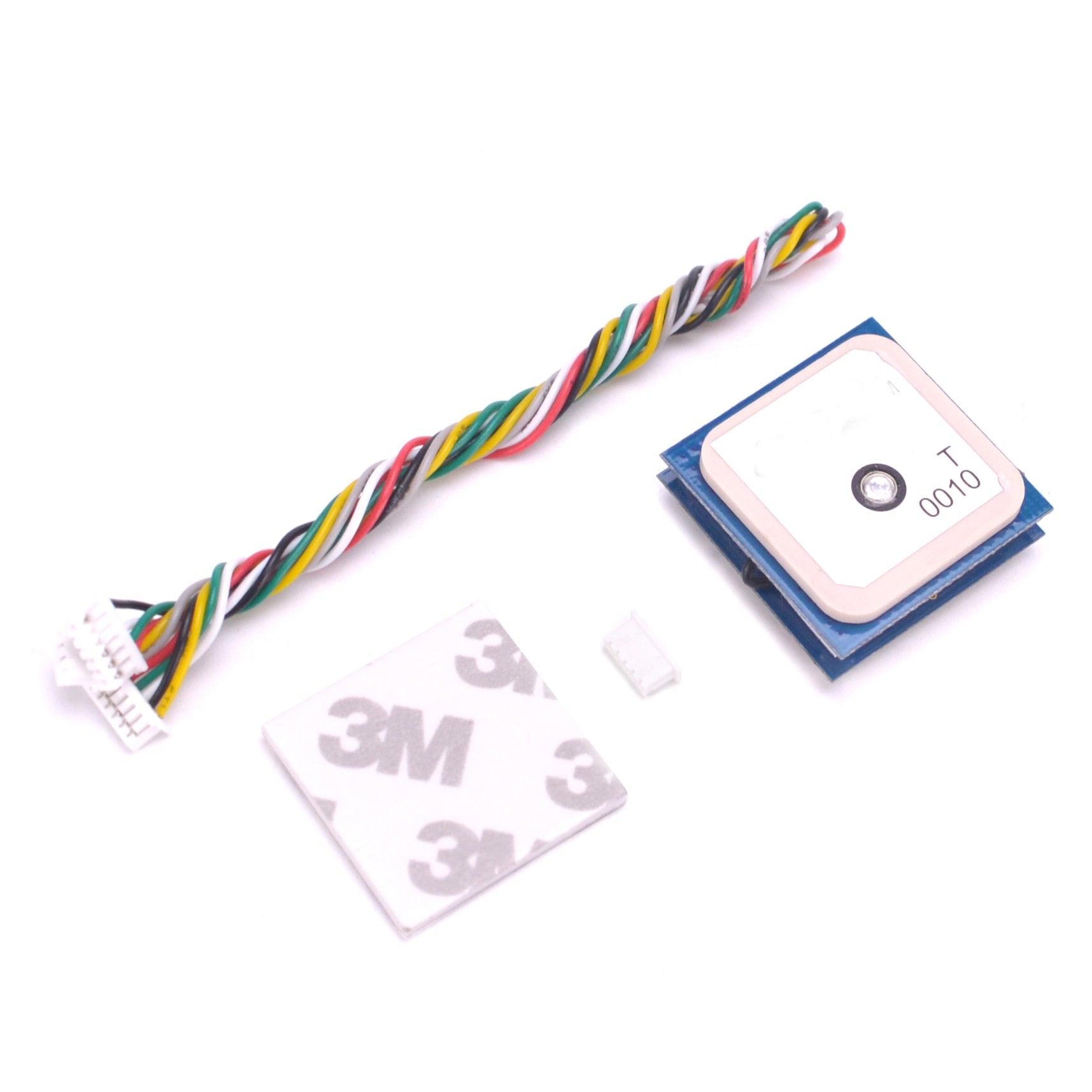

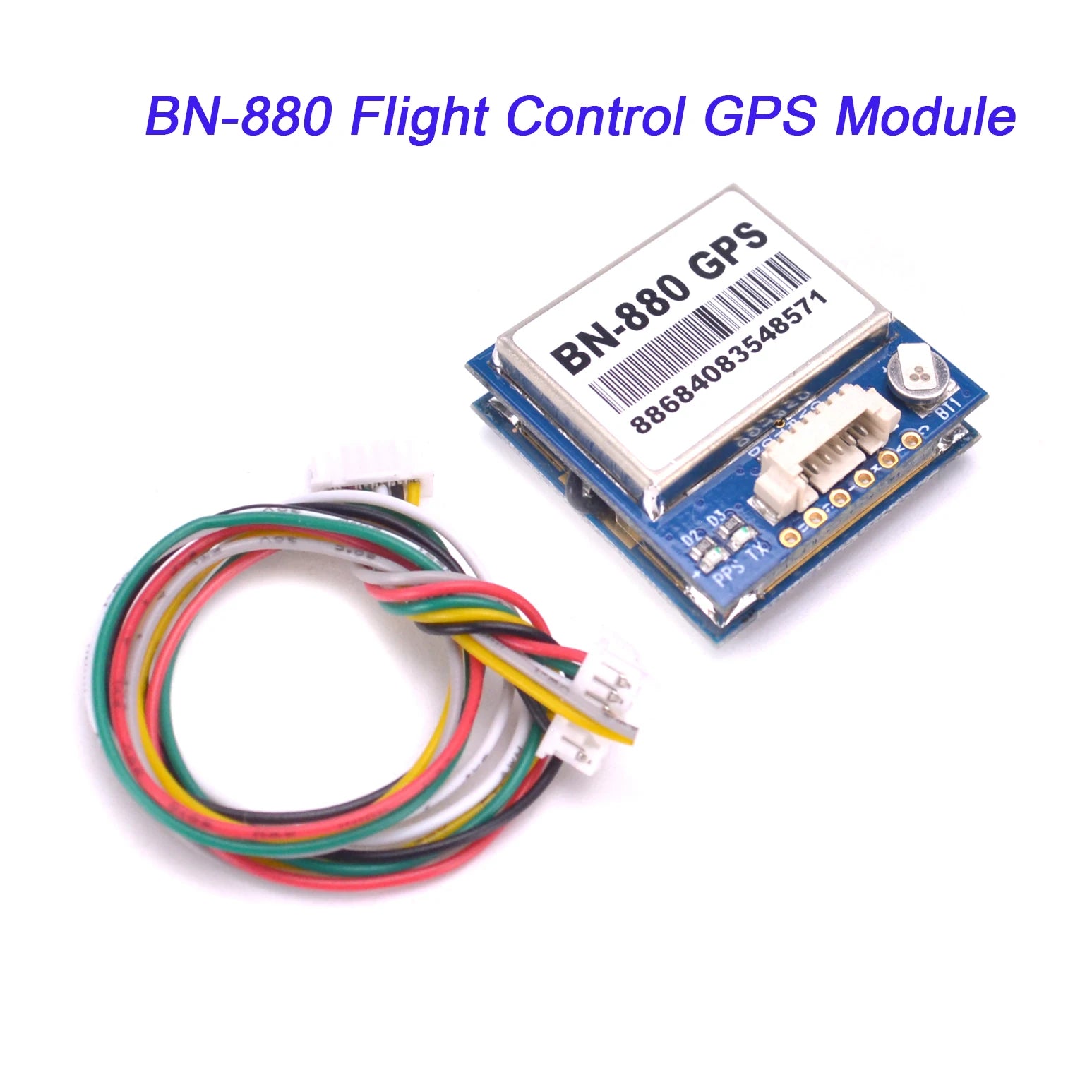

New BN-880 BN880 Flight Control GPS Module Dual Module Compass With Cable for APM 2.6 APM2.8 / Pixhawk 2.4.7 PIXHAWK 2.4.8
Features:
GPS Module,Dual Module Compass
With electronic compass IC HMC5883
1.25mm spacing between the 6pins patch seat
Model:BN-880
Power Supply:DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V
Consumption:Capture 50mA@5V
Receiving Format:GPS,GLONASS,BeiDou,QZSS and SBAS
Receiving Channel:72 Searching Channel
Receiving Sensitivity:Trace -167dBm
Capture-148dBm
Positioning Time:Cold Start:avg26s
Warm Start:avg25s
Hot Start:avg3s
Level Positioning Precison:2m At Open Wind
Output Frequency:1Hz-10Hz,Default 1Hz
Speed Precison:0.1 m/s (Without Aid)
Acceleration Precison:0.1 m/s (Without Aid)
Dynamic Characteristics:Max Height:18000m
Max Speed:5153m/s
Max Acceleration:4G
UART Interface:UART Port:TXDA and RXDA
Support Rate:4800bps to 115200bps,Default 38400dps
Working Temperature:-40-+85
Storage Temperature:-40-+85
Size:28mm x 28mm x 10mm
Weight:10g
The Module’s Pins:SDA,GND,TX,RX,VCC,SCL
We left a connector for APM extra,If you need used for APM, you can install the connector by yourself or leave us a message ,we will change for you . Original connector is for Pixhawk flight control board my friend!

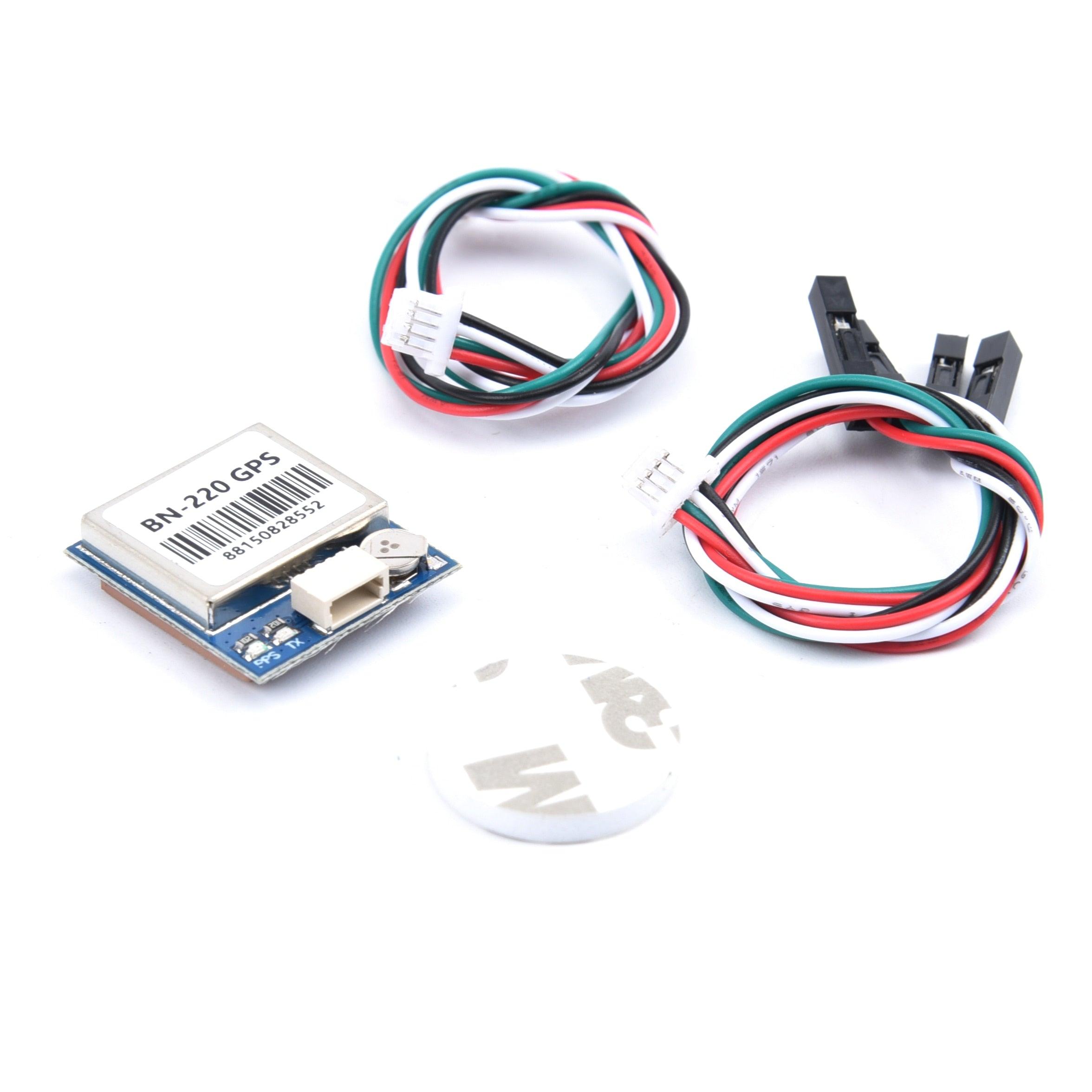

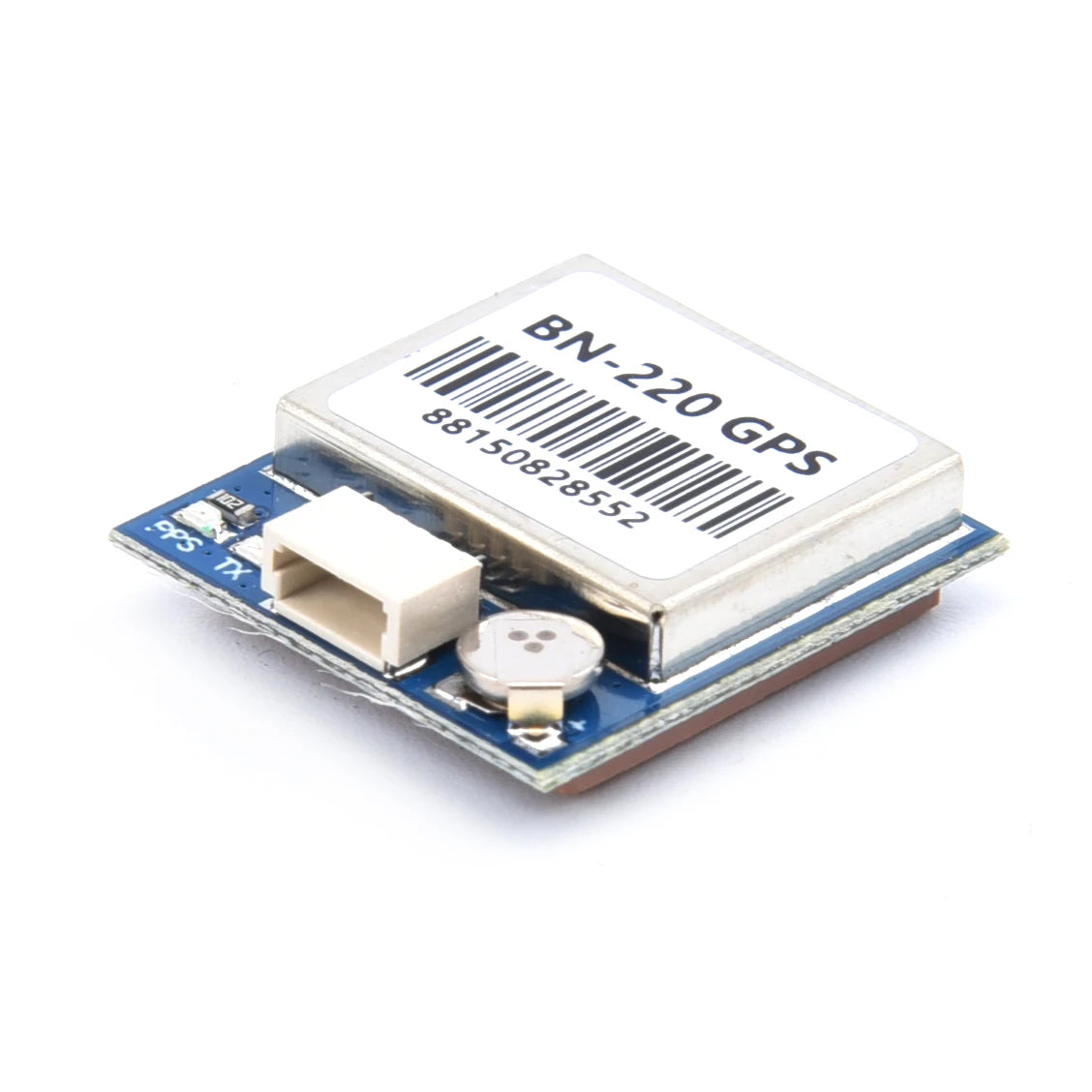

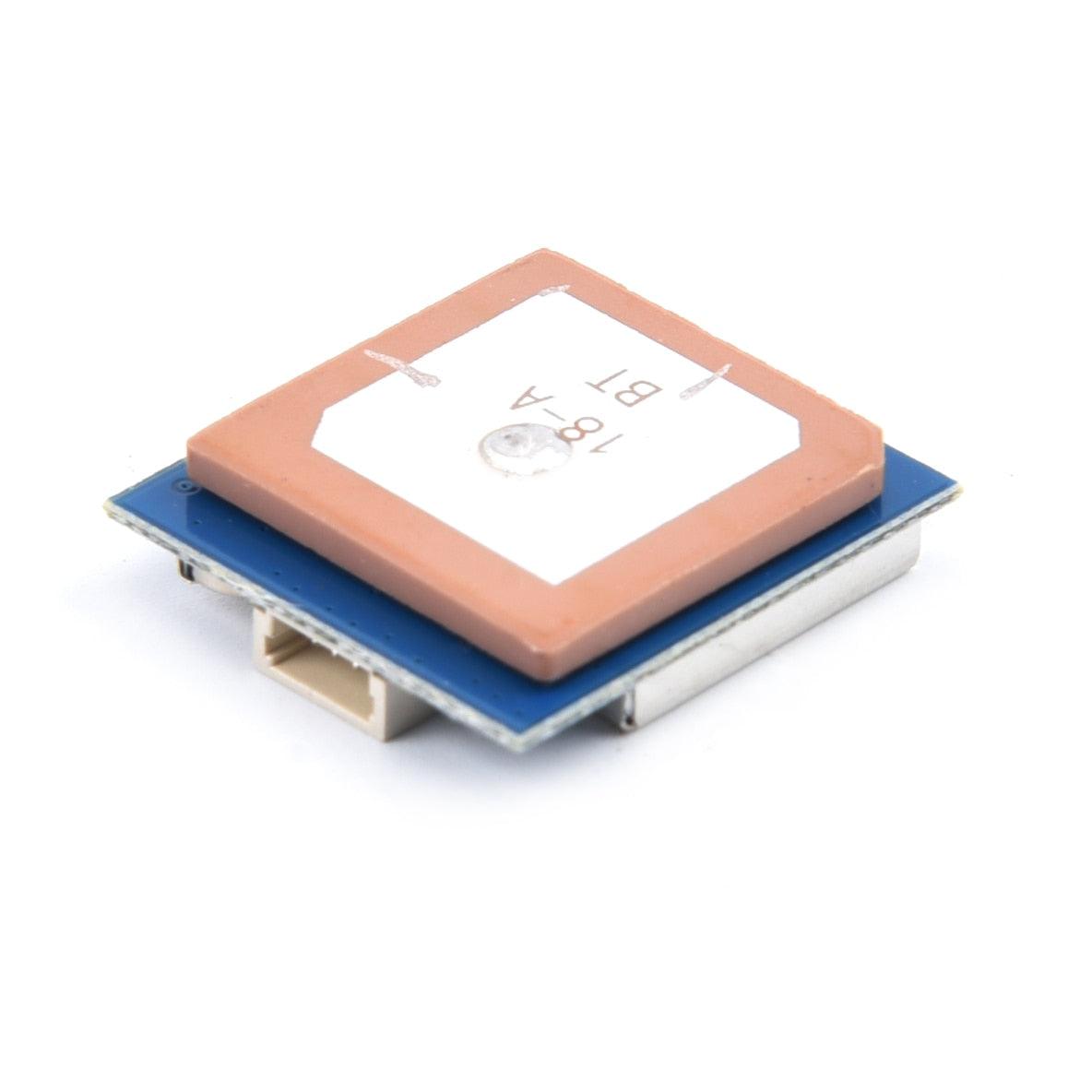

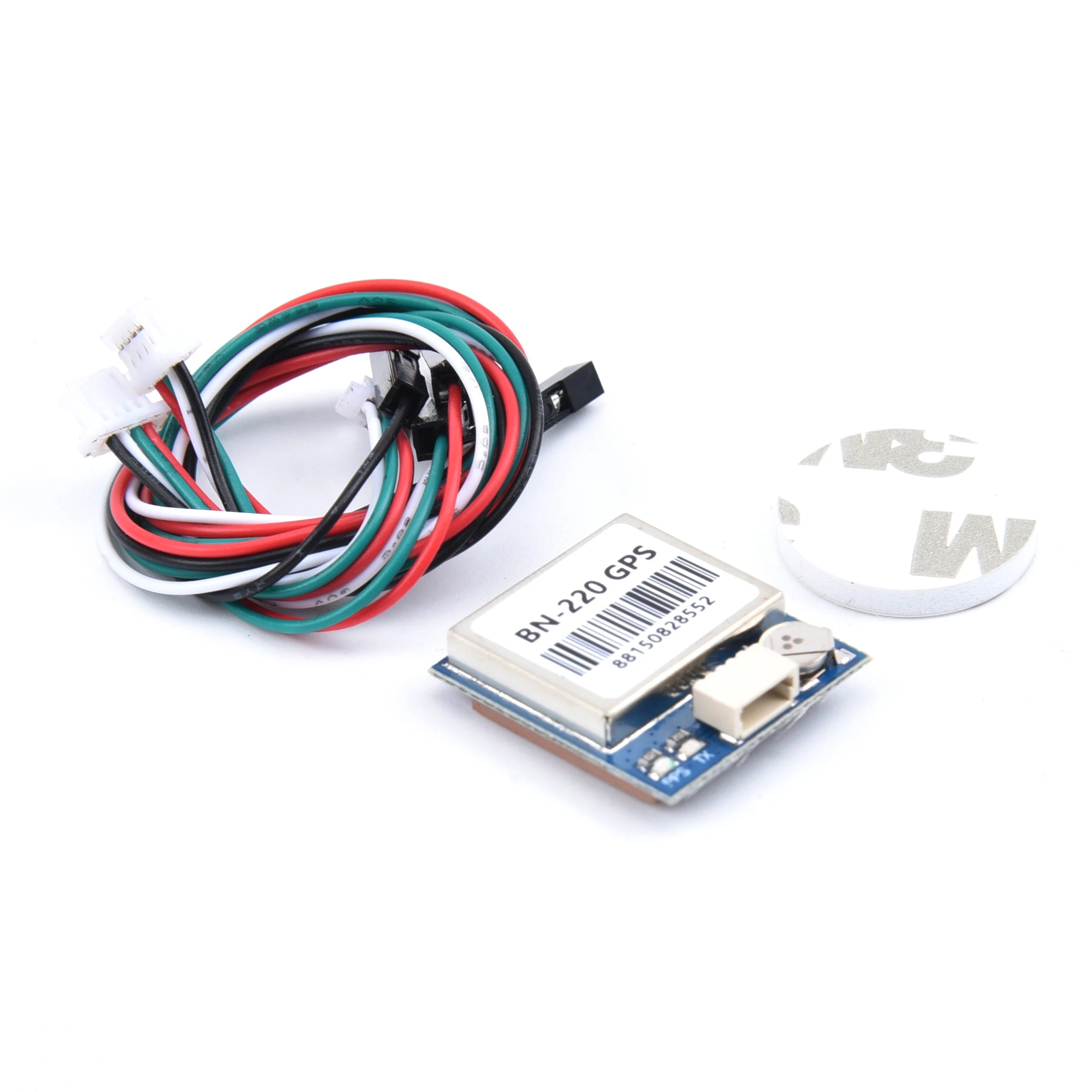

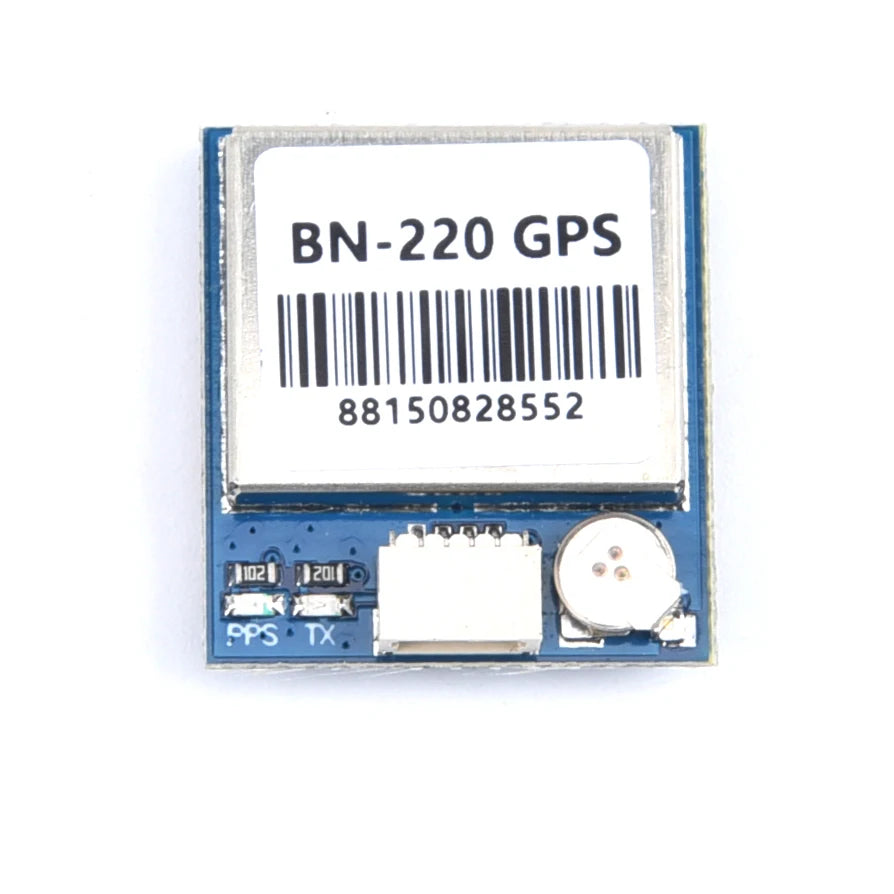

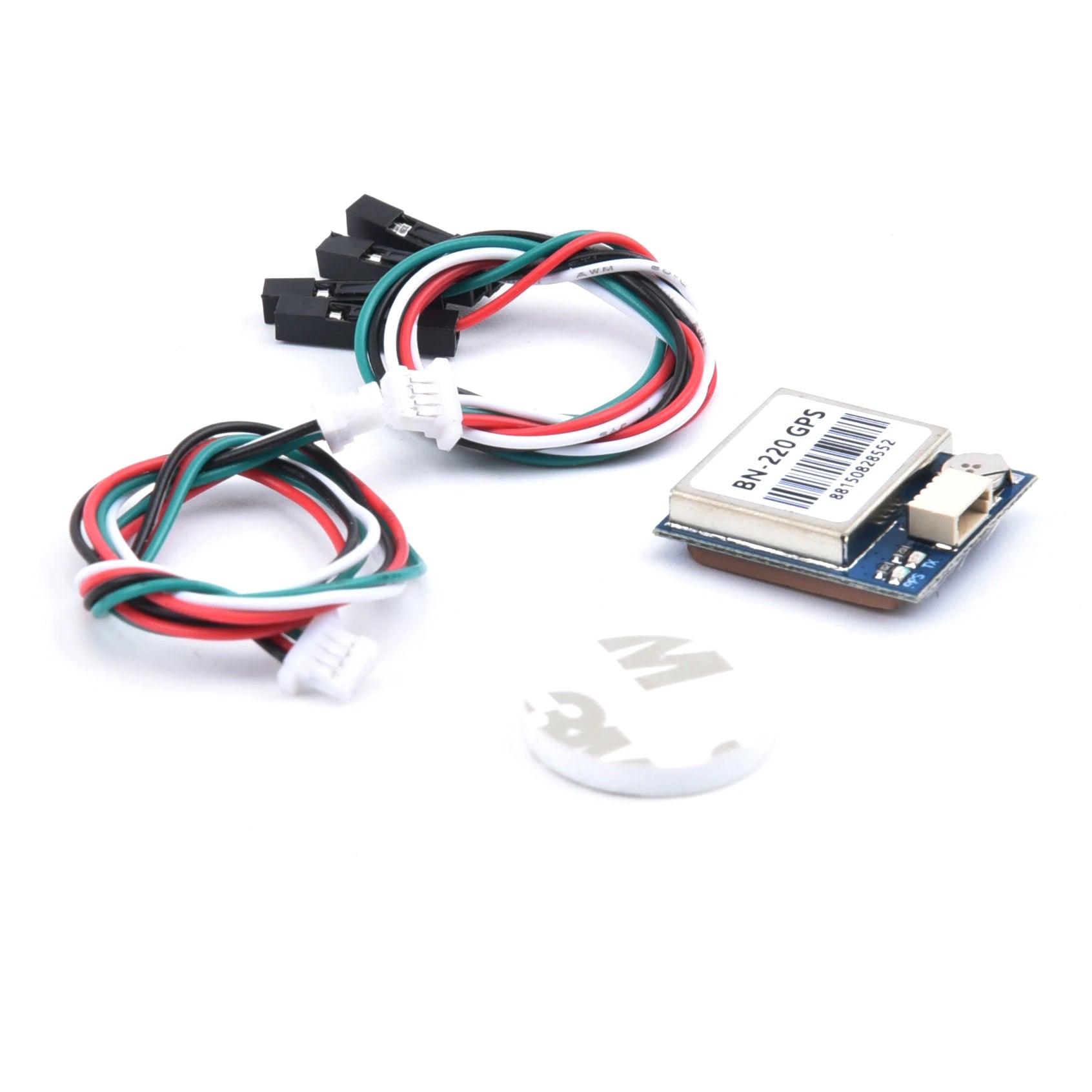

BN-220 3.6V-5.5V TTL level GNSS Module GPS GLONASS Dual GPS Module built in FLASH BN220 for F3 / F4 / F7 Flight controller
Model:BN-220 GNSS module
Iitem | Description | |
Electrical Characteristics | Chipset | M8030-KT |
Frequency | GPS L1, GLONASS L1, BDS B1, SBAS L1, QZSS L1 | |
Receiving Format | GPS, GLONASS, BDS, SBAS, QZSS. Default GPS, GLONASS, SBAS, QZSS. | |
Channels | 72 Searching Channel | |
Sensitivity | Tracking | -167dBm |
Reacquisition | -160dBm | |
Cold Start | -148dBm | |
Hot Start | -156dBm | |
Accuracy | Position Horizontal | 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky) |
Velocity | 0.1m/sec 95% (SA off) | |
Timing | 1us synchronized to GPS time | |
Acquisition Time | Cold Start | 26s |
Warm Start | 25s | |
Hot Start | 1s | |
Data Output | Support Rate | 4800bps to 921600bps, Default 9600bps |
Data Level | TTL Level | |
Data Protocol | NMEA-0183 | |
NMEA Message | RMC, VTG, GGA, GSA, GSV, GLL | |
Update Rate | 1Hz-10Hz, Default 1Hz | |
FLASH | 4M FLASH, Store the configuration permanently | |
Operational Limits | Altitude | <50,000m |
Velocity | <515m/s | |
Acceleration | <4g | |
Power Consumption | VCC | DC Voltage 3.6V-5.5V, Typical: 5.0V |
Current | Capture 50mA/5.0V | |
Mechanical Specifications | Dimension | 22mm*20mm*6mm |
Weight | 5.3g | |
Connector | 1.00mm 4pins connector | |
Environment | Operating Temp | -40 °C ~ +85°C |
Storage Temp | -40°C ~ +105°C | |
LED | Built-in LED | TX LED: blue. The data output, TX LED flashing |
PPS LED: red. PPS LED not bright when GPS not fixed, flashing when fixed |
PIN | PIN Name | I/O | Description |
1 | GND | G | Ground |
2 | TX | O | Serial Data Output. |
3 | RX | I | Serial Data Input. |
4 | VCC | I | DC 3.6V – 5.5V supply input,Typical: 5.0V |
