Summary：

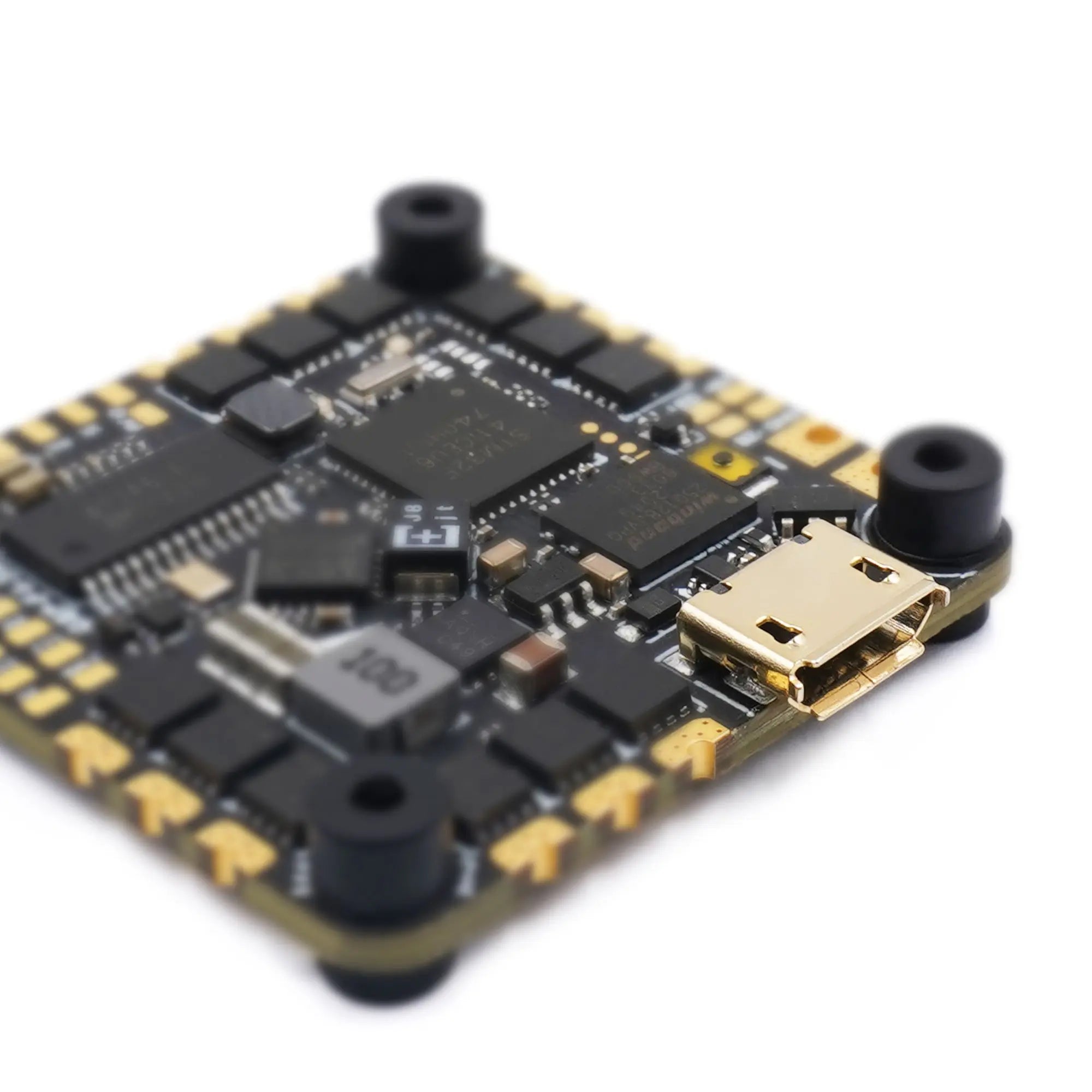

I am gald to introduce a new member of GEP FC AIO, GEP-F4-35A,it is released now.

GEP-F4-35A is developed on the basis of GEP-F4-20A. It can handle 35A continuous current and (40A burst), totally supports the 2-6S lipo battery.It can be used with 1204/1404/1507/1805/2004 motors and 2-5 inch propellers. Support OSD parameter adjustment. It’s 8.3g ultra light weight, and 26.5mm * 26.5mm mounting holes, suitable for most of the frames on the market.

June 14th,2022: Gyro updated to BMI270.

June 25th,2022:Mounting Hole Size changed from 26.5×26.5mm to 25.5×25.5mm.

Specification:

• Model: GEP-F411-35A  AIO

• MCU: STM32F411

• IMU: MPU6000 gyro/accelerometer(SPI)

• Target: GEPRC_F411_AIO

• OSD: Betaflight OSD w/ AT7456Ev

• UART Ports: T1 R1 / T2 R2

• Beep: YES

• LED: YES

• USB Connector: micro USB

• ESC MCU: 8BB21F16G

• Intergrated LC Filter

• Continue Current: 35A

• Burst Current: 40A(10s)

• Input Voltage: 2~6S (LIPO Battery)

• ESC Protocol: Dshot300/600,Oneshot,Multishot

• Current meter: 210

• Blackbox:16Mb

• ESC Target: G_H_30 BLS

• Size: 32x32mm Board

• Mount Holes: 26.5×26.5mm,M2

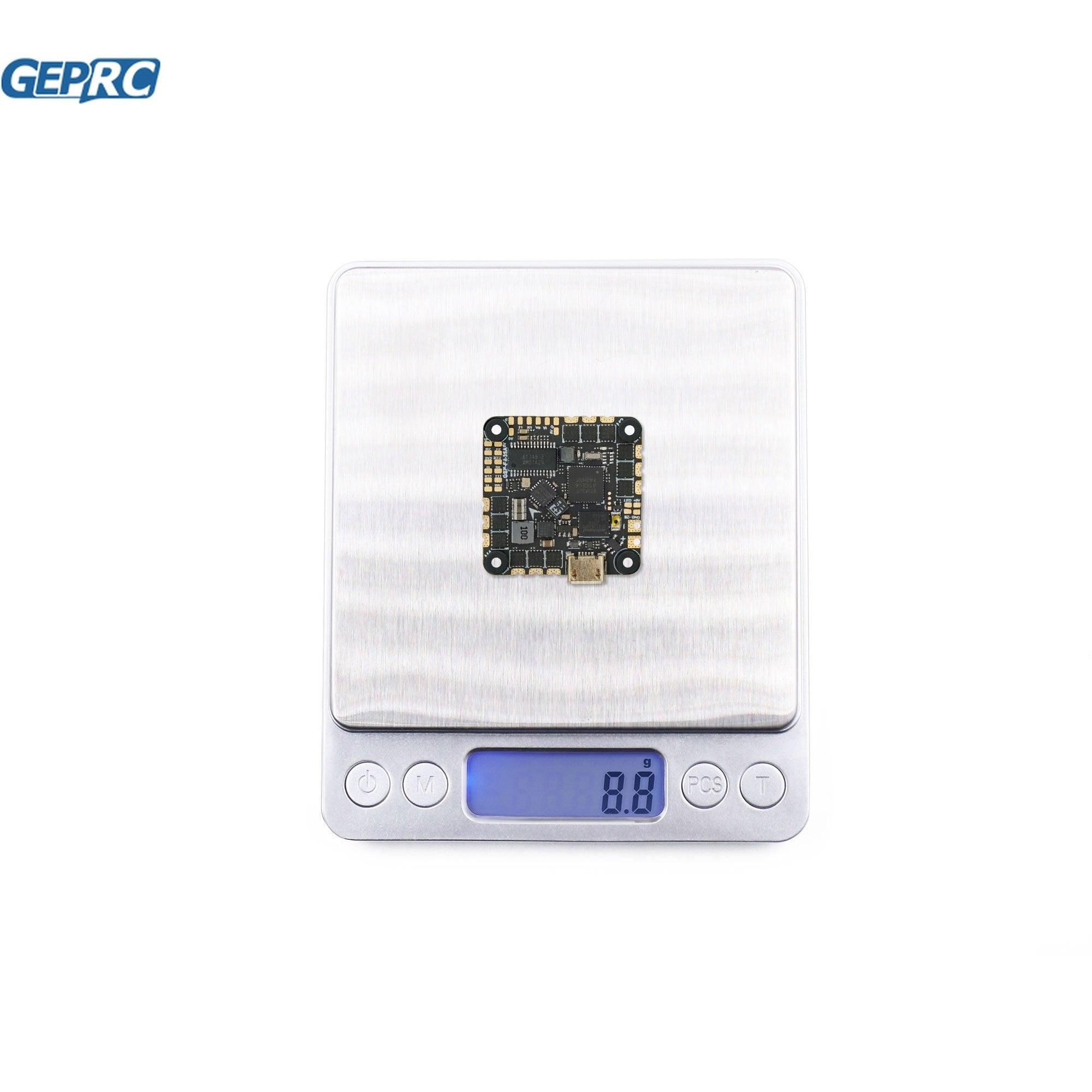

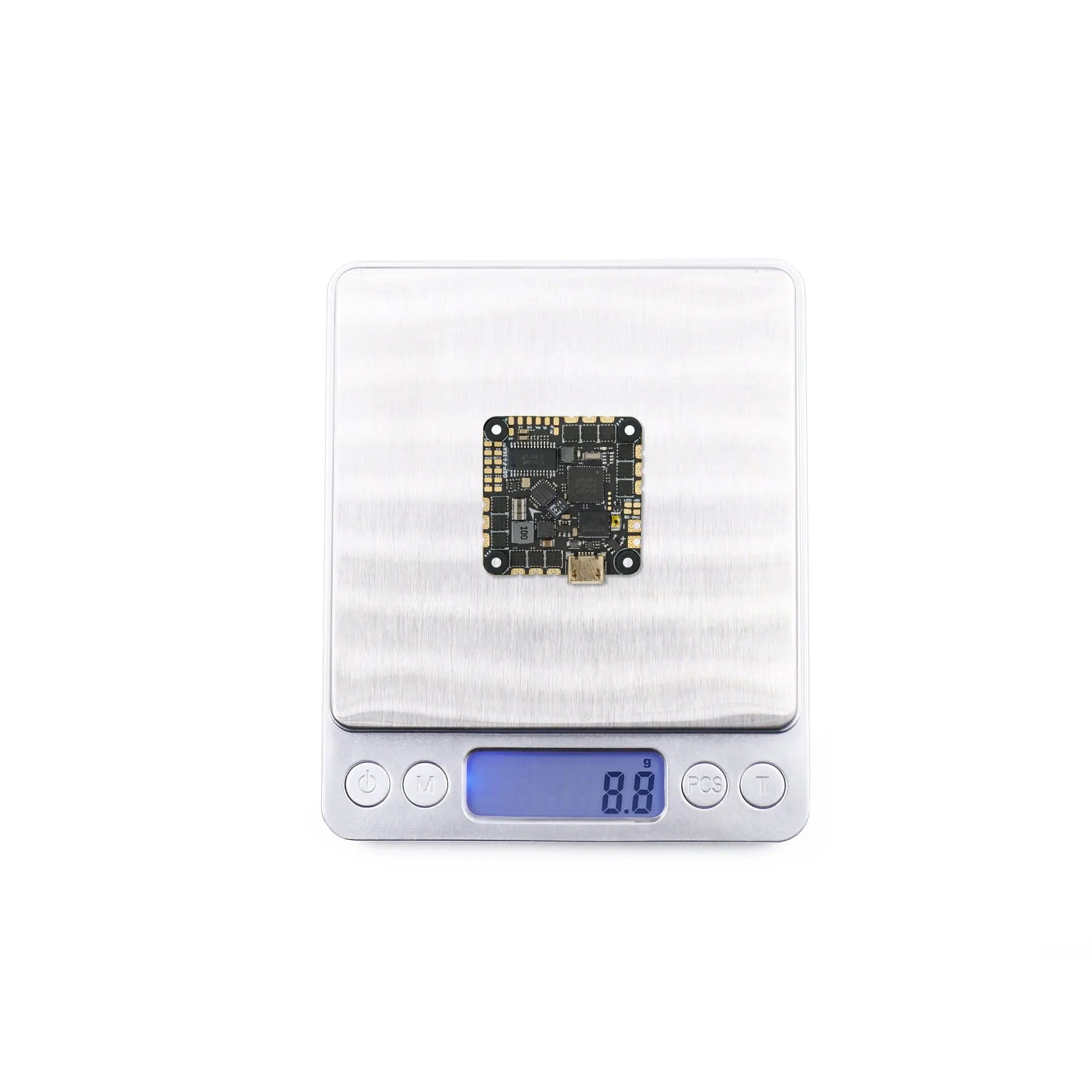

• Weight: 8.3g

Features:

• BLhelis_ S 35A ESC, support 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with current meter.

• Mainstream STM32F411 FC and runs stably.

• MPU6000 gyroscope with 8K sampling frequency.

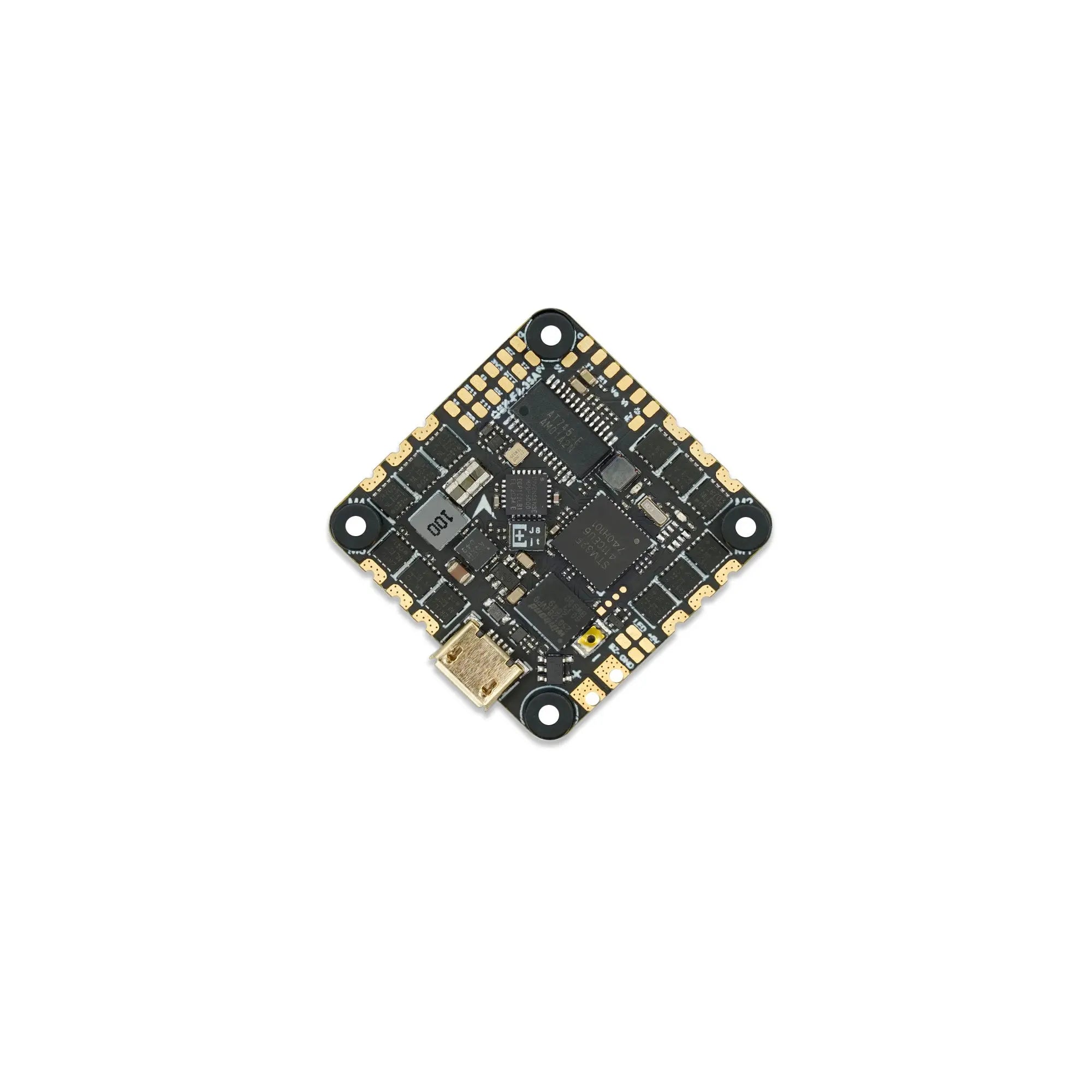

• Rich external ports, it supports buzzer and LED light function.

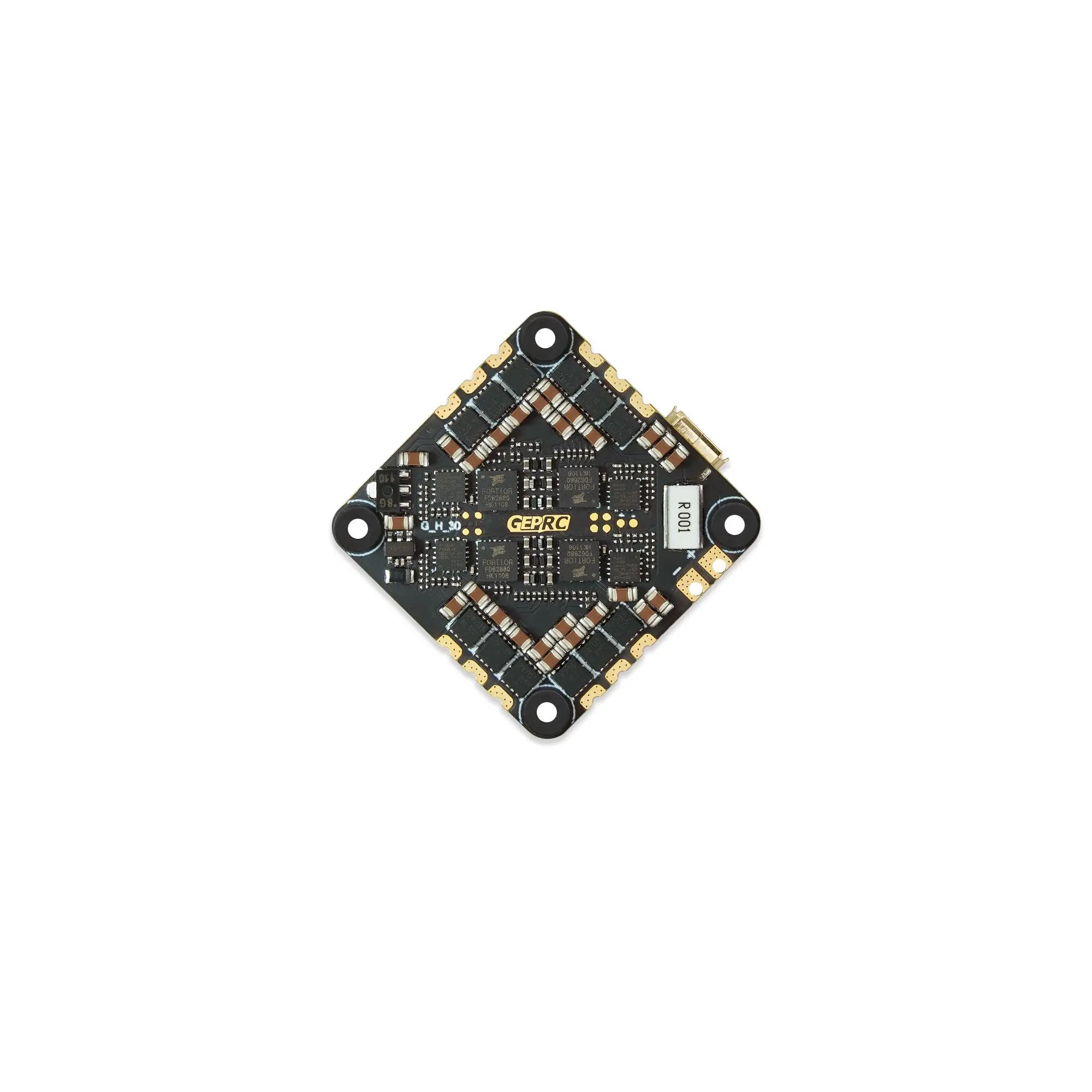

• 26.5mm * 26.5mm mounting holes and ultra light weight, suitabe for most of the frame on the market.

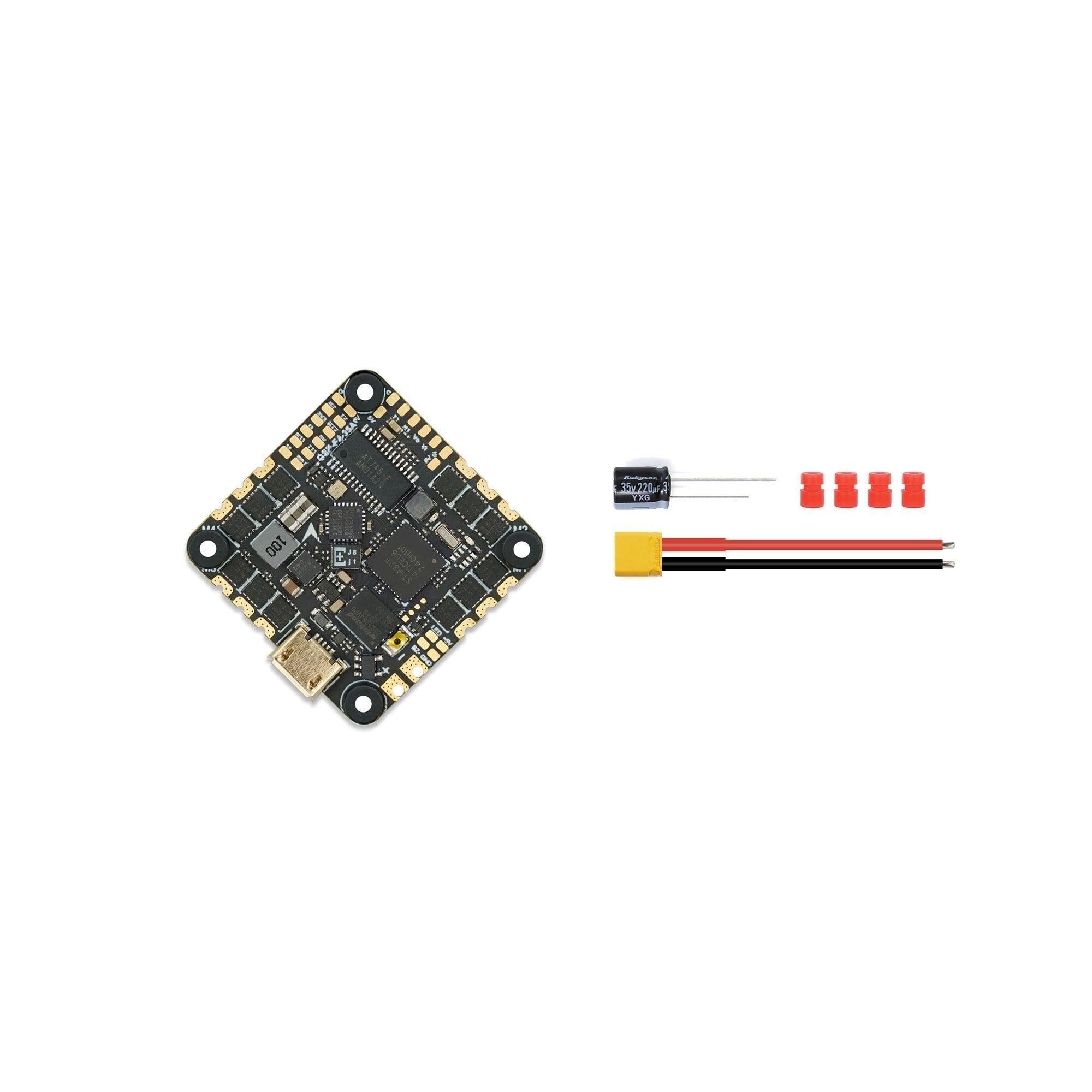

Include:

• 1 x GEP-F4-35A-AIO

• 1 x XT30-7CM-18AWG cables

• 1 x 35V220UF capacitance

• 8 x M2*6.5mm Damping rings

Manual:

-GEP-F4-35A-AIO-Manual-V2_0.pdf
