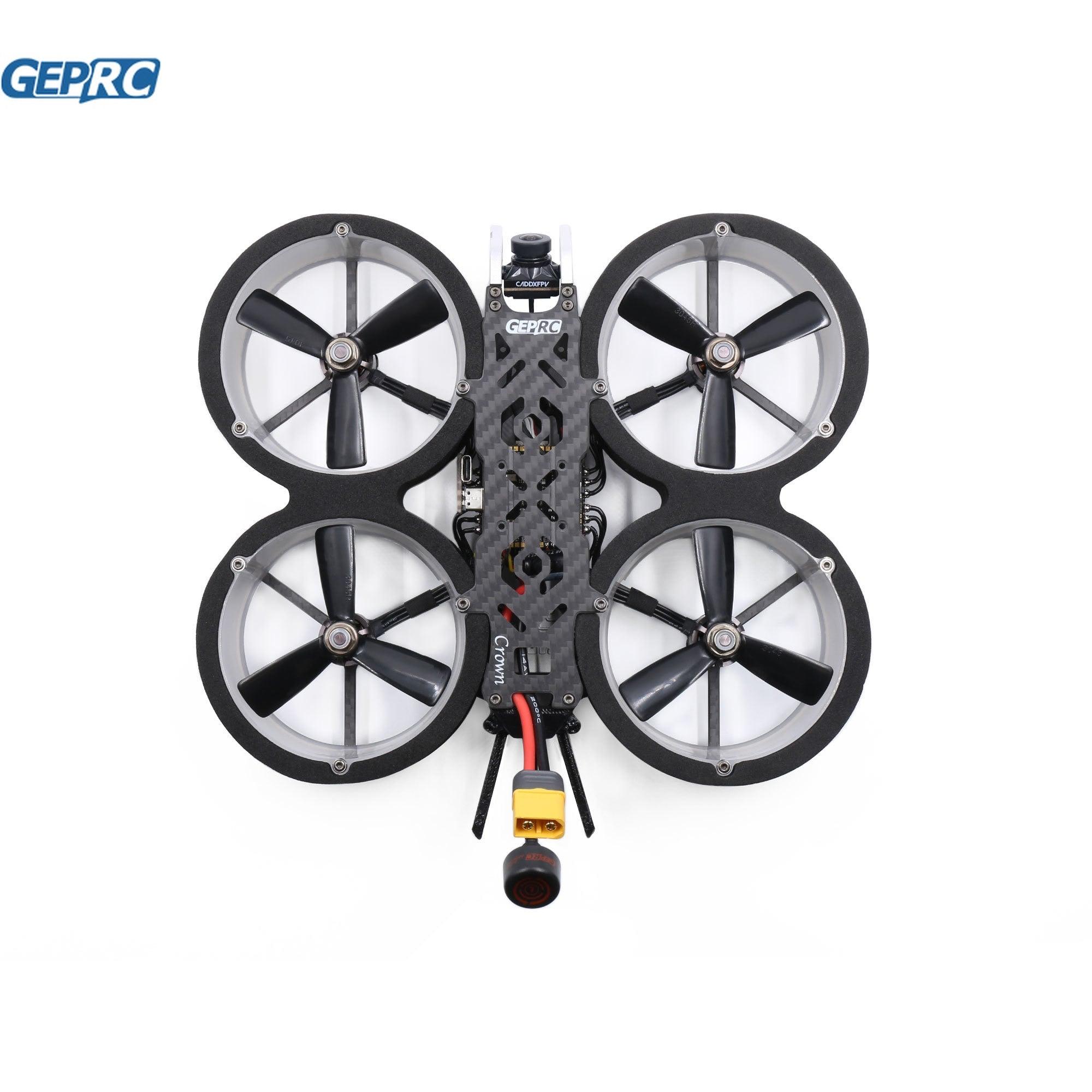

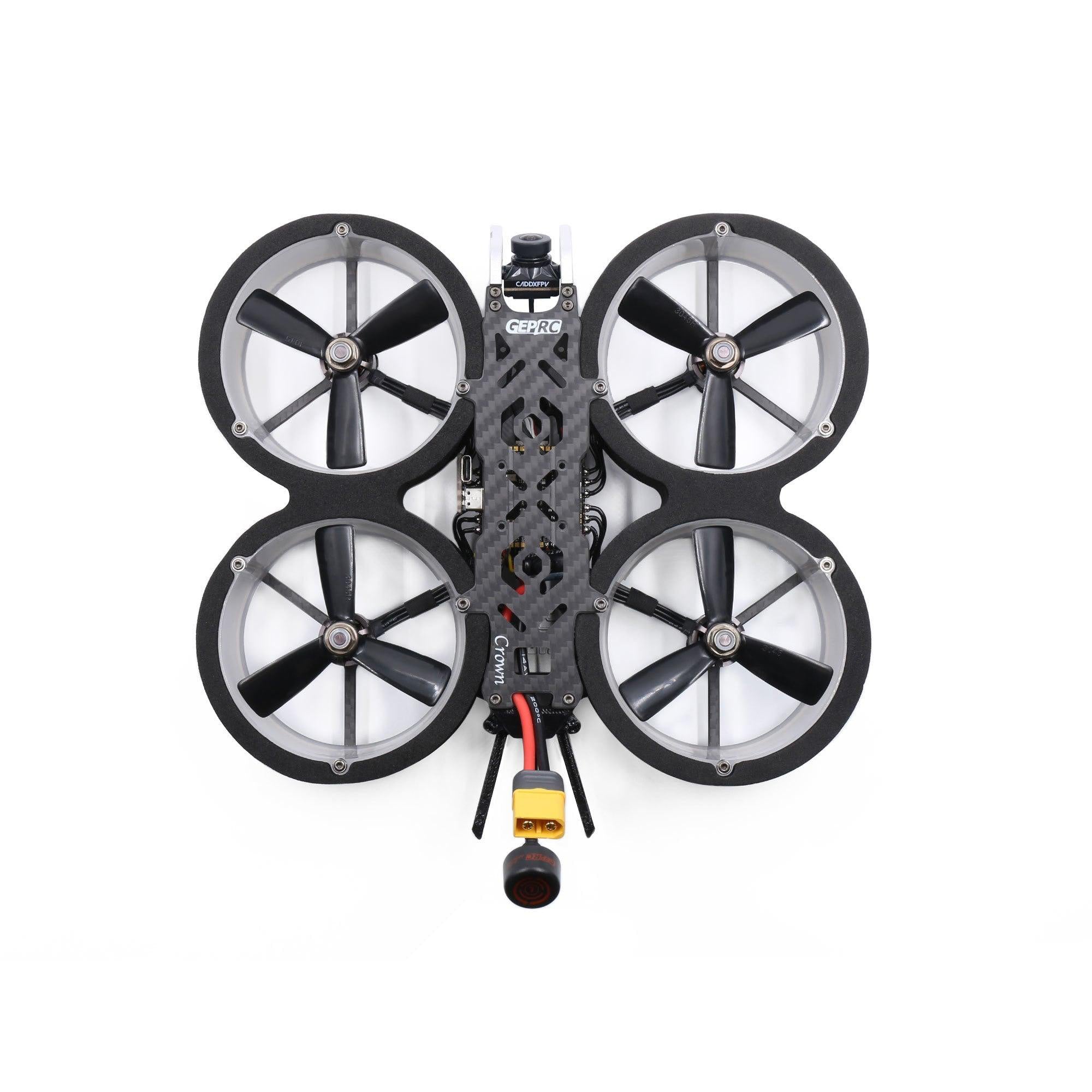

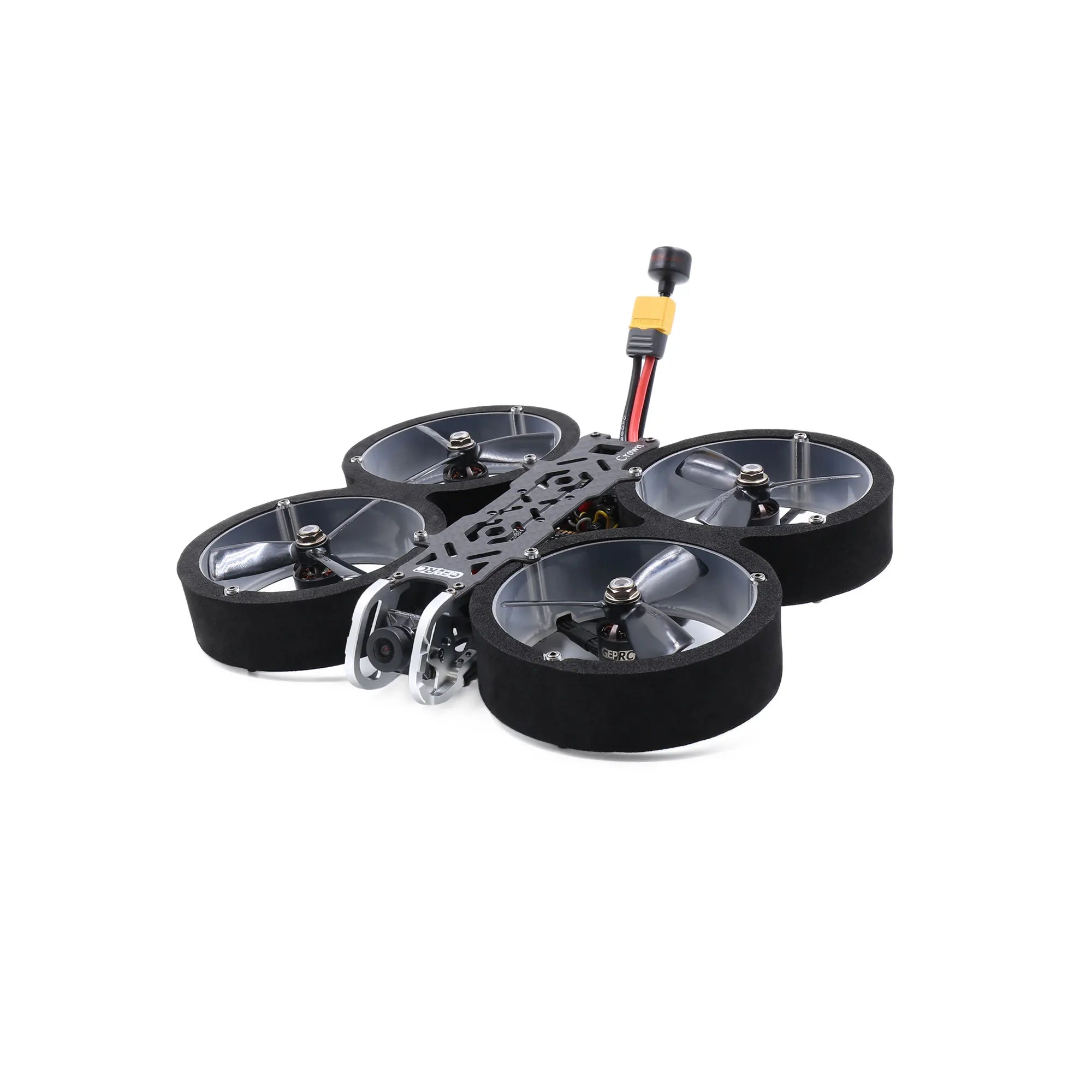

GEPRC Crown HD Cinewhoop FPV Drone SPECIFICATIONS
Warning: Minors please use under the supervision of young people
Video Capture Resolution: 1080p FHD
Type: HELICOPTER
State of Assembly: Ready-to-Go
Remote Distance: 1000 Meters
Remote Control: Yes
Recommend Age: 12+y
Power Source: Electric
Plugs Type: XT30
Package Includes: Original Box
Package Includes: Operating Instructions
Package Includes: Camera
Origin: Mainland China
Operator Skill Level: Beginner
Operator Skill Level: Intermediate
Operator Skill Level: Expert
Motor: Brushless Motor
Model Number: GEPRC Crown HD Cinewhoop
Material: Metal
Material: Carbon Fiber
Material: Plastic
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 6-10 minutes
Features: FPV Capable
Features: App-Controlled
Features: Other
Dimensions: 3 inch
Controller Mode: MODE2
Controller Mode: MODE1
Controller Battery: not include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 40 minutes
Certification: CE
CE: Type
Brand Name: GEPRC
Aerial Photography: Yes
Summary:
The GEPRC Crown Cinewhoop features the Remarkable HD & Analog FPV systems that make flying truly breathtaking.After a lot of time testing and continuous optimization by GEPRC team.The latest Cinewhoop GEPRC Crown has been launching right now.GEPRC Crown has two versions: Vista HD & Analog.All pilots can choose flexibly.
We have collected a large number of data of Cinewhoop Quadcopter and found one thing in common.which is very noisy.In this regard.we have done a good noise reduction optimization and optimization design for GEPRC Crown.Eventually the effect is very ideal.The another great feature of GEPRC Crown is that propellers sound is very small.In the fuselage design.Through Structure Optimization Design of entire frame we decided to adopt CNC aluminum parts as lens mount.which makes the whole appearance more beautiful and durable.The separate type bottom plate with injection molding guard plus EVA protection Damping sponge makes the Quadcopter more robust and prevent the crash.
GEPRC Crown can be equipped with GoPro6/7/8/9 motion camera.combined with its 3D printing mount with shock absorption effect.GEPRC Crown can make wonderful and stable aerial video.The flight system uses 30.5mm * 30.5mm hole pitch 45A ESC + GEPRC Span F722 HD flight control.It has good heat dissipation effect in narrow fuselage. The flight time of GEPRC Crown with GoPro camera is 6-7 minutes.If GEPRC Crown without GoPro camera the flight time is 8-10 minutes.
GEPRC Crown has elegant.handsome.cleverly designed.It would bring superior performance.
Feature:
GEPRC Crown is suitable for indoor flight and aerial photography in crowd environment to protect the safety of others.
Redesigned CINEWHOOP frame.large air inlet and small air outlet.Test and Analysis of the Flow Field on Air Inlet/ Motor Matching Operation.more efficient.increased flight time.
Repeated experiments to improved the noise problem of the Cinewhoop Quadcopter.Perfect noise reduction design scheme.Reduce the noise interference to others in flight process.
Lightweight design.Easy control.
Compatible with GoPro lite and GoPro6/7/8/9.
CNC aluminum alloy camera mount design.Gorgeous and elegant.
EVA protection guards provides better protective function to entire quadcopter in case of crash.
No propellers in view.anti-interference image transmission and stable flight footage.
Configuration：
Name:Crown
Brand:GEPRC
Frame:GEP-CW3
Motor to Motor:156mm
FC:SPAN F722 HD
MCU:STM32F722
IMU:MPU6000(SPI)
OSD:BetaFlight OSD w/ AT7456E chip
ESC:BLHe li-S DSHOT 600 45A
VTX:Caddx Vista HD
Camera:Caddx Nebula Nano V2
Propeller:3045*3
Antenna:GEPRC Momoda 5.8g LHCP
Motors:1408 3500KV (4S) /1408 2500KV (6S)
Weight:299Grams (without batteries)
Recommend batteries: 4S 1300~1550mAh
Recommend batteries: 6S 1050~1100mAh
Flight / Take off weight is less than 500 grams
Include:
1x Crown HD Cinewhoop
4x 3045*3 Props(pairs)
2x Battery pad
2x Antenna bushing
1x Type-C interface
1x L-shaped screwdriver
2x Battery magic strap
1x Wrench
——————
Related Article:
GEPRC Crown HD Review
GEPRC Crown HD Cinewhoop FPV Drone: A Comprehensive Review
The GEPRC Crown HD Cinewhoop is an exceptional FPV drone designed for capturing high-definition aerial footage. With its robust carbon fiber frame, powerful motors, and advanced components, it offers impressive performance and versatility. In this review article, we will explore the parameters, advantages, selection criteria, operation manual, and frequently asked questions about the GEPRC Crown HD Cinewhoop.
Advantages:
1. High-Definition Aerial Footage: The Crown HD Cinewhoop is equipped with the Caddx Vista HD VTX and Caddx Nebula Nano V2 camera, allowing for crisp and clear high-definition video recording. It captures stunning footage suitable for professional cinematography and FPV freestyle flying.
2. Durable and Lightweight Frame: The GEP-CW3 carbon fiber frame ensures durability while maintaining a lightweight design. This combination provides both strength and agility, allowing the drone to withstand crashes and perform intricate maneuvers.
3. Powerful Motors: The 1408 motors (3500KV for 4S, 2500KV for 6S) deliver impressive thrust and responsiveness, ensuring smooth and dynamic flights. These motors are specifically designed for efficient performance and optimal flight characteristics.
4. Advanced Flight Controller: The SPAN F722 HD flight controller, powered by the STM32F722 MCU, offers precise control and stability. With the MPU6000 IMU and BetaFlight OSD, pilots can fine-tune their flight settings and monitor critical flight data.
5. Enhanced Video Transmission: The Caddx Vista HD VTX provides reliable and high-quality video transmission, ensuring a seamless FPV experience. It offers stable connectivity and reduced latency, allowing for real-time video monitoring during flights.
6. Easy Setup and Maintenance: The GEPRC Crown HD Cinewhoop comes with all the necessary components and accessories for easy setup. The included battery pads, antenna bushing, and wrench make maintenance and repairs hassle-free.
How to Choose:
When selecting the GEPRC Crown HD Cinewhoop, consider the following factors:
1. Flight Requirements: Determine the purpose of your flights, whether it’s capturing cinematic footage or engaging in freestyle flying. The Crown HD Cinewhoop excels in both areas but may have specific requirements depending on your desired flight style.
2. Battery Compatibility: Choose the appropriate battery based on the recommended specifications. For optimal performance, select a 4S battery with a capacity of 1300~1550mAh or a 6S battery with a capacity of 105
0~1100mAh. Ensure the battery is compatible with the drone’s power system and connector.
Operation Manual:
To operate the GEPRC Crown HD Cinewhoop, follow these general steps:
1. Frame Assembly: Follow the included instructions to assemble the carbon fiber frame (GEP-CW3) using the provided screws and L-shaped screwdriver. Ensure all components are securely fastened.
2. Motor Installation: Attach the 1408 motors to the designated motor mounts on the frame. Secure them tightly using the appropriate screws.
3. Flight Controller and ESC Setup: Install the SPAN F722 HD flight controller and BLHeli-S DSHOT 600 45A ESC according to the instructions. Connect the necessary cables and ensure proper wiring and connection between the components.
4. Camera and VTX Installation: Mount the Caddx Nebula Nano V2 camera and Caddx Vista HD VTX securely on the frame. Adjust the camera angle to achieve the desired field of view for recording.
5. Propeller Attachment: Attach the 3045*3 propellers to each motor using the provided screws. Ensure the propellers are tightened properly and rotate in the correct direction.
6. Battery Connection: Connect the recommended battery (4S or 6S) to the designated battery pads on the drone. Ensure a secure and reliable connection.
7. Pre-flight Check: Before each flight, perform a thorough check of all components, including propellers, camera, battery, and antenna. Verify that everything is in working order and properly connected.
8. Flight Execution: Find an open and suitable flying location, adhering to local regulations and safety guidelines. Power on the drone, arm the motors, and take off gently. Monitor the flight performance and adjust settings as necessary for optimal results.
FAQ (Frequently Asked Questions):
Q1: Can I use different propellers with the Crown HD Cinewhoop?
A1: While the drone comes with 3045*3 propellers, you can experiment with different propeller options to achieve specific flight characteristics. However, ensure that the alternative propellers are compatible with the drone’s motor and frame specifications.
Q2: What is the flight time of the Crown HD Cinewhoop?
A2: The flight time may vary depending on factors such as battery capacity, flying style, and payload. With the recommended batteries, you can expect a flight time of approximately 3-6 minutes, depending on your setup.
Q3: Can I mount a different camera on the Crown HD Cinewhoop?
A3: While the drone comes with the Caddx Nebula Nano V2 camera, it may be possible to mount a different camera if it is compatible with the frame and flight controller. Ensure that the camera dimensions and mounting options align with the drone’s specifications.
Q4: Is the Crown HD Cinewhoop suitable for beginners?
A4: The Crown HD Cinewhoop is more suitable for experienced pilots or those familiar with flying FPV drones. Its powerful performance and advanced features require some level of expertise to operate effectively.
Q5: Does the Crown HD Cinewhoop support GPS or obstacle avoidance?
A5: No, the Crown HD Cinewhoop does not have built-in GPS or obstacle avoidance capabilities. It is primarily designed for agile flight and capturing HD footage, rather than autonomous features.
Conclusion:
The GEPRC Crown HD Cinewhoop FPV Drone is a remarkable aerial platform for capturing high-definition footage and engaging in freestyle flying. With its sturdy carbon fiber frame, powerful motors, and advanced components, it offers a thrilling and immersive FPV experience. The parameters, advantages, selection criteria, operation manual, and frequently asked questions covered in this review article provide a comprehensive overview of the Crown HD
Cinewhoop’s capabilities. Whether you’re a professional cinematographer or an FPV enthusiast, the GEPRC Crown HD Cinewhoop is a compelling choice for cinematic aerial adventures.
