Description

Futaba PS-14 Micro Digital Air Servo. Constructed using high quality components the PS-14 micro servo is ideal for aileron control on small electric powered aircraft. Weighing in at only 10g this is an excellent servo option for your next micro aircraft build.

Specifications:

• Dimensions: 23×12×27.3mm
• Weight: 10g
• Speed: 0.10s/60°
• Torque: 2.0 kg/cm @ 6v

Includes:

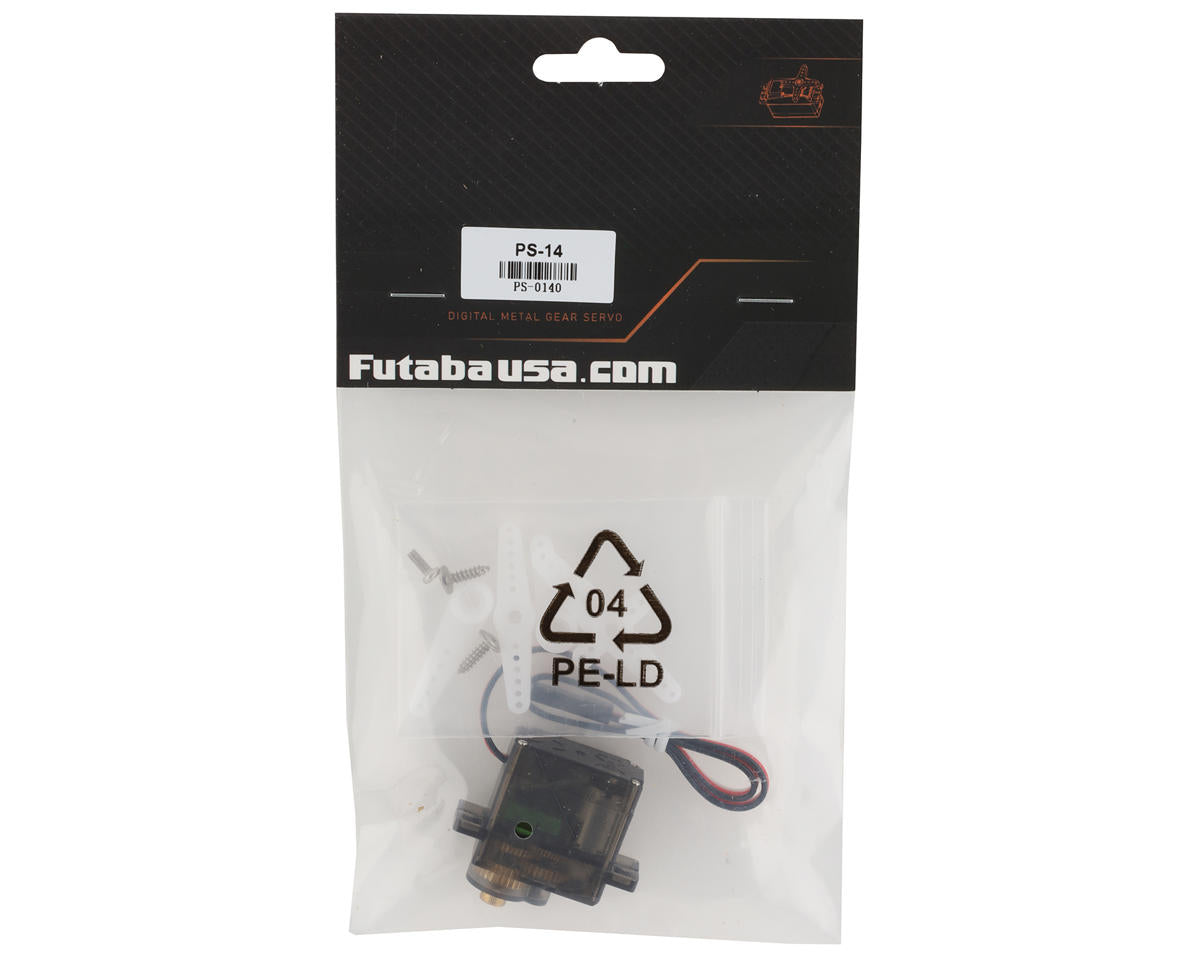

• (1) PS-14 Micro Digital Air Servo

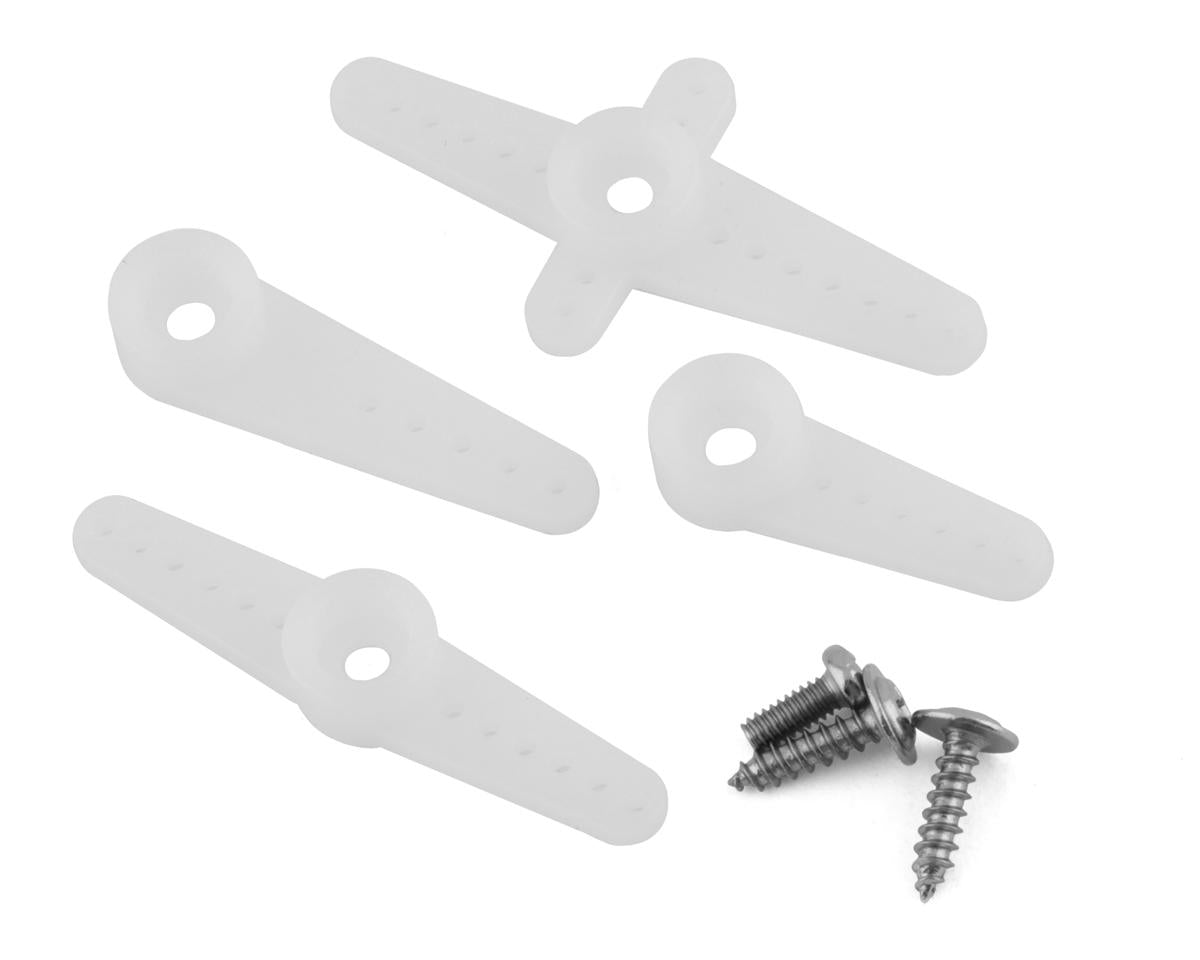

• Assorted Servo Horns
• Mounting Hardware

PS-14 – Micro Digital Air Servo

For Small Electric Powered Models (PS-0140)

SPEED: 0.10sec/60° at 4.8V

TORQUE: 2.0kgf·cm at 6V

SIZE:  23 × 12 × 27.3mm

WEIGHT: 10g

Accessory pack w/included servo horns not shown.

The PS-14 servo is a micro servo for profile series models. Pay special attention to the following points:

• Do not use with gas powered engine models or other models that require high torque.
• Using supply voltage higher than 6.0V or applying high loads to the servo will shorten the life.
• Always use the servo horn specifically designed for this micro servo. Do not use conventional servo horns.
• Excessive force or shock to the servo horn may damage the ultra mini precision gears inside the servo.
