| Compatibility | Fit FatShark HD Series directly, 3D STL case file (download part) is provided for attitude series |
| Appearance | OLED Screen |
| 5 Way Button | |
| Micro USB | |
| 1504 Fan(Made in TanWan) | |
| Menu | Channel |
| Favorites | |
| Finder | |
| Band Scan | |
| Setting | |
| Frequency | 72CH |
| RF Sensitivity | -98dBm |
| Update | Firmware Update Via USB |
| Consumption | 400mA±10%@5V |
| Input Voltage | 5~16V |
| Language | ENGLISH |
| Working Humidity | 20~80% |
| Storage Temperature | -20°~70°C |
| Weight | 30g |
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |

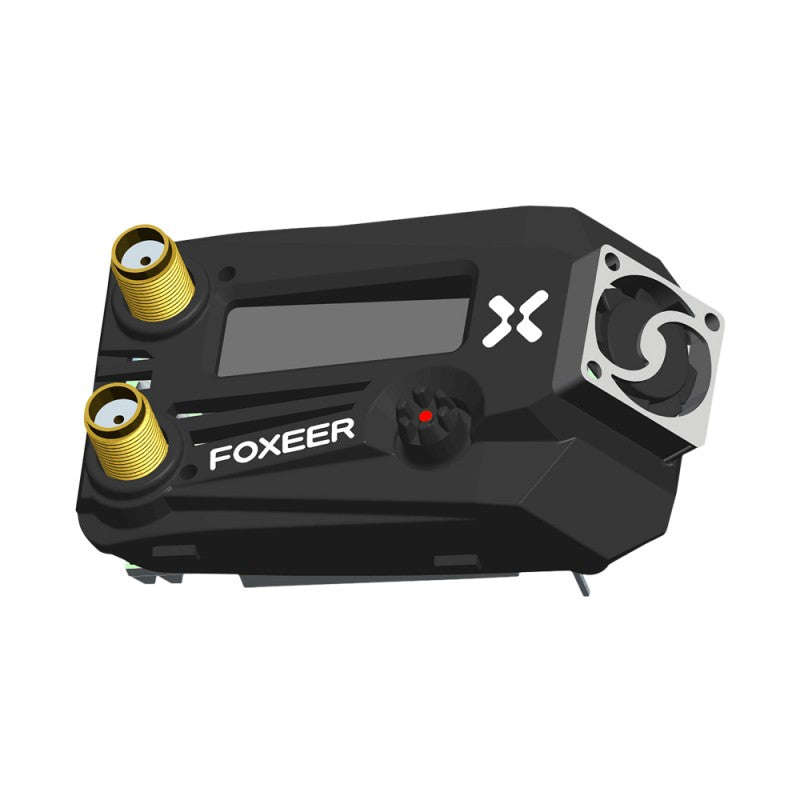

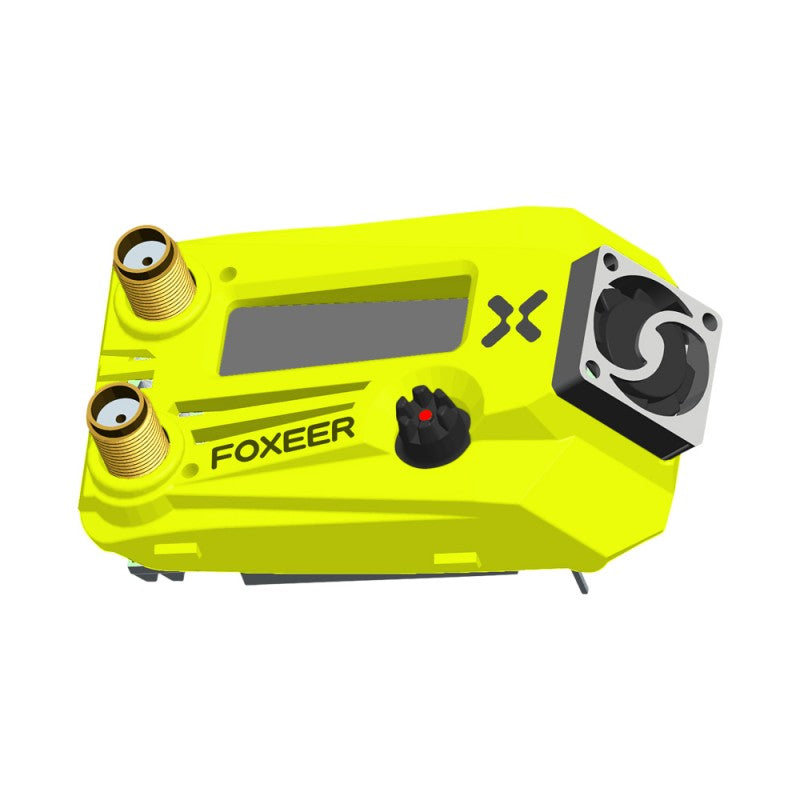

WILDFIRE Goggle Module High Performance MCU performs well with small size and Iow consumption: FOXE
Foxeer WildFire uses the latest OLED screen technology to improve the FPV feed even in multi-path environments . 5-Way Button 516V Anti-rolling shutter technology avoids the unsync picture by 1504 Fan (made by Taiwan) changing to standard diversity receiver under alow RSSI value .
