SPECIFICATIONS
Brand Name: Feetech
Origin: Mainland China
Material: Metal
RC Parts & Accs: Servos
Size: 40X20X40.5mm
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Arm
Remote Control Peripherals/Devices: Servos
Tool Supplies: Sticker
Quantity: 1 pcs
Technical parameters: Value 2
Model Number: DS3115MG
Four-wheel Drive Attributes: Motors
Wheelbase: Screws
Features
Fast Heat Dissipation, High Torque, Strong Compatibility And Sensitive Response
High Performance Programmable Digital Standard Steering Gear Can Be Widely Used In Robots, Mechanical Arms, Remote Control Toys.
Product Details
Maximum PW: 500-2500μs
Dead Zone: 3μs
Working Voltage: DC 4.8-7.2V
Operating Speed: (4.8V) 0.16 sec/60°
Operating Speed: (6.8V) 0.14 sec/60°
Operating Speed: (7.2V) 0.13 sec/60°
Stall Torque: (4.8V) 13.5 kg.cm
Stall Torque: (6.8V) 15 kg.cm
Stall Torque: (7.2V) 17 kg.cm

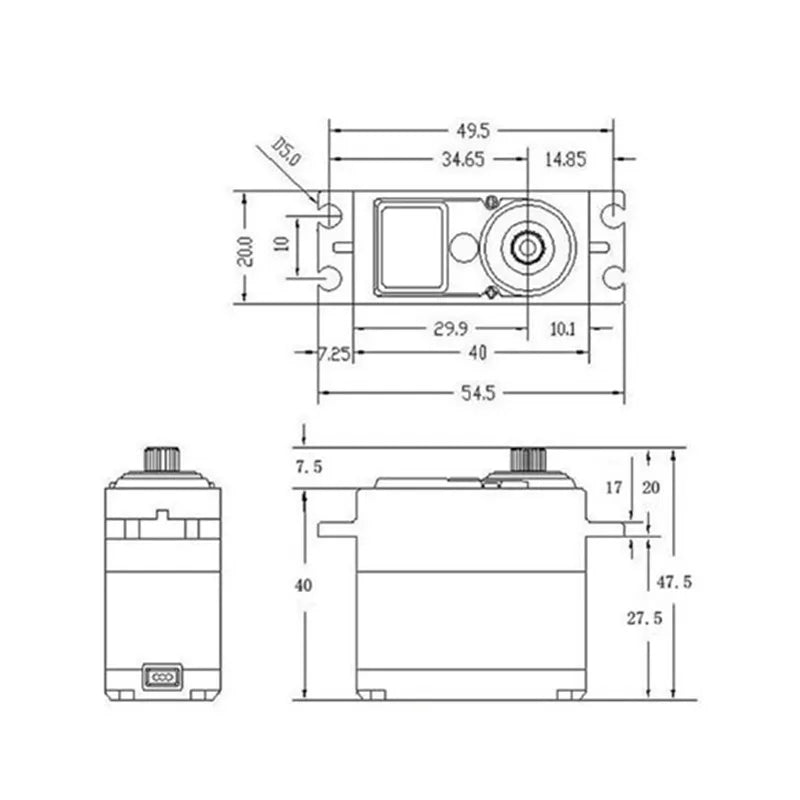

Dimensions: 40X20X40.5mm
Motor Type: DC Motor

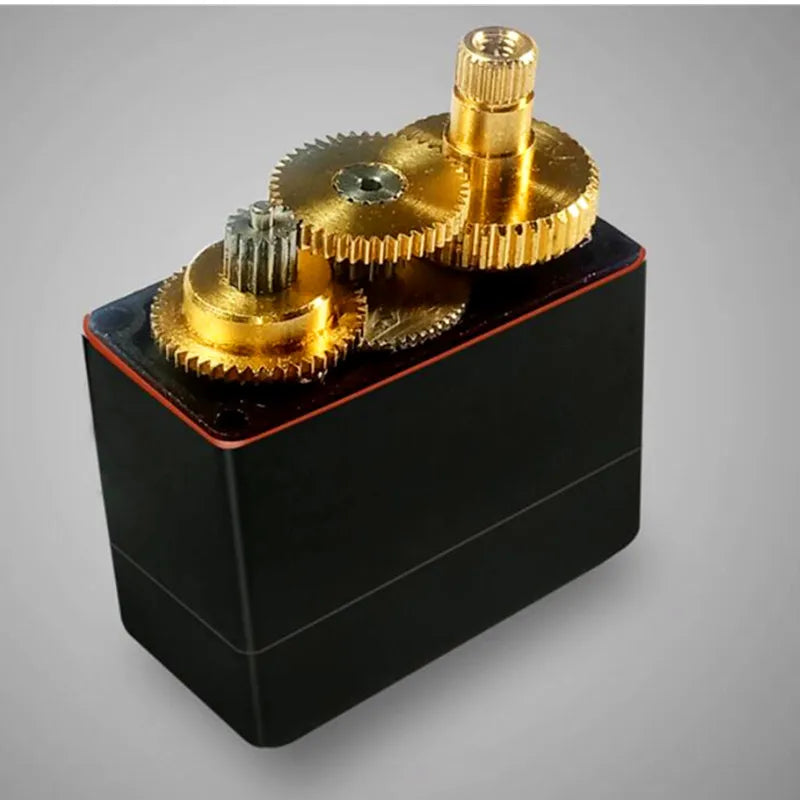

Gear Type: Metal Gear
Line Length: 30cm
Weight: 65g
Gear: 25T
Item Packing

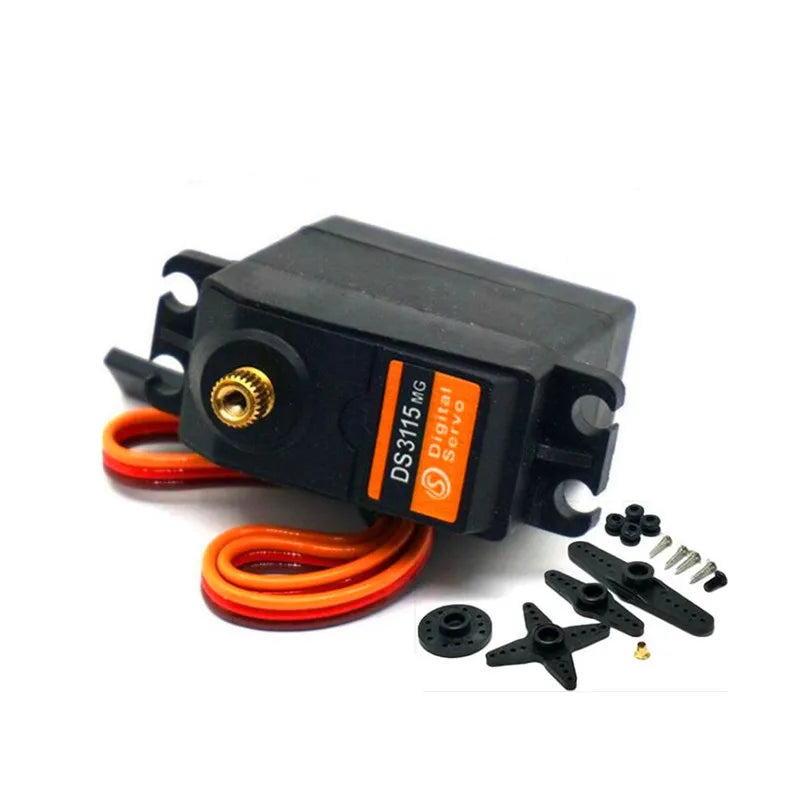

DS3115MG 270° 15KG Digital Servo
Accessory Package x 1
