Package Included: (Send it as your choice, as the option shown)
1 x F4 / F4 V3S Plus Flight Controller board
1 x 30A / 35A 4 In 1 ESC
F4 V3S Plus Flight controller:
Item name: F4 V3 PLUS Flight Controller
Firmware: OMNIBUSF4SD
Size: 36x36mm
Mounting holes: 30.5×30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
BMI270 6 axis SPI gyro & accelerometer
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
5v3a 9V3A BEC
On-board video filters (only 5V to VTX and camera)
Boasting a F4 processor, on-board Betaflight OSD, MicroSD Black Box, 5v3a sbec, video filter, you’ll be tuning pids with your transmitter and
Tear it to the track in no time!
Note:
1. The F4 V3S Plus Flight Controller only support Betaflight software, and we do not suggest to adjust the parameters.
2. There are two kinds of flight controller board, we will ship it at random.
Aocoda-RC F4 Flight Controller :
Name: Aocoda-RC F4 special flight controller for Jingsu Huafei
Main control chip: STM32F405RGT6
MPU: MPU6500
Character overlay: AT7456E
Black box: integrated 16M Flash
Barometer: BMP280
Serial port: 4 optional
Motor output: 8 channels optional
LED strip: support
Buzzer: support
Input voltage: 3-6S Lipo
Power output: 5V/2A, 9V/2A
Weight: 6.0g
Size: 36x36mm, mounting hole 30.5mm
Firmware: AOCODAF405
Note: About the shock absorbing balls, there are red, purple or black color in stock, we will send it at random.
F4 Pro V2 Description:
This is the all new F4 Pro, based on the design of the popular F3 pro. However this main advantage of this board is that is uses the more powerful STM F4 processor for even faster loop times. It has all the other things you love from the Omnibus F3 pro including an OSD module, SD card reader, low noise IC268G IMU connected via SPI, a current and voltage sensor etc..
The V2 Pro version now includes a built in BEC , so you can power this board directly from your flight battery (up to 4s)
Specification:
SPI Gyro IC268G
On-Board OSD (controllered by Betaflight, FC over SPI bus)
MicroSD Blackbox
Baro (BMP280) (default is closed,need to open in configuration,if not know how to open, contact with us)
F4 Processor (F405)
5v3a SBEC
Built-in Current Sensor
On-Board Video Filter (only can supply 5V to VTX and Camera)
USING PPM
If you have trouble geting the FC to recognise your PPM receiver, here is what you need to do. You need to enable RX_serial in the GUI and turn UART3 on. Save and reboot the flight controller. Then re-selecting RX_PPM again on the GUY and the FC now communicates with your PPM receiver

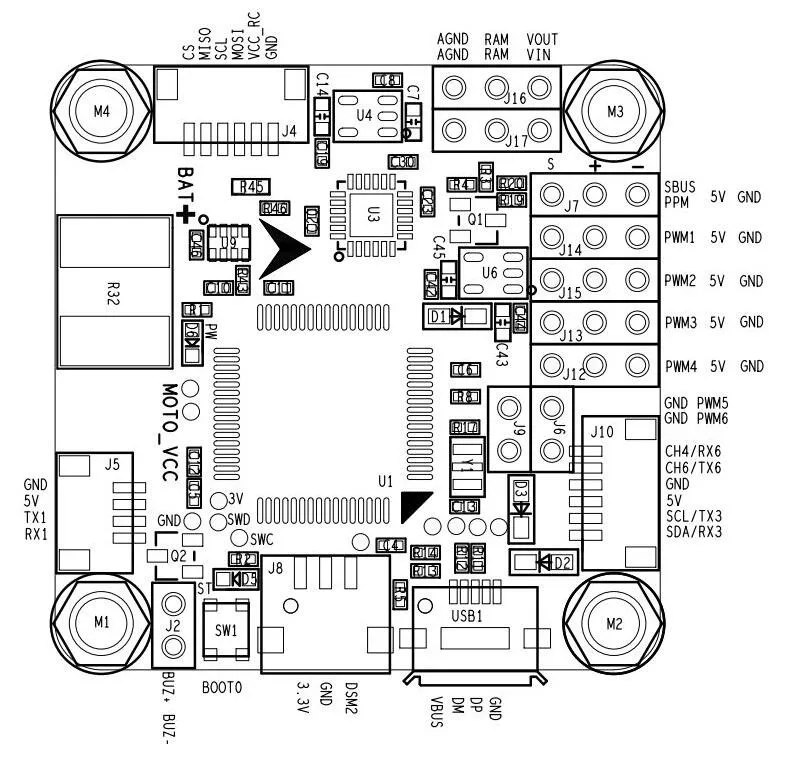

F4 Pro Pinout:
35A BLheli_S 2-6S 4 in 1 ESC:
Con. Current: 35A
Peak- Current(10s): 40A
LBEC: NO
SBEC:NO
Lipo: 2-6S
Programming: YES
Weight:about 13g
Size(PCB): 36x36mm
Hole size: 30.5×30.5mm
Features:
-BB21 MCU, 48Mhz Runs BLHELI_S J_H_xx firmware
-Supports 2-6S Lipo input
-4PWM input
-Built-in Current sensor
-Only 36x36mm, mount holes 30.5×30.5mm M3
-No External capacitors needed
-Dshot600 ready(Default) Support PWM/ONESHOT/MULTISHOT/DSHOT
4in1 30A BLHeli_S ESC:
Con. current: 30A
Peak current (10s): 35A
Input voltage: 2-6 S
BEC: 5V output
Programming: YES
Firmware: blheli_s
Weight: 9g
Size: 36 * 36 MM
