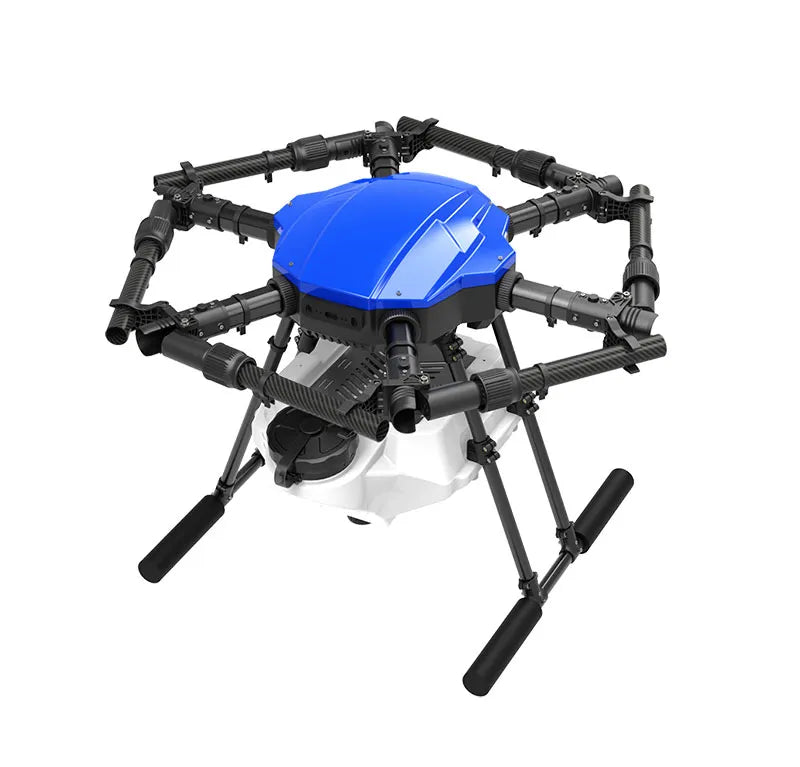

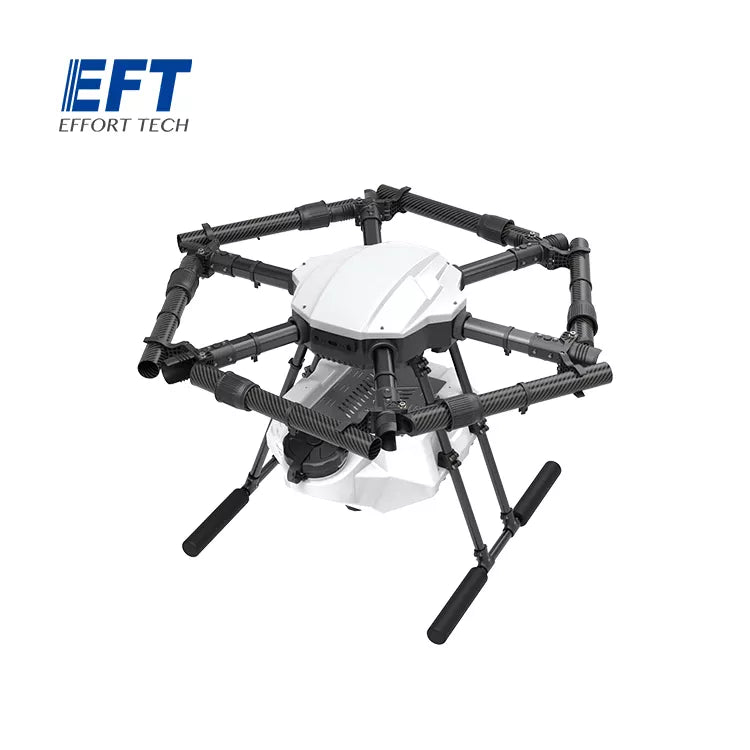

EFT E616P 16L 6-Axis Agriculture Drone Parameters
|

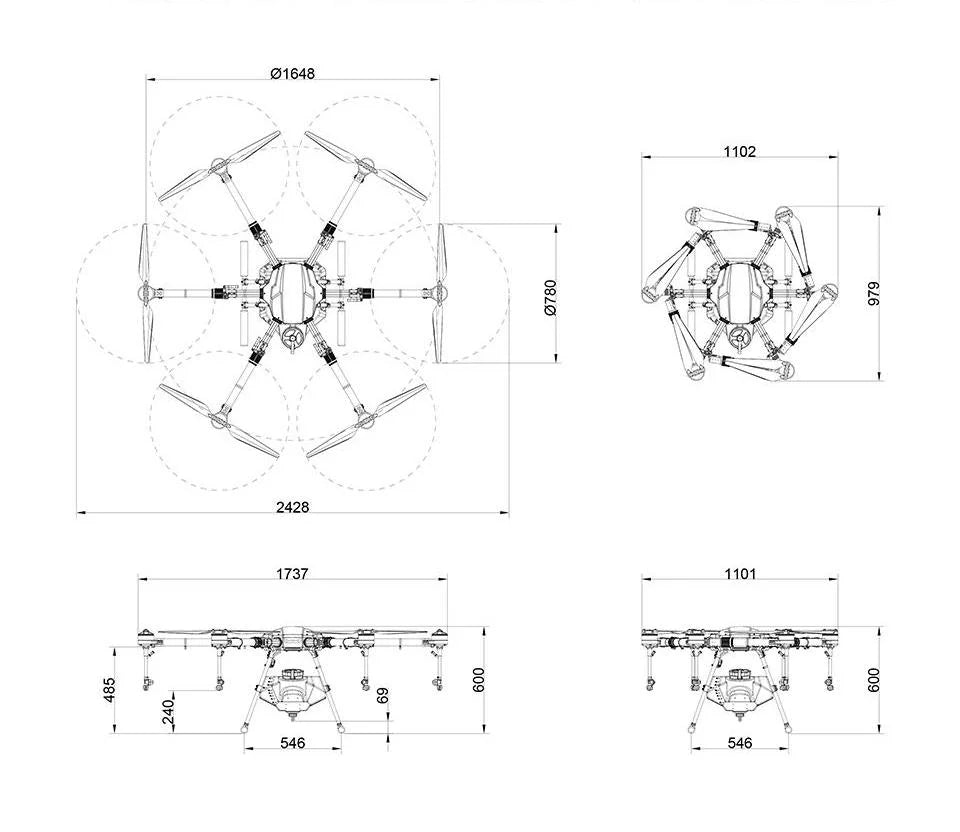

Wheelbase
|
1648mm
|
|
Tank capacity
|
16L
|
|
Frame weight
|
7.5KG
|
|
Full load weight
|
35KG
|
|
Recommended motor
|
X8 + 30INCH propeller
|
|
Expand size
|
2428*2428*600mm
|
|
Folded size
|

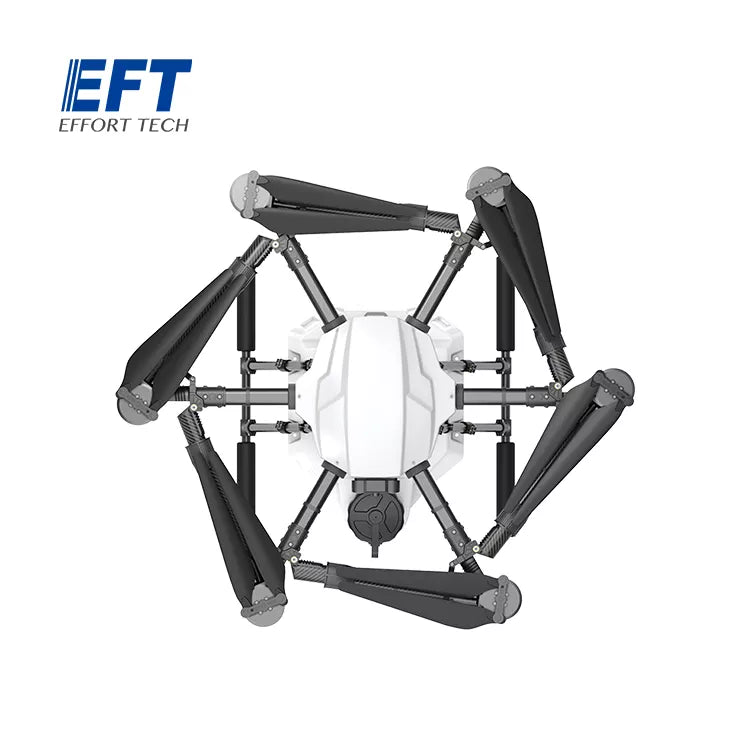

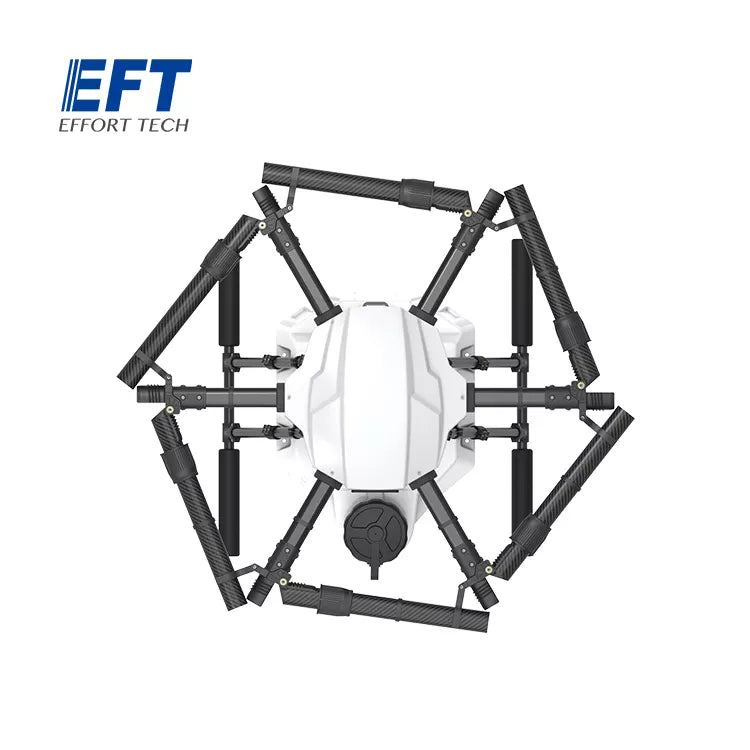

1102*970*600 mm
|
|
No Load
|
21 minutes and 30 seconds
|
|
Fully Load
|
9 minutes and 10 seconds
|
Package Included:
EFT E616P 6 Axis 16L Agriculture Drone frame x 1
16L water tank x 1
Other components can be freely selected, please contact our staff：
Hobbywing X8 propulsion System for drones x 6 (3CW+3CCW)
JIYI K3A pro Flight Controller x 1(or JIYI K++ flight controller x1)
Skydroid T12 Remote Controller x 1
Camera x1
Accessories Bag x 1
Flow meter x1
EFT E616P 16L 6-Axis Agriculture Drone Details

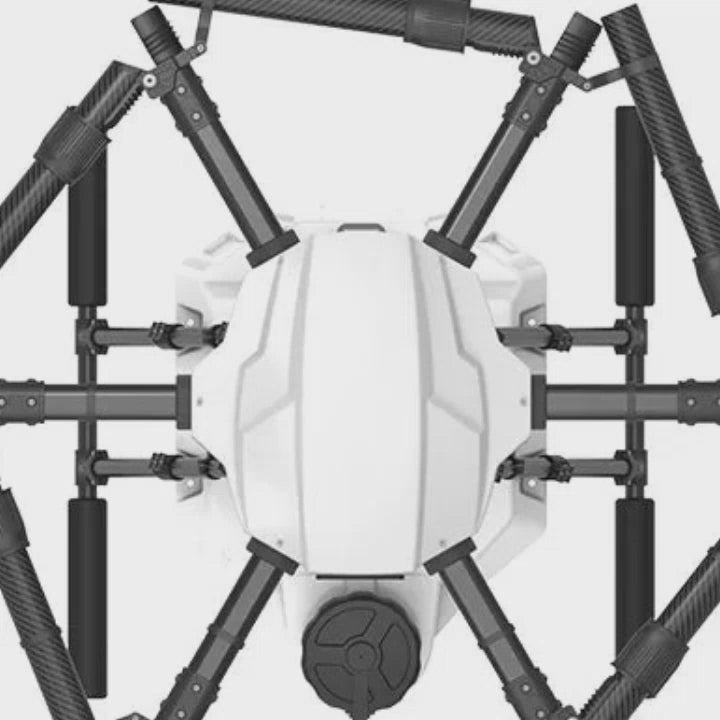

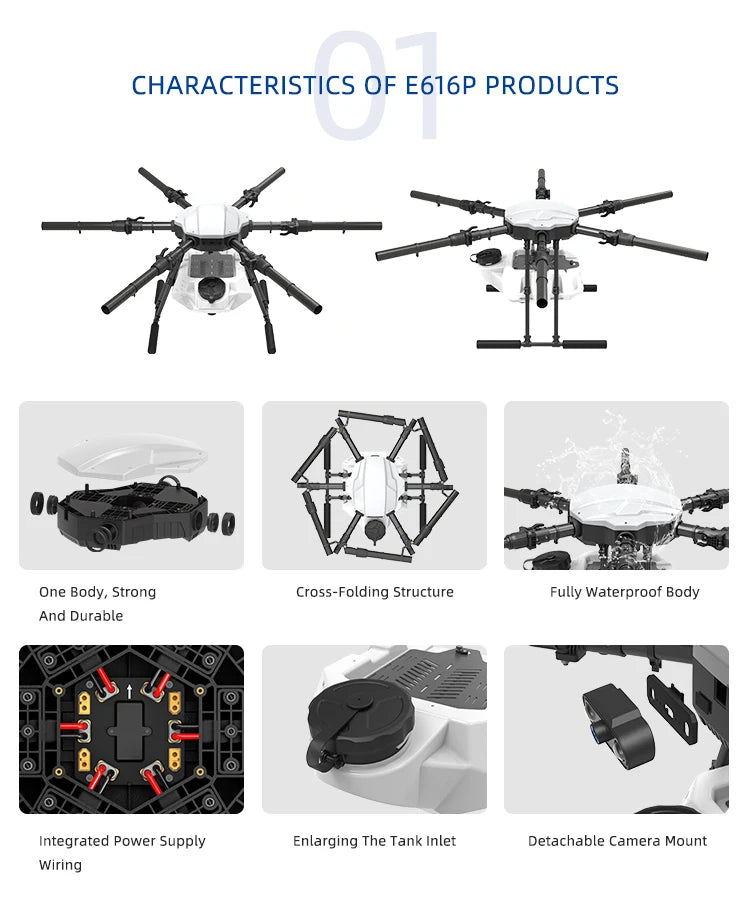

The E616P product features a robust, single-body design with a strong cross-folding structure that ensures a fully waterproof construction. Additionally, it includes an integrated 8-channel power supply, which allows for expansion of the tank inlet. The drone also comes equipped with a detachable camera mount and wiring.
The package dimensions for this product are 71mm x 440mm x 210mm, and it includes main body accessories from Effort-Tech.com, featuring their 16L tank with EFT electronic components.
EFT E616P 16L 6-Axis Agriculture Drone Review

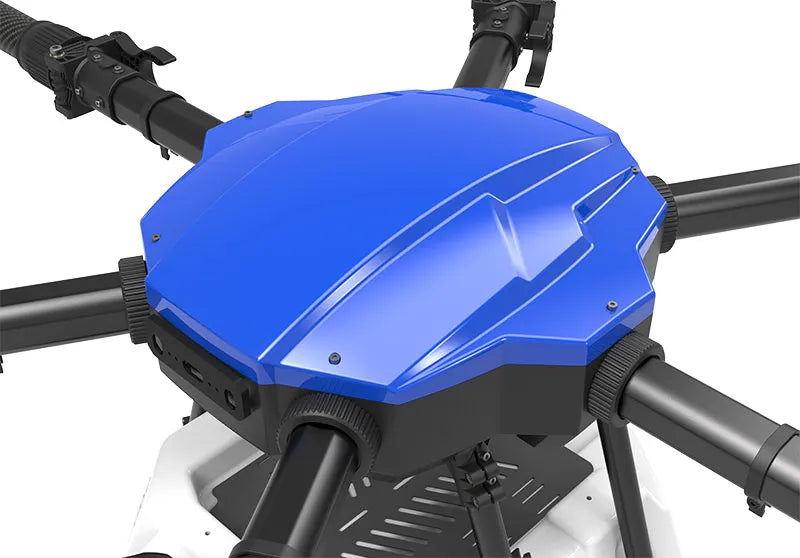

The E616P Series agriculture drones continues the classic design elements of the old E series. It adopts red and blue color matching, a streamlined body design, and the whole body is waterproof, without fear of high pressure washing. The new P series upgrade product adopts a new integrated molding process. Complex to simple, the fuselage is integrated from dozens of original parts into a whole, and the fuselage is made of high-strength and impact-resistant materials, which are strong and anti-fall.
The E616P Series agriculture drones continues the classic design elements of the old E series. It adopts red and blue color matching, a streamlined body design, and the whole body is waterproof, without fear of high pressure washing. The new P series upgrade product adopts a new integrated molding process. Complex to simple, the fuselage is integrated from dozens of original parts into a whole, and the fuselage is made of high-strength and impact-resistant materials, which are strong and anti-fall.

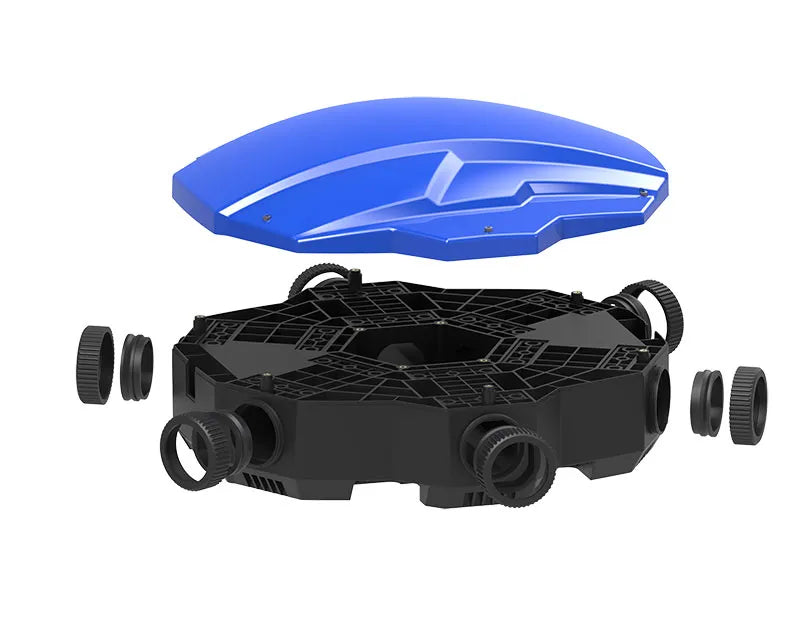

The force-bearing structure of the fuselage adopts a double fixing method of clamping and limiting at many key points, so that the entire fuselage will not cause structural displacement due to long-term use, and it also makes installation and positioning easier.

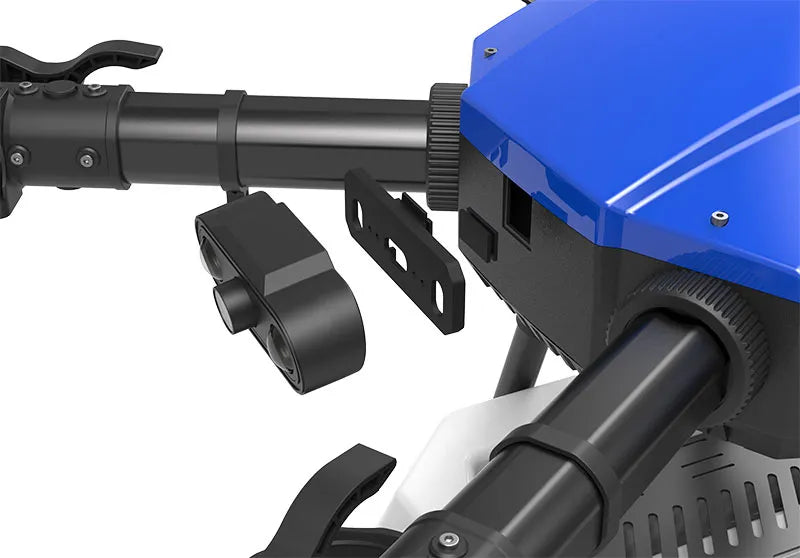

There reserved a detachable camera installation parts in front of the fuselage, which can be installed or closed according to own needs.

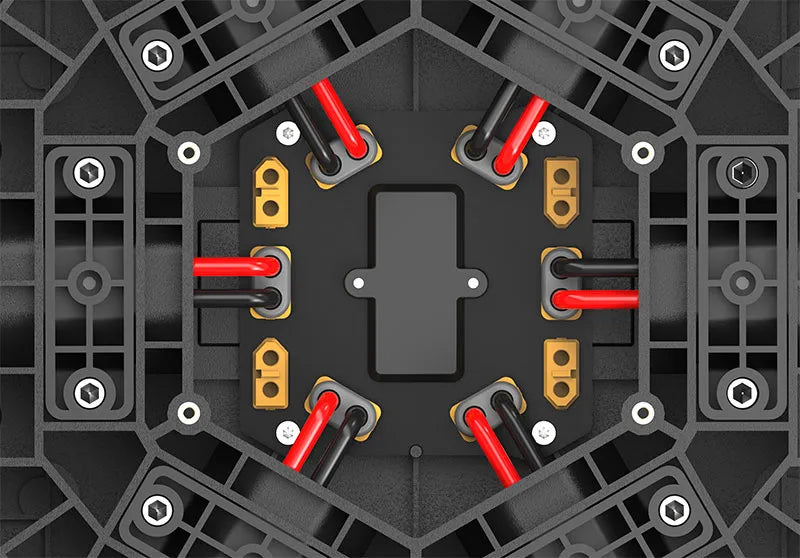

The power distribution board in the center of the fuselage integrates all power supply plugs to separate the power supply from the signal and minimize interference
Specifications:
Digonal Wheelbase: 1362mm
Folding Dimensions: 648x671x628mm
Unfolded Dimensions: 1844x1844x628mm
Arm Diameter: 40mm

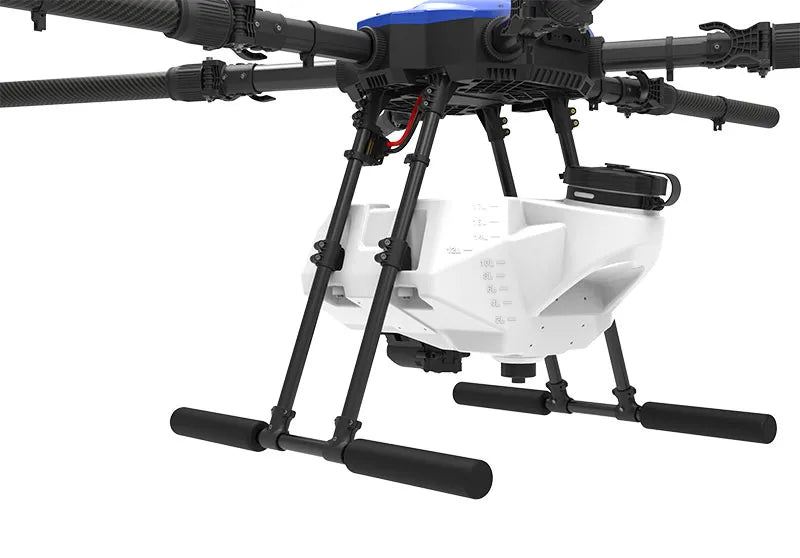

Payload: 16L
Frame Weight: 6.5kg
Frame with power equipement: about 15kg
Take off weight: 37kg
Power source: Battery
Power Connector: AS150U
Operation temperature:10~50℃
EFT E616P 16L Agriculture Drone Installation Guide Video
