Note: The transmitter module and antenna showed in the picture are not included in the package.

Specification:
Brand Name: Eachine

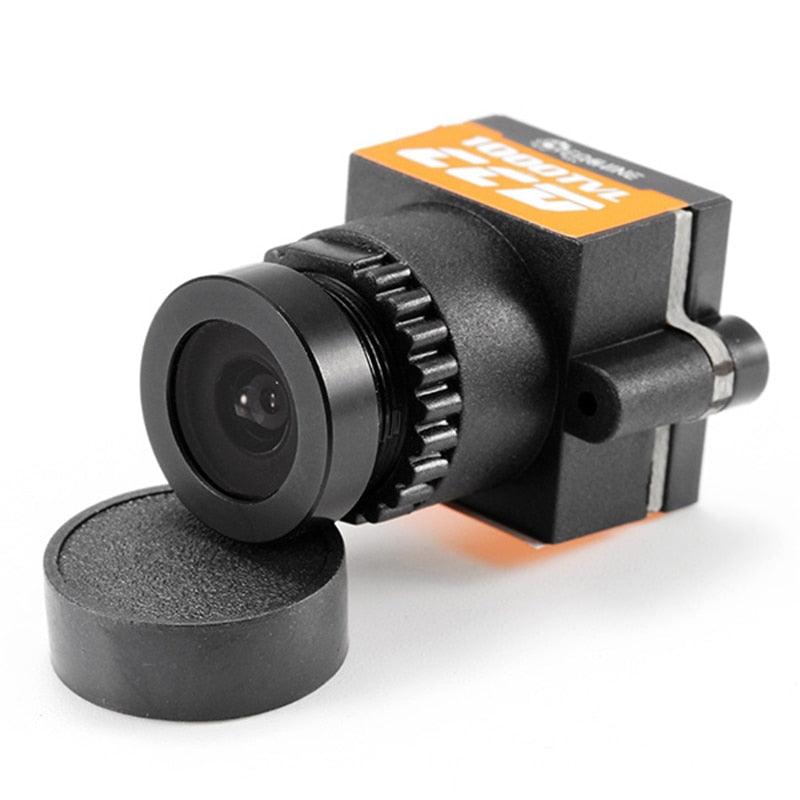

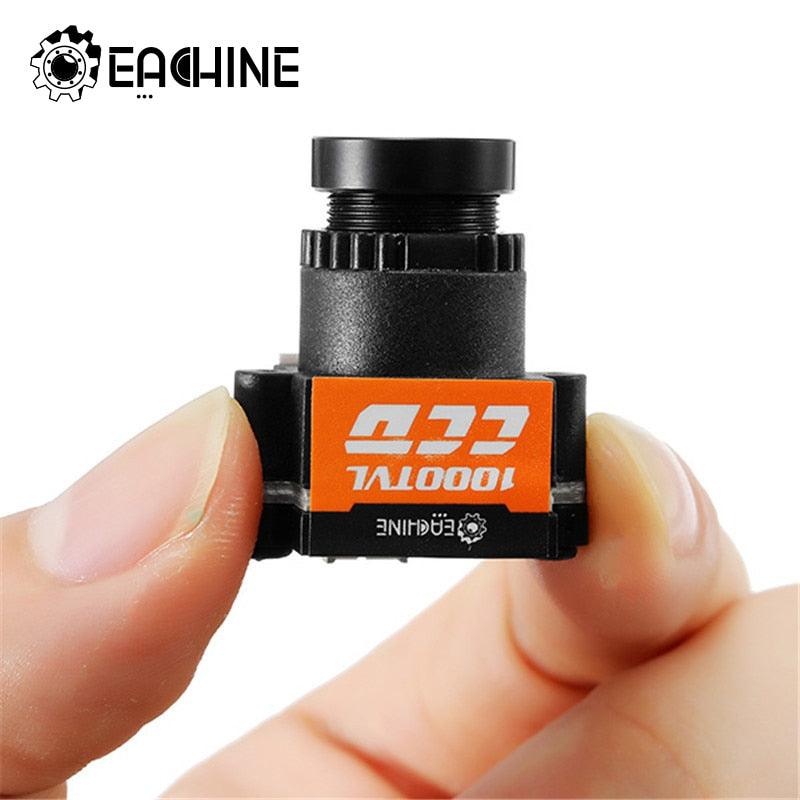

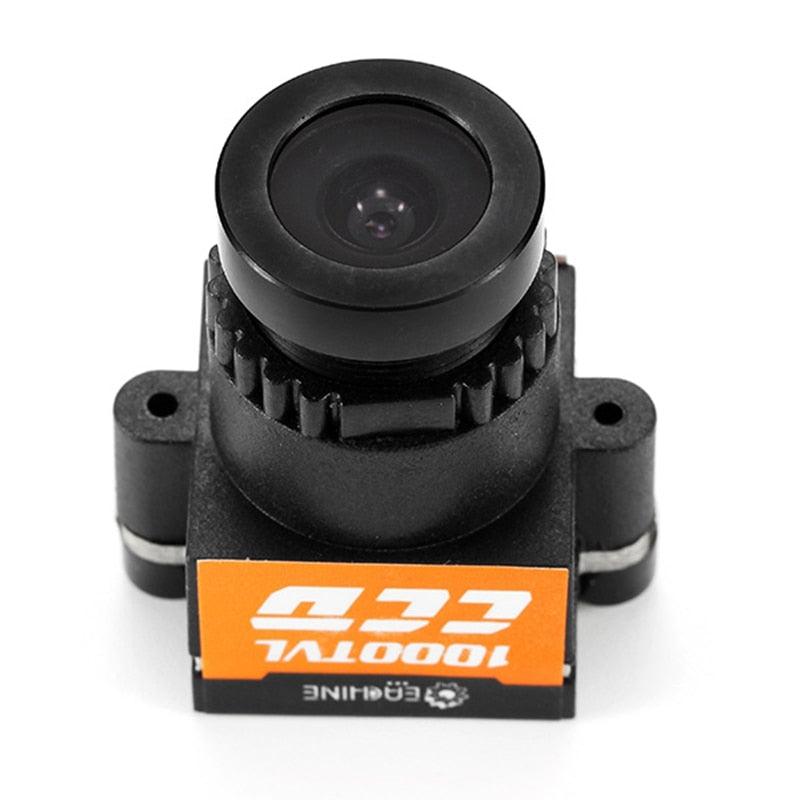

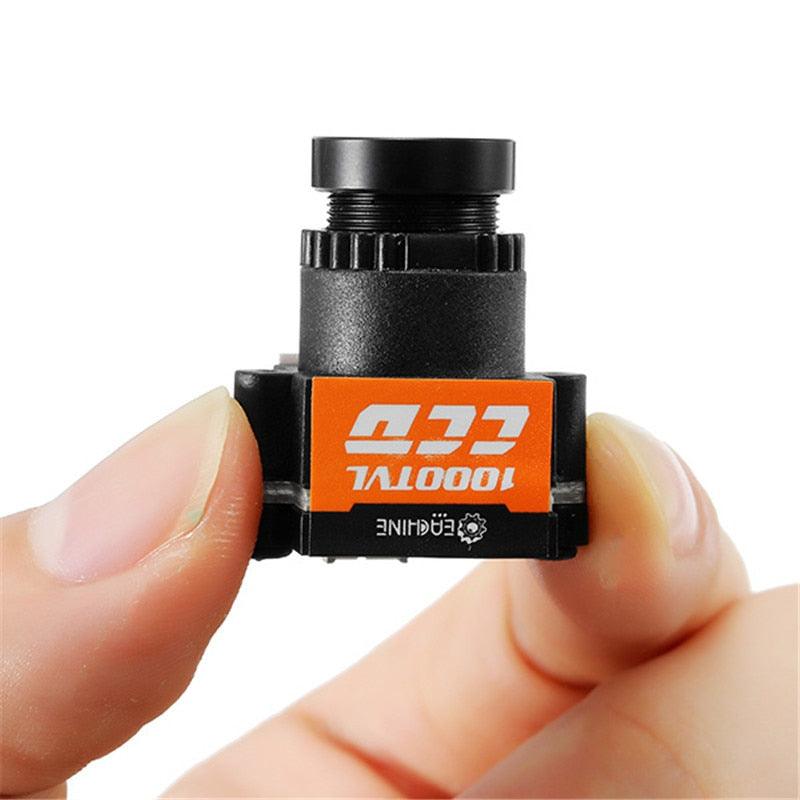

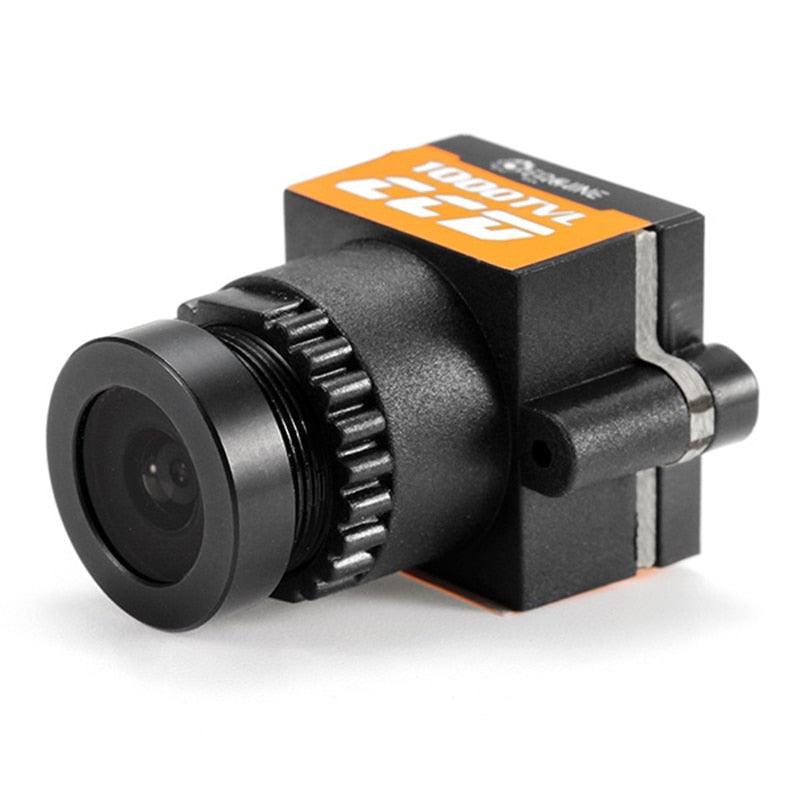

Item Name: Eachine 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Mini FPV Camera
Input Voltage: 5-20V
Power Consumption: 105mA-27mA
Lux: 0.08Lux/ F1.2
Sensor: 1/3 “CCD

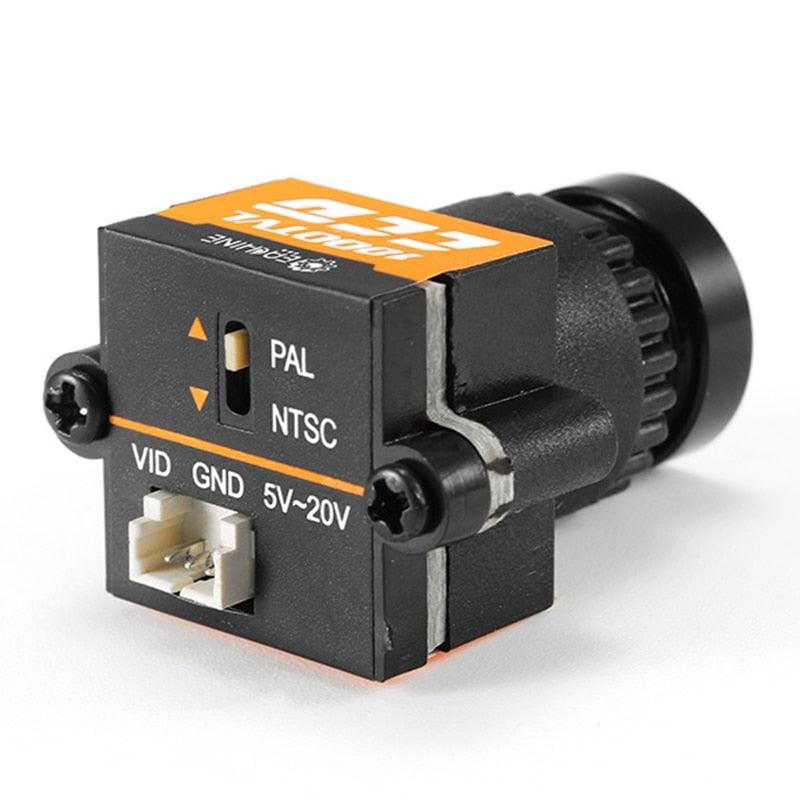

Format: NTSC/PAL(Free switch)
Resolution: Ultra High Definition 1000TVL
                       PAL: 976H X 582V
                       NTSC: 976H X 494V
Lens: 2.8mm IR coated
FOV: 110 °
Operating temperature: 0 to 40°C
Camera size: 28 * 24.5 * 17.5mm
Len Size: 17mm *14mm
Screw of Lens: M12
Net Weight: 10.4g ( not included the box and cable)

Features:
-With 1/3” CCD sensor
-With lens cover,well protecting the lens
-With WDR function in default
-Without OSD
-Super lightweight,ultra-low power consumption,suitable for RC multicopter

Package Included:
1x 1000TVL FPV Camera
1x Cable
1x Lens Cover
