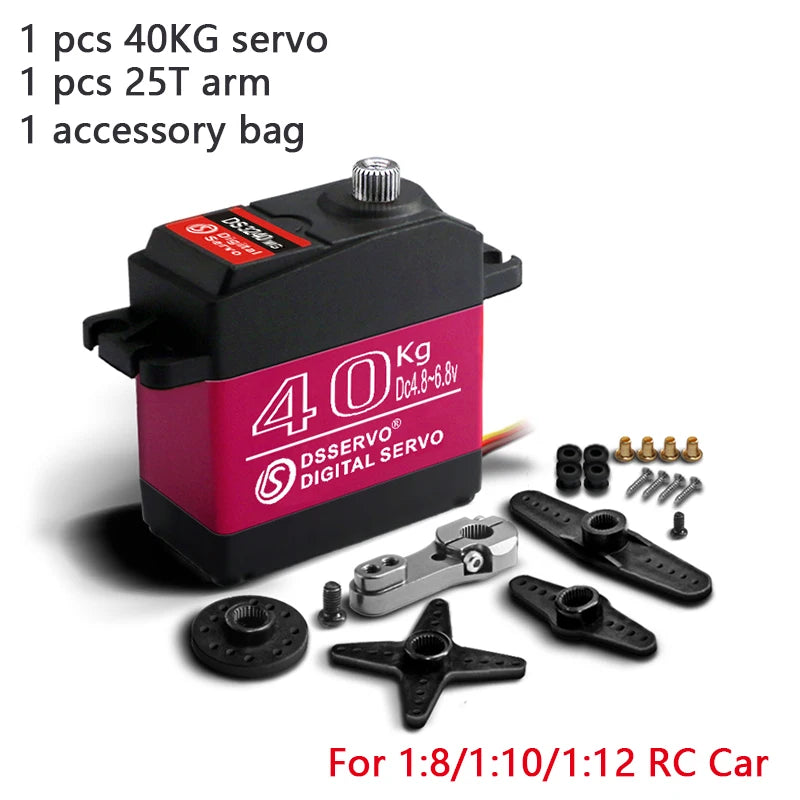

Brand: Dsservo Packing List:
1x digital servo

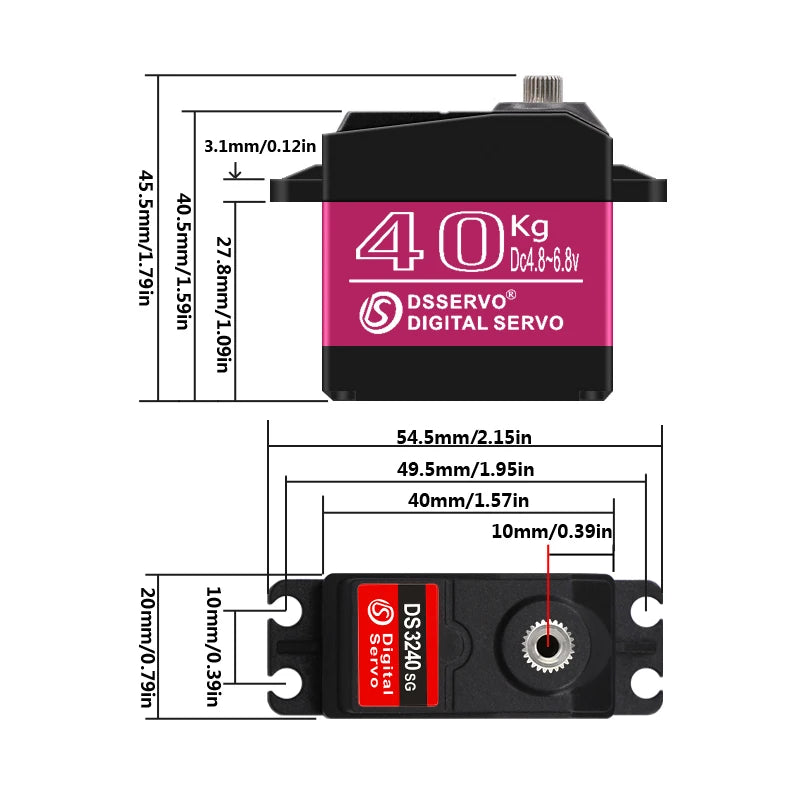

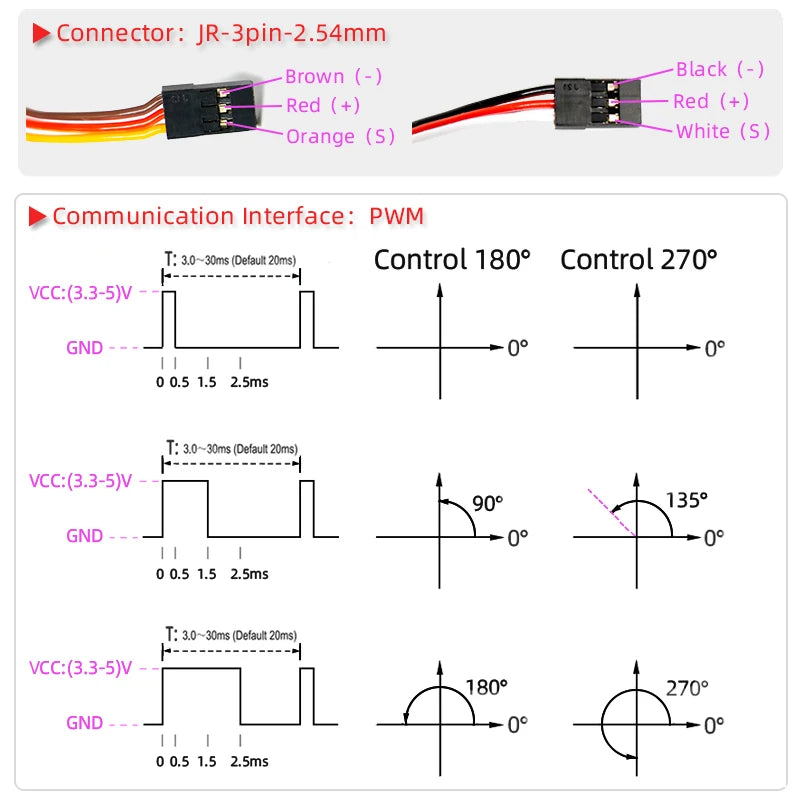

1x 25T adjustable metal servo arm Apply Environmental Conditon: 1.Storage Temperature Range:-30°C~80°C 2.Operating Temperature Range:-25°C~70°C Mechanical Specification: 1. Size: 40.0*20.5*40.5mm 2. Weight: 58g±2g 3. Limit angle: 360° 4.Bearing: 2BB 5.Horn gear spline: 25T Diameter:5.9mm 6.Case : Engineering plastics+Aluminum alloy 7.Connector wire: 320mm±5mm 8.Motor: Carbon brush motor Electrical Specification: 1.Working voltage range: 4.8 – 6.8V 2.Command signal: Pulse width modification 3.Amplifier type: Digital controller 4.Pulse width range: 500～2500usec 5.Neutral position: 1500usec 6.Running degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM500～2500usec) 7.Dead band width: 3 usec 8.Rotating direction Counterclockwise: (when 1000～2000usec)

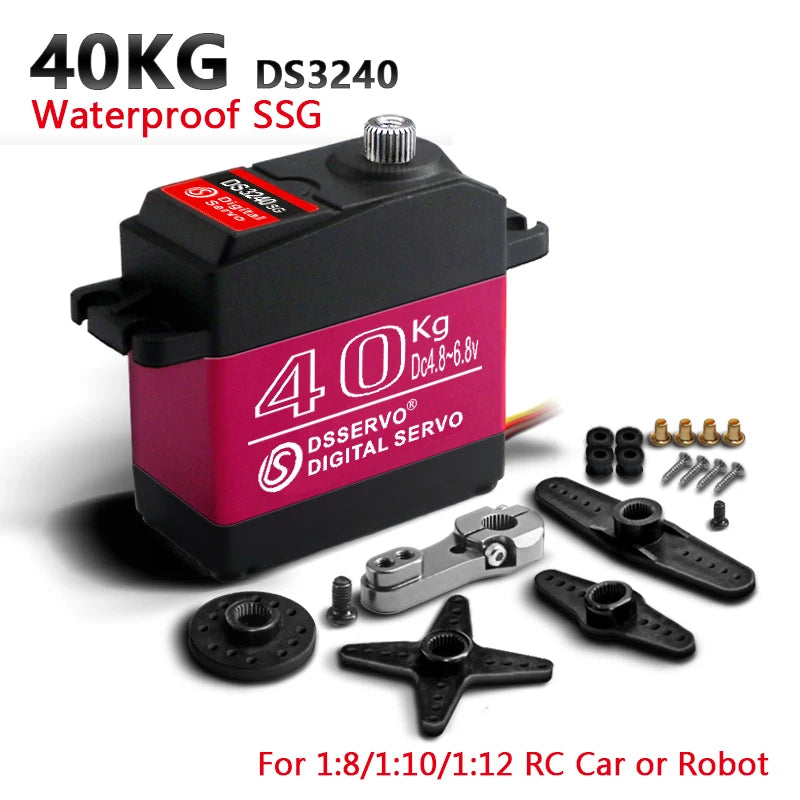

 40KG DS3240 Waterproof SSG 8) 3 Kg 6666 88 For 1.8/1.10/1.12 RC Car or Robot 251R: L2 40 “Dc48-68v DSSERVO” SERVO DIGITAL tt |
|
