Features:
1.High performance digital standard servo.
2.High-precision metal gears with hard anodizing.
3.CNC aluminium middle Shell.
4.Dual ball bearings .

Description:

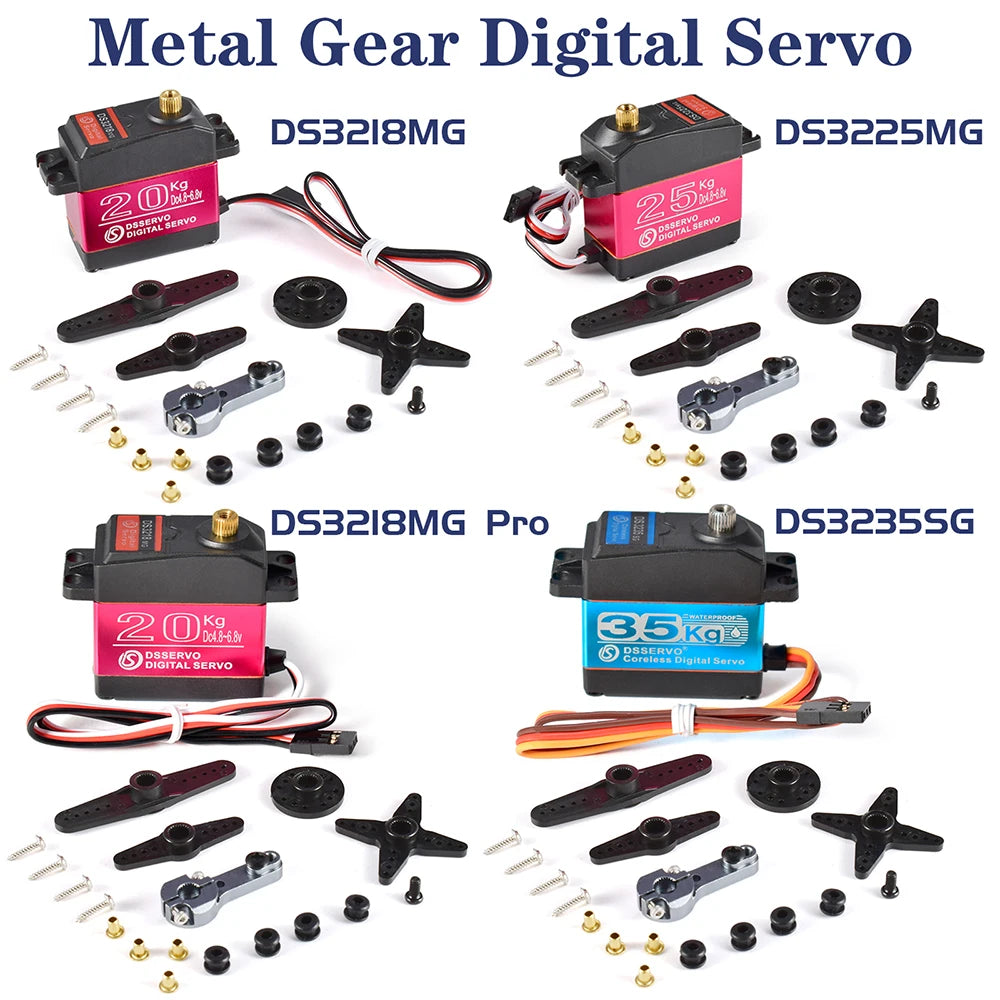

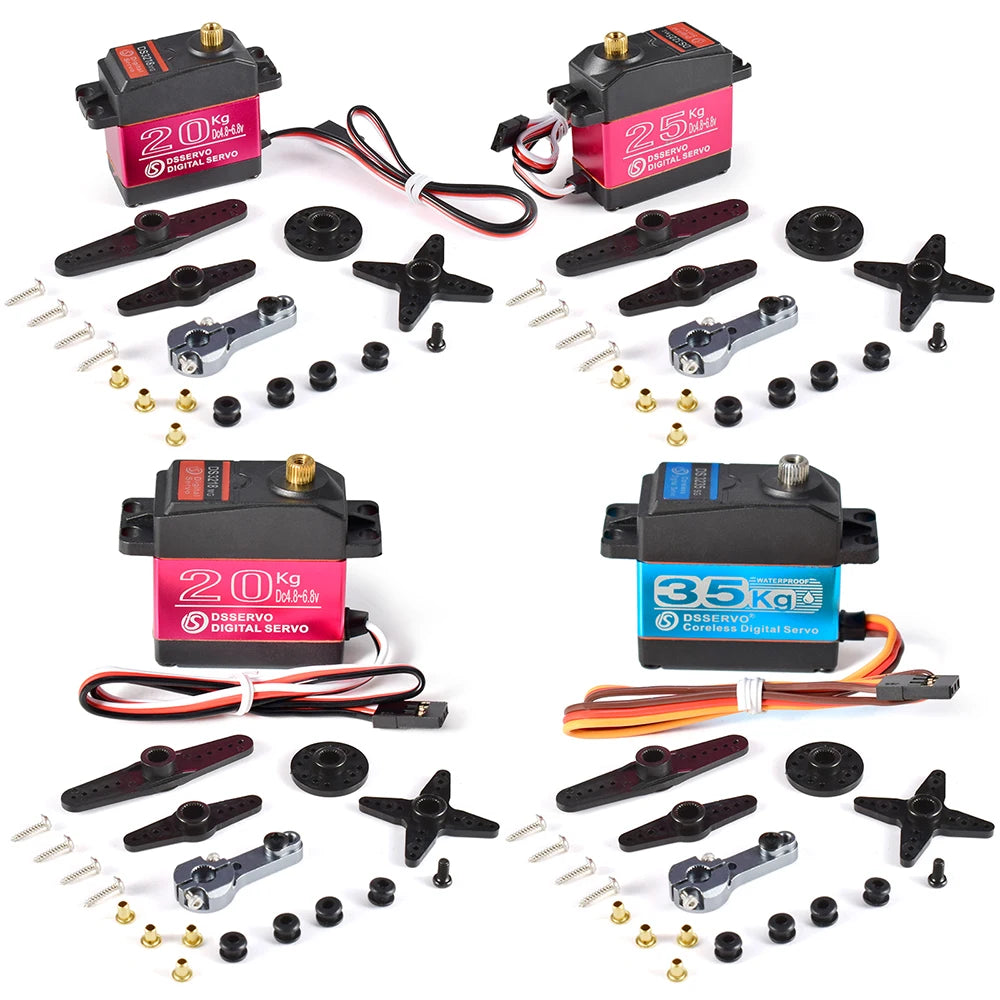

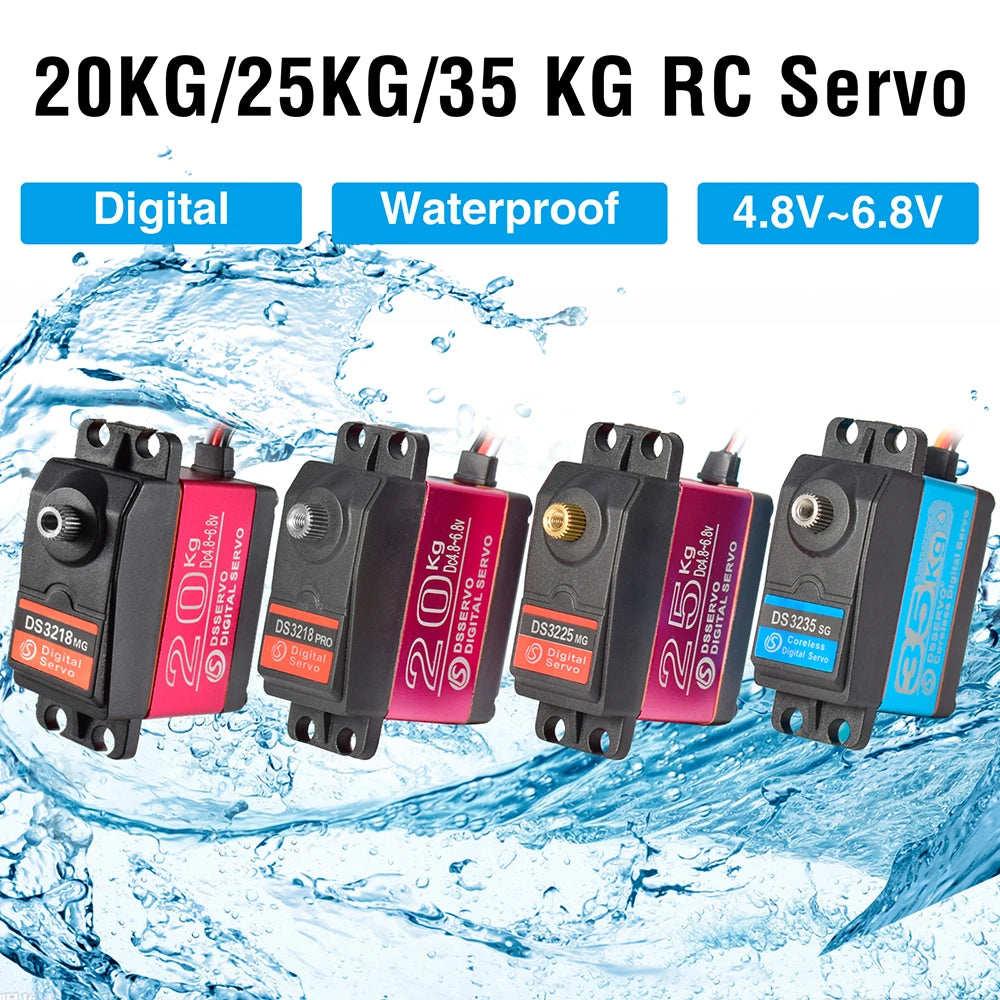

Dsservo Waterproof Servo DS3218 20KG DS3225 25KG DS3235 35KG 180/270 Degree Metal Gear Digital Servo for 1/8 1/10 1/12 RC Cars Robotic DIY.

Specifications:

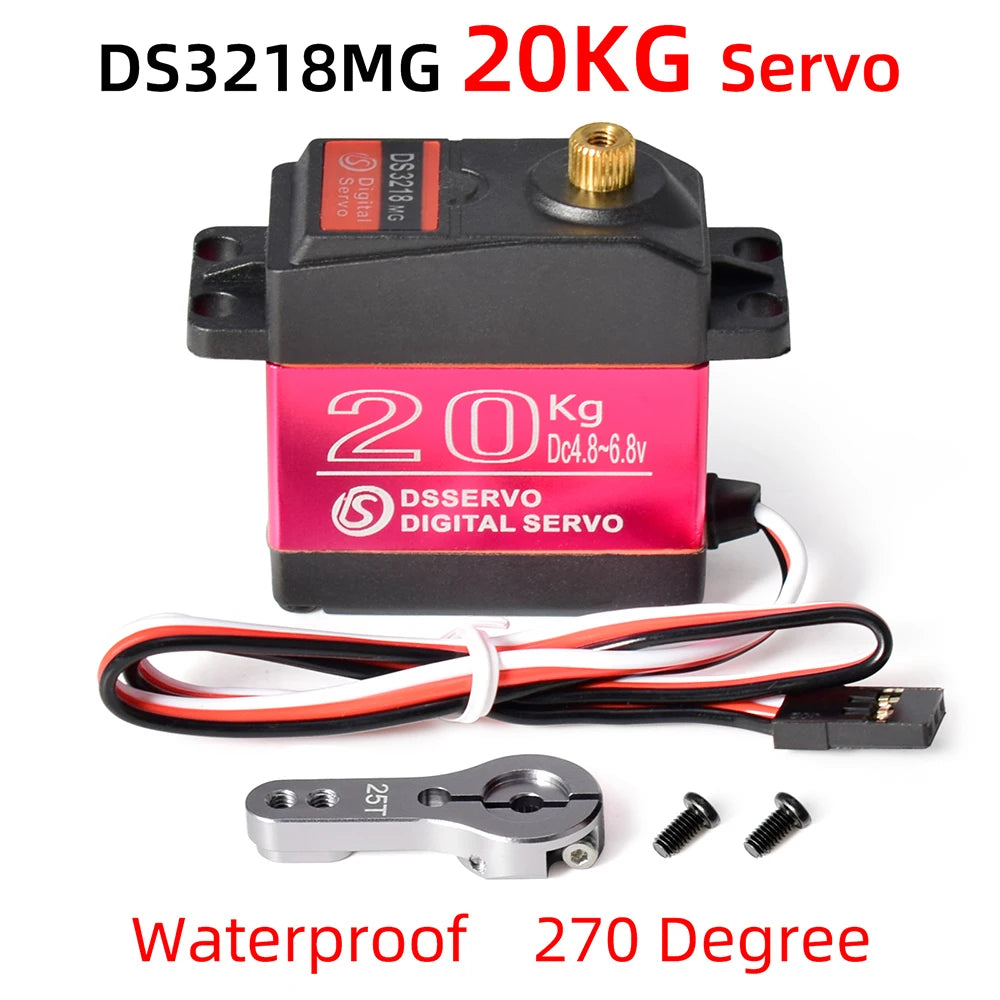

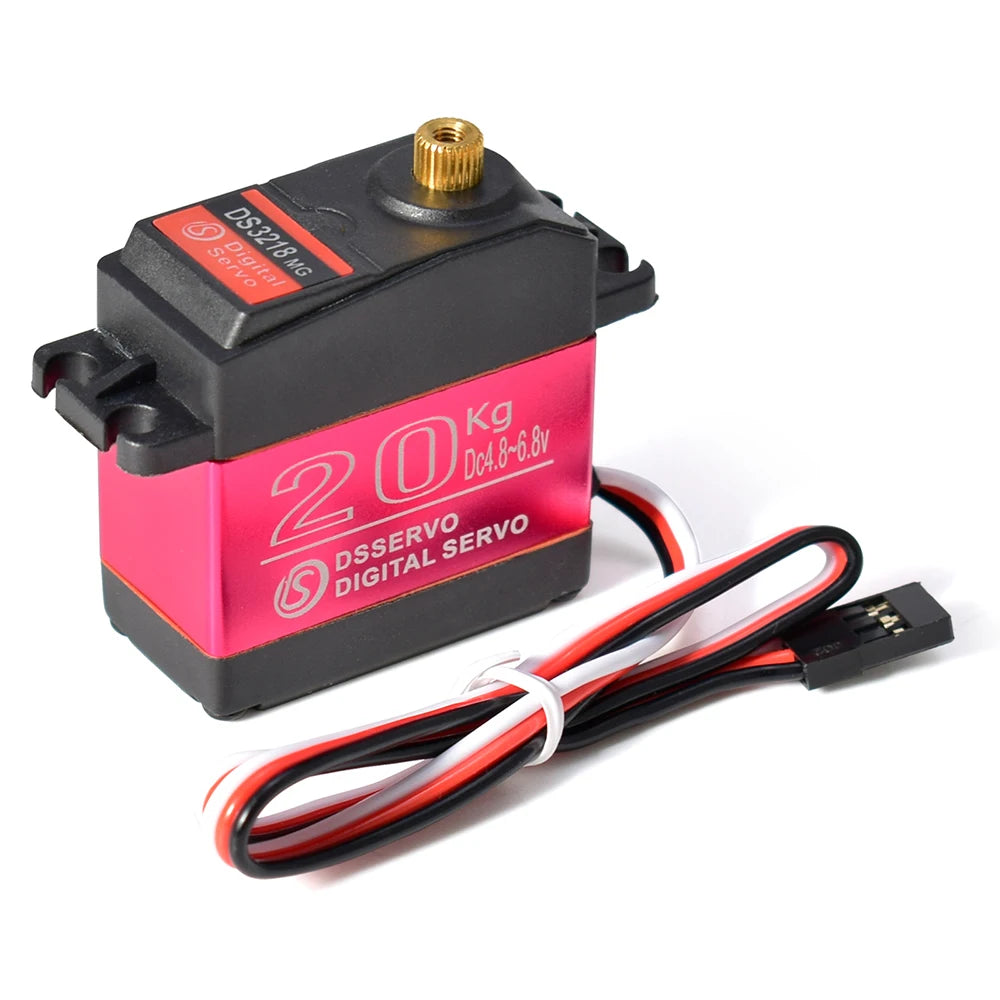

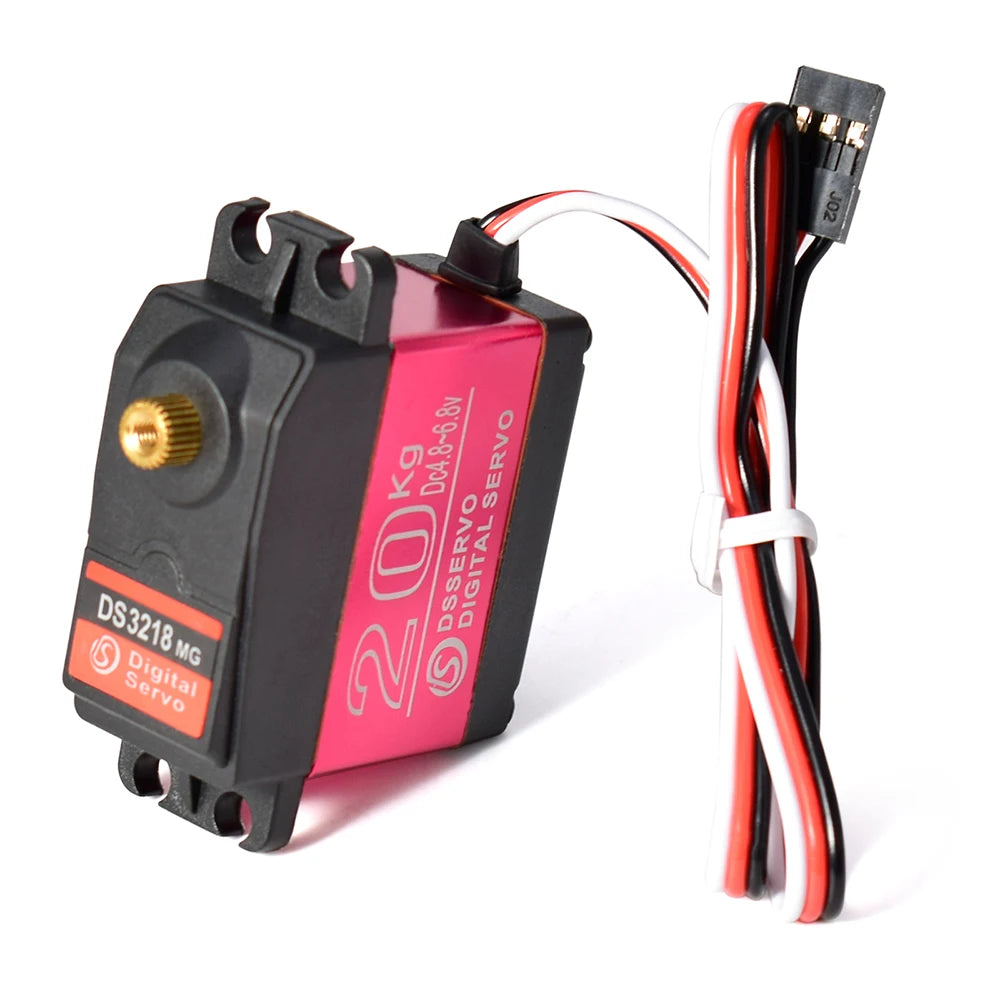

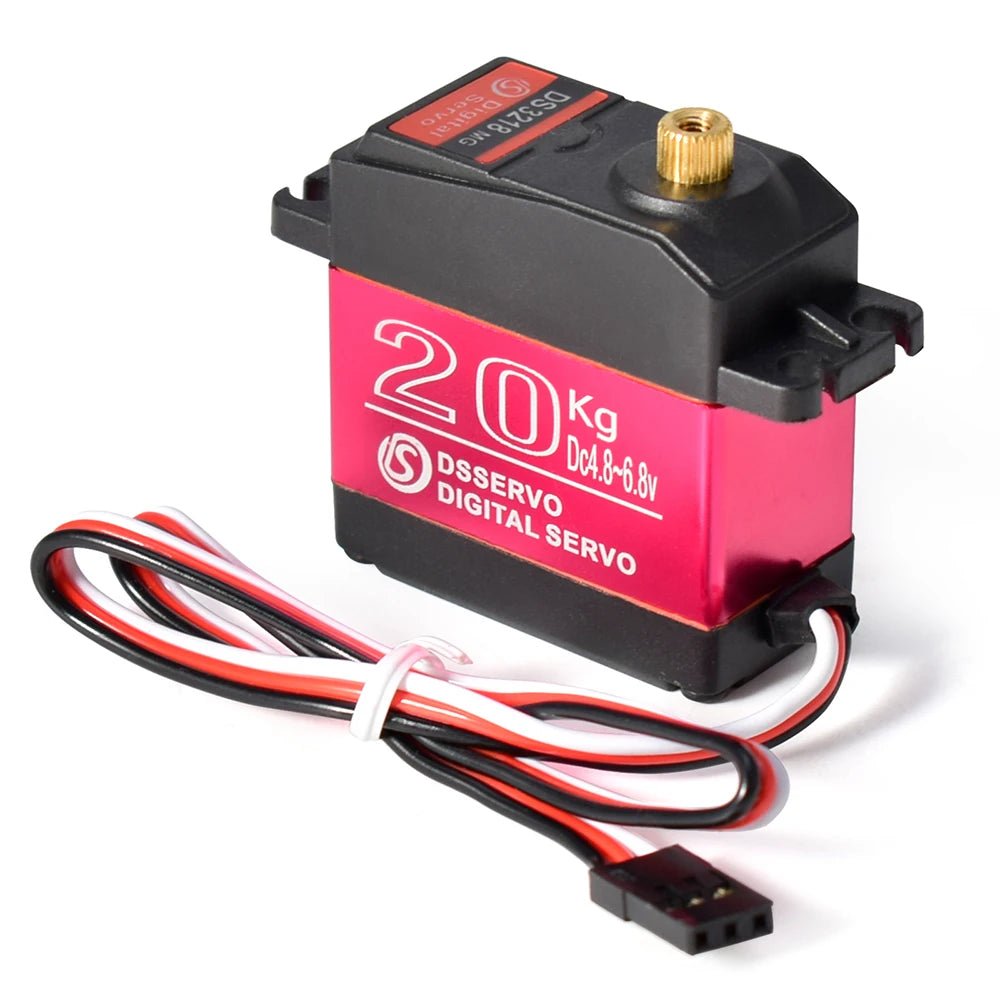

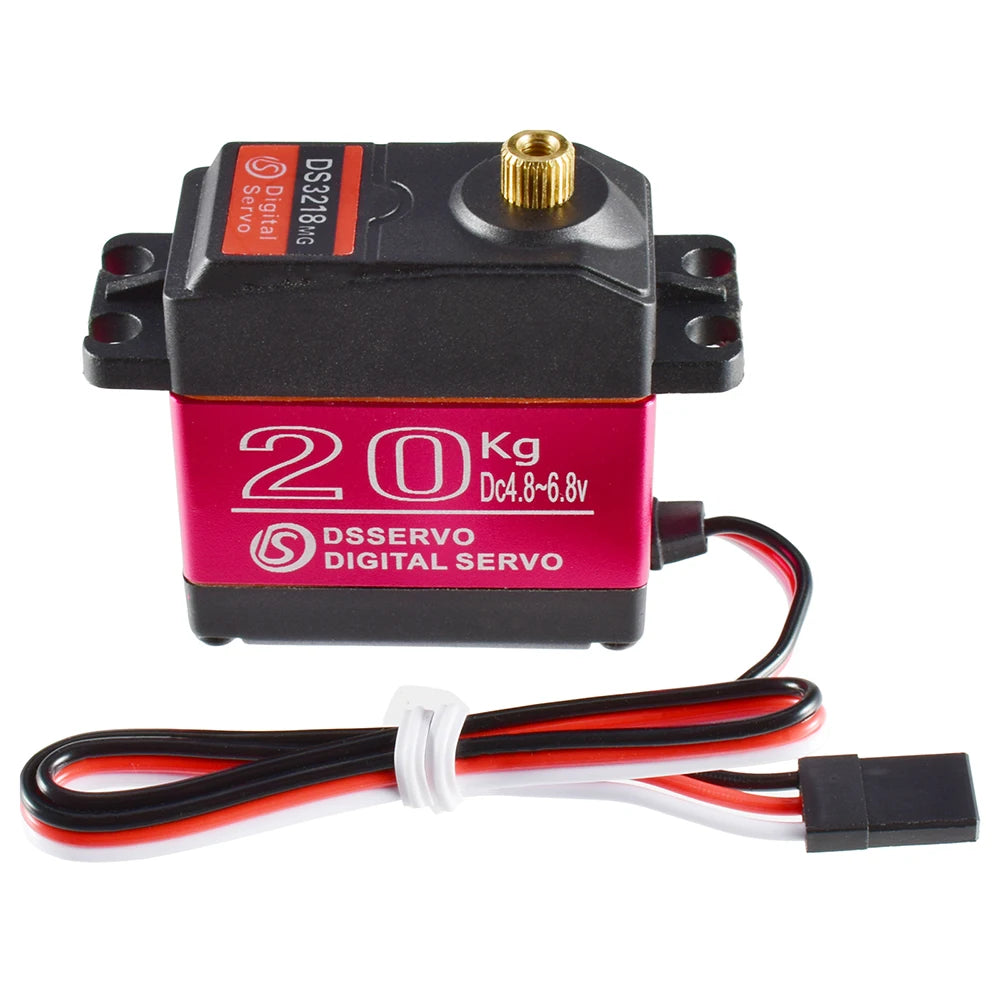

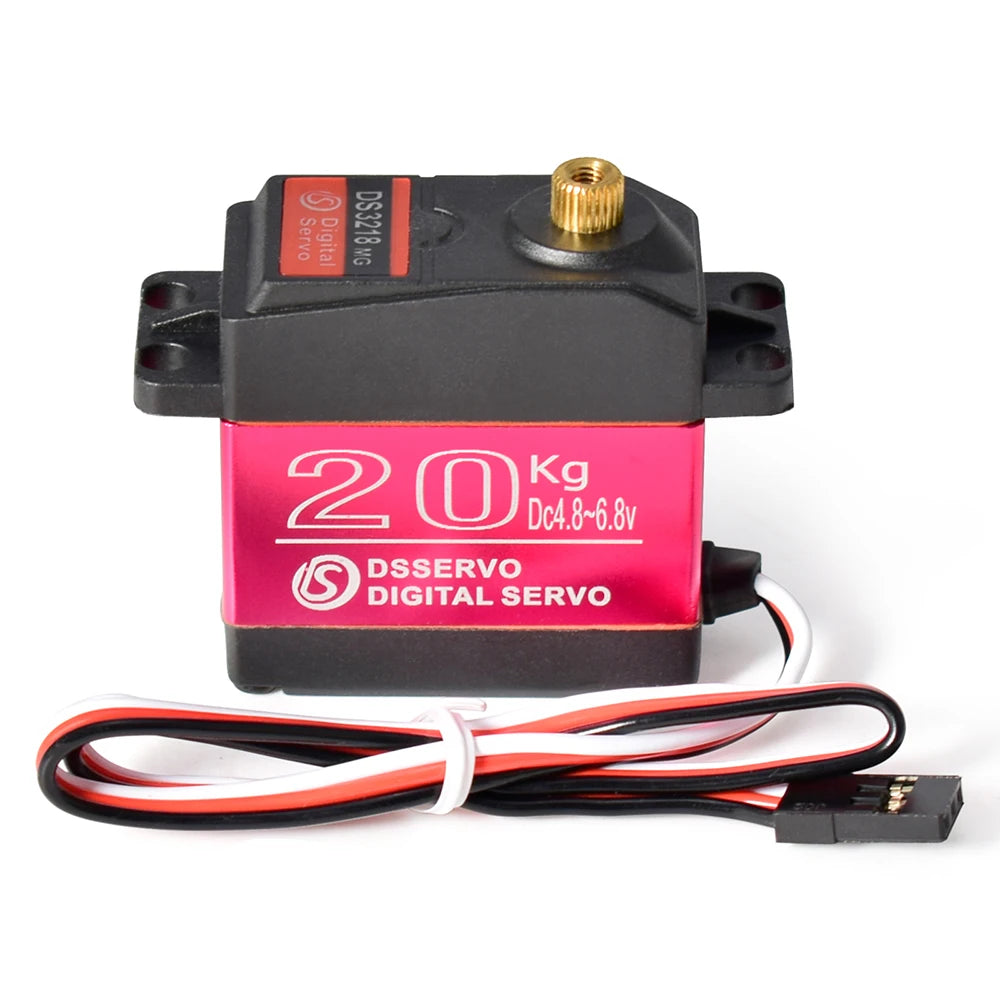

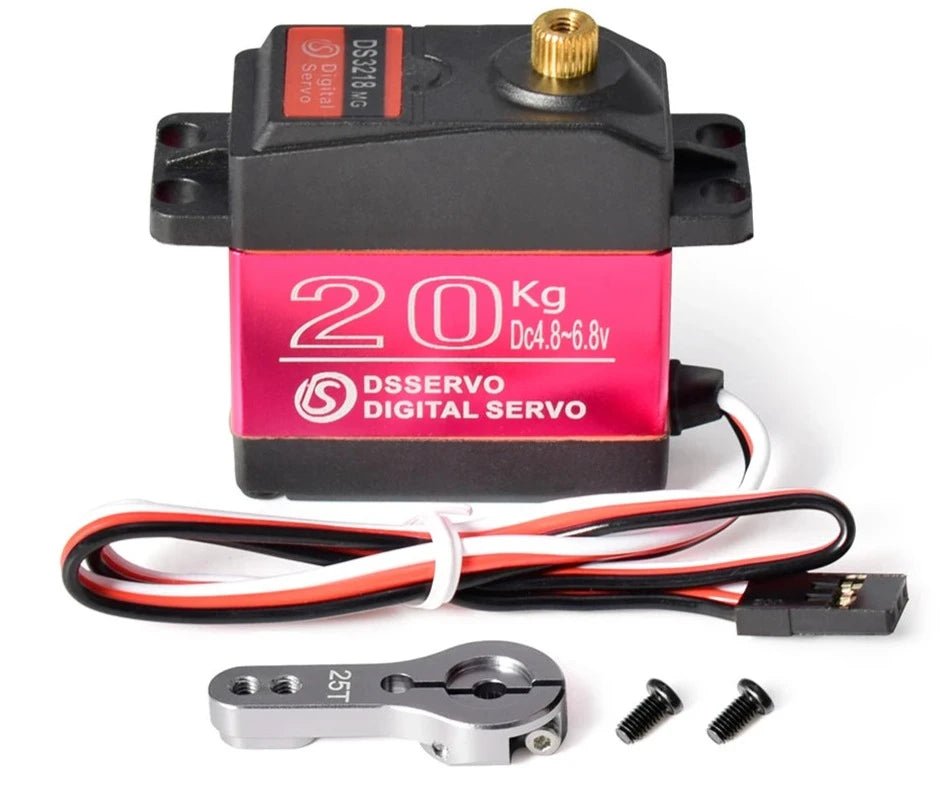

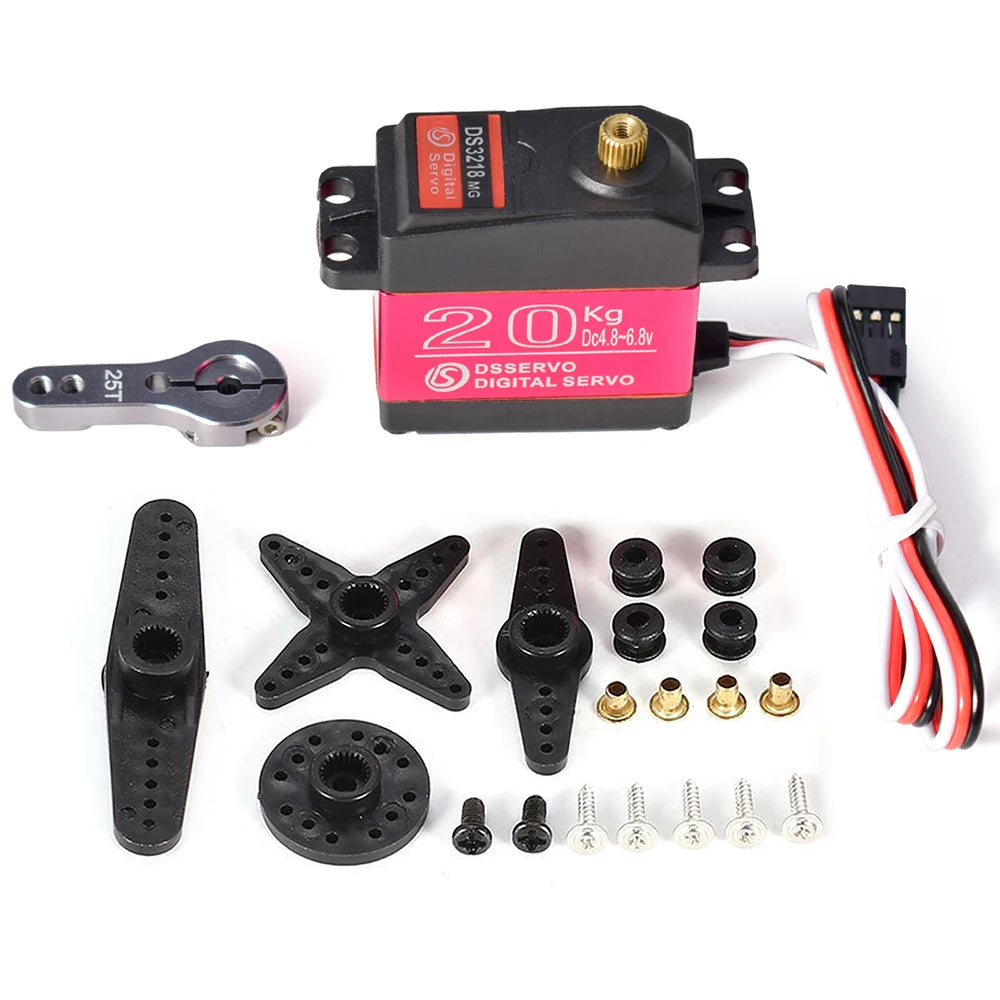

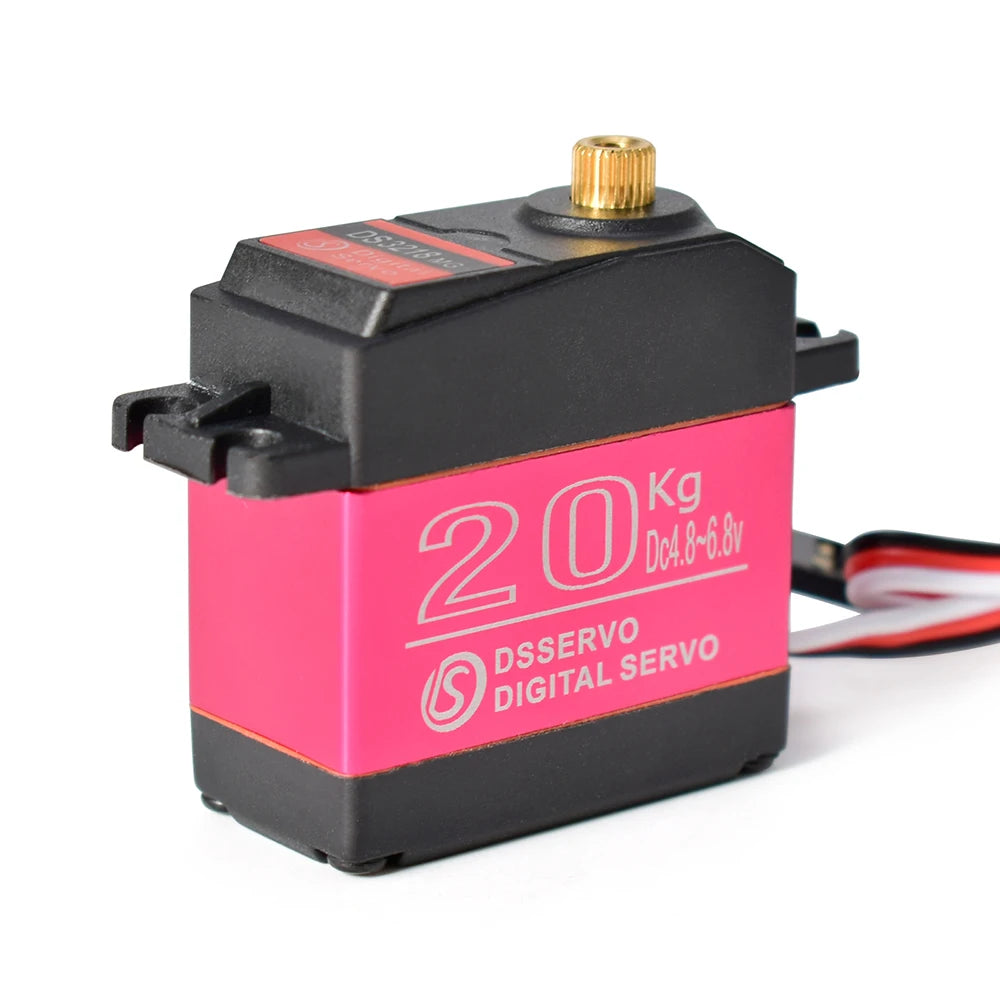

Model: DS3218MG
Item Name: DS3218MG Digital Servo
Rotation angle:180 degree,270 degree optional
Dead Band: 3μsec
Operating Voltage: 4.8V~6.8V
Operating Speed (5V): 0.16sec / 60° at no load
Operating Speed (6.8V): 0.14sec / 60° at no load
Stall Torque (5V): 19 kg/cm (263.8oz/in)
Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
Motor Type: Carban Brush Motor
Gear Type: Copper & Aluminum
Working Frequency: 1520μs / 333hz
CE Certification: Yes
Size: 40.5 * 40 * 20mm
Weight: 60g

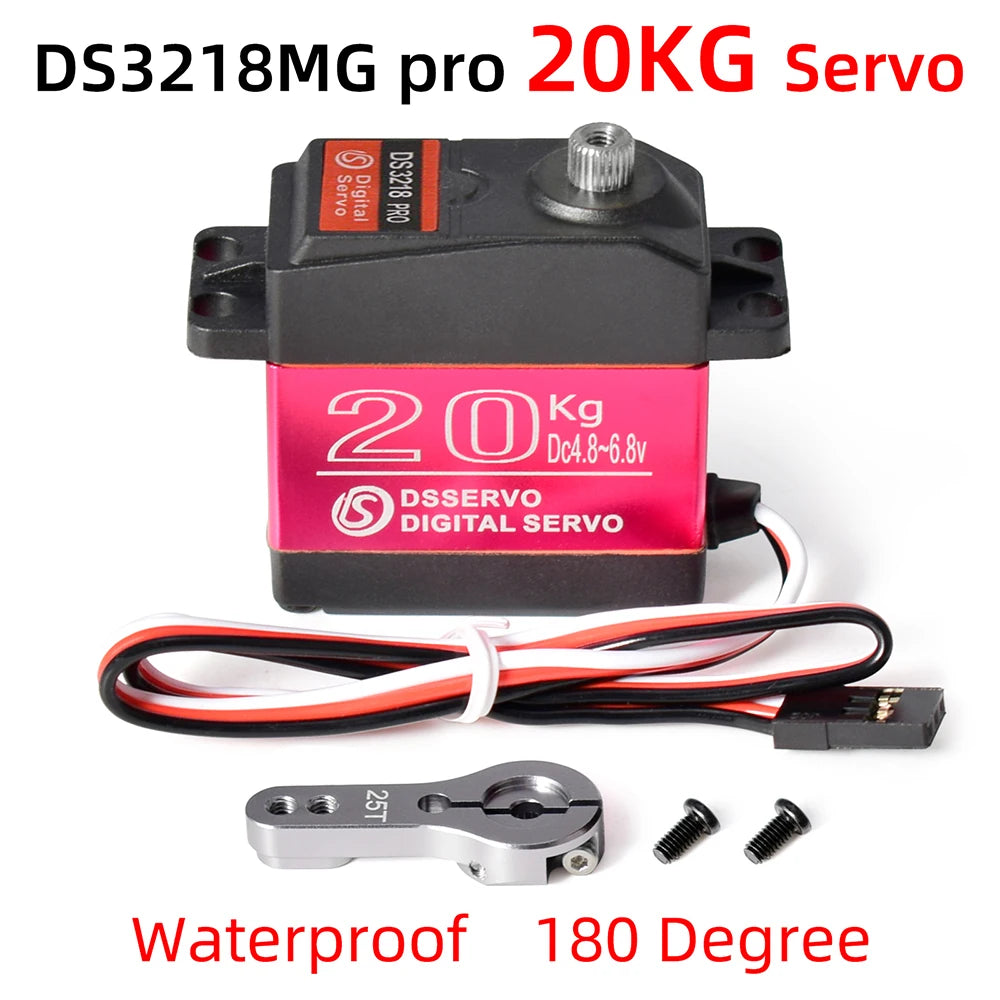

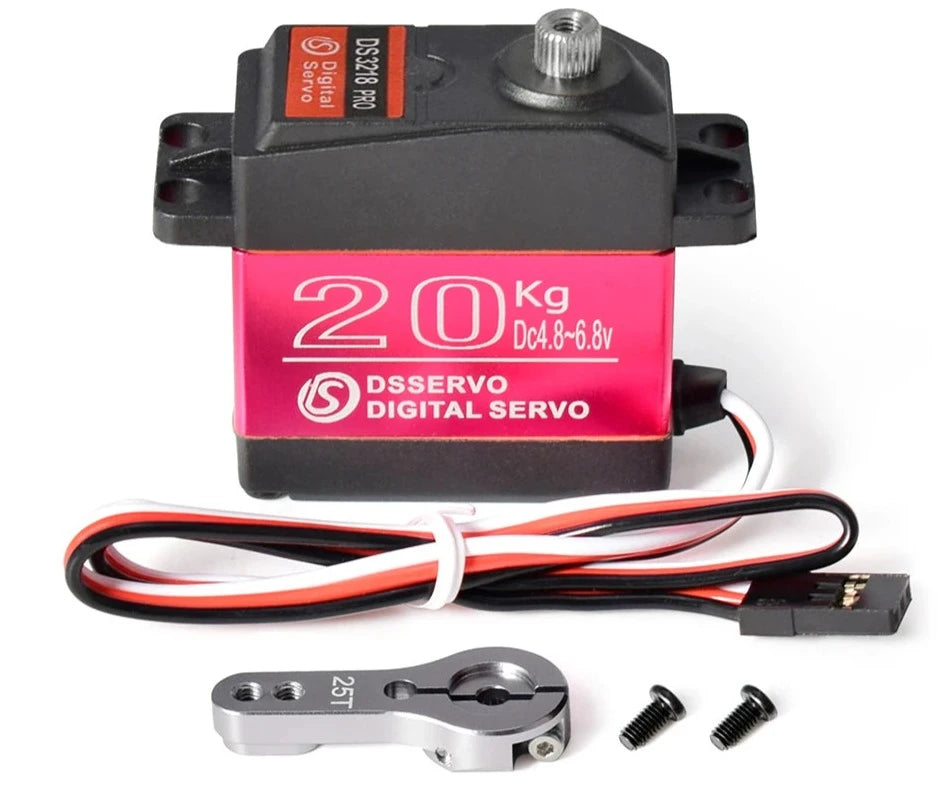

Model: DS3218MG pro
Item Name: DS3218MG pro Digital Servo
Rotation angle:180 degree,270 degree optional
Dead Band: 3μsec
Operating Voltage: 5.0V~6.8V
Operating Speed (5V): 0.12sec / 60° at no load
Operating Speed (6.8V): 0.09sec / 60° at no load
Stall Torque (5V): 21 kg/cm
Stall Torque (6.8V): 23.5 kg/cm
Motor Type: Carban Brush Motor
Gear Type: Copper & Aluminum
Working Frequency: 1520μs / 333hz
CE Certification: Yes
Size: 40.5 * 40 * 20mm
Weight: 60g

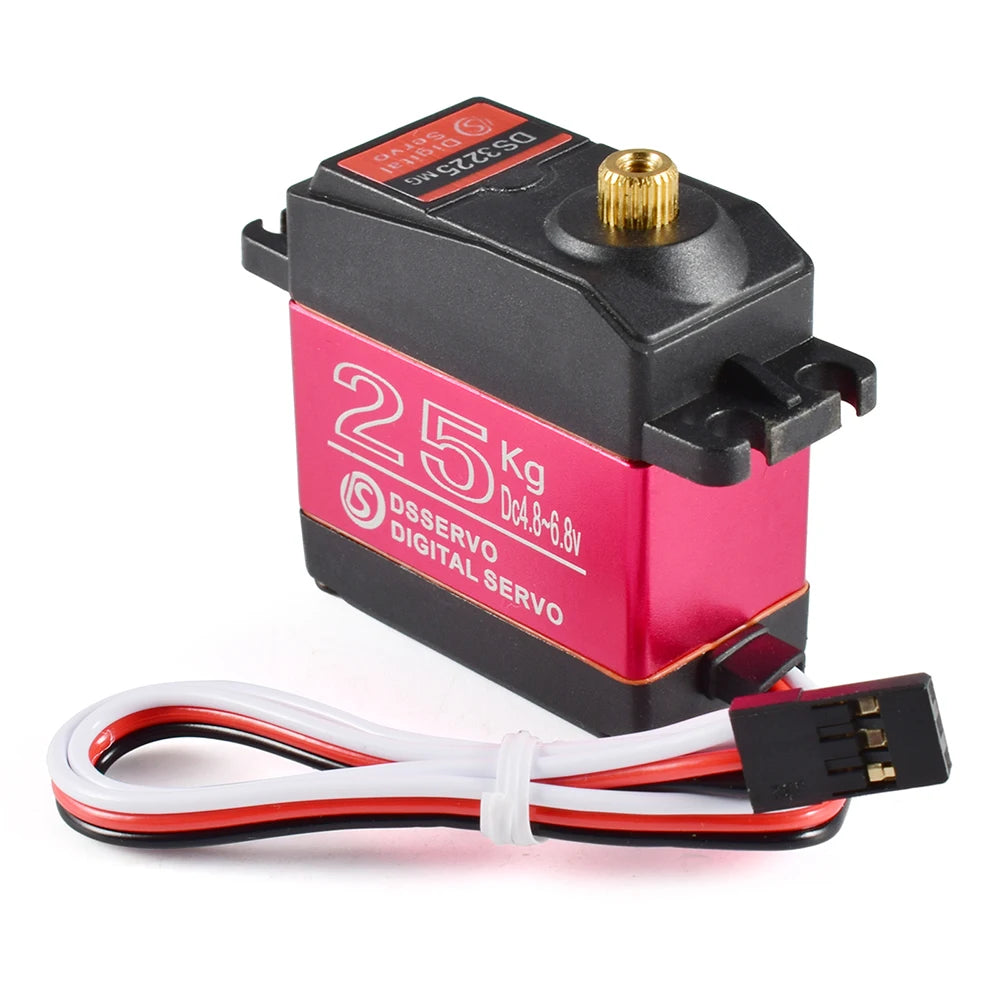

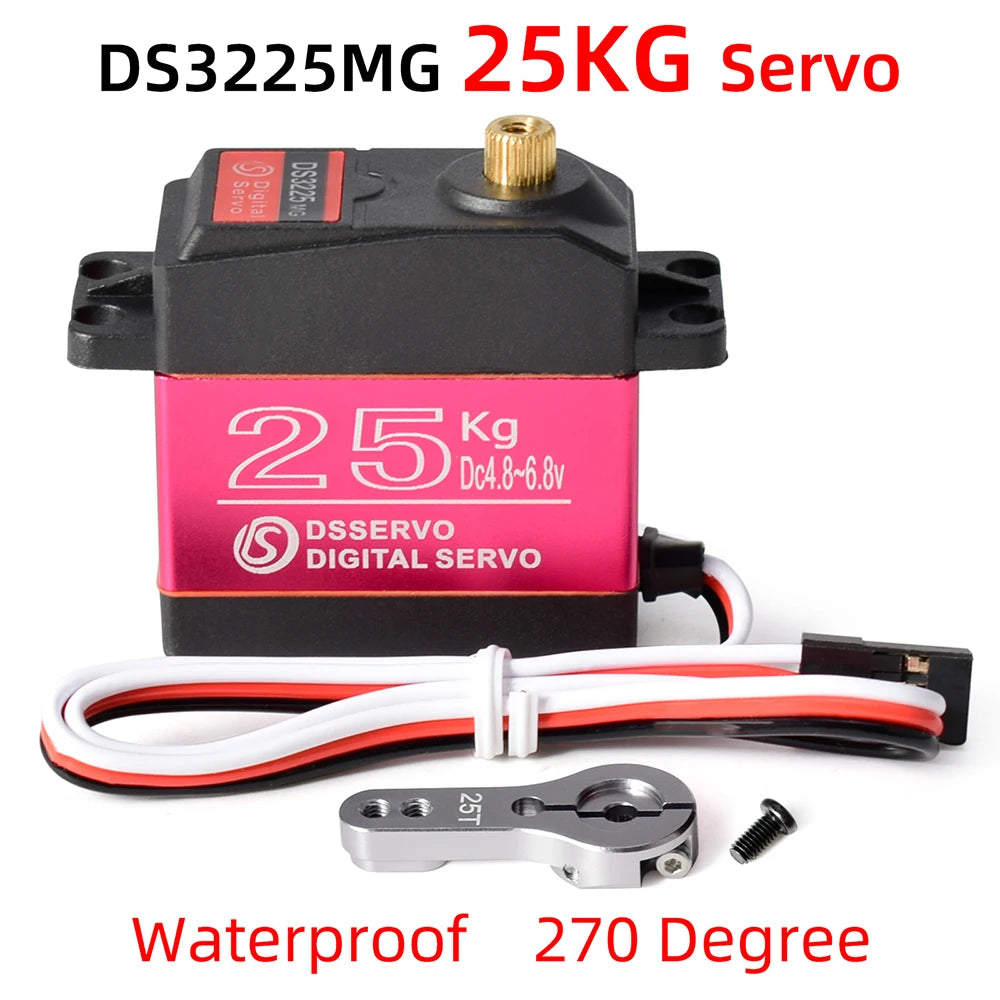

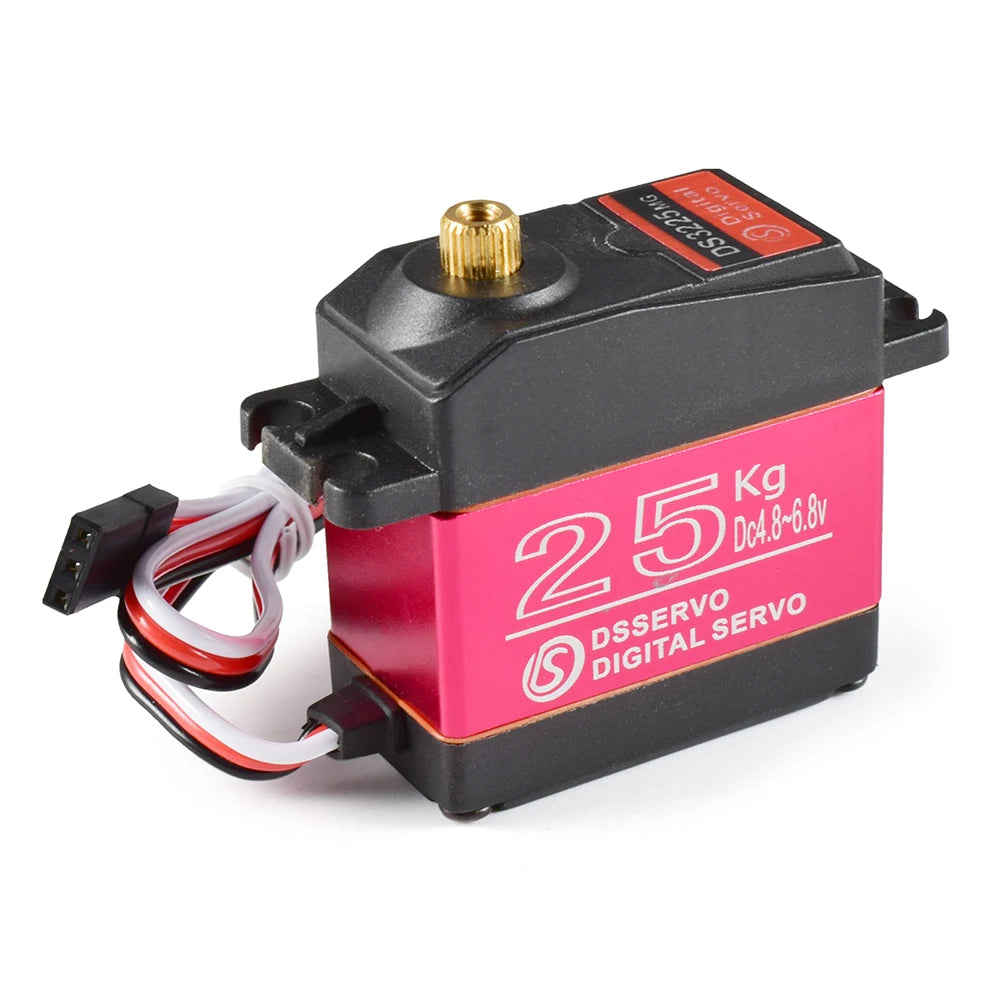

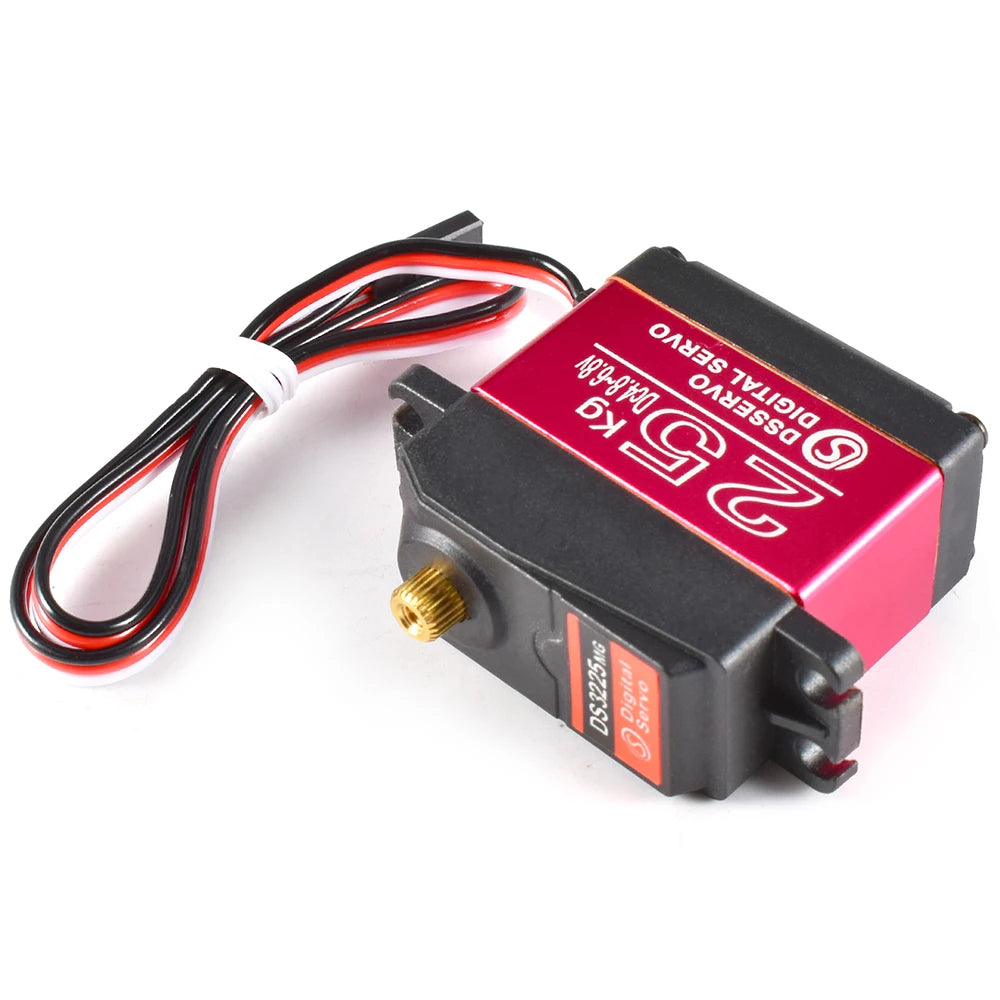

Model: DS3225MG
Item Name: DS3225MG Digital Servo
Rotation angle:180 degree,270 degree optional
Dead Band: 3μsec
Operating Voltage: 4.8V~6.8V
Operating Speed (5V): 0.15sec / 60° at no load
Operating Speed (6.8V): 0.13sec / 60° at no load
Stall Torque (5V): 21 kg/cm (263.8oz/in)
Stall Torque (6.8V): 24.5 kg/cm (298.5 oz/in)
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Working Frequency: 1520μs / 333hz
CE Certification: Yes
Size: 40.5 * 40 * 20mm(1.58 x 0.79 x 1.60 in)
Weight: 60g

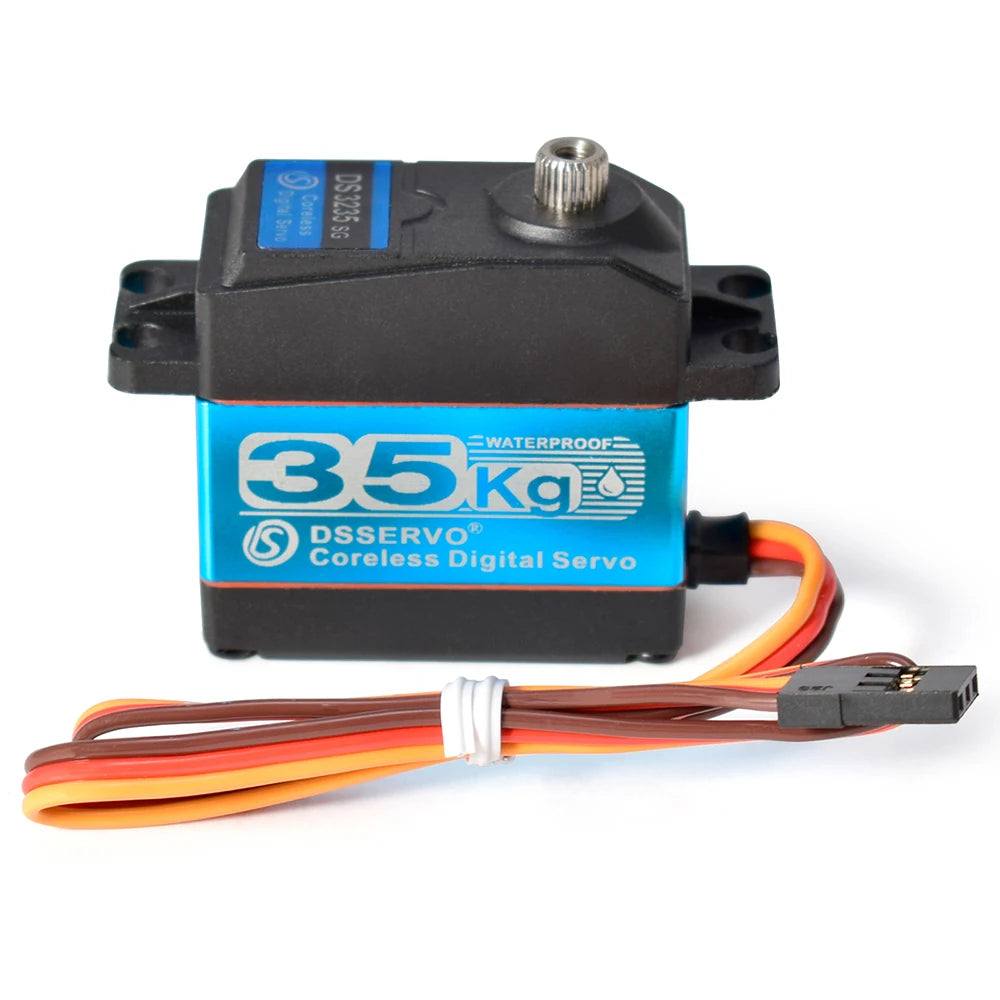

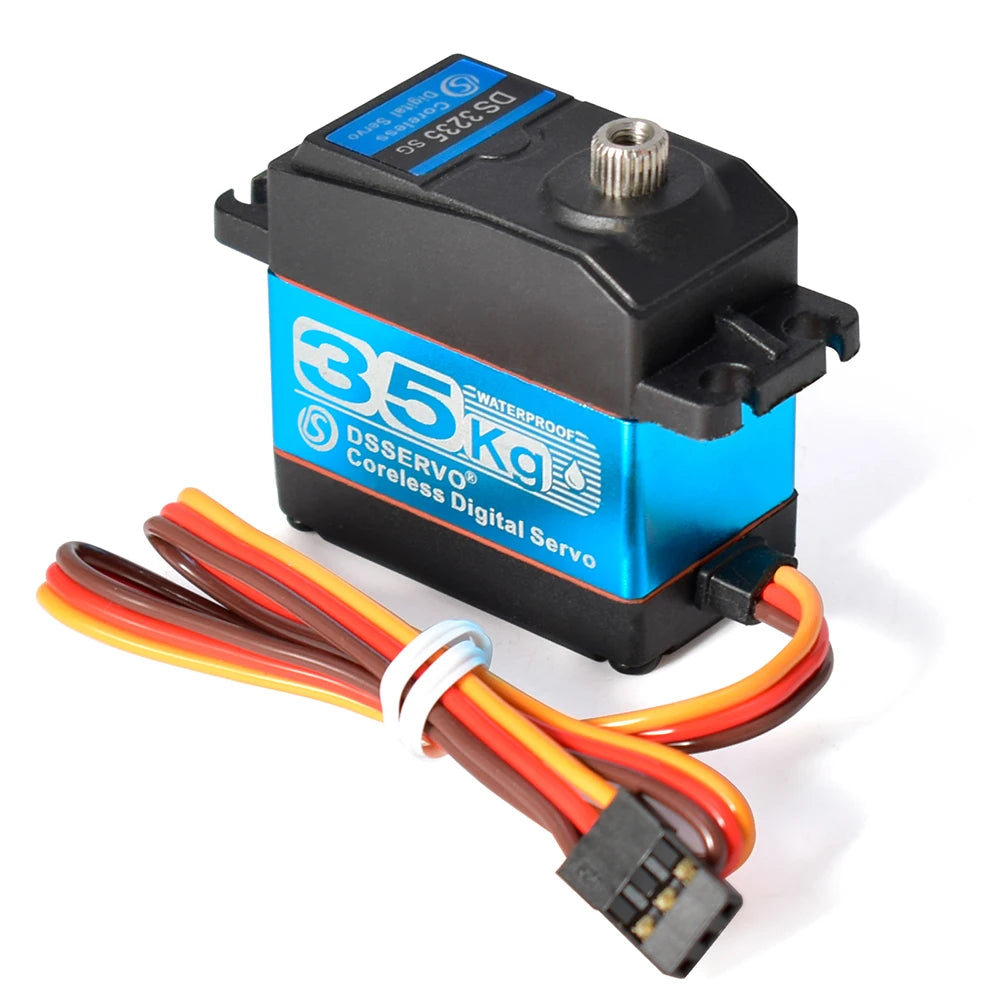

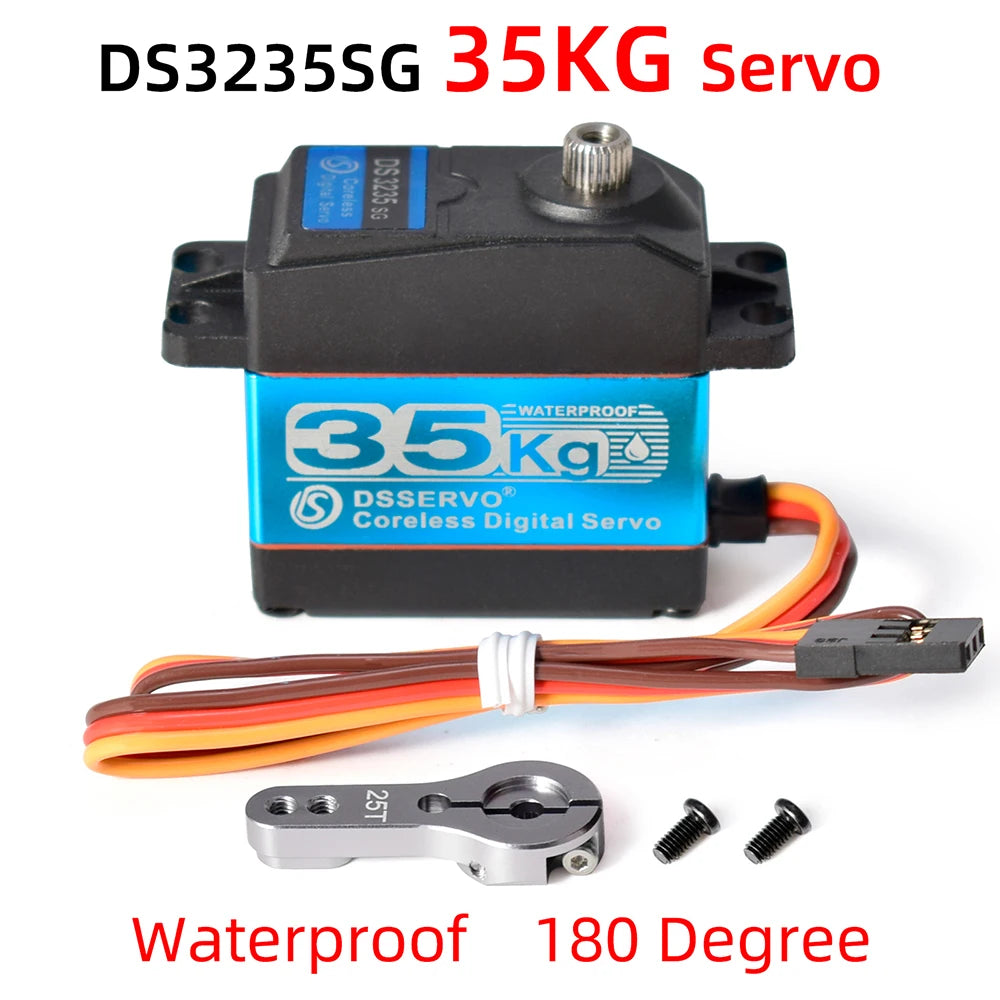

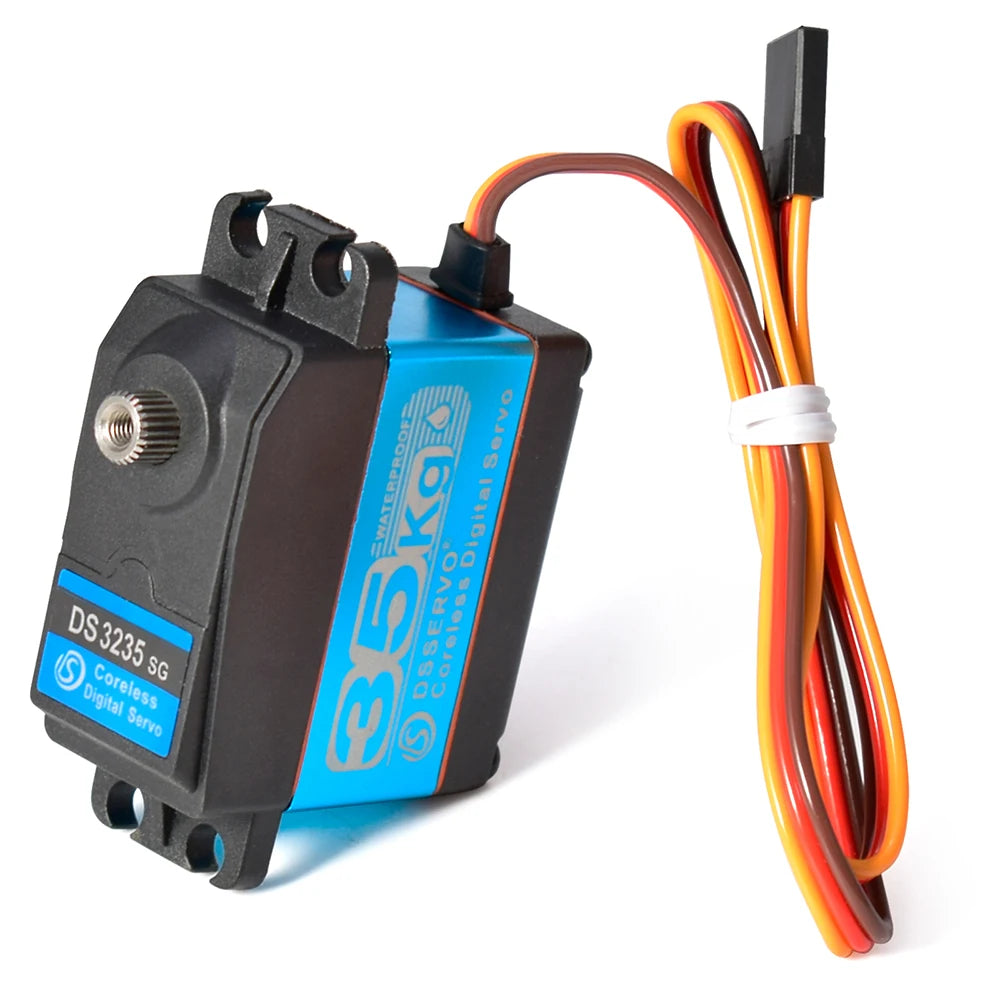

Model: DS3235MG
Item Name: DS3235MG Digital Servo
Rotation angle:180 degree,270 degree optional
Operating voltage range: 5-7.4V  Operating speed (at no load) : 0.13 sec/60 degree @5.0V
Operating speed (at no load): 0.12 sec/60 degree @6.0V
Operating speed (at no load): 0.11 sec/60 degree @ 7.4V
Stall torque  (at locked): 29kg/cm @5.0V
Stall torque  (at locked): 32kg/cm @6.0V
Stall torque (at locked) : 35kg/cm @7.4V
Stall current (at locked): 1.9A @5.0V
Stall current (at locked): 2.1 A@6.0V
Stall current (at locked): 2.3A@7.4V

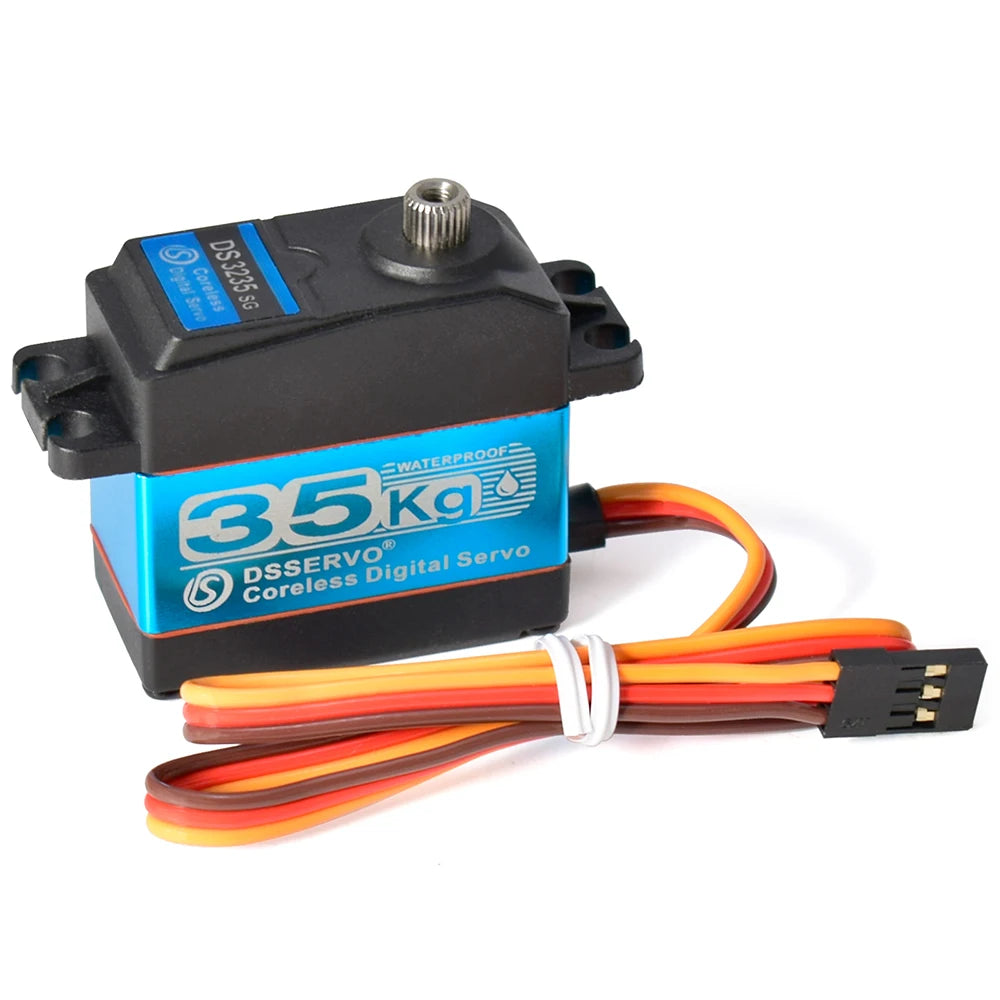

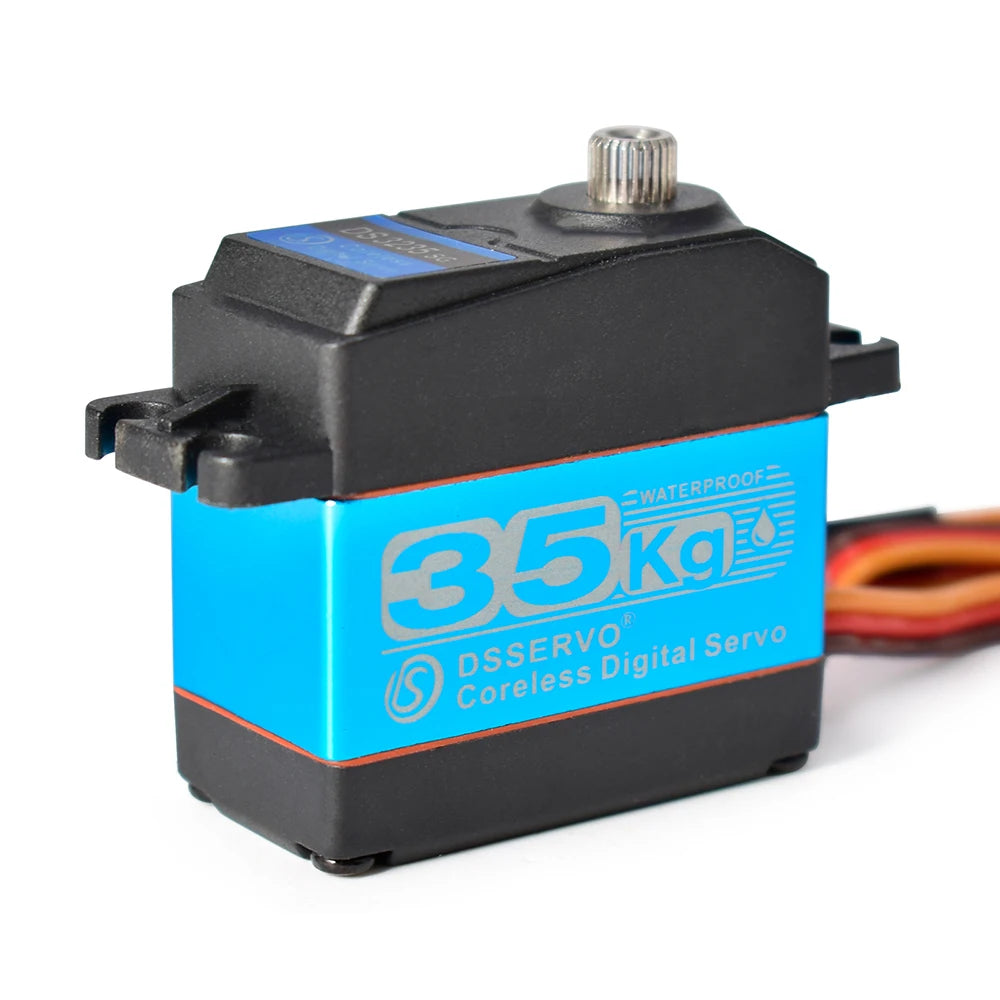

Item:DS3235 35KG Coreless Stainless Steel Gear Waterproof Digital Servo
Operating Voltage: 5 ~ 7.4 DC Volts
Dead brand: 3μs / 2 μs
Motor Type: Coreless Motor
Gear Type: Copper & Aluminum / Stainless Steel & Aluminum
Working frequence: 50-333Hz
Size: 40 x 20 x 38.5 mm ( 1.58 x 0.79 x 1.50 in)
Weight: 60 g (2.12 oz)

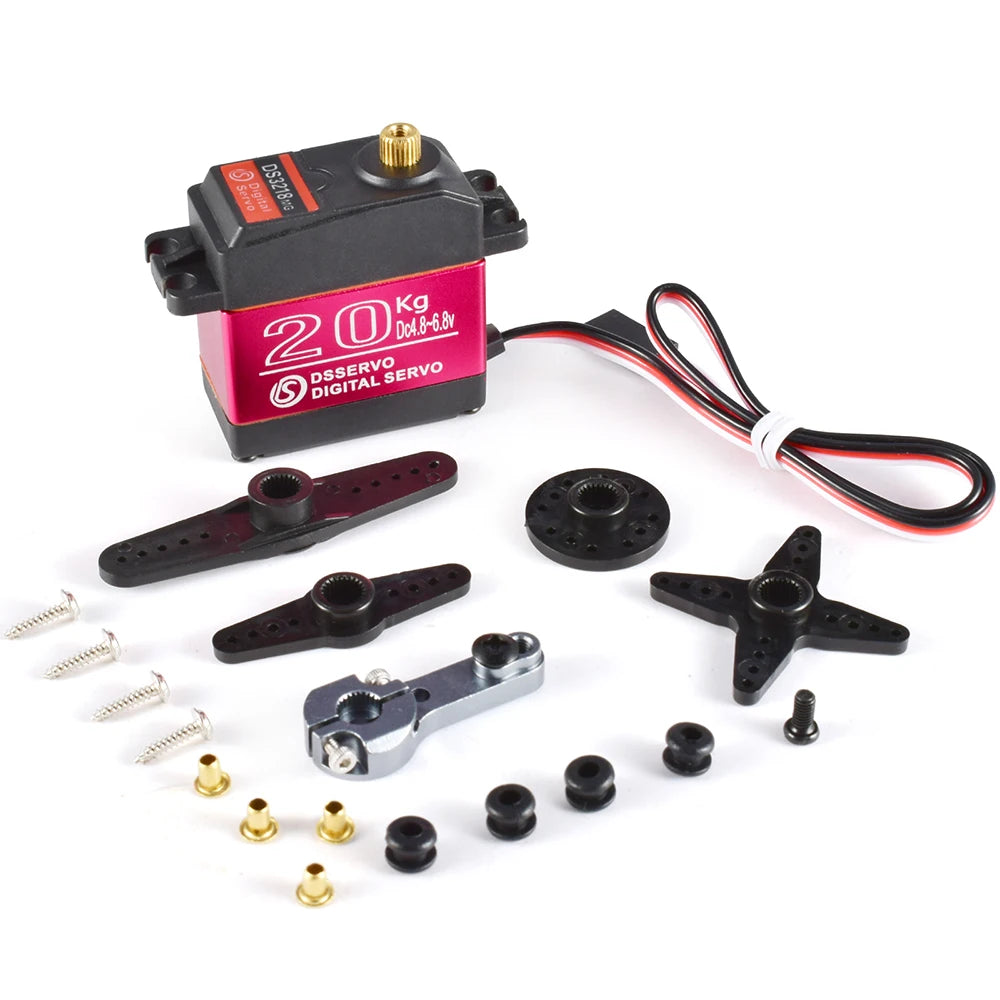

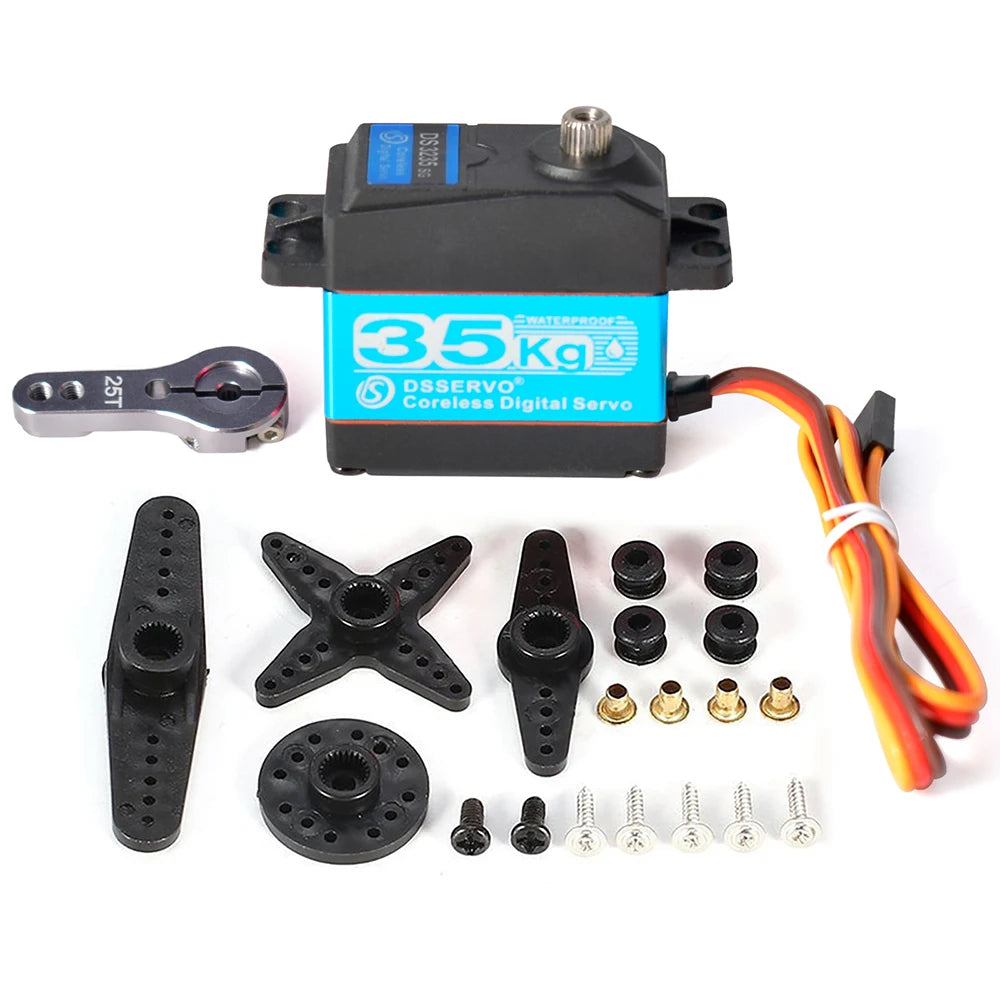

Package included:
1 x Digital Servo
1 x 25T Metal Servo Arm

Metal Gear Digital Servo Ds3218MG Ds 3225MG CC 2 0kes” 85k DGSe DSSERVO Corolosz Digital Sorvo DIGITAL servo .

Kg 20 0 2 Okgss 35k9 DSSERVO DsseRVOR DIGITAL SERVO Coroloss Digital Sorvo 25* DL )eanatve Survo )Bawav8 Oca

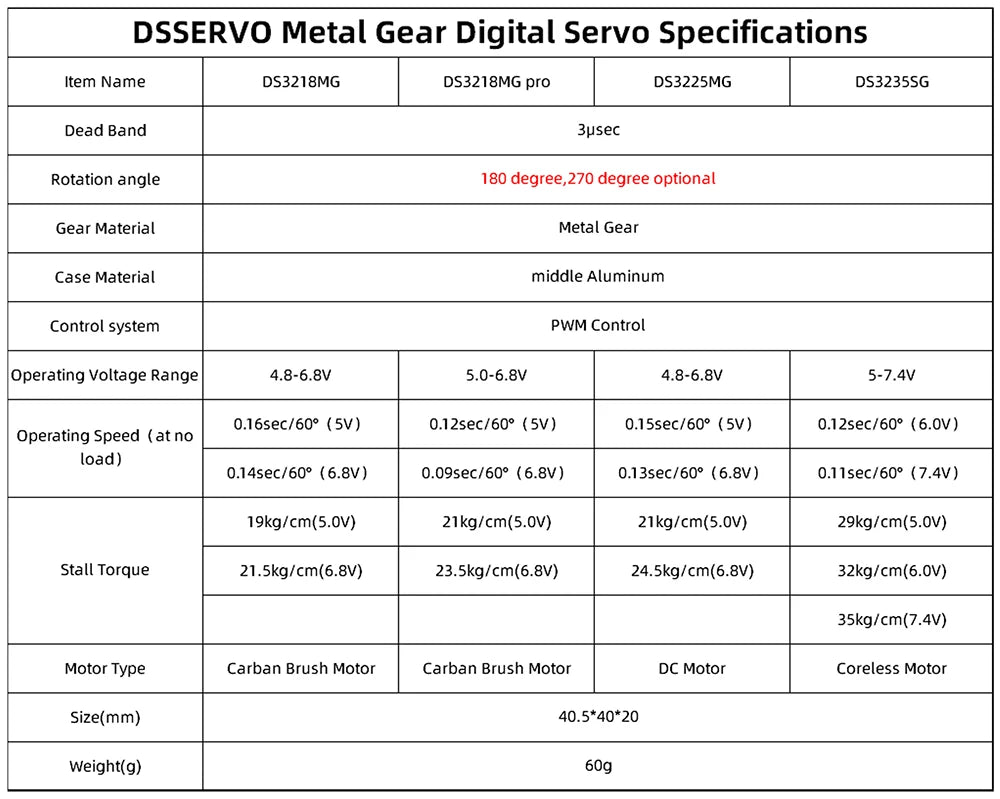

DSSERVO Metal Gear Digital Servo Specifications Dead Band 3usec Rotation angle 180 degree,270 degree optional Gear Material Metal Gear Case Material middle Aluminum Control system PWM Control ‘perating Voltage Range 4.8-6.8V 5.0-6.8% 4.7V 5.7V 7.2V 7.3V 7.5V 6.7V 7.0V 7.1V 8.0V 8.1V 9.5V 5.1V 4.8V 5.2V 5.3V 4.9V 3.8V 4.6V 4.7

0S3218MG 20KG Servo 8 82 3 20 Dc4.8 6.8v DSSERVO DIGITAL SERVO 8 Waterproof 180 Degree K

0S3218MG 20KG Servo 8 82 3 20 Dc4.8 6.8v DSSERVO DIGITAL SERVO 8 Waterproof 270 Degree K
