DIATONE ROMA F5V2 SPECIFICATIONS

Video Capture Resolution: 720P HD

Type: Airplane

State of Assembly: Almost Ready

Remote Distance: //

Remote Control: No

Recommend Age: 14+y

Package Includes: Camera

Origin: Mainland China

Operator Skill Level: Beginner,Intermediate,Expert

Material: Carbon Fiber

Indoor/Outdoor Use: Indoor-Outdoor

Features: Other

Dimensions: 5inch

Controller Mode: MODE1

Controller Battery: /

Control Channels: 4 Channels

Camera Mount Type: Other

CE: Certificate

Brand Name: DIATONE

Barcode: Yes

Aerial Photography: No

Specification:

Diatone has introduced a number of changes to the newly optimized Roma F5 V2, including the stiffness and strength of the frame arms. We’ve also strengthened the metal parts at the front of the frame and upgrade the alloy material from 7075 to titanium steel. For that extra high-end, tactile quality, we’ve treated the surface of the metal parts as well and changed the screws fixing the metal parts from M2 size to M3-sized specifications.

For our digital HD fans, we haven’t forgotten you! This time, we’ve; added mounts for the twin DJI antennas.

Roma F5 V2’s injection-molded protection parts not only add a dash of color with our new color options but also offer better protection for your gear. The GoPro mount angle can be adjusted for faster changes on the fly. For the best flying experience, the V2 comes in a slammed configuration for stability.

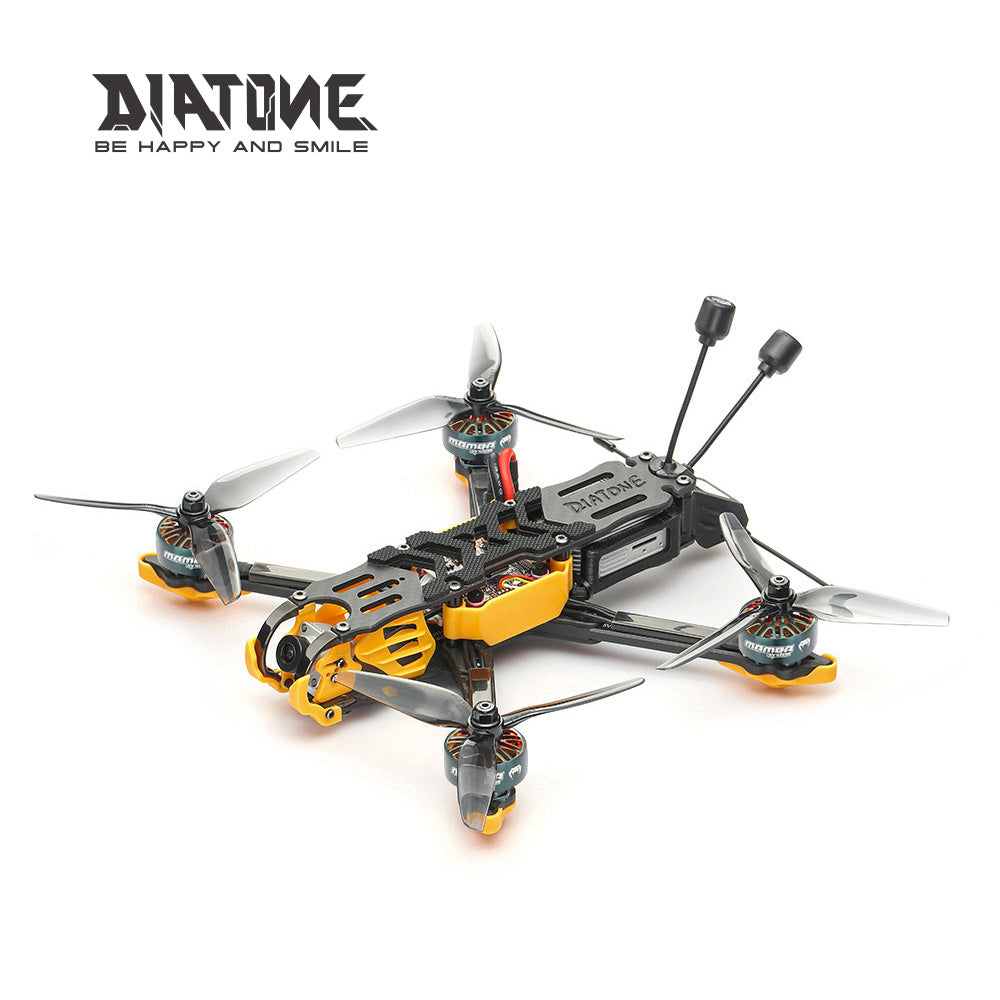

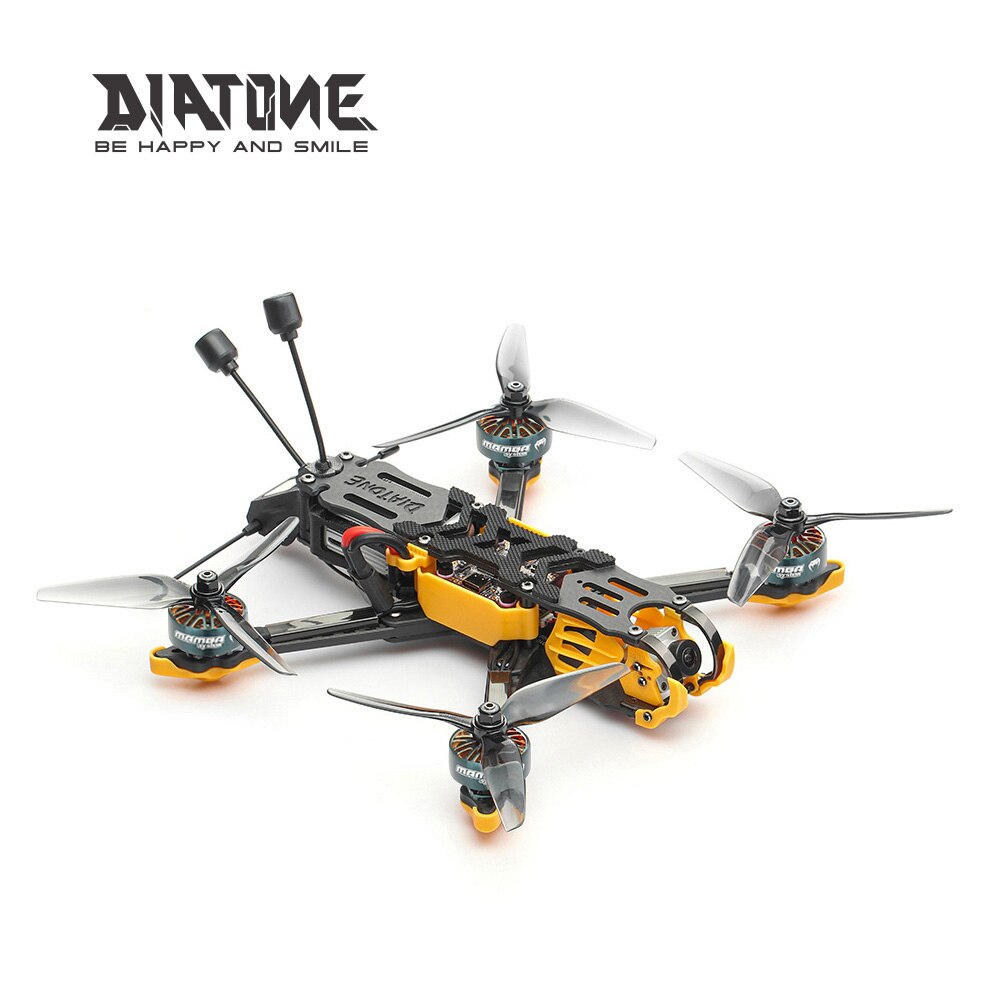

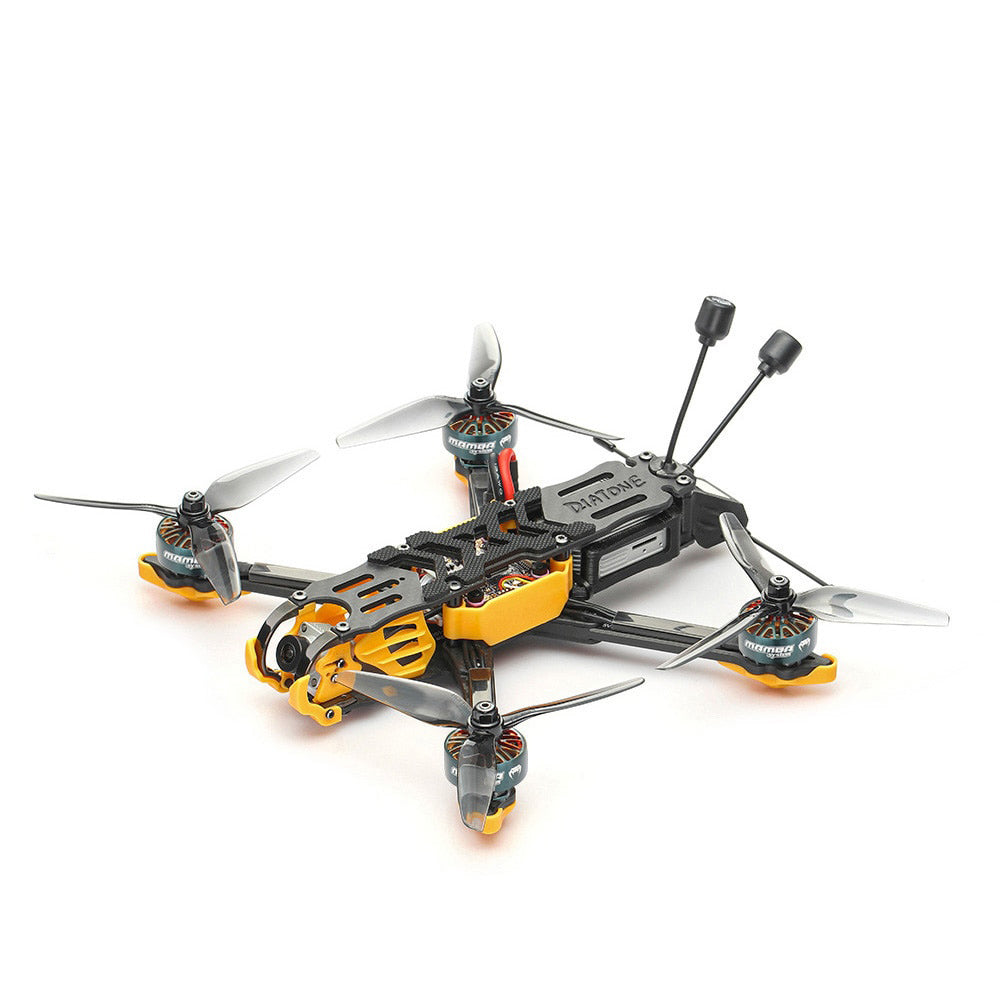

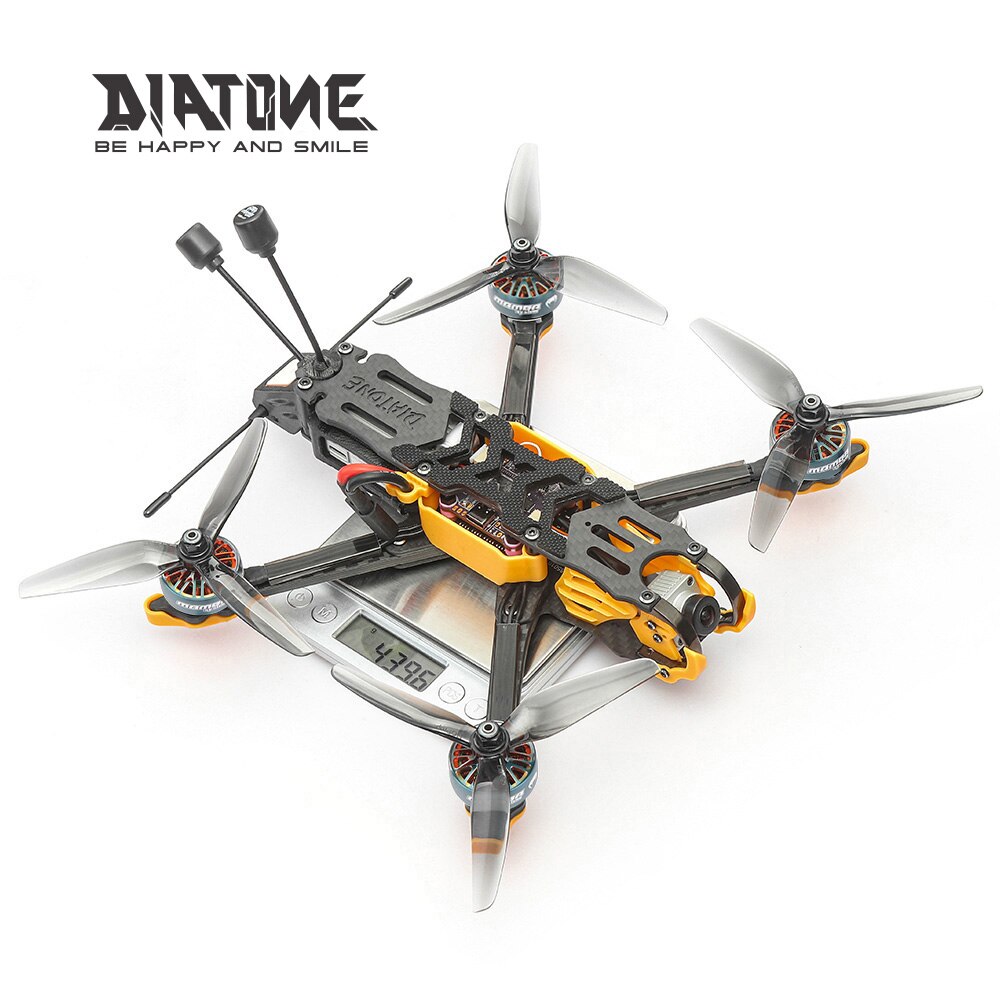

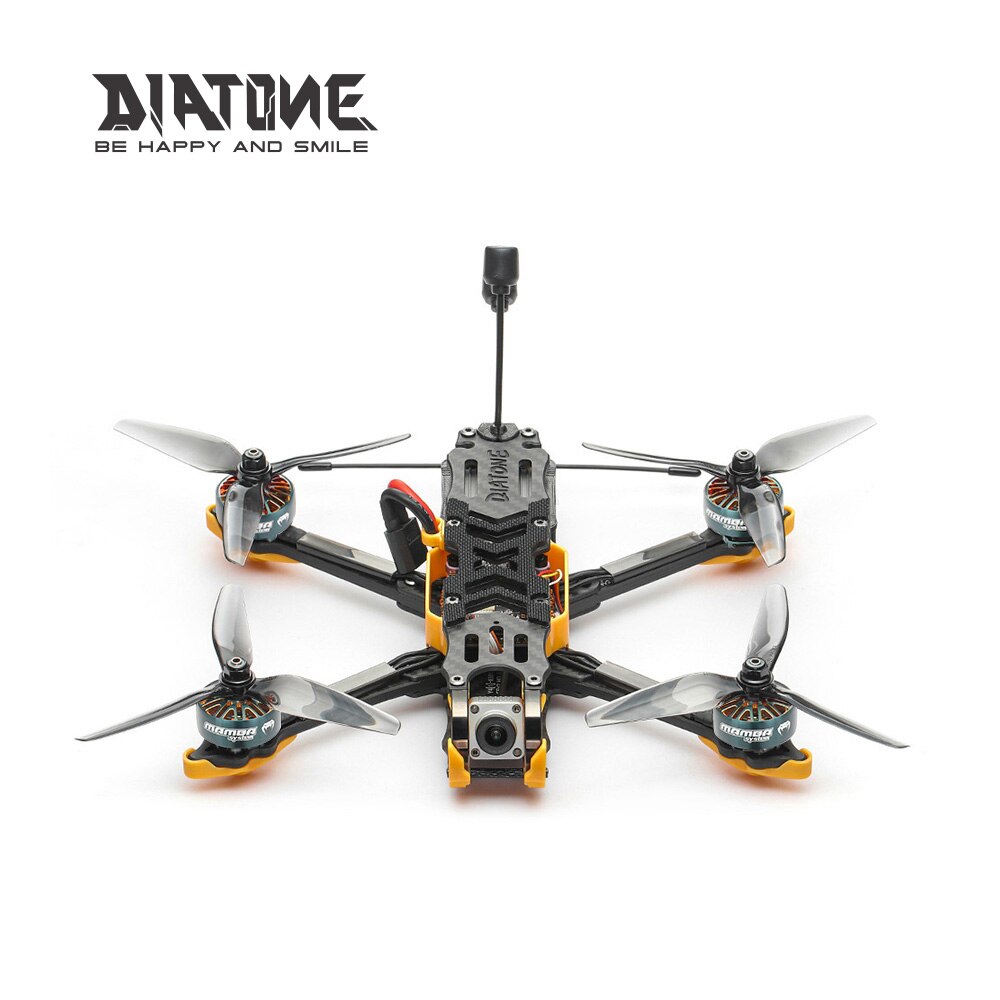

Roma F5 V2. DJI Air Unit Version

Camera: Caddx Micro
Antenna: MAMBA Ultras
VTX: DJI Air Unit
FC: MAMBA MK4 F722 APP
ESC: MAMBA F55-128K
Motor:

4S：MAMBA TOKA 2306.5 2770KV Green

6S: MAMBA TOKA 2306.5 1770KV Green
GPS Module M22

Weight：400g

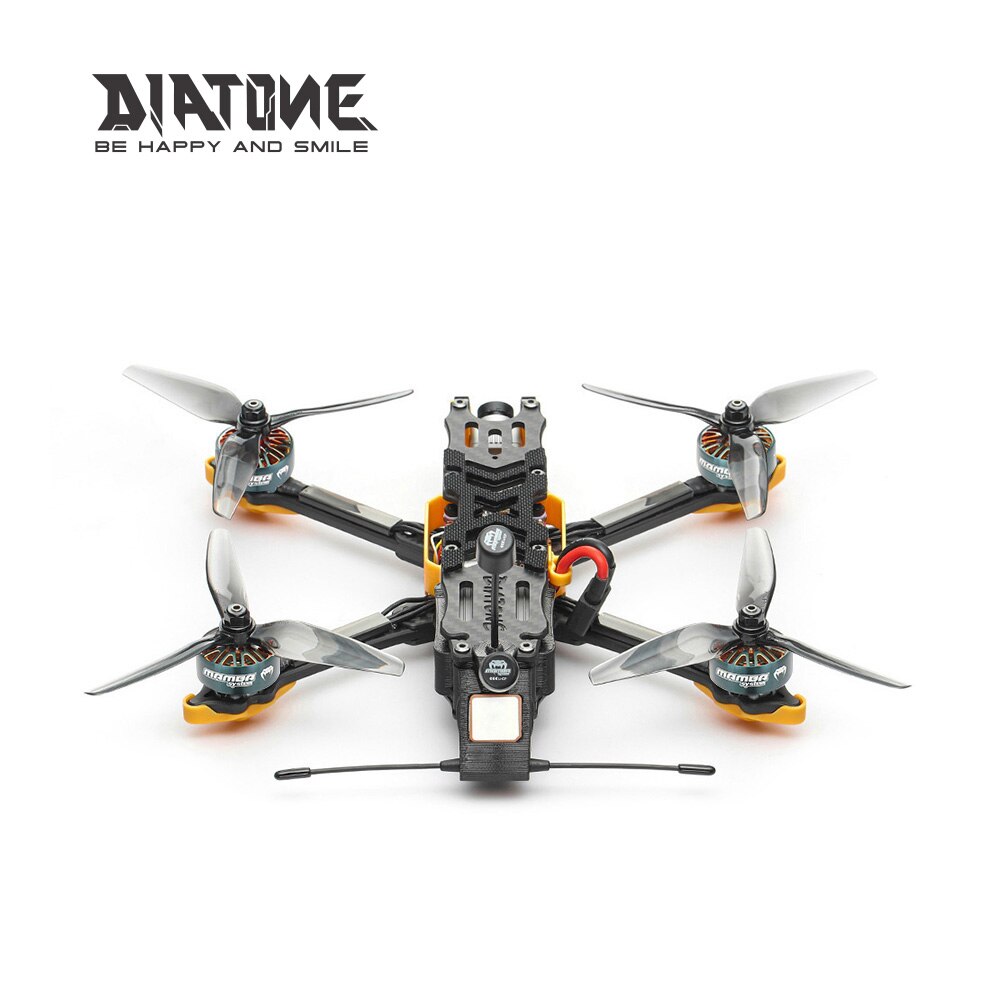

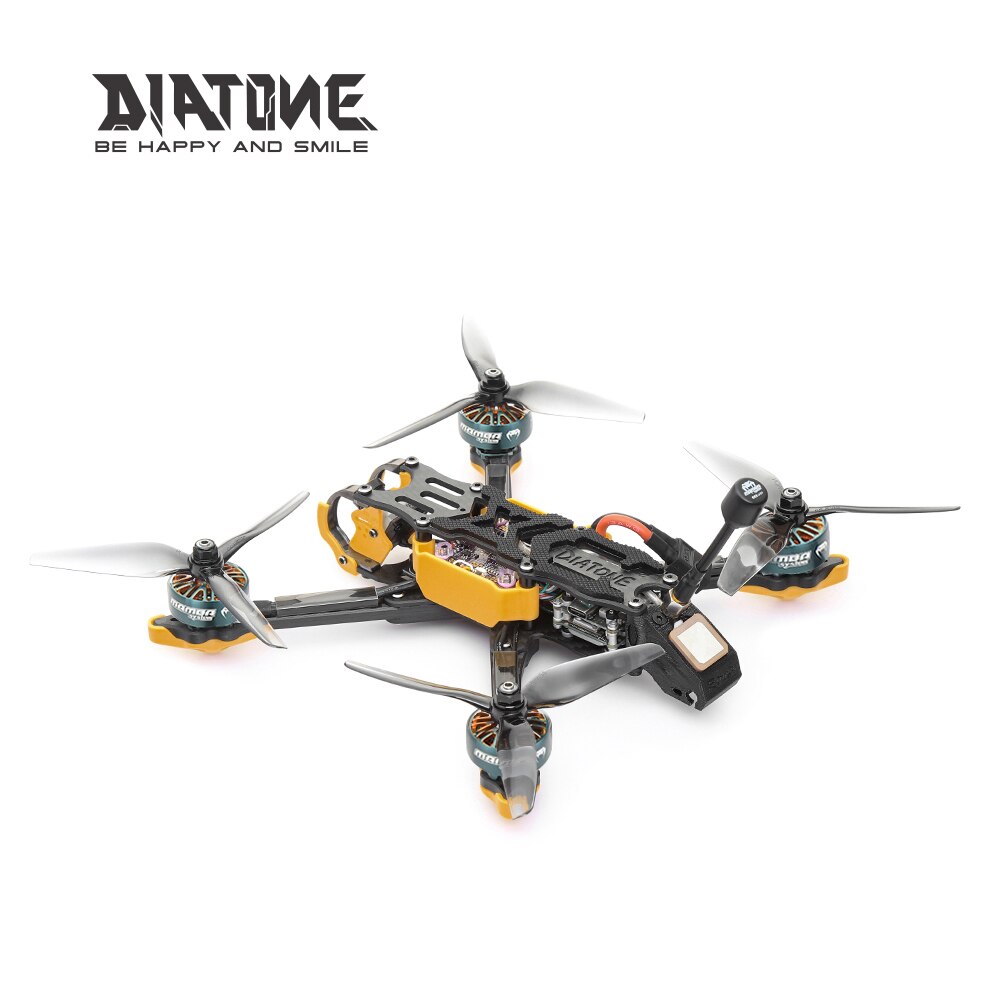

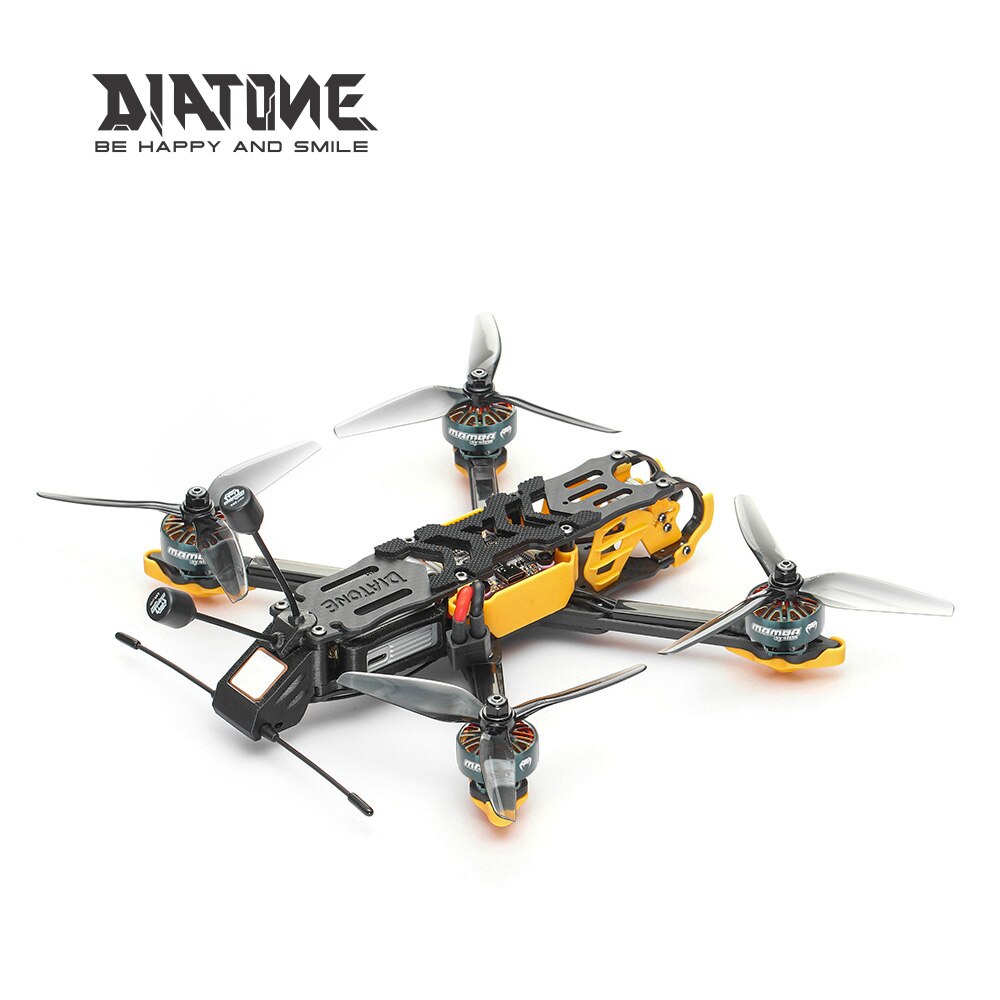

Roma F5V2 VISTA HD 6S

Camera:Nebula Pro
Antenna:MAMBAUltra LHCP
VTX: VISTA
FC:MAMBA MK4 F722 APP
ESC:MAMBAF55-128K
Motor:MAMBATOKA 2306.5 1770KV Green
GPS module:M8PLUS

Recommend lipo size：not including

4S：1050-1300mAH

6S：1300-1500mAH

Receiver optional：
Mamba MSR Receiver（Frsky RXSR）/ TBS CRSF Receiver/Frsky RXRS Receiver

Accessories Pack：
HQ Props S5 *1
Injection suit *1
Buzzer *1
Lipo Strap *2
Universal Adjustable Gopro Mount *1
M2 Screws Pack*1
M3 Screws Pack*1
20mm PC isolation Sheet *1
30.5mm PC isolation Sheet *1
