Darwin FPV Baby Ape/Pro SPECIFICATIONS
Video Capture Resolution: 720P HD
Type: HELICOPTER
Remote Distance: 500
Remote Control: No
Recommend Age: 12+y
Package Includes: Original Box
Origin: Mainland China
Model Number: DarwinFPV Baby Ape/Pro
Material: Carbon Fiber
Indoor/Outdoor Use: Indoor-Outdoor
Features: App-Controlled
Controller Mode: MODE2
Controller Battery: 2
Control Channels: 9 Channel
Camera Mount Type: Other
Aerial Photography: Yes
Item name：         Baby Ape
Add new Item name:  Baby Ape Pro （Camer upgraded to CADDX ANT）
Comes without battery, charger, receiver or remote control.
Description:
Brand:Â DarwinFPV

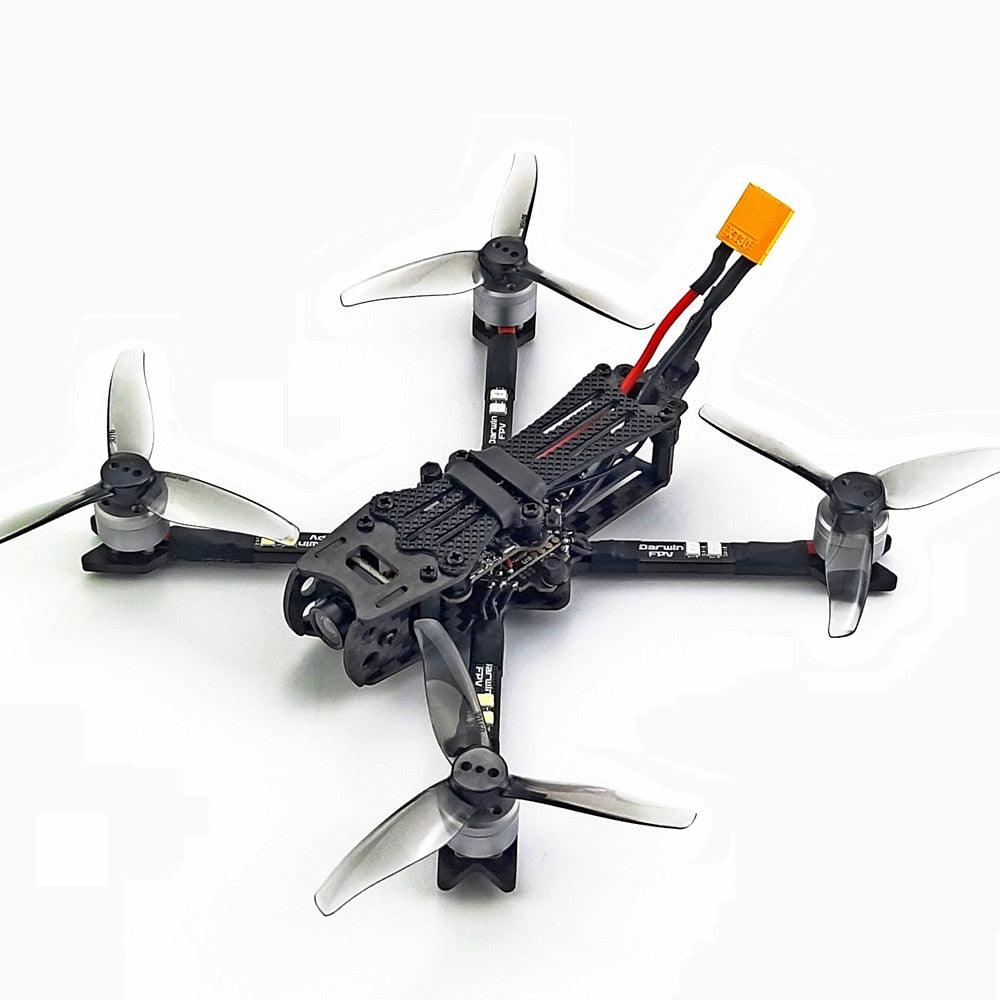

Item Name: Baby Ape/Pro 142mm 3″ FPV Drone

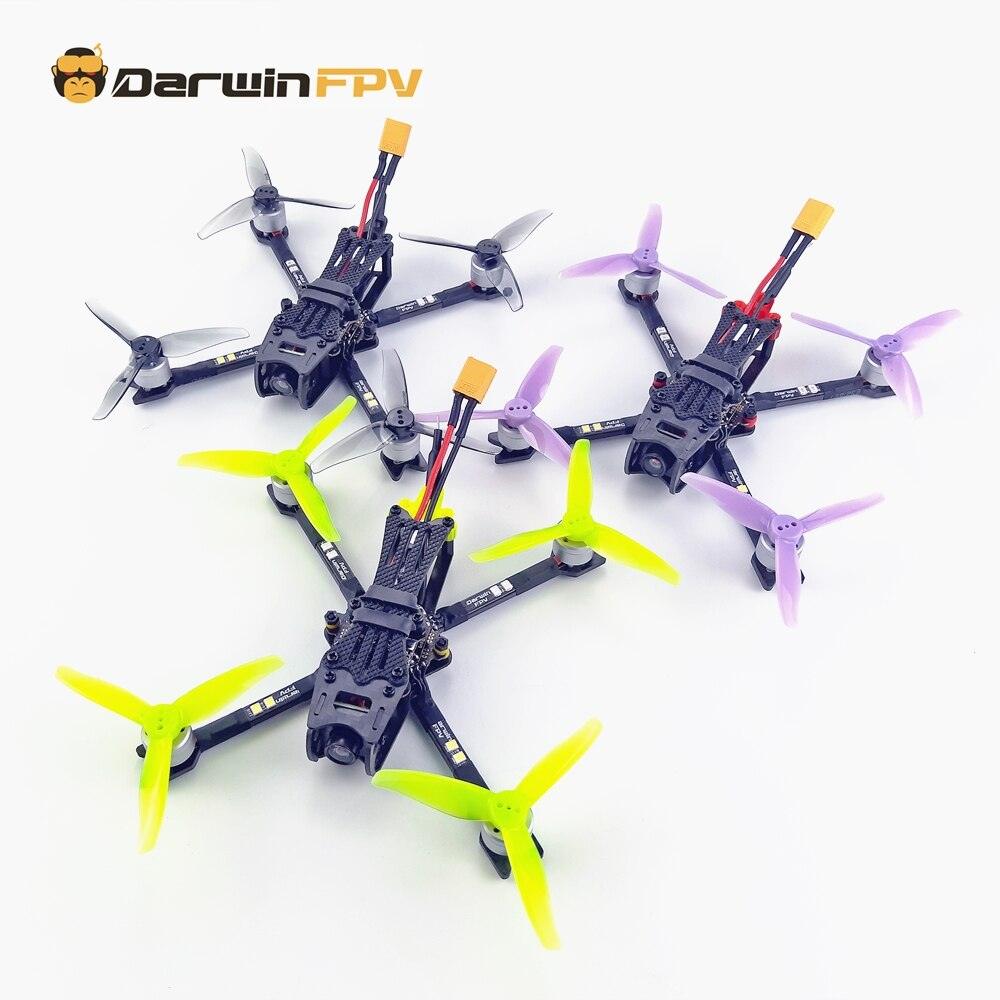

Color: Yellow/Black/Purple

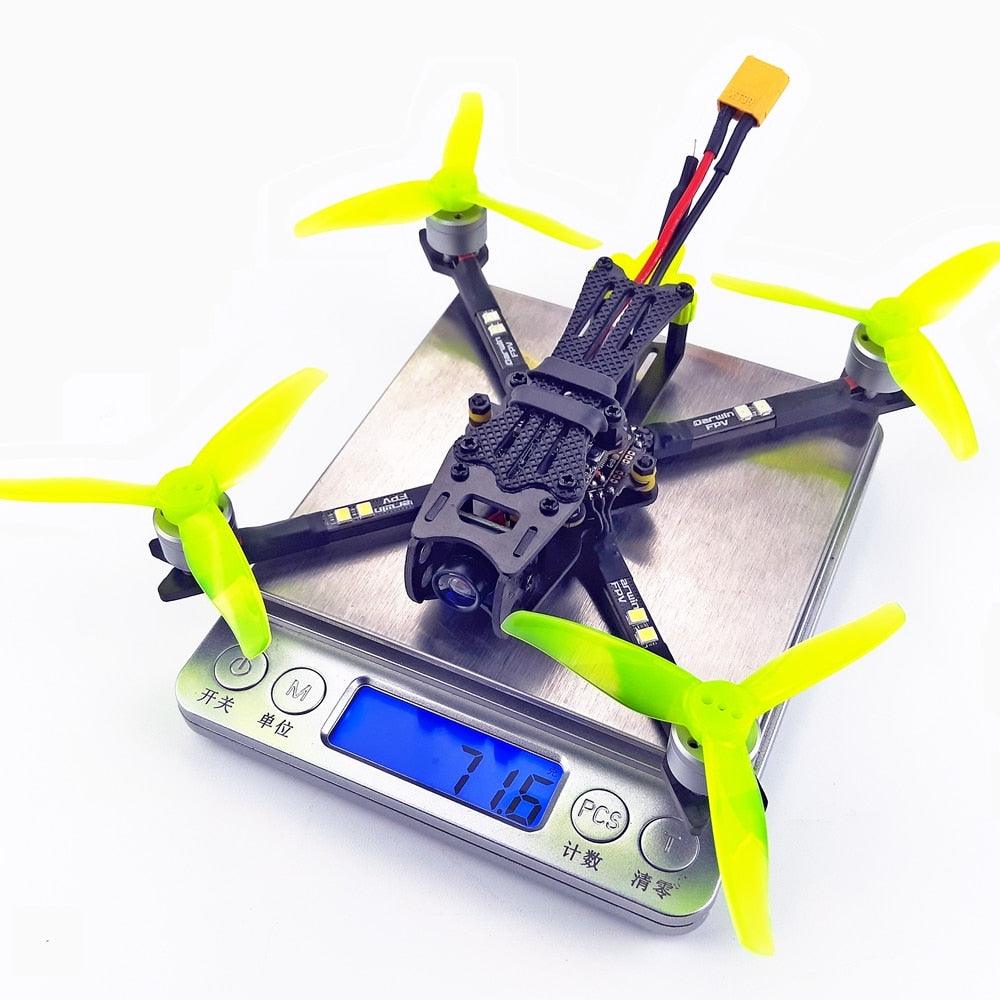

Weight: 71.6g
|
142mm Racing Frame Kit |
Wheel base: 142mm Frame arm thickness: 2.5mm Other thickness:1.5mm Frame kit material: 3K carbon fiber |
|
11044300KV 2-3S Brushless Motor |
KV: 4300KV Lipo cell: 2-3S Weight: 6.0g |
|
AIO 4 IN 1 15A BLHeli_S ESC |
Input voltage: 1-3SLiPo Continuous current: 15A Pe ak current:17A (10S) BEC output: no Main control chip:EFM8BB21 Firmware upgrade: Supports Dshot600/Oneshot125 MOS: 3*3 |
|

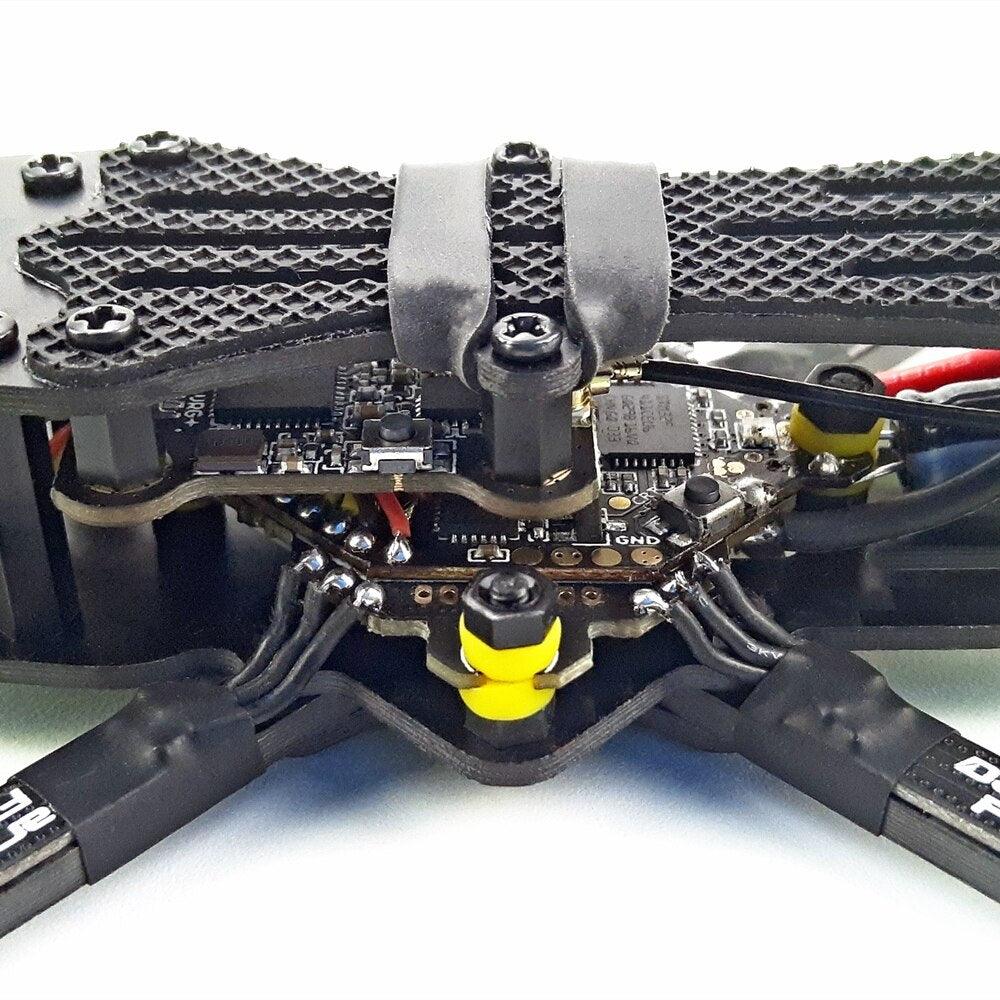

F411 AIOFlight Controller |
Main control chip: STM32F411 Sensor: MPU6000 Integrated OSD PPM/DSM/IBUS/UAR share: UART1-RX Mounting holes distance: 25.5*25.5mm Supports Betaflight firmware |
|

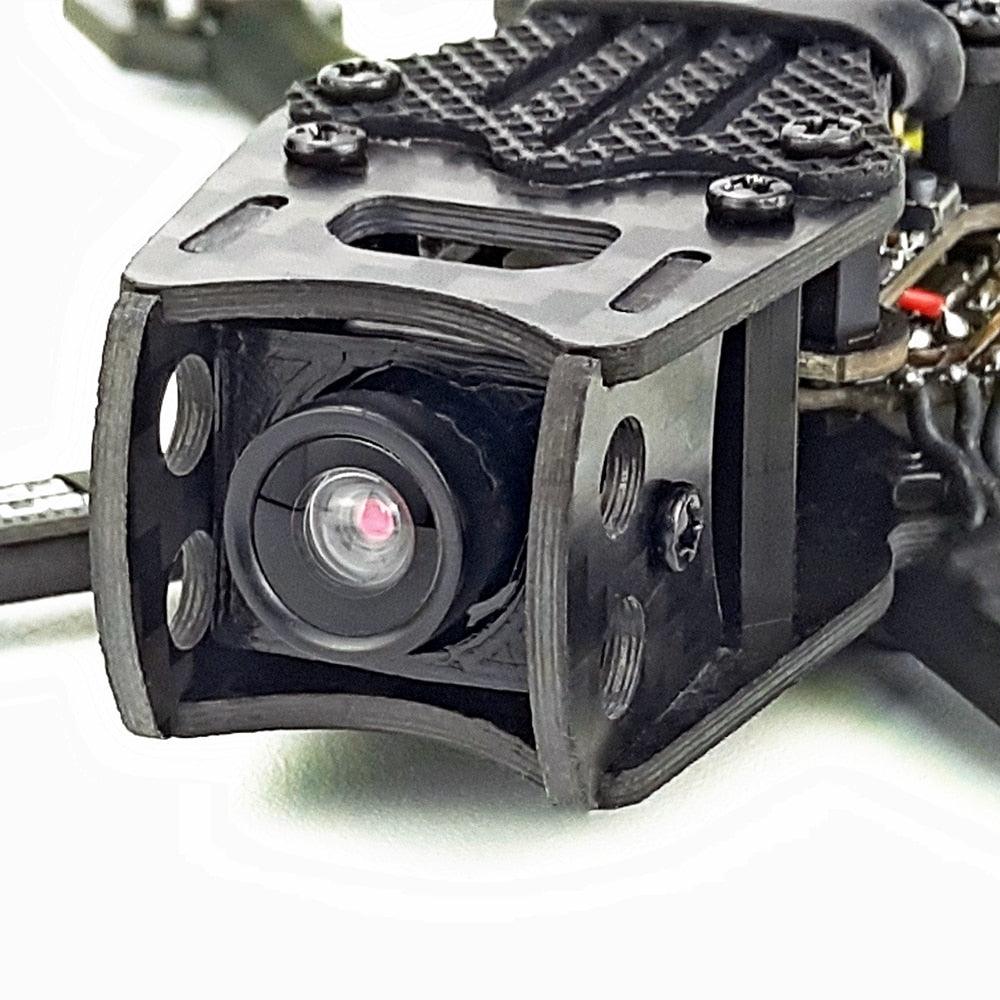

Baby APE Darwin700TVL Camer |
Resolution:700TVL Lens: 1.8mm Input: 3.5-5V TV System: PAL/NTSC |
|
Baby APE Pro CADDX ANT |
Resolution:1200TVL mage Sensor: 1/3″ CMos Sensor Input: DC 3.7-18V TV System: PAL/NTSC |
|
5.8G 40CH 0mW/25mw/200mw switchable VTX |
Supports TBS SmartAudio Transmitting power: 0mW/25mW/100mW/200mW switchable Channel: 40CH Full video format: NTSC/PAL Input voltage: 7V~24V Power dissipation: +12V/600MW Size: 25×20×6mm Weight: ≤3.2g (except antenna) With copper pipe mini antenna (ipex antenna) |
|
30163-blade propeller |
Material: PC Mounting hole: 1.5mm Center thickness: 5.5mm Quantity: 2Â pairs Weight: 1.18g a pair |
|
Lipo Battery |
Not included |
Package Included(Optional):
1x Baby Ape/Pro 142mm 3″ FPV Drone
