CADDX WALNUT action camera SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Recommend Age: 12+y
RC Parts & Accs: Transmitters
Origin: Mainland China
Model Number: CADDX WALNUT
Material: Metal
For Vehicle Type: Helicopters
Brand Name: uuustore

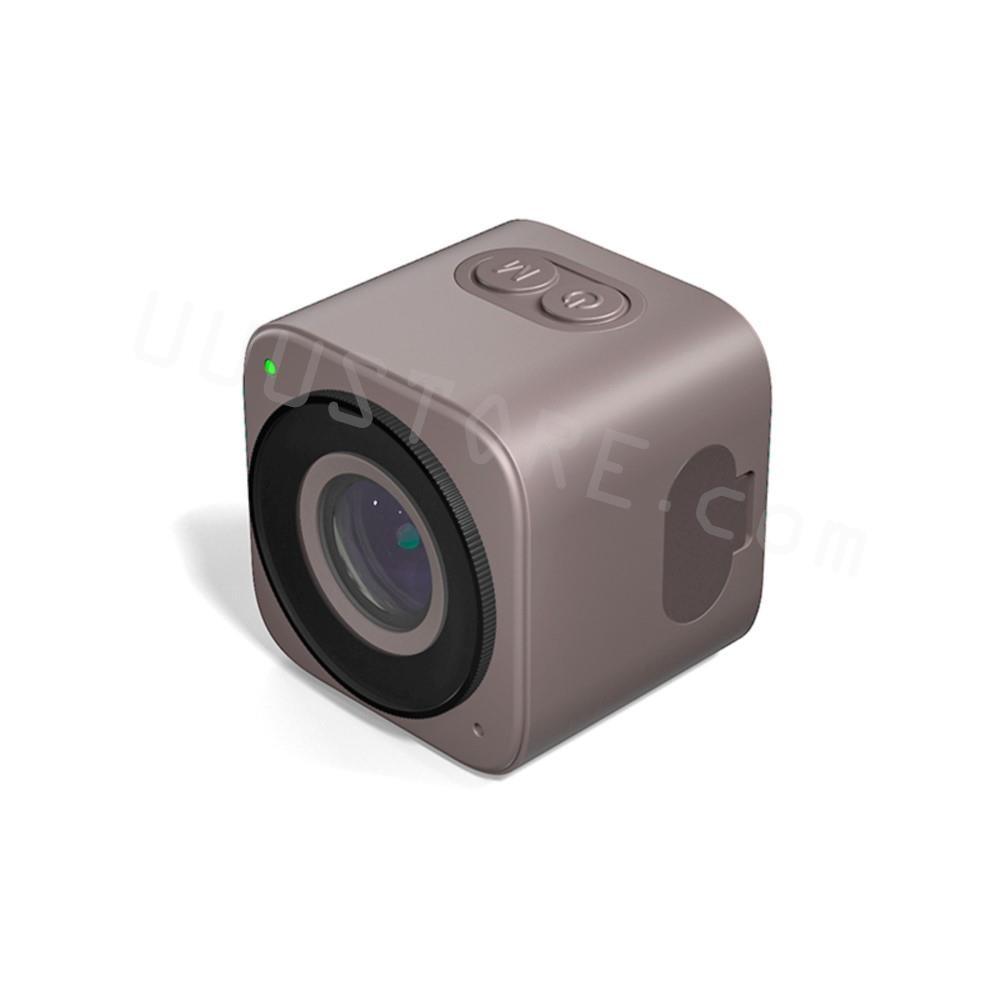

CADDX WALNUT 4K/60fps FOV150 IP64 60g FPV Action Caemra Built-in 600mAH Battery Gyroflow ND8 ND16 for FPV Freestyle Cinewhoop
Features
Recording 4K 60FPS videos, up to 100Mbps bit rate
Lightweight, durable construction, only 63.4g

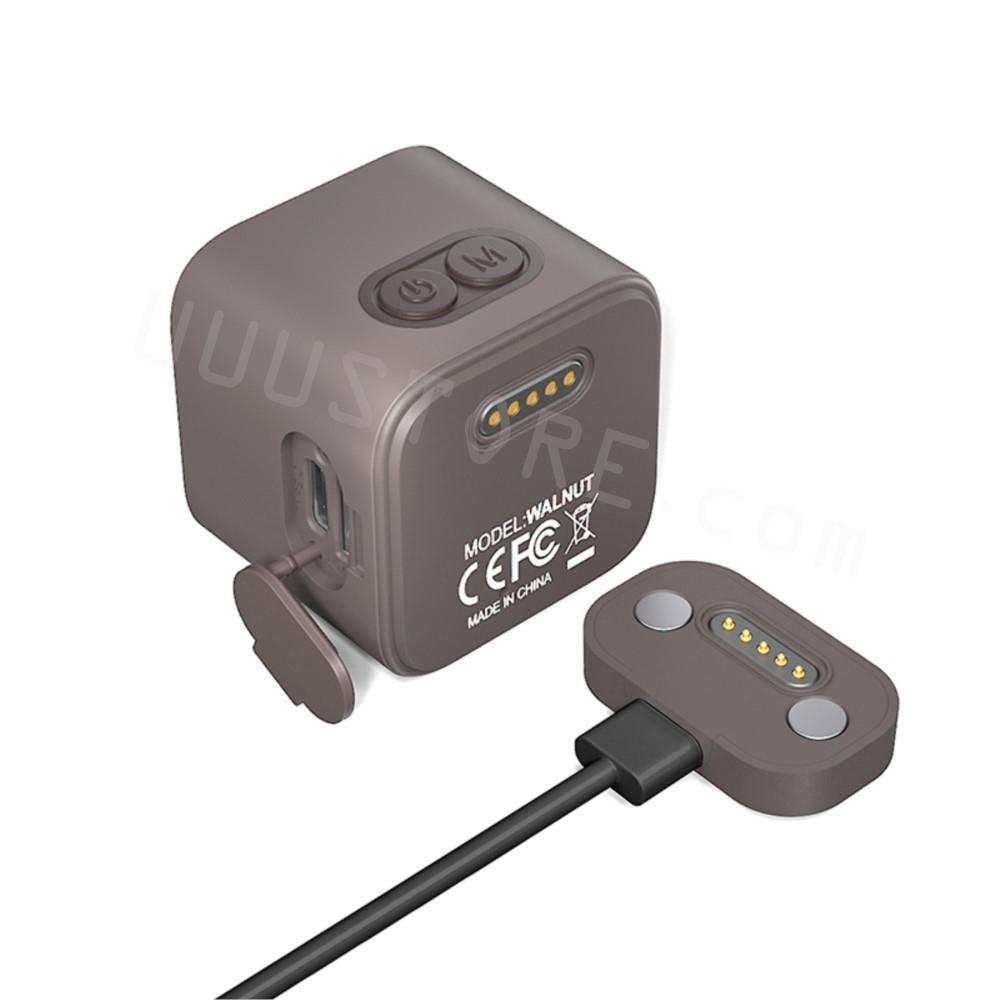

Power supply/charging/data transfer via magnetic coupling
Built-in battery for standalone operation

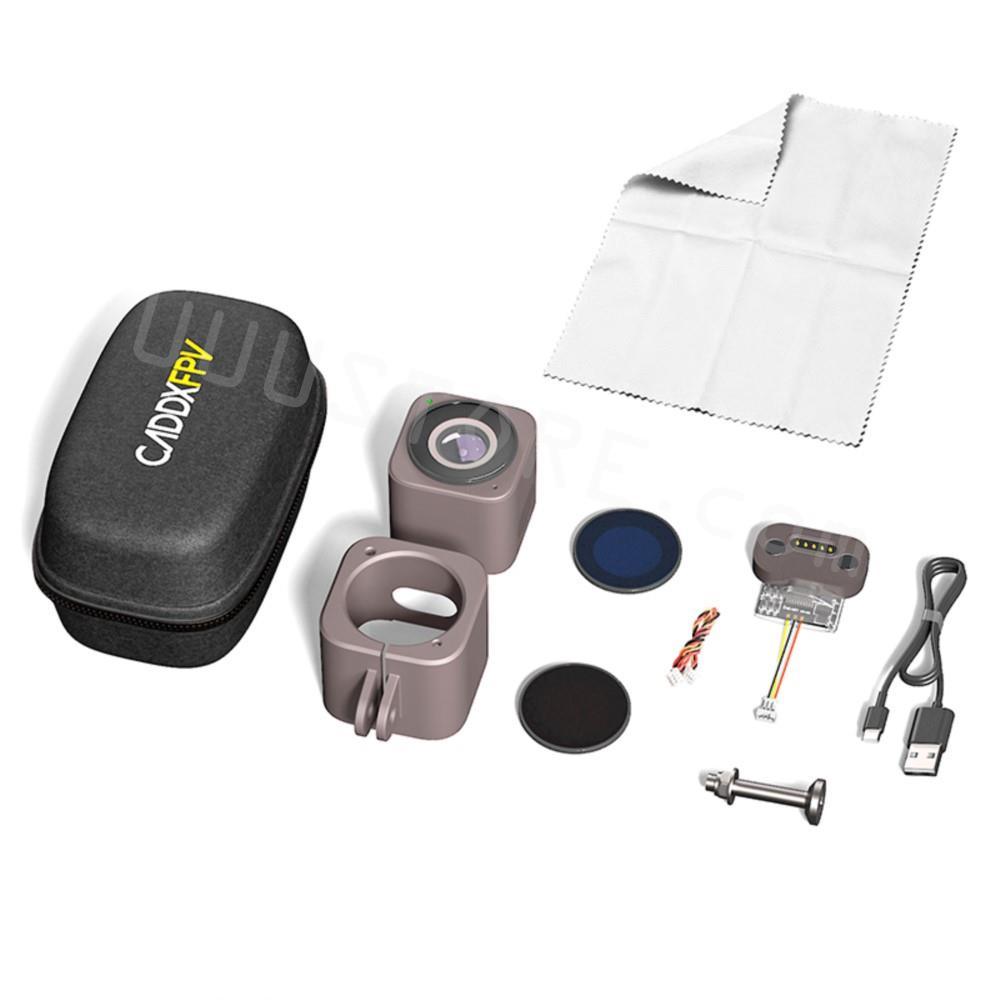

Screw mounted filters (UV/ND8/ND16 included)
Start/stop recording by physical button or flight controller
Supports Gyro Flow with gyro data and lens correction for stabilized videos
Specifications
Model: CADDX Walnut
Image Sensor: 1/2.3inch hdr Sensor
Main Resolution: 4K/60fps,4K/30fps(4/3),2.7K/60fps,2.7K/30fps(4/3), 1440P/60fps,1080p/120fps.
Dimension: 38mm*36mm
weight: 60g
FOV: 150”
Video file format: MP4
Audio: support
wifi: support
Camera Bitrate: Max 100M bitrate
EIS : Gyroflow supported
Video Encode: H264/H265
LANGUAGE: Auto
Image Rotate: support
Recording time: 4K/60fps (30min)
Battery Capacity: 600mA
waterproof: IP64
Power input: Type-c ,2s-6s BEC,Magnet
SD card: Max 256G
Download The Manual Herehttps://cdn.shopify.com/s/files/1/0248/0403/2561/files/caddx_walnut_action_camera_manual.pdf?v=1664163612

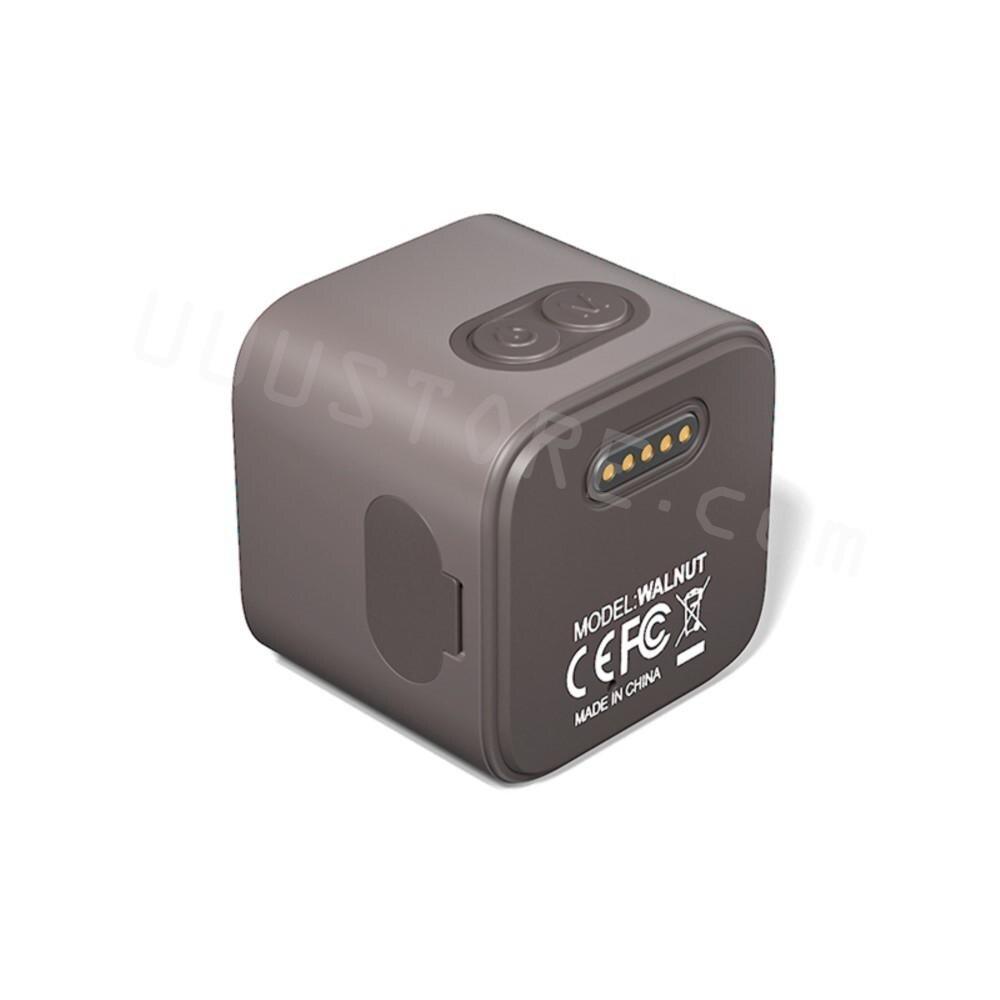

Introduction of product Status indicator Detachable ND nilter Type-C Memory slot Microphone M button Power button USB Magretic Connector Buzzer
The camera’s flash indicator lights up slowly when the battery power is high, and quickly when it’s low. If the camera becomes unresponsive, simply press and hold the power button for 10 seconds to shut it down.
Note that the FC UART TX key enables remote control of the camera via your flight controller. For safe and successful remote operation, please review any necessary precautions and guidelines before using this feature.
