Axisflying KOLAS7″ SPECIFICATIONS

Usage: Fan

Type: Micro Motor

Protect Feature: waterproof

Output Power: 1131.9W

Origin: Mainland China

Model Number: KOLAS 7″ DJI O3

Continuous Current(A): 48.6A

Construction: Permanent Magnet

Commutation: Brushless

Color: Black

Certification: CE

Brand Name: AXISFLYING

*Be aware

O3 or LINK VTX of the drone has been activated for better testing.

If activation is not required, please note when placing an order.

*Forword

– Axisflying KOLAS series drone is innovation foldable structure design.  KOLAS series are main for LongRang / LR market for easy storage and travelling. We want to bring users a new experience

*Feature

      – DJI O3

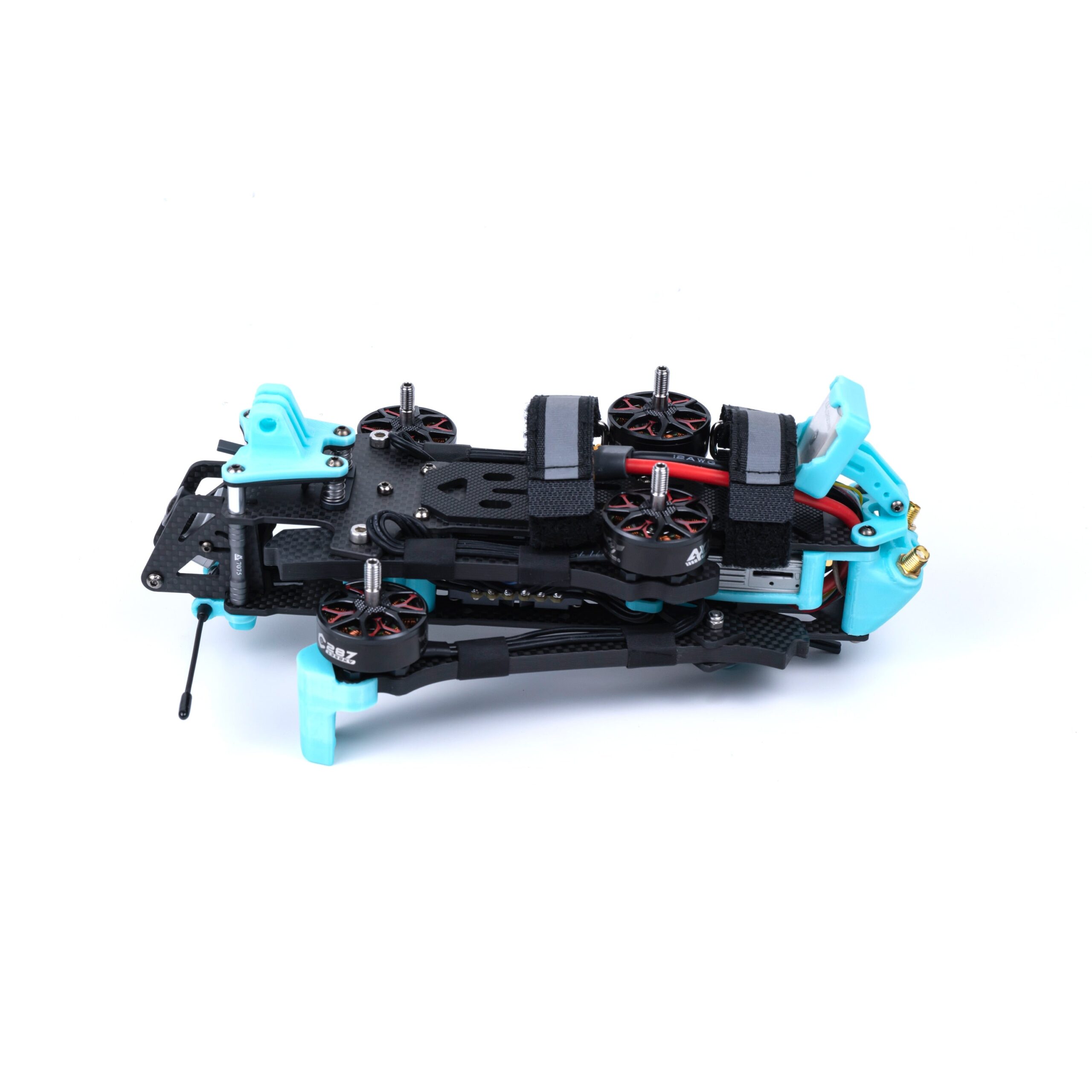

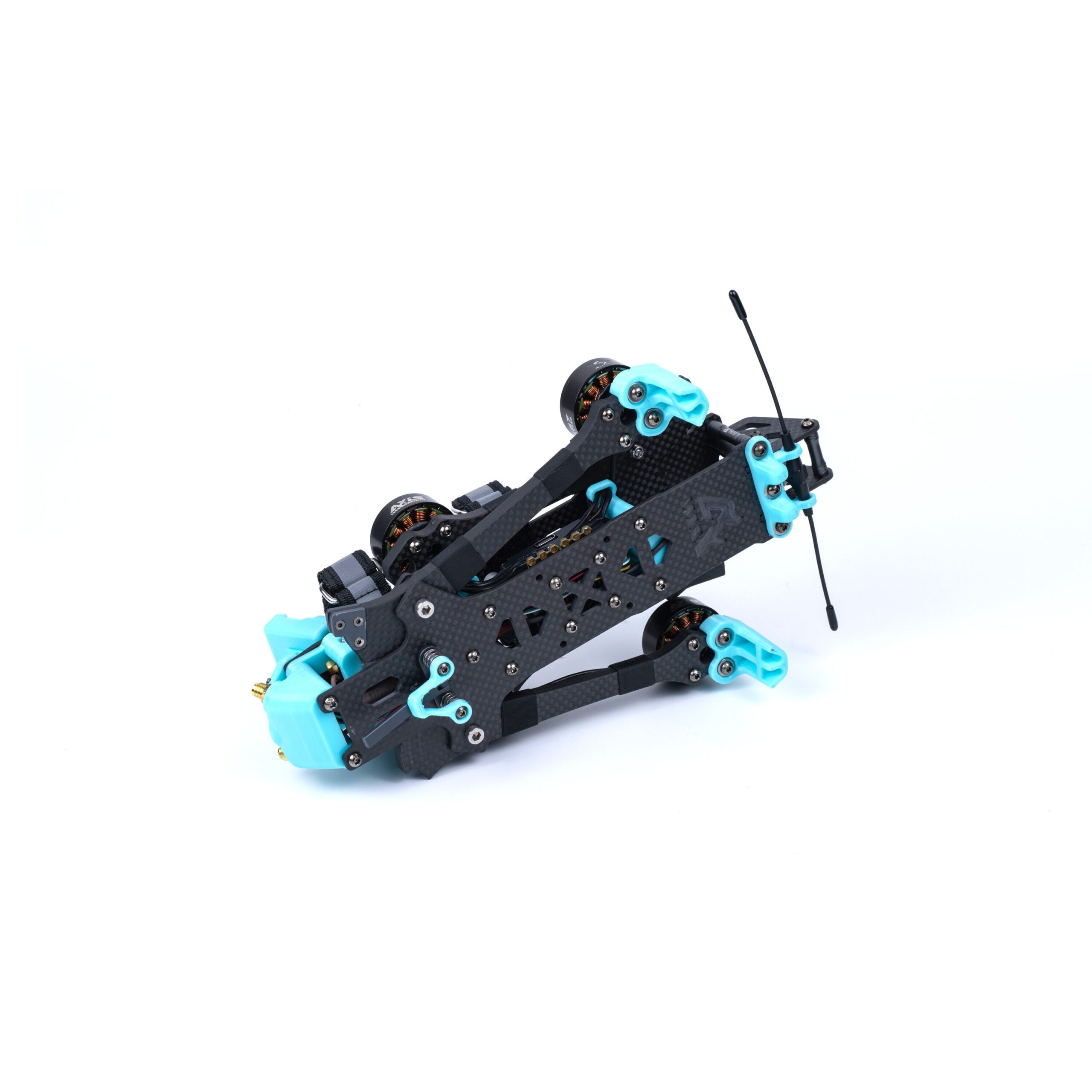

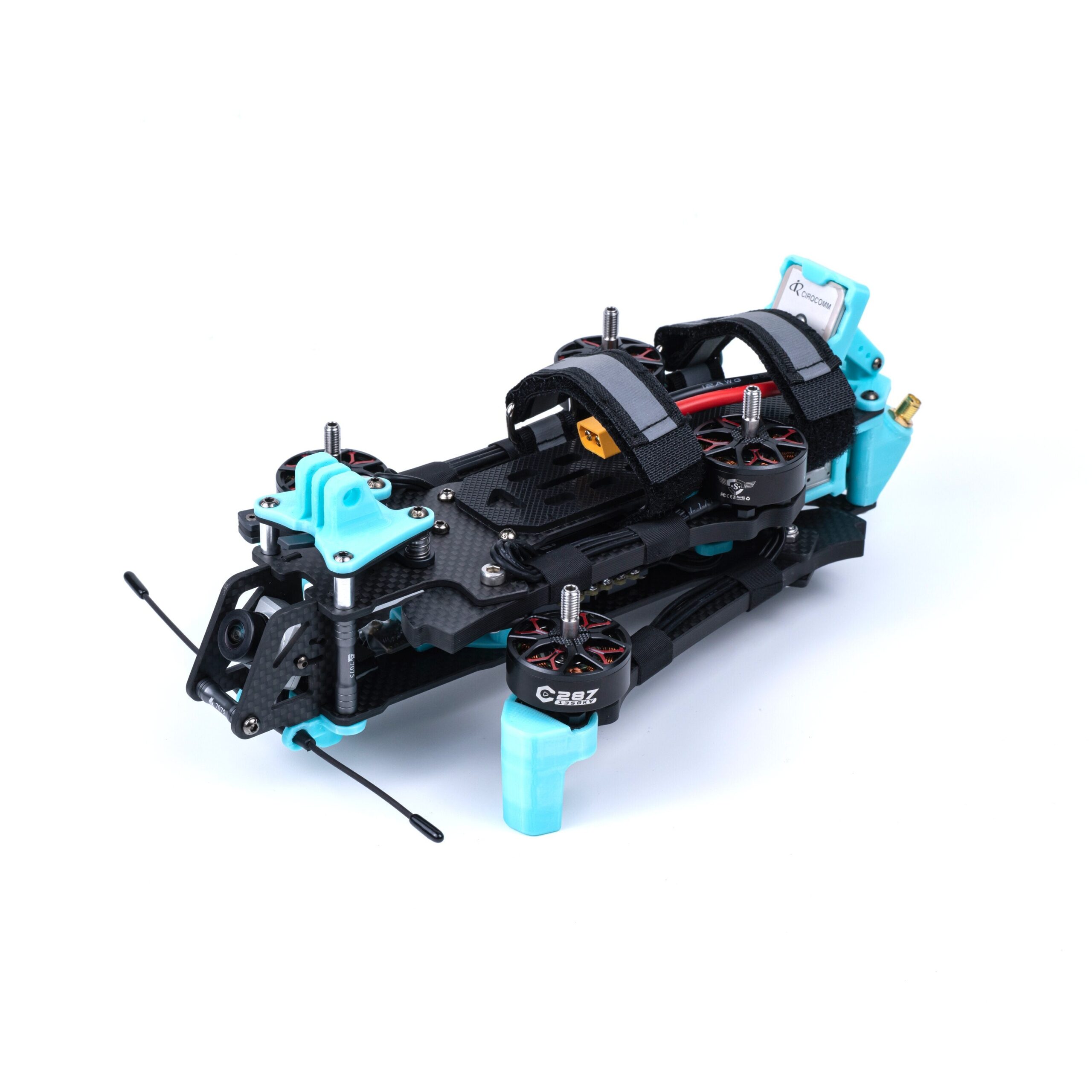

      – 40% reduction in volume after folding –Easily fit into a backpack

      – Newly designed pressing structure –The arms can be folded and unfolded quickly, efficiently and quickly

      – Compatible with all mainstream VTX

      – Support DJI air unit, RunCam link WASP, Walksnail Avatar, DJI V2

      – Quick release design for arms – Only remove one M3 screw to disassemble the arm

      – Adjustable Angle GPS mount – Faster search,more stable signal

      – Independent receiver and beeper storage, convenient for binding and searching drone

*Specs

– Wheelbase :298mm  /  Weight: 257g (with all TPU) /  Carbon Fiber: T700  /  Props: Max 7inch

*Recommended Configuration

– MOTORS:  Axisflying C287-1350KV @6S

– Lipos: 2200-3000mAh 6S / VTC6 3000-4000mah /18650 6S

– STACK: Axisflying istack 50A/F722

– Propellers: HQ 7035

‘8PS arjack Keble with beene Specifications Wheelbase 298mm thickness: 6mm ight: 626.2g Cam space:1420mm Bottom plate thickness: 2.5mm Stack mountina: 20&30.5mm(M3) Top plate thickness 2.5mm( M2) Carbo Material: Max 7 inch Bottom dista Motor mounting: 16*16&19*19mm(P3) Top . plate .2.5mm(
