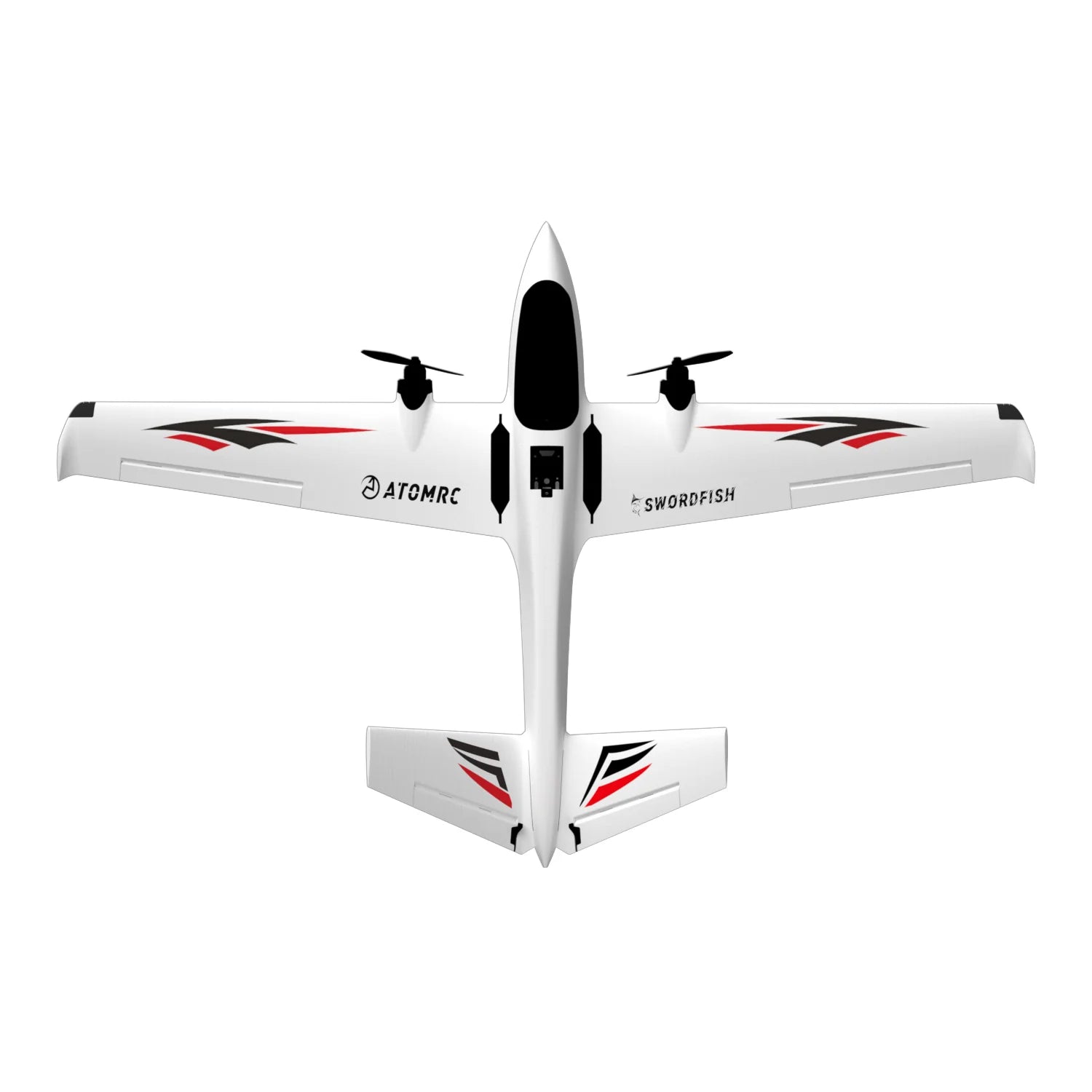

Atomrc Swordfish RTH RC Airplane Fly Fixed Wing Bundle. Atomrc Swordfish Build for FPV, Intelligence flight. -Flight controller have two firmware INAV or Arduplane, both firmware already pre-turned for the plane. RTH and RTH FPV version are plug and play, use just plug theire receiver and battery, plane is ready to go just like racing drones, no need glue or installed the electronics.
Arduplane version is also available, we can upload arduplane parameter setting on our web, you just need flash the arduplane firmware, load the settings.
Specifications:
Wingspan:1200mm
Length:810mm
Material: EPP
WingArea:15.35 dm²
Package size:815*220*185mm
Recommend motor: 2004~2306
Recommend prop: 7045
Recommend battery: 4s 5000mAh/21700 1P4s
Servo: 4Pcs 9g servo
Item weight: 1.4kg
Package size: 84*25.2*22.5 cm
Easy for beginners, pre turned and pre-installed electronics. Auto launch mode, return to home, circle mode, Need install the ATOMRC F405 NAVI flight controller, the RTH and RTH+FPV have intelligence flight mode.
Quick Release connector: The quick release connector using soft connection, solved the disconnection from vibration or crash. Easy to install the wing and detach the wing.
Hatch Lock: The screw and nuts are more durable and reliable than magnet, the hatch will never fall off in the air.
Carbon fiber reinforcement and plastic injection mount for tail, more rigid for high speed and landing
Precise Plastic injection parts: The wing connector, motor mount, VTX mount, V tail base and flight light cover are using precise Plastic injection parts, more durable and light weight.

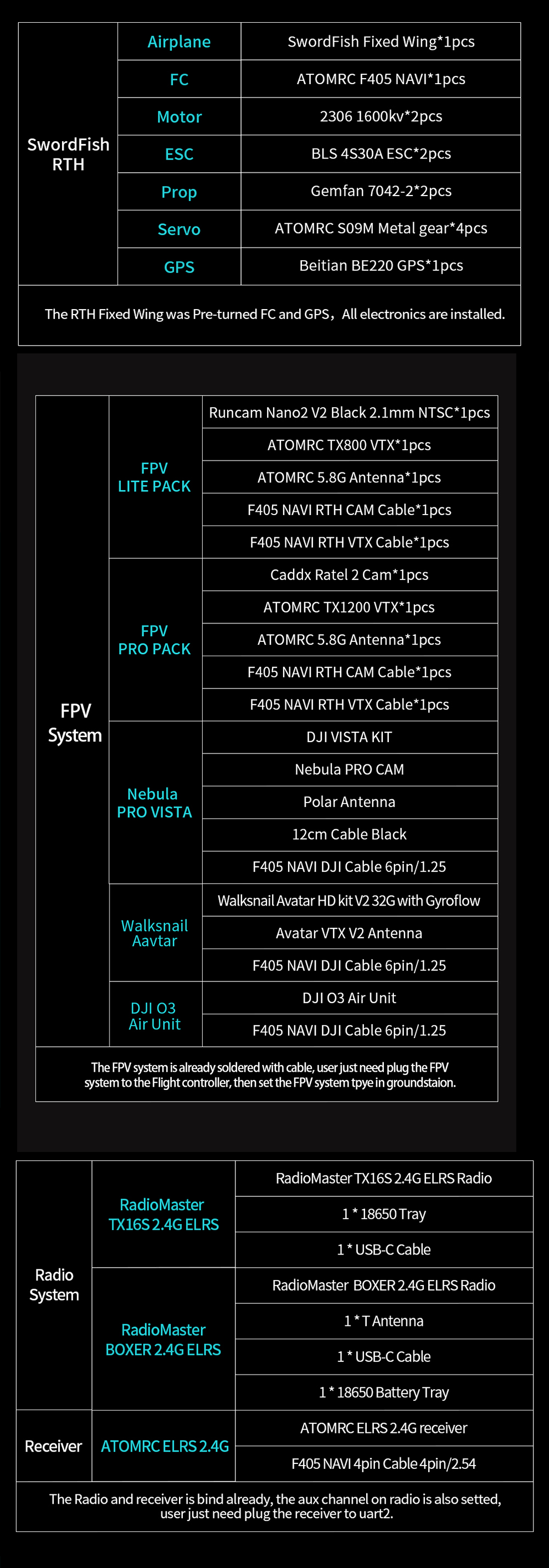

RTH Version Included:
1x Pre-glued fixed wing
1x Wood Plate
1x Screws and Nuts
1x Sticker
1x Manual
1x Flight Light
2x ATOMRC 2306 1600KV Motor
2x ATOMRC BLS 30A 2-4S ESC
4x ATOMRC 9g Servo
4x 7042-2 Propeller
1x ATOMRC F405 NAVI Flight Controller
1x BN220 GPS Module
the FPV system is already soldered with cable; userjust need plugtheflight controller; then set it up . the radio and receiver isbind already, the aux channelon radio isalso setted .

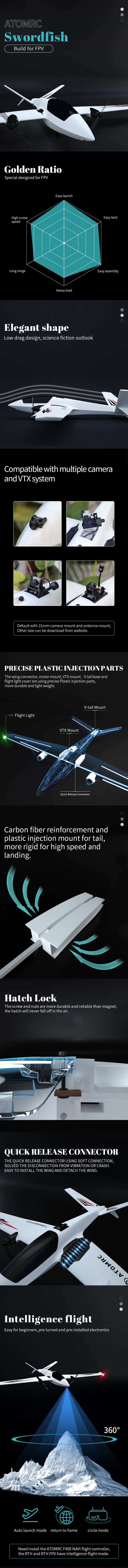

ATOMRC wordfish Bui for FPV Easv lau Elegant shape Low drag design science fiction outlook Compatible with multiple camera VTX system Default with 210 camera mount and antenna mount Other size can Inload frc website.
