ATOMRC Flying Fish SPECIFICATIONS
Wheelbase: Screws
Upgrade Parts/Accessories: Frame
Tool Supplies: Assembly Category
Technical parameters: Value 2
Size: As description
Remote Control Peripherals/Devices: Starter
Recommend Age: 12+y
RC Parts & Accs: Principal Axis
Quantity: 1 pcs
Origin: Mainland China
Model Number: ATOMRC Flying Fish
Material: Foam
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
| Version | Servo | Battery | Motor | Charger | ESC | Receiver | Airframe | Remote Controller | |
| RTF | √ | √ | √ | √ | √ | √ | √ | √ | |
| BNF | √ | √ | √ | √ | √ | √ | √ | × | |
| PNP | √ | × | √ | × | √ | × | √ | × | |
| KIT | × | × | × | × | × | × | √ | ×
| |

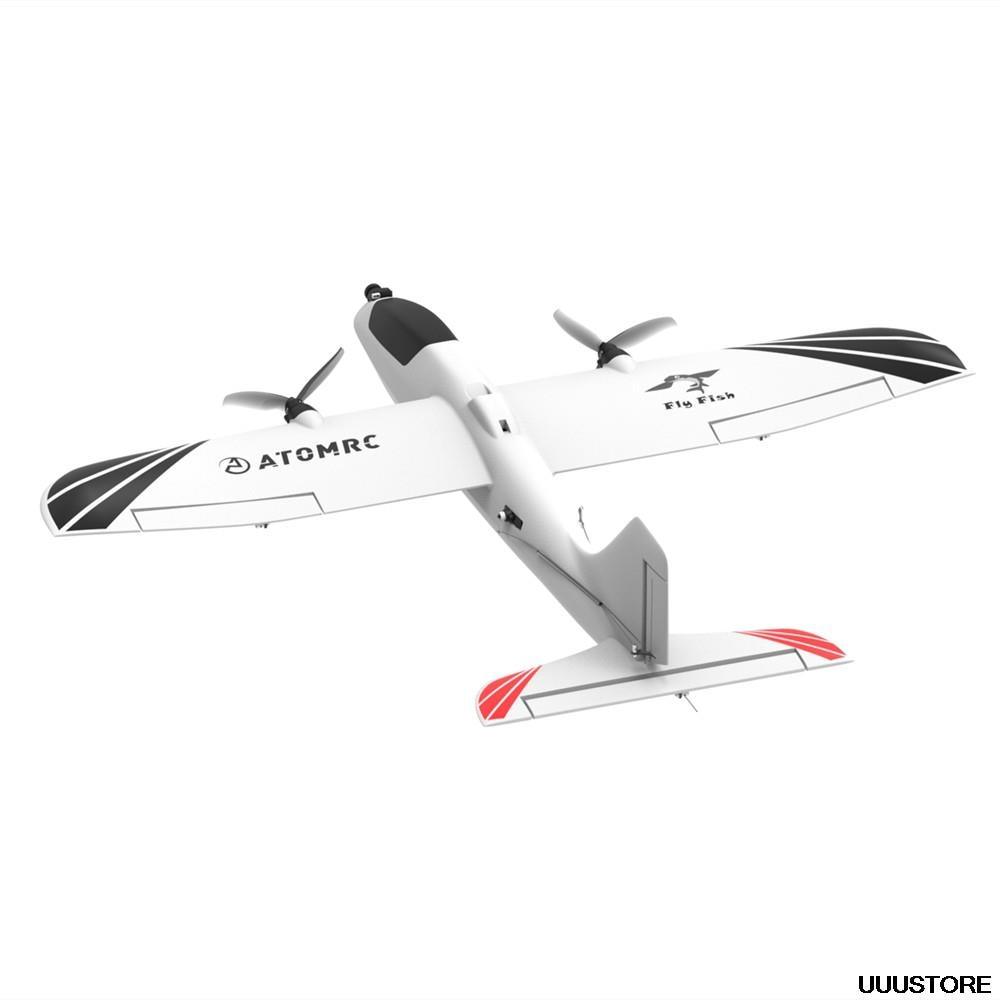

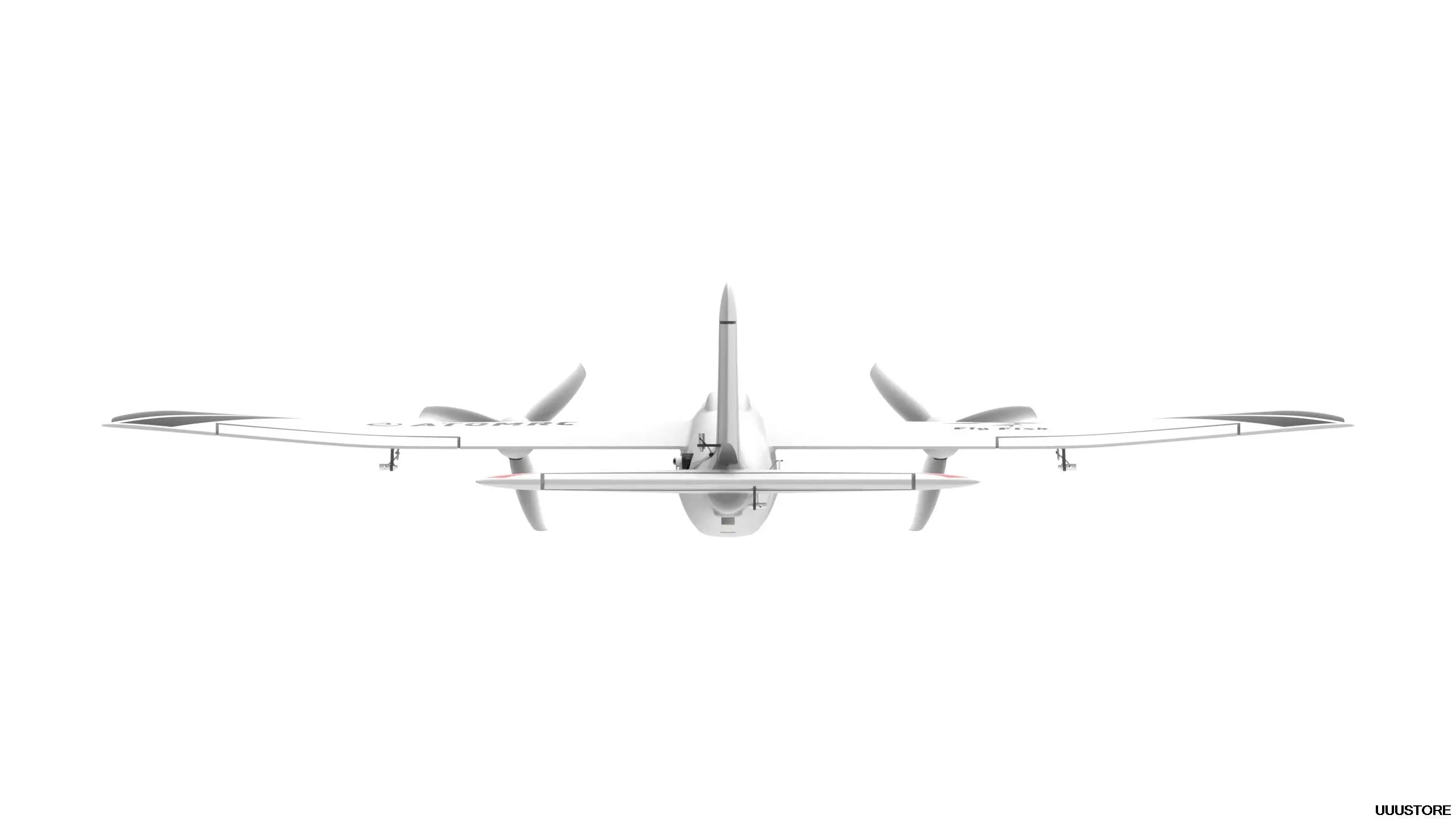

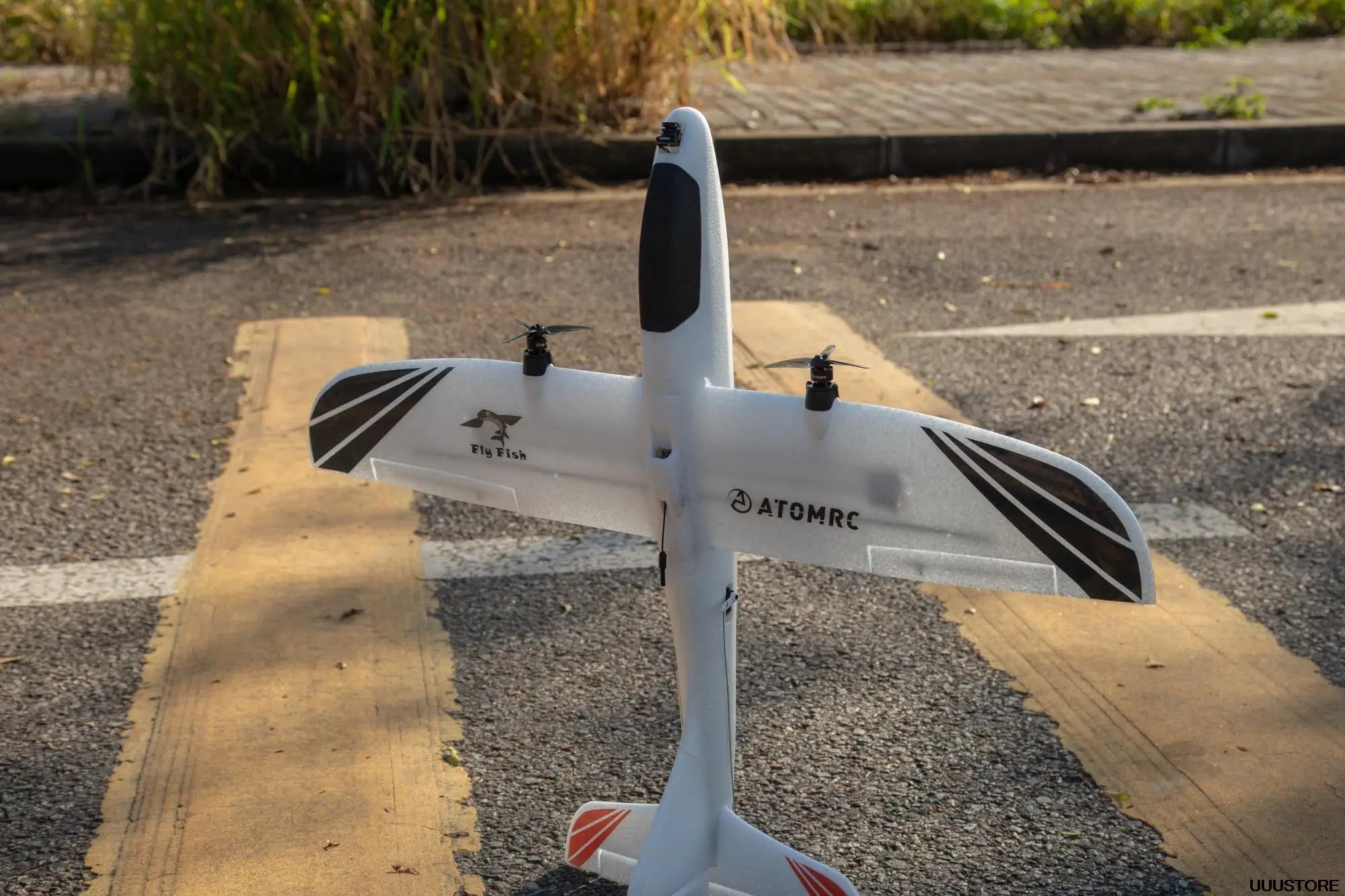

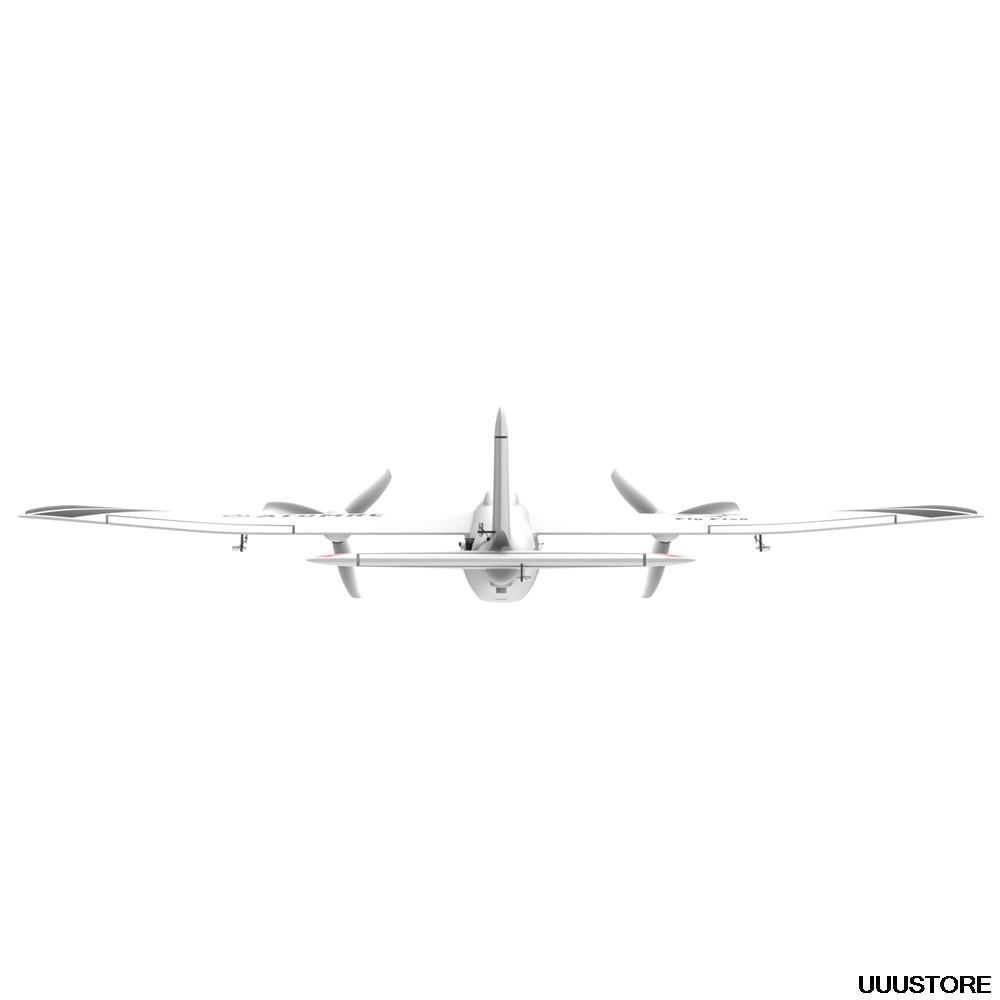

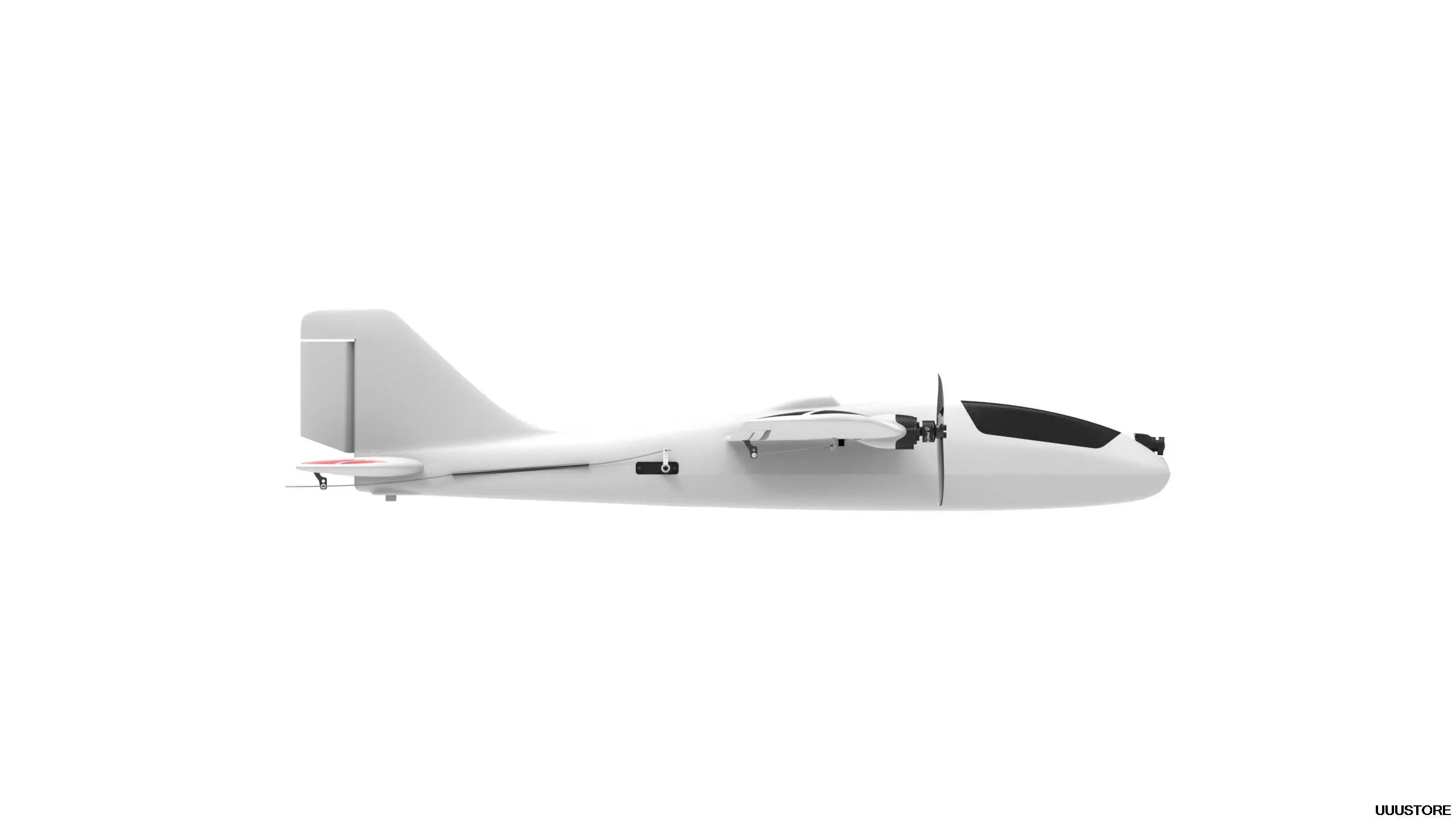

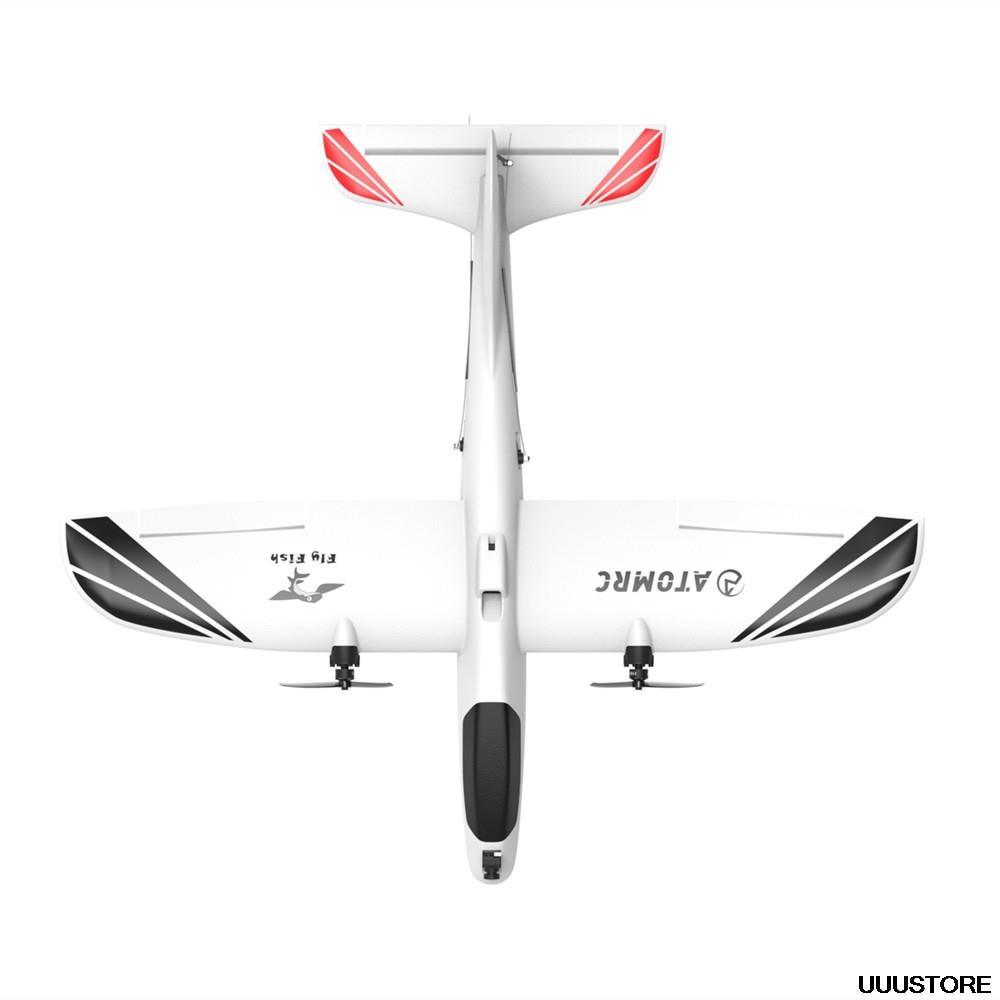

ATOMRC Fixed Wing Flying Fish 650mm Wingspan FPV Aircraft RC Airplane PNP/FPV PNP
Description:
Brand: ATOMRC Fixed Wing
Model: Flying Fish

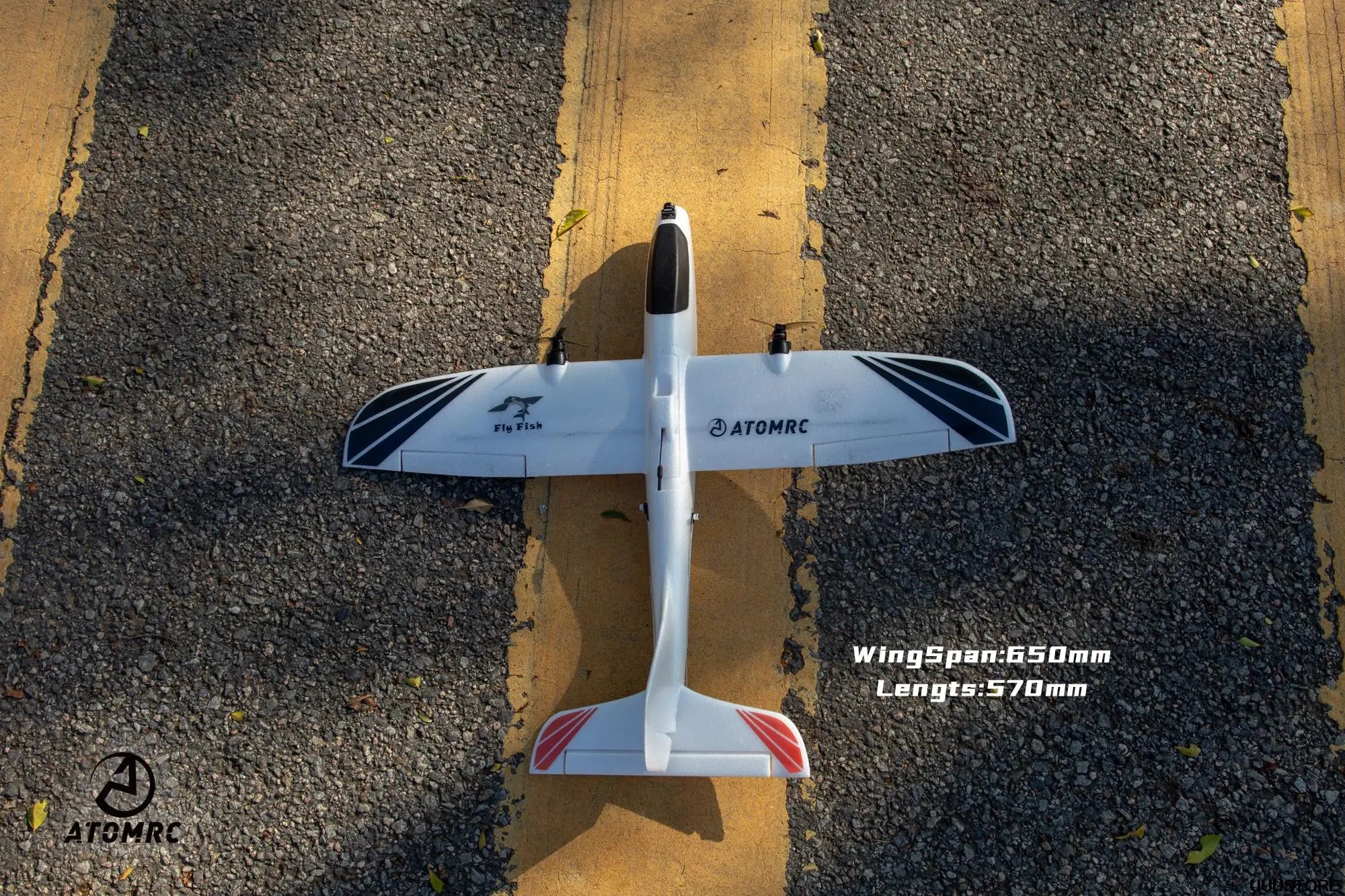

Wingspan:650mm
Length:570mm
Material: EPP
WingArea:6.15 dm²
Package size:670*190*95mm
Recommend motor: 1105 5000KV
Recommend prop: 3016-3
Recommend battery: 3s 750mah
Servo: 4Pcs 4.3g servo
The specs is testing by PNP version：
Recommend take off weight: 250g
Max. take off weight: 280g
Cruse speed：20km/h
Feature:

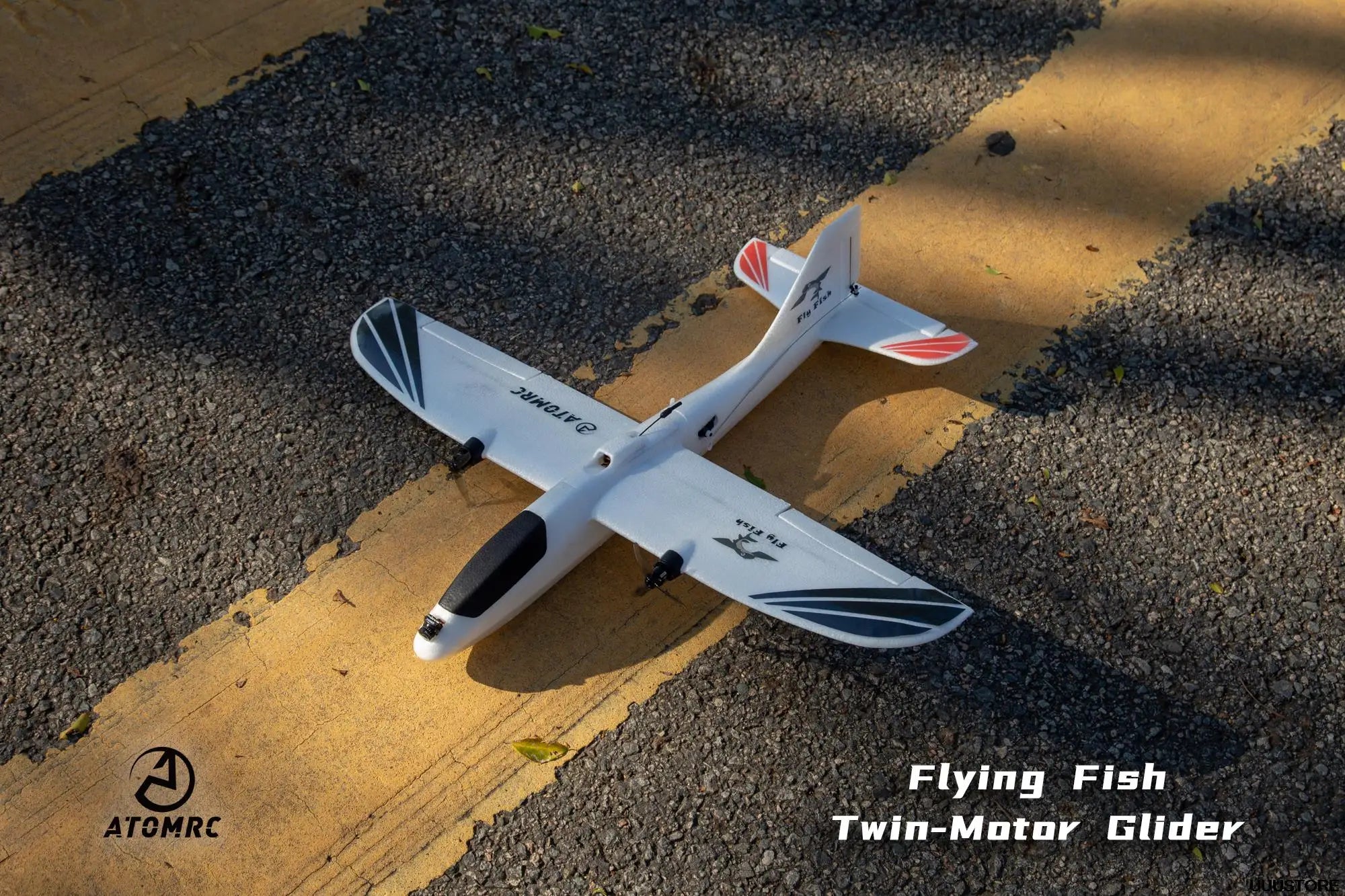

1.The flying fish is classic mid/low speed FPV glider.
2.Compact size(only 650 wingspan), swift and durable, easy for beginners.
3.The special designed 2 in 1 ESC and VTX made the electronics wiring clean.

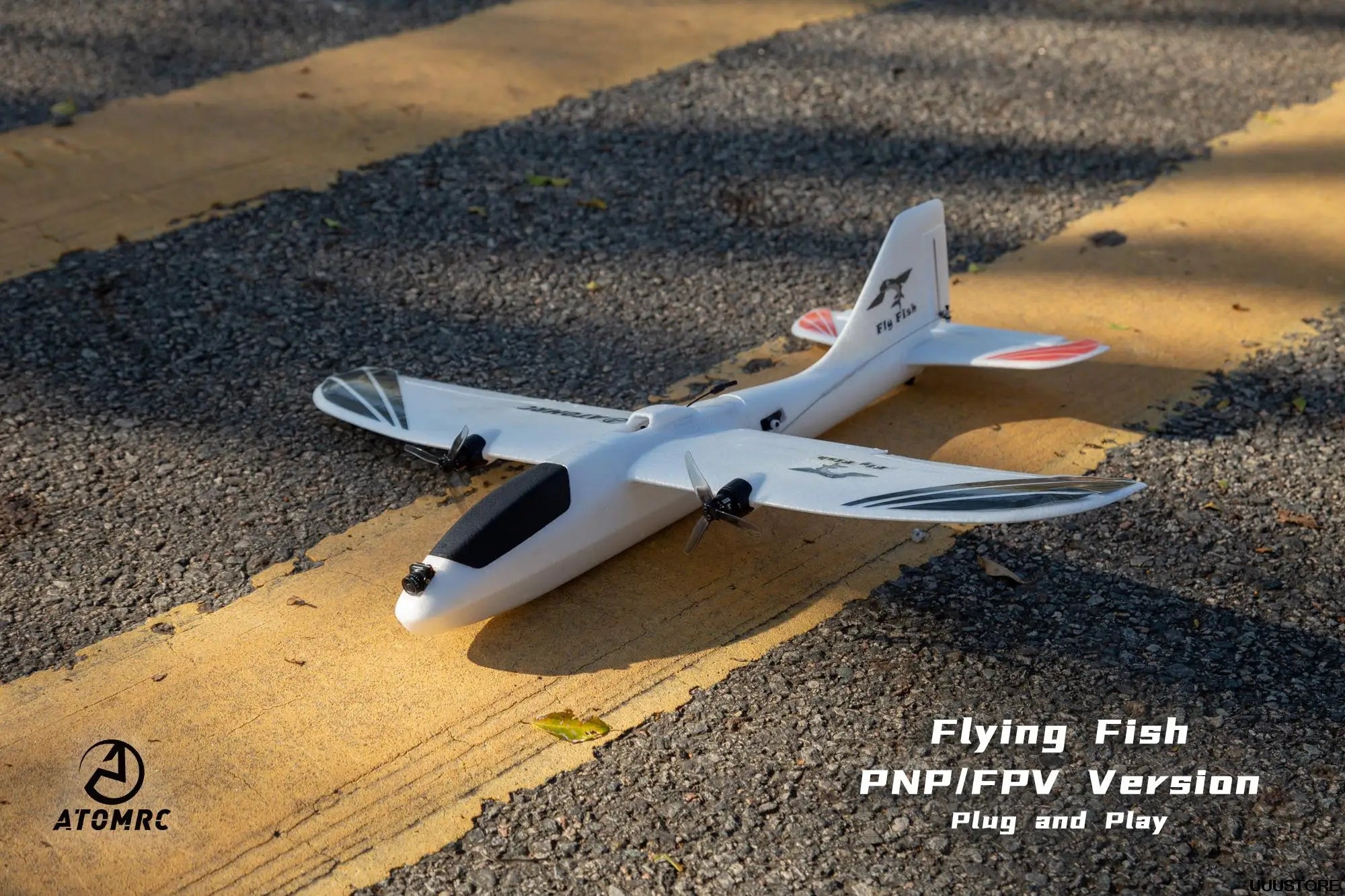

4.Come with PNP/FPV version, all part is installed, no need glue or soldering anymore.
5.Sub 250g design, made the glider fly without regulation, also easy to fly in the park and small area.
PNP Version package included:
1 x Pre-build plane

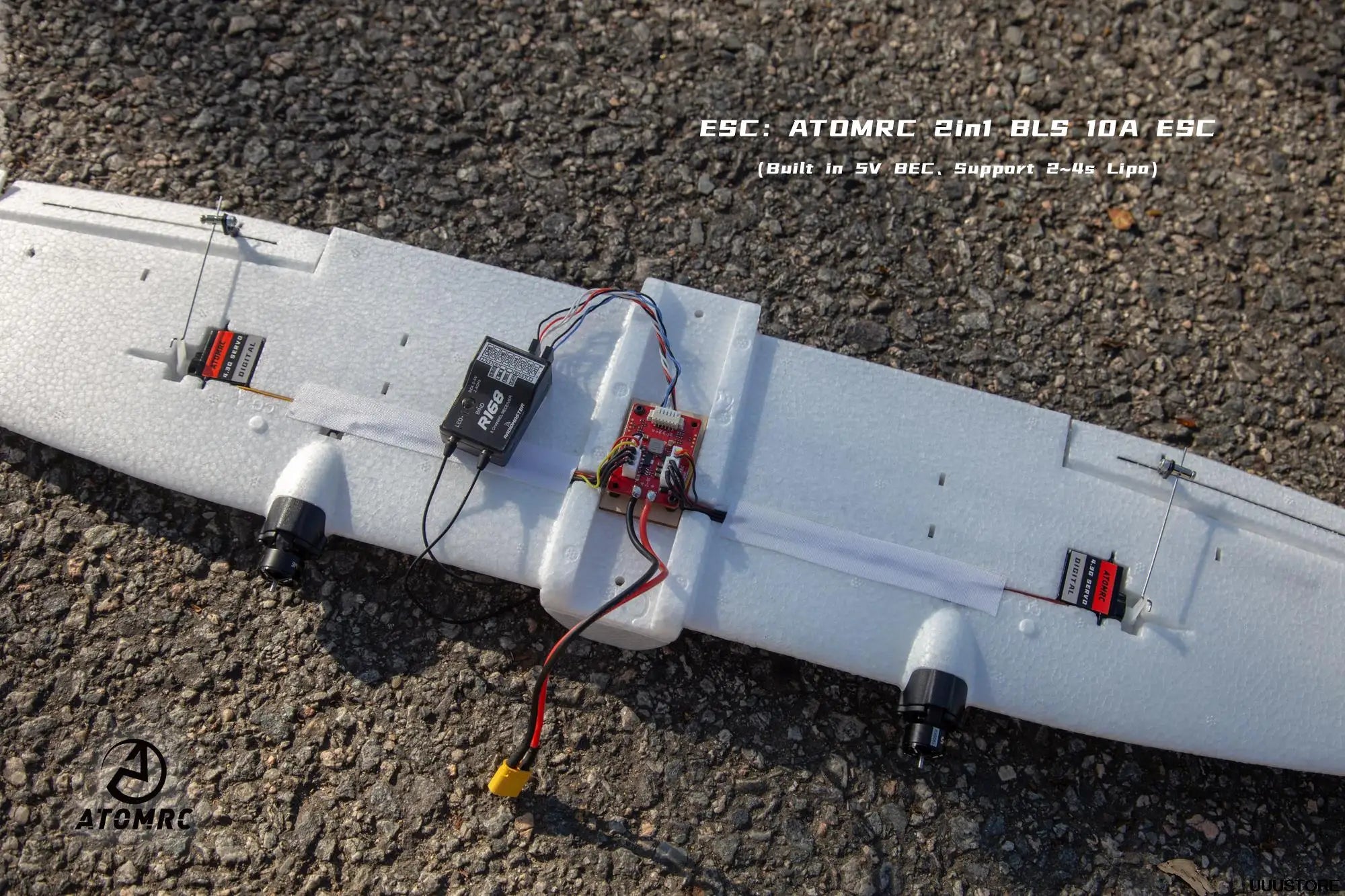

1 x ATOMRC Exceed 2in1 BLS 10A ESC
(Bulid in 5V BEC,Input 2~4s.)
2 x1105 5000KV Motor
4x 4.3G Digital Servo
4 x 3016-3 Propeller

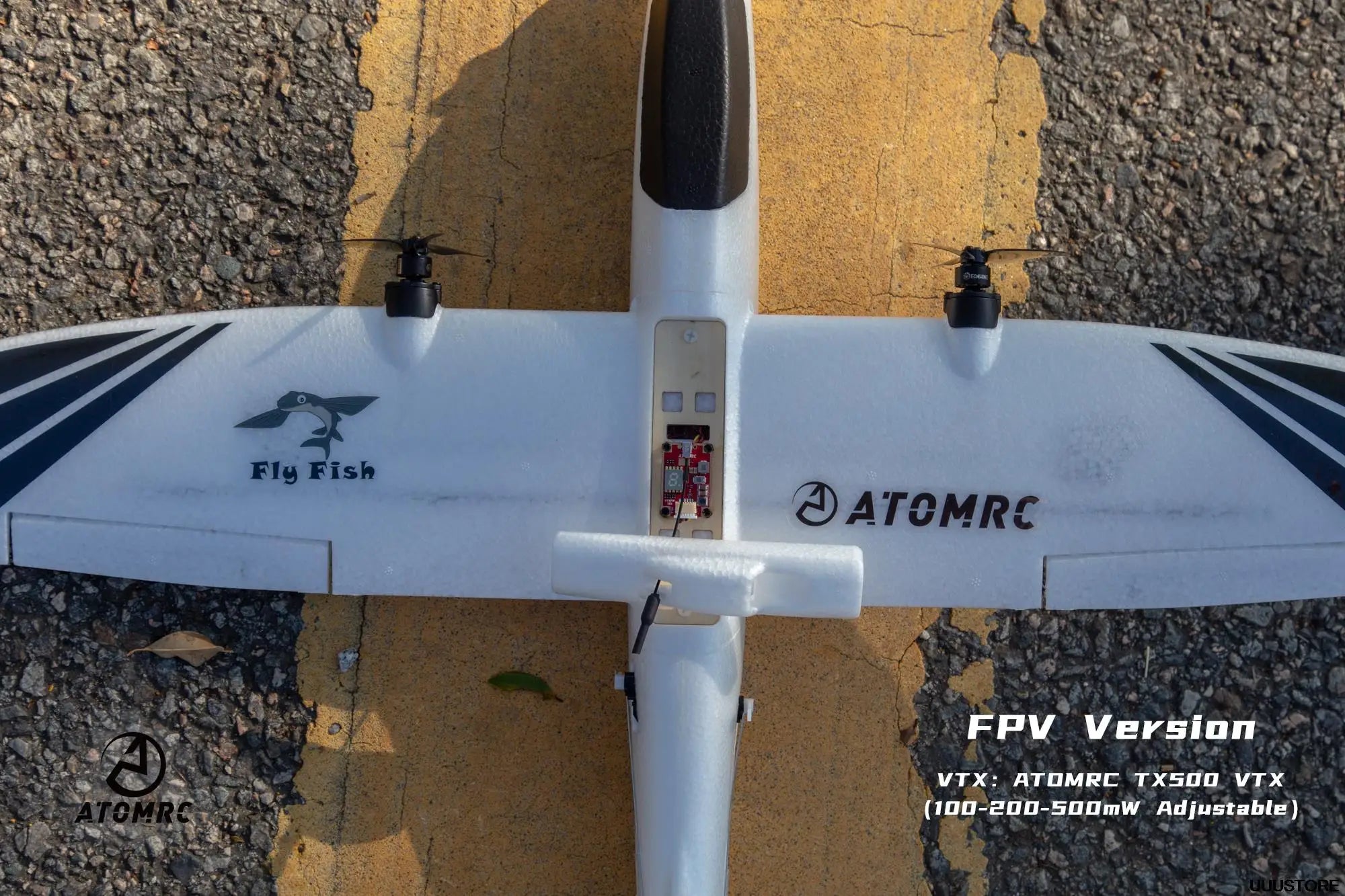

FPV PNP Version package included:
1 x PNP Plane
1 x ATOMRC TX500 VTX

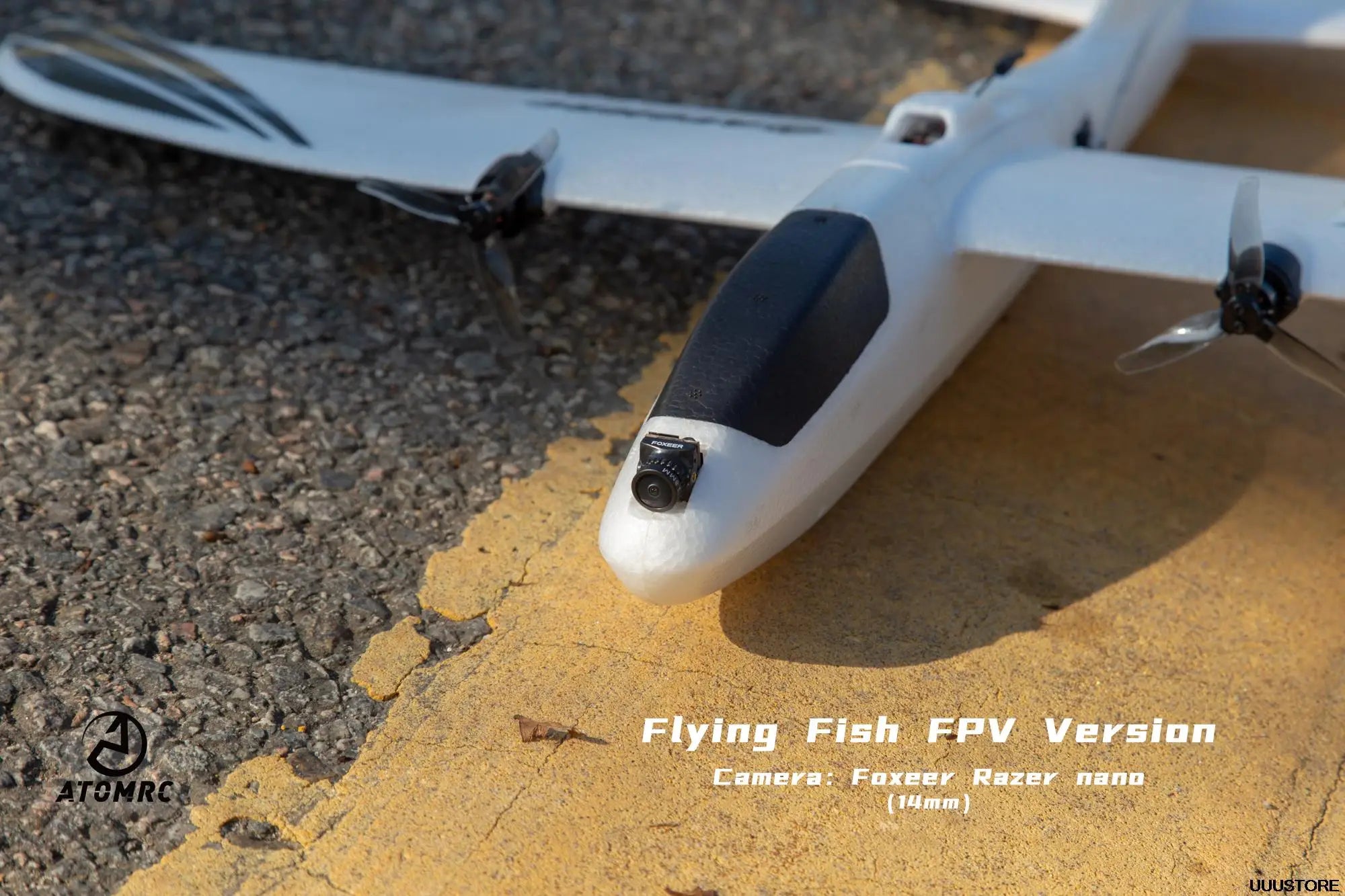

1 x Foxeer Razer Nano 1200TVL 14mm CAM
1 x 5.8G Antenna

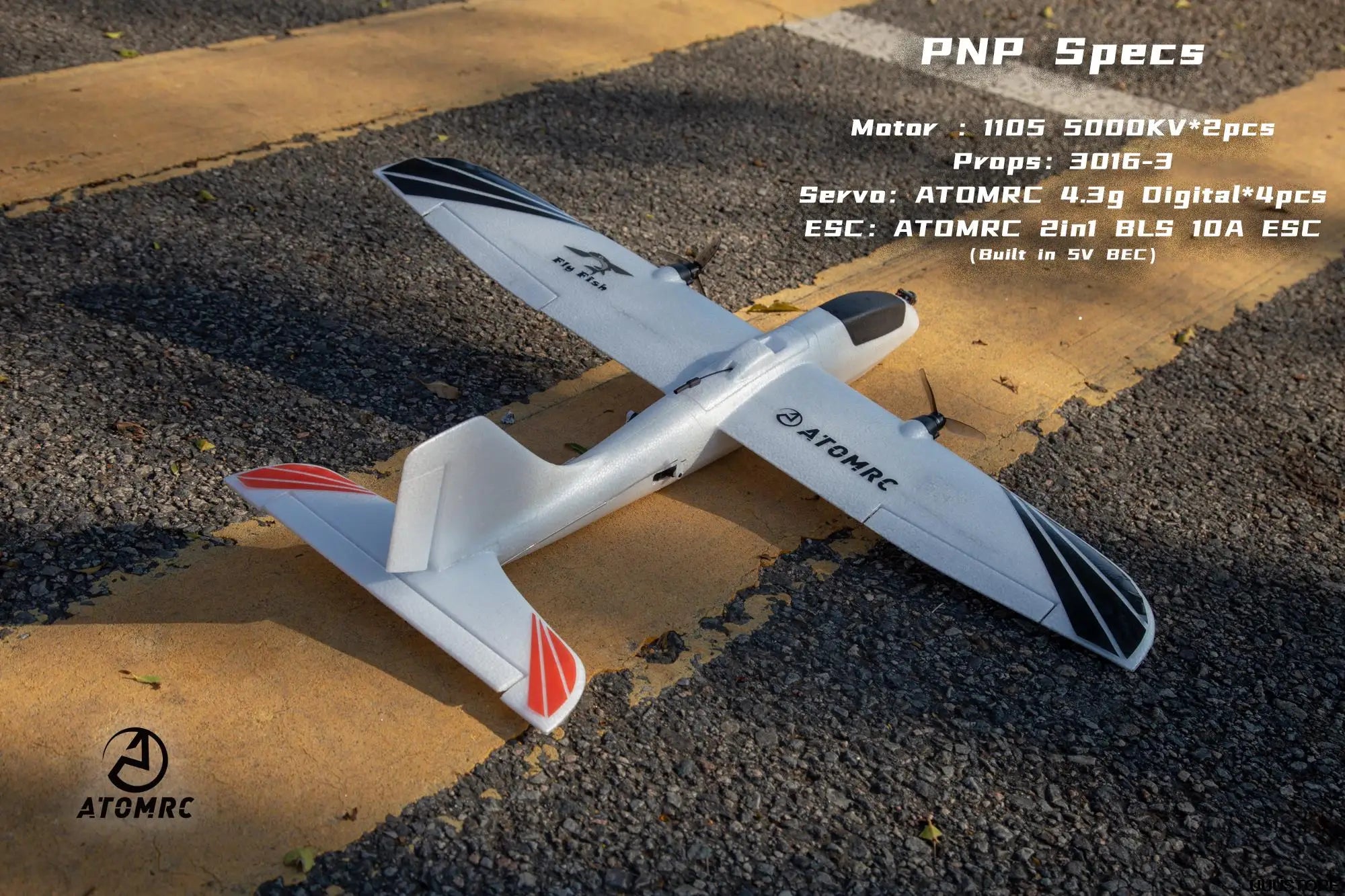

PNP Specs Motor 1105 SdDOKV*ZpCS Props: 3016-3 Servo: ATOMRC Zin BLS 1DA ESC (Built In SV BEC)
