AKK TS5828 5.8G 600MW 32Ch FPV Audio Video Transmitter RP-SMA Female for Mini FPV Quadcopter

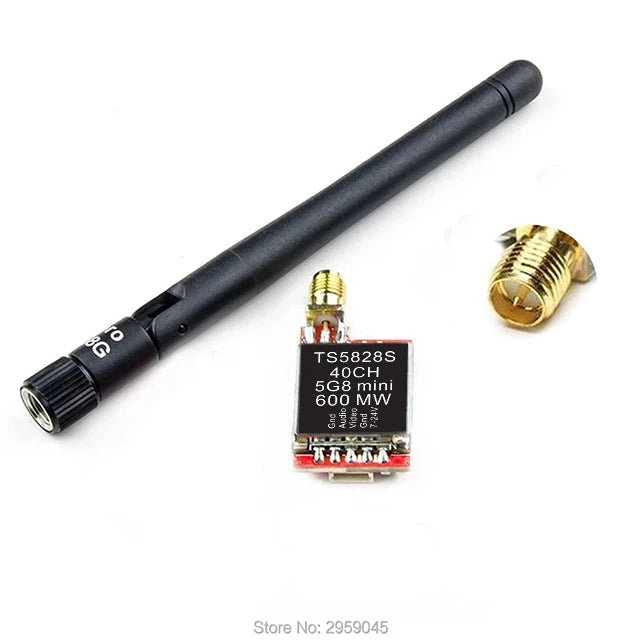

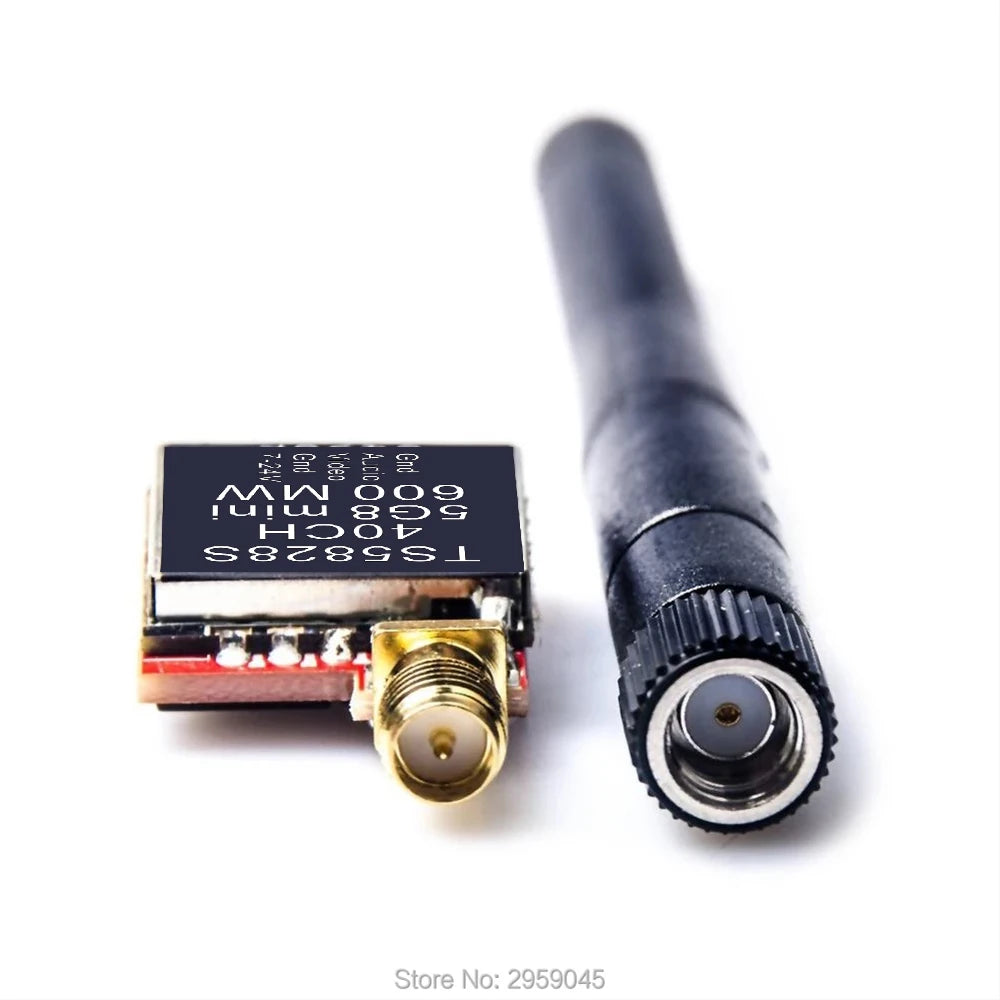

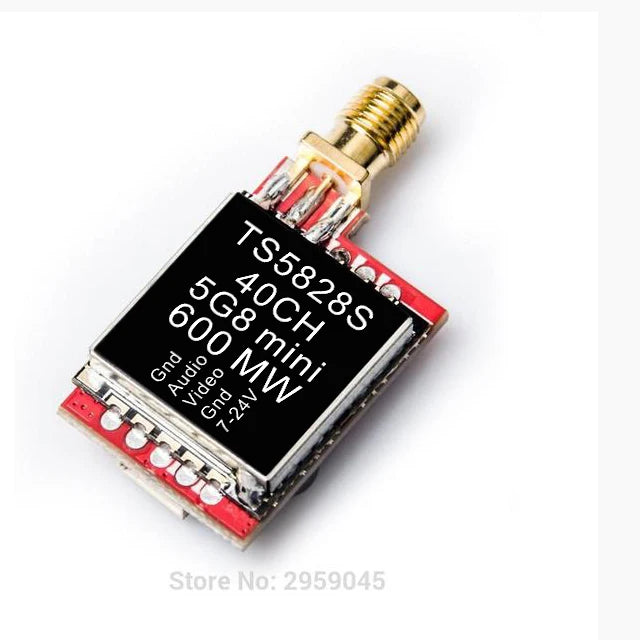

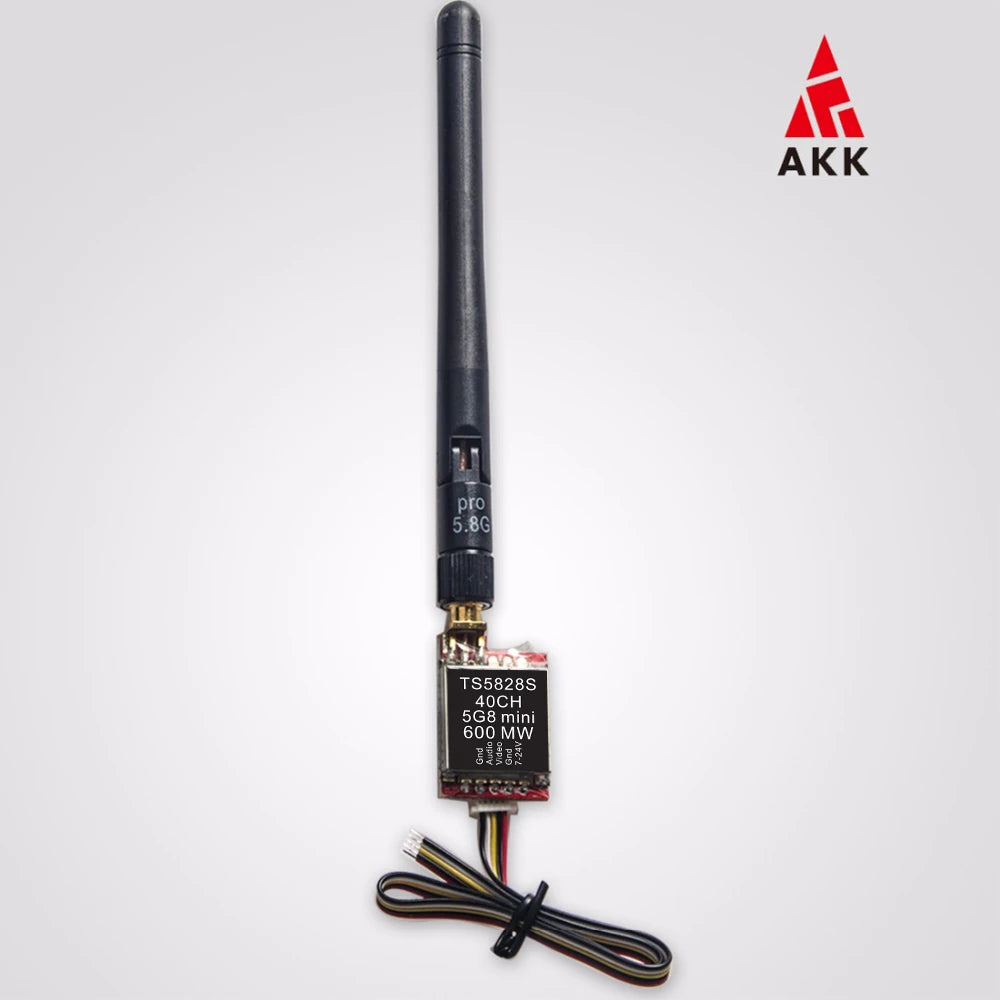

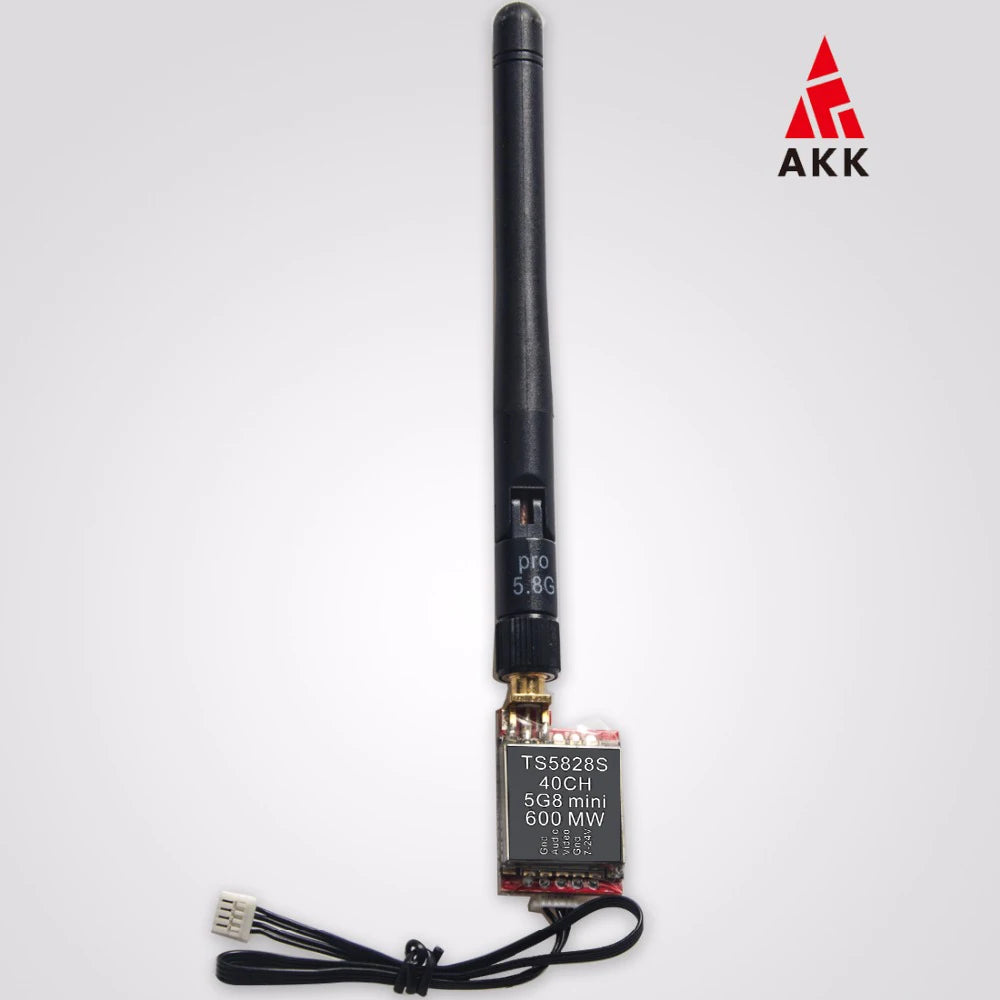

Note: TS5828 has been advanced, updated version is TS5828S, TS5828S is 40CH and 2 accessories.if you ordered transmitter TS5828, We will send you TS5828S( updated version).

Description:

Features:
This 5.8G 32CH 600MW Mini AV Transmitter, designed for areas with too many frequencies in the air.

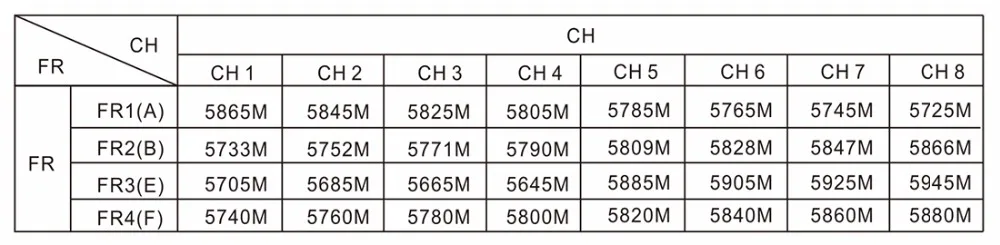

Small size and light weight,easy to changing CH,32channels: Cover A, B, E, F, bands, transmitter frequency range is 5645-5945MHz.

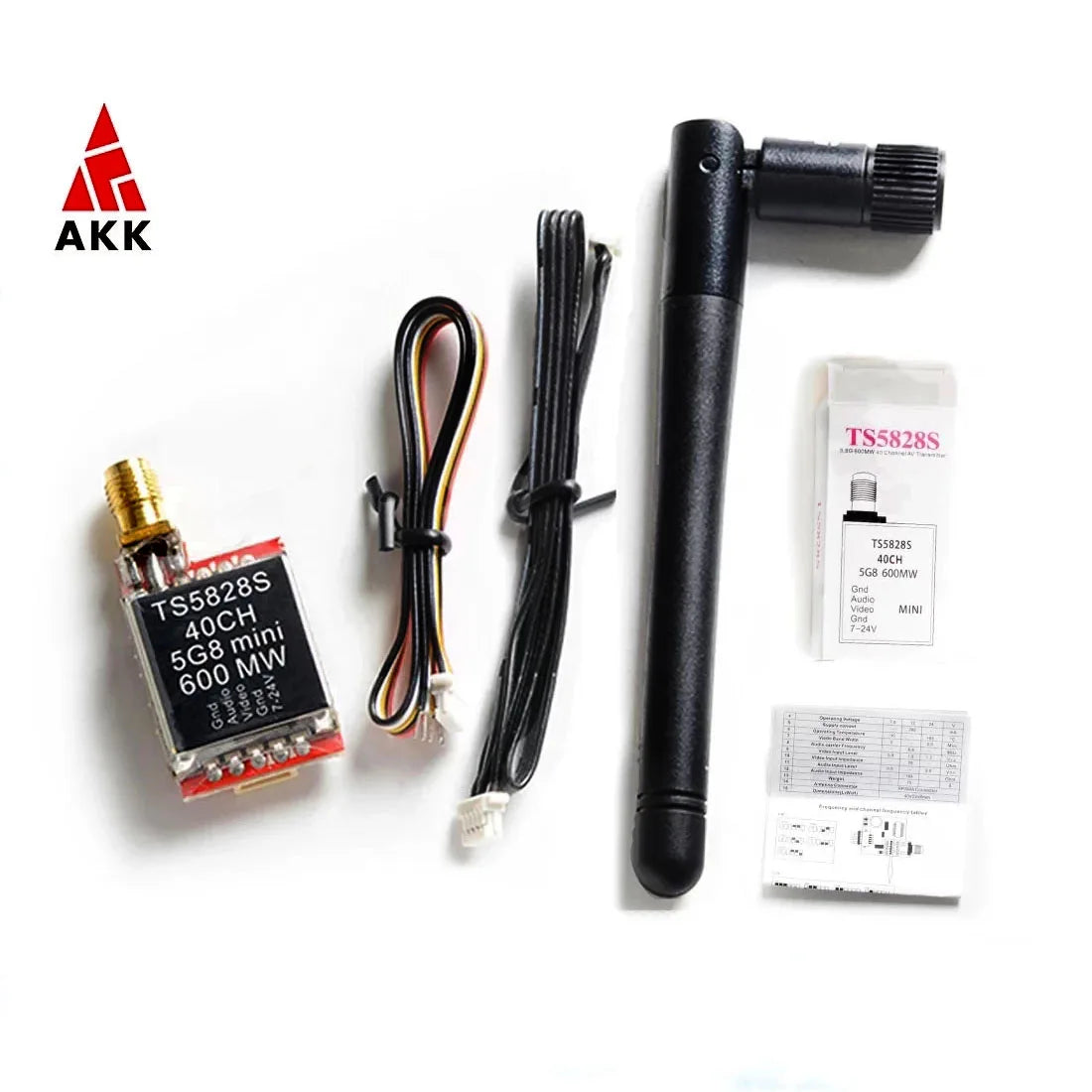

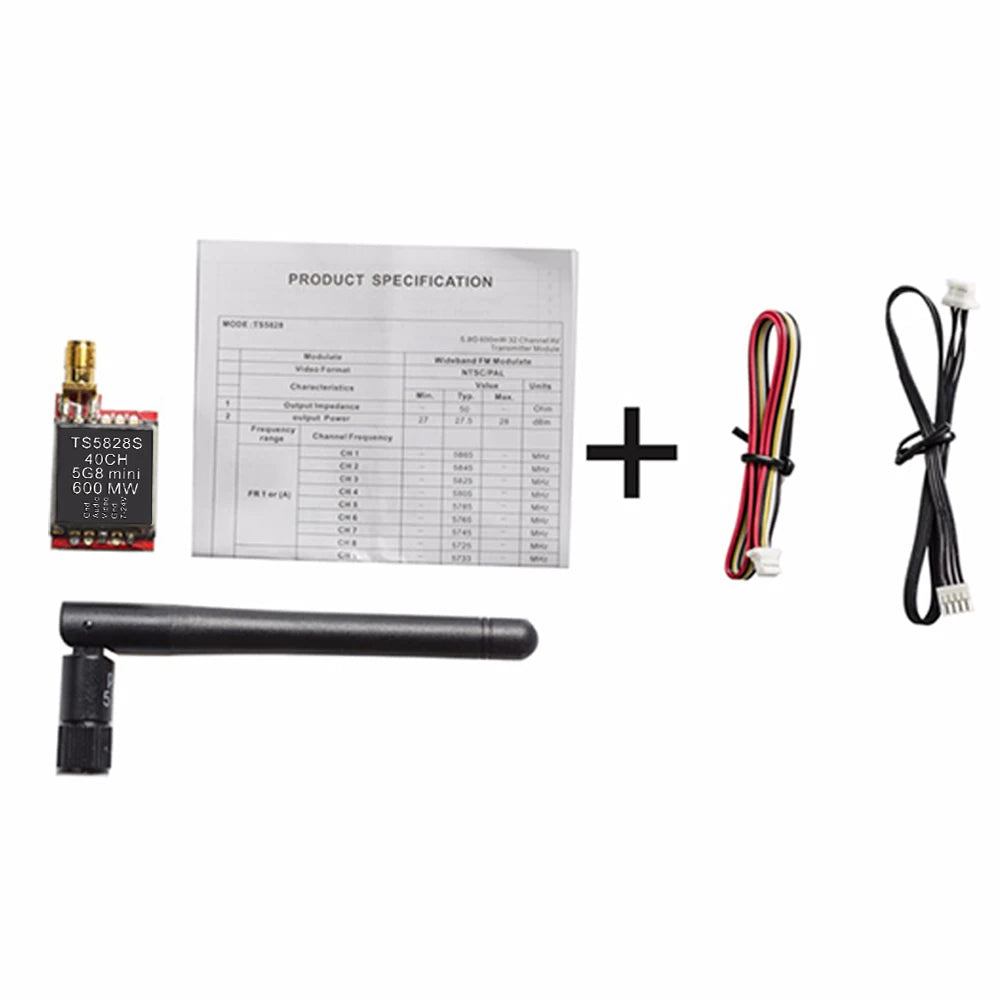

Package Included:
1 x TS5828 Transmitter
1 x Antenna
3 x Connect Cables
1 x Product manual

Product shows

*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX.

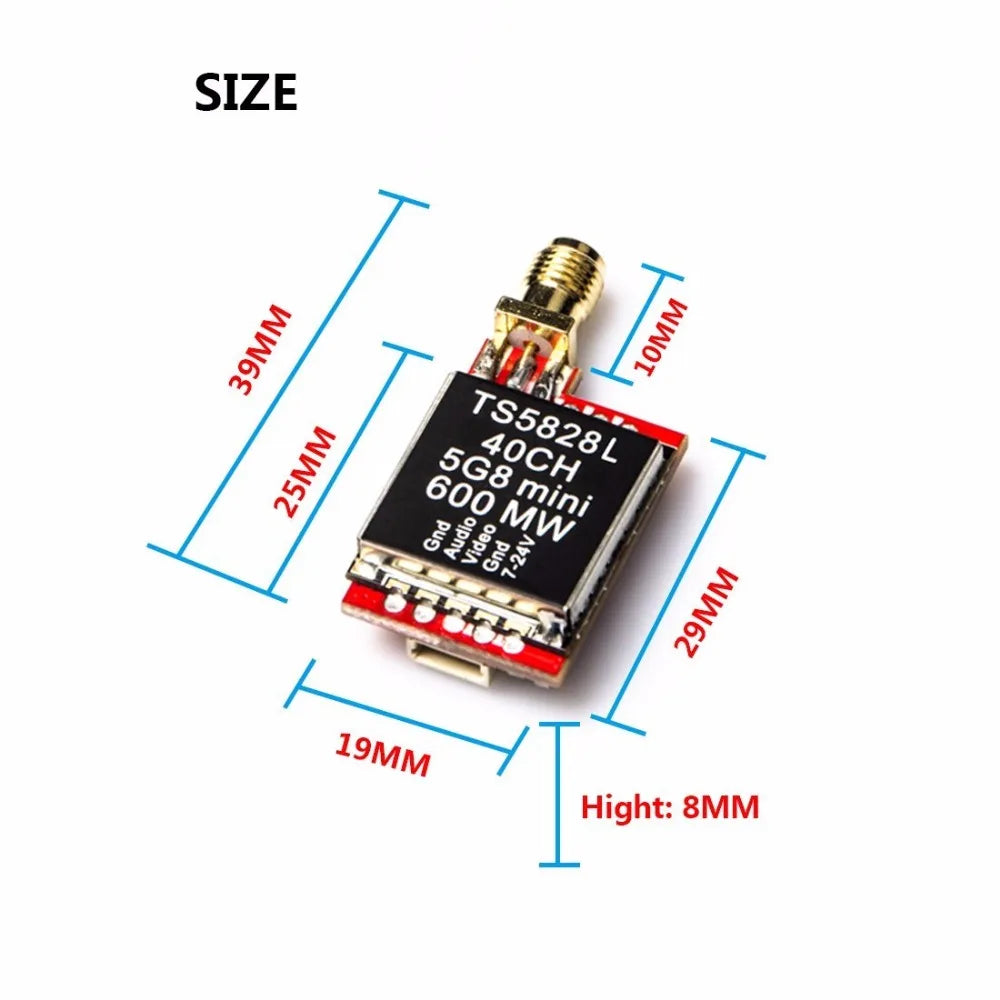

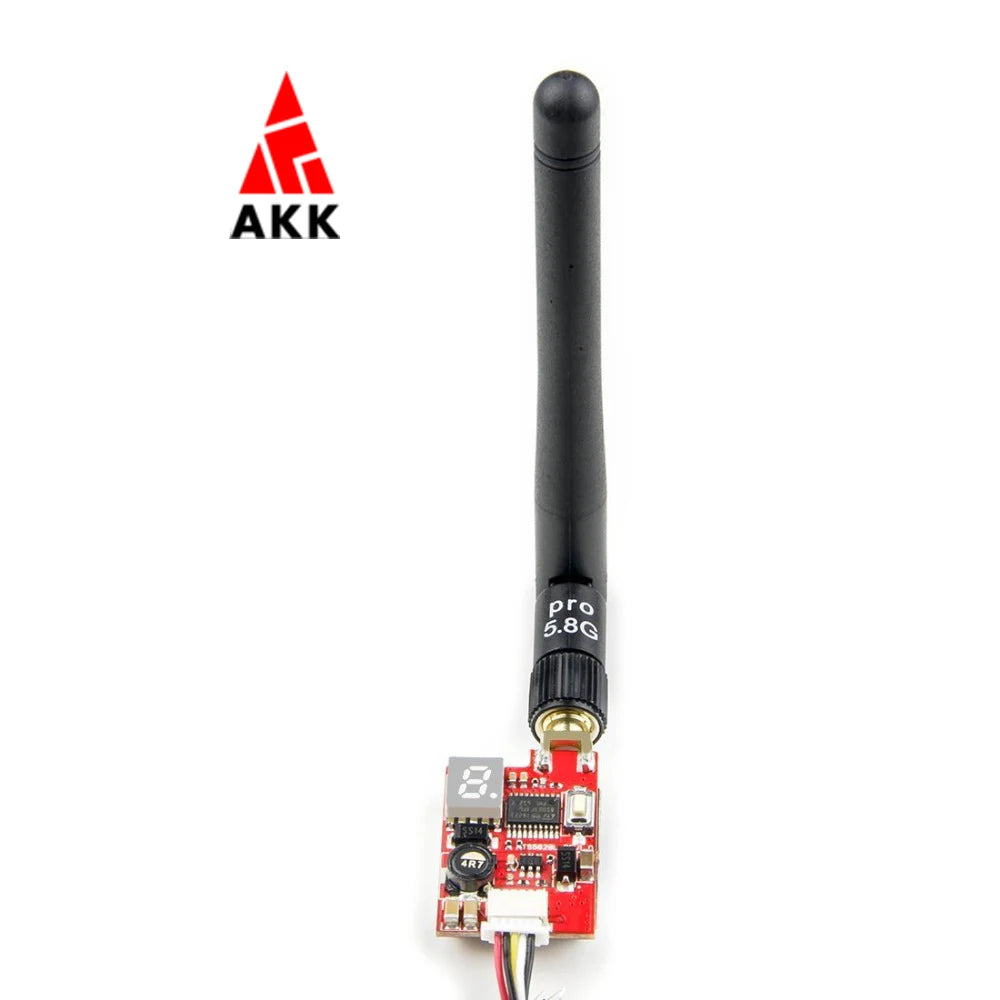

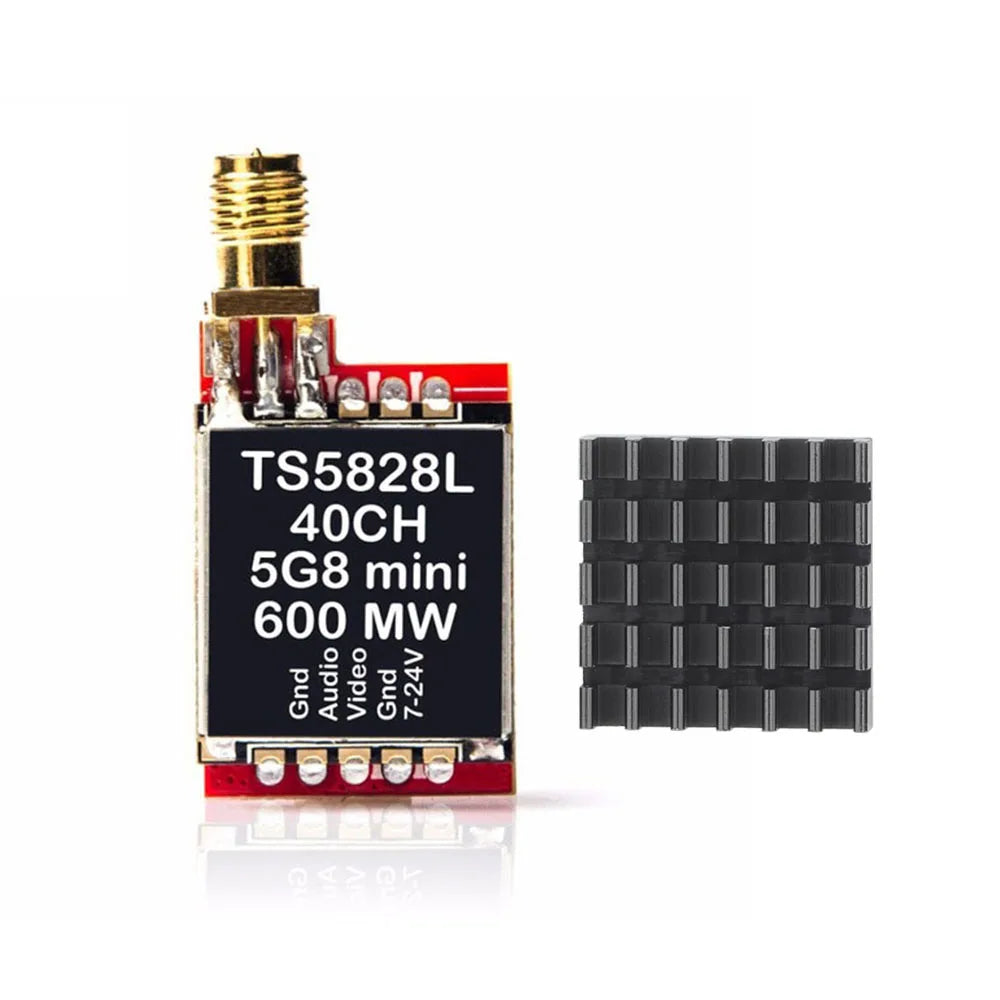

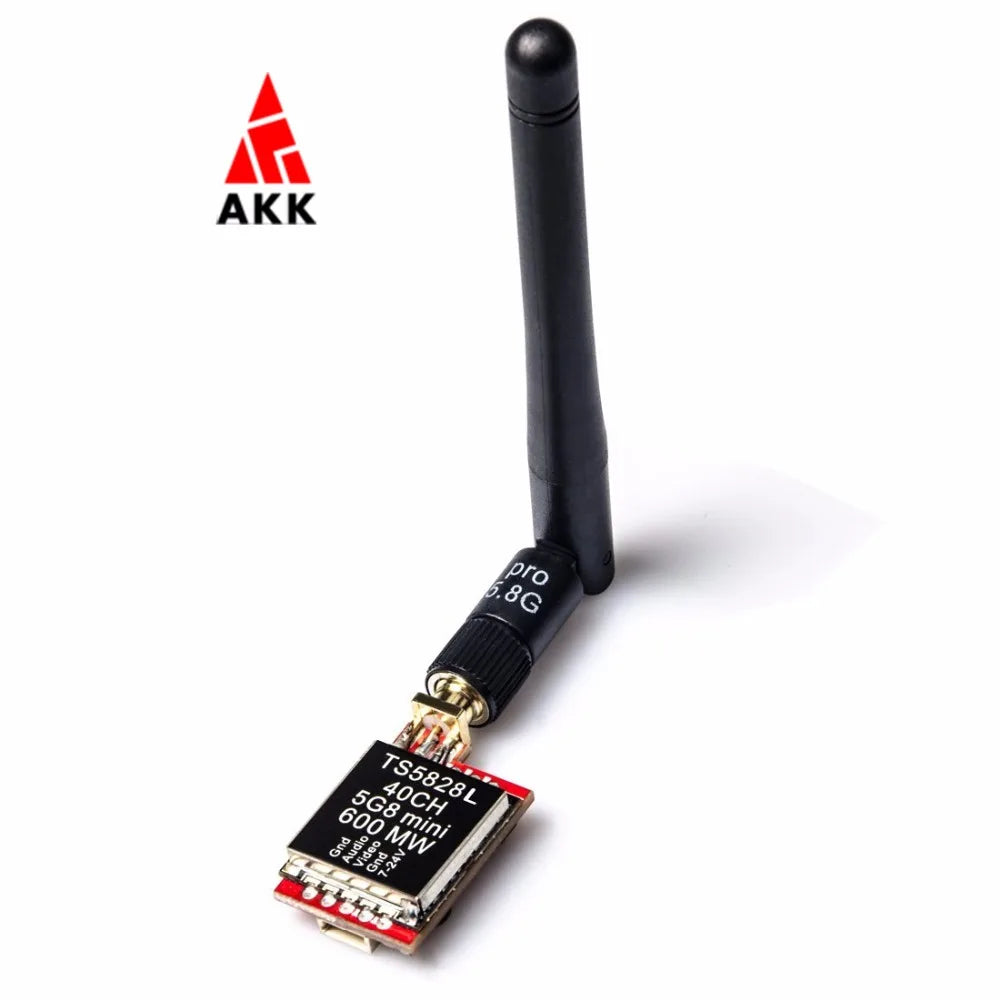

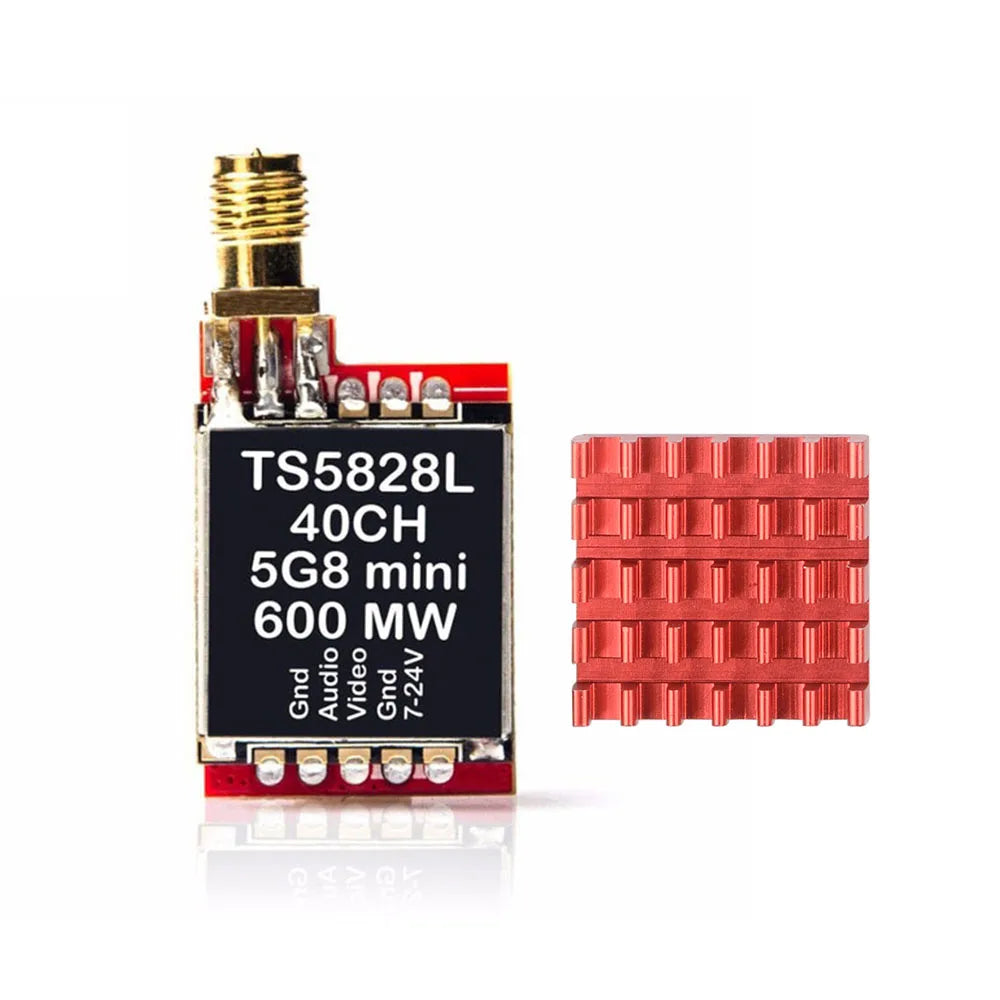

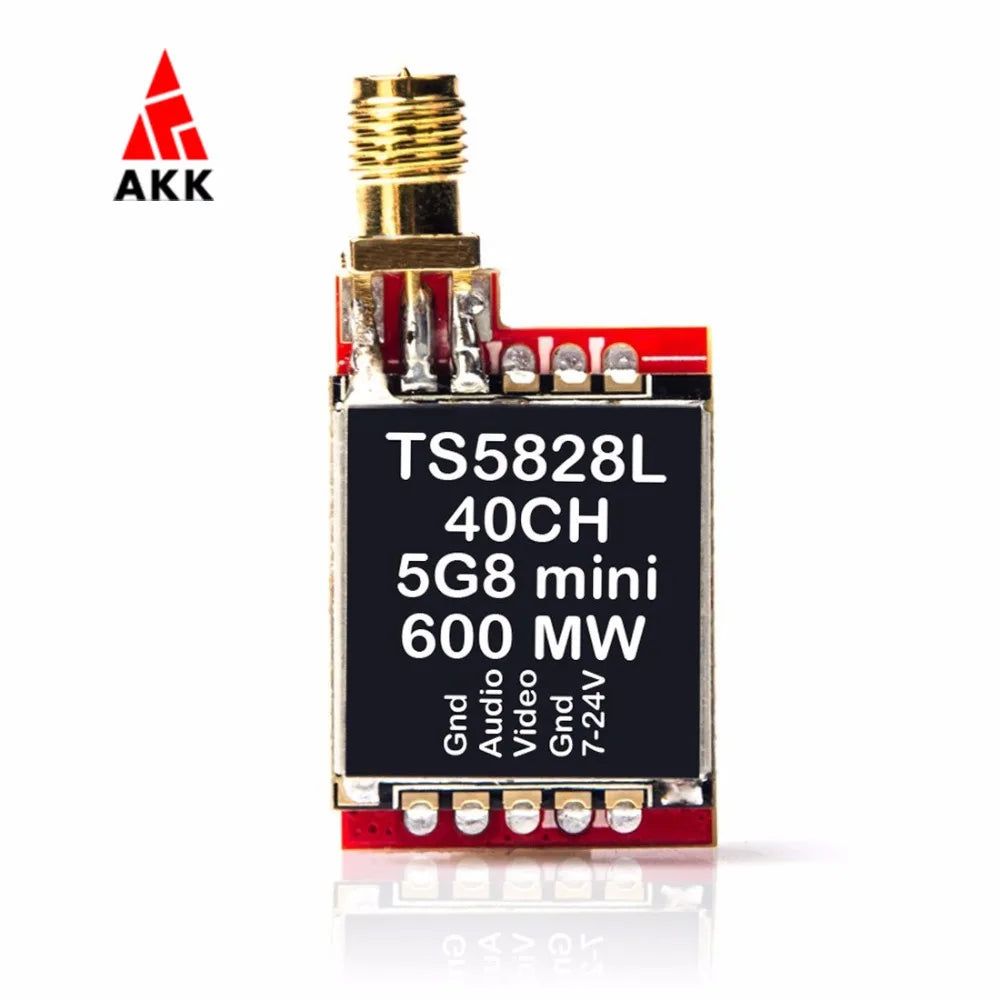

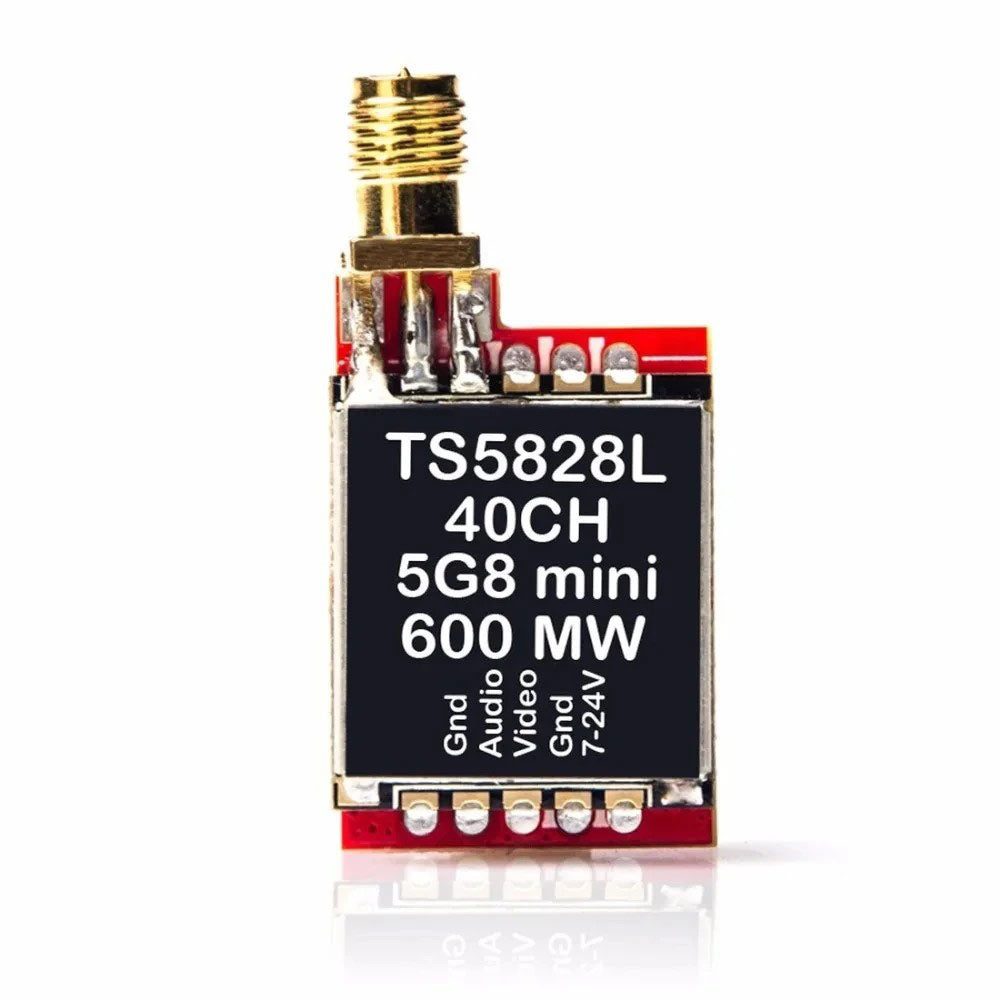

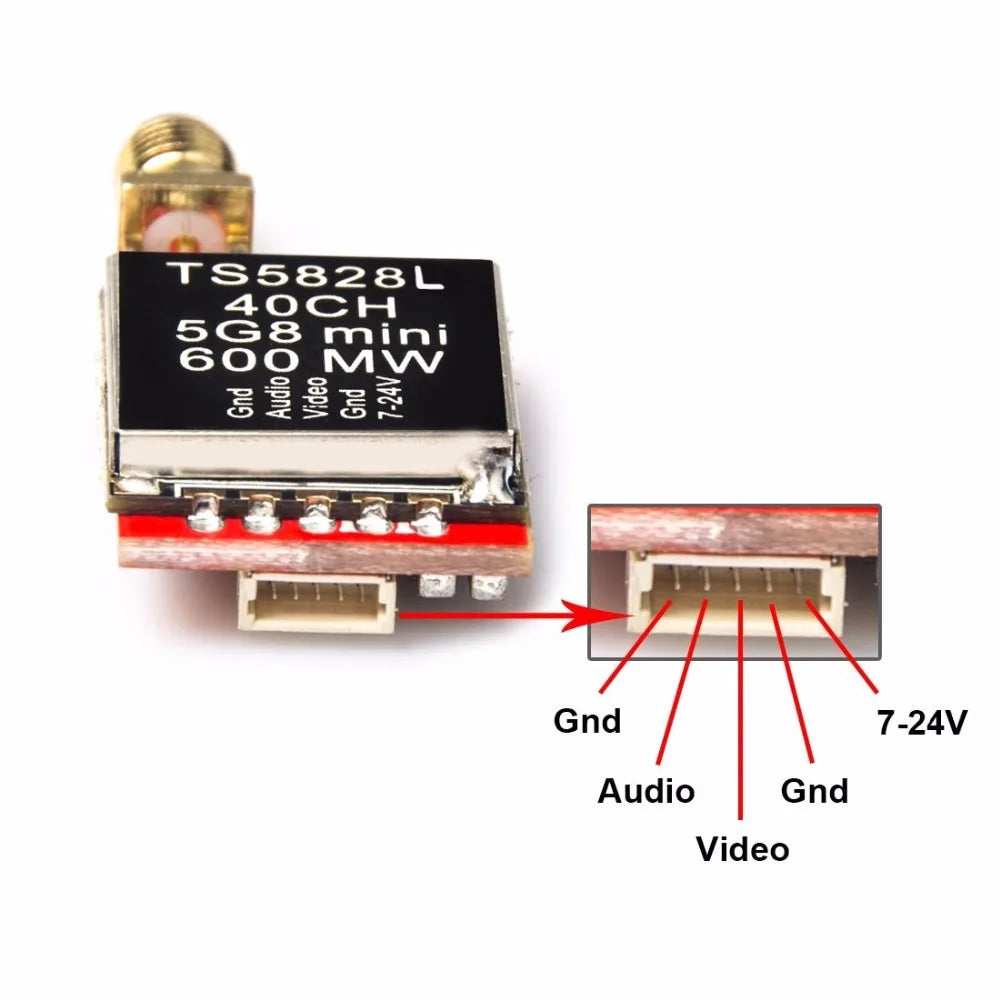

AKK FPV TS5828L 5.8G 600MW 40Ch Mini AV Transmitter for FPV Multicopter

600MW Mini AV Transmitter 40CH with digital display

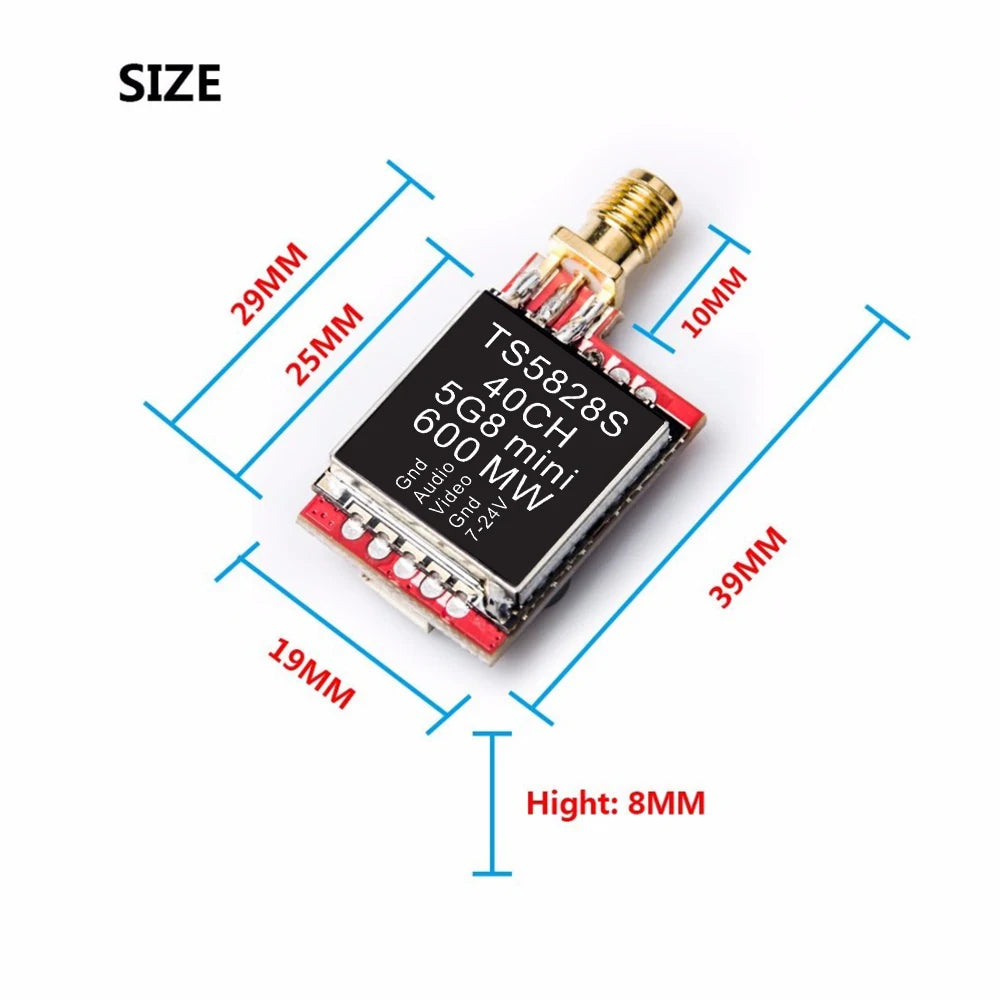

Small size and light weight

40channels: Cover a, b, E, F,R bands

Supply Current : 280mA ,Video Format: NTSC/PAL

Audio Input Level : 0.5-2.0 Vp-p

Specification:

Output Impedance: 50 Ohm
Video Format: NTSC/PAL
Output Power: 27-28dBm
Operating Voltage: 7.0V-24V
Supply Current : 280mA
Operating Temperature: -10-+85 C
Video Band Width : 0-8.0 MHz
Audio Carrier Frequency : 6.5 MHz
Video Input Level: 0.8-1.2 Vp-p
ideo Input Impedance : 75 Ohm
Audio Input Level : 0.5-2.0 Vp-p
Audio Input Impedance : 10K Ohm

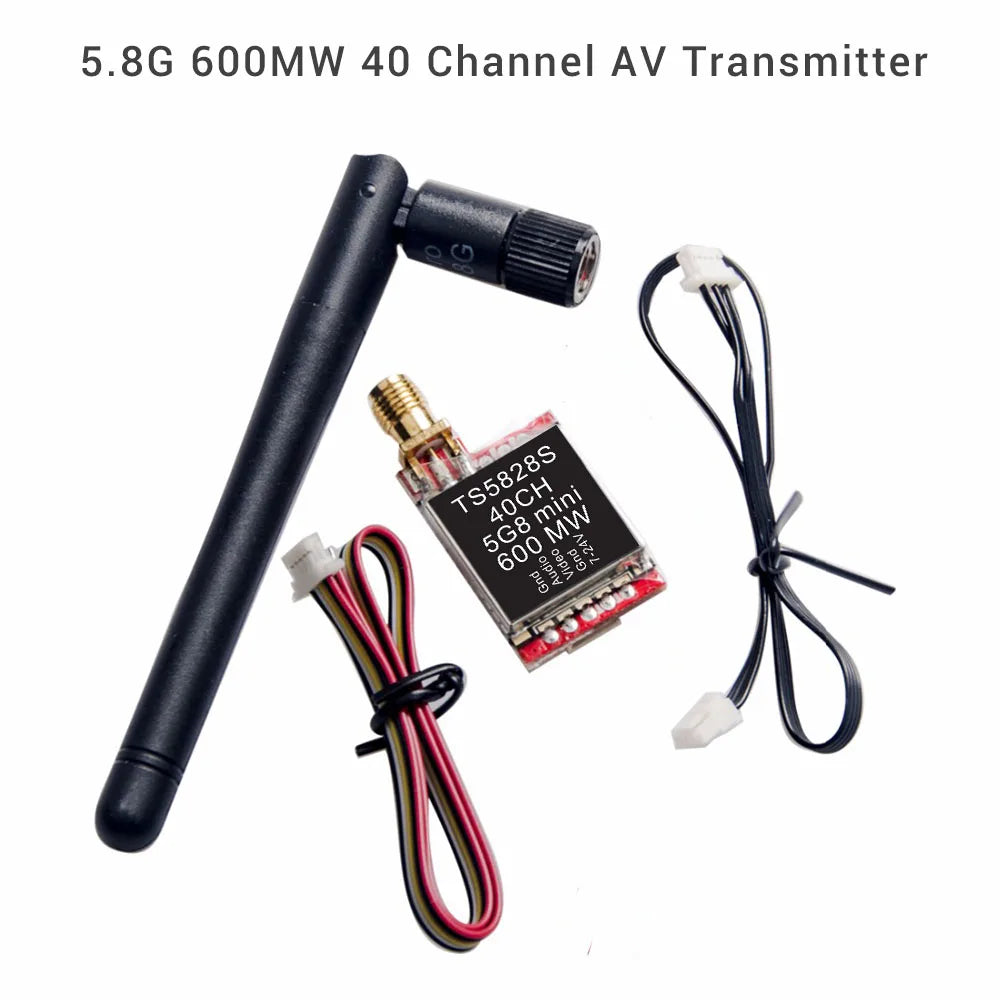

Package Included:
1 x TS5828L Transmitter
1 x Antenna
1 x Connect Cable

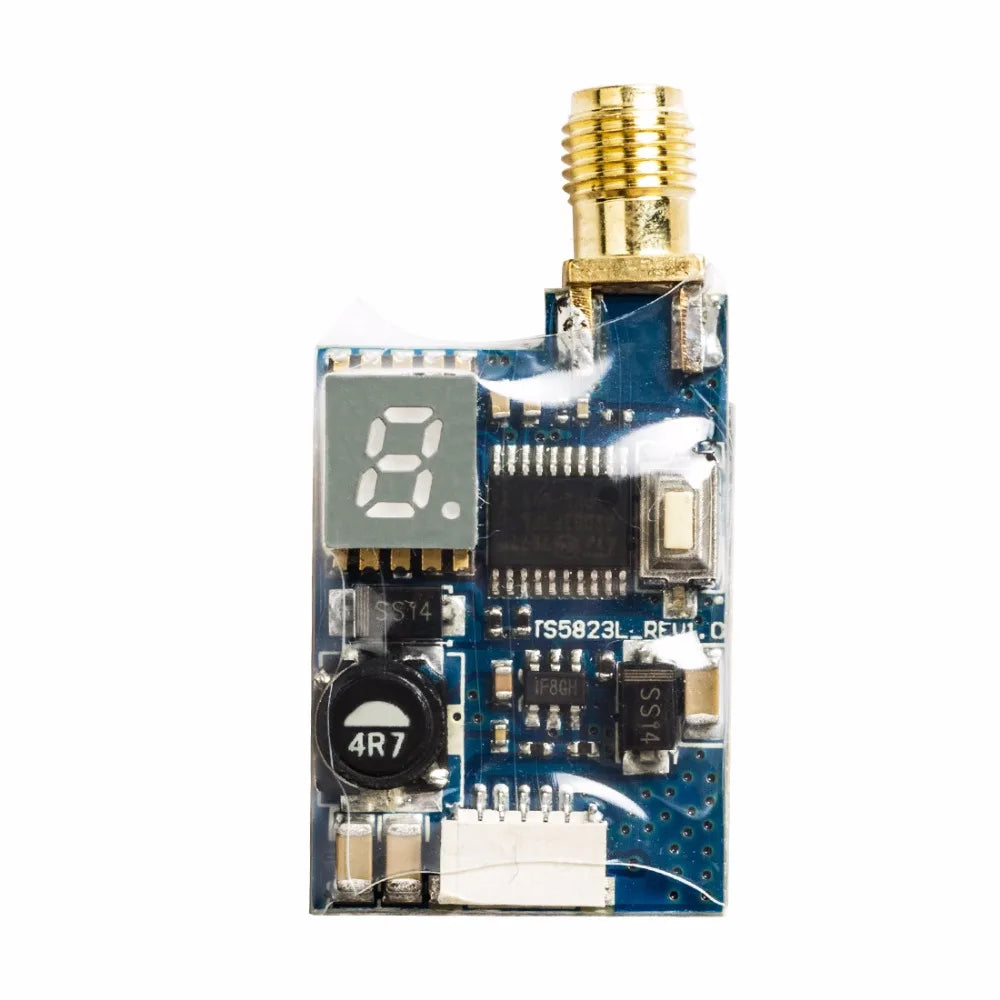

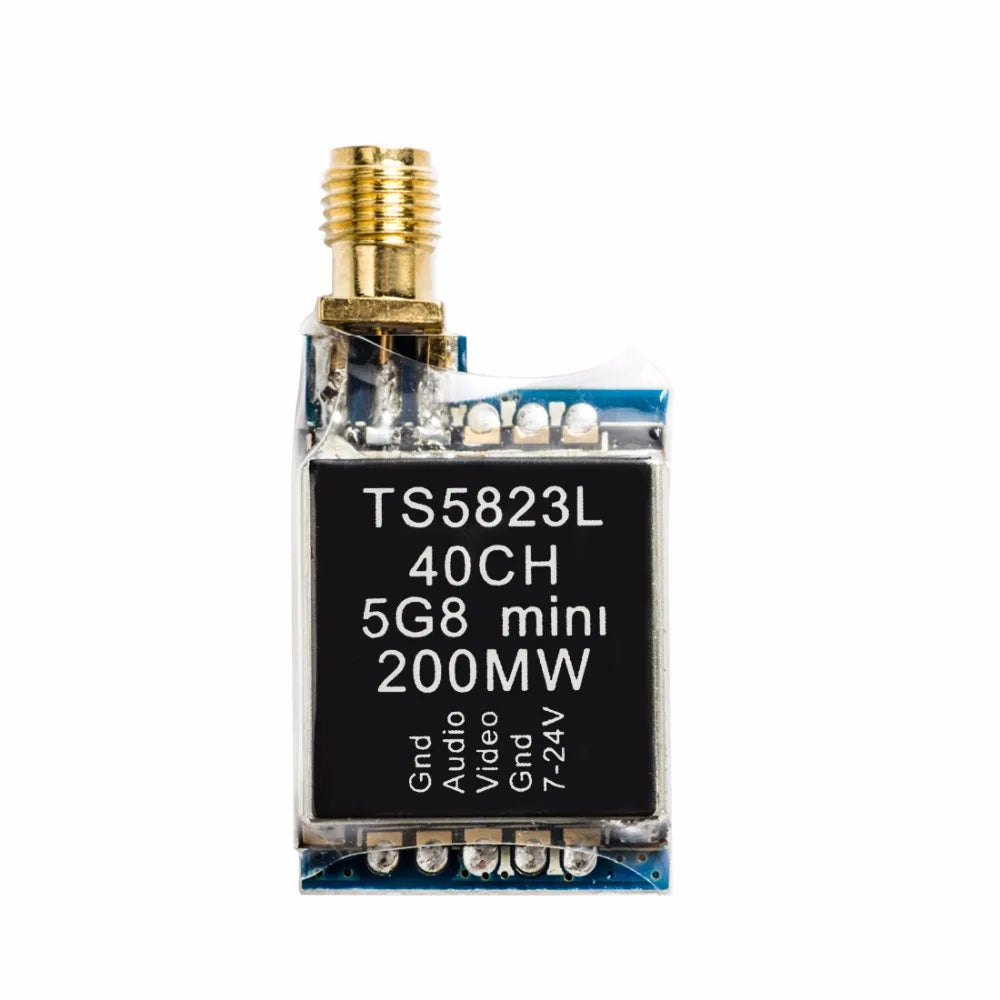

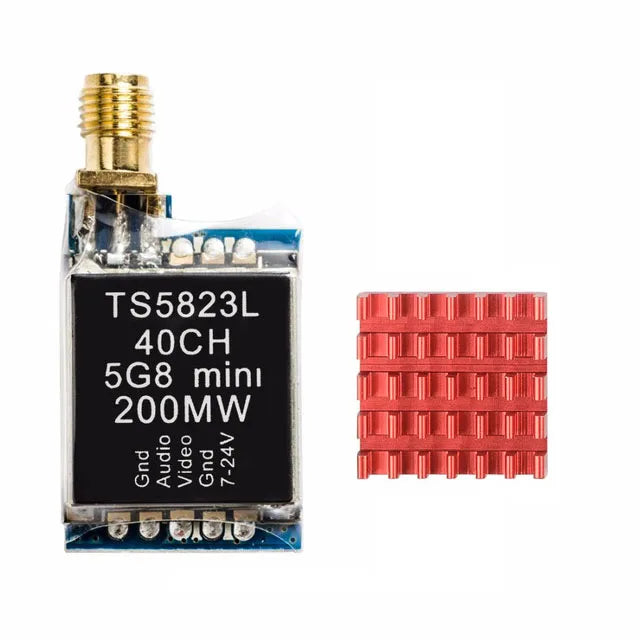

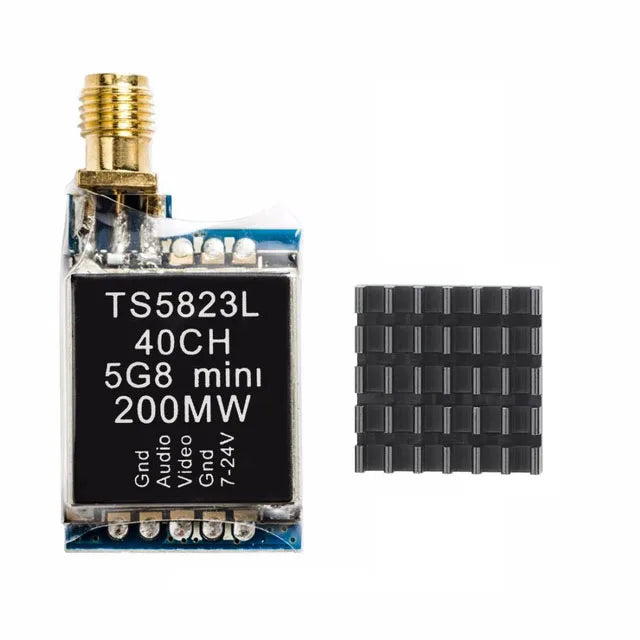

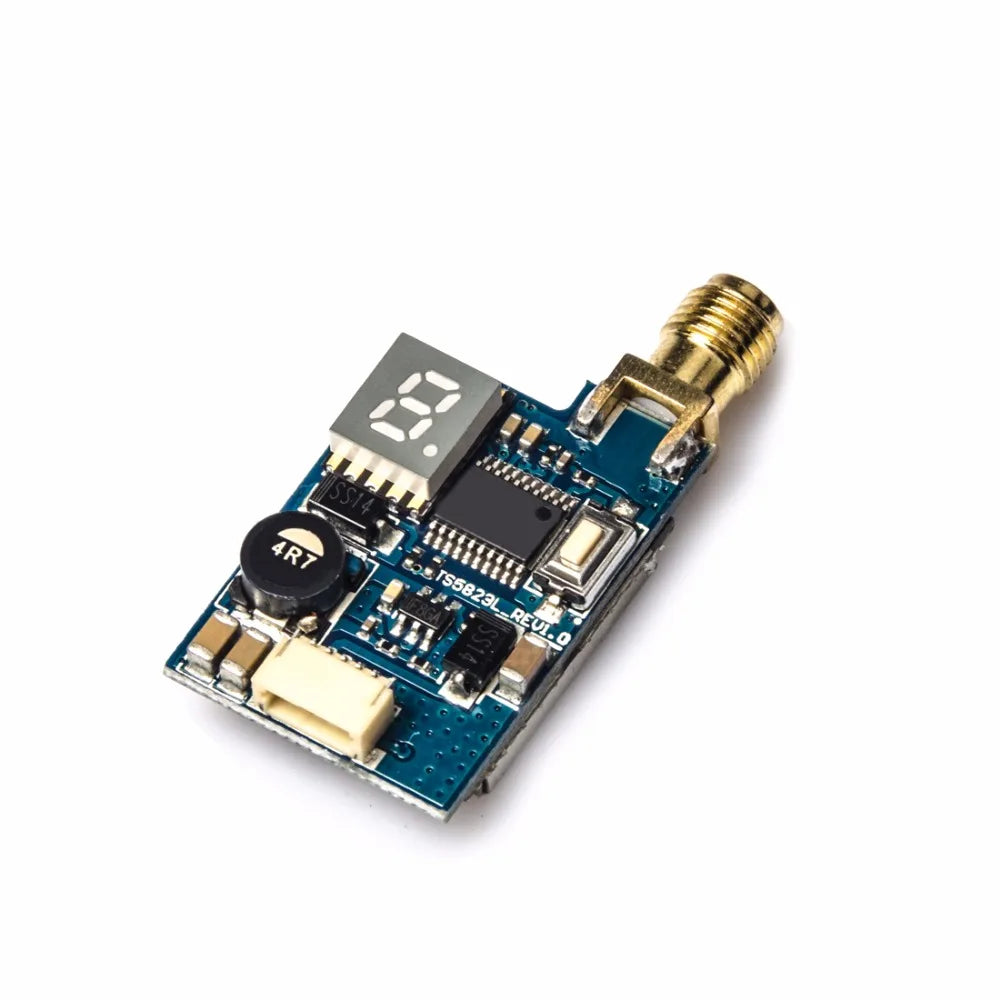

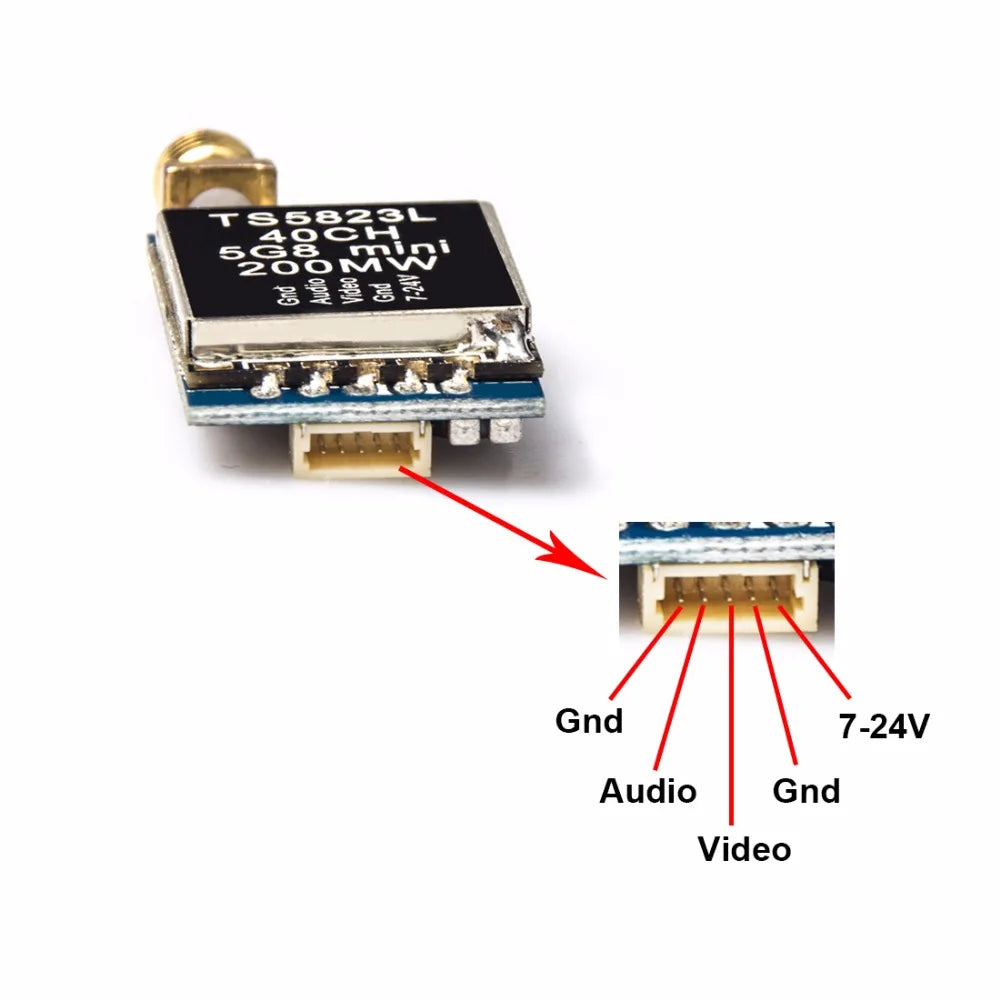

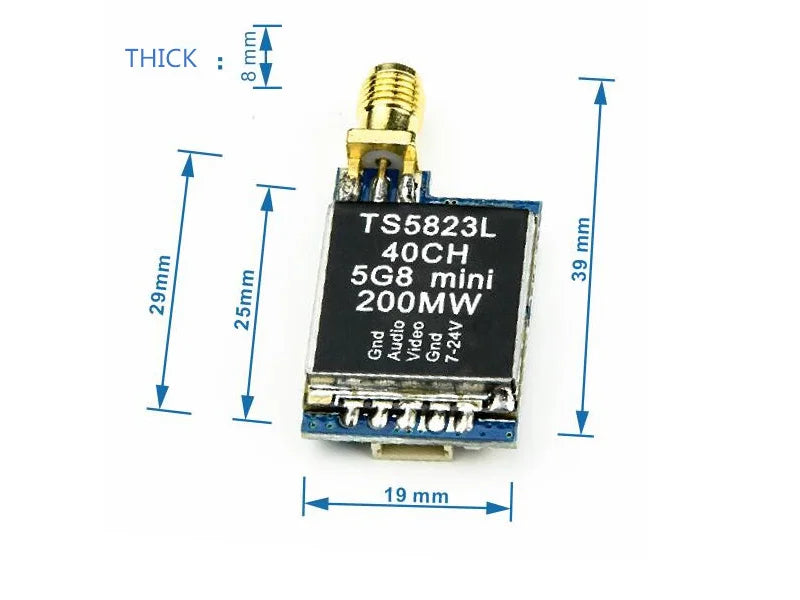

TS5823L Transmitter:

40 channels Cover a, b, E, F,R bands with digital display
Small size and light weight
Operating Voltage: 7.0V-24V
Supply Current : 190mA ,Video Format: NTSC/PAL
Audio Carrier Frequency : 6.5 MHz

Features:
This 5.8G 40CH 200MW Mini AV Transmitter, small size and light weight,easy to changing CH,40 channels: Cover a, b, E, F,R bands, transmitter frequency range is 5645-5945MHz.

Specification:
Output Impedance: 50 Ohm
Video Format: NTSC/PAL
Output Power: 23-24 dBm
Operating Voltage: 7V-24V
Supply Current: 190mA
Operating Temperature: -10-85 C
Video Band Width: 0-8.0 MHz
Audio Carrier Frequency: 6.5 MHz
Video Input Level: 0.8-1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5-2.0 Vp-p
Audio Input Impedance: 10K Ohm

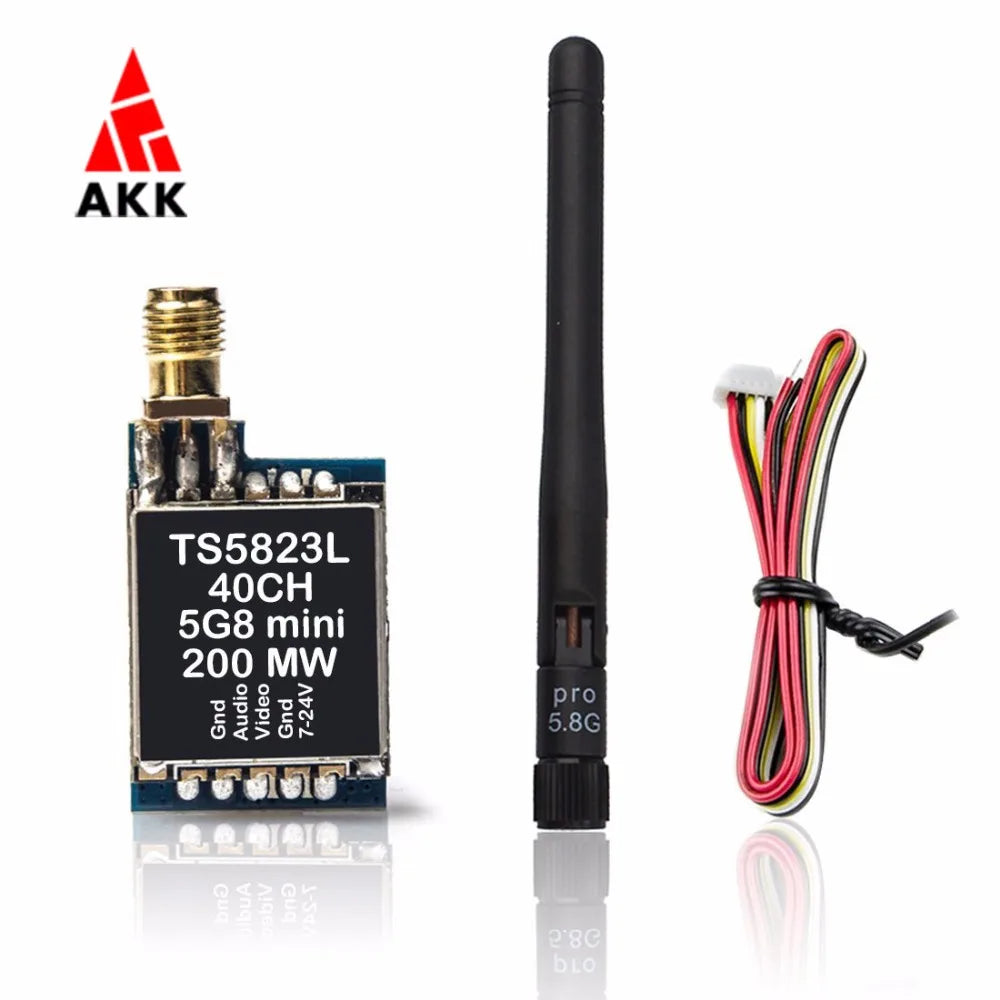

Package Included:
1 x TS5823L Transmitter
1 x Antenna
1x Connect Cable
