AKK Alpha 4 4W VTX – 5.8GHz 80CH 1w/2w/3w/4w Power Switchable Support Smart Audio FPV Video Transmitter

$95.00$105.00

+ Free Shipping
AKK Alpha 4 4W VTX + Antenna
AKK Alpha 4 4W VTX
AKK Alpha 4 4W VTX + AntennaAKK Alpha 4 4W VTX
Clear

1w/2w/3w/4w Power Switchable.

Support Smart Audio.

More intuitive LED nixie tube display.

Fan-embedded heatsink brings powerful heat dissipation.

Stable performance without frequency fluctuation.

 AKK Alpha 4 4W VTX AKK Alpha 4 4W VTX

Discover the Advanced Capabilities of the AKK ALPHA 4:

The AKK ALPHA 4 is a cutting-edge video transmitter (VTX) designed for extensive range and high performance. It operates on the 5.8GHz frequency with 80 channels, providing a power output that is switchable between 1W, 2W, and 4W. This device is engineered with a built-in fan and microphone, ensuring reliable and efficient operation.

Key Features:

  • Heat Sink Protection: All internal components are safeguarded under a robust heat sink, ensuring durability and longevity.
  • Easy Installation: The ALPHA 4 comes with four mounting holes (30.5*30.5mm) for straightforward installation.
  • Versatile Power Input and Output: Supports an input voltage range of 12-28V and delivers a stable 5V output.
  • Multiple Channels: Offers 80 channels across various bands (A, B, E, F, r, P, L, U, O, X) for flexible frequency selection.
  • Efficient Power Consumption: Draws 12V/1.5A or 28V/700mA, optimizing energy usage.
  • Compact and Lightweight: Weighs only 48g with dimensions of 683615mm, making it ideal for a variety of applications.

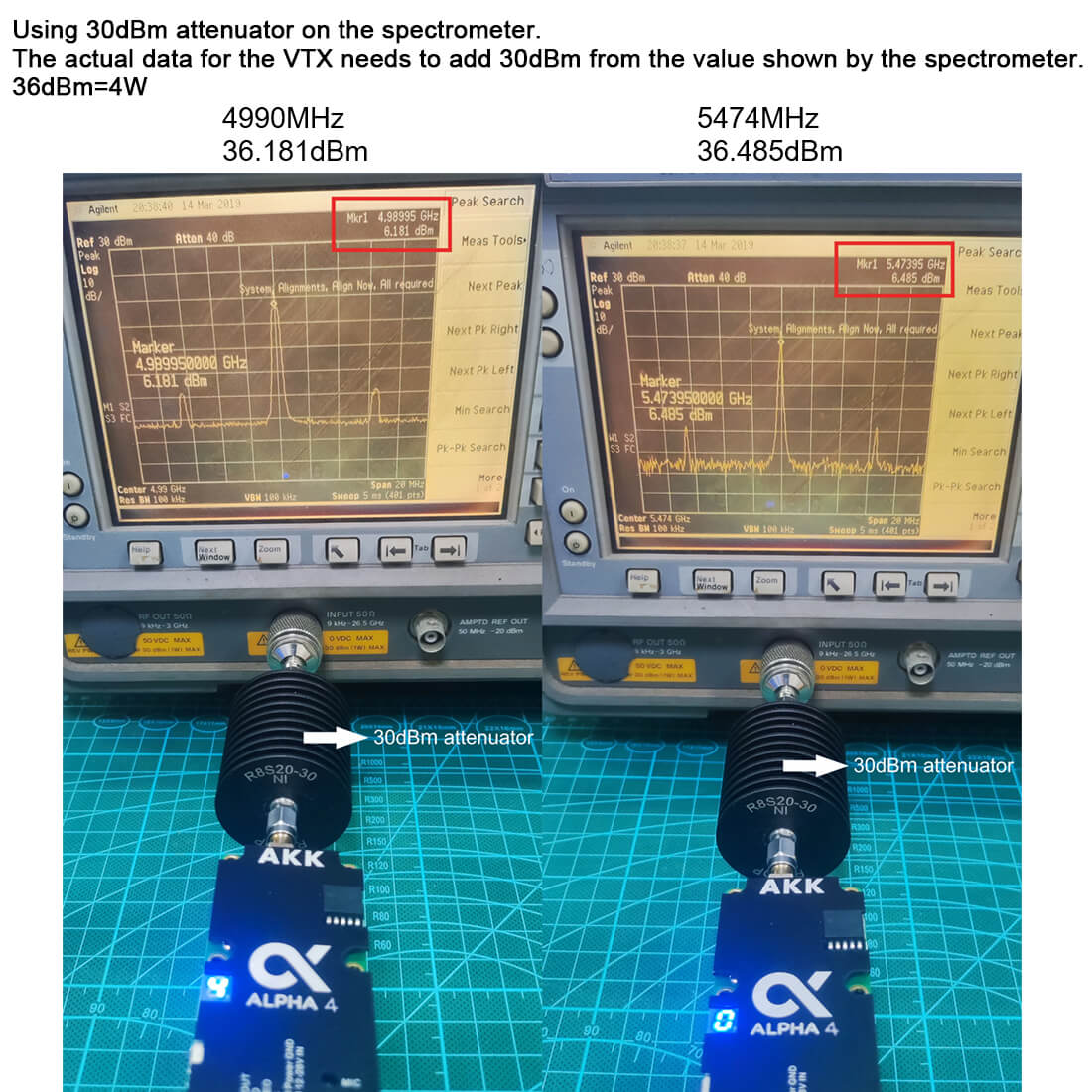

Using a 30dBm attenuator on the spectrometer, the actual power data for the VTX needs an additional 30dBm from the value shown by the spectrometer. This ensures accurate readings and optimal performance.

The AKK ALPHA 4 is not just a VTX; it’s a testament to advanced engineering and design, perfect for those seeking to explore higher and further. Whether for hobbyists or professionals, this device promises reliability, efficiency, and superior performance in a compact package.

Here are the detailed specifications for the AKK ALPHA 4 Video Transmitter (VTX):

  1. Frequency Range: 5.8GHz

  2. Channels: 80 channels across multiple bands:

    • Band A: 5865-5725 MHz
    • Band B: 5733-5866 MHz
    • Band E: 5705-5945 MHz
    • Band F: 5740-5880 MHz
    • Band R: 5658-5917 MHz
    • Band P: 5653-5933 MHz
    • Band L: 5333-5613 MHz
    • Band U: 5325-5456 MHz
    • Band O: 5474-5600 MHz
    • Band X: 4990-5200 MHz
  3. Power Output: Switchable – 1W, 2W, 4W

  4. Built-in Features: Fan and Microphone

  5. Protection: All components are protected under a heat sink

  6. Mounting: 4 Mounting Holes for easier installation, hole size 30.5 x 30.5 mm

  7. Input Voltage: 12-28V

  8. Output Voltage: 5V

  9. Power Consumption:

    • At 12V: 1.5A
    • At 28V: 700mA
  10. Weight: 48 grams

  11. Dimensions: 68 x 36 x 15 mm

  12. Connectors: SMA Connector

  13. Spectral Measurements with Attenuator: Using a 30dBm attenuator, the actual power data for the VTX needs an additional 30dBm from the value shown by the spectrometer.

These specifications make the AKK ALPHA 4 a versatile and powerful choice for various applications, especially where long-range and reliable video transmission is needed.
