SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Tool Supplies: Grinded

Technical parameters: Value 4

Remote Control Peripherals/Devices: Motor

Recommend Age: 14+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: 5010

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

5010 360kv /750kv Motor :

Description:

These are really great outrunners. We’ve tested this line and they work extremely well.
This is 5010-14 360KV /750kv  Brushless Motor
Features:
1.Machined aluminum front housing with four fan-style cooling holes that pump air through the motor while it runs.
2.Rear threaded mounting holes with both 16 mm and 19mm hole spacings fit a variety of applications.
3.Specially designed NdFeB magnets with high temperature rating for trouble-free operation.
4.High Temperature 140 C (356 F) rated wire is used for winding the motors to minimize the risk of burning up the motor.
5.High quality stator plates are epoxy coated on the inner surface to prevent winding shorts. 0.20mm stator plate id used on this motor 5010.
6.High quality shielded and permanently lubricated ball bearings are used to support the motor shaft in all our motors.
7.High temperature adhesives are used to secure the stator windings and prevent them from shifting and getting pinched or shorting out .

Motor size: 50*10mm
Shaft size: 4mm

Weight: 80g
KV(rpm/v): 360/750
Battery: 2-6Li-Po
ESC: 20-40A(Best configuration 30A)
Best working with props of 12-16″

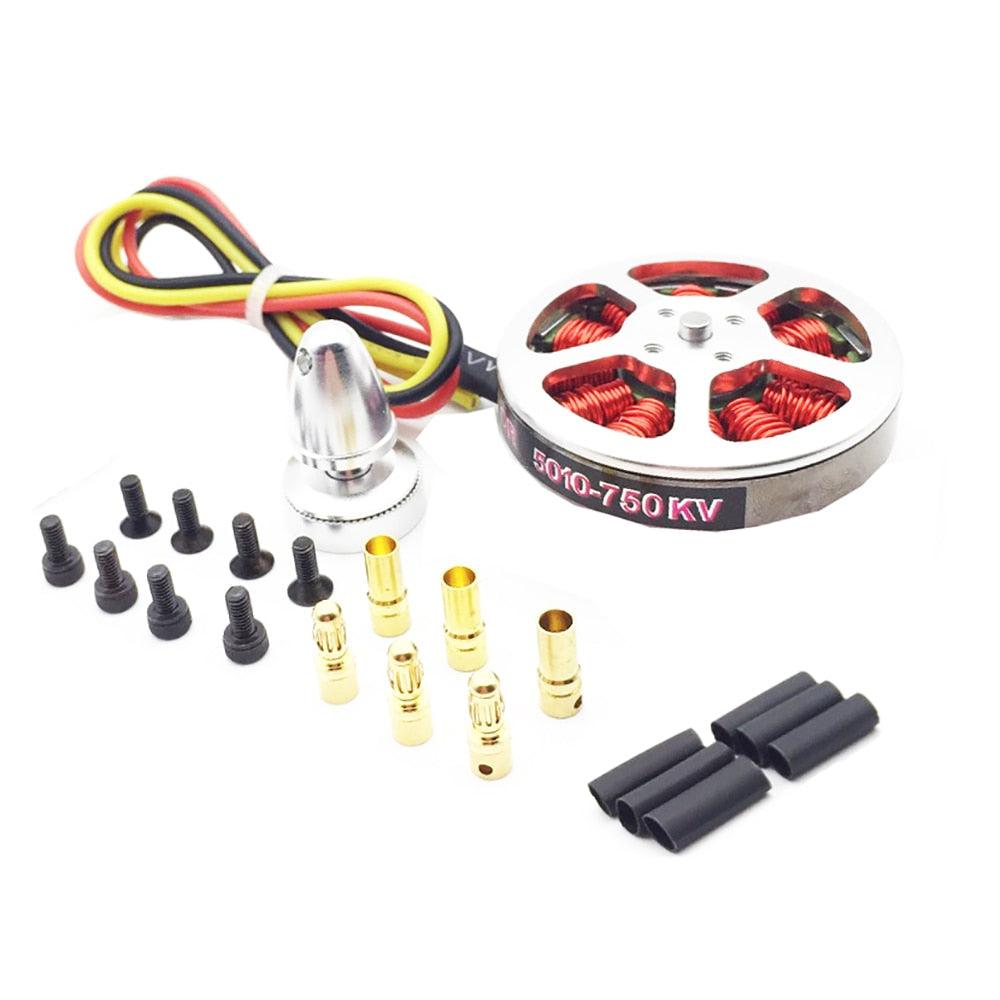

Package Includes: (as shown in the Main Photo)

1 X 5010  Brushless Motor
