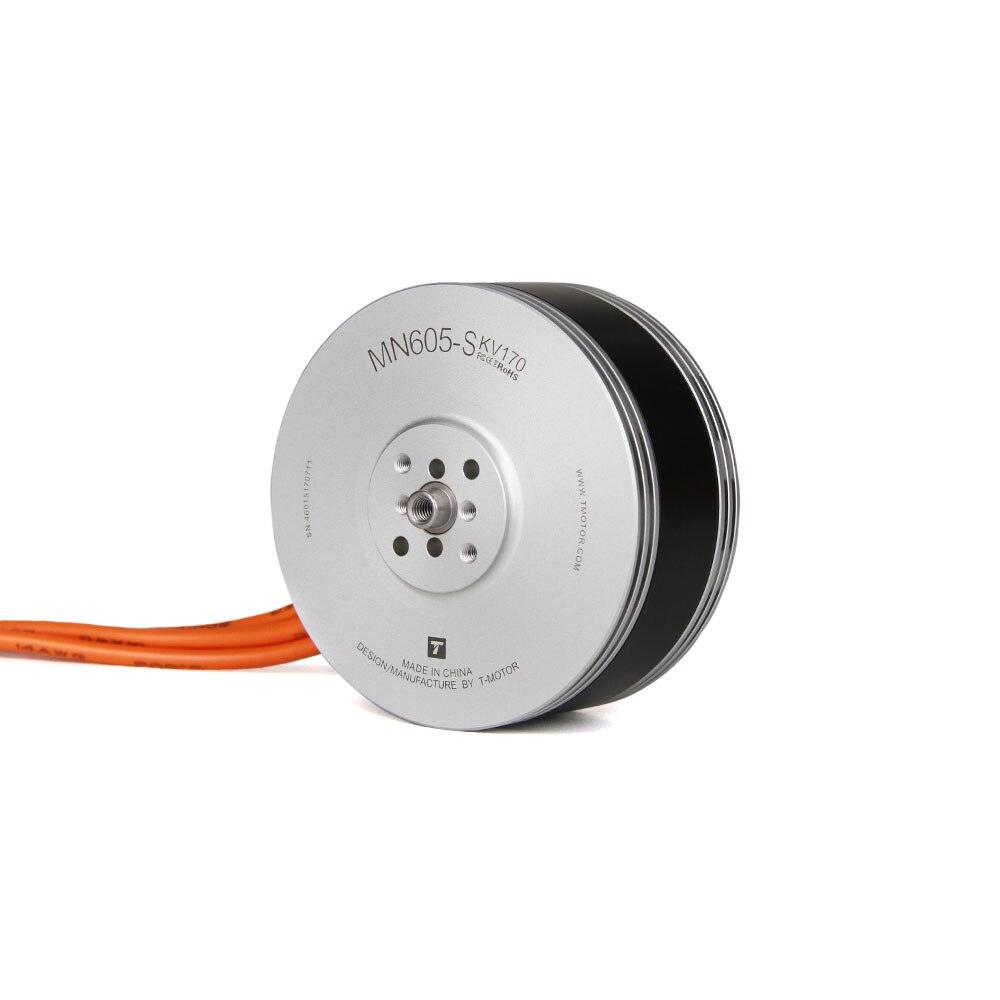

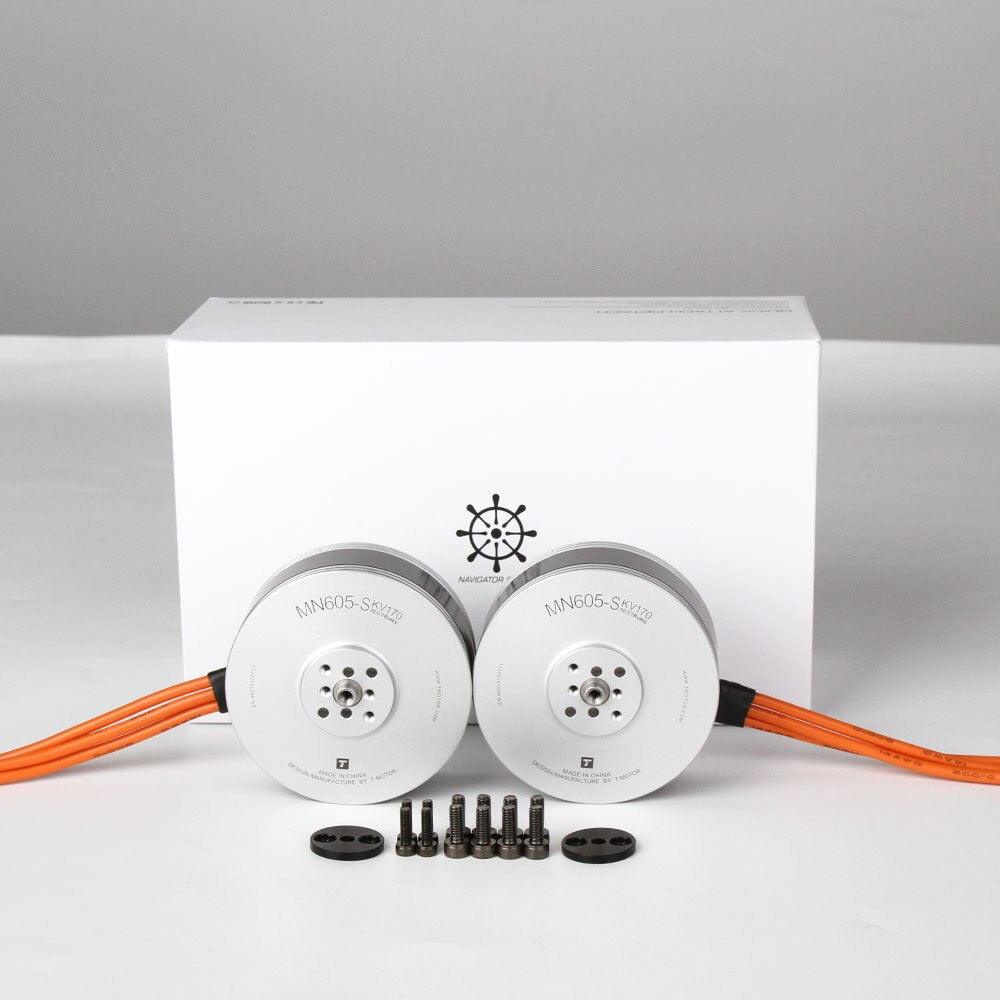

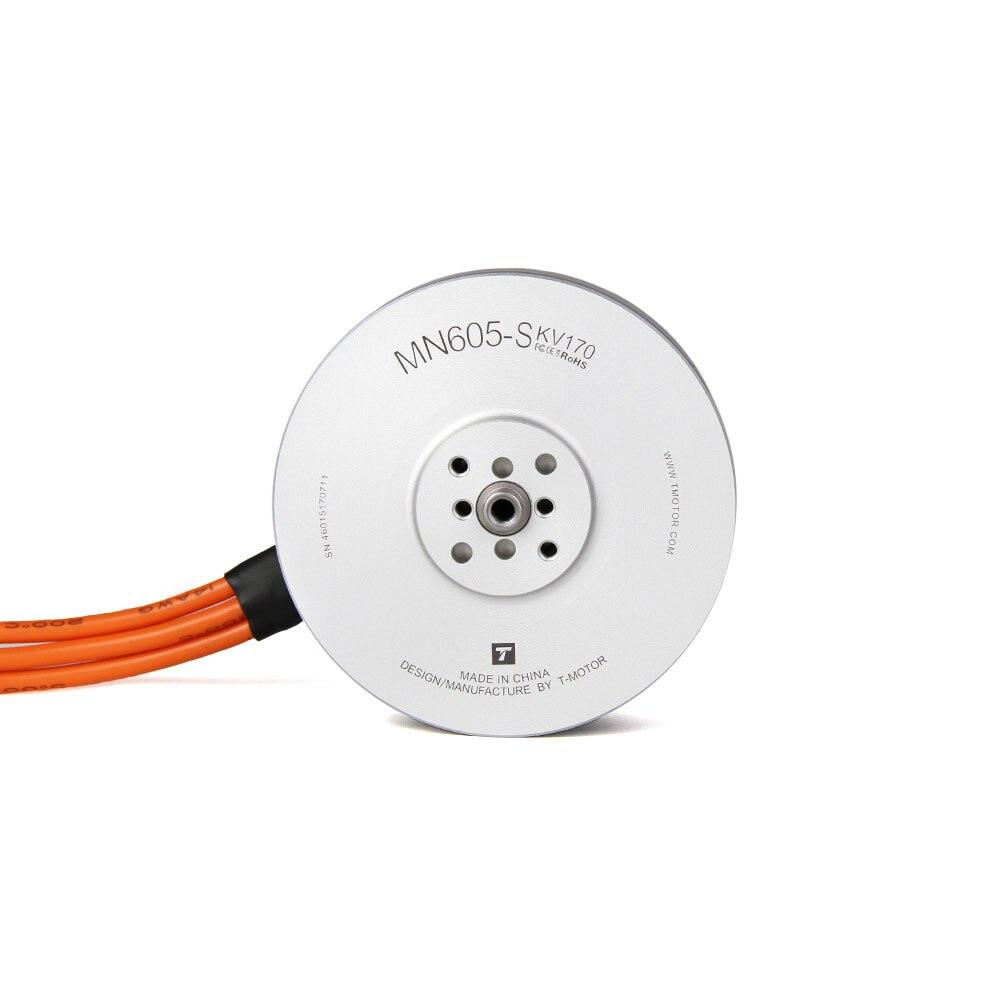

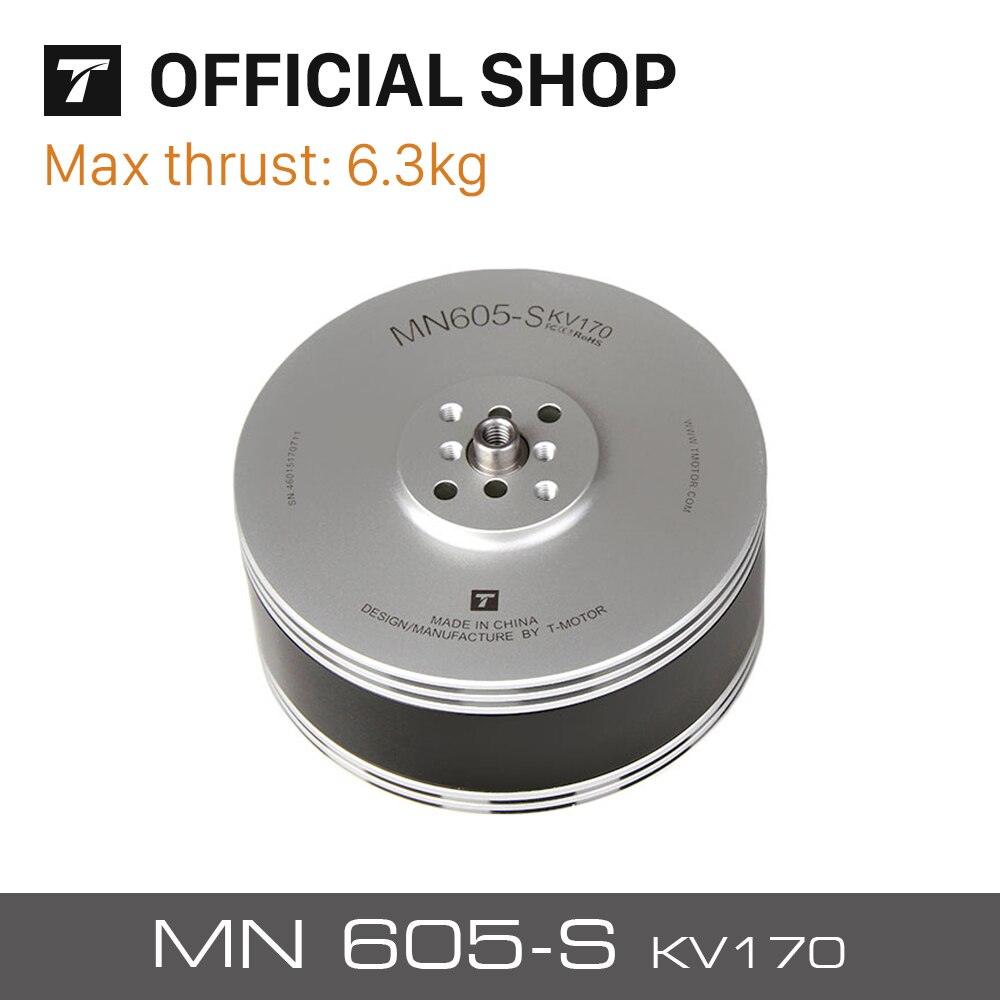

2Pcs/Set T-motor MN605-S KV170 8.1KG+ Thrust Brushless Motor For RC Boat Drone Airplane Aircarft Quadcopter Hexacopter

$361.28

+ Free Shipping
United States
China
United StatesChina
Clear
SKU: N/A Category:

T-motor MN605-S KV170 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

RC Parts & Accs: Engines

Origin: Mainland China

Model Number: MN605-S KV170

Material: Metal

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

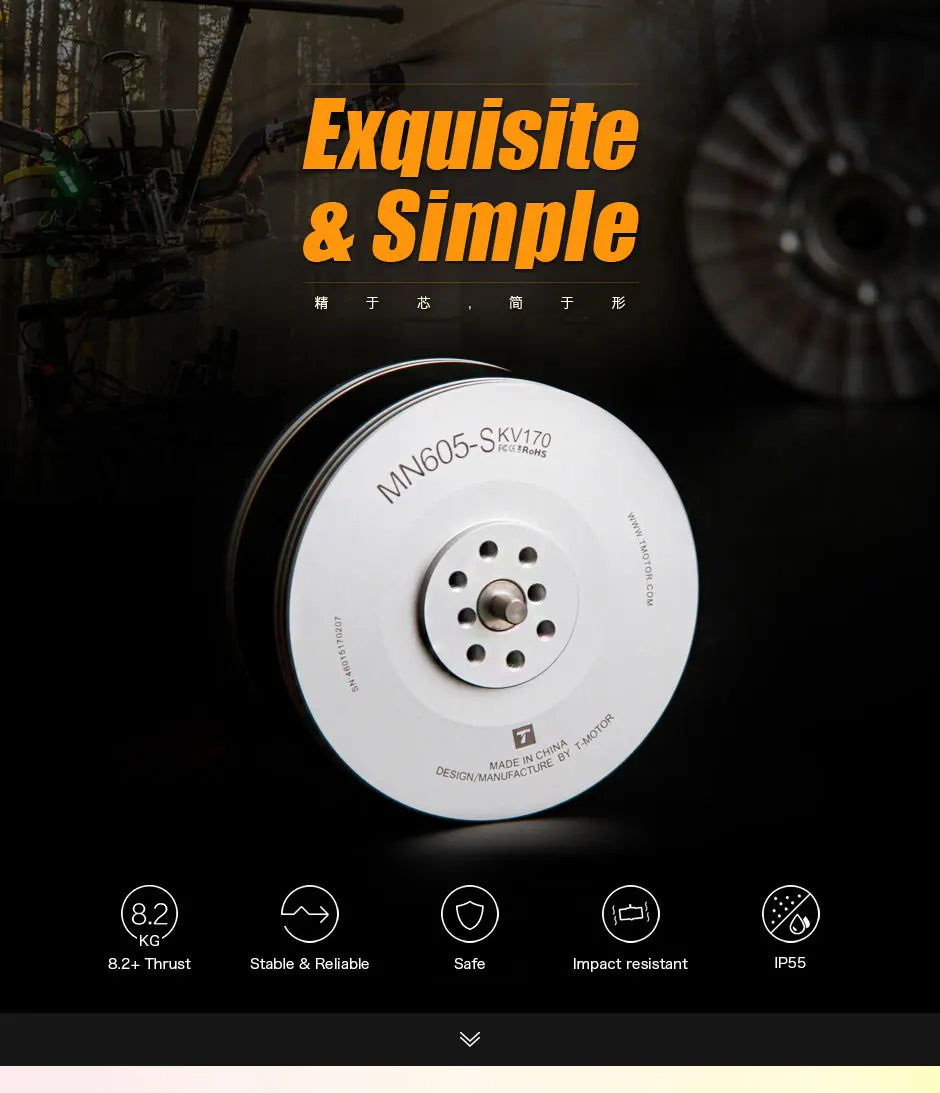

2Pcs/Set T-motor, DESiGN MAMAREcTurE 8.2 KG 8.2+ Th

MN605-_ 1 1 T-MOTOR CHINA MADE MAMAREcTurE 8.2 KG 8.2+ Thrust Stable & Reliable Safe Impact resistant IP5S SkVaz?

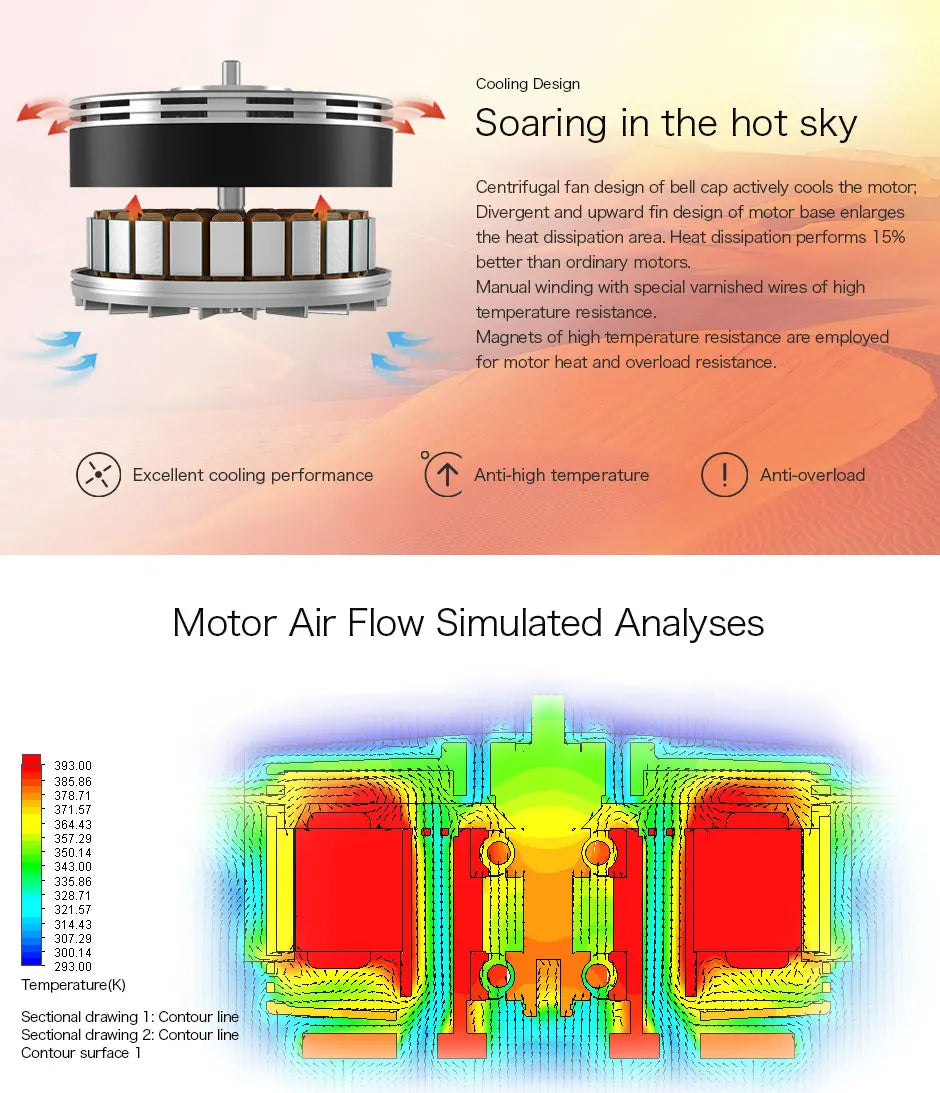

2Pcs/Set T-motor, bell cap actively cools the motor; Divergent and upward fin design of motor base en

The bell-shaped cap actively cools the motor, while the divergent and upward design of the motor base increases the heat dissipation area.

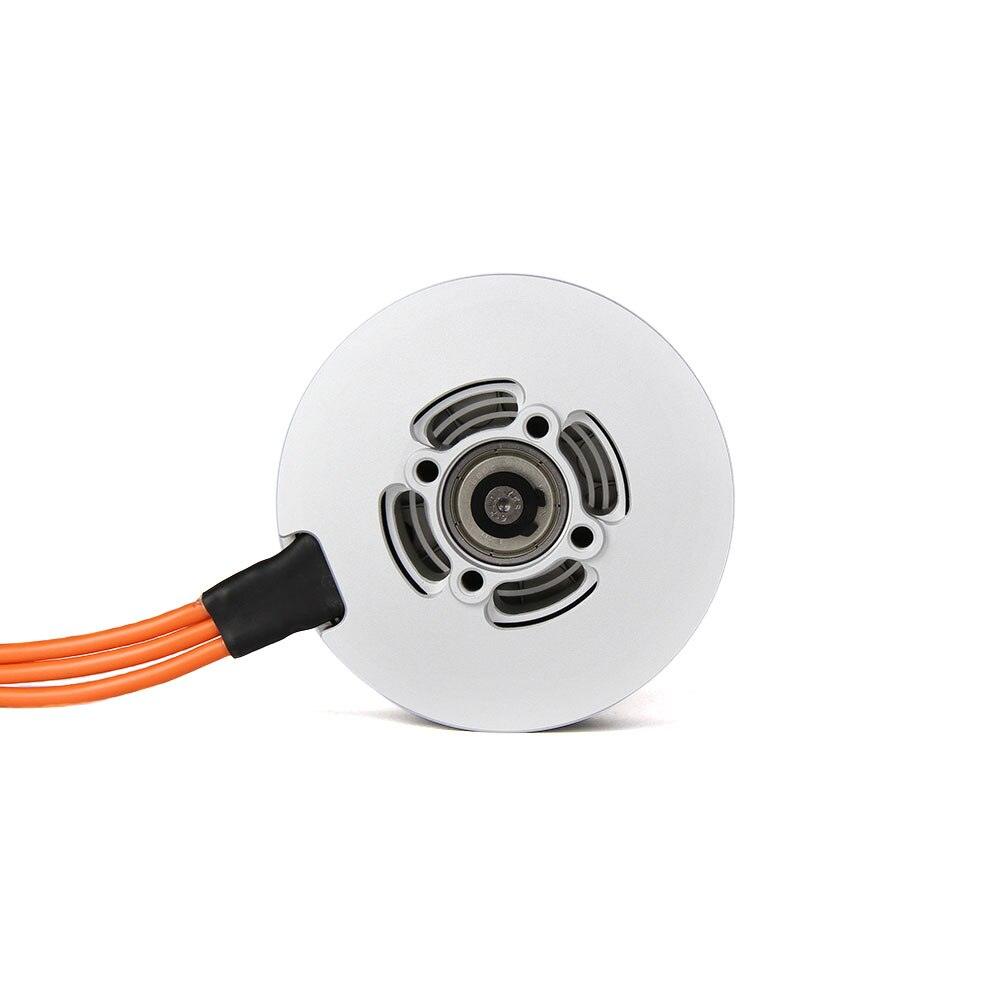

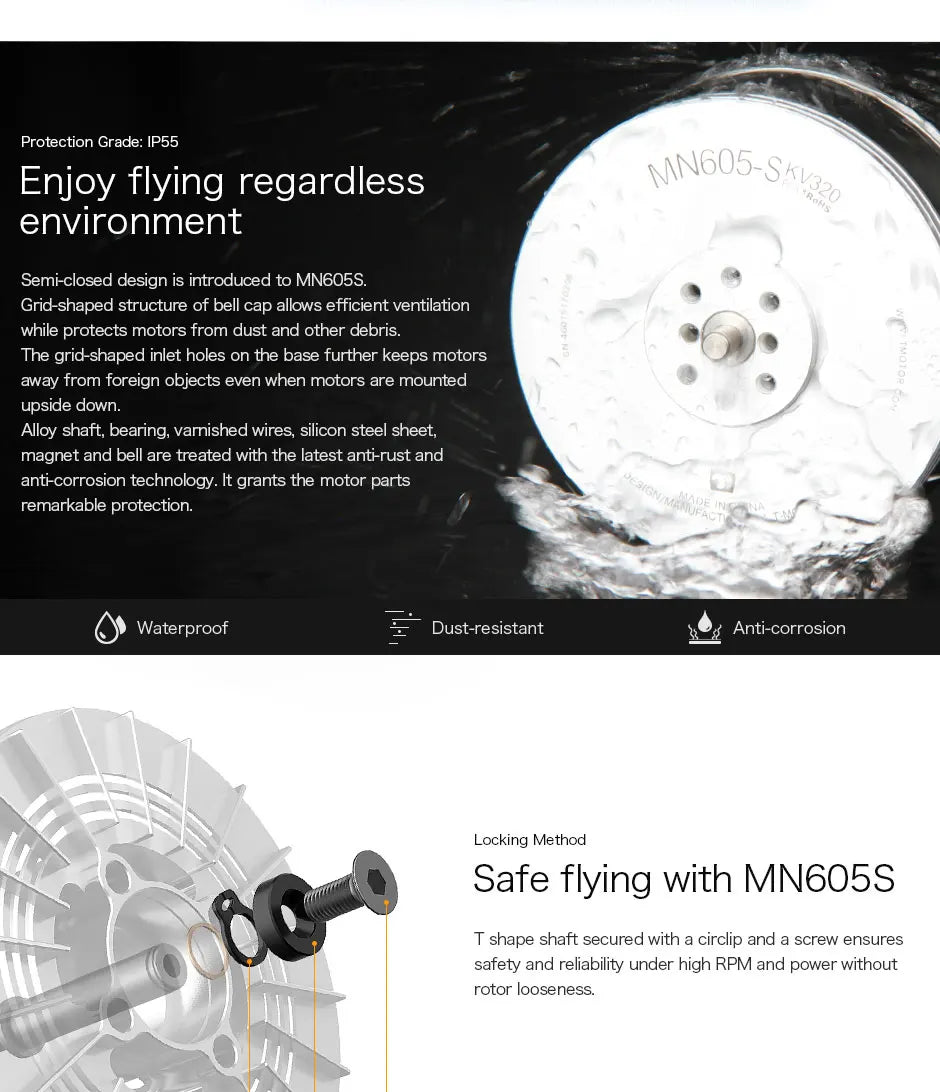

2Pcs/Set T-motor, grid-shaped structure of bell cap allows efficient ventilation while protects motors from dust and other

The grid-shaped structure of the bell cap enables efficient ventilation, effectively protecting the motor from dust and debris.

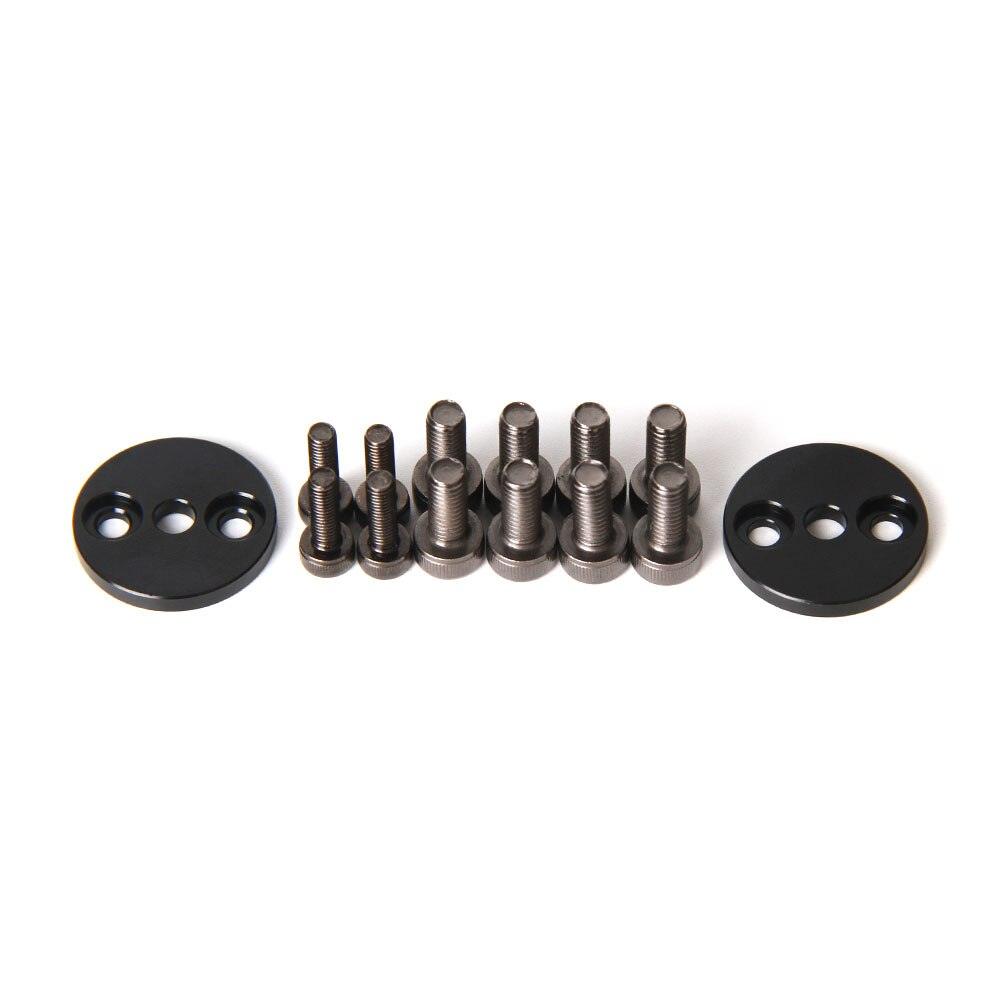

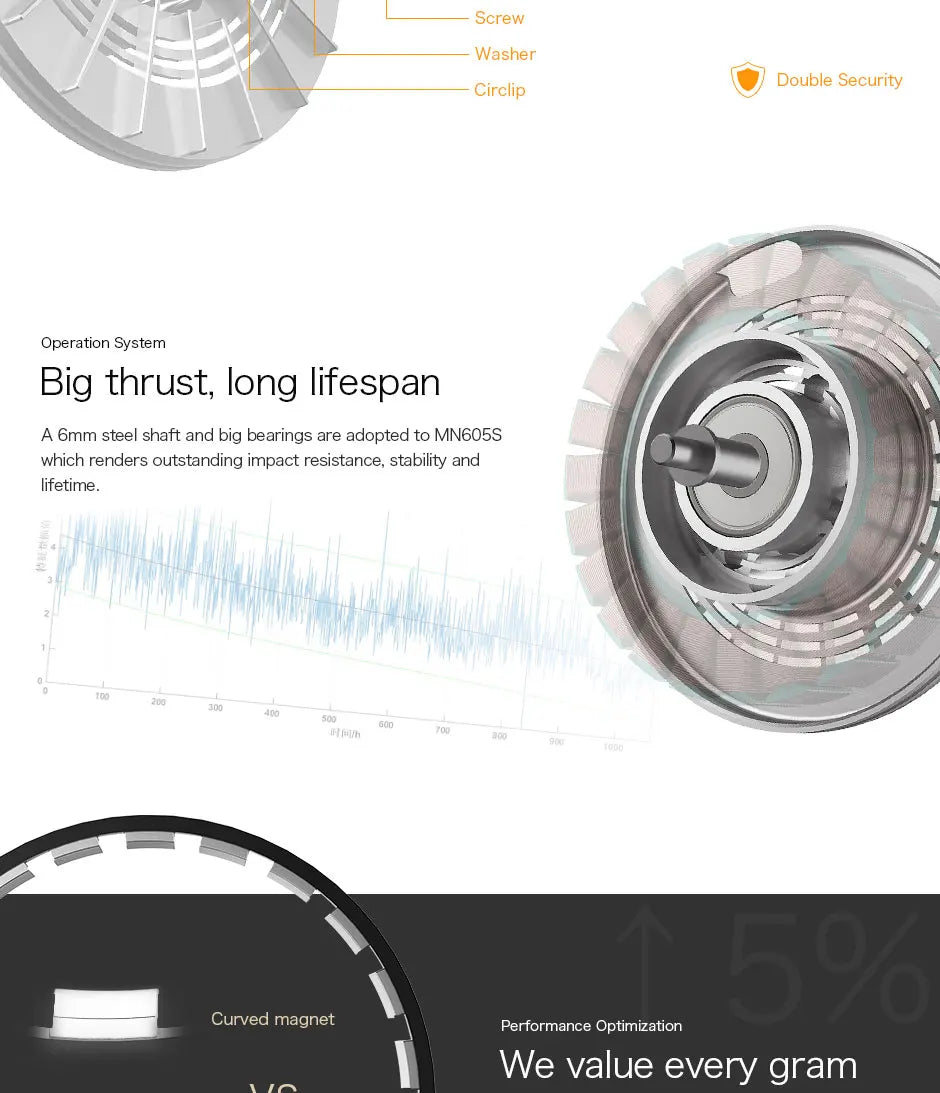

2Pcs/Set T-motor, Screw Washer Double Security Circlip Operation System Big thrust; long lifespan A 6mm steel

The motor features a double-security circlip operation system, ensuring big thrust and a long lifespan. The MN605S utilizes a robust 6mm steel shaft and large bearings, providing outstanding impact resistance, stability, and durability.

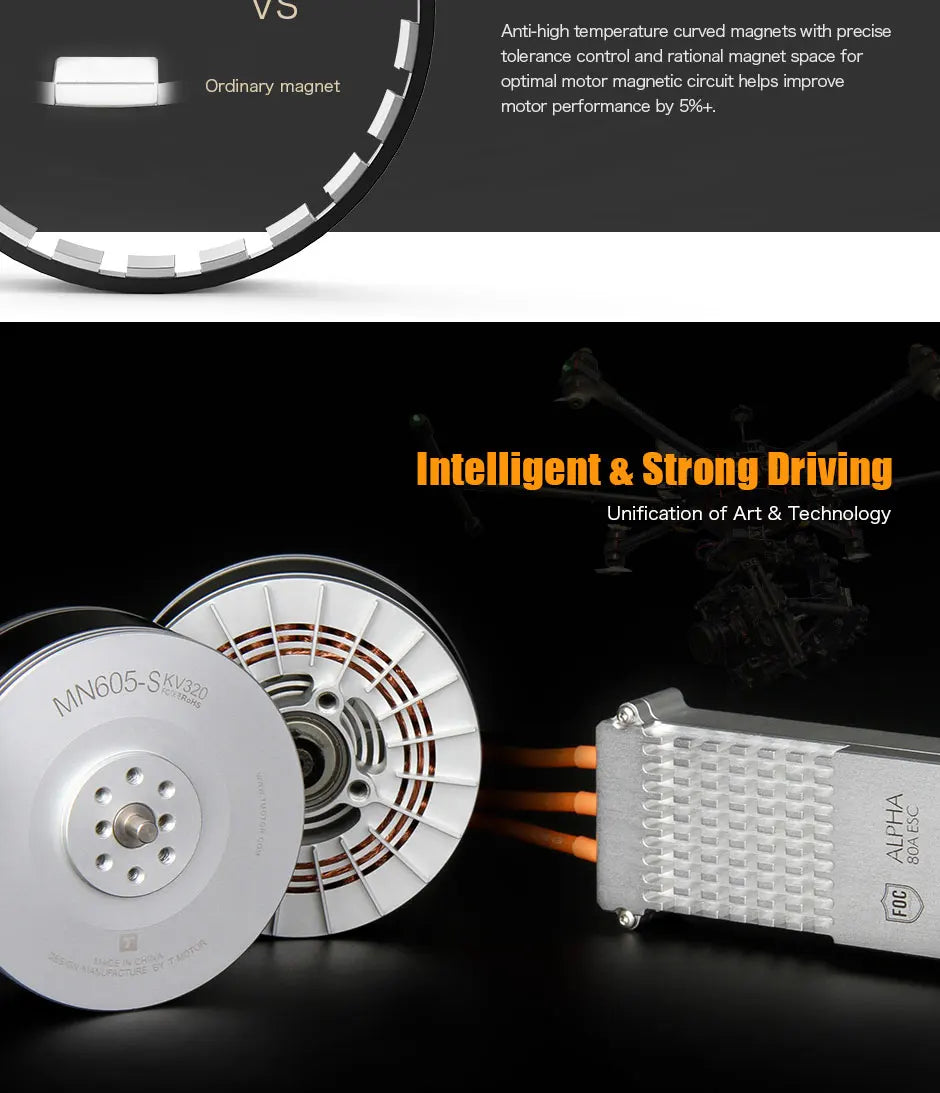

2Pcs/Set T-motor, anti-high temperature curved magnets with precise tolerance control and rational magnet space helps improve motor

The MN605-S features anti-high temperature curved magnets, precision-controlled with tight tolerances and optimized magnet spacing. This design optimizes the motor’s magnetic circuit, resulting in a performance boost of up to 5%+.

2Pcs/Set T-motor, T-motor MN605-S KV170 SPECIFICATIONS2Pcs/Set T-motor, Specifications Motor Size 068.8*39.9mm Imported silicon steel sheet;

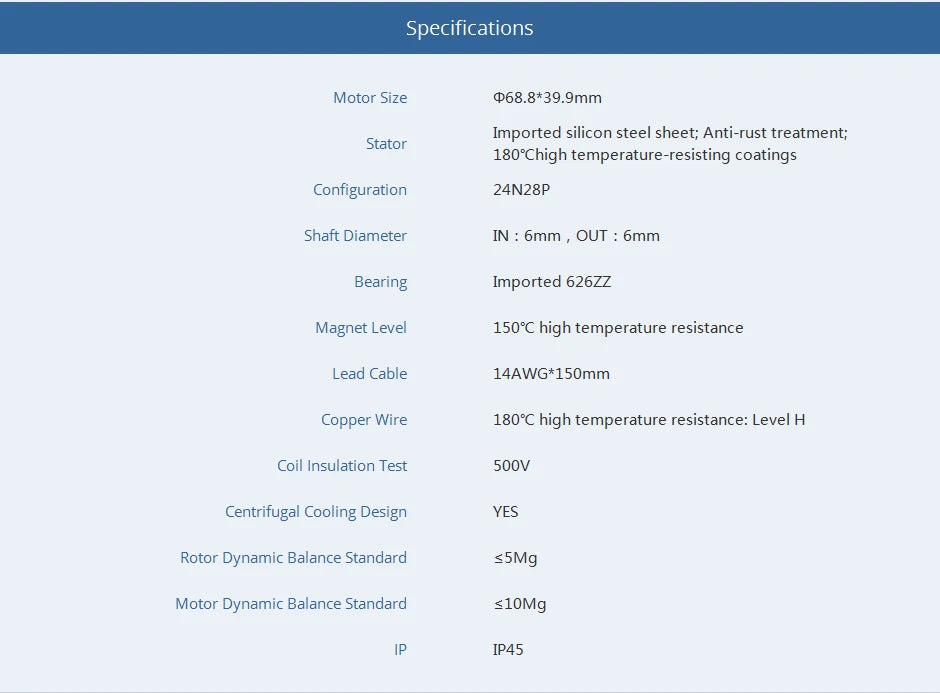

Specifications:
Motor Size: 68.8mm x 39.9mm
Material: Imported silicon steel sheet, treated with anti-rust coating
Stator Configuration: 24N28P
Shaft Diameter: In 6mm, Out 6mm
Bearing: Imported 626ZZ
Magnet Level: 1509C (high temperature resistance)
Lead Cable: 14AWG x 500mm (copper wire 180FC high temperature rating)
Coil Insulation Test: S0Ov
Centrifugal Cooling Design: Yes
Rotor Dynamic Balance: Standard

2Pcs/Set T-motor, ESC Recommendation FLAME 60A 12S Peak Current (180s)

Recommendation: ESC FLAME 60A, 12S, Peak Current (180 seconds), 1700W
Motor Specifications:
Weight (including cable): 327g
Internal Resistance: 65mn
Package Weight (2Pcs/Set): 980g
Rated Voltage (Lipo): 17V
Idle Current (17V): [no value specified]

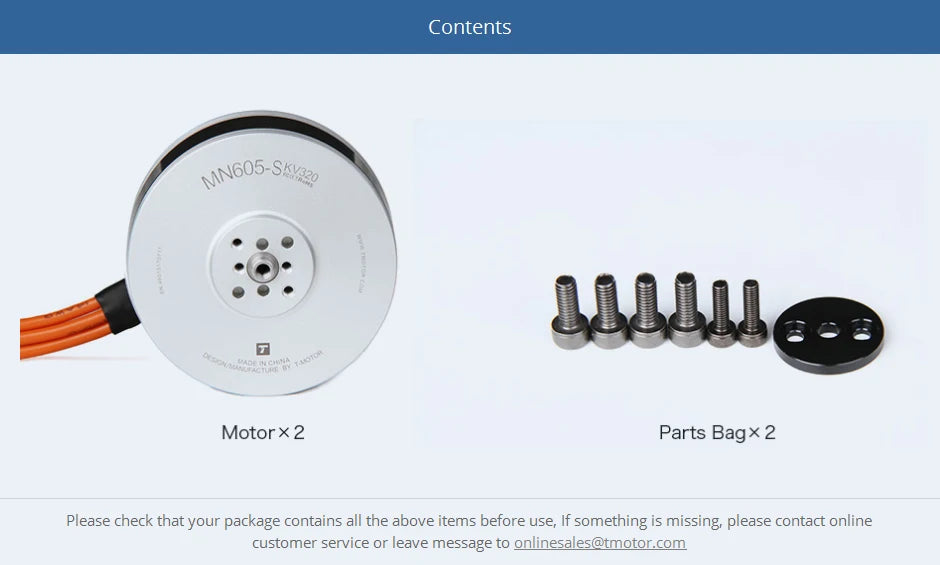

2Pcs/Set T-motor, T-motor MN605-S KV170 SPECIFICATIONS2Pcs/Set T-motor, T-motor MN605-S KV170 SPECIFICATIONS2Pcs/Set T-motor, T-motor MN605-S KV170 SPECIFICATIONS2Pcs/Set T-motor, T-motor MN605-S KV170 SPECIFICATIONS2Pcs/Set T-motor, T-motor MN605-S KV170 SPECIFICATIONS2Pcs/Set T-motor, T-motor MN605-S KV170 SPECIFICATIONS2Pcs/Set T-motor, if something is missing please contact online customer service or leave message to onlinesales@t

Before using this product, please verify that your package includes all the items listed above. If you find that any items are missing, please contact our online customer service team for assistance.
