ATOMRC Killer Whale RC Airplane SPECIFICATIONS
Warning: 14+ Age
Video Capture Resolution: Other
State of Assembly: Unassembled Kit
Remote Distance: As shown
Remote Control: No
Recommend Age: 12+y
Power Source: Electric
Plugs Type: As shown
Package Includes: Original Box
Origin: Mainland China
Operator Skill Level: Intermediate
Operator Skill Level: Expert
Model Number: Eachine & ATOMRC Killer Whale
Material: Metal
Material: Plastic
Indoor/Outdoor Use: Outdoor
Flight Time: As shown
Features: Other
Dimensions: 100cm-150cm
Controller Mode: MODE2
Controller Mode: MODE1
Controller Battery: As shown
Control Channels: 6 Channels
Charging Voltage: As shown
Charging Time: As shown
Certification: CE
Camera Mount Type: Other

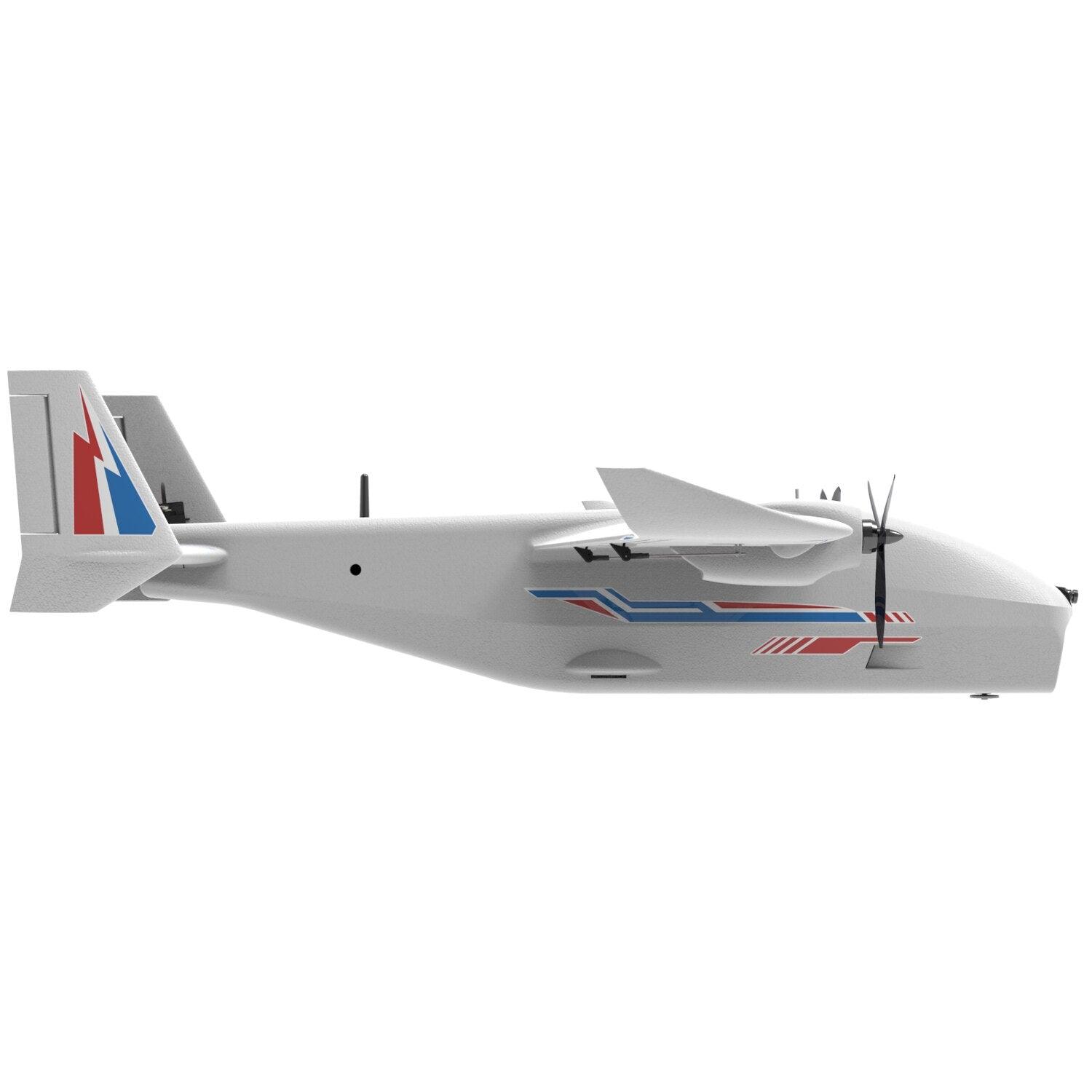

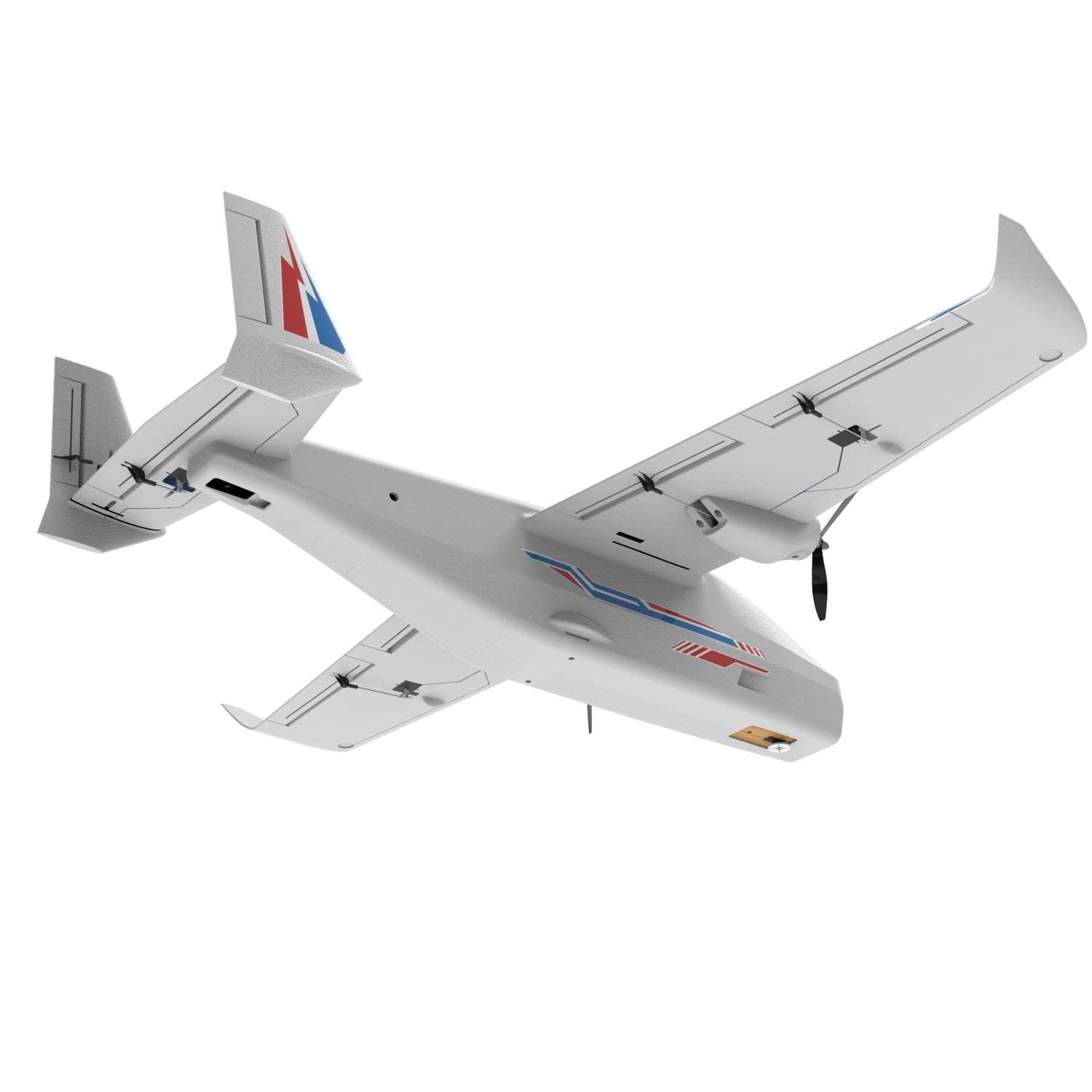

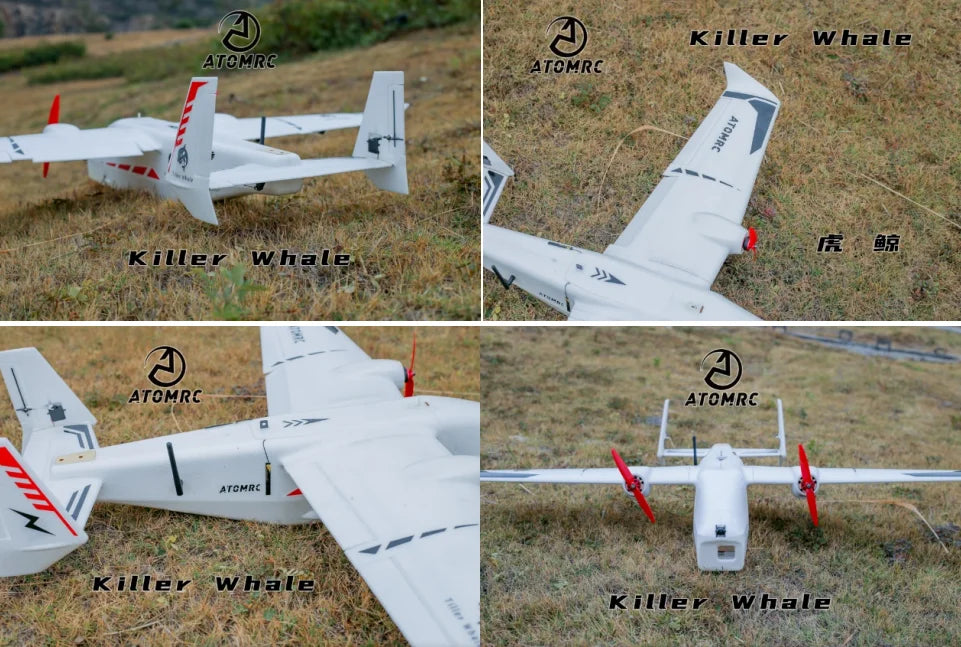

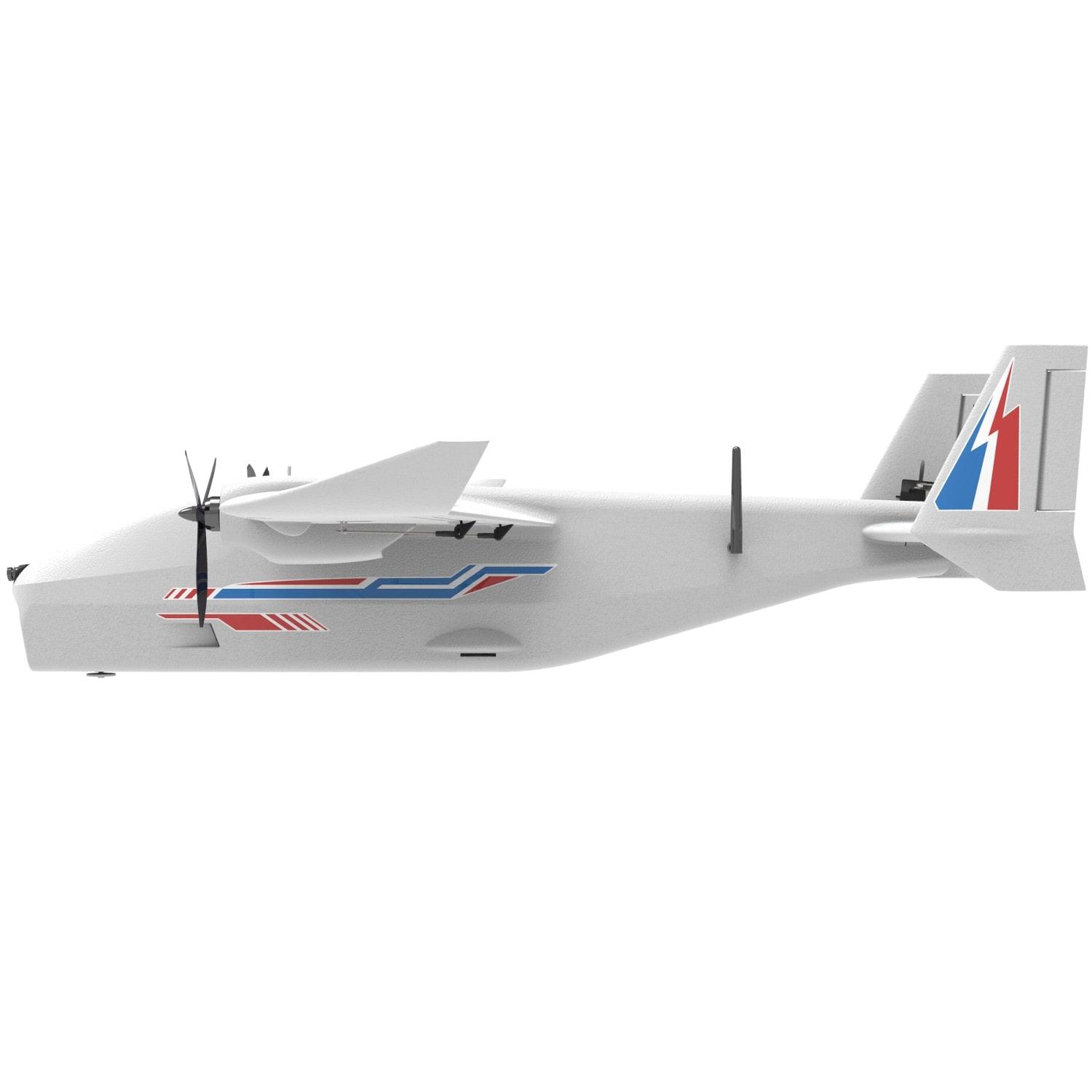

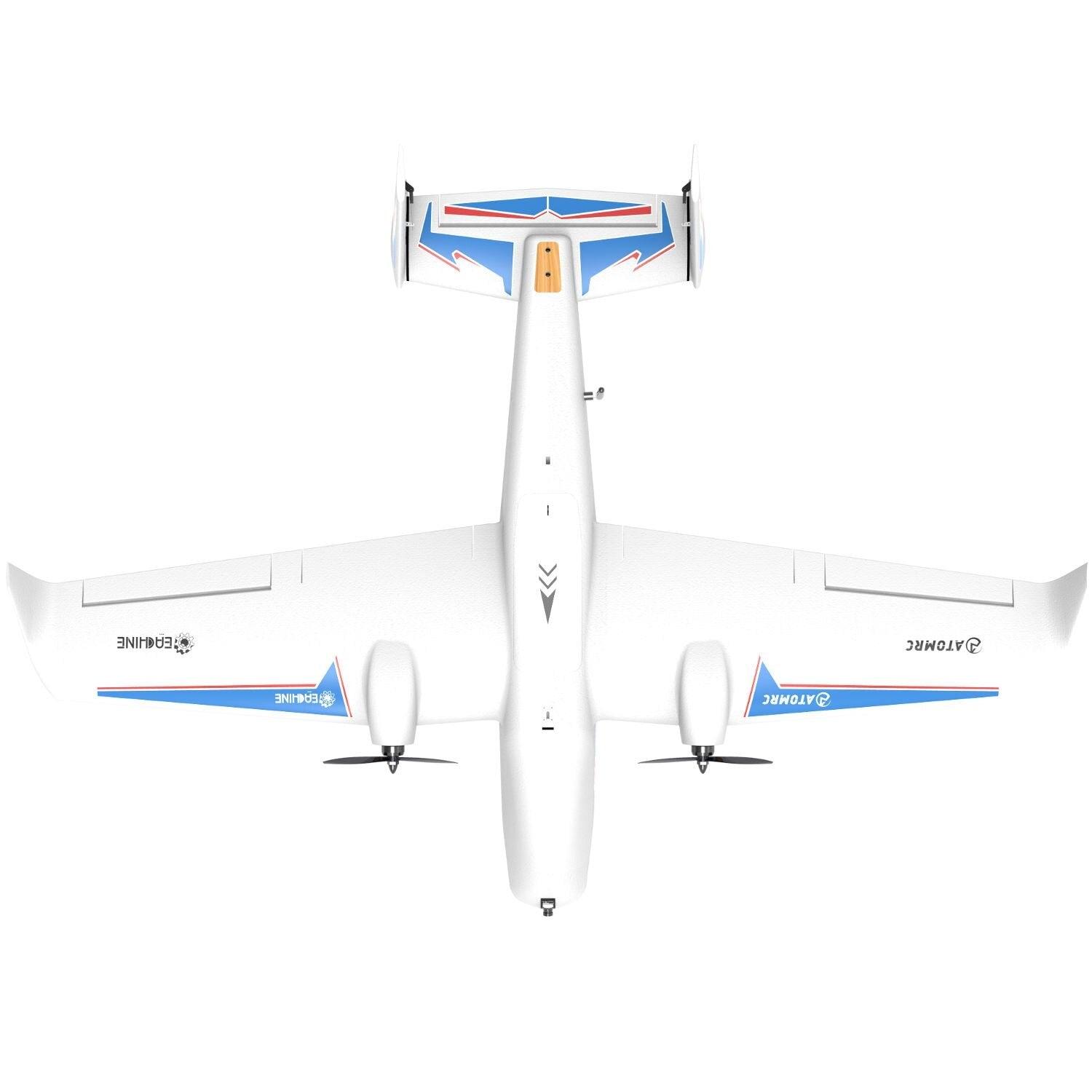

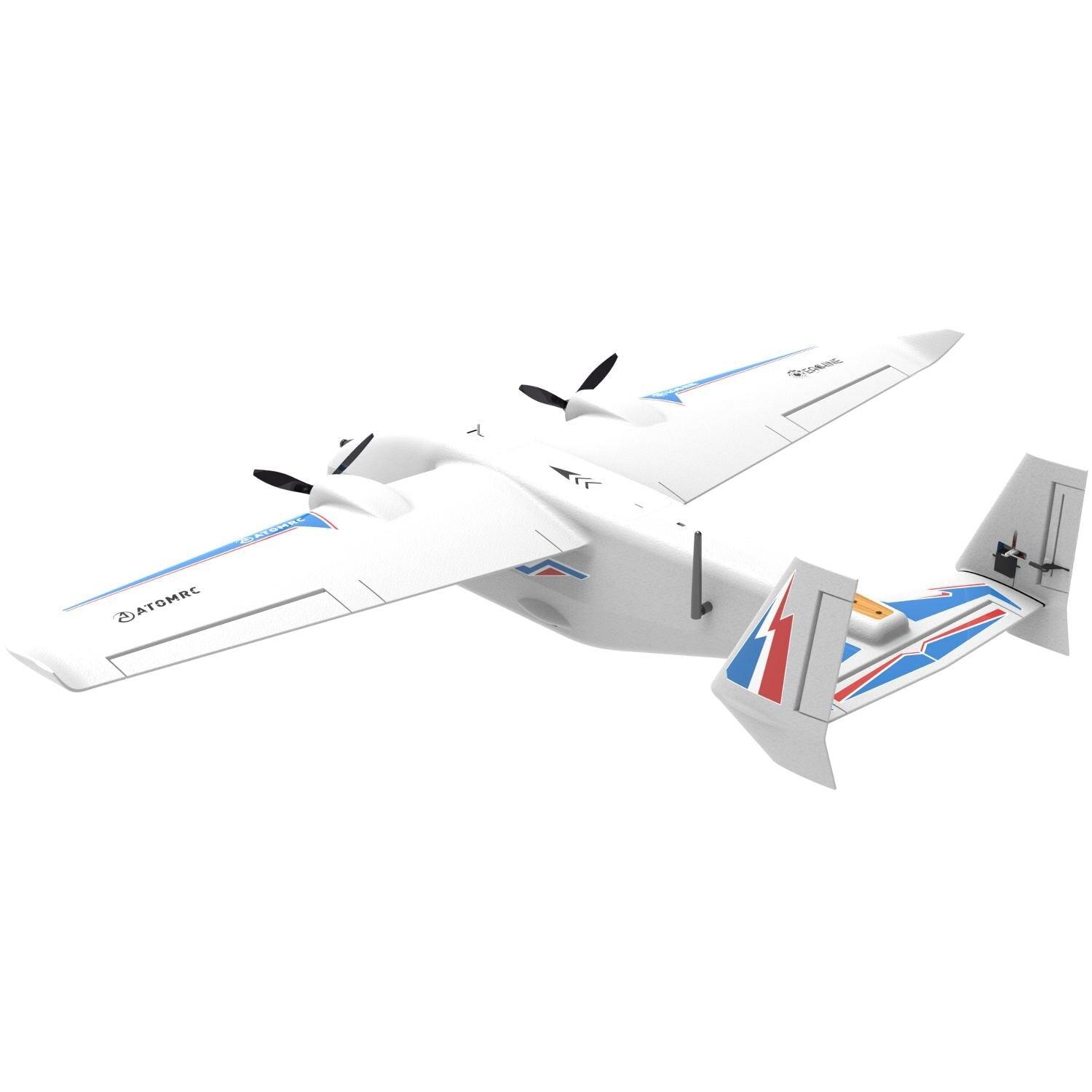

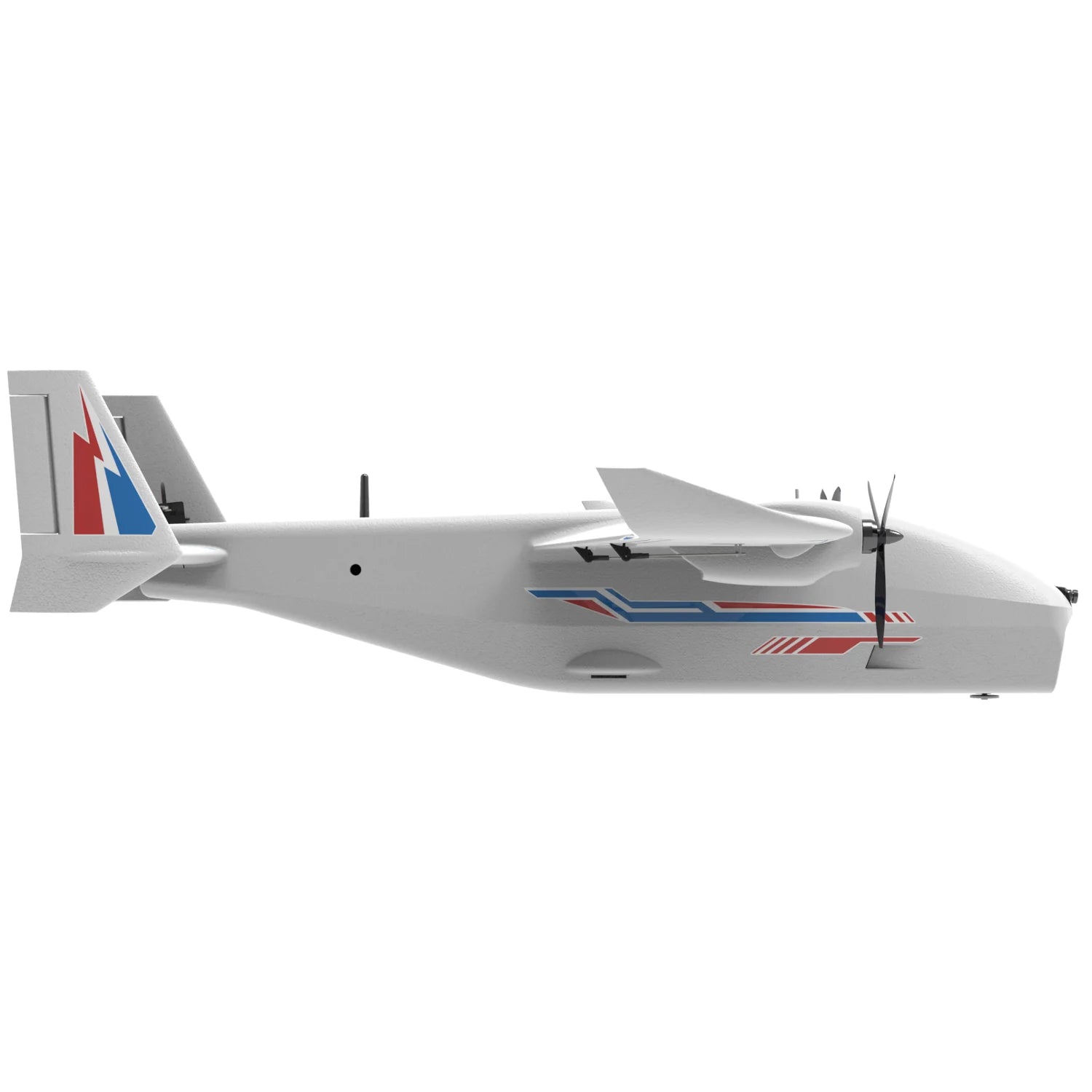

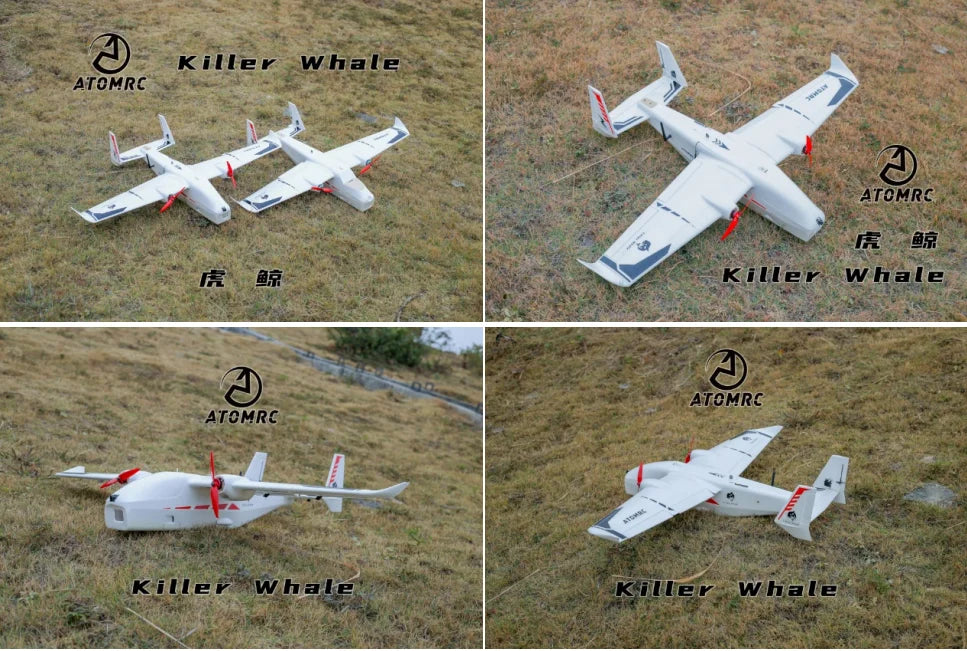

2021 New ATOMRC Killer Whale RC Airplane 1255mm Wingspan AIO EPP FPV Plane With Camera Mount UAV Aircraft KIT/PNP/FPV RC Toys
Package Included
KIT
1 x Airplane Kits only
PNP
1 x Airplane Kits
7 x Servos (without flap servos)
2 x BLS 30A 5V3A BEC
2 x PHOTON 2306 1400kv MOTOR
2 x 7045 Prop
1 x 5V5A BEC
PNP With FPV
1 x PNP version
1 x 5.8G 1500mw VTX
1 x Foxeer arrow NTSC camera
Front and Rear Mount for Gopro Hero 5~9
Multi angle of video shot for FPV formation
Detachable wing and tail
Also with power and signal connector,no more mess up wires, quick deploy.
Capability for upgrade LED and Landing gear system.
Easy to maintain design.
Features

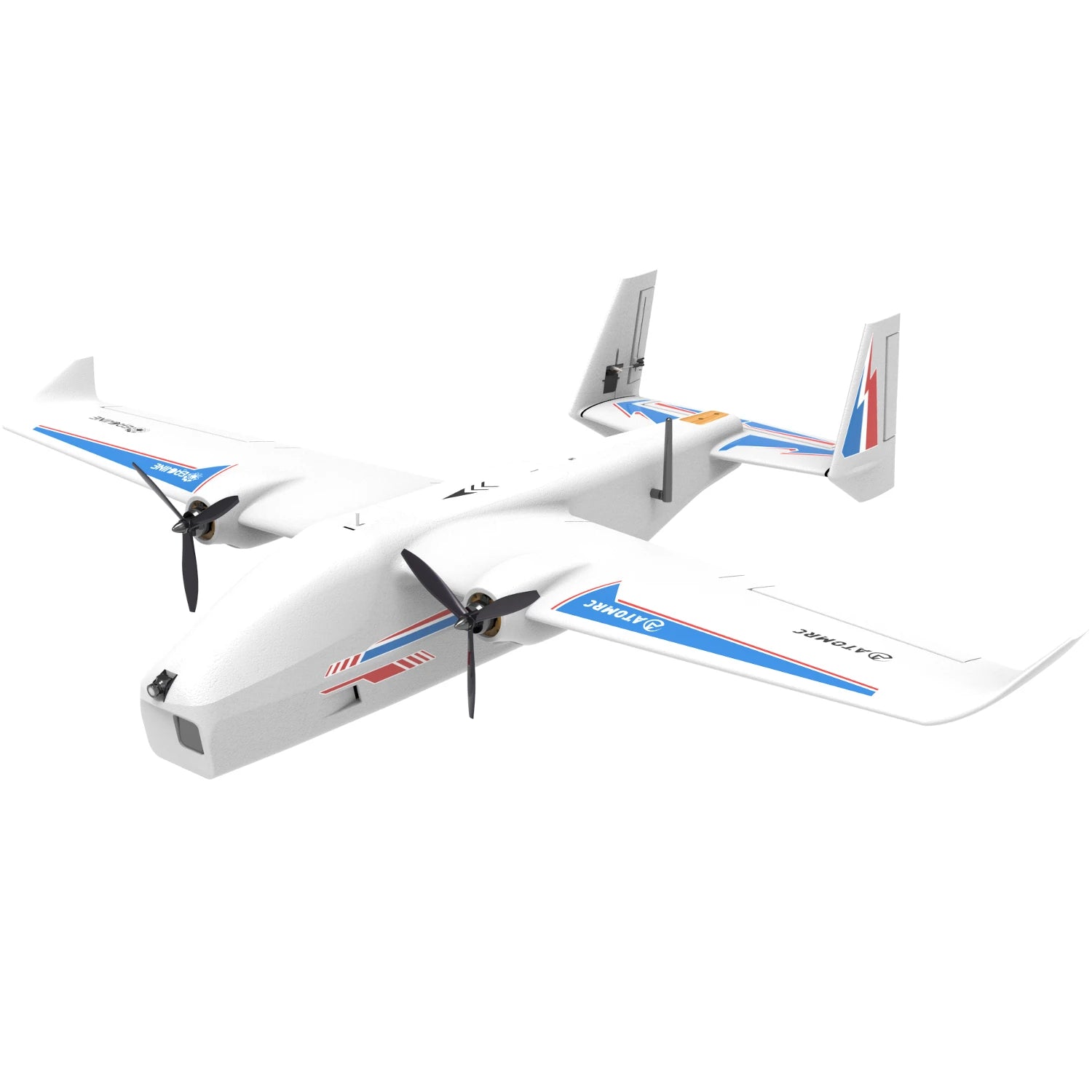

1. Double-engine medium-sized fixed-wing, classic fixed-wing power layout. It has super load capacity and super long endurance.
2. The main wing can be quickly disassembled and assembled for easy carrying.
3. Inside the fuselage, there are exclusive installation positions for the flight control, image transmission, antenna, and battery compartment, which are easy to install and organize.
4. Inside the wing, dedicated converging ports for the steering gear, ESC, and power cord are easy to install and organize.
5. The excellent airfoil shape that has passed the simulated aerodynamic test has excellent aerodynamic performance and maneuverability.
6. The double vertical tails are directly behind the propellers, which increase the control performance of the aircraft rudder and make it easier to land.
7. The only aircraft of the same level that can support up to 9-inch propellers, and its power efficiency is increased by 18% compared to 8-inch propellers.

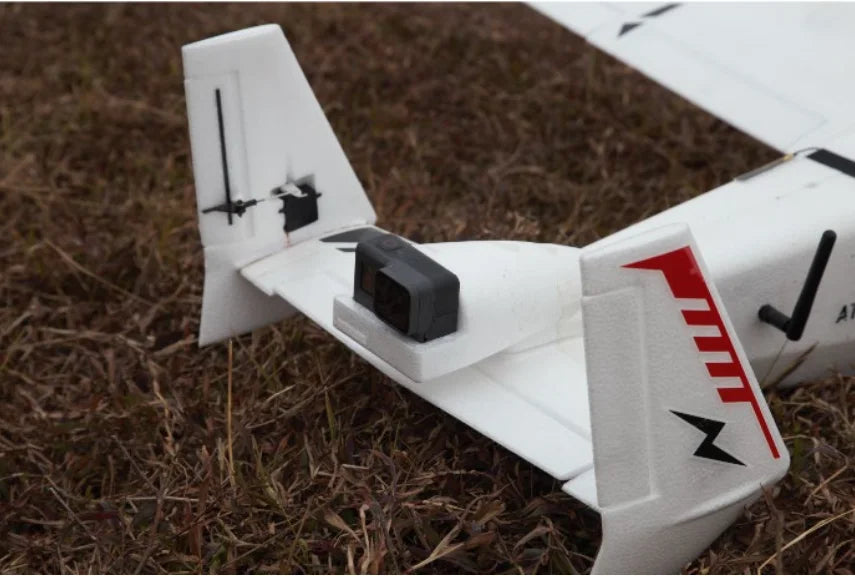

8. Double vertical tail design, exclusive tail mounting seat for gopro , easy to install the camera from the rear perspective, and can shoot reverse perspective video,
Greatly enhance the shock of shooting video content. There is a vertical tail in the center of the conventional layout of the aircraft on the market, and the camera is very wrong.
Then install.
9. Two head covers come standard. When installing gimbal, DJI HD video transmission or other mounting equipment, you can choose a platform head cover.
Easy to install and mount equipment.
10. The first fixed wing supports the built-in fixed wing for Gopro hero 9 and is compatible with hero 5/6/7 installation.

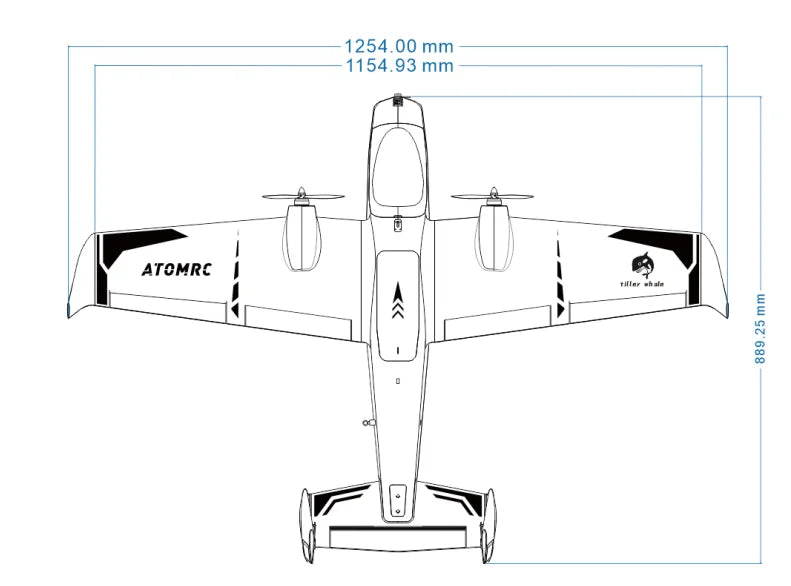

Specification
WingSpan: 1255mm
Length：889mm
Weight：KIT 600g
Wing Area：21d㎡
Max take off weight: 2500g
Can carry for GoPro 5/6/7/9
Tail can carry for GoPro5/6/7
Recommended Parts(not included)
Motor : 2306 1300KV~2000KV
ESC: 4S Lipo BLS30A with 5V 3A BEC
Prop: 7~9inch
Battery : 18650/21700 4S4P
Servo：9g servo*7, need one reverse servo for flap
Specifications:
• Wingspan: 1255mm
• Length: 889mm
• Weight: 600g
• Area: 21dm²
• Maximum takeoff weight: 2500g
• Recommended motor: 2306 1300KV
• ESC: 4S LiPo BLS3OA with SV 3A BEC
• Propeller: 7×9 inch
• Battery recommendation: 8650mAh/21700mAh 4S 4P
• Camera mount: Front and rear GoPro mounts (compatible with GOPRO Hero 5) Servo: 9g servo
