Description

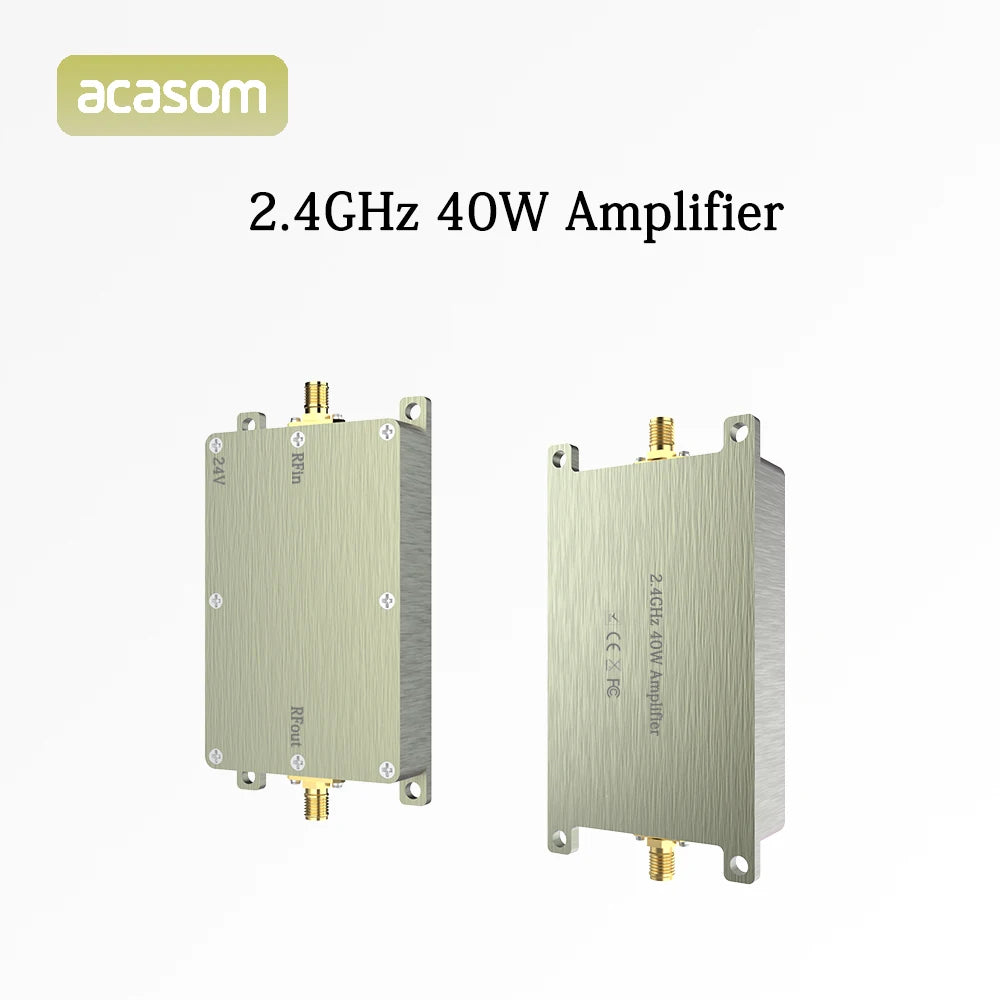

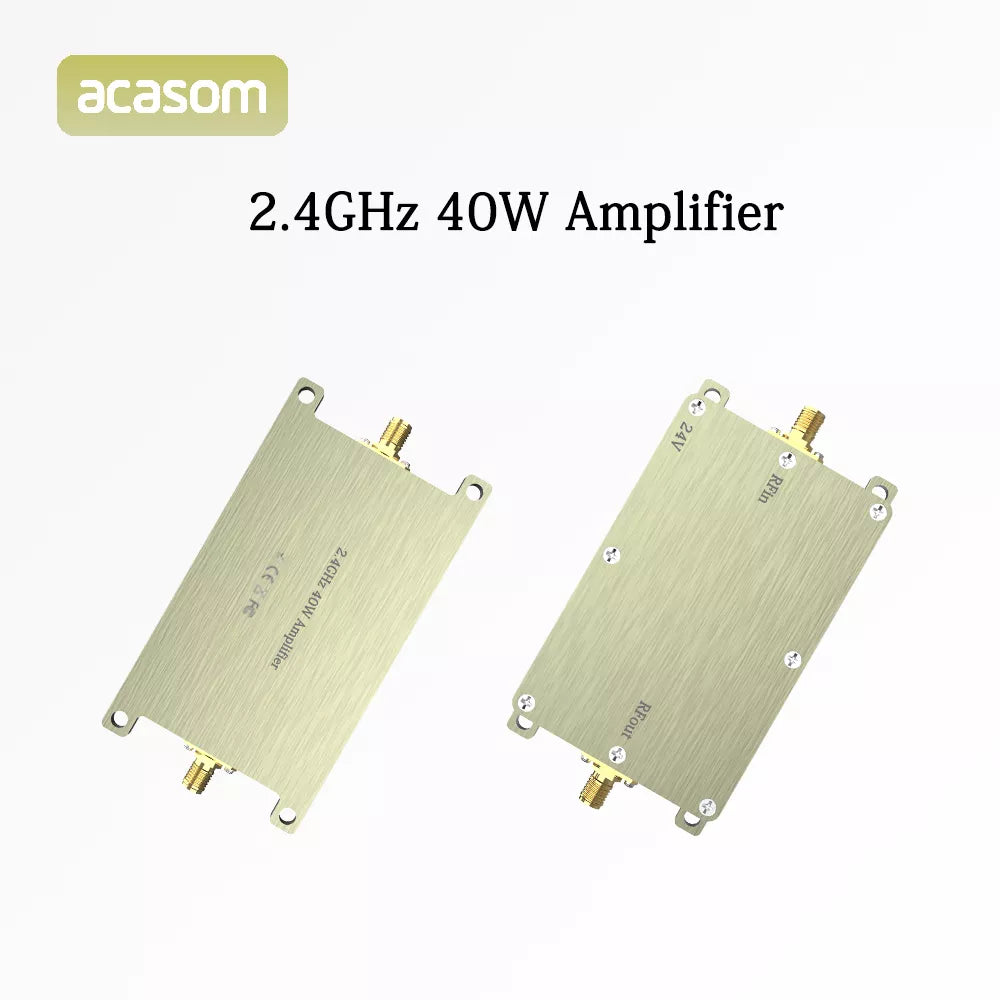

2.4GHz 40W RF High Power Amplifiers SPECIFICATIONS
Brand Name: ACASOM
Item Type: Antenna
Origin: Mainland China

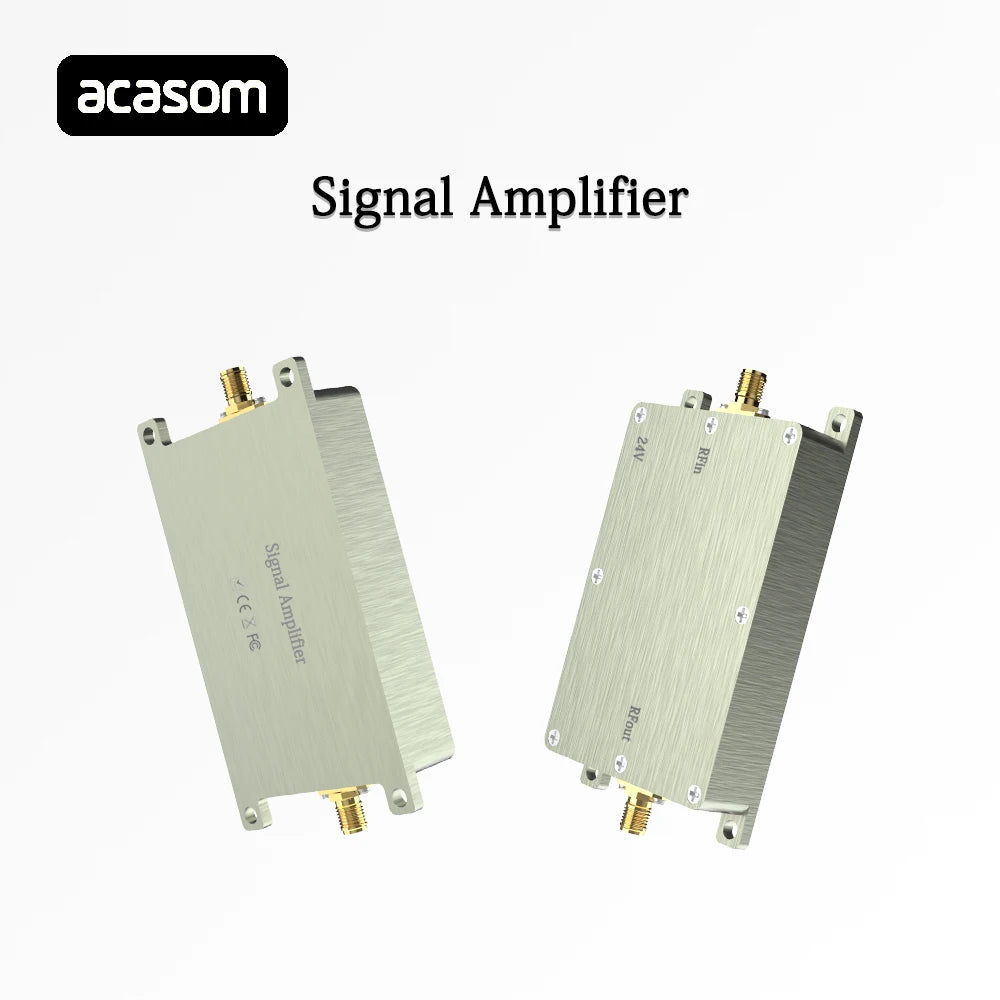

ACASOM 2.4GHz Unidirectional Amplifier FOR WiFi/ DRONE
Only the Tansmitting Channel (TX), NO RX
Frequency:2.4GHz-2.5GHz
RFOUT POWER=46dBm(40W)
ACASOM accept customizing the power you need!
Number |
Items |
Specifications |
1 |
Frequency Range |
2400-2500MHz |
2 |
Operating Voltage |
20-24V(customizable28-32V) |
3 |
Gain(S21) |
36dB(customizable 25-37dB) |
4 |
Input Return Loss(S11) |
-15dB |
5 |
Flatness |
±0.5dB |
6 |
Output Power |
46dBm |
7 |
Current |
3.7.0A @24V, 46dBm |
8 |
Efficiency |
45%@46dBm |
9 |

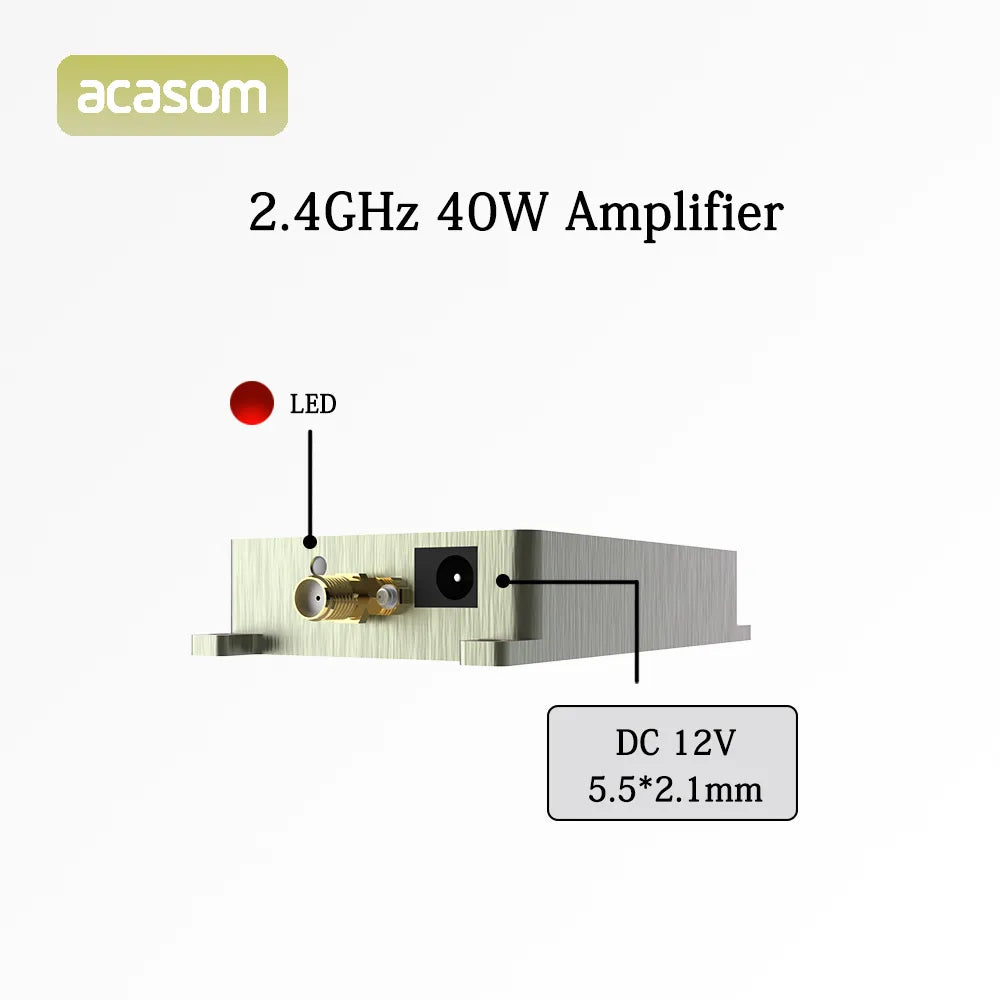

LED State |
Red |
10 |
Operating Temperature |
-30℃~85℃ |
11 |
Storage Temperature |
-40℃~150℃ |
12 |
Operating Humidity |
<95%RH |
13 |

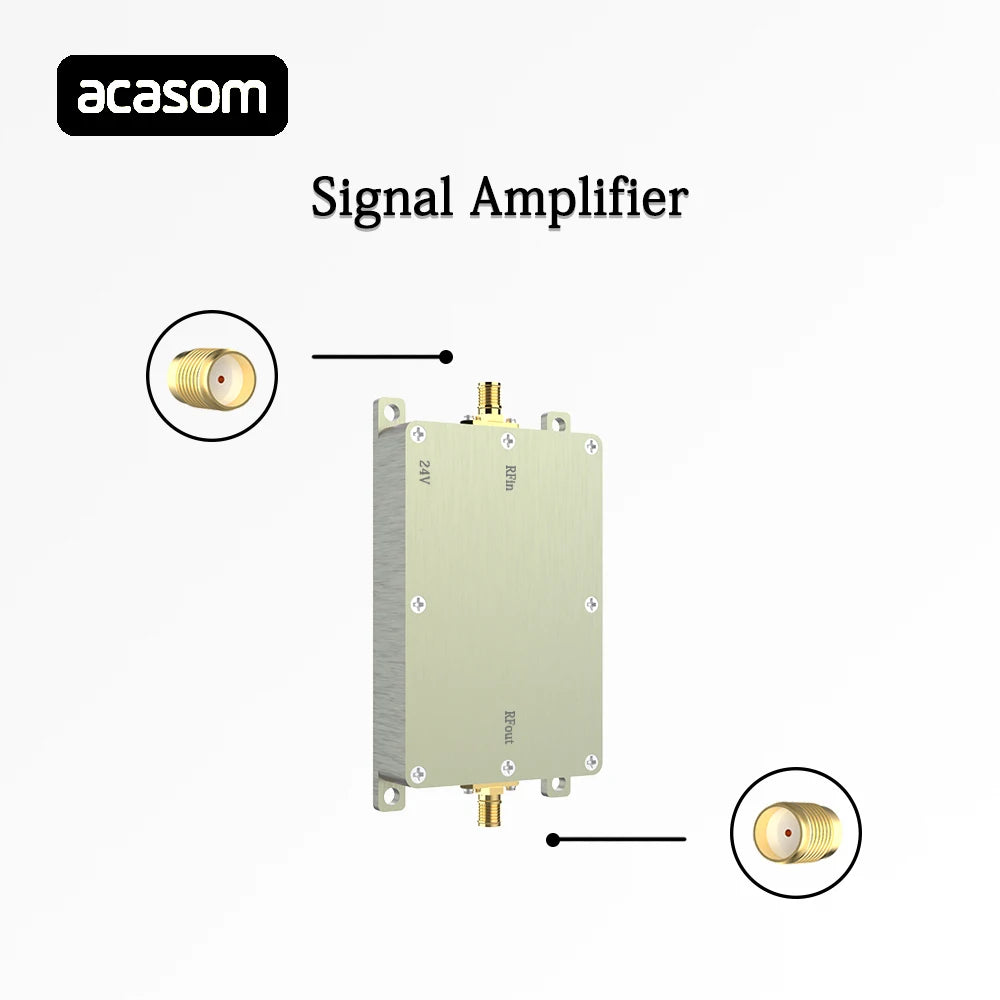

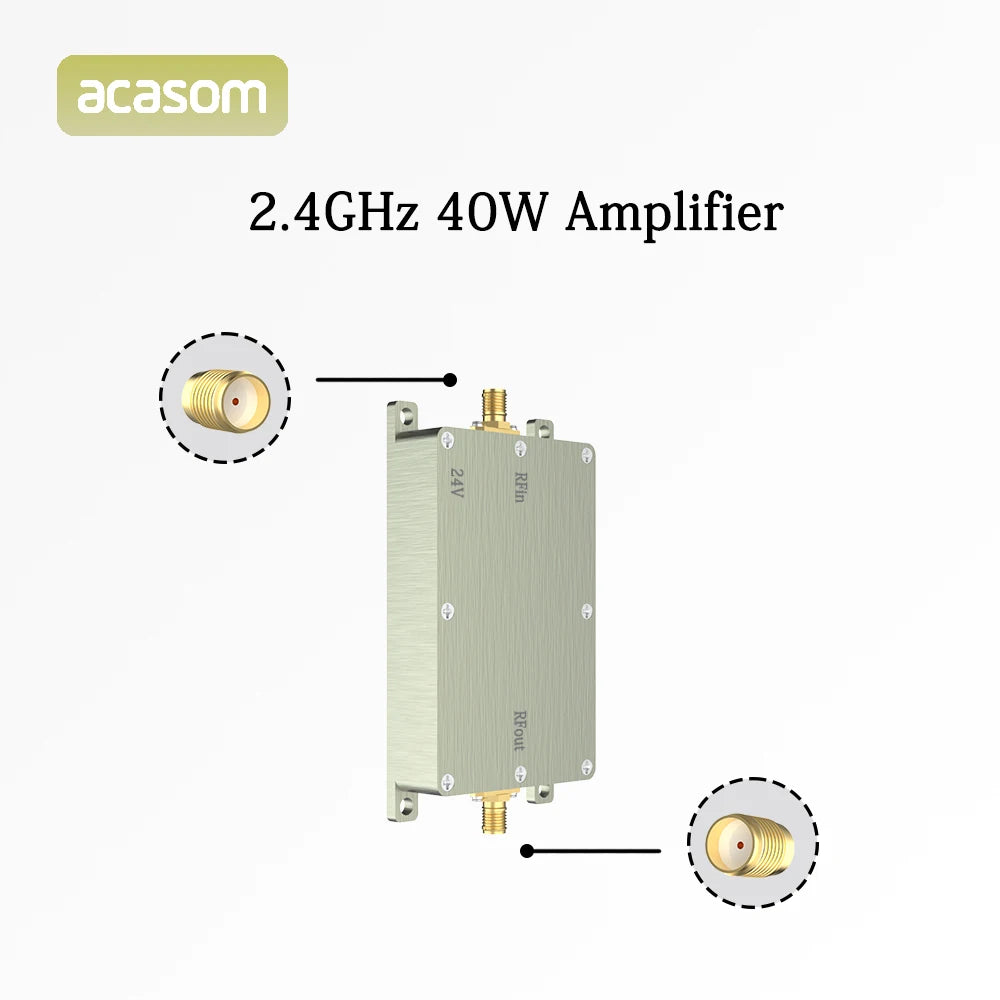

RF Connector |
Input:SMA-Female; Output:SMA-Female |
14 |
Power Socket |
5.5*2.0mm DC( default ) or 15cm red/black wire |
15 |
Shell Material |
Aluminum |
16 |

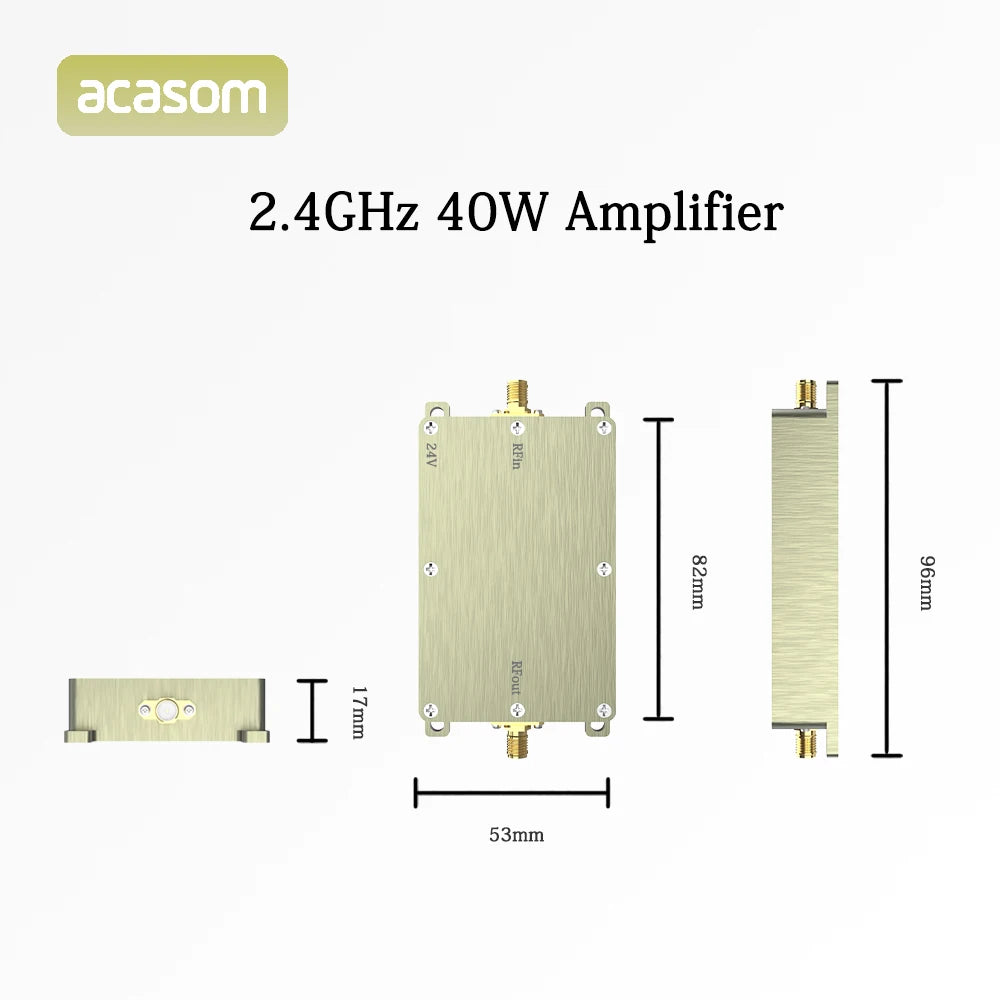

Shell Size |
96*53*17mm |
17 |
Net Weight |
0.15Kg |
![2.4GHz 40W 46dBm RF High Power Amplifiers, ACASOM accept customizing the power you need! 2.4GHz-2.5GHz RF](https://rcdrone.top/cdn/shop/files/A269c4b421f2c4fe7ad28dde0e47a0904L_016141ac-5051-4c1e-8184-843f5e77aef6.webp?v=1715015832)
1 24V /4.5A power supply.
2 Heat dissipation is recommended, such as adding heat sink or radiator fan.
3 Antenna should be screwed first, then plug the power adapter, finally connect the device.
4 The output could reach 46dBm, when input power is10dBm or 11dBm (default gain is 36dB).
1* Power Amplifier
1: Standard express has a certain risk of getting lost. For products with higher value, we recommend to choose fast commercial express, we will also provide very favorable price, please contact us for specific express price.
2: We do not guarantee delivery time on all international shipments due to differences in customs clearing times in special countries. Please note that buyers are responsible for all additional custom fees, duties, and taxes for importation into your country. We will not refund shipping charges for reused shipments.
3: Because some countries have strict regulations on the import of such products, such as Brazil, Russia, Germany, etc., please make sure whether individual could import the product in your country, or if you have the qualification to import the product. The buyers are responsible for the lost if the goods are detained by the customs.
