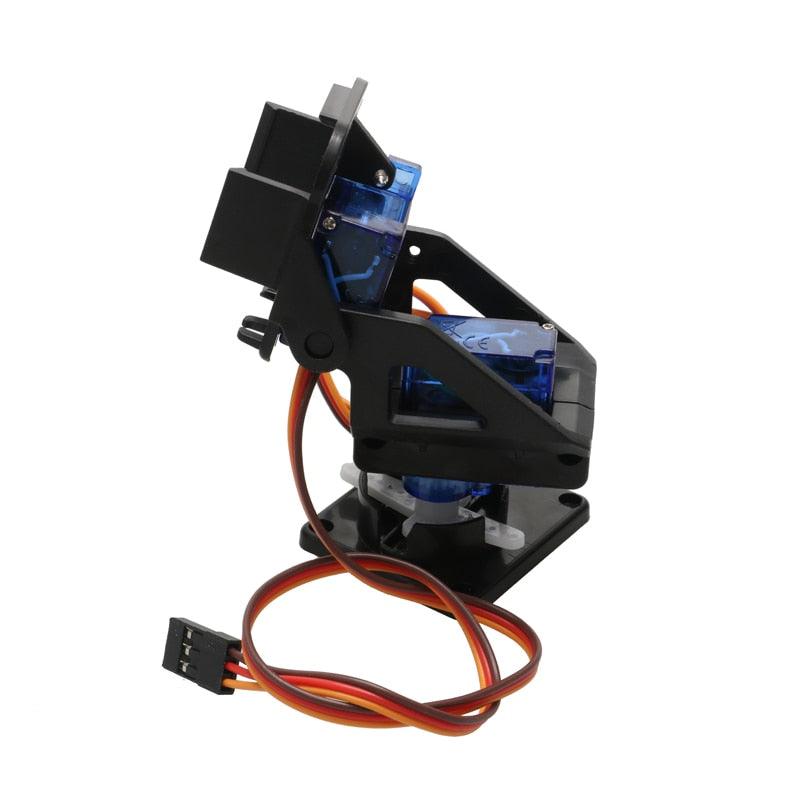

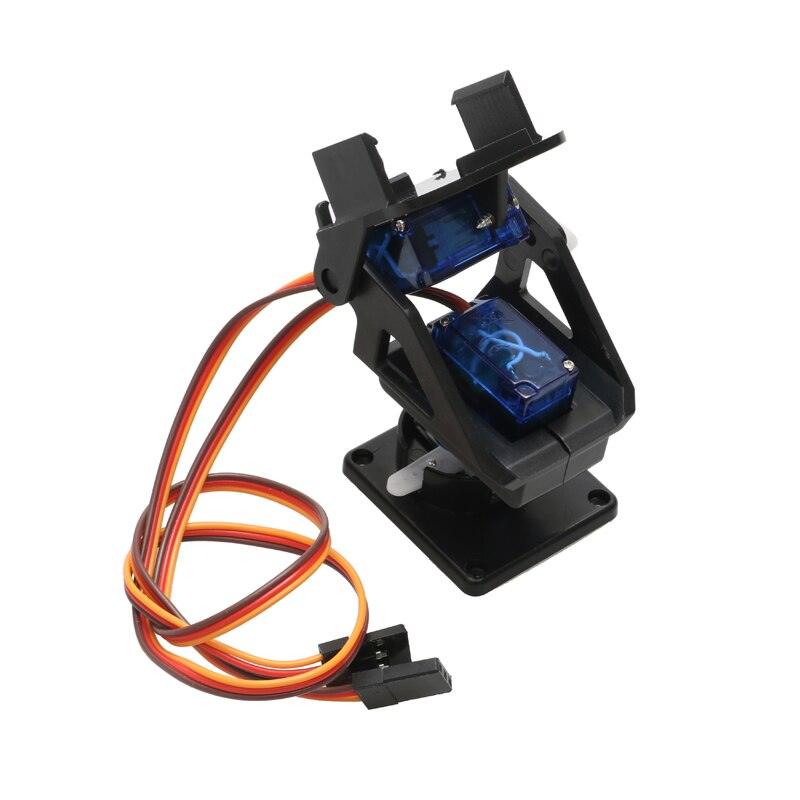

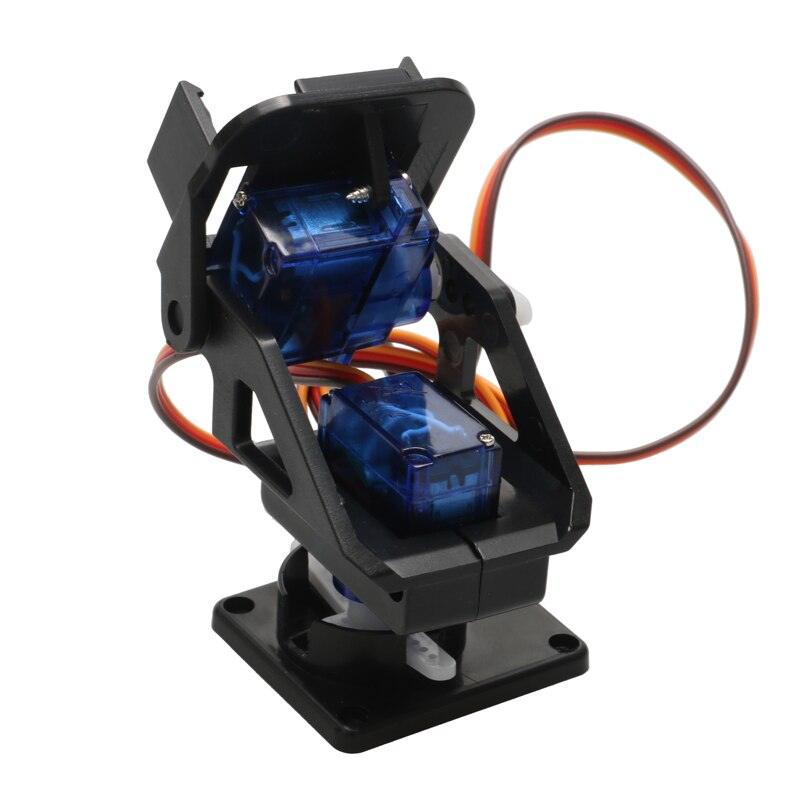

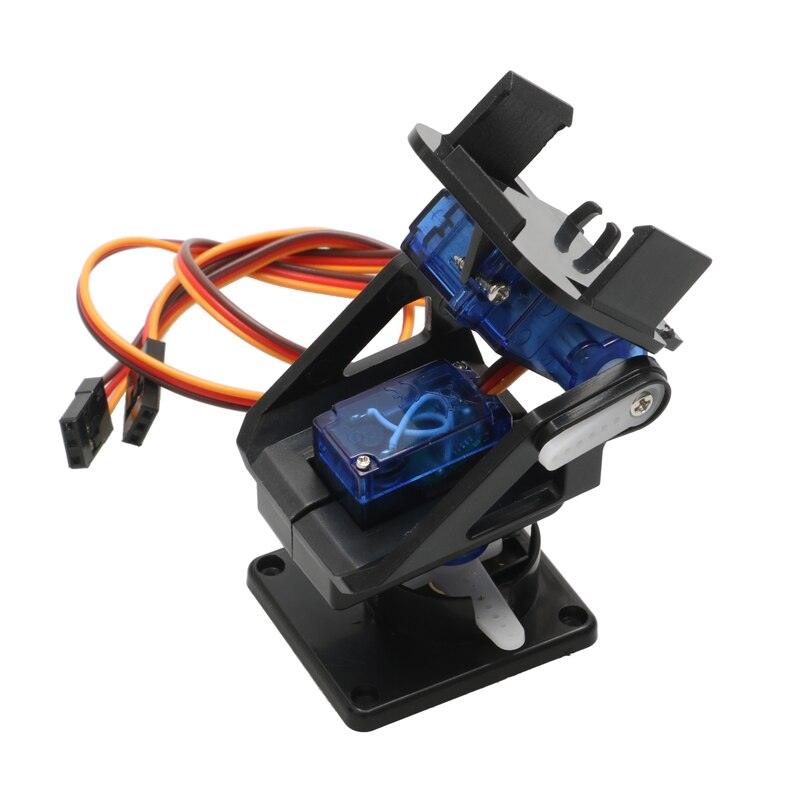

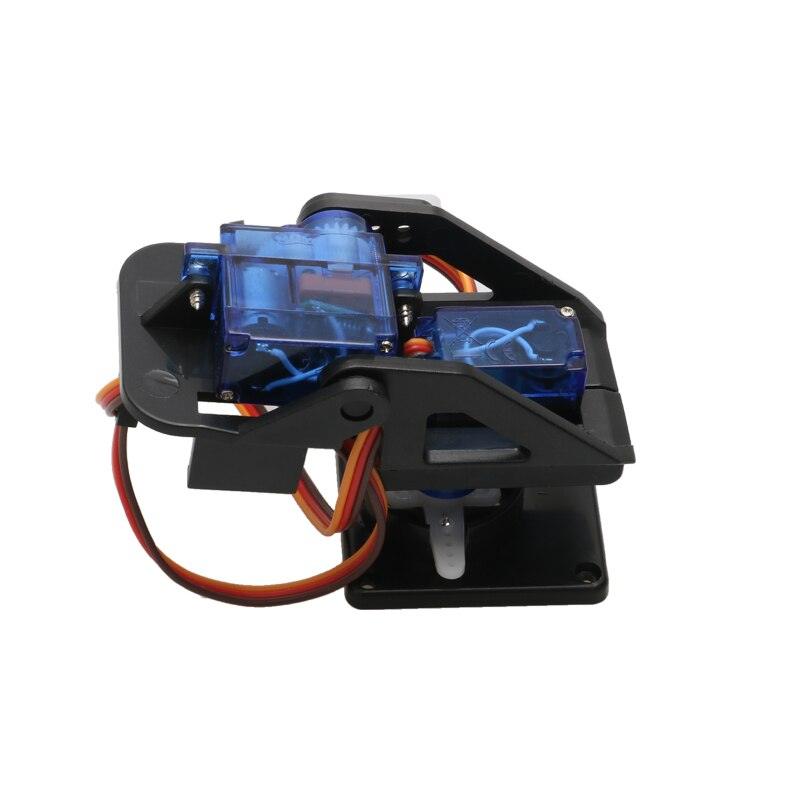

1Set Dual Axle Servo Gimbal Anti-Vibration Camera Platform Mount PTZ Pan/Tilt with 2PCS 9G Servo for FPV Drone Assembly Parts

Descriptions:

– Equipped with SG90 type servo, plastic gear 9g servo, the rocker arm of the servo needs to be cut smaller when installing, and the installation of the servo on the base also needs to modify the rocker arm (or remove the edge of the round hole, and then put the rocker arm in)

– The two-axis plastic gimbal weighs 20 grams and is suitable for use with 9g-12g servo. It has beautiful appearance, precise production, no false and no sloshing, and has a servo wire winding clip.

Specifications:

– Adapted servo model: SG90

– Product weight: 9g

– Product size: 23×12.2x29mm

– Working torque: 1.8kg/cm(4.8v)

– Response speed: 0.1sec/60degree(4.8v)

– Working voltage: 4.8v

– Working temperature: 0℃- 55℃

– Dead zone setting: 10us

– Gear: plastic gear

– Pin definition: orange:signal; red:VCC; brown:GND

Note:

1.The gimbal is in bulk, you need to assemble it yourself.

2.The PTZ is only suitable for cameras with 28*28 and not suitable for 32 or 38 cameras(camara is not included).

Installation video can refer to:

http://v.youku.com/v_show/id_XODk3NDE1NjYw.html

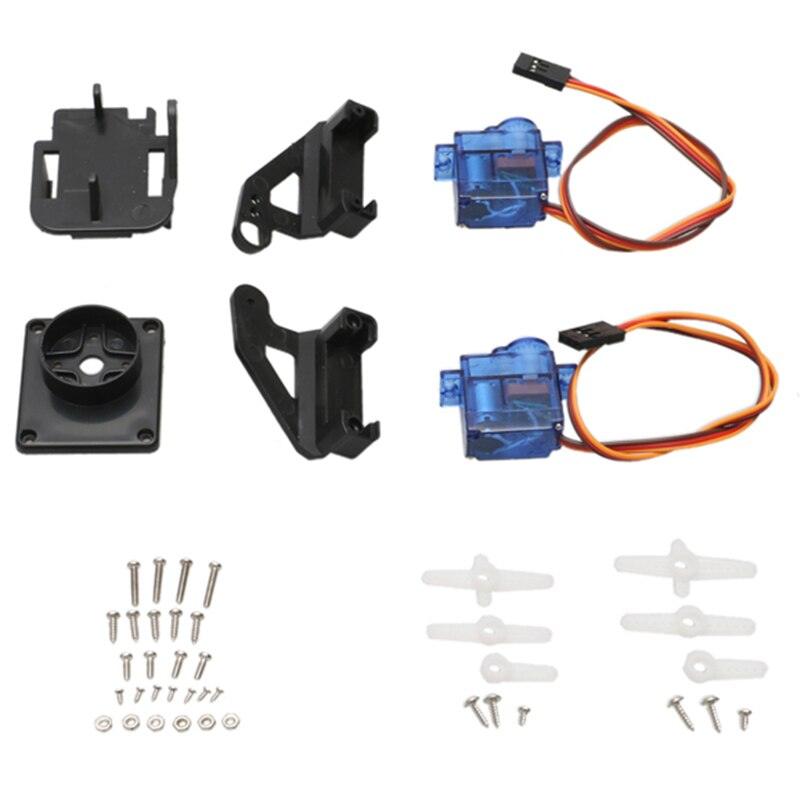

Package include:

1pcs x Gimbal

2pcs x 9g Servo
