Description

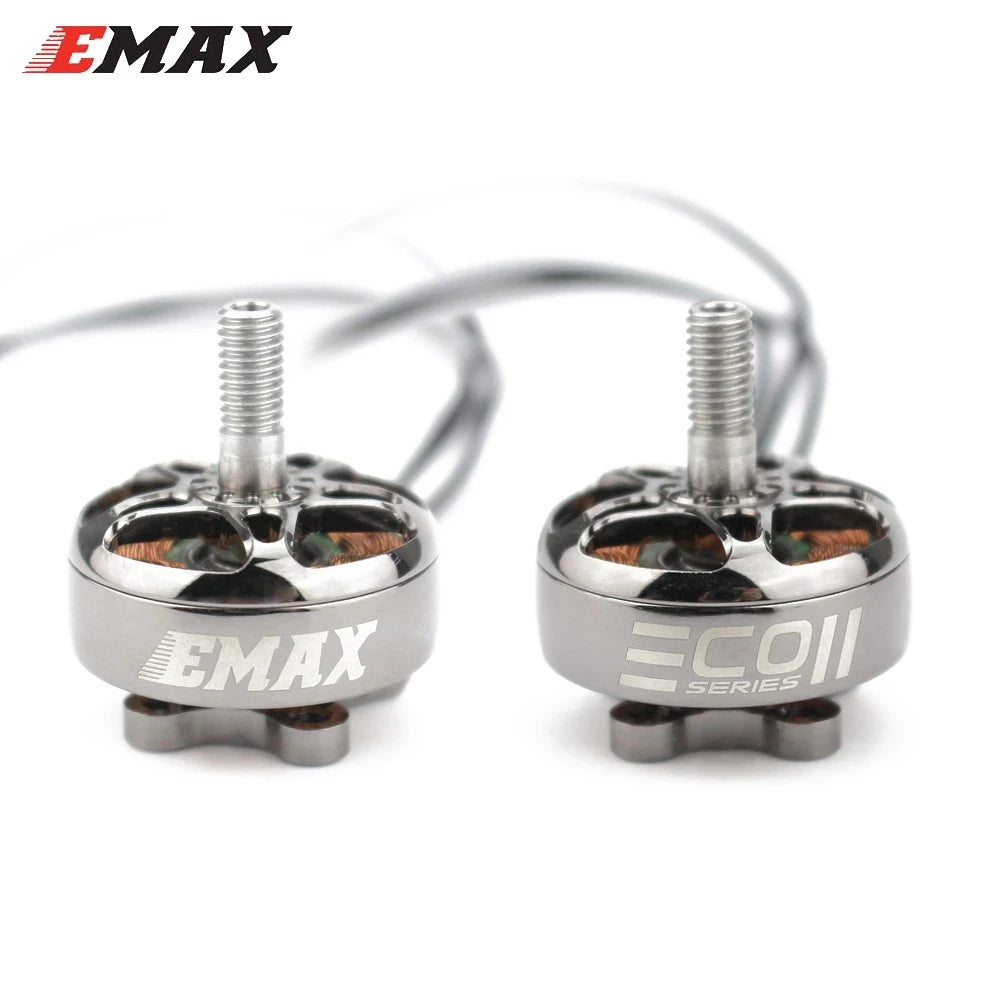

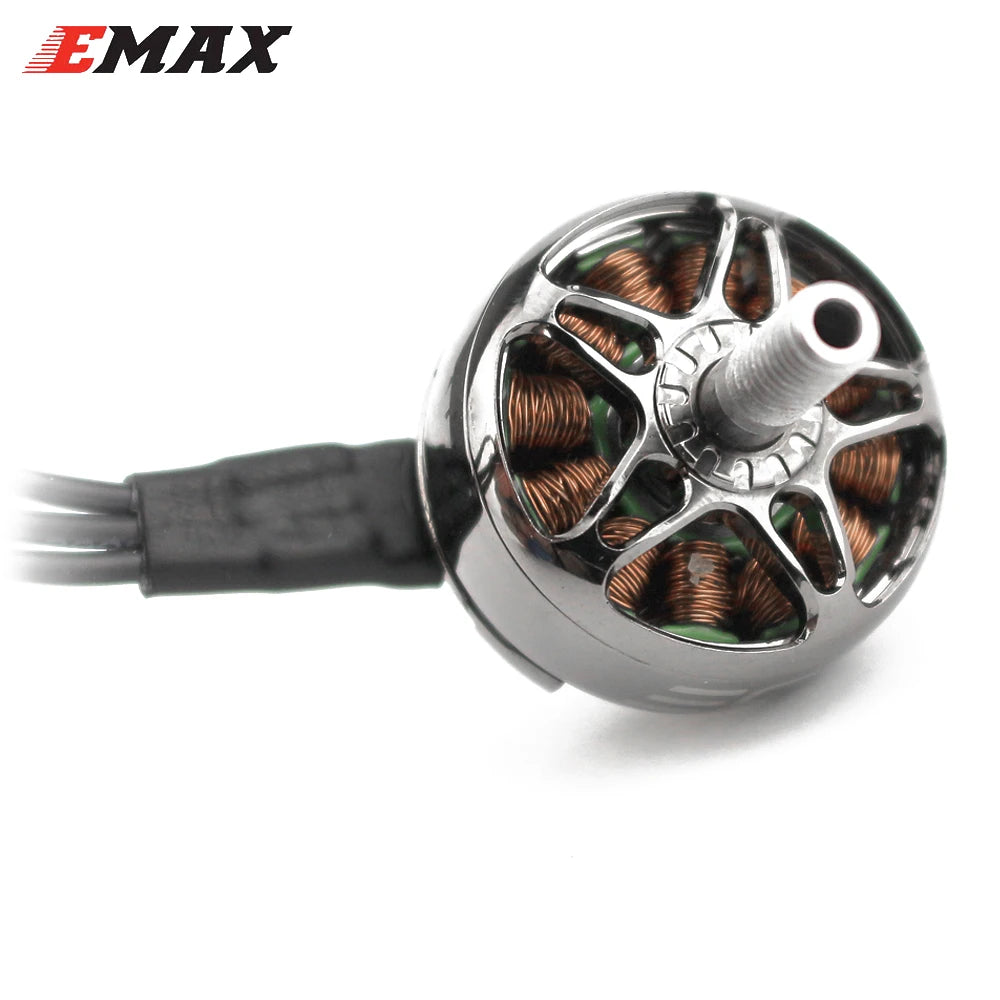

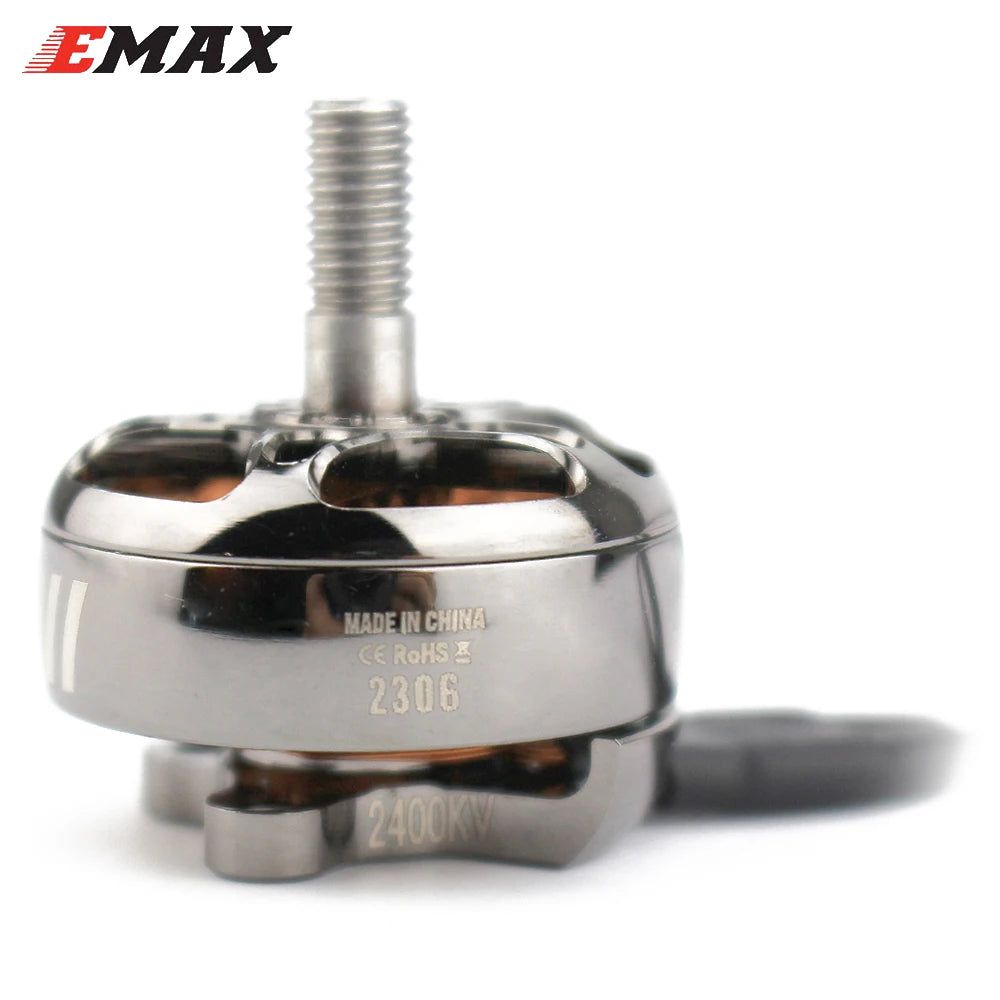

EMAX ECO II Series 2306 6S 1700KV / 1900KV 4S 2400KV Brushless Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: motor

Tool Supplies: Assembled class

Technical parameters: Value 3

Size: mm

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: ECOII-2306

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

Brand: Emax

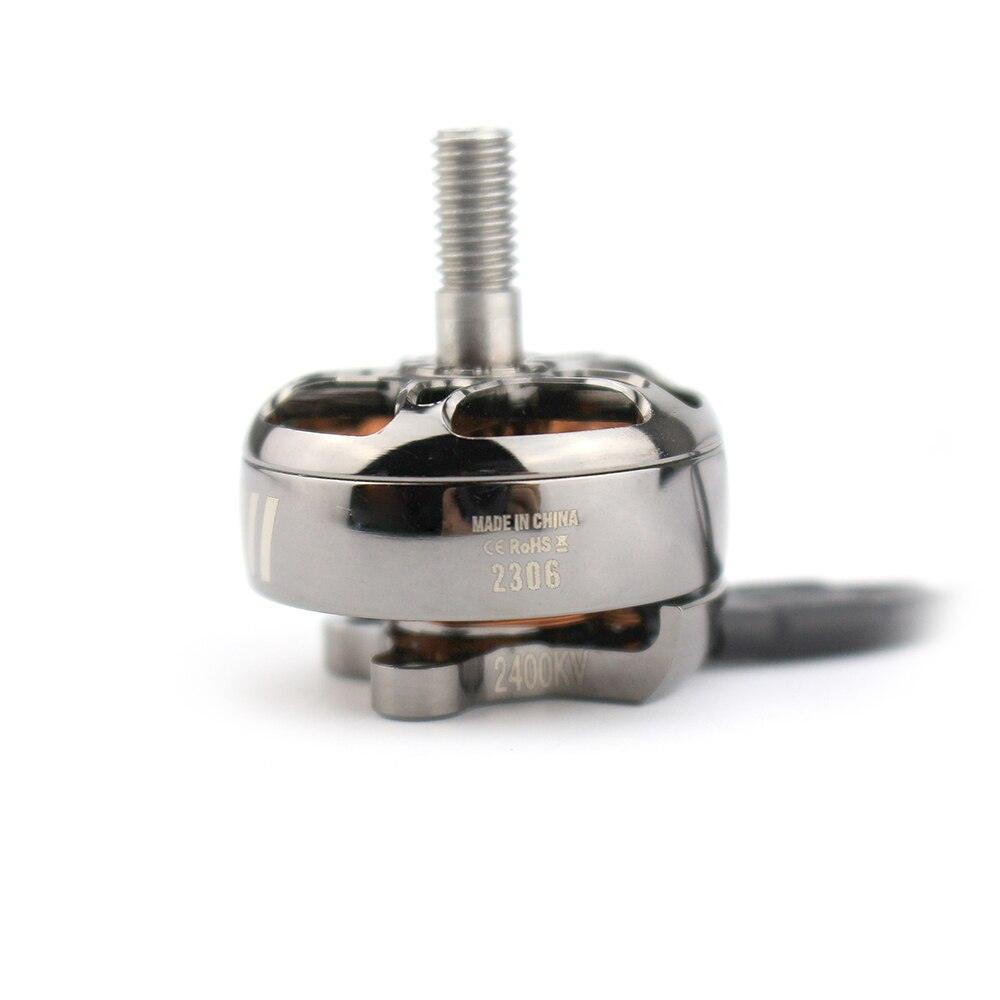

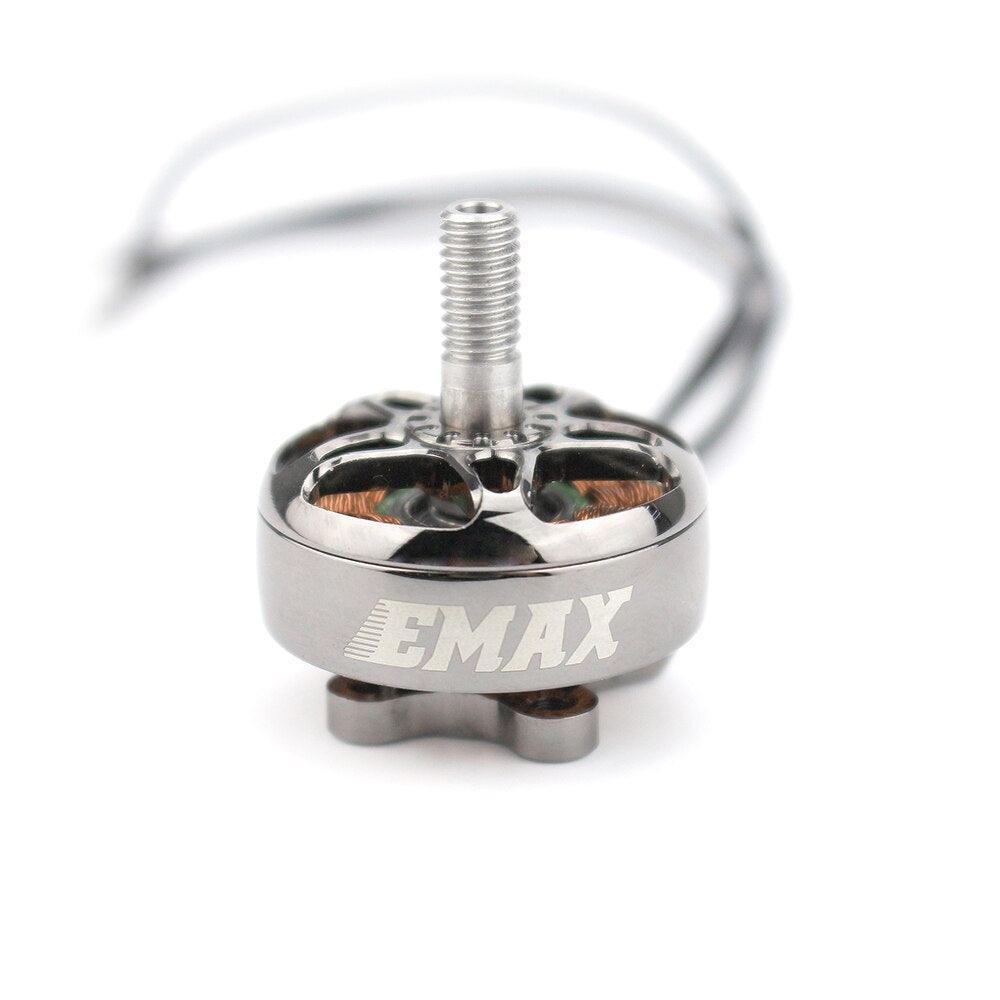

Item Name: EMAX ECOII 2306 Motor

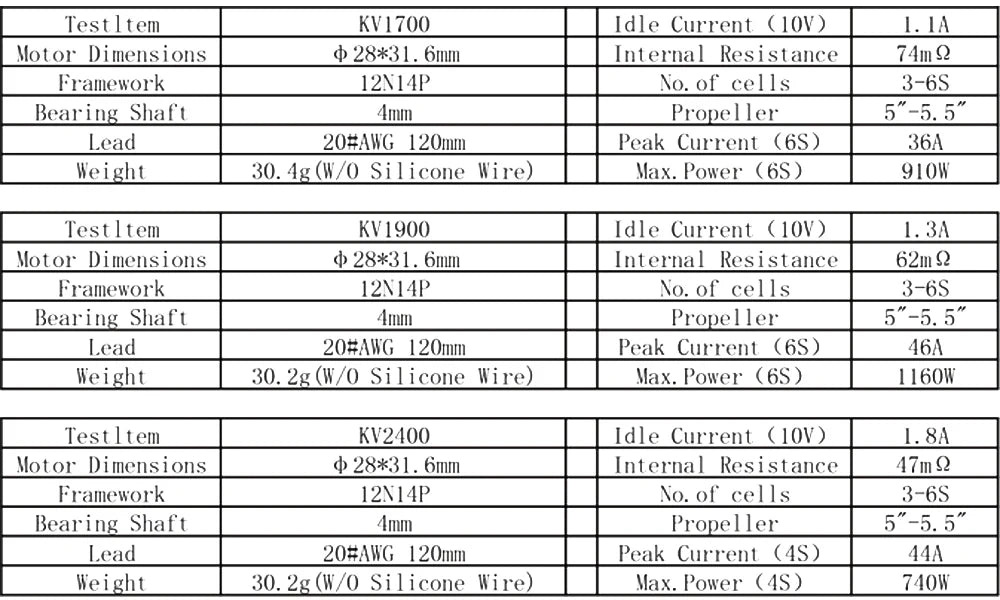

KV: 1700KV/1900KV/2400KV (Optional)
Framework: 12N14P

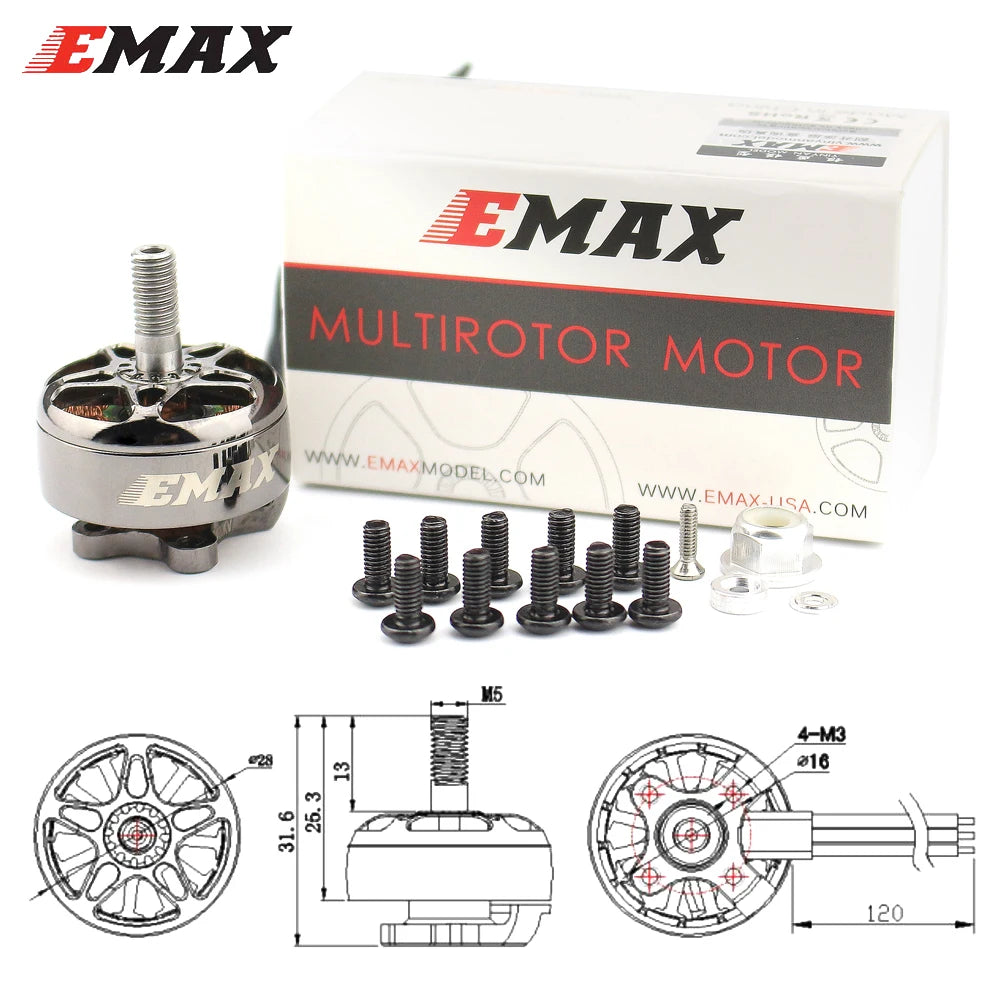

Length: 31.6mm
Diameter: 28mm
No.of cells: 3-6S  1700KV
No.of cells: 3-6S  1900KV
No.of cells: 3-4S  2400KV
Propeller: 5″-5.5″
Weight: 30.4g(W/O Silicone Wire)  1700KV
Weight: 30.2g(W/O Silicone Wire)  1900KV
Weight: 30.2g(W/O Silicone Wire)  2400KV
Prop adapter shaft thread: M5
Bearing Shaft:4mm
Shaft Thread:CW

Feature:
Precision bearing
Steel shaft
Anodizing
16*16mm hole pattern

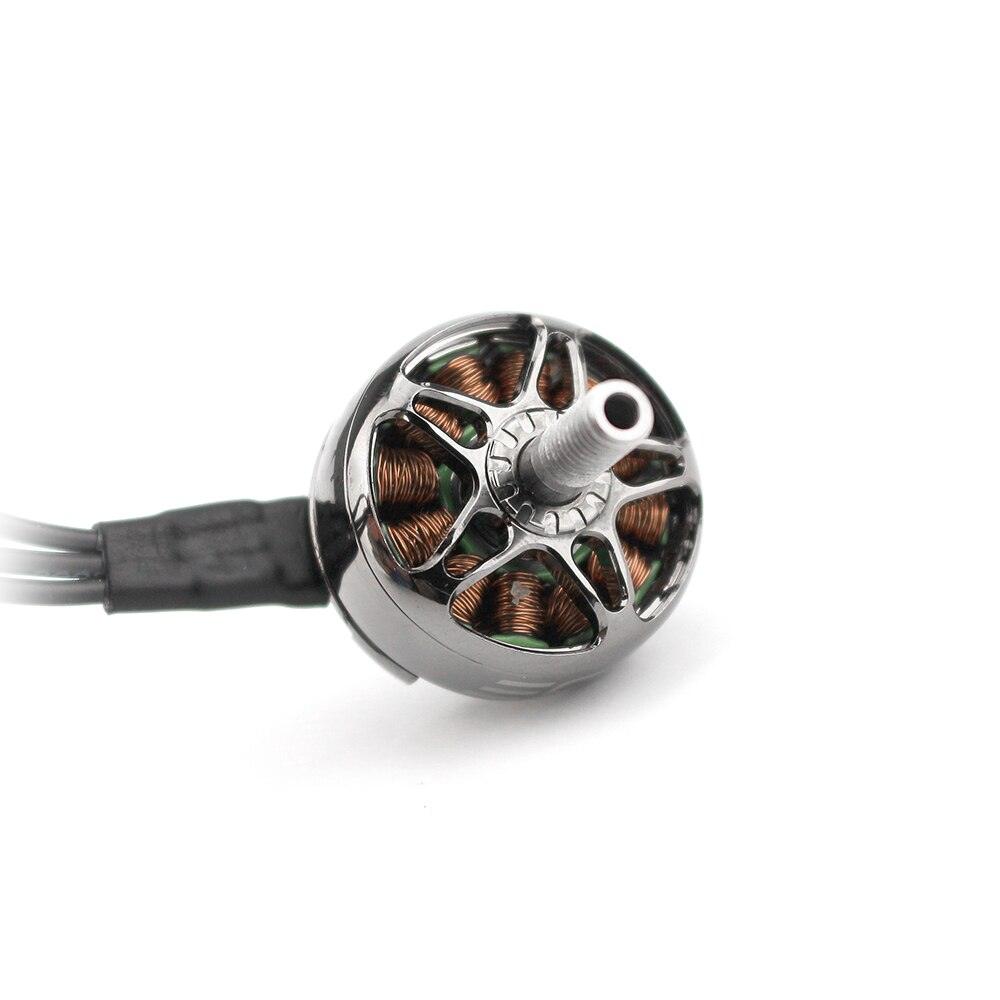

Multi-strand winding
120mm 20 AWG silicone wire

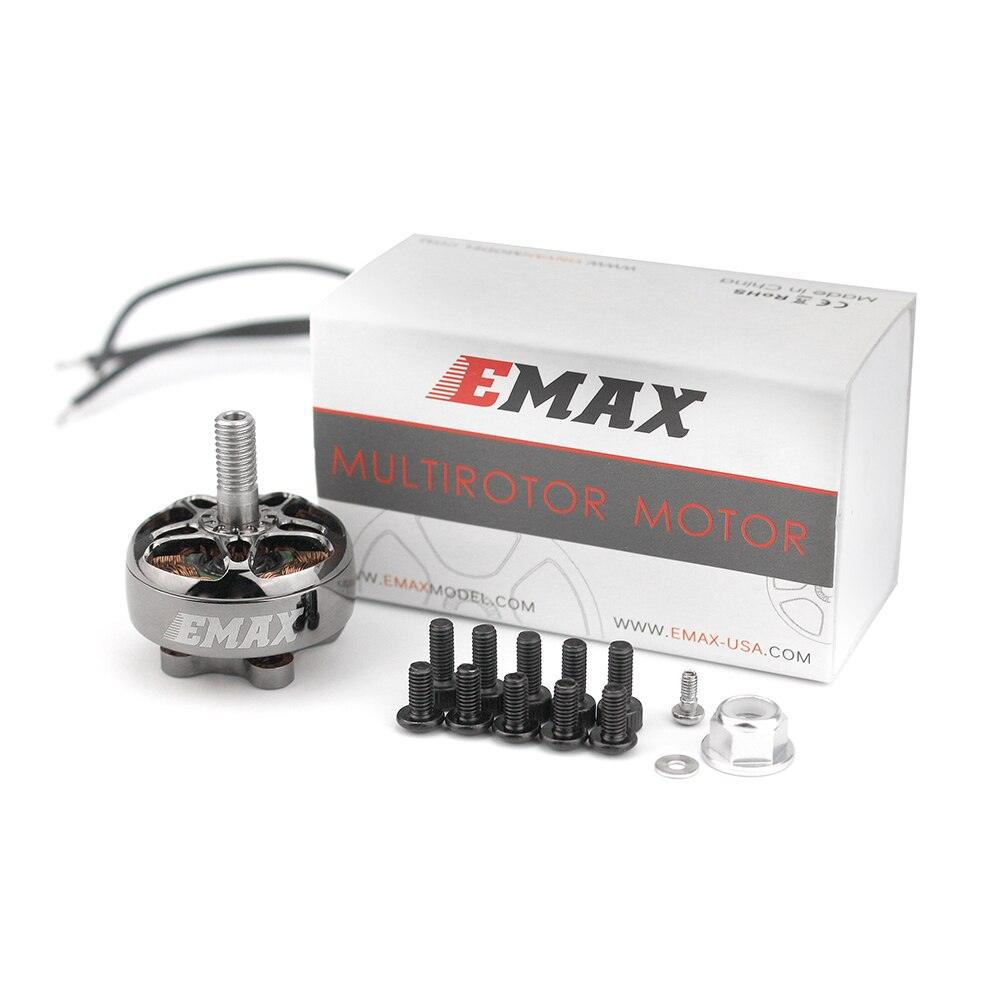

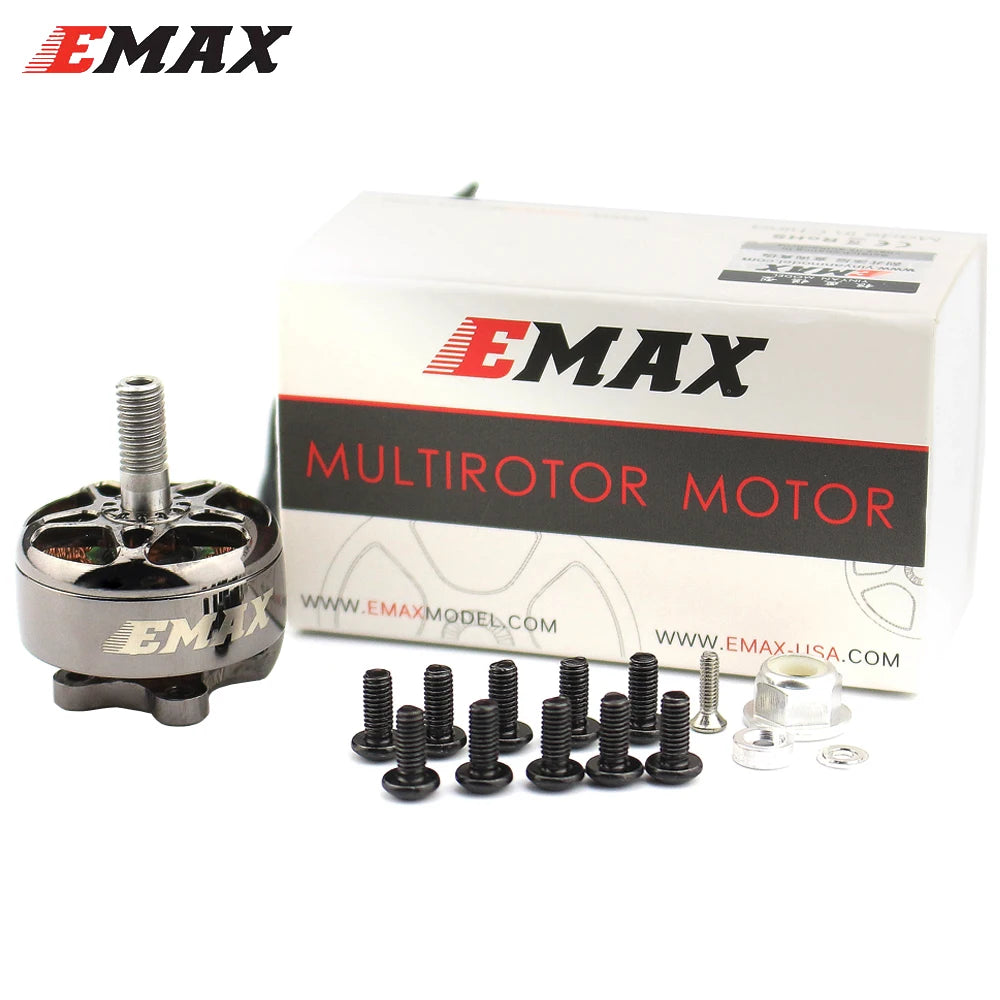

Package Included:

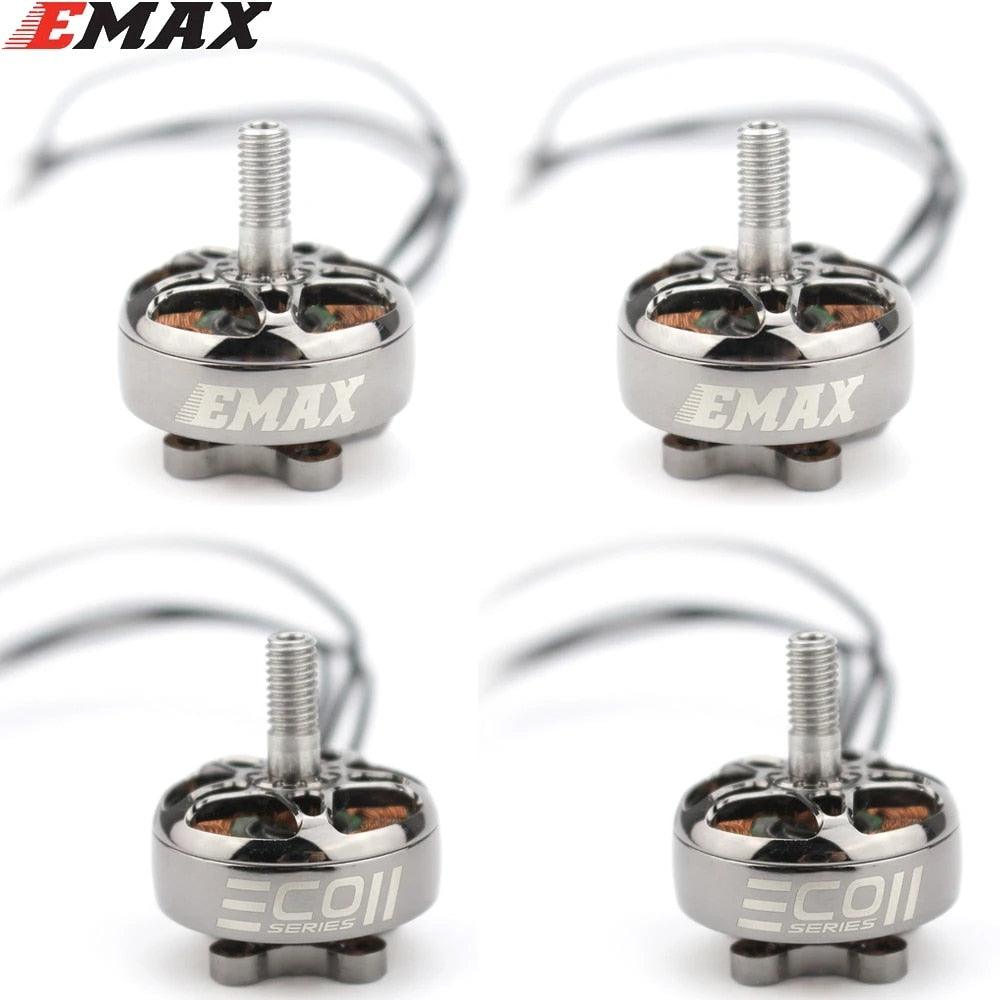

1/2/4 EMAX ECOII 2306 Motor
5/10/20* M3*8 Screw
5/10/20* M3*7 Screw
5/10/20* M3*6 Screw
1/2/4* Aluminum M5 nylock nut
1/2/4* Washer and Screw for shaft

The EMAX ECO II series motor has the following specifications: idle current (over voltage): 28A, maximum continuous current: 6S, brushless motor diameter: 30mm, lead wire material: silicone-insulated, peak current: 1700KV (6S), height: 30g, and overall length: 2031mm.
