Description
Zoom 1080P WDR Camera SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Tools
Technical parameters: Value 2
Size: As description
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Receivers
Origin: Mainland China
Model Number: 1035H
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: uuustore

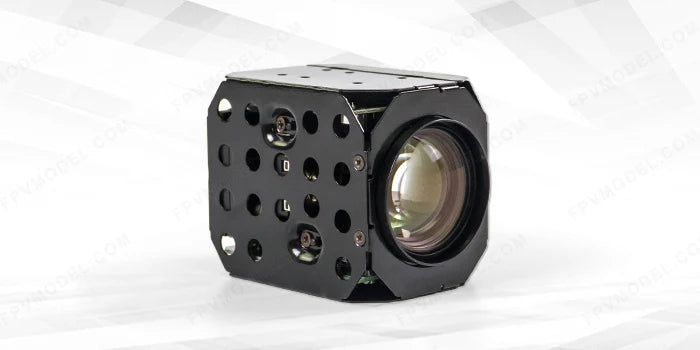

10X Zoom 1080P WDR Camera with HDMI/AV Output,OSD,DVR, Snapshot and Playback For FPV
Larger aperture and better view. This is the newest 10x Zoom 1080P WDR (Wide Dynamic Range) Camera. Coming with the original Pa nasonic lens, its nightshot view and picture quality will not fail your expectations. Comparing with other 10x zoom cameras, the most obvious improvement is the telephoto.
This is a new complete performance 10x zoom camera set. It features new HDMI and AV output, also includes the OSD menu option isplay, microphone, DVR and playback function.

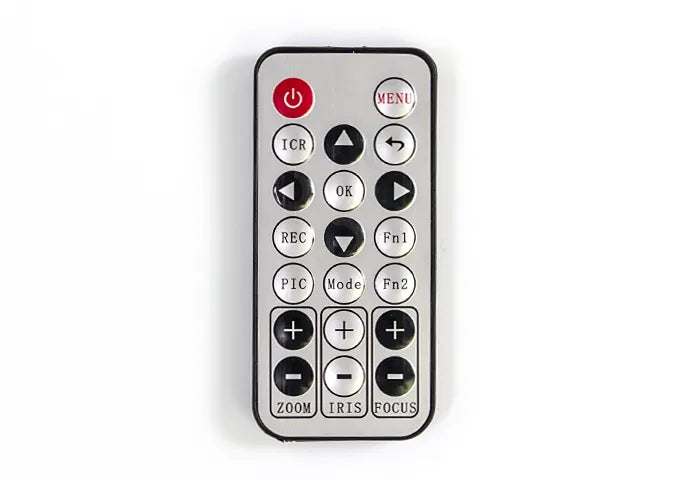

With the new remote control cable, it can be used for taking pictures when flying and wont stop the video recording (picture pixel: 1920 x 1200), also for changing to manual focus as you wish when auto focus cant deal with the complex background.
The excellent camera is a perfect choice for FPV pilot, detailed specifications are as follow:
SPECIFICATIONS:
New Wide Dynamic Range Function
Voltage input:DC 9-12V
CMOS:1/4 inch,wide dynamic,low noise

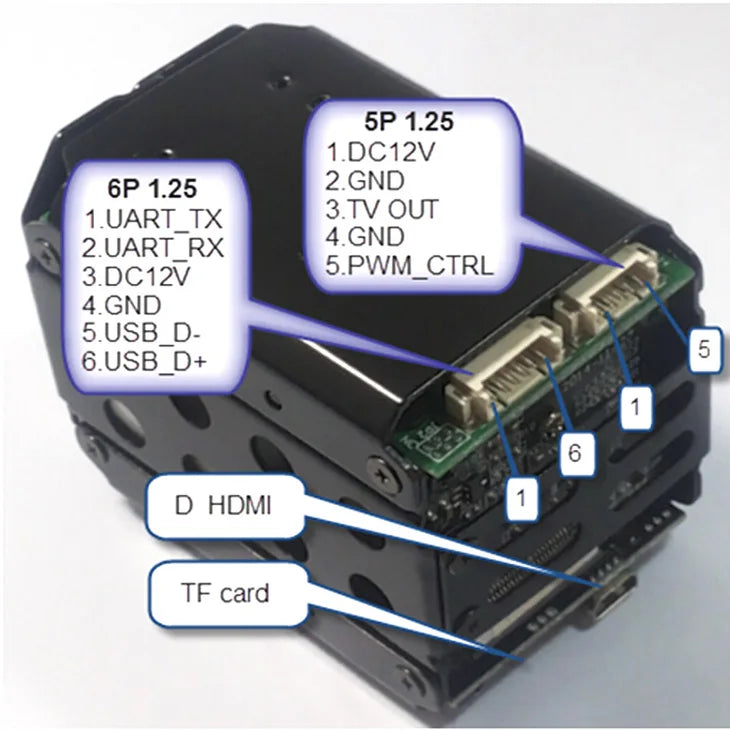

Interface:HDMI and AV output,(cant work at the same time and forbid disconnecting when working)
Power: 1.3w(static)-2.1w(dynamic)
Video format: NTSC and PAL selectable(default is NTSC)
Optical zoom: 10X, f=4.9 to 49mm
Video Pixel: 300W,1920(H)X1080(V)
Picture:pixel: 1920 x 1200
Video output: AV:1080p, 30FPS, CVBS,HDMI: 720P 60FPS
Minimum illumination: color 0.1Lux#F1.6
S/N: 48 DB
Auto gain, auto white balance
Elextronic shutter: Auto
Autofocus,speed: 1s
Menu display, supports DVR and video playback
Microphone: Yes
Size(L*W*H): 63x44x54(mm)
Working temperature: 0C- 55°
Weight: 180g

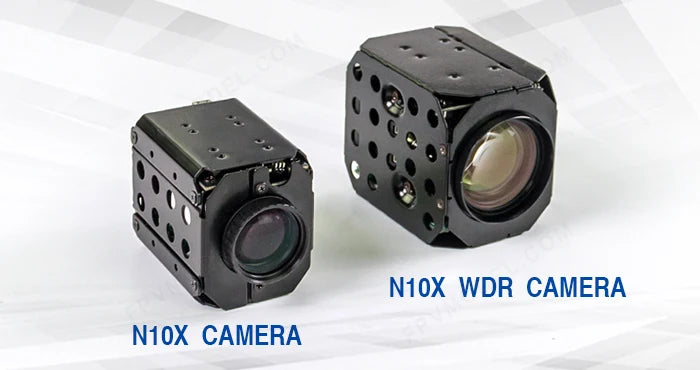

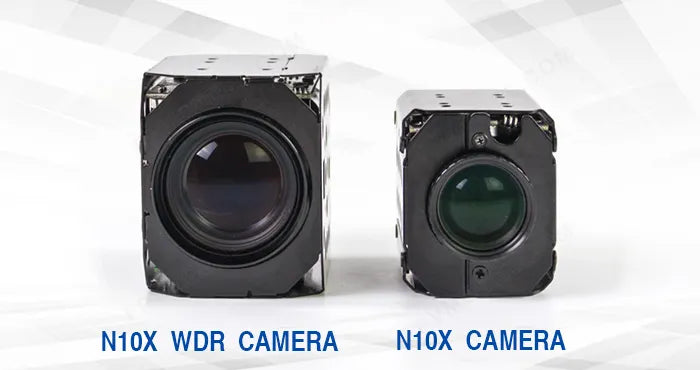

Comparing to Previous Version 10X Camera:

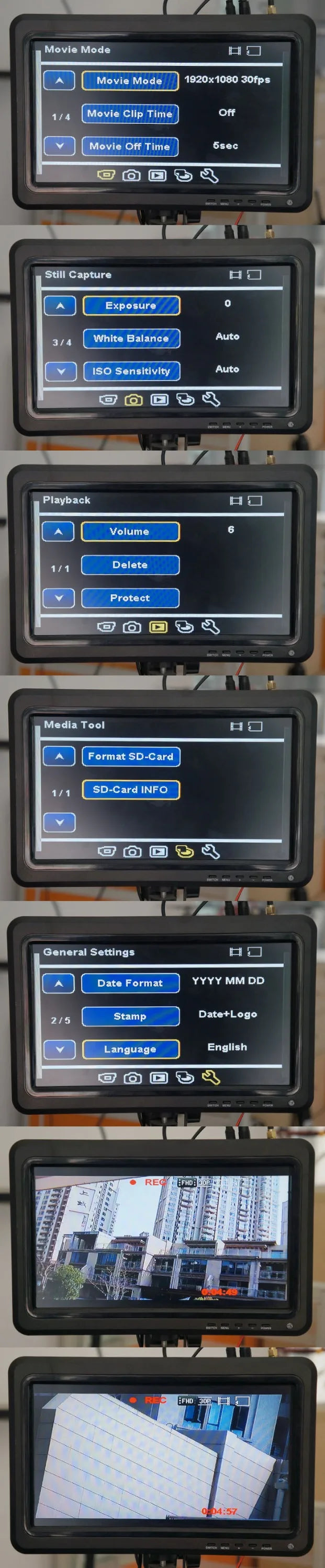

H Movie Mode 1920*1080 30fps Movie Clip Time Off Movie Off Time 6sec Still Capture Exposure Whlte Balance Auto 3/4 ISO Sensitivlty Auto Playback Volume Delete Protect Media Tool Format Yyyy MM DD 215 Stamp DatetLogo Language English REC EFHDB EFhdB

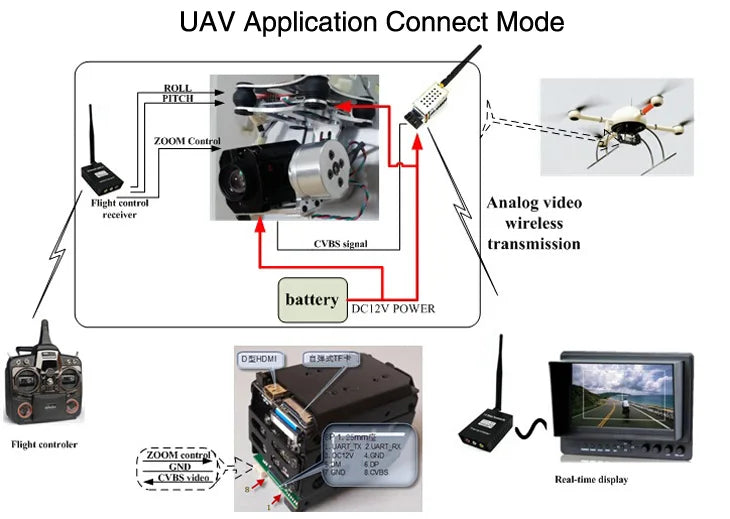

For UAV applications, connect in pit mode with a 7-inch control screen; analog video output supports wireless signal transmission; powered by DC 2V battery; flight controller available; all functions can be controlled manually.
