SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Servo

Tool Supplies: Assembled class

Technical parameters: Value 3

Remote Control Peripherals/Devices: Servos

Recommend Age: 18+

RC Parts & Accs: Servos

Quantity: 1 pcs

Plastic Type: ABS

Origin: Mainland China

Model Number: MG90S//SG90

Material: Plastic

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: Skyquist

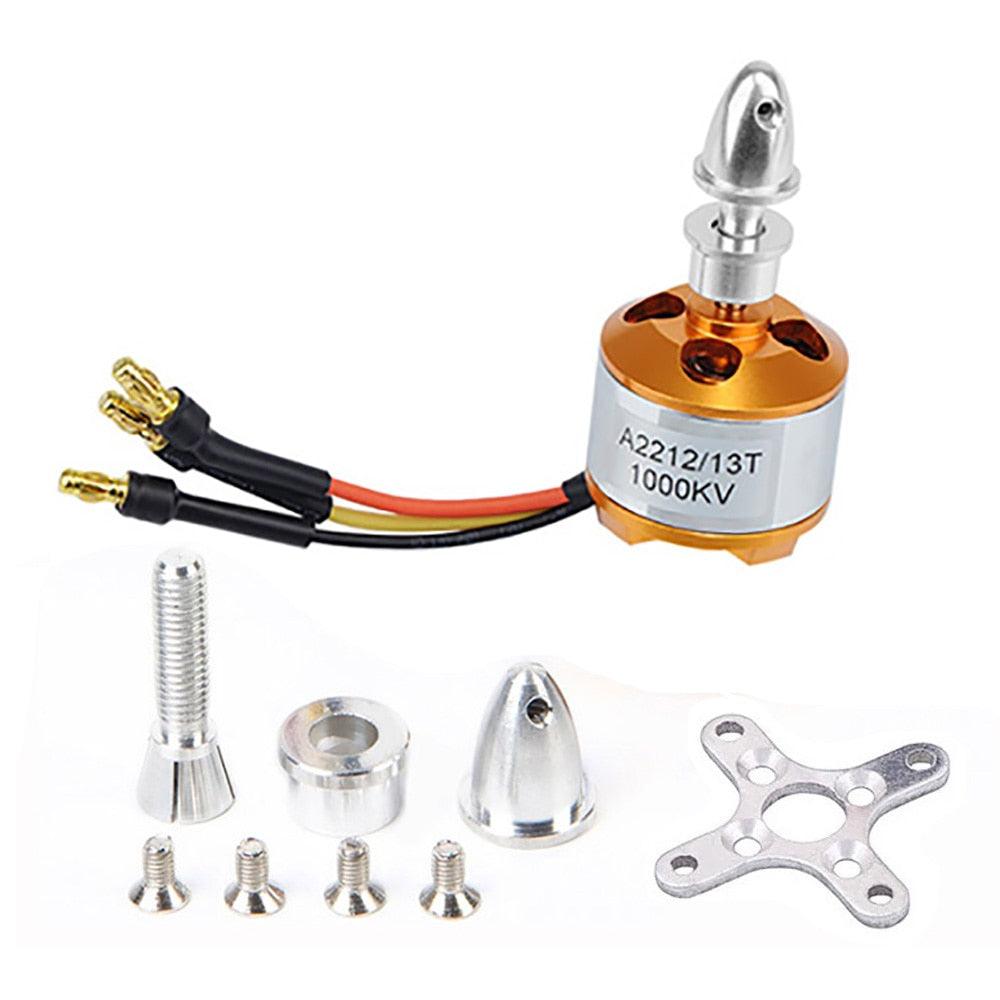

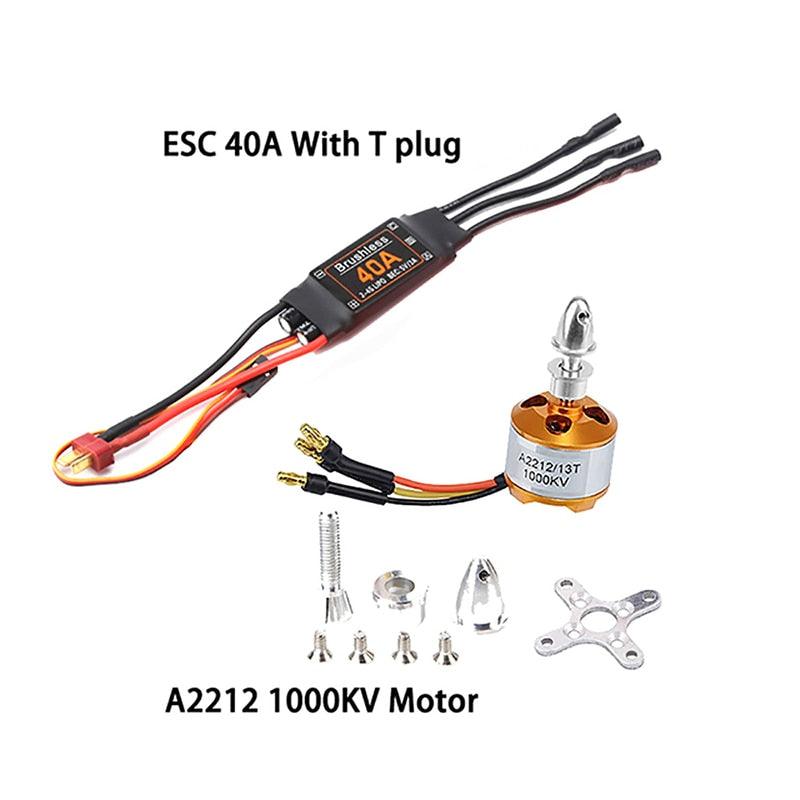

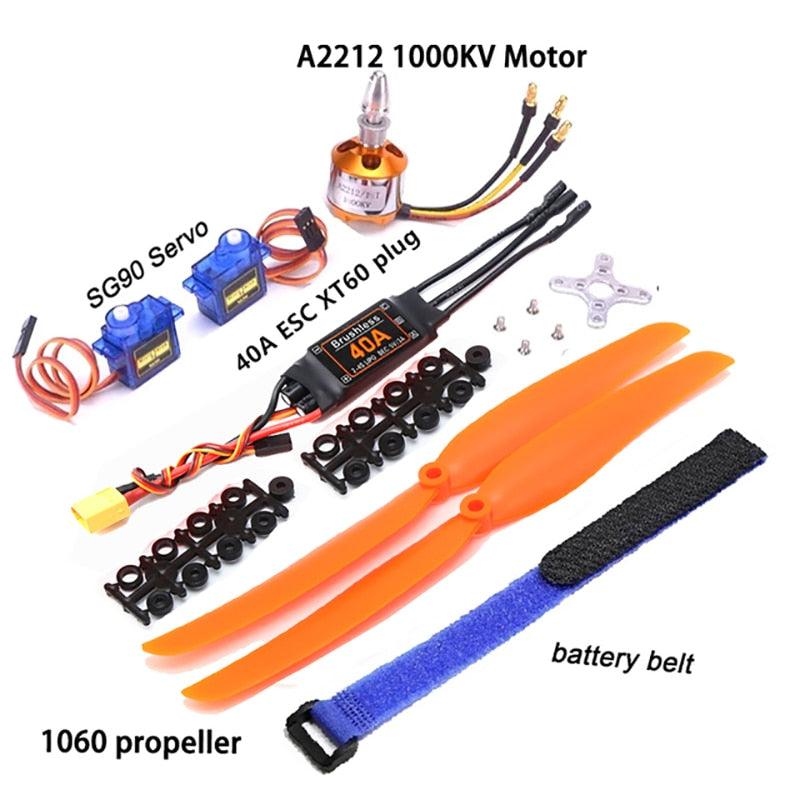

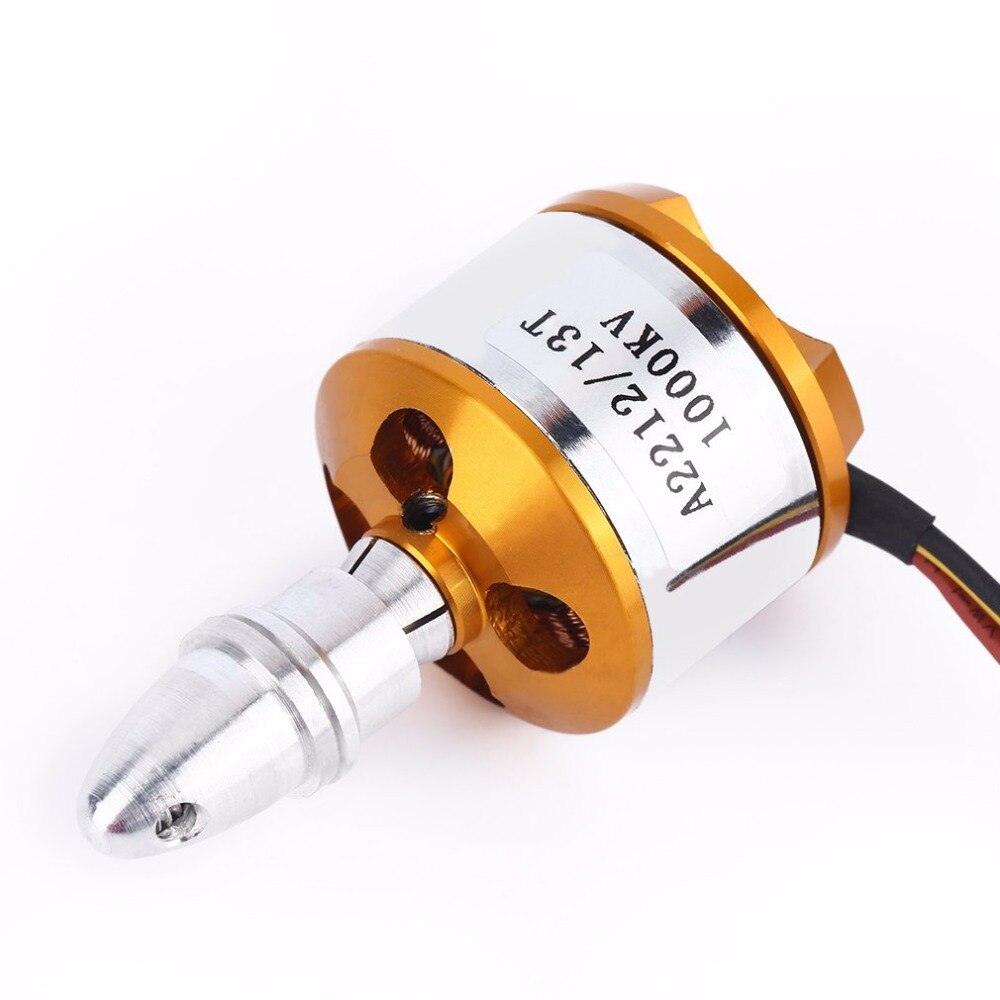

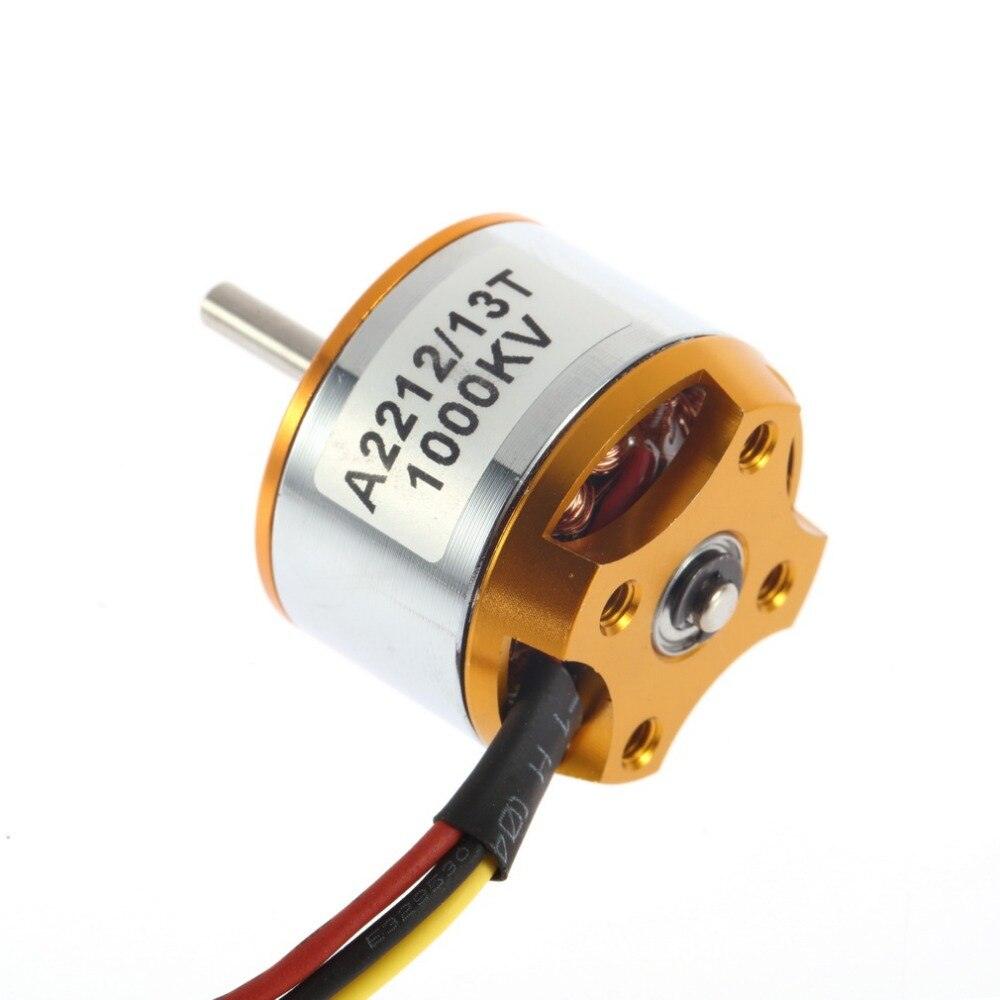

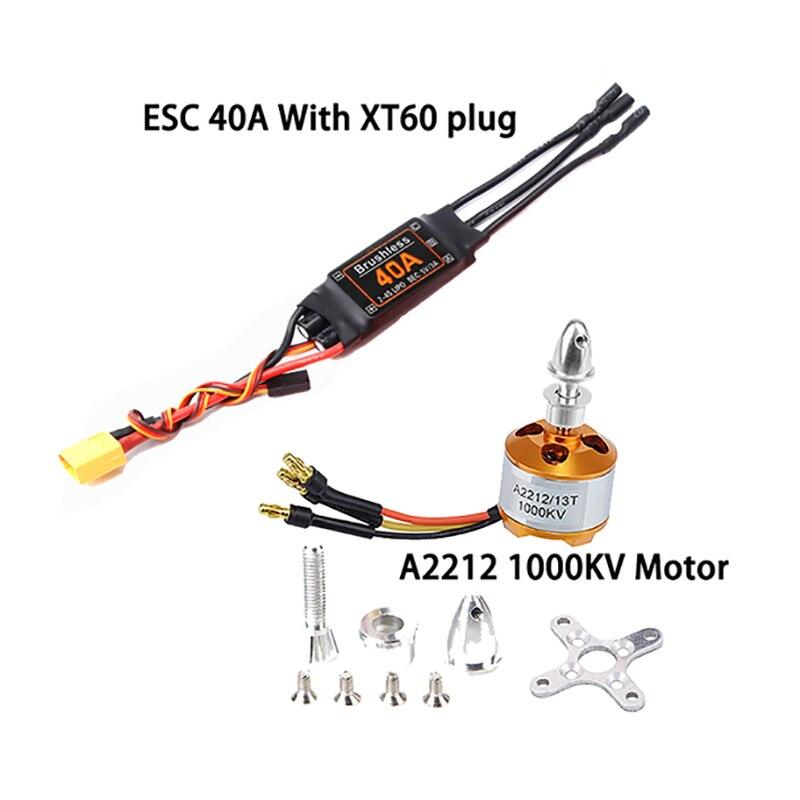

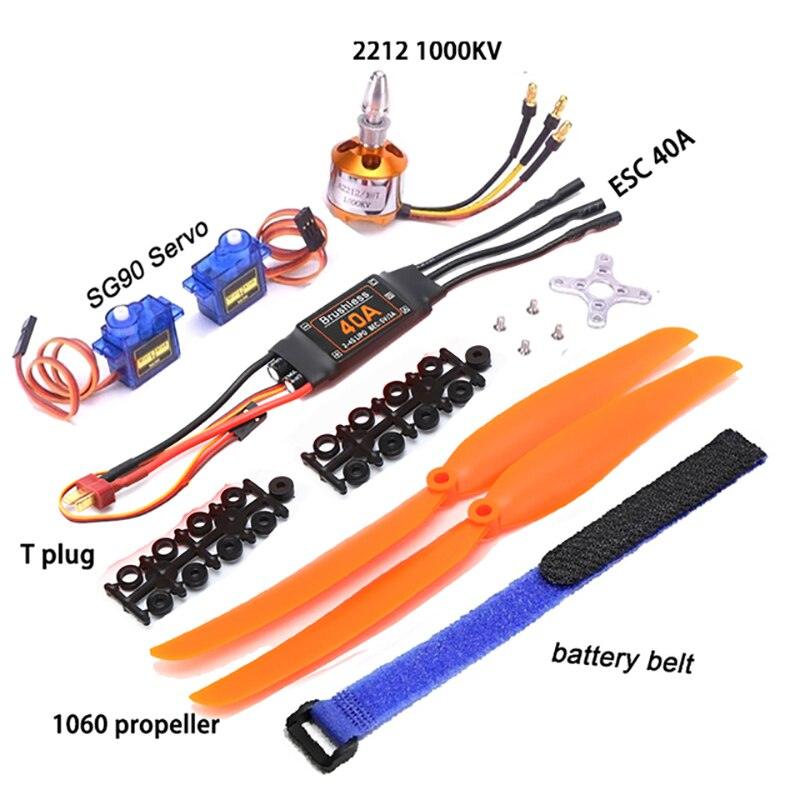

XXD A2212 1000KV brushless outrunner motor:

KV: 1000

Max. efficiency: 80%

Max. efficiency current: 4-10A (>75%)

Current capacity: 12A/60s

No Load current @ 10V: 0.5A

No. of cells: 2-3 Li-Poly

Motor size: 27.5 * 27mm / 1.1 * 1.1in

Shaft diameter: 3.17mm / 0.1in

Weight: 48g / 1.7oz

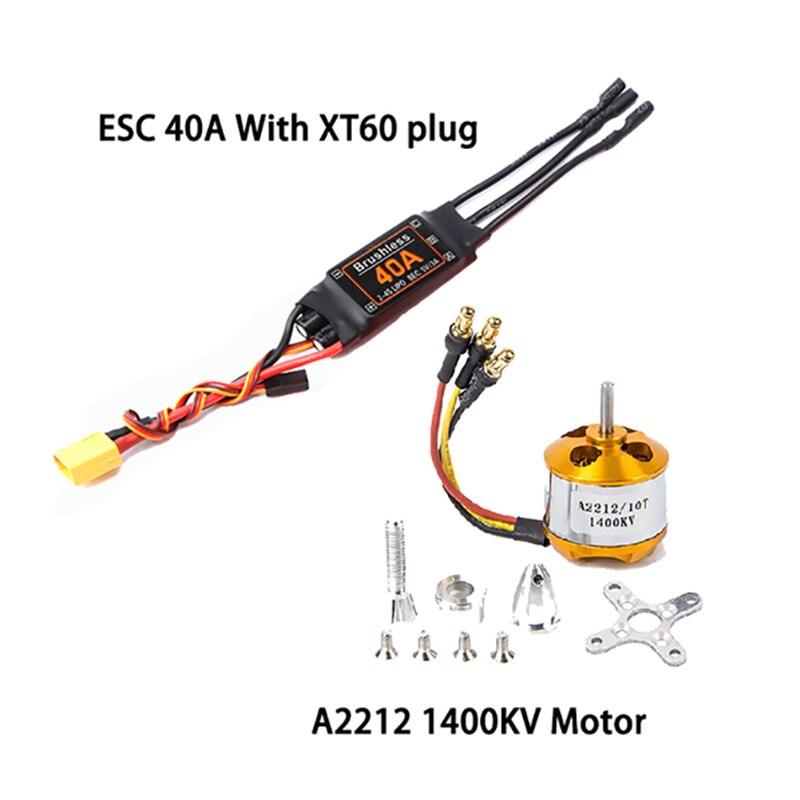

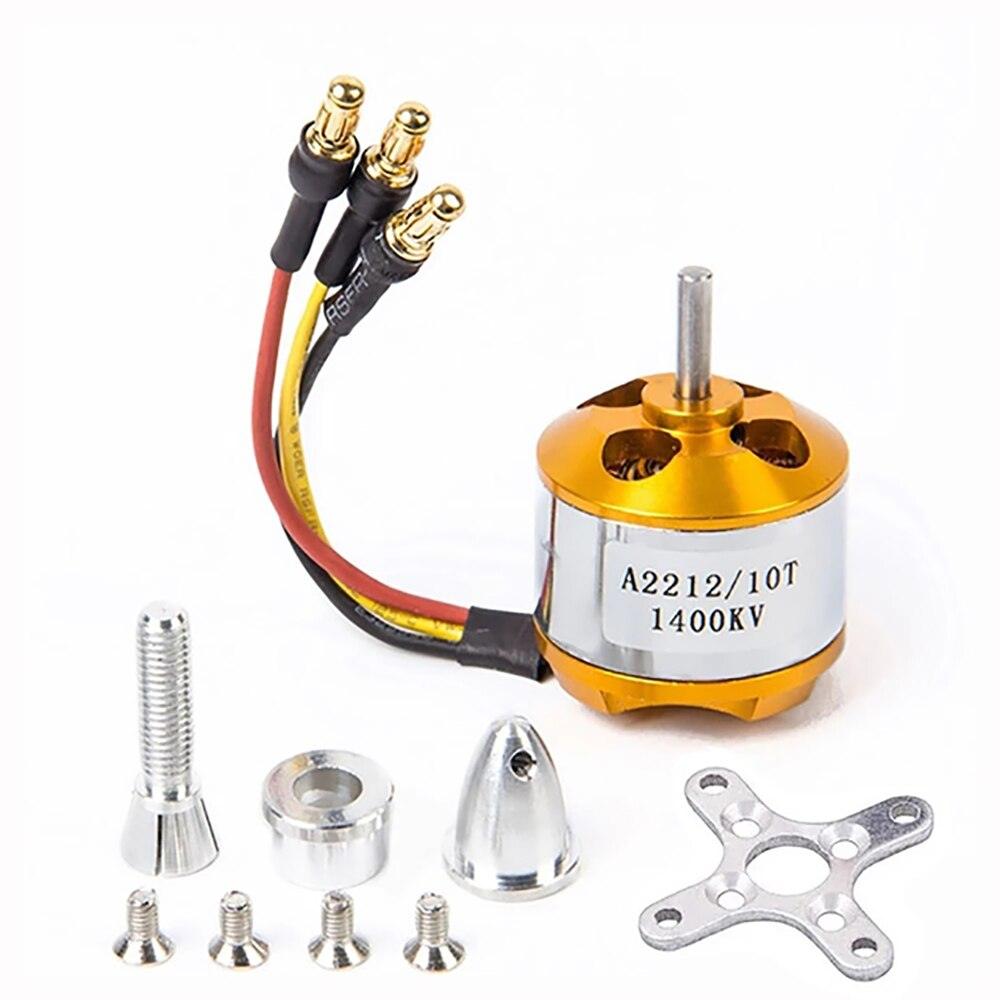

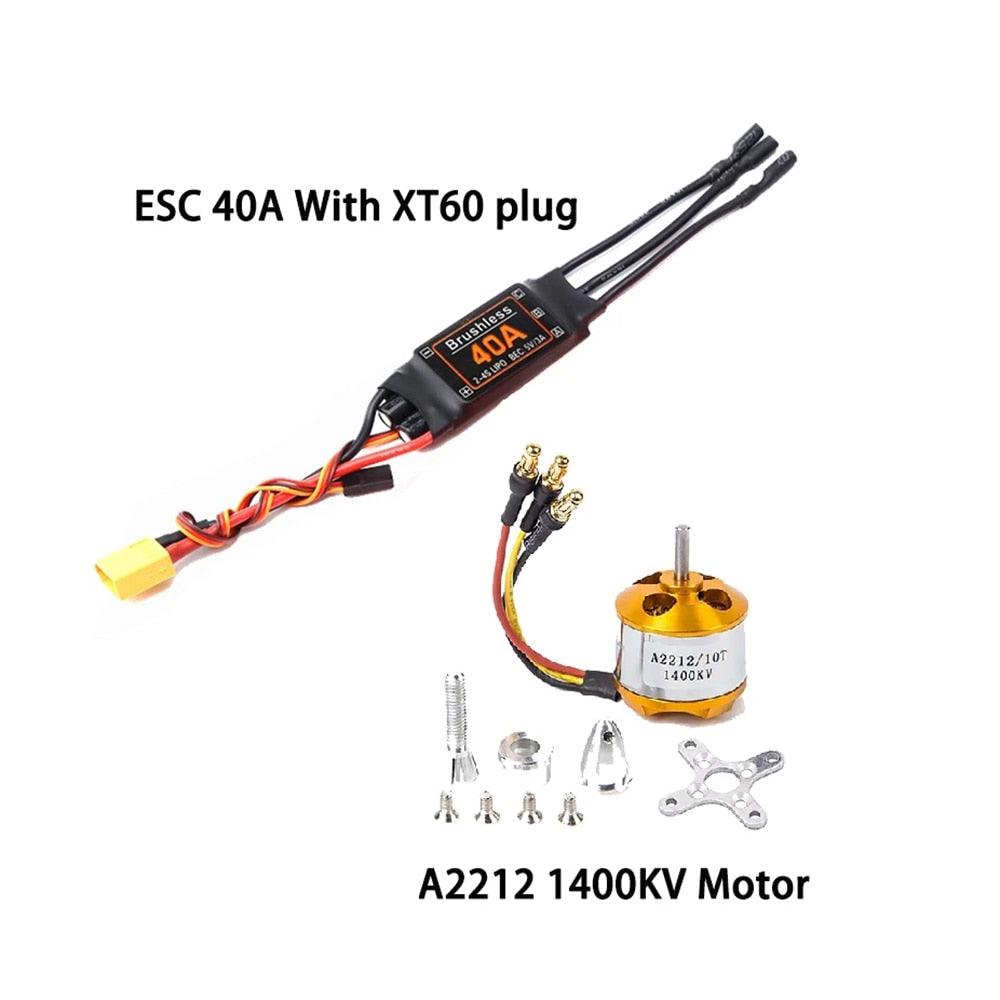

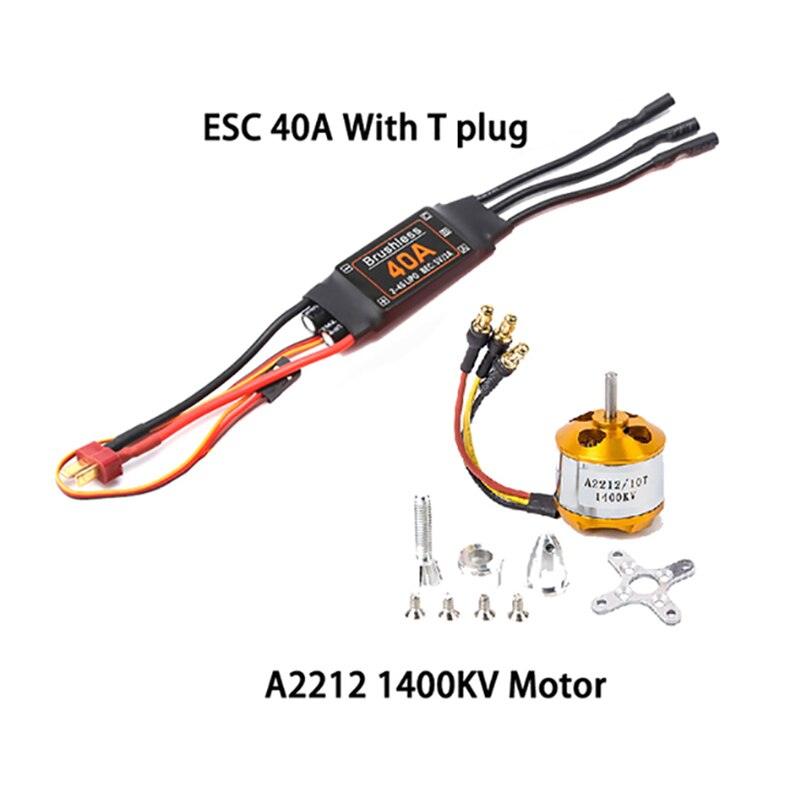

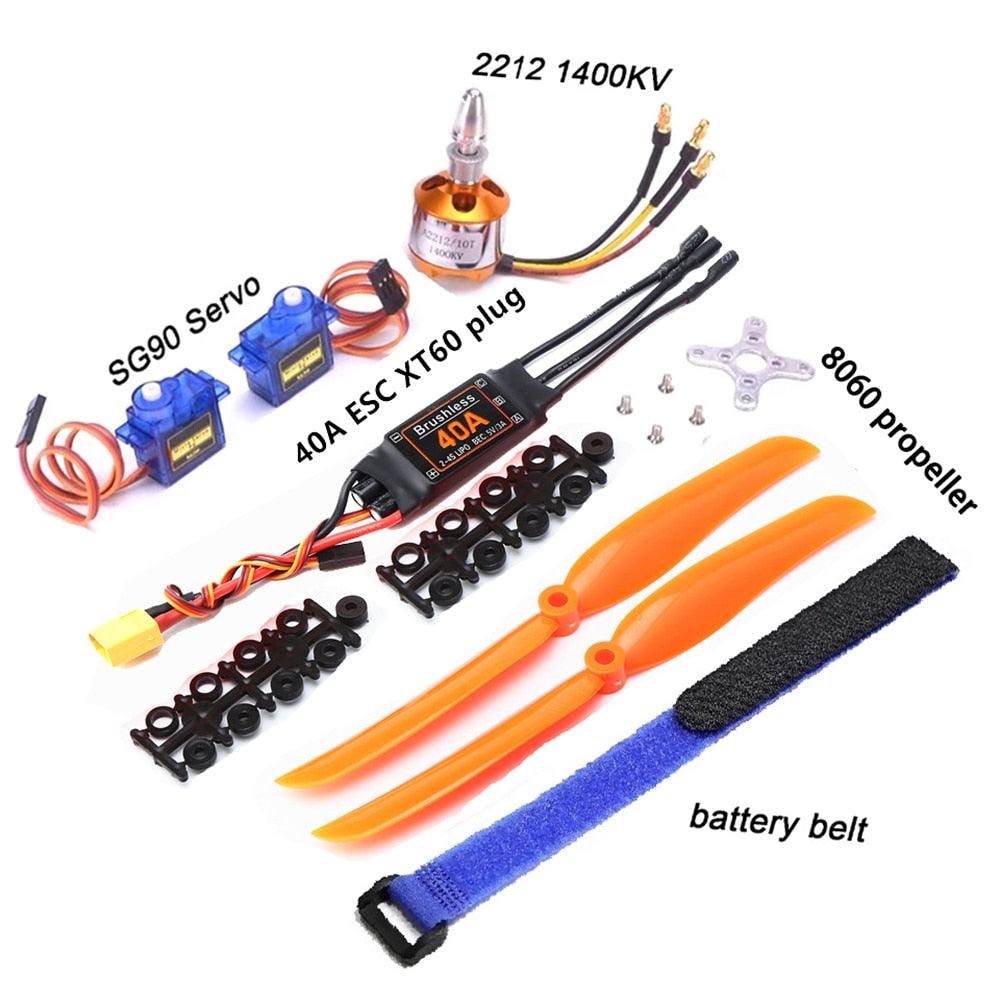

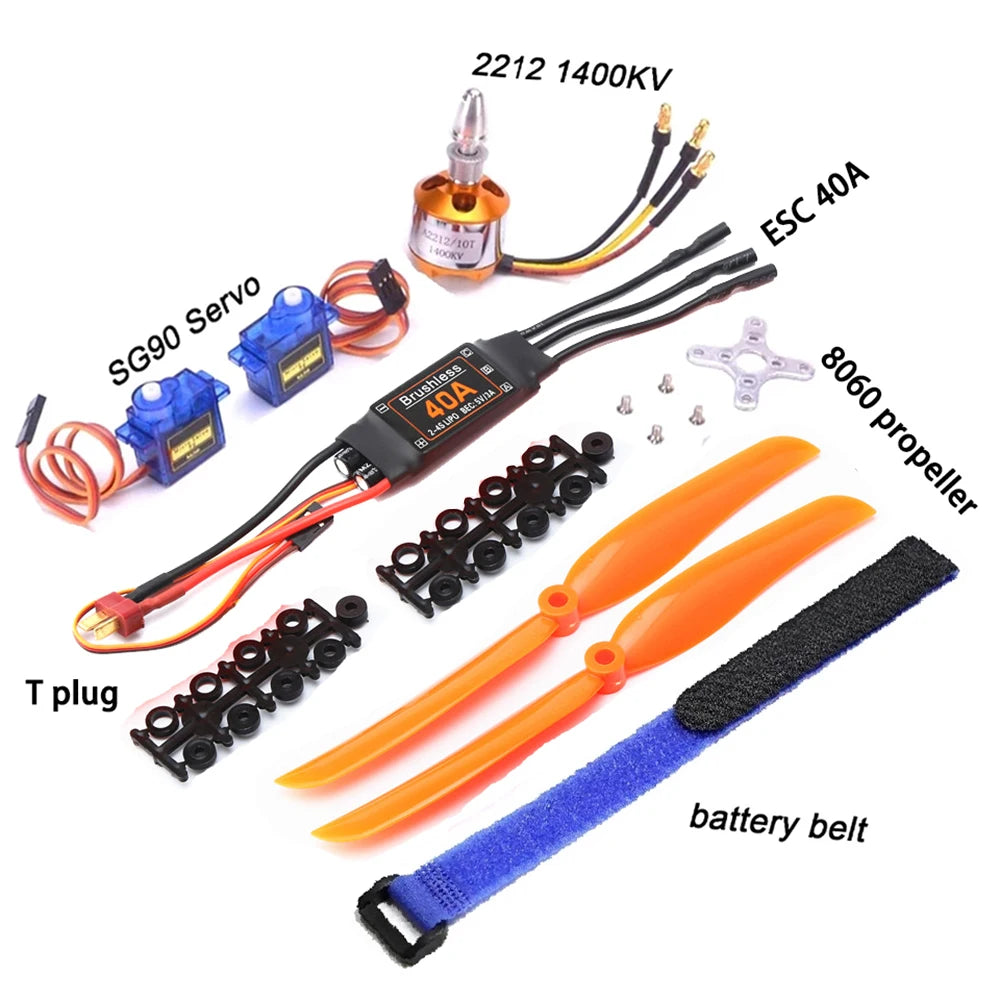

XXD A2212 1400KV brushless outrunner motor:

– Shaft diameter: 3.17mm

– Dimension : 27.8mm x 27mm

– Recommended Propeller: 2-cells 7*3.5 , 3-cells 6×3

– Weight: 48g

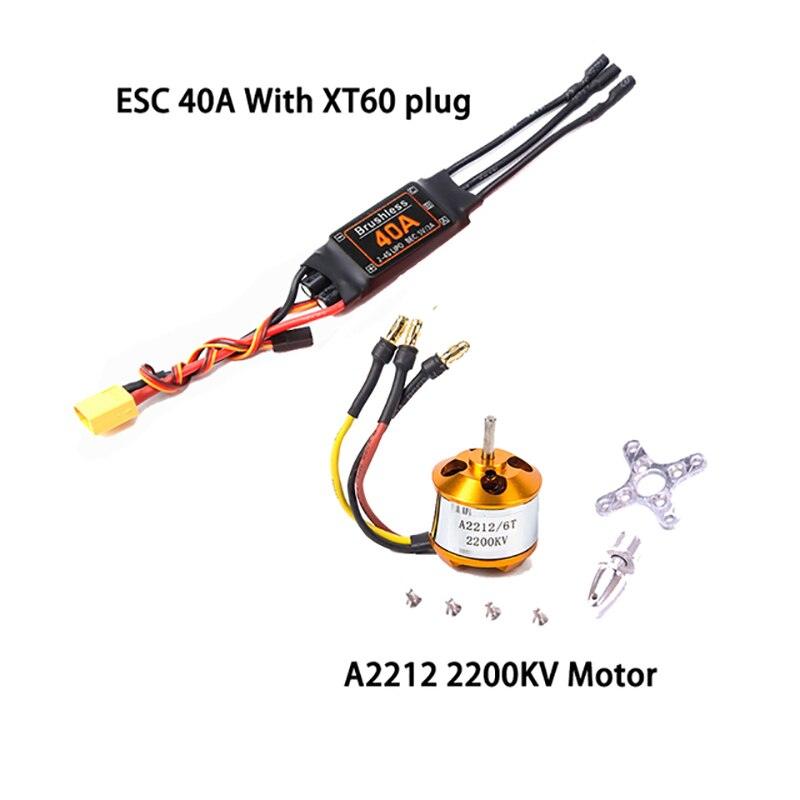

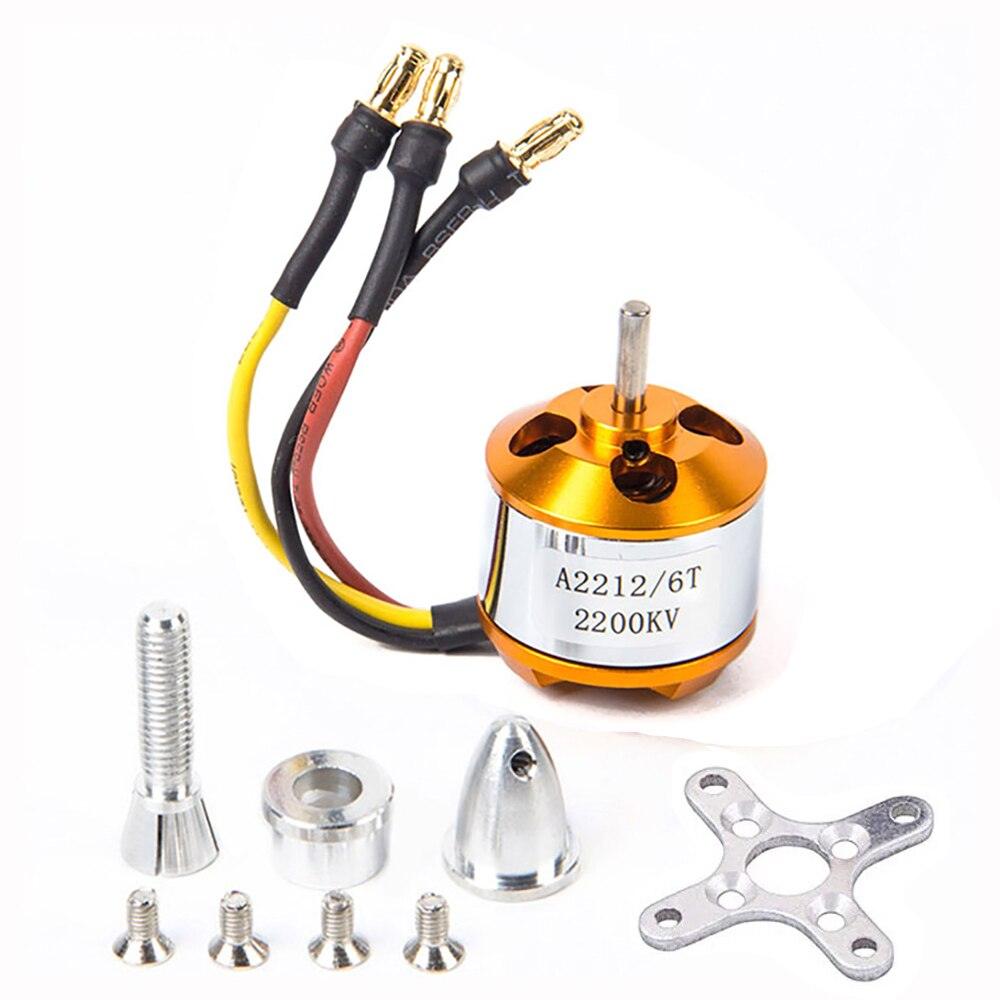

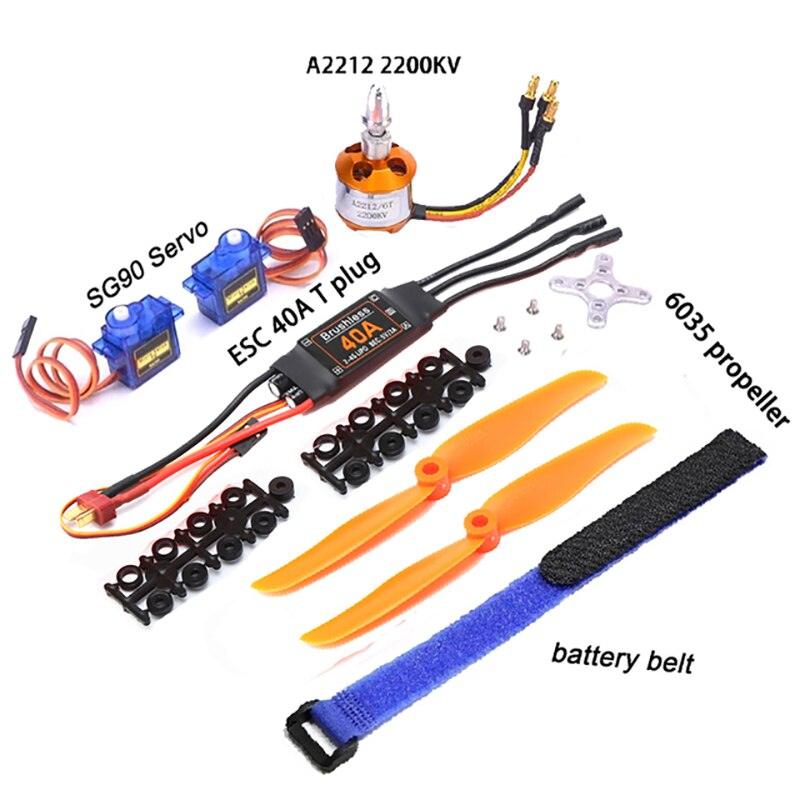

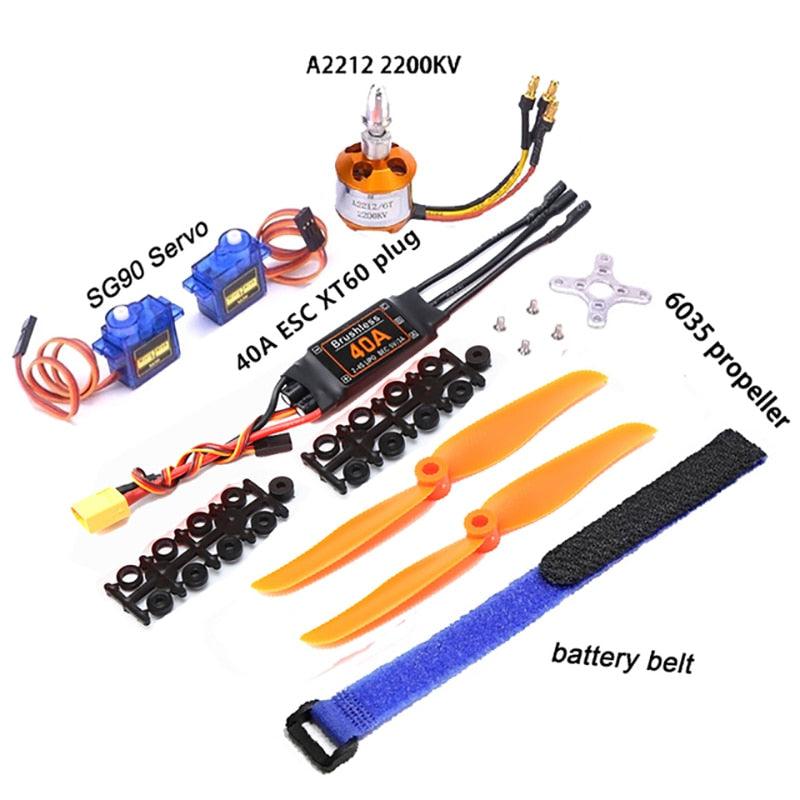

XXD A2212 2200KV brushless outrunner motor:

Max Efficiency: 80%

Max Efficiency Current: 4-10A (>75%)

Current Capacity: 12A/60s

No Load Current @ 10V: 0.5A

No. Of Cells: 2-3 Li-Poly

Motor Dimensions: ?27.5 x 30mm

Shaft Diameter: 3.17mm

Weight: 47g

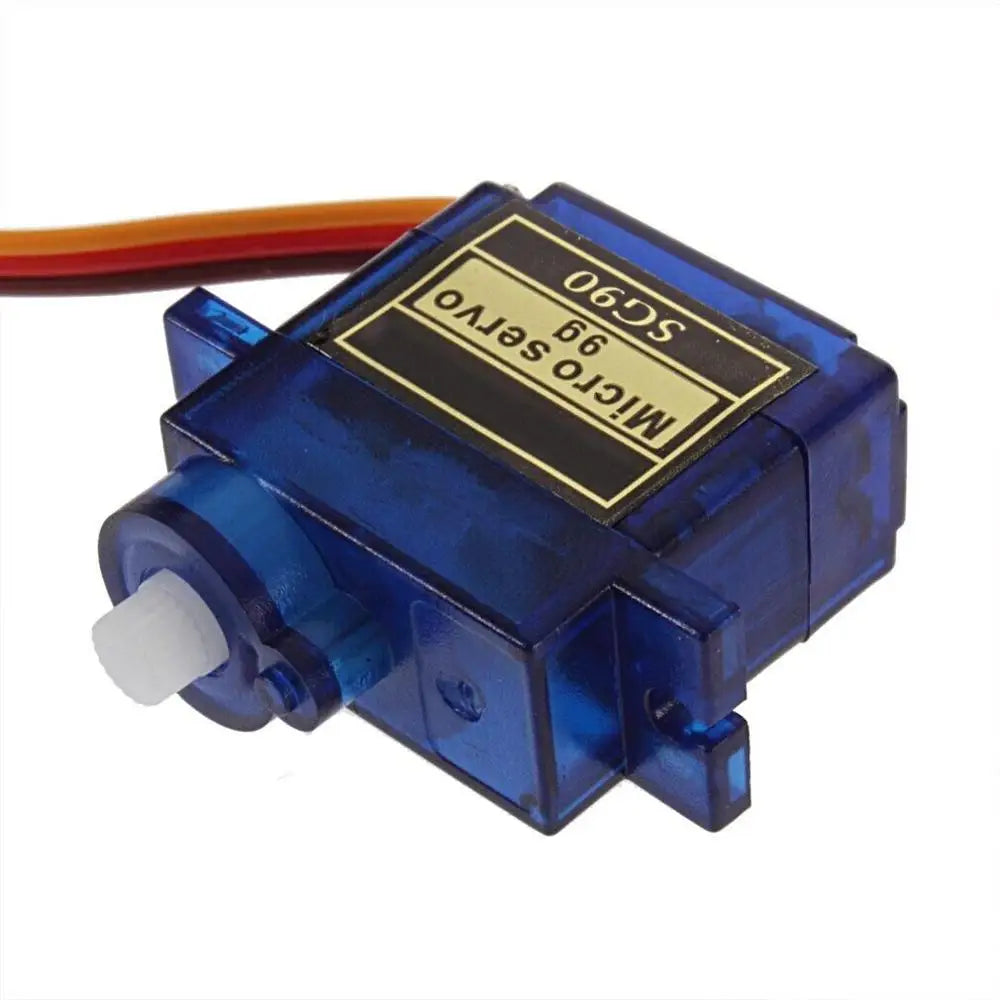

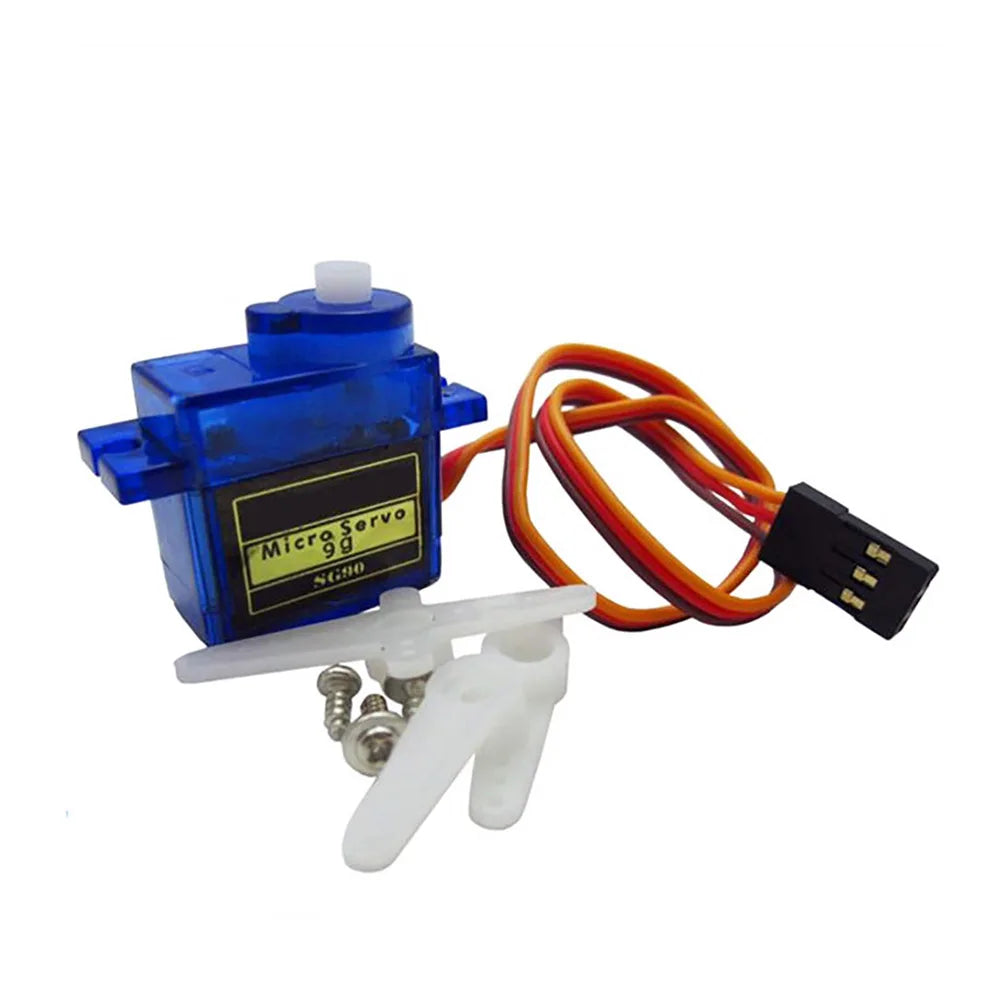

SG90 Mini Analog Servo:

Operating Speed (4.8V no load): 0.12sec/60 degrees

Stall torque: 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)

operating voltage: 3.0-7.2V

Temperature range: -30~60

Dead band width: 7us

Item size: 3.2 x 3 x 1.2cm

Item weight: about 9g

Connector wire length: 24.5cm

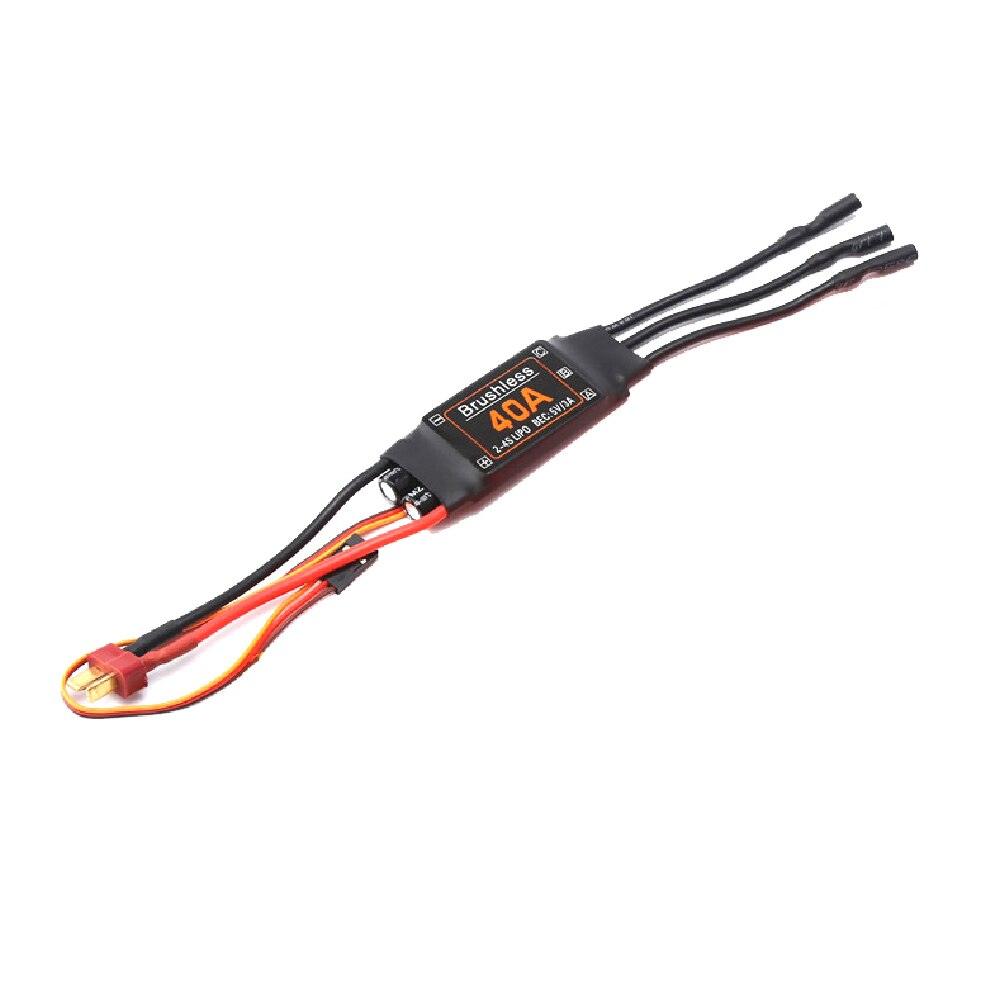

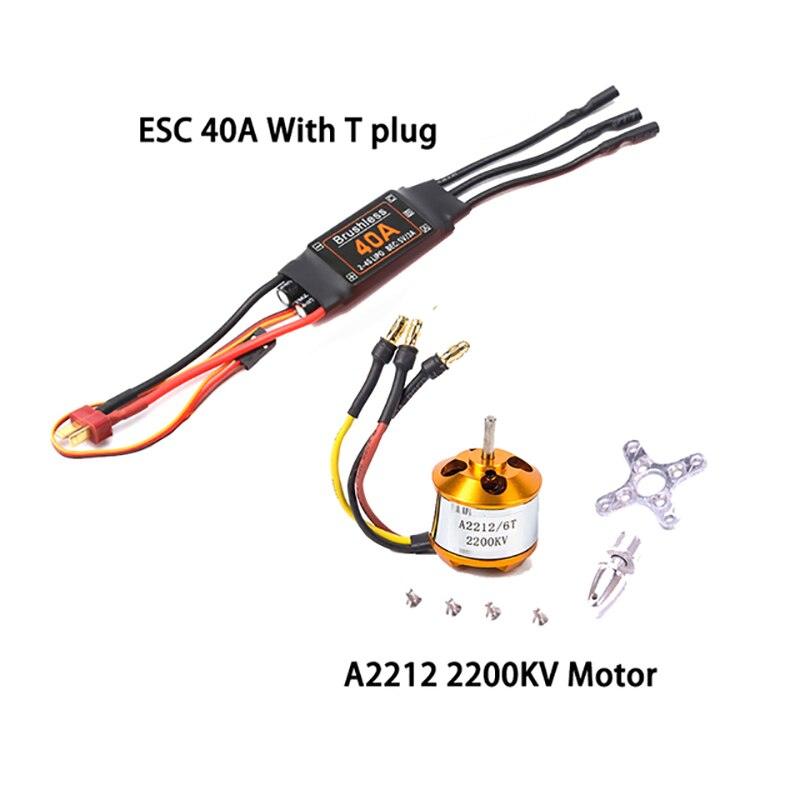

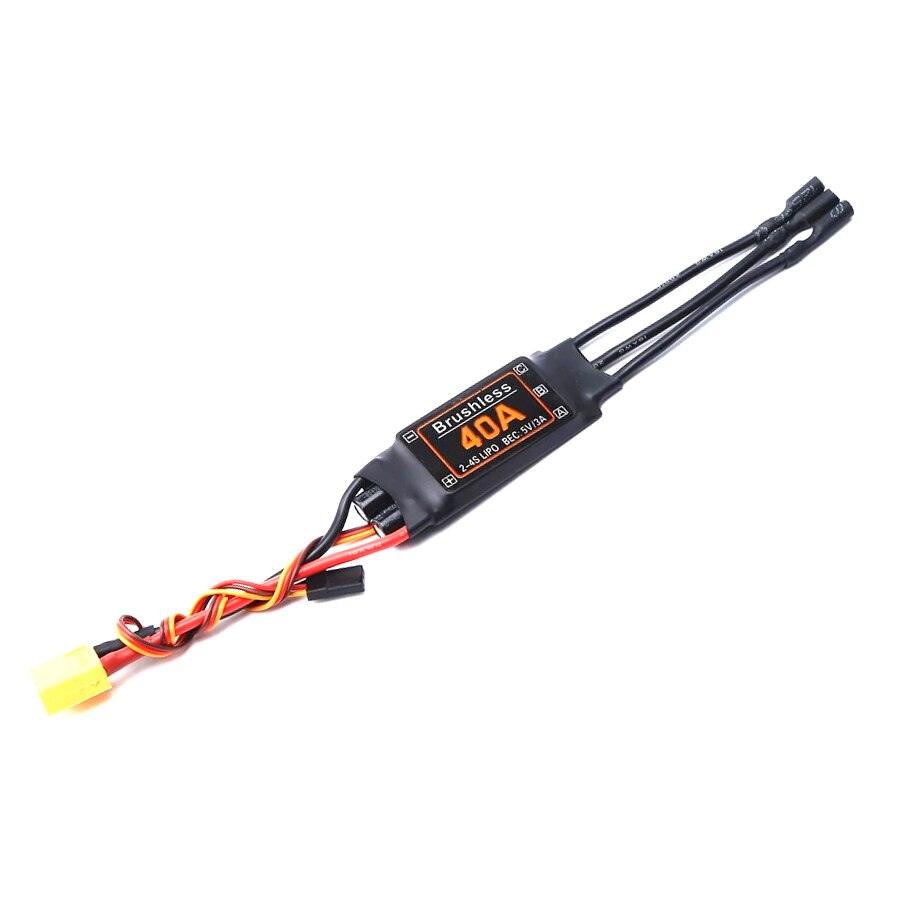

40A ESC:

Continuous / peak current: 40A/55A

Number of battery sections: 2-3S LiPo

BEC output: linear mode: 5V, 3A

Power cord: red -16AWG-100mm*1; black -16AWG-100mm*1

Output line: blue -16AWG-75mm*3

Power plug: T Plug (can be customized according to requirements)

Output plug: 3.5Mm bananer  connect (female)

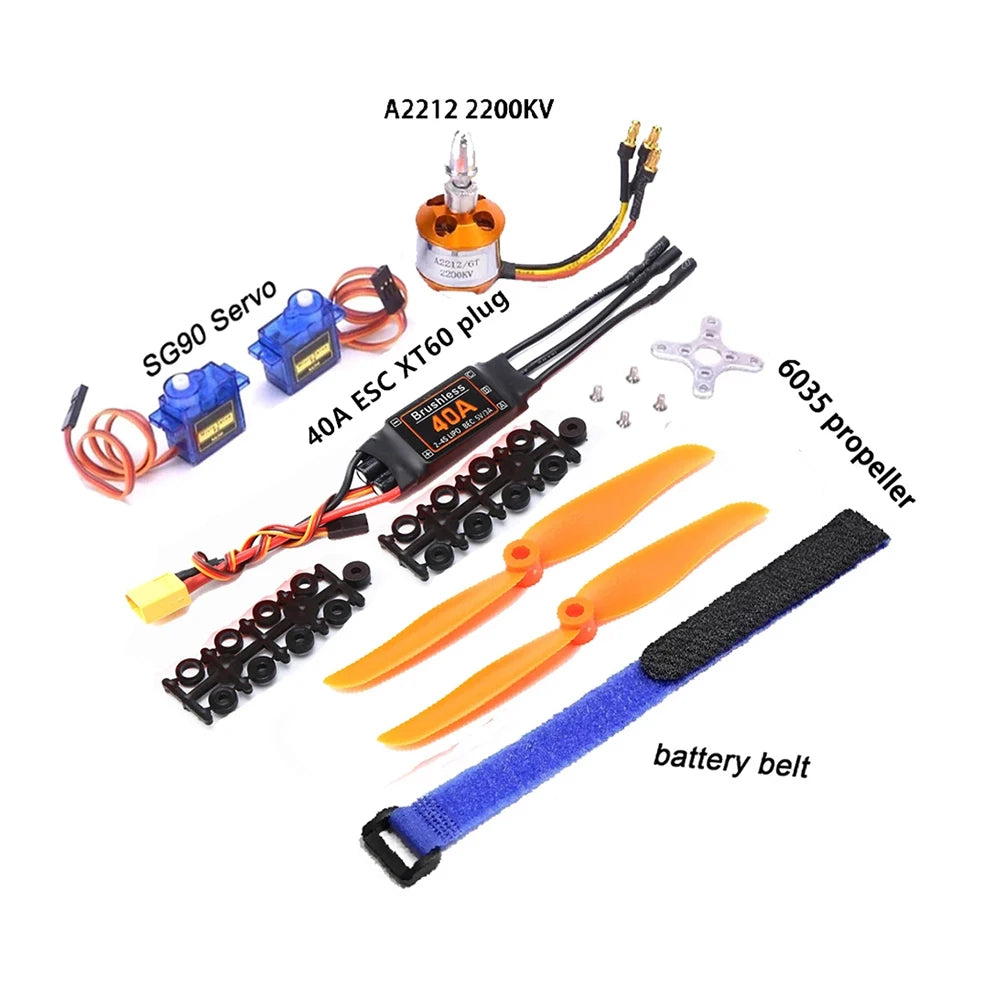

A2212 2200kv 1213/e ZD belt Servo plug SG9O Xt6o 2 ESC – AOA 40A p3r3 1 Lildo p883 battery .
