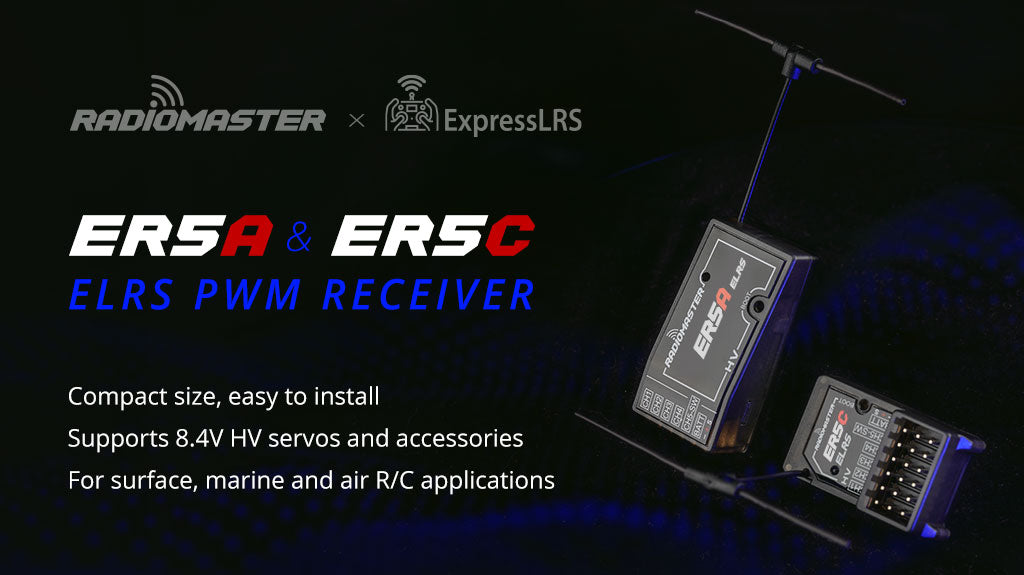

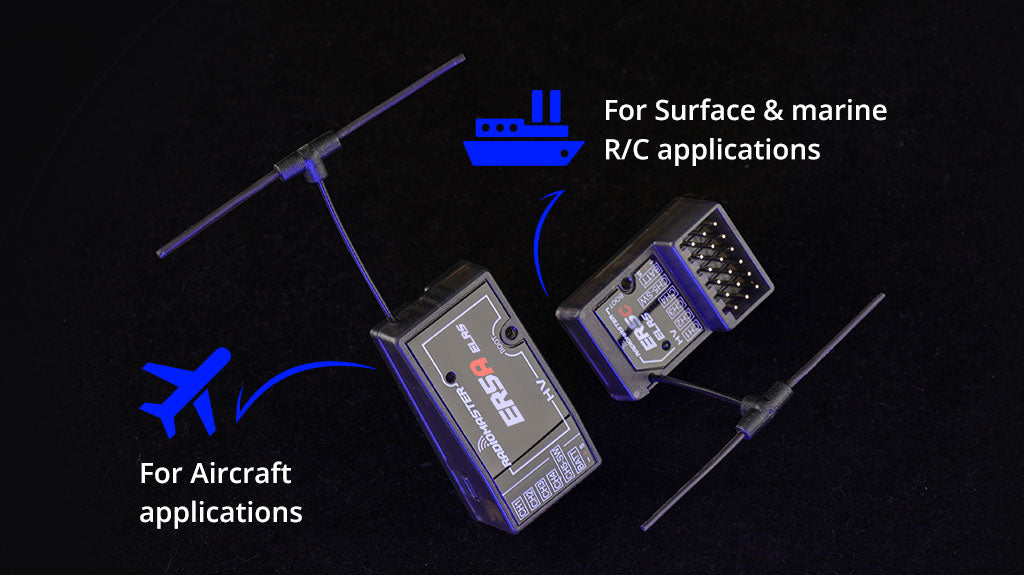

We are now launching ER5 Series ELRS PWM receivers. ER5A ELRS PWM receiver for Aircraft applications, and the ER5C ELRS PWM receiver for surface & marine R/C applications.
Features
- Supports 8.4V HV servos and accessories

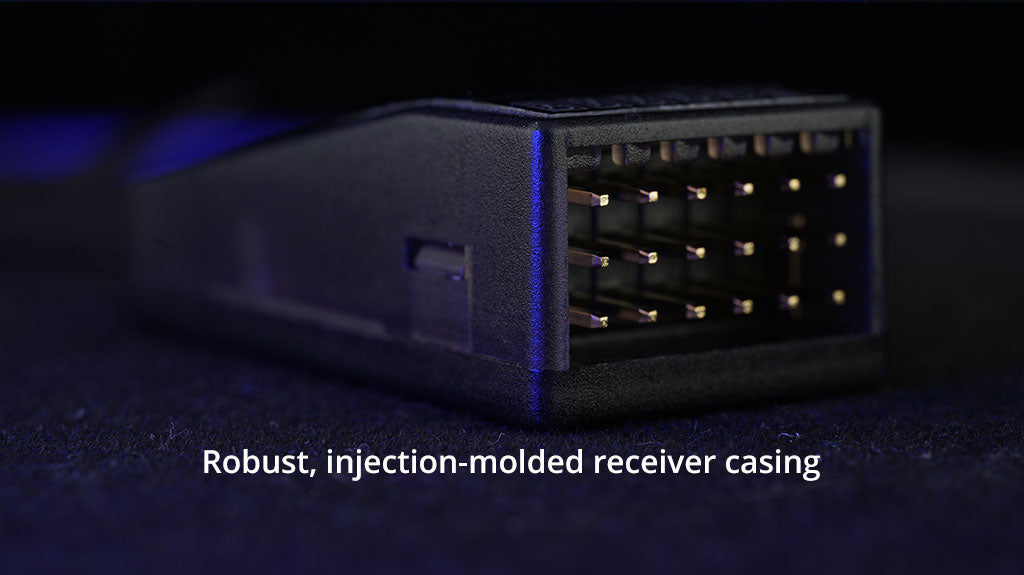

- Robust, injection-molded receiver casing
- Fast response speeds, incredible range
- Supports 4 proportional and 1 switch channel (ExpressLRS 2.x)
- Supports 5 proportional channels (ExpressLRS 3.x)
- Compact size, easy to install. Perfect for Surface, marine, and air R/C applications
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specification
- Item: ER5A 2.4GHz Receiver
- Power supply: DC 4.5-8.4V
- Antenna type: high sensitivity T-shape antenna
- Wireless Protocol: ELRS 2.0 pre-installed
- Output channel: CH1-4 standard PWM; CH5 switch (ON/OFF) PWM
- Weight: 6.6 grams
- Size: 37*19*13mm
Reviewing Video
How to get full range from the 5th channel of ExpressLRS PWM receivers
Related Products
- TX16 Mark II Radio
- TX12 Mark II Radio
- Zorro Radio
Package Includes
- 1 * ER5A ELRS PWM Receiver
- 1 * Spare Long Antenna
