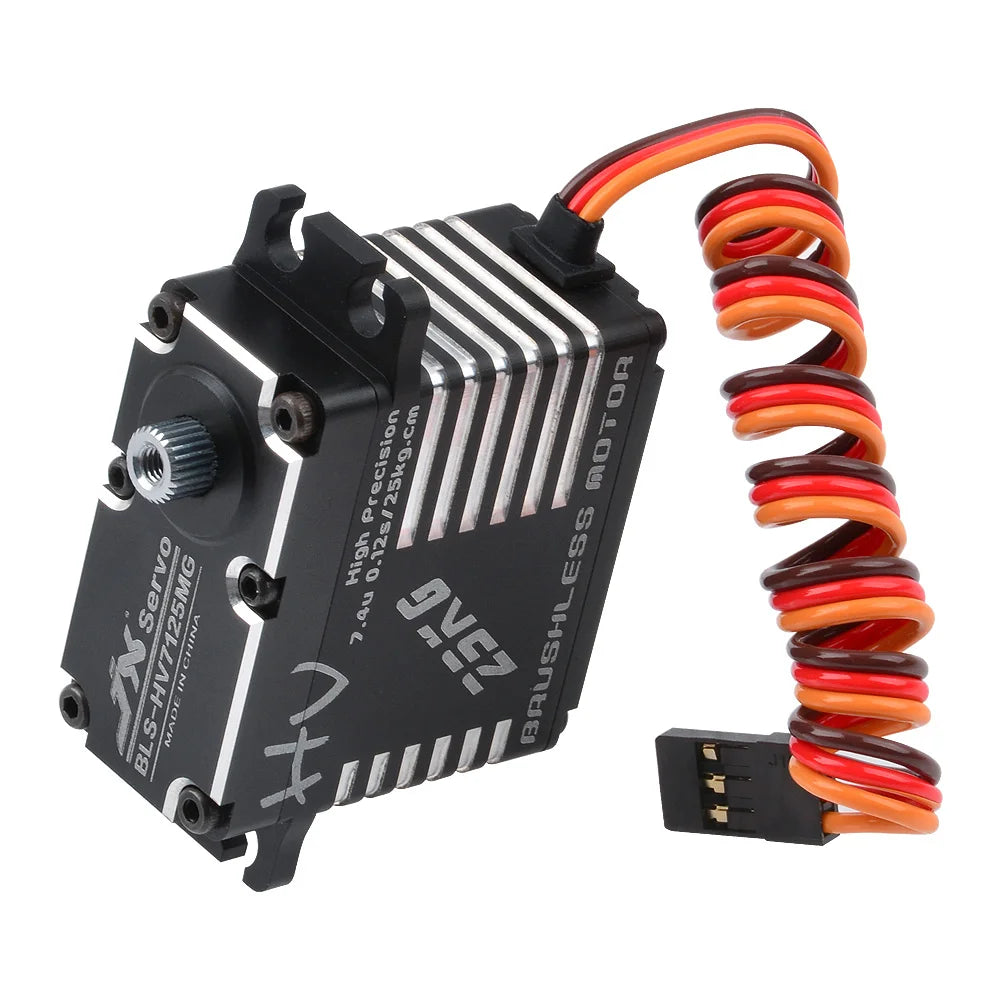

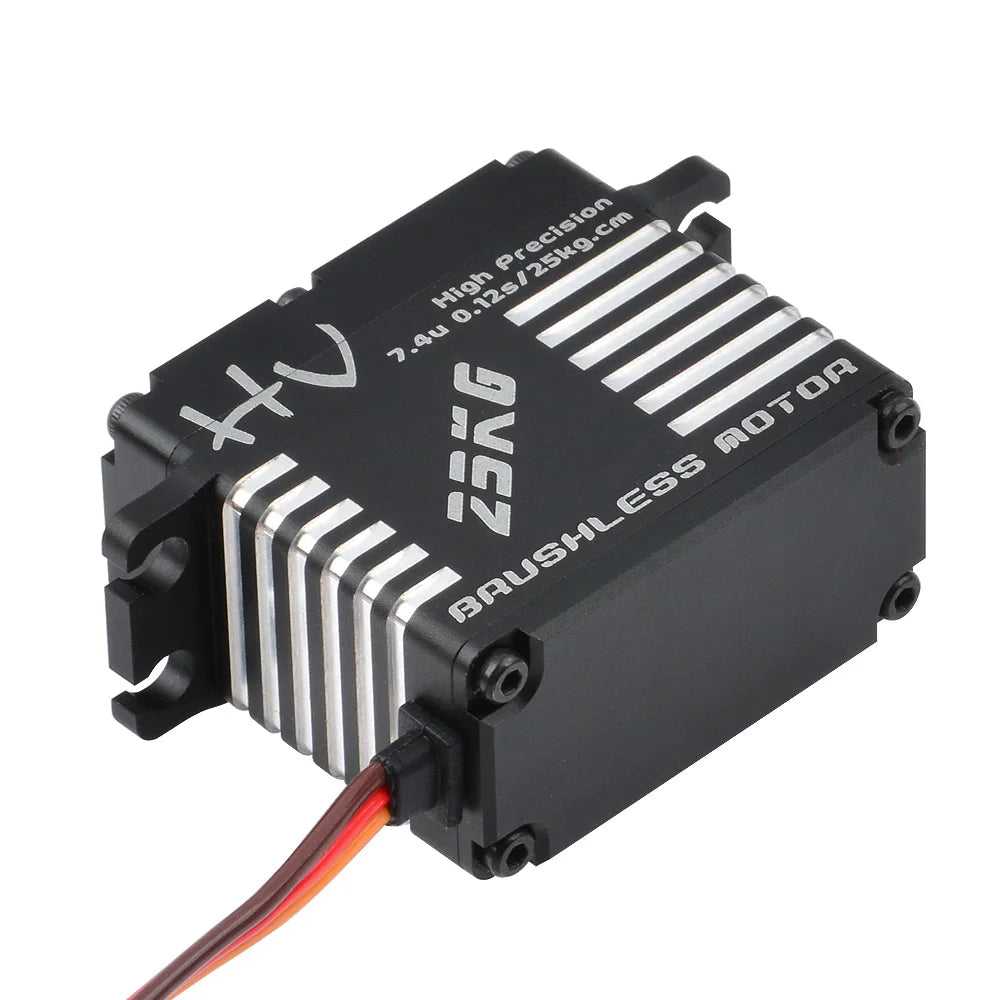

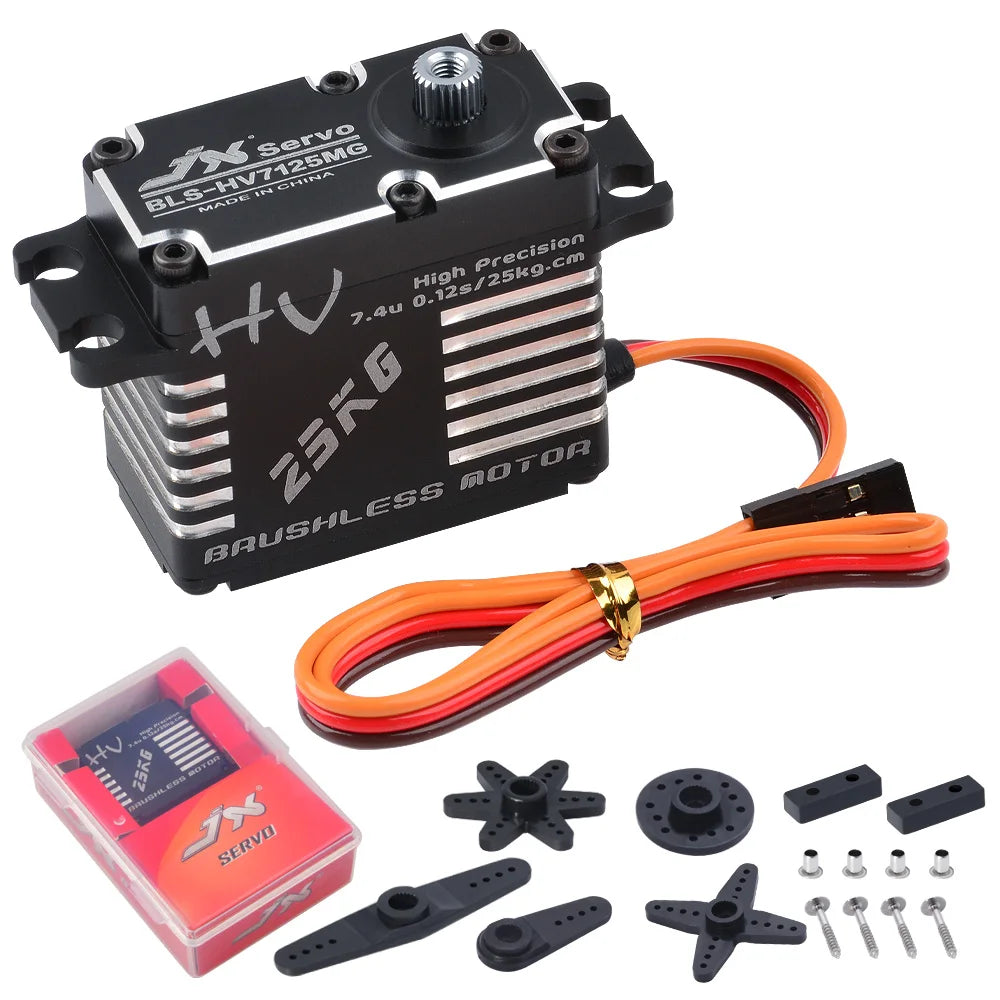

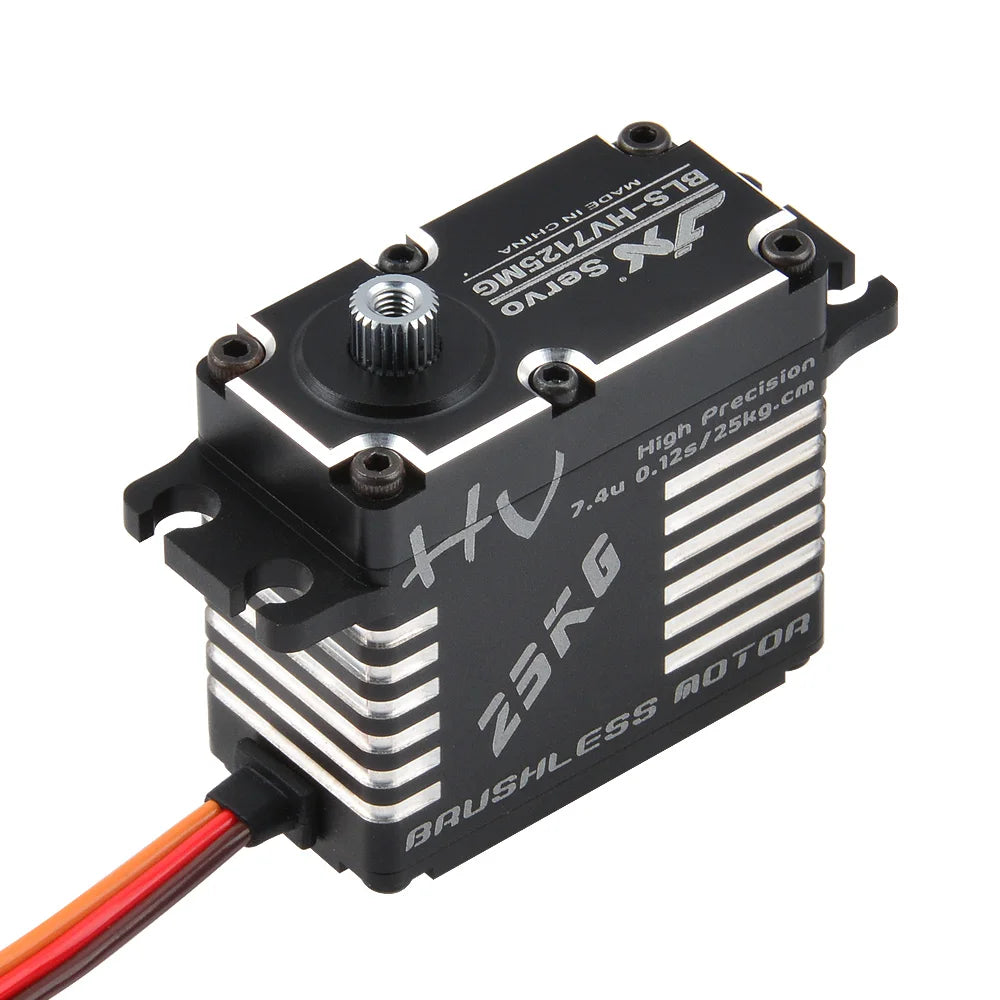

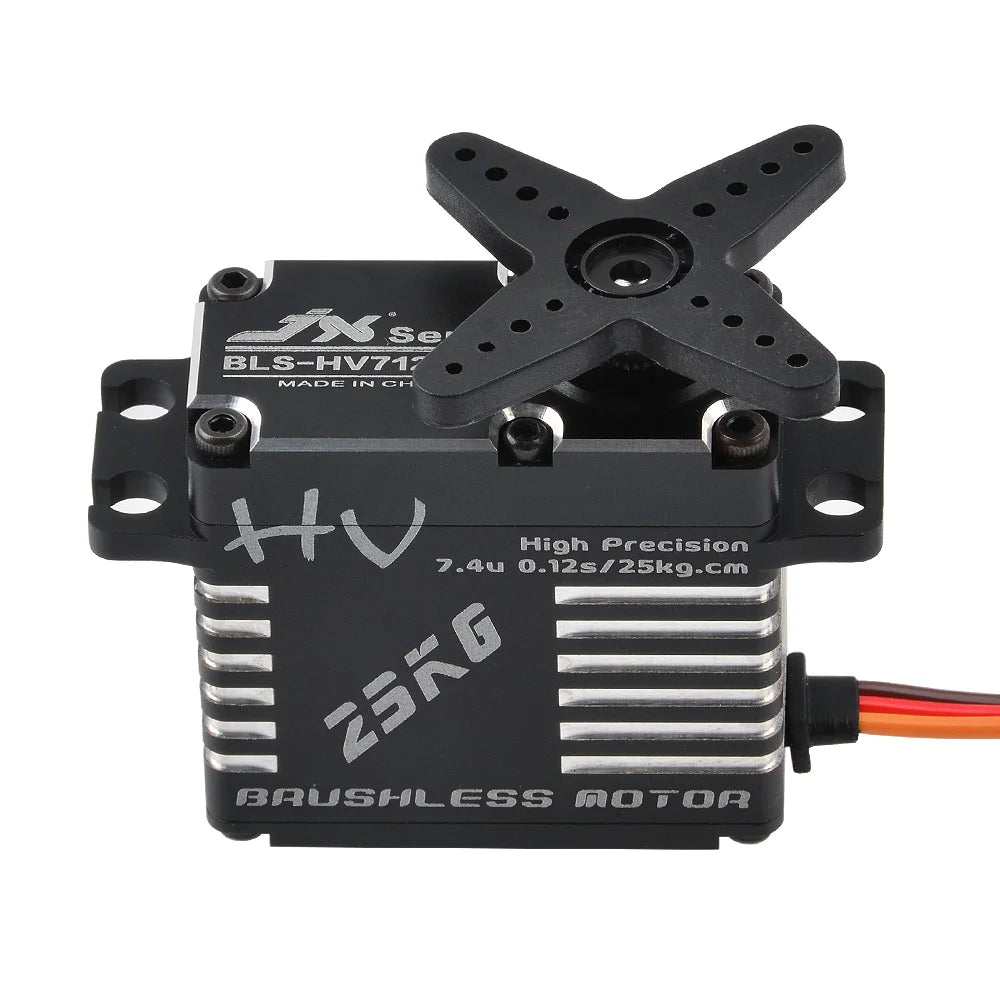

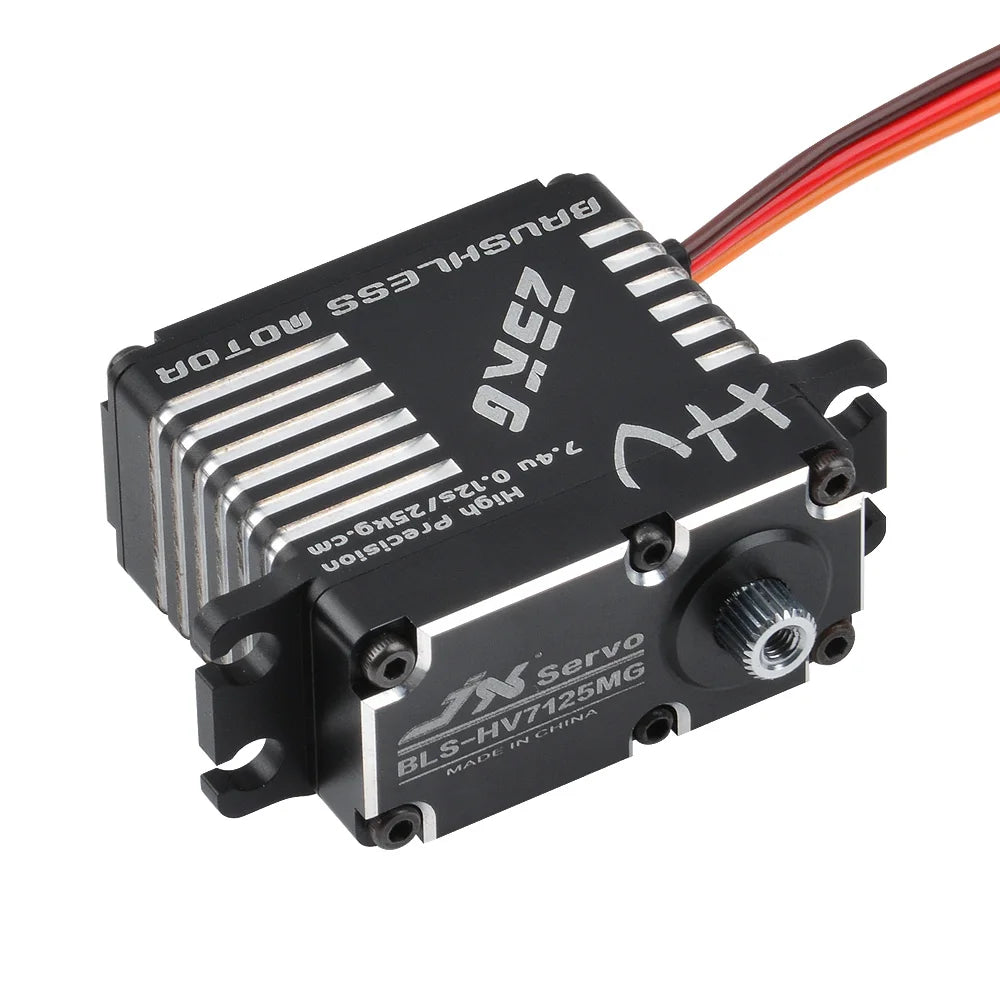

JX Servo BLS-HV7125MG – 7.4V 25KG Servo SPECIFICATIONS
Brand Name: JX
Origin: Mainland China
Material: Metal
RC Parts & Accs: Servos
Size: 40.5X20.3X28mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Servos
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Technical parameters: Value 5
Model Number: JX Servo BLS-HV7125MG
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Factory supply，Huge stocks, Support wholesale！Please kindly to contact us, the price can be negotiated 🙂
FEATURE:
— High voltage
— High performance programmable digital brushless standard servo
— High-precision Taiwan-made steel gears with hard anodizing
— Full CNC aluminium Shell structure
— Dual ball bearings
— Waterproof
SPECIFICATIONS:
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: brushless motor
Operating Speed (6V): 0.15sec/60°
Operating Speed (7.4V): 0.12sec/60°
Stall Torque (6V): 21.6kg.cm
Stall Torque (7.4V): 25.8kg.cm

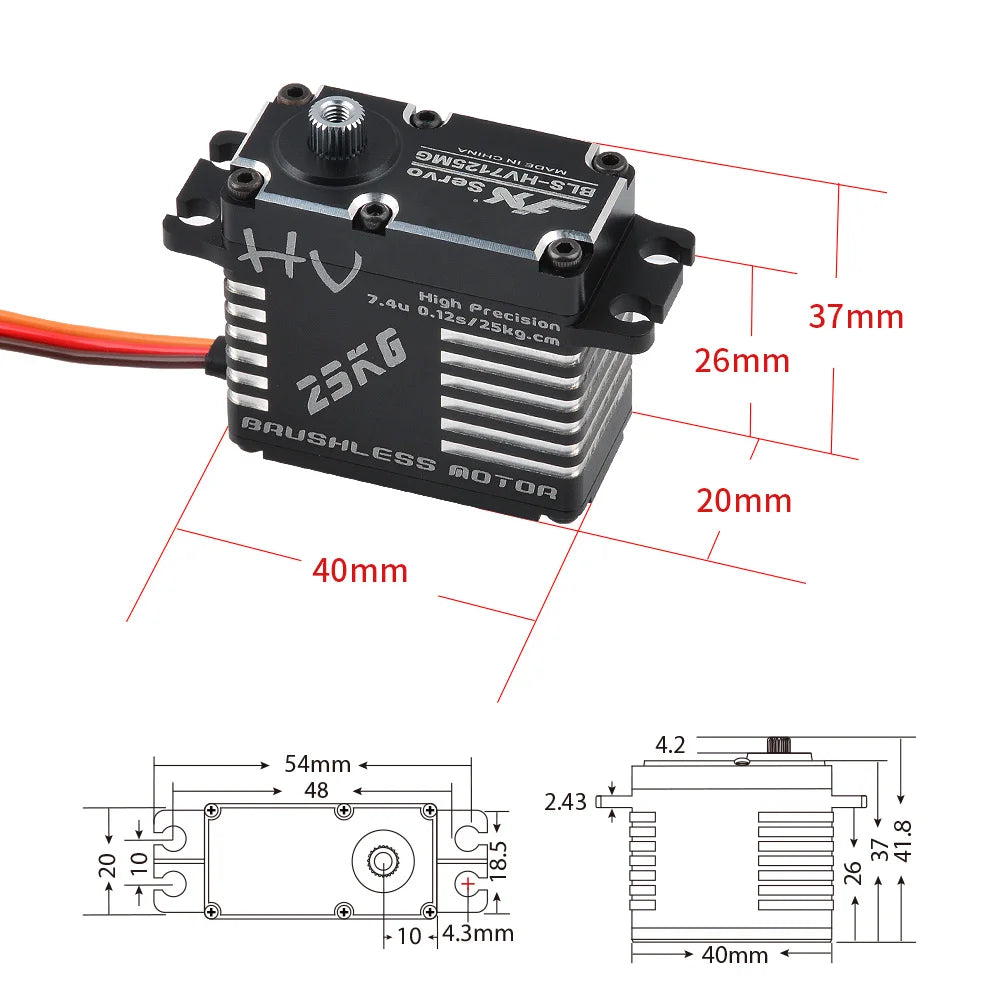

Dimensions: 40.5X20.5X36mm
Weight: 71 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Tooth Count: 25
7.4u X93 1 Ssserve 3l3-HV775mG 7750 Ptecision cm 0-125/25k0- High V 8 Moton baushless 8 otor 3S SERV
