TOPOTEK KHP335M608 Overview

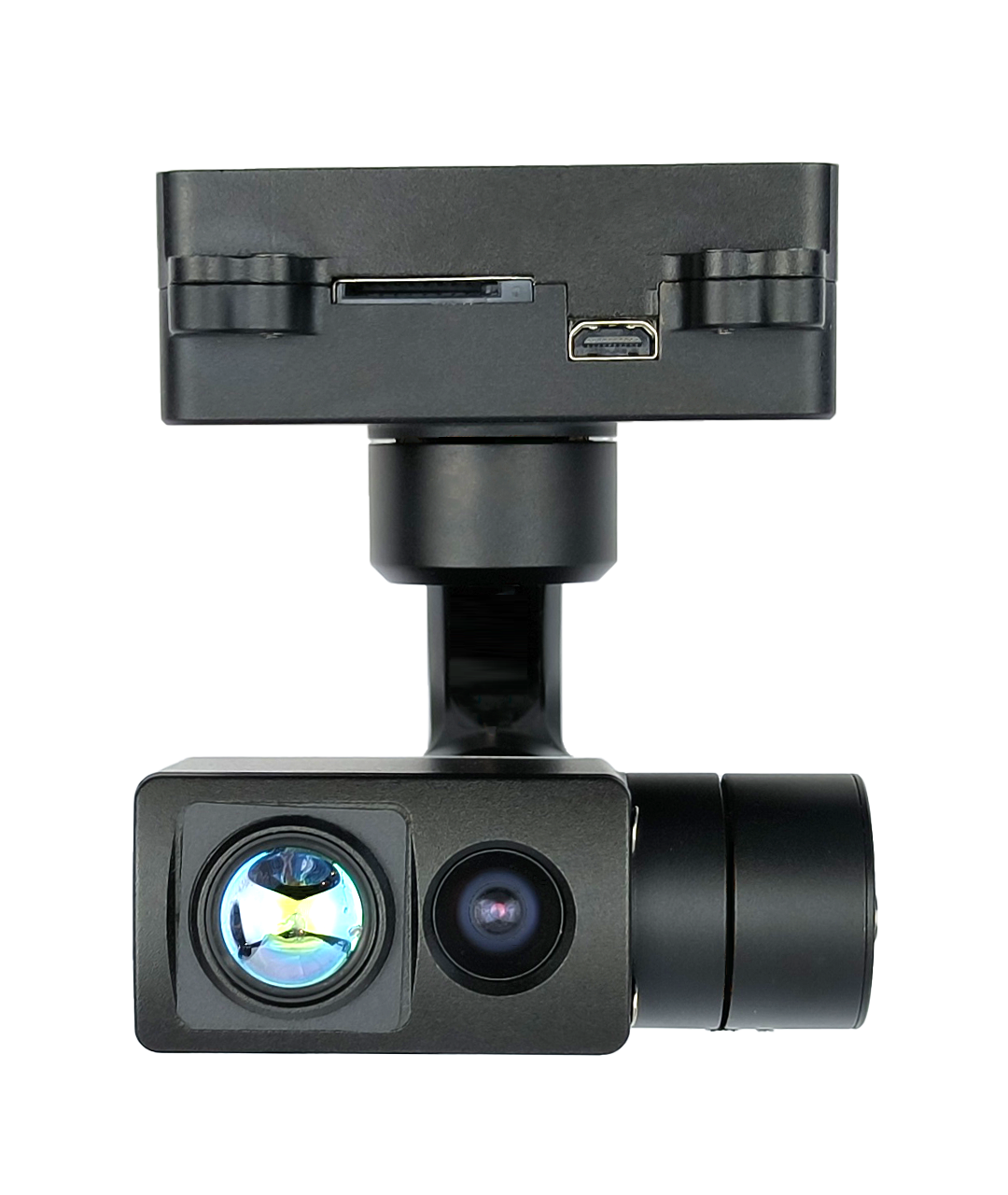

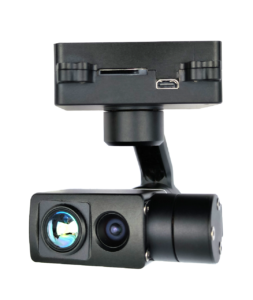

The TOPOTEKÂ KHP335M608 is a fixed-focus dual-light drone gimbal that integrates a fixed-focus visible light camera, an 8.7mm focal length 640×512 thermal camera, and a high-precision professional 3-axis stabilized PTZ. It supports network IP and HDMI dual output. The gimbal is characterized by high stability, small size, lightweight, and low power consumption. The visible light camera uses a CMOS sensor with 4 million effective pixels, while the thermal imaging adopts a 640×512 resolution vanadium oxide detector. The system supports network RTSP stream output, picture-in-picture switch, multiple pseudo color display, and global temperature measurement functions. Both the serial port and the network can control the cameras and PTZ, and support local TF two-way video recording and photography.
TOPOTEK KHP335M608Â Advantages
- Fixed focus visible light
- 640 x 512 thermal camera
- Multiple pseudo color
- HDMI and IP interface dual output
- 9x digital zoom
- Picture-in-picture switch
- IP, SBUS, UART control
- Lightweight gimbal, 120g
Â
TOPOTEK KHP335M608 Specifications
| Voltage | DC 12V-26.2V |
|---|---|
| Power | Dynamic 4W |
| Technical Parameters | |
| Roll Angle | -45° to +45° |
| Pitch Angle | -30° to +90° |
| Yaw Angle | -150° to +150° |
| Jitter Angle | ±0.02° |
| Horizontal Jitter Angle | ±0.03° |
| One-Click Restore | One-click restore to the initial position |
| Adjustable Gimbal Speed | When the PTZ rotates, it conducts speed adaptation based on the current speed mode and the multiple of visible light camera. |
| Control mode | Support network IP UART control (SBUS and PWM are optional) |
| Daylight Sensor Parameters | |
| SENSOR | 4 Mega Pixels CMOS SENSOR |
| Digital Zoom | 9x |
| Compressed storage mode | H264, H265, video stream local TF storage |
| FOV | FOV: 92° x 59° |
| HDMI video | Micro-D HDMI 1080P 30fps |
| IP output mode | 1080P 30fps |
| Thermal imager Parameters | |
| Resolution | 640×512 |
| Digital Zoom | 9x |
| Pixel spacing | 10μm |
| Wavelength range | 8~14μm |
| Type | Uncooled vanadium oxide detector |
| Wavelength sensitivity (NETD) | ≤[email protected]@25°C |
| Field angle | 8.7mm Lens, Angle: 40.0° x 32.2° |
| Measurement function (optional) | Support global temperature measurement, optional full pixel temperature storage function |
| Gimbal Size | Φ:120mm H:68mm |
| Working Condition | -10°C to +55°C / 20% to 80% RH |
| Storage Environment | -20°C to +60°C / 20% to 95% RH |
| Main applications | UAV aerial photography |
| Weight | 120 ± 10g |
