Radiolink AT9S Pro – 12 Channels 2.4G RC Transmitter Radio Controller Support Crossfire Protocol with RX R9DS for Drone Fixed Wing


SKU: N/A Category:


Radiolink AT9S Pro Transmitter SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Radio Systems

Origin: Mainland China

Material: Composite Material

For Vehicle Type: Airplanes


1. The AT9S Pro operation menu supportEnglish, Chinese.(You could update multi-language firmware to get other languageMenu interface)

2. According to the color name to select AT9S Pro mode:Mode 1 Right handorMode 2 Left hand

Radiolink 2019 AT9S Pro Version TX 10/12CH RC Transmitter Radio Controller Support TBS Crossfire CRSF Protocols for Racing Drone, Quadcopter, Fixed Wing, Helicopter, Car Vehicles and more (Mode 1/2)

Radiolink AT9S Pro Transmitter Description

AT9S Pro Overview

DSSS* and FHSS* which reduce overall signal interference and allow the AT9S Pro to produce a highly constant and stable transmission signal present on all 10/12 channels.

Setting simplicity,Excellent Anti-interference, Real-time Telemetry, USB upgrade, Voltage Protection, 3ms fast responsefor 10/12 channels, outstanding range over 2.4 miles(4km) (actual control distance is according the local environment).

AT9S PRO Features:

Excellent Anti-interference: The rc transmitter with DSSS&FHSS working synchronously to keep the excellent anti-interference performance, only 3ms for10 channels response.

CRSF Protocol Supported: On the basis of the RadioLink unique communication technology of DSSS and FHSS, CRSF protocol from Blacksheep is added. Compatible with TBS Crossfire 915 module.

Compatible with SBUS, PPM, PWM and CRSF: With DSSS&FHSS protocol, SBUS, PPM and PWM can operate simultaneously for seamless user control. With CRSF protocol.

Real-time Information:WhenPRM-03module works with flight controller, model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch and distance are displayed on the LCD screen display.

Adapts to Most of Types of Aircraft: Easy to understand user software makes quick work of changing aircraft types, Rotary Wing, Fixed Wing, Glider, Multicopter, Car, Boat, Robot.

USB Based Update: Transmitter is easily updated with the latest firmware by USB cable to connect PC.

Voltage Protection System:RadioLink’s voltage protection software ensures vital components are protected from a reverse polarity connection.

Support for Universal Battery:JST 2Pin connector supports multiple type batteries: 8 pcs AA or 2s-4s LiPo battery. (Not included batteries) A 3s 1800mAh liPo battery can work more than 12 hours.

AT9S ProTransmitter Specifications:

Channels: 10ch/12ch

Mode: Mode 1 or Mode 2


Frequency: 2.4GHz ISM bands (2400MHz to 2483.5MHz)

Channel Bandswidth: 5.0 MHz

Spread Spectrum: DSSS&FHSS/CRSF

Modulation Mode:QPSK

Adjacent Channel rejection: >38dbm

Transmission Power:

DSSS & FHSS <100mW(20dbm)

CRSF: 10mW/25mW/100mW/500mW/1W/2W(Optional)

Operating Current: DSSS&FHSS < 90mA@12V

CRSF Depends on the transmission power selecte

Operating Voltage: 7.4~18.0V

4096 Section Precision

Screen: 2.8 inches 16 colorful screen, 240*320 pixels

Channel: 12 channels , all 12 channels are customized

Size: AT9S Pro 183*100*193mm

Weight: 0.88kg

Control Range:4 kilometersin the air (Maximum range is tested in an unobstructed area free of interference)

Compatible receivers:

12CH – R12DSM, R12DS,


CRSF Protocol: Receiver from BLACKSHEEP

Package Included:

AT9S Pro x 1

Radiolink Lanyard x 1

Mode 1/2 Changing Parts x 1

Simple User Manual x 1

Radiolink AT9S Pro, at9s AT9S Pro n1OCH/1ZCH Radiolink Includes 10

at9s AT9S Pro n1OCH/1ZCH Radiolink Includes 10 Channel Receiver Jojou Full Featured 4GHz Premium Transmitter Optional DSSS&FHSS/CRSF Protocols Compatible with TBS Crossfire TX .

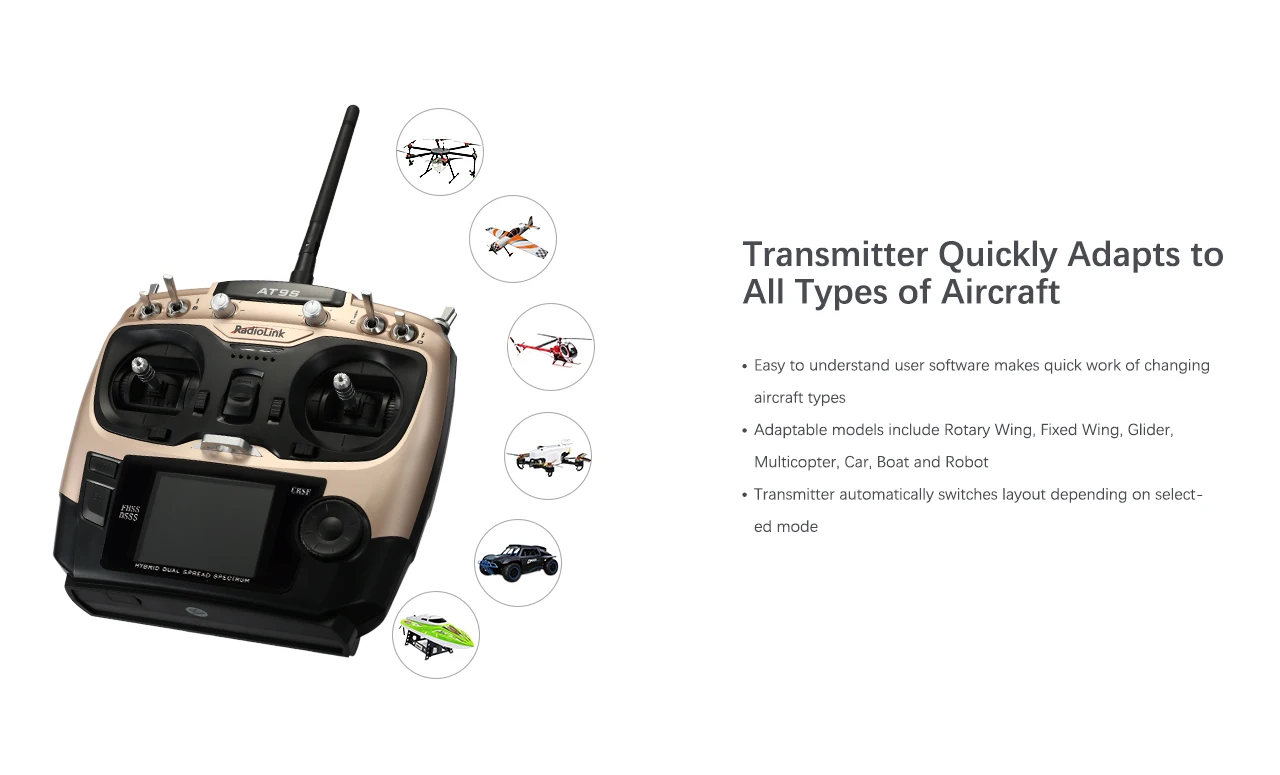

Radiolink AT9S Pro - 12Radiolink AT9S Pro, Adaptable models include Rotary Wing; Fixed Wing, Glider, Multicopter;

Adaptable models include Rotary Wing; Fixed Wing, Glider, Multicopter; Car, Boat and Robot Transmitter automatically switches layout depending on select – ed mode .

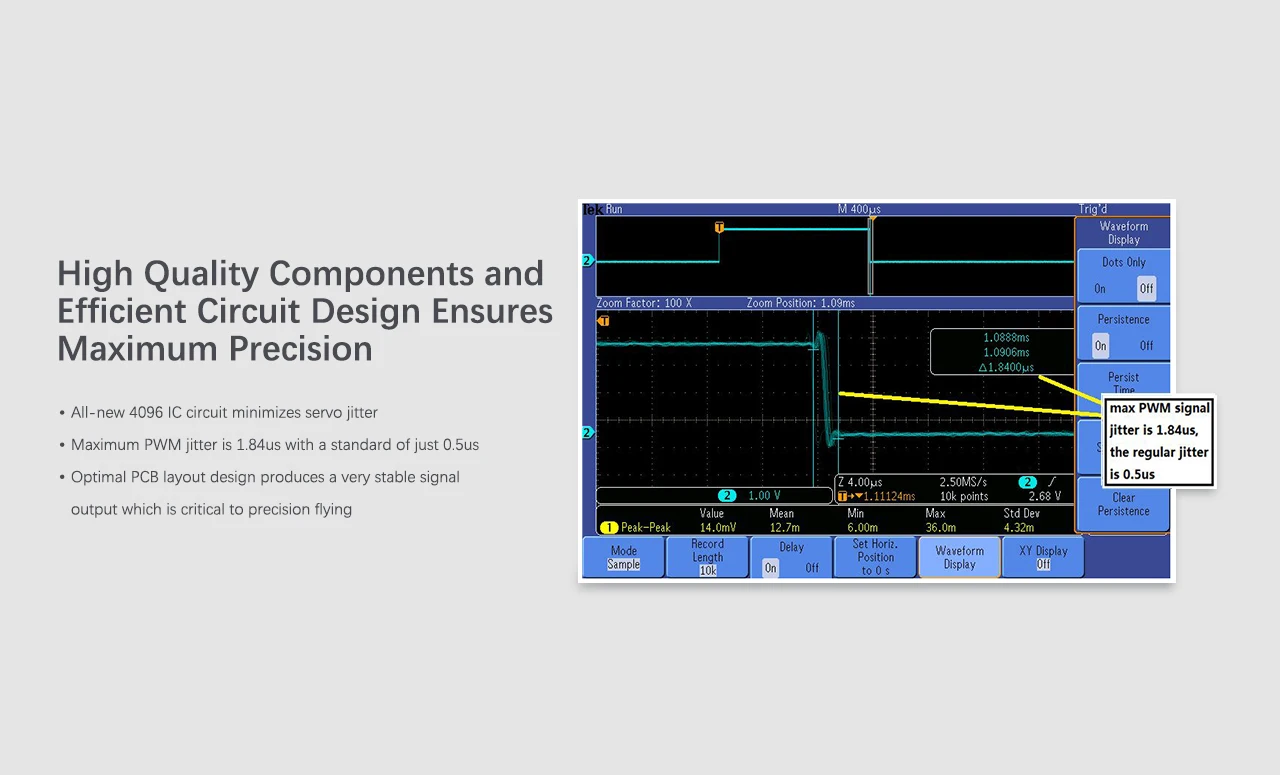

Radiolink AT9S Pro, lekiu 40Quus Irig's Waveform Display Dotst High Quality

lekiu 40Quus Irig’s Waveform Display Dotst High Quality Components and Loom 100 Loom Position: 09ms Efficient Circuit Design Ensures Persistence 0888ms Maximum Precision 0906ms 3400LS Persist All-new 4096 IC circuit minimizes servo jitter .

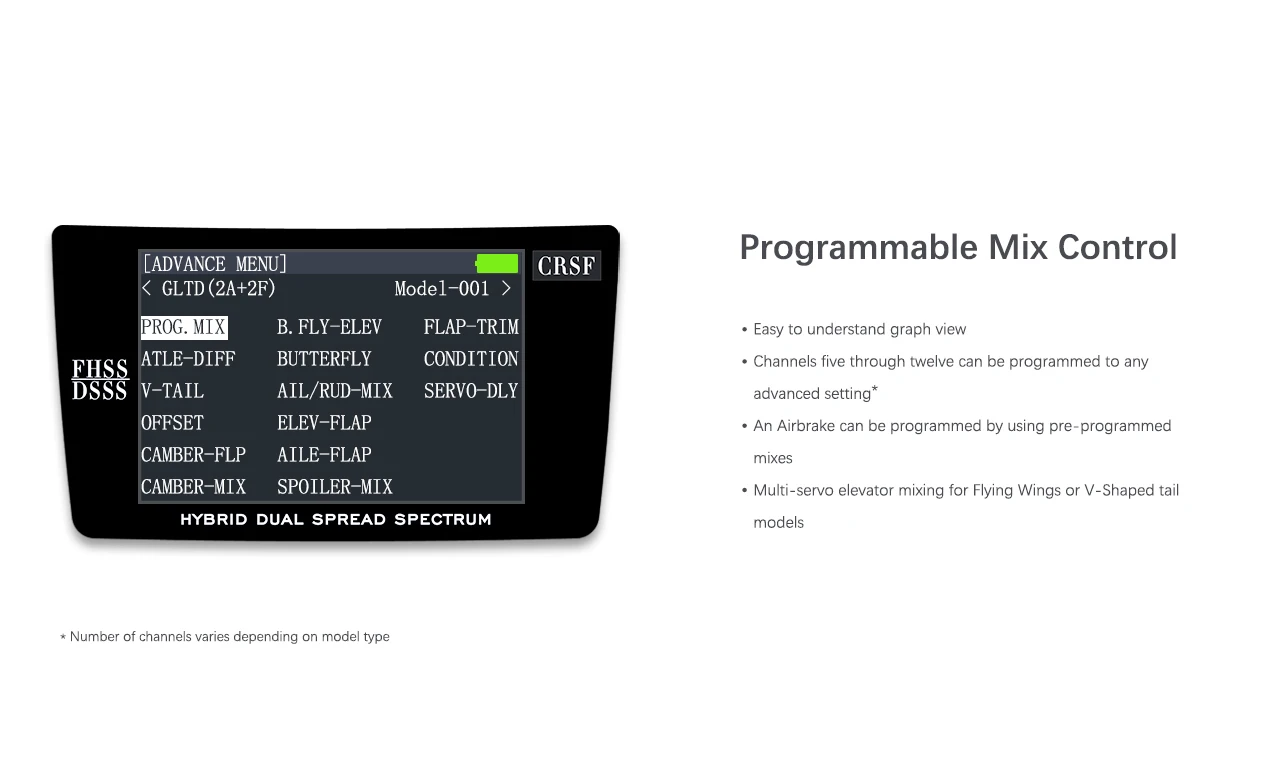

Radiolink AT9S Pro, cnannels can be programmed to any DSSS V-TAIL

CRSF Programmable Mix Control GLTD (24+2F) Model-001 PROG. MIX B. FLY-ELEV FLAP-TRIM Easy to understand graph view EHSS ATLE-DIFF BUTTERFLY CONDITION Channels through twelve can be programmed to any DSSS V-TAIL AIL/RUD-MIX SERVO-DLY advanced setting* OFFSET ELEV-FLAP An Airbrake is programmed by using pre-programmed

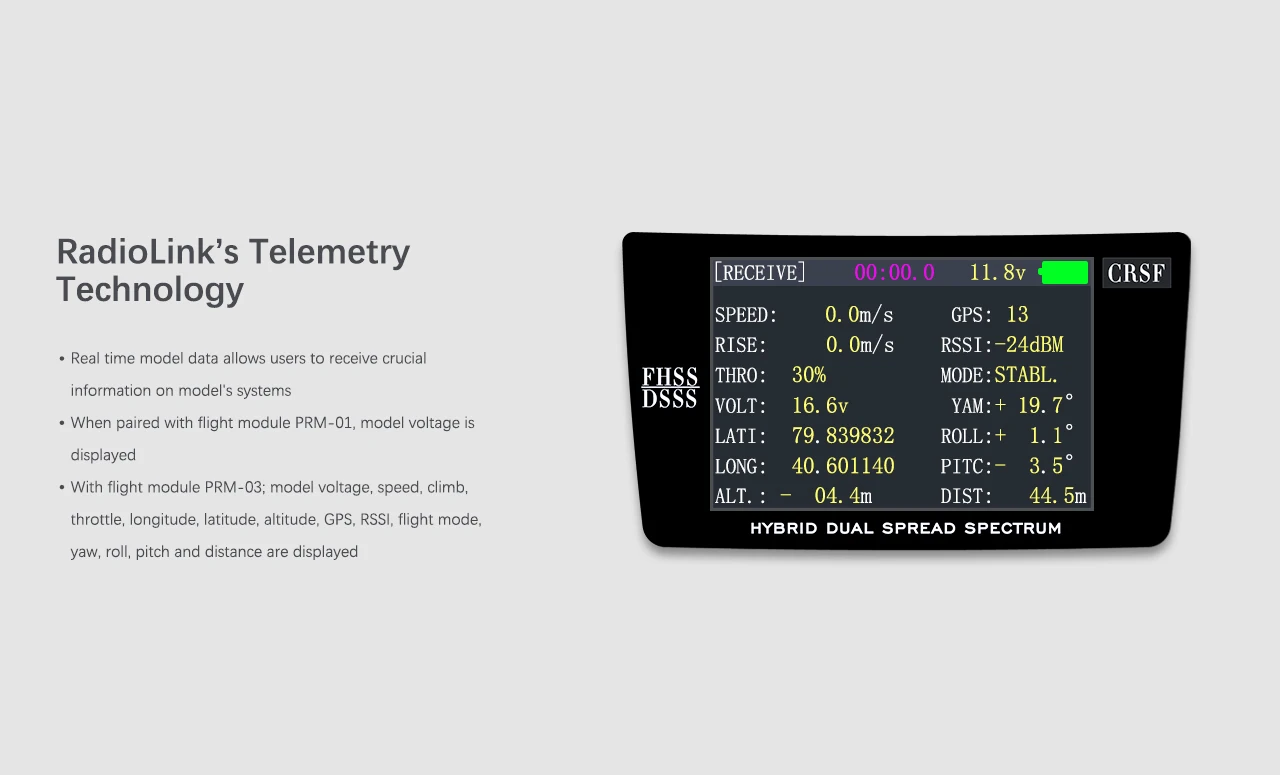

Radiolink AT9S Pro, Real time model data allows users to receive crucial FHSS VOLT: 16. 6v

Real time model data allows users to receive crucial FHSS VOLT: 16. 6v YAM: + 19.7″ When paired with flight module PRM-01, model voltage is LATI: 79. 839832 ROLL: + 1.10 displayed LONG : 40. 601140 PITC: 3. 5

Additional information


Standard-Gold M2, Standard-Gold M1
