GEPRC RAD VTX – 5.8G 1.6W 40CH PITMode 25mW 200mW 600mW 1600mW Adjustable Video Transmitter 30X30mm For RC FPV Quadcopter Drone

$78.00

+ Free Shipping
Default Title
Default Title
Clear
SKU: N/A Category:
Ask for more info

SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembly Category

Size: 1 inch

Remote Control Peripherals/Devices: VTX

Recommend Age: 12+y

RC Parts & Accs: Transmitters

Quantity: 1 pcs

Origin: Mainland China

Model Number: GEPRC RAD VTX 5.8G 1.6W

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Brand Name: GEPRC

Summary:

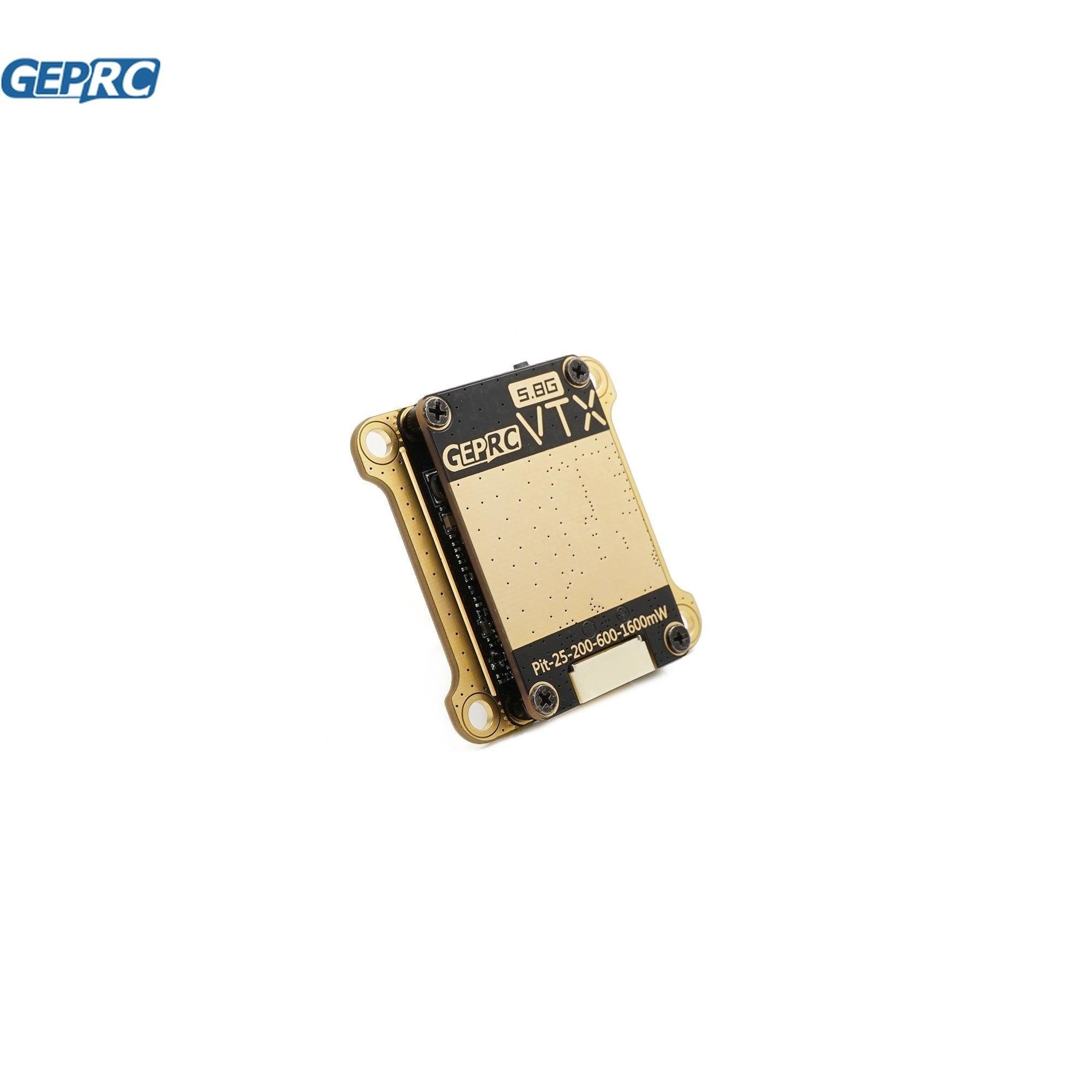

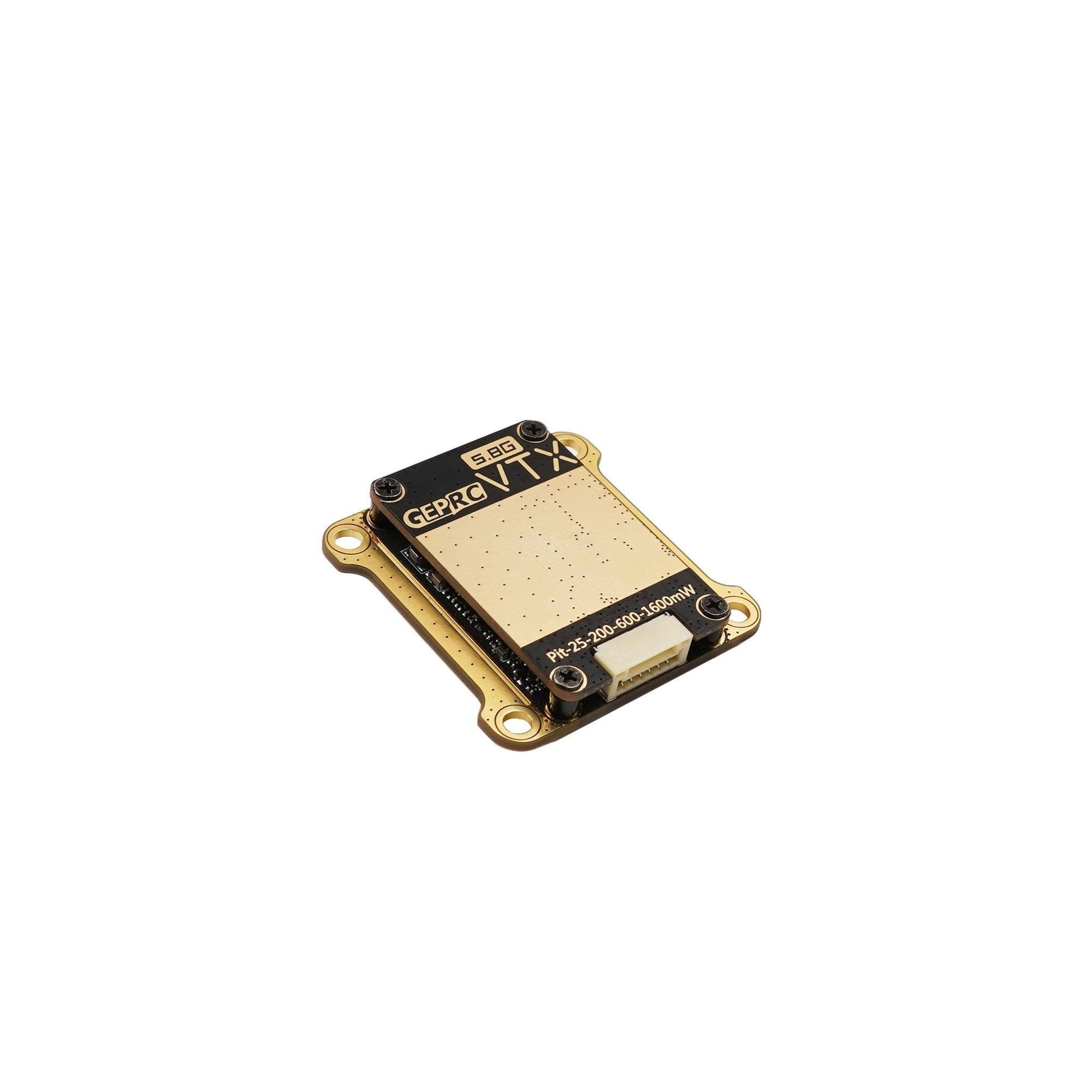

I’m glad to introduce the newly developed RAD VTX 1.6W by GEPRC.It is a super-power VTX with a maximum power of  1600MW and five adjustable gears:Pit/25mW/200mW/600mW/1600mW is adopted.The RAD adopts a double-layer PCB  design to separate the power supply from the main-board,which can reduce and shield interference. Double layer structure for better heat dissipation. The built-in microphone on the VTX board,supports 7-36V voltage(2-8S Battery) input,  uses the mainstream MMCX connector ,and the mounting hole is 30.5×30.5mm.

Feature:

  1. 1600mW Super power ,Suitable for Long Range flight with good stability.

  2. Five power channel: PIT mode/25mW/200mW/600mW/1600mW.

  3. Two-layer board cooling structure,Separate power BEC and main-Board,Reducing and shielding from the insinal interference.

  4. Temperature control protection function that can prevent high temperature burning

  5. Wide voltage input, Supports 7V-36V Voltage input.

  6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment.

  7. VTX built in microphone,Real-time transmission of Drone’s sounds.

  8. Has 3 regional frequency tables to meet the needs of various regions.

  9. Two function buttons, three indicator lights, easy to control.

  10. Mounting hole is 30.5mmx30.5mm.

Specifications:

  • Model: GEPRC RAD VTX 5.8G 1.6W

  • Input voltage: DC 7-36V(2-8S Battery)

  • Output:5V@600mA(power 5V to Camera)

  • Input impedance: 75Ω

  • Protocol: IRC Tramp

  • Antenna interface: MMCX

  • Output power: PIT mode/25mW/200mW/600mW/1600mW PIT MODE

  • Frequency tables: Universal frequency table(40CH),American FCC frequency table(37CH),European EU frequency table(26CH)

  • Video format: PAL / NTSC

  • Microphone: Built in microphone

  • Size: 36×36.5×5.5mm

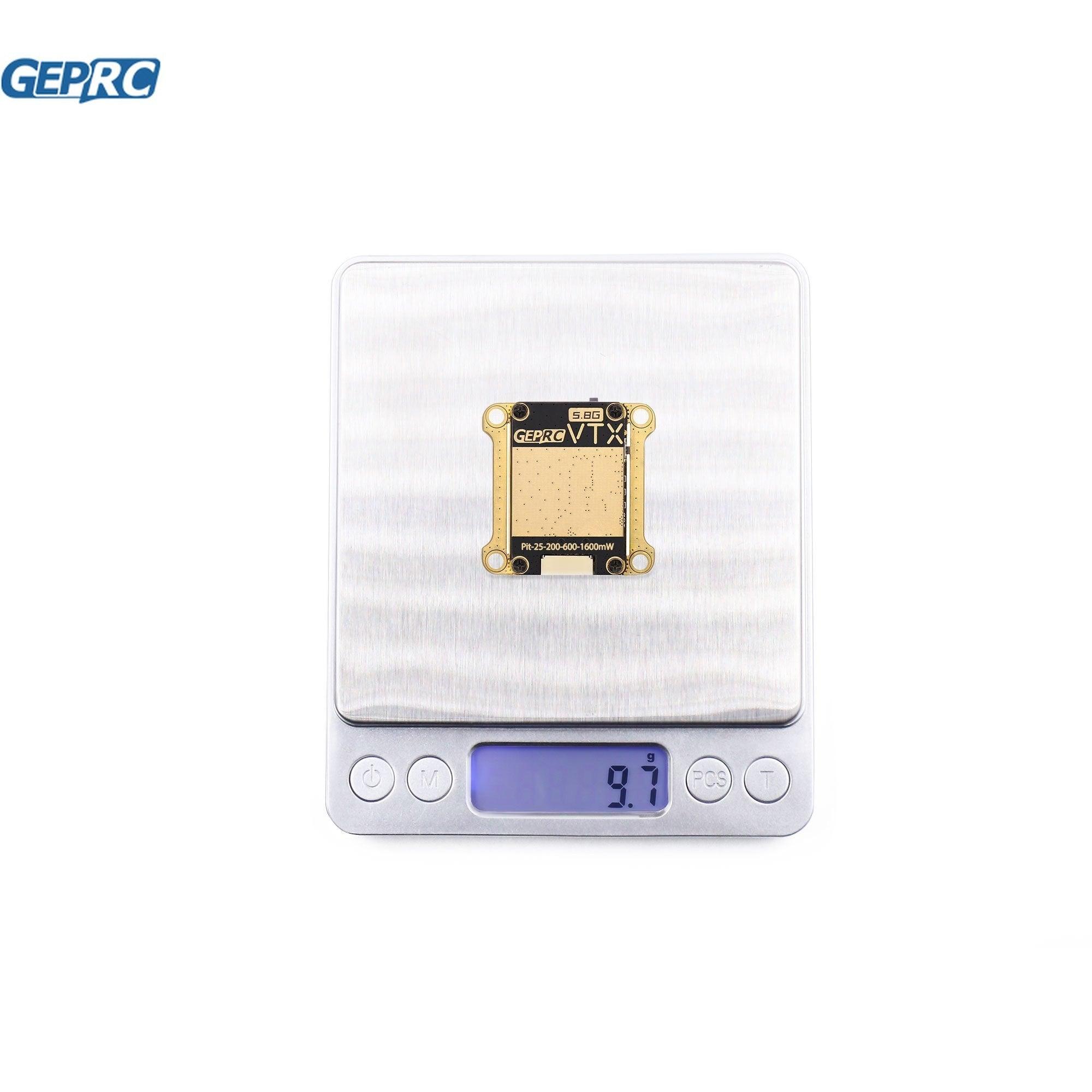

  • Weight: 9.7g(without cable)

  • Mounting hole: 30X30mm(M3)

Warning：

  1. Install Antenna before use.

  2. To prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.

  3. The 5V Output is for a Camera/Cooling Fan use only!Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.

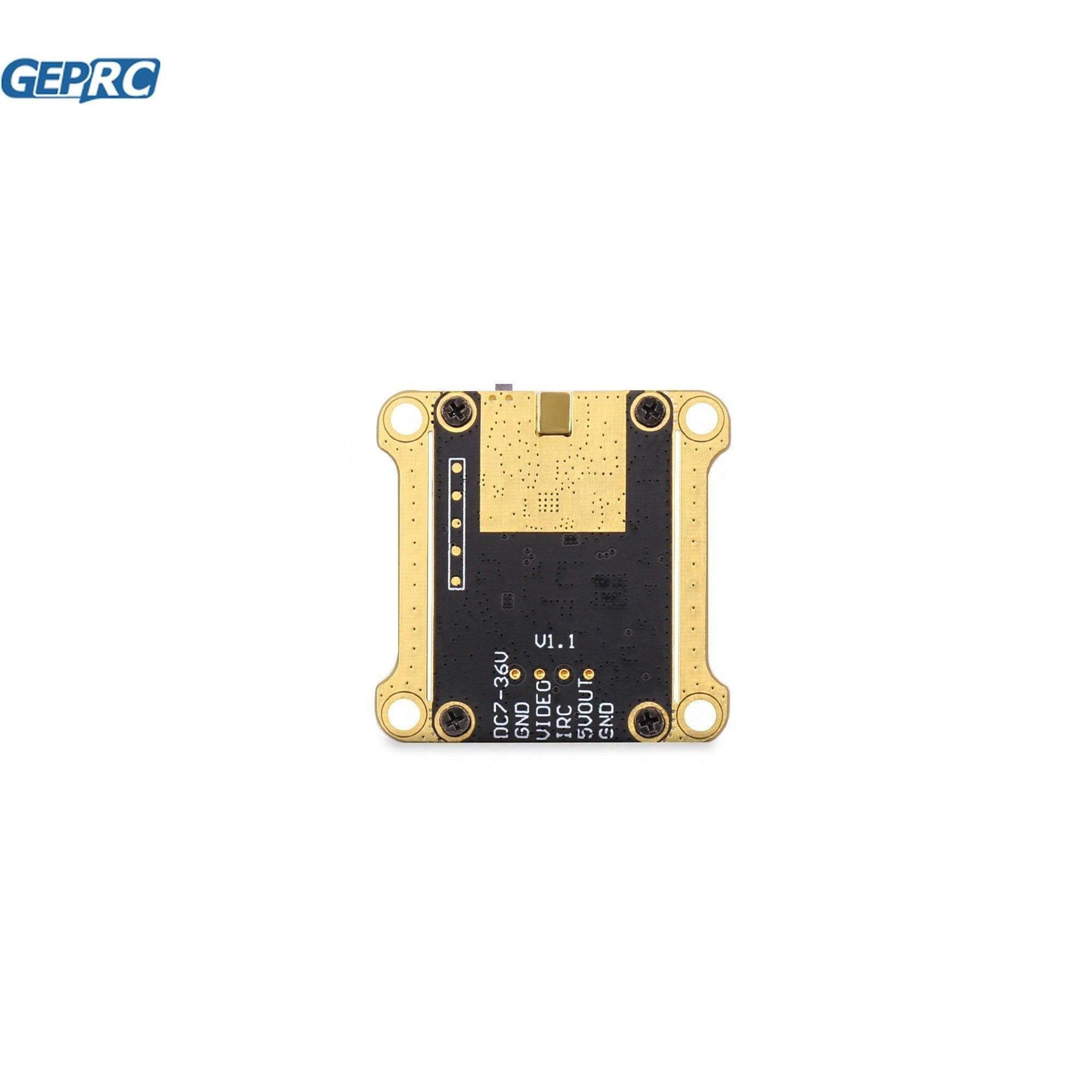

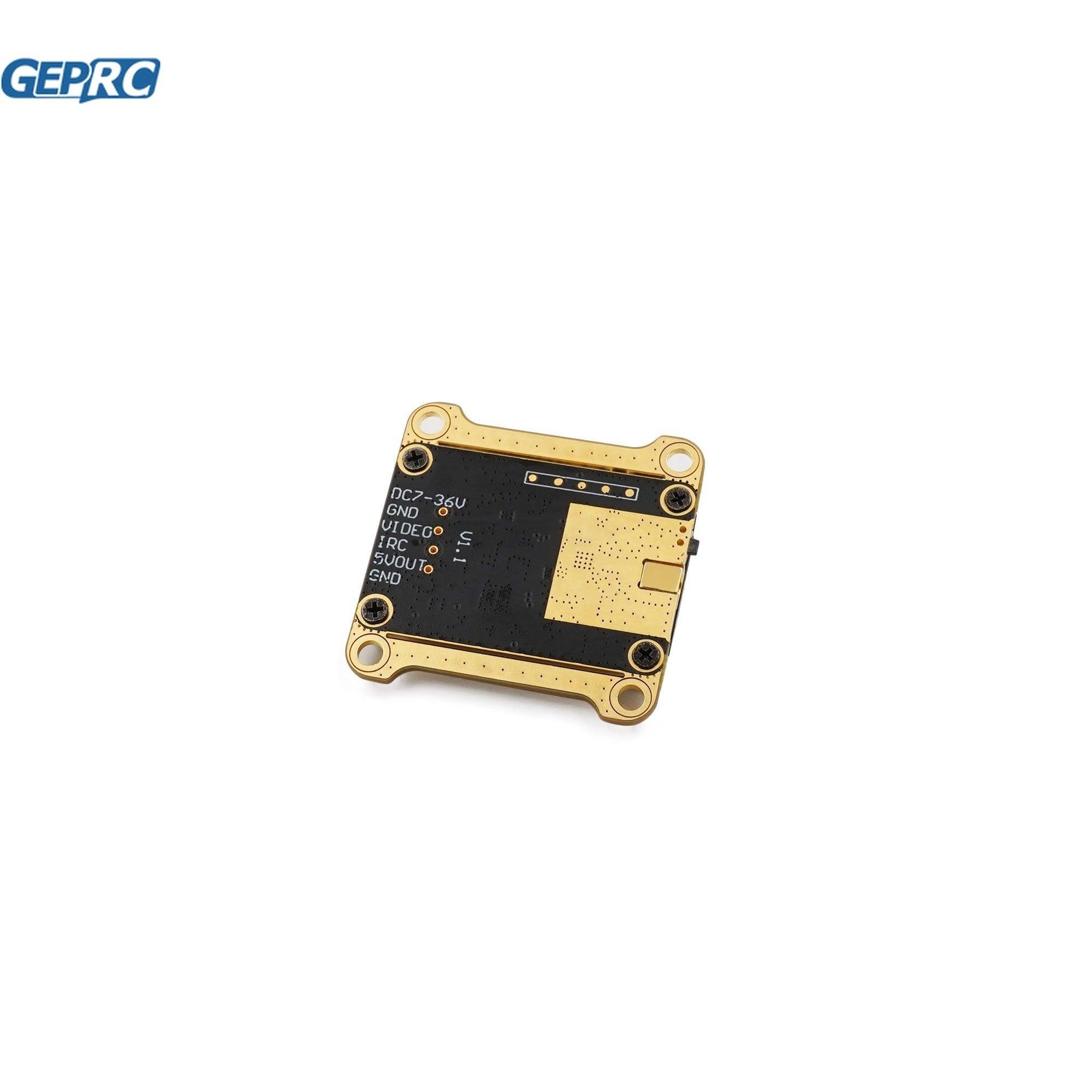

Connector definition description:

  • DC 7-36V: Input 2-8s Battery power

  • GND: Common ground wire

  • Video: connect to the video output port of FC or Camera

  • IRC: Connect to UART TX port of FC

  • 5V OUT: output 5V power to the Camera

  • GND: Common ground wire

Description of button and indicator light:

  • Two function button are parallel in the VTX circuit, and the operation and function are the same

  • Blue light: Ch indicator

  • Green light: Band indicator

  • Red light: Power indicator

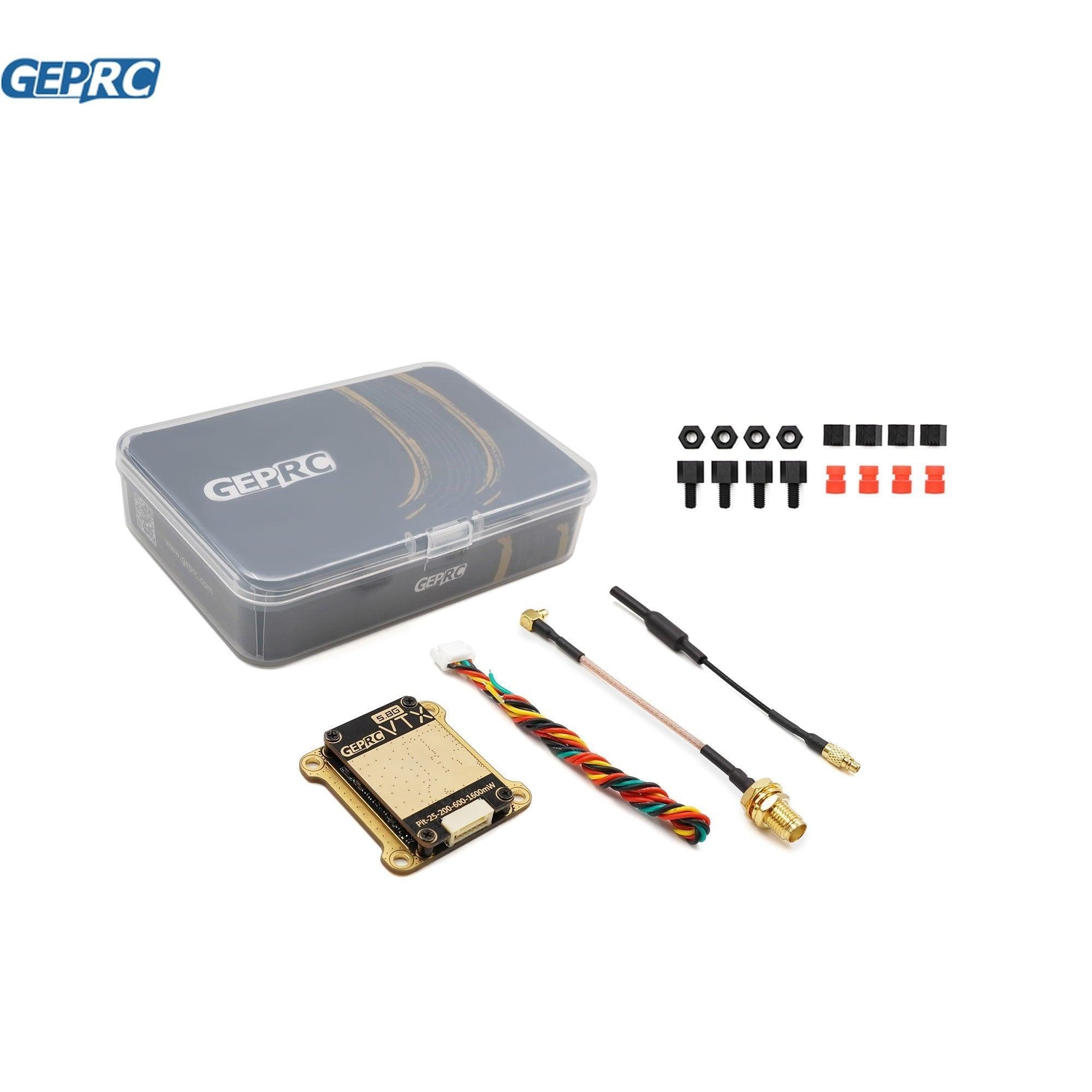

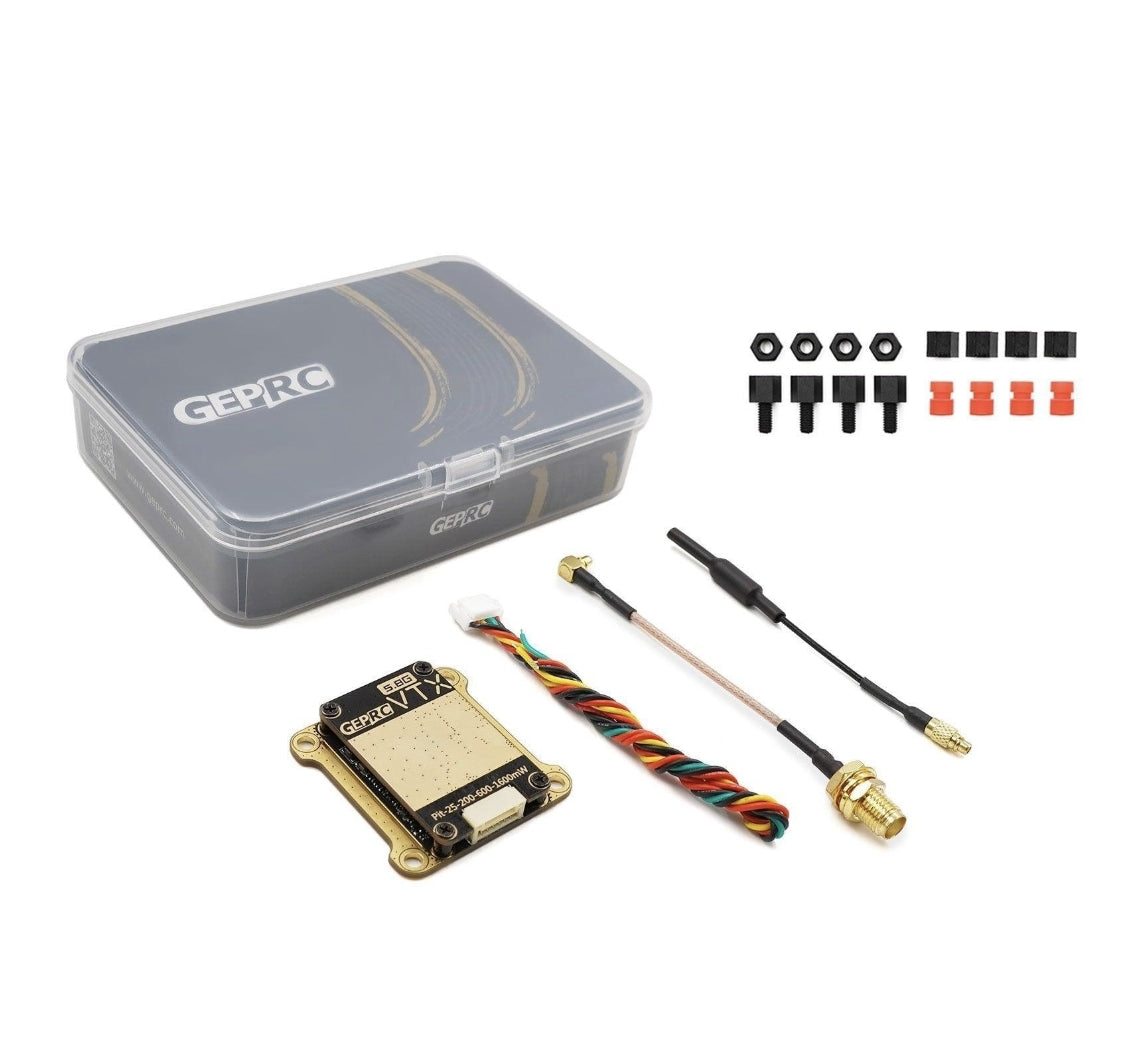

Includes:

  • 1 x GEPRC RAD VTX 5G8 1.6W

  • 1 x 72mm MMCX Copper tube antenna

  • 1 x GH 1.25*6P 150mm Connecting cable

  • 1 x MMCX to SMA（Internal foramen）connector

  • 1 x Matching screw package.

Size:

GEPRC RAD VTX - 5.8G 1.6W 40CH PGEPRC RAD VTX, to prevent overheating,provide constant airflow and a well ventilated environment

Include:

GEPRC RAD VTX, GERRO 65BG GEPRO 600-1G0OmW
GEPRC RAD VTX, two-layer board cooling structure,Separate power BEC and main-Bo
