AKK FX3-ultimate Transmitter - 5.8G 40CH 25/200/400/600mW Switchable Smart Audio FPV Transmitter Support OSD for RC Racing FPV Drone Quadcopter

AKK FX3-ultimate Transmitter - 5.8G 40CH 25/200/400/600mW Switchable Smart Audio FPV Transmitter Support OSD for RC Racing FPV Drone Quadcopter - Image 2

5.8GHZ Series, Drone Transmitter & Receiver

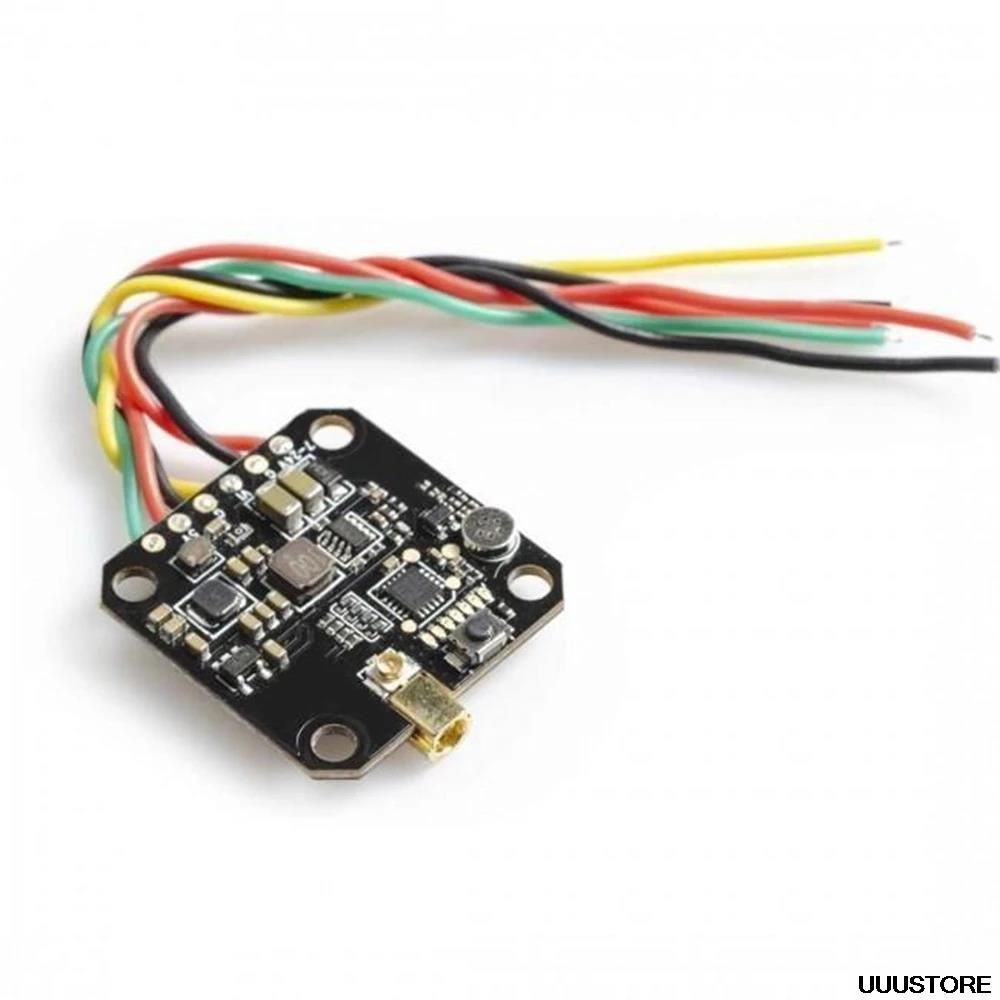

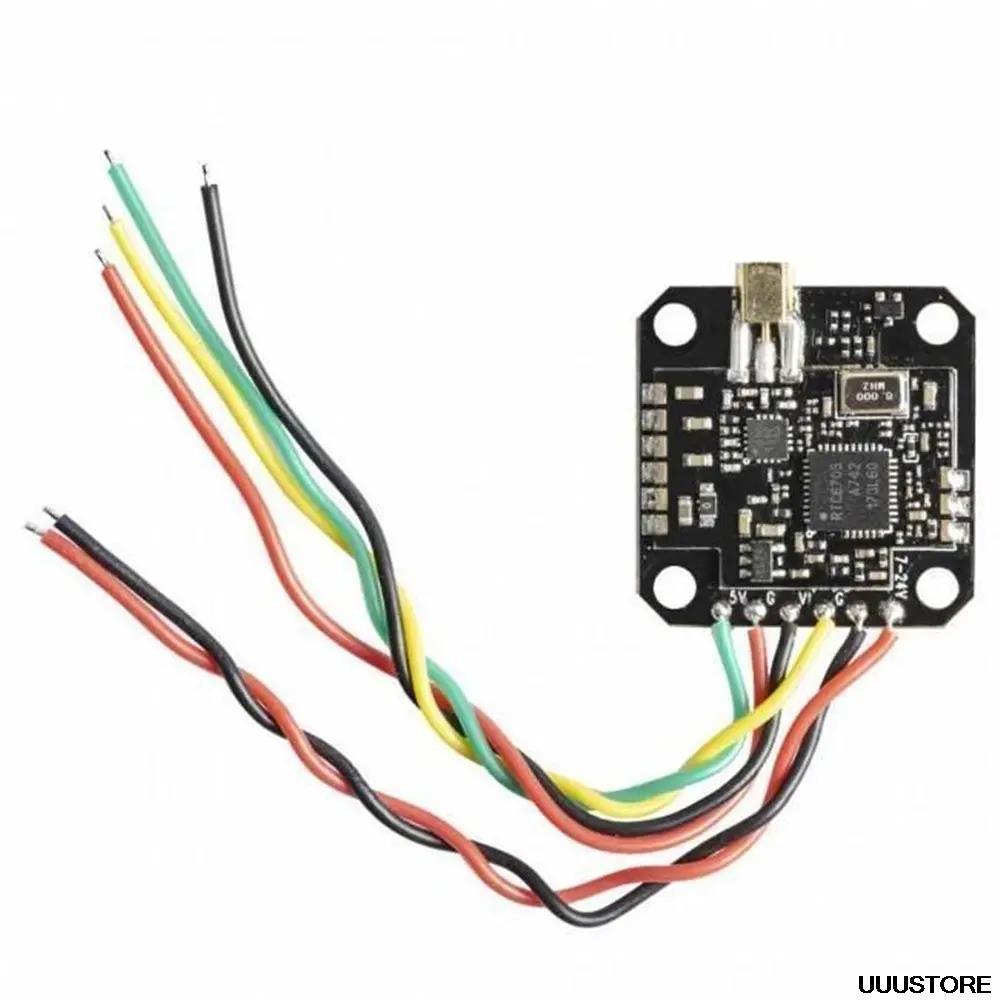

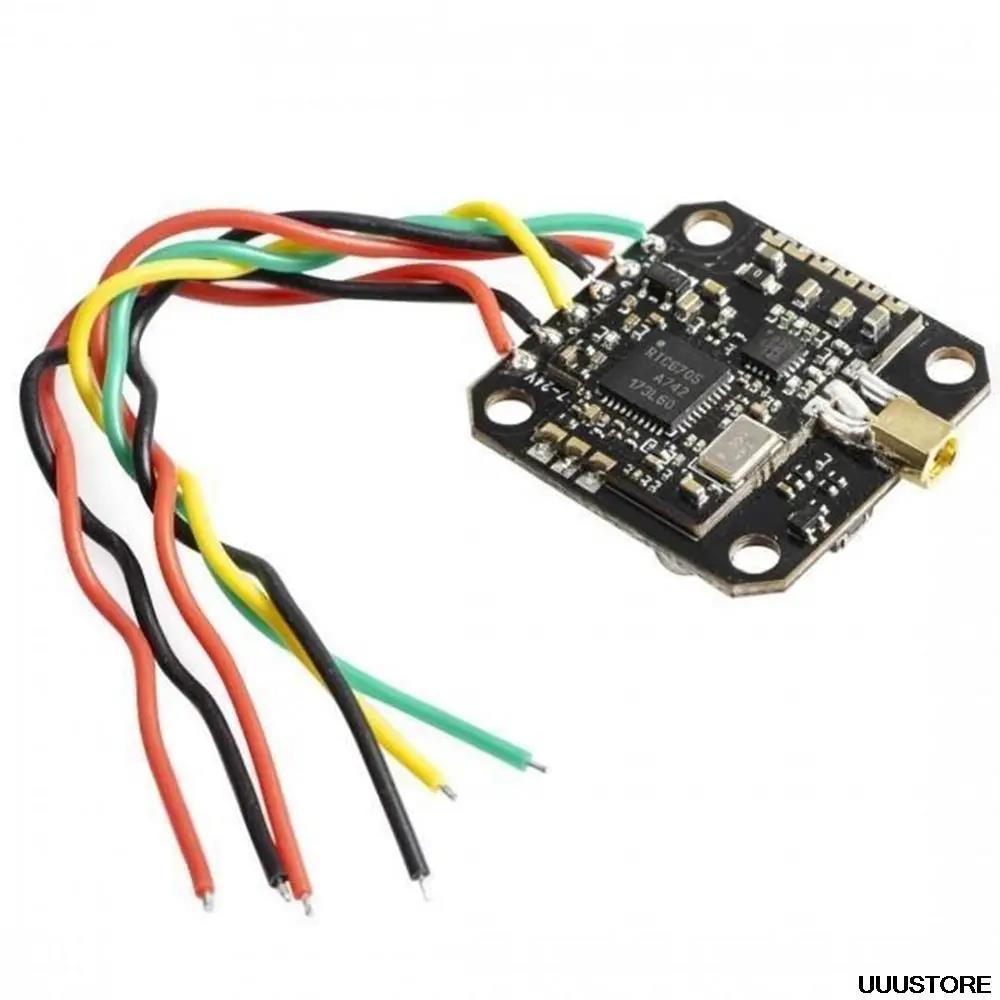

AKK FX3-ultimate Transmitter – 5.8G 40CH 25/200/400/600mW Switchable Smart Audio FPV Transmitter Support OSD for RC Racing FPV Drone Quadcopter

Name: AKK FX3-ultimate Transmitter - 5.8G 40CH 25/200/400/600mW Switchable Smart Audio FPV Transmitter Support OSD for RC Racing FPV Drone Quadcopter
SKU: 81648
Availability: InStock

Price range: $41.20 through $42.28

+ Free Shipping

SKU: N/A Categories: 5.8GHZ Series, Drone Transmitter & Receiver

Ask for more info

AKK FX3-ultimate Transmitter SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembled class

Technical parameters: Value 3

Size: As Description Show

Remote Control Peripherals/Devices: Battery

Recommend Age: 12+y

RC Parts & Accs: Transmitters

Quantity: 1 pcs

Origin: Mainland China

Model Number: AKK FX3-ultimat

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

AKK FX3-ultimate 5.8G 40CH 25/200/400/600mW Switchable Smart Audio FPV Transmitter Support OSD for RC FPV Racing Drone Quadcopter

Specification:

Input voltage: 7-24V

Extra feature: Smart Audio/MMCX+UFL connector,MIC

Power supply: 5v camera@under 0.3A max

Output power: 25mW:100mA/200mW:200mA/400mW:250mA/600mW:320mA@12v

Range: Up to 2km with omnidirectional RHCP antenna

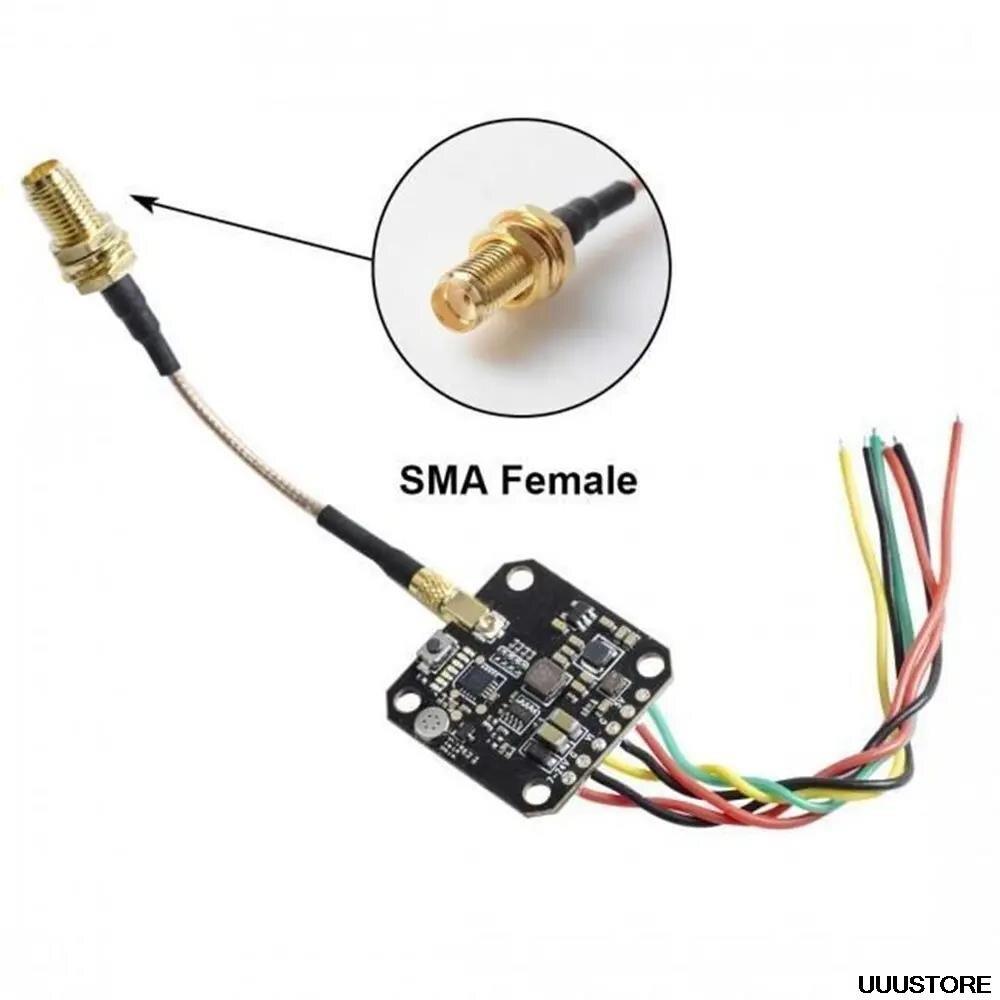

Antenna connector: MMCX/UFL

Port connector: Solder Pads

Dimensions: 26(W)x26(D)mm,20x20mm(hole)

Weight: 5.4g(excluding antenna)

Features:

Support Pit Mode

25mW, 200mW, 400mW and 600mW power switchable

One button frequency and power setup

OSD configuration using Smart audio

7-24V input with 5V output

MMCX+UFL connector

MIC

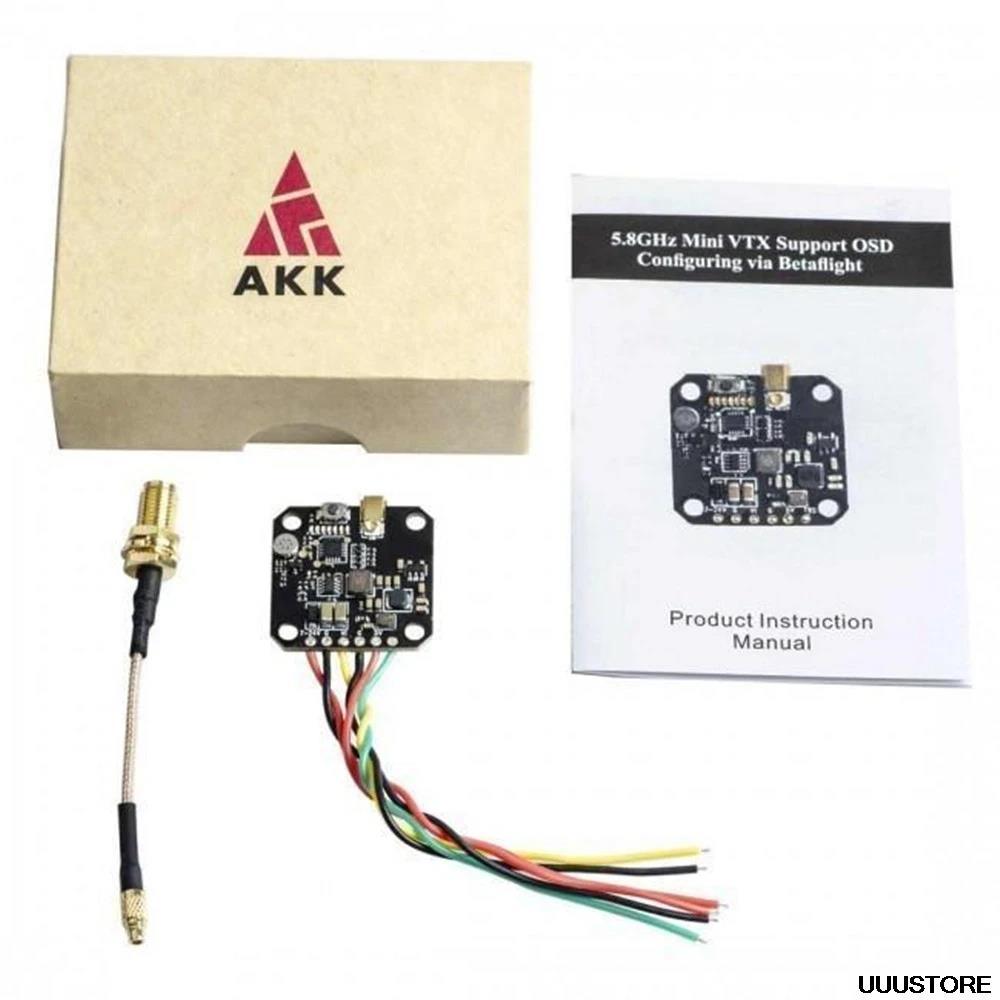

Package included:

1 x AKK FX3-ultimat 5.8G 40CH 25/200/400/600mW Switchable FPV Transmitter

1 x Cable

1 x MMCX pigtail

AKK FX3-ultimate Transmitter, AKK FX3-ultimate 5.8G 40CH 25/200/400

AKK FX3-ultimate Transmitter, 58GHz Mini VTX OSD Configuring via Betaflight AKK Product Instruction

58GHz Mini VTX OSD Configuring via Betaflight AKK Product Instruction Manual UUUSTORE

AKK FX3-ultimate Transmitter, AKK FX3-ultimate 5.8G 40CH 25/200/400

AKK FX3-ultimate Transmitter, AKK FX3-ultimate

5 Red LED for Band Blue LED lor CH Grcen LED for Powar MNCX Button UFL Microphono 20mm 26mm 3.Omm Smart audio 7-24V input- Sv output GND GND Video Specification Input vollage TV t0 24v Extra leatures Smart audio MMCX UFL connecior Mic Power supply Sv Camera @ under 0.3A max: 25mw; 1OOmA 200mW; 200mA60OmW: 320
