JX servo RD-B7640HV-180 - 8.4V 40kg.cm 180degree Brushless Full CNC Aluminium Hulls And Structure Robot Mechanical Arm Rc Robot servo
JX servo RD-B7640HV-180 - 8.4V 40kg.cm 180degree Brushless Full CNC Aluminium Hulls And Structure Robot Mechanical Arm Rc Robot servo - Image 2
JX servo RD-B7640HV-180 - 8.4V 40kg.cm 180degree Brushless Full CNC Aluminium Hulls And Structure Robot Mechanical Arm Rc Robot servo - Image 3
JX servo RD-B7640HV-180 - 8.4V 40kg.cm 180degree Brushless Full CNC Aluminium Hulls And Structure Robot Mechanical Arm Rc Robot servo - Image 4

JX servo RD-B7640HV-180 – 8.4V 40kg.cm 180degree Brushless Full CNC Aluminium Hulls And Structure Robot Mechanical Arm Rc Robot servo

$80.49

+ Free Shipping
RD-B7640HV-180
RD-B7640HV-180
Clear
SKU: N/A Category:
Ask for more info

JX servo RD-B7640HV-180 SPECIFICATIONS

Origin: Mainland China

Material: Metal

Use: Vehicles & Remote Control Toys

– High performance robot servo
– High-precision metal gears with hard anodizing
– Full CNC aluminium hulls and structure
– High quality brushless motor
– Dual ball bearings
Product Details
Dead band: 2μs
Neutral point: 1500μs
Pulse width：500μs-2500μs
Motor: Brushless
Max angle：180°±2°
Frequence: 330hz
Operating Voltage：5.0V/7.2V/8.4V
Speed(5.0V/7.2V/8.4V): 0.15/0.13/0.11sec/60°
Stall torque(5.0V/7.2V/8.4V): 33/35/40 kg.cm

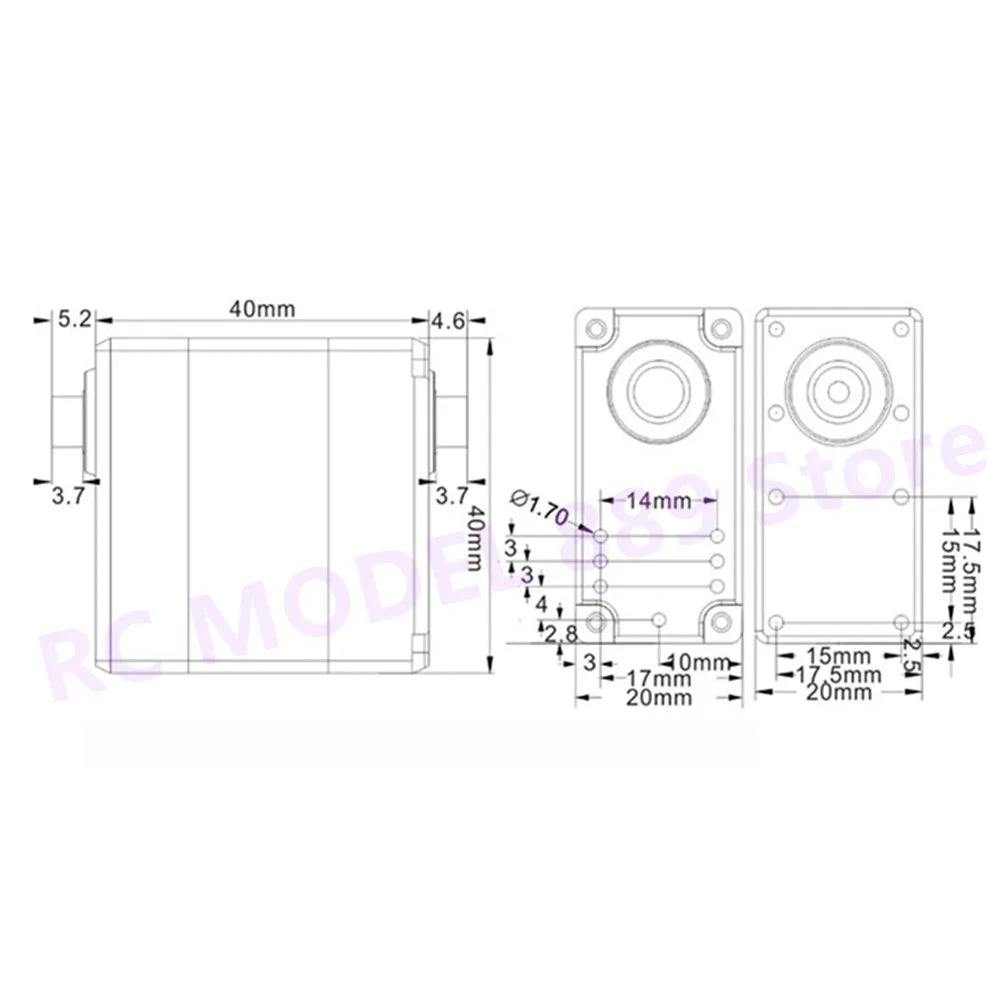

Demension: 40X20X40mm
Weight:  76 g
Connector Wire Length: JR  265mm
Spline Count: 25T
JX servo, Slo Ao-87640Hv-180 40k62 bigital BrushLESS AJX servo, Velonm ErUshless 027dC5' cm ov0JX servo, JJNS Serv- Ad-B7640hV-180 40k6_JX servo RD-B7640HV-180 SPECIFIC

Color

RD-B7640HV-180
