Description:

Brand: JX Servo

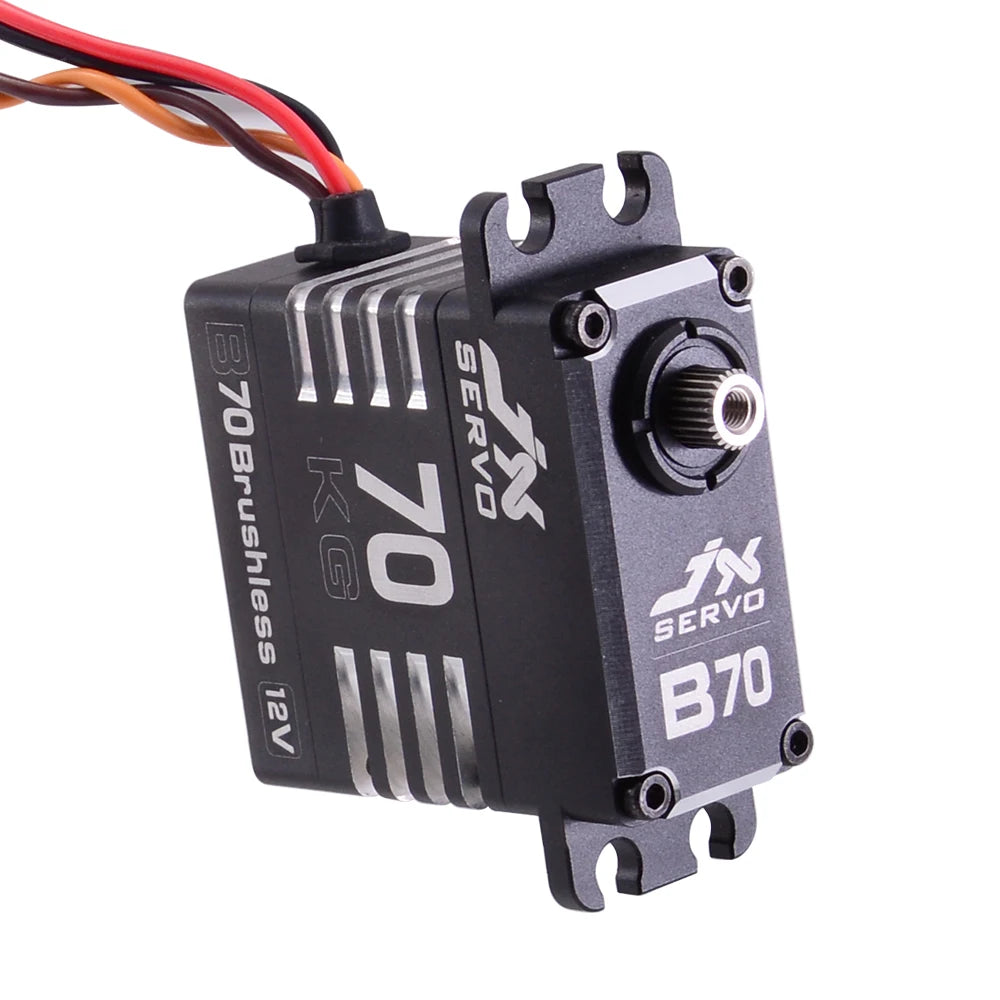

Item: B70 Digital Servo
Voltage Scope: 11.1V-15V
PPS Width: 1000-2000μs=90°
PPS Width: 500-2500μs=180°
Dead Band: 2μs 1520μs / 330hz
Motor: Coreless Motor
Operating Speed (11.1V): 0.12sec/60°
Operating Speed (12.0V): 0.10sec/60°
Stall Torque (11.1V): 61 kg.cm
Stall Torque (12.0V): 72kg.cm
Connector Wire Length: JR 265 mm
Bearing: 2BB
Weight: 87g
Dimensions: 40X20X43.3mm
Application: For RC Cars, Trucks, Helicopters.

Package:

1X JX Servo B70 Digital Servo
1X Servo Arm Set

We can build servos with features like these and more!

Torque ranging from 2kg*cm to 700kg*cm
Travel speeds from 0.03s to 0.5s
Travel angles: from 40deg to 360deg
Communication protocols such as TTL. RS232, i2C, RS485 or PWM
Servo positioning and current feedback
Gear materials from plastics to titanium
Voltage ranges are also customizable from 4.8v to 28v
Size, Shape and design can be customized to your needs
A variety or motor options such as brushed, coreless & brushless
We can offer Potentiometer or magnetic induction control

Potential Applications.

1. Electric lock (anti-heft door lock servo)
2. Luggage case lock servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Smart lamp Switch Servo
6. Camera gimbal control servo
7. UAV heavy duty servo
8. Servo Release Servo Drop
9. Curtain Servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Car window winding servo
15. Medical equipment servo
16. safety lock servo
17. Robot servo
18. Wheel servo
19. Robot arm servo
