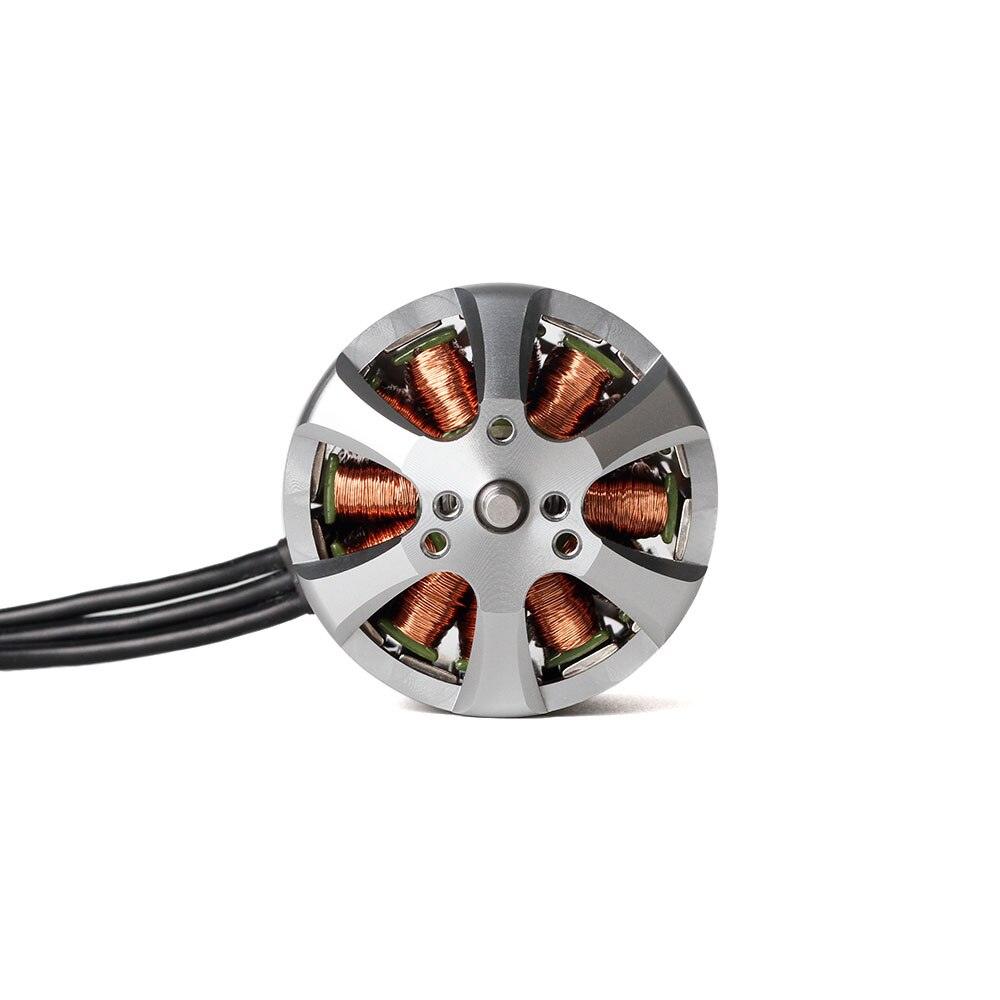

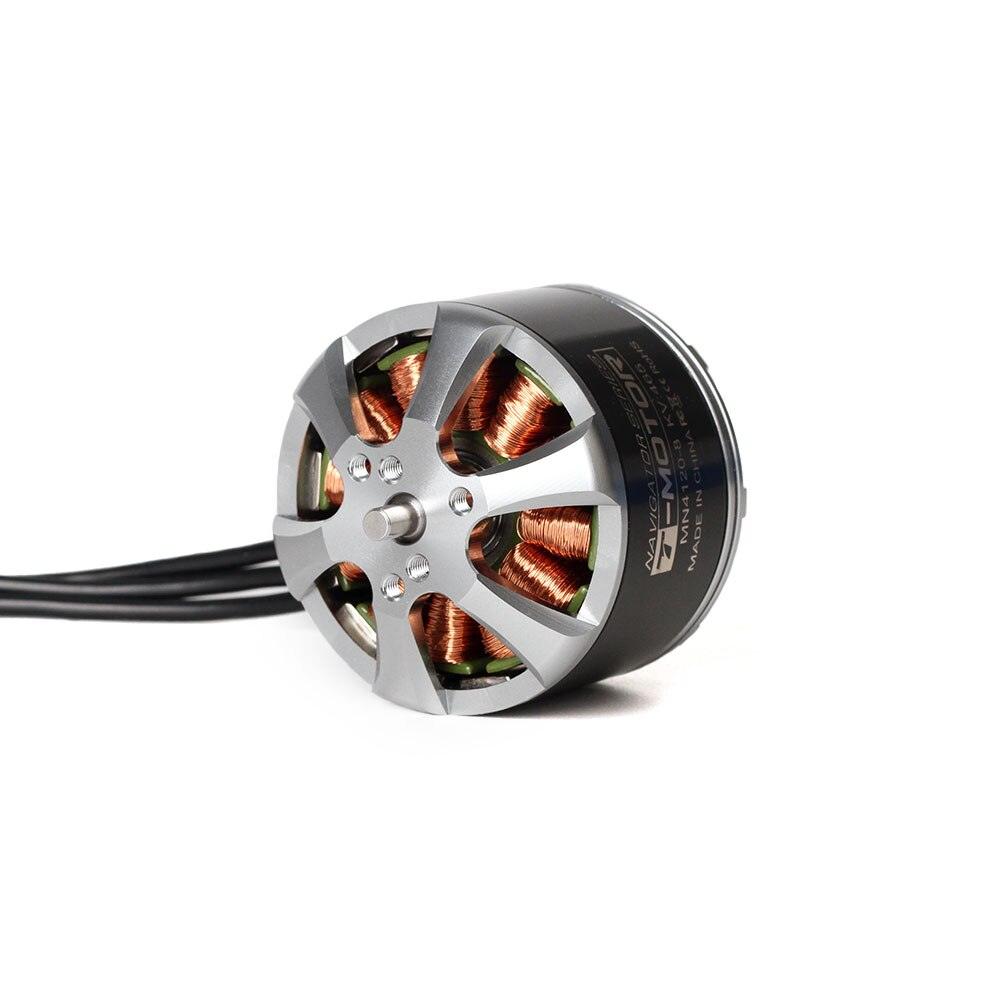

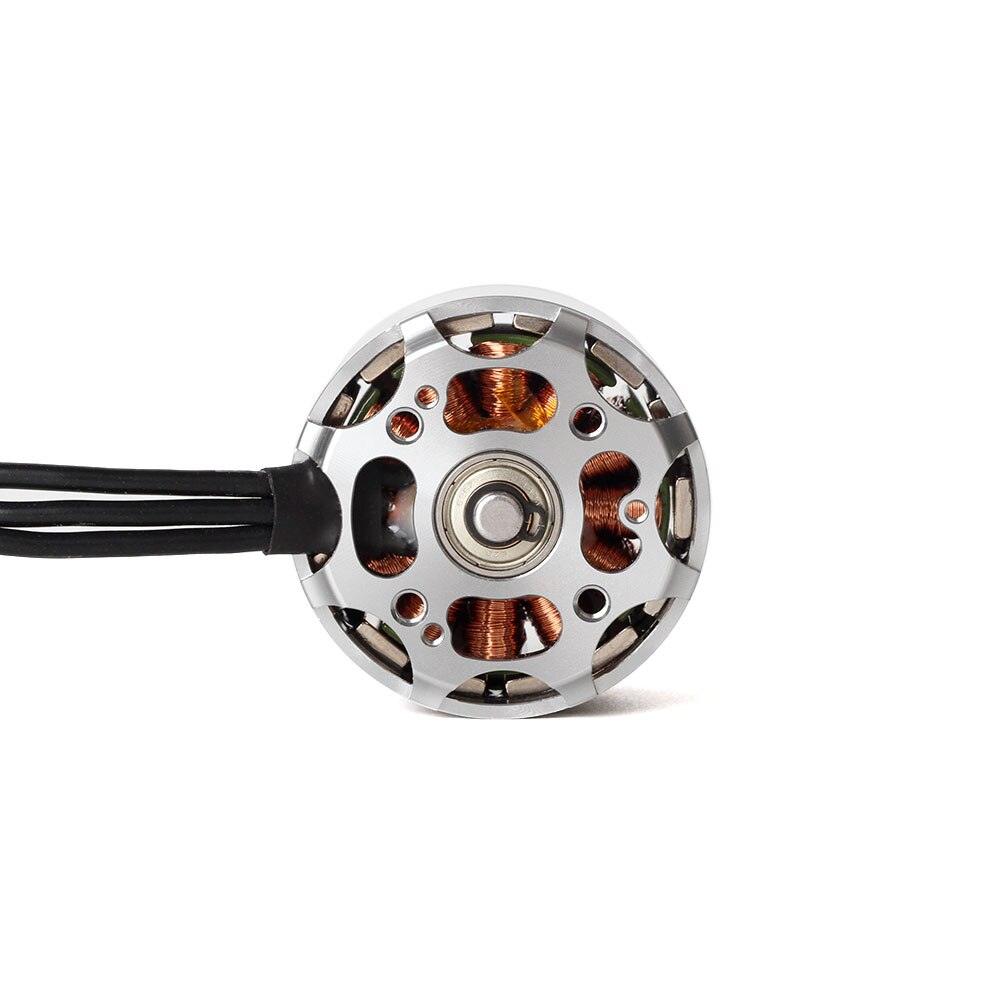

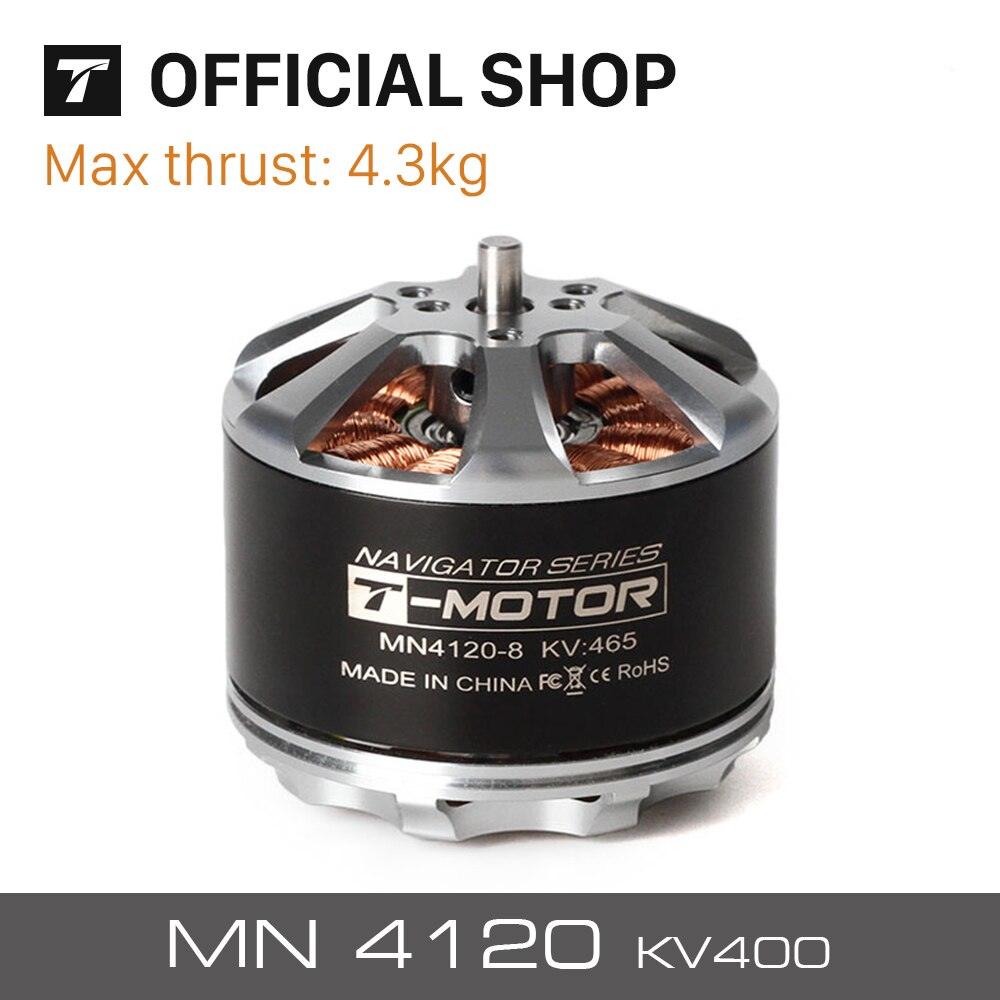

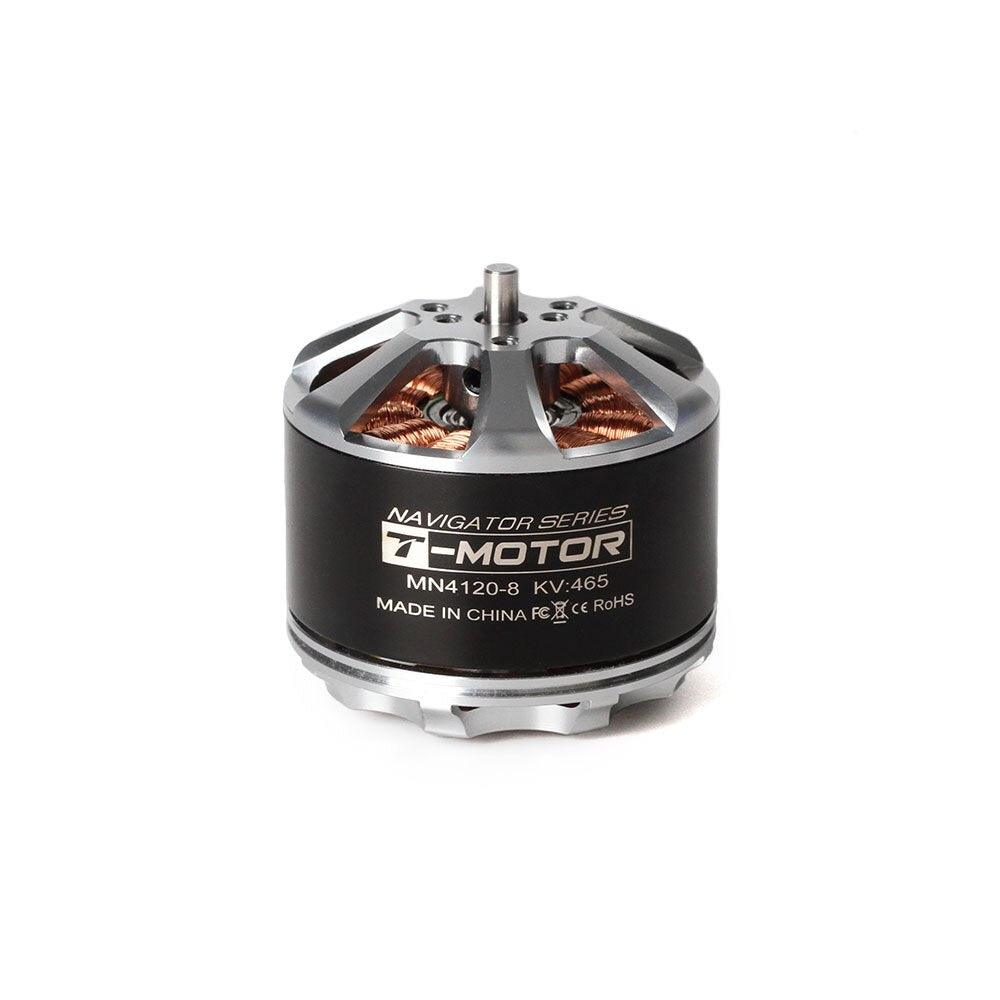

T-motor MN4120 KV400 Brushless Motor Max Thrust 4.3KG for RC Helicopters Drone
T-motor MN4120 KV400 Brushless Motor Max Thrust 4.3KG for RC Helicopters Drone - Image 2
T-motor MN4120 KV400 Brushless Motor Max Thrust 4.3KG for RC Helicopters Drone - Image 3
T-motor MN4120 KV400 Brushless Motor Max Thrust 4.3KG for RC Helicopters Drone - Image 4
T-motor MN4120 KV400 Brushless Motor Max Thrust 4.3KG for RC Helicopters Drone - Image 5

T-motor MN4120 KV400 Brushless Motor Max Thrust 4.3KG for RC Helicopters Drone

$182.03

+ Free Shipping
Default Title
Default Title
Clear
SKU: N/A Category:
Ask for more info

T-motor MN4120 KV400 Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: MN4120 KV400

Material: Metal

For Vehicle Type: Helicopters

Brand Name: T-MOTOR

T-motor, MGTOR PAOpeortetete SIPO @Rmix;*KxT-motor, MN4120 AX4120 is designed for the airplane with heavy weight and bad thermalT-motor, MN4120 is te best choice for the heavy lifling load commercialT-motor, Vs Assemble way for the prop AXi NAcMGTOR pantT-motor, 'S31u10u !uu0 AXl4120 0T-motor, MN4120 installation of M6 prop adapter matching M6T-motor, Installation of M8 prop adapter matching M8Included a flat cover for the TedOTe T-motor flat CF prop EdMatch up T-motor 6mm CCW prop adapter for better flying performance Better flying performanceT-motor MN4120 KVT-motor, MN4120 KV400 Brushless Motor SPECIFICATIONS Use :T-motor, Compared with the loose winding motor; the instant current would be lower 15% and the loadT-motor, Standard 30*30 mm mounting hole -5-3 mounting hole for DJI S800 pointT-motor, t3 MN serise box Perfecting packing MOTOR 1 T-MoT-motor, efficiency current............................................................(10-30A)>84% internal resistance................................

Specifications:

KV…………………………………………………………………………………………………400
Configu ration………………………………………………………………………..12N14P
Stator Diameter………………………………………………………………………..41mm
Stator Length……………………………………………………………………………20mm
Shaft Diameter……………………………………………………………………………4mm
Motor Dimensions(Dia.*Len)………………………………………..Φ49.7×42mm
Weight (g)…………………………………………………………………………………….253g
ldle current(10)@10v(A)………………………………………………………………..1.2A
No.of Cells(Lipo)………………………………………………………………………….4-8S
Max Continuous current(A)180S……………………………………………………47A
Max Continuous Power(W)180S………………………………………………1050W

Max. efficiency current……………………………………………………(10-30A)>84%
internal resistance……………………………………………………………………..30ohm

T-motor, 253g ldle current(10)@10v(A)........................................
