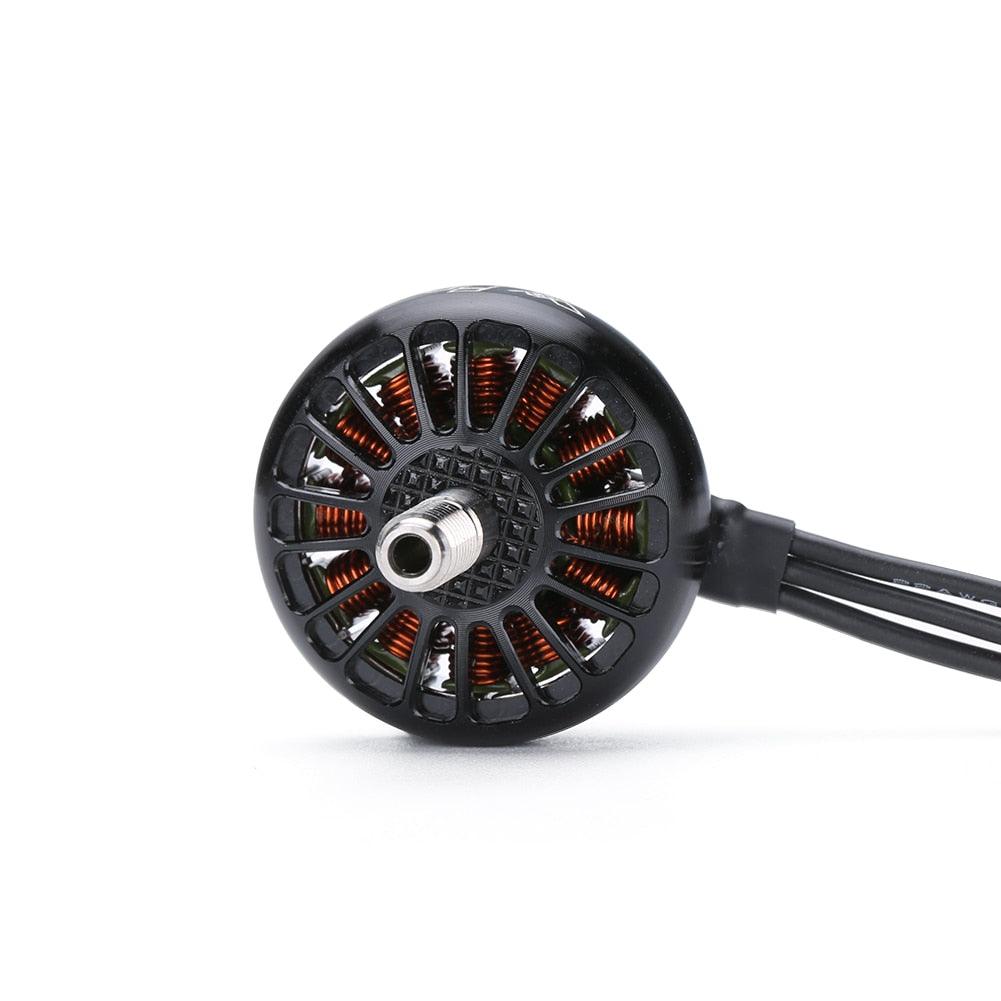

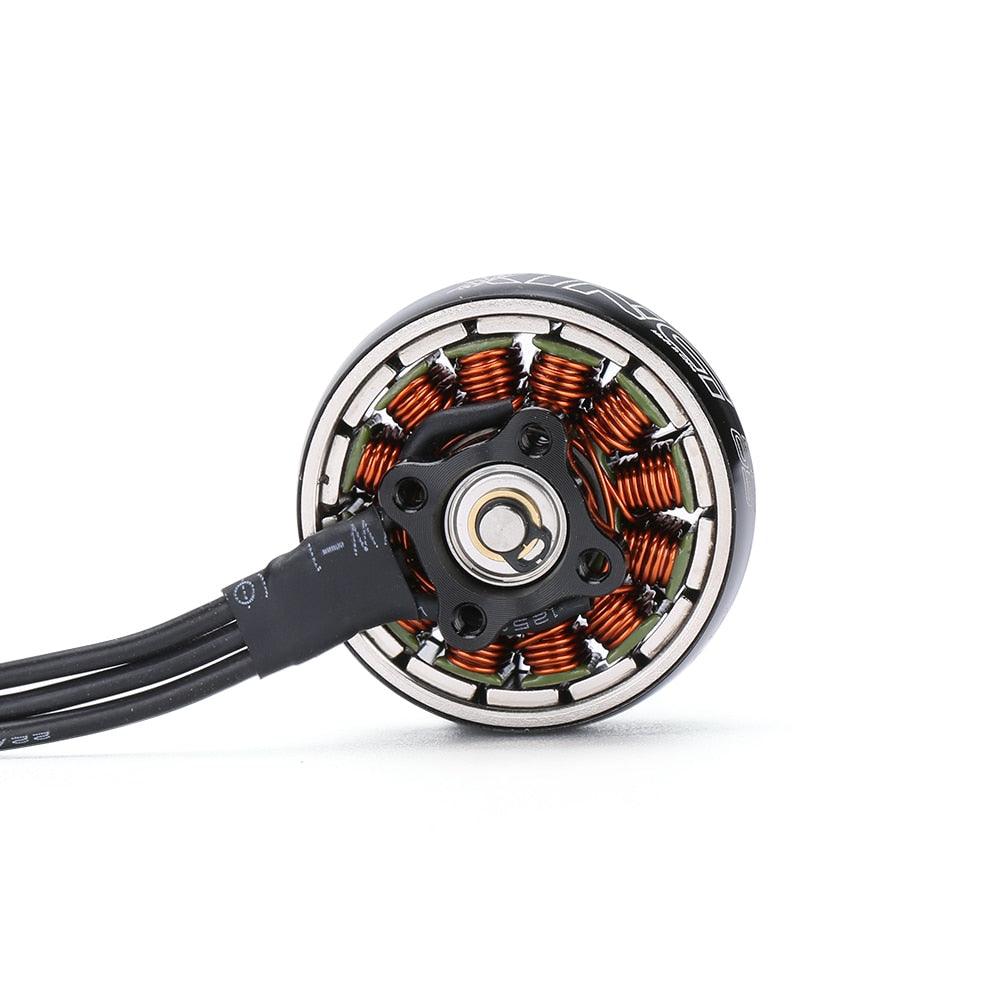

iFlight XING 2205 2300KV / 3200KV 4-6S FPV NextGen Motor black with 12*12mm/M2 mounting hole for FPV parts
iFlight XING 2205 2300KV / 3200KV 4-6S FPV NextGen Motor black with 12*12mm/M2 mounting hole for FPV parts - Image 2
iFlight XING 2205 2300KV / 3200KV 4-6S FPV NextGen Motor black with 12*12mm/M2 mounting hole for FPV parts - Image 3
iFlight XING 2205 2300KV / 3200KV 4-6S FPV NextGen Motor black with 12*12mm/M2 mounting hole for FPV parts - Image 4
iFlight XING 2205 2300KV / 3200KV 4-6S FPV NextGen Motor black with 12*12mm/M2 mounting hole for FPV parts - Image 5
iFlight XING 2205 2300KV / 3200KV 4-6S FPV NextGen Motor black with 12*12mm/M2 mounting hole for FPV parts - Image 6

iFlight XING 2205 2300KV / 3200KV 4-6S FPV NextGen Motor black with 12*12mm/M2 mounting hole for FPV parts

Price range: $24.17 through $83.93

+ Free Shipping
4pcs 3200KV
1pc 3200KV
4pcs 2300KV
1pc 2300KV
4pcs 3200KV1pc 3200KV4pcs 2300KV1pc 2300KV
Clear
SKU: N/A Category:
Ask for more info

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Cutting

Technical parameters: Value 2

Size: 28.6×29.55mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: XING 2205

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description：

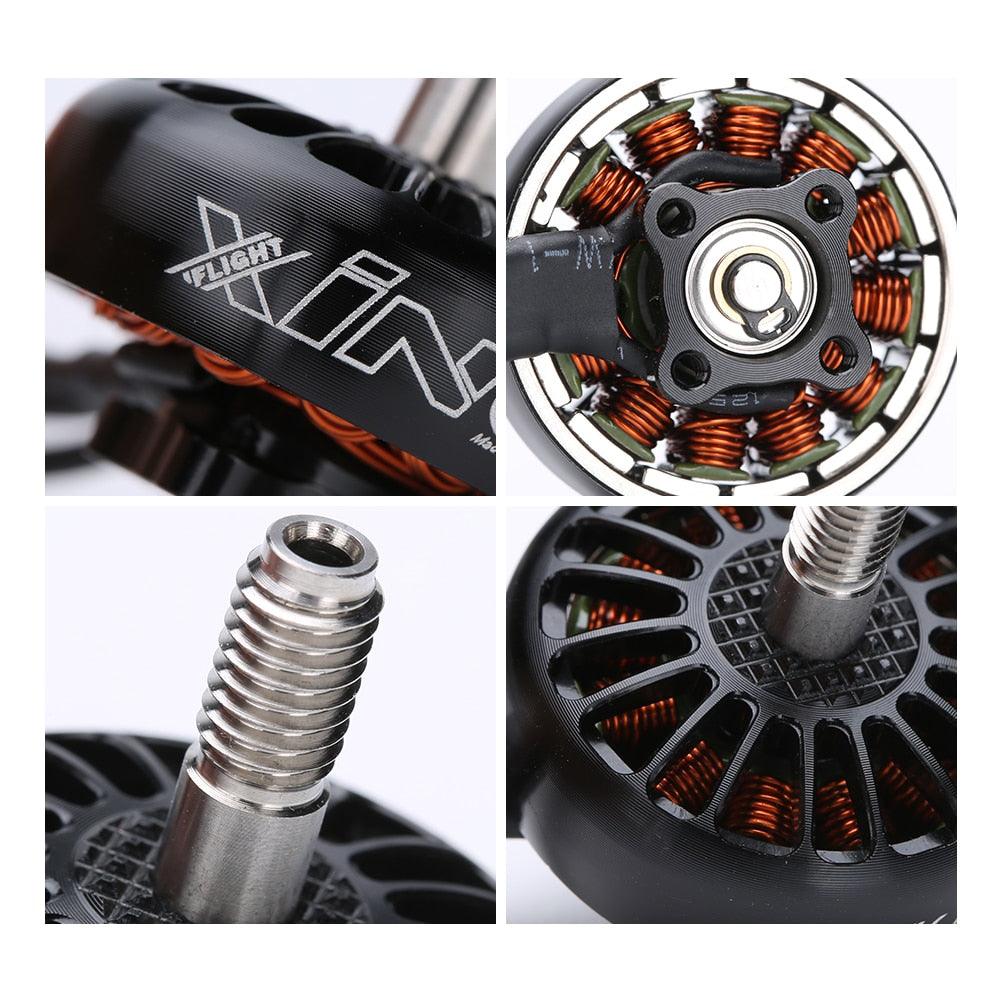

Features:

  • High-strength 5mm Steel shaft

  • Japanese NSK φ8*φ3*4 bearings

  • N52H curved magnets

  • Motor wires protected

  • Dynamically balanced

Specification

  • Model: XING 2205

  • KV: 2300KV / 3200KV

  • Input Voltage: 6S/4S Lipo

  • Configuration: 12N14P

  • Stator Diameter: 22mm

  • Stator Length: 5mm

  • Weight: 65.5g with short wire

  • Bottom Mounting pattern:12*12mm/M2

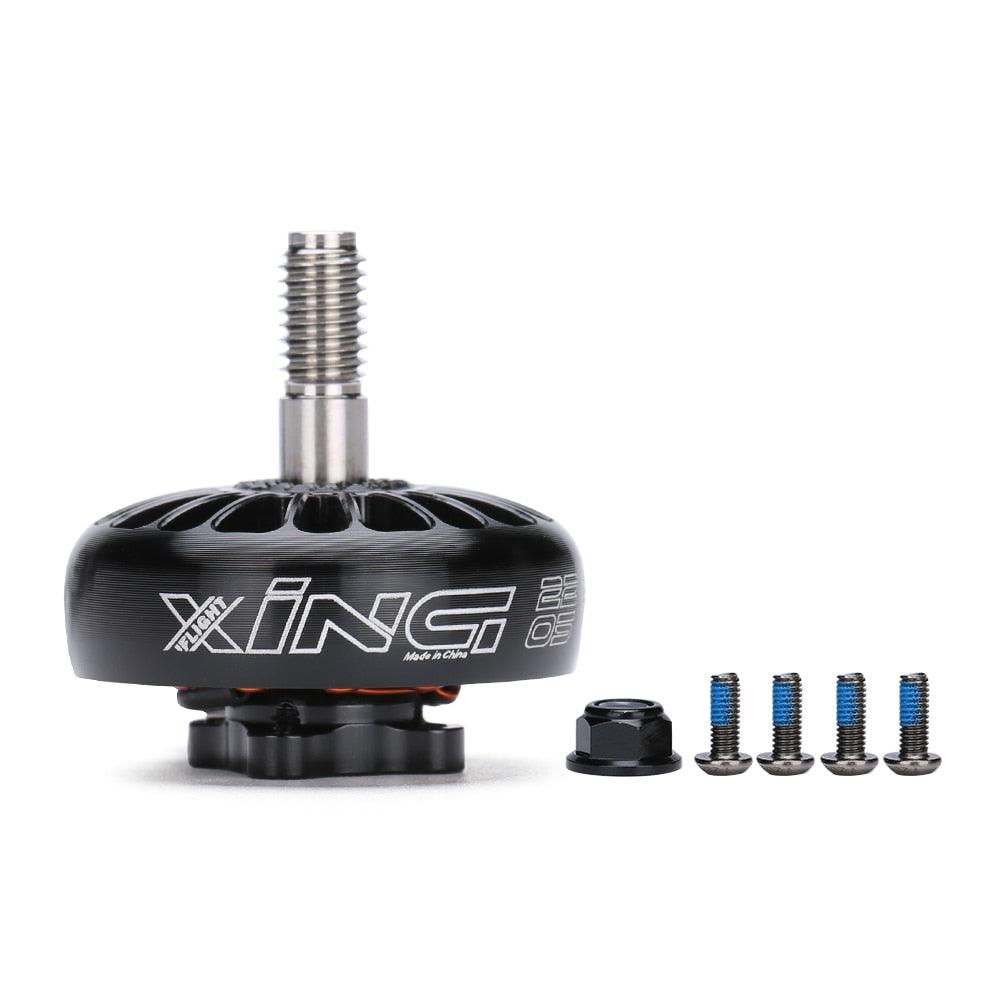

Package includes:

  • 1x XING 2205 FPV NextGen Motor black

  • 4x M2*6mm screws

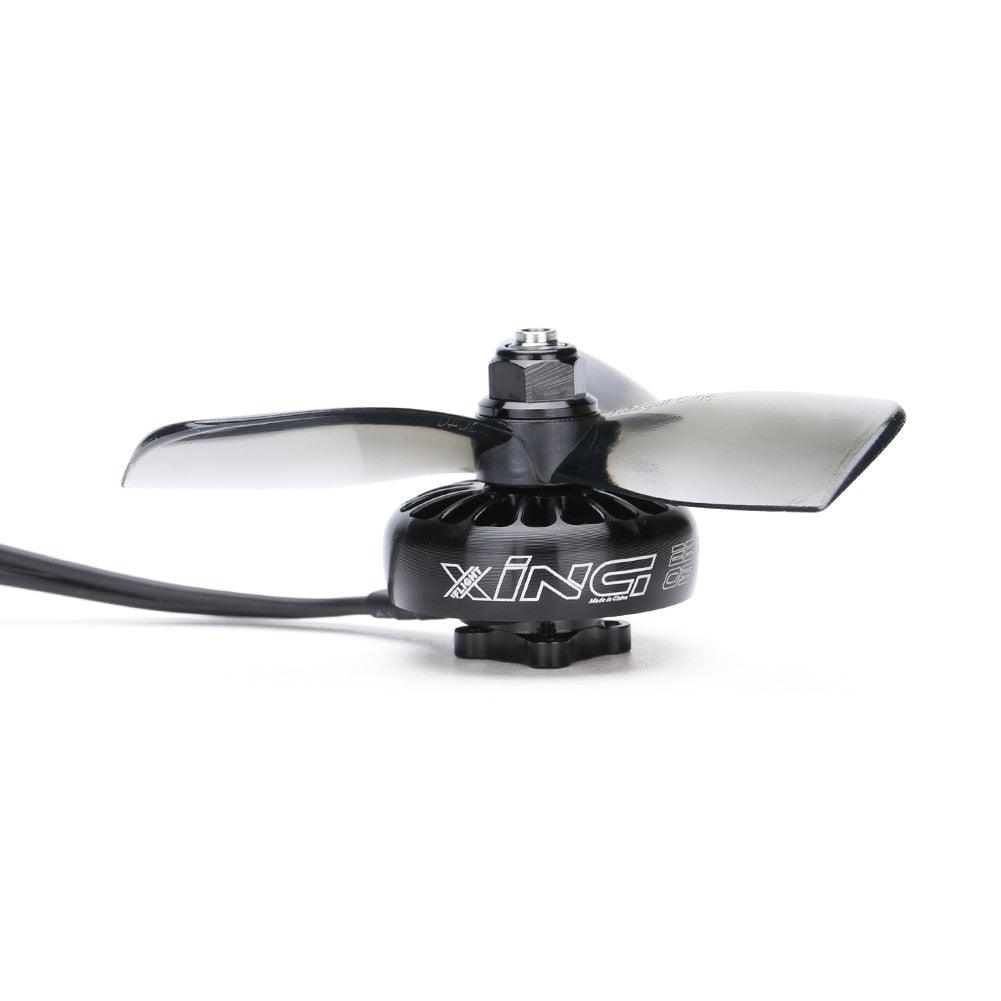

NOTE: propeller does not include.

6*29.55mm Dimension(Dia.*Len) Weight(g) 13

iFlight 2205-2300KV Technical Datas 6*29.55mm Dimension(Dia.*Len) Weight(g) 13g Idle 41.35 3739 current(10)@1OV(A) Noof Cells(Lipe) 4-6S Max Continuous 451.33 W Power(W)6OS Internal Resistance 72.41mQ Max Current(60S) 17.91A M2 Prop inch Voltages ( V Throttle Load Currency Efficiencylg/|

XING 2205 FPV NextGen Motor black 4x M2*6mm

Color

4pcs 3200KV, 1pc 3200KV, 4pcs 2300KV, 1pc 2300KV
