SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Tool Supplies: Assembly Category
Size: 1 inch
Remote Control Peripherals/Devices: Motor
Recommend Age: 12+y
Recommend Age: 14+y
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: 1350KV, 1850KV, 2450kv, GR2306.5, Motors
Material: Metal
Four-wheel Drive Attributes: Motors
For Vehicle Type: Helicopters
Brand Name: GEPRC
Specifications:
-

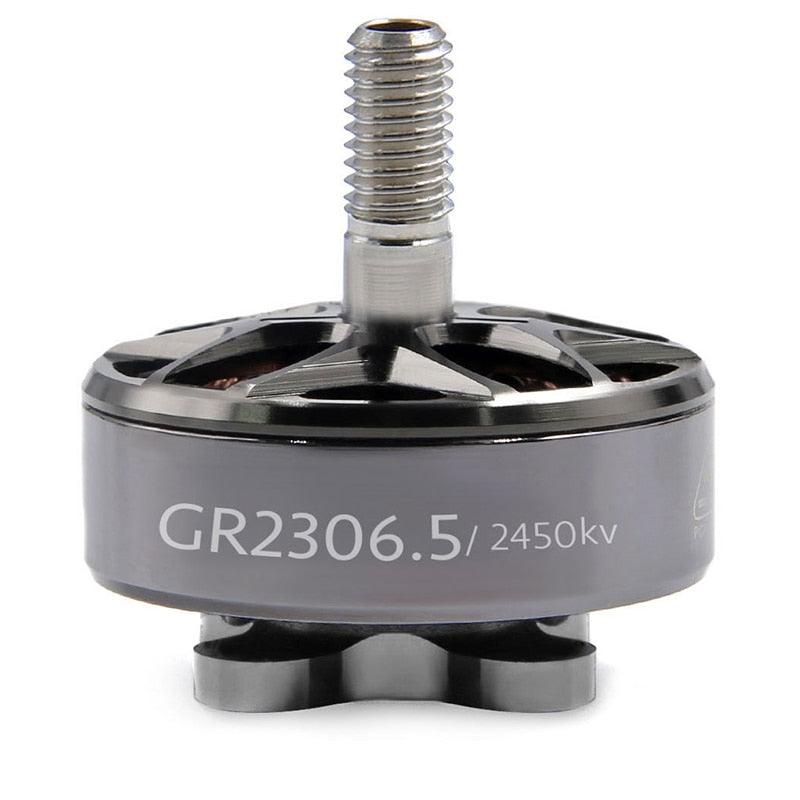

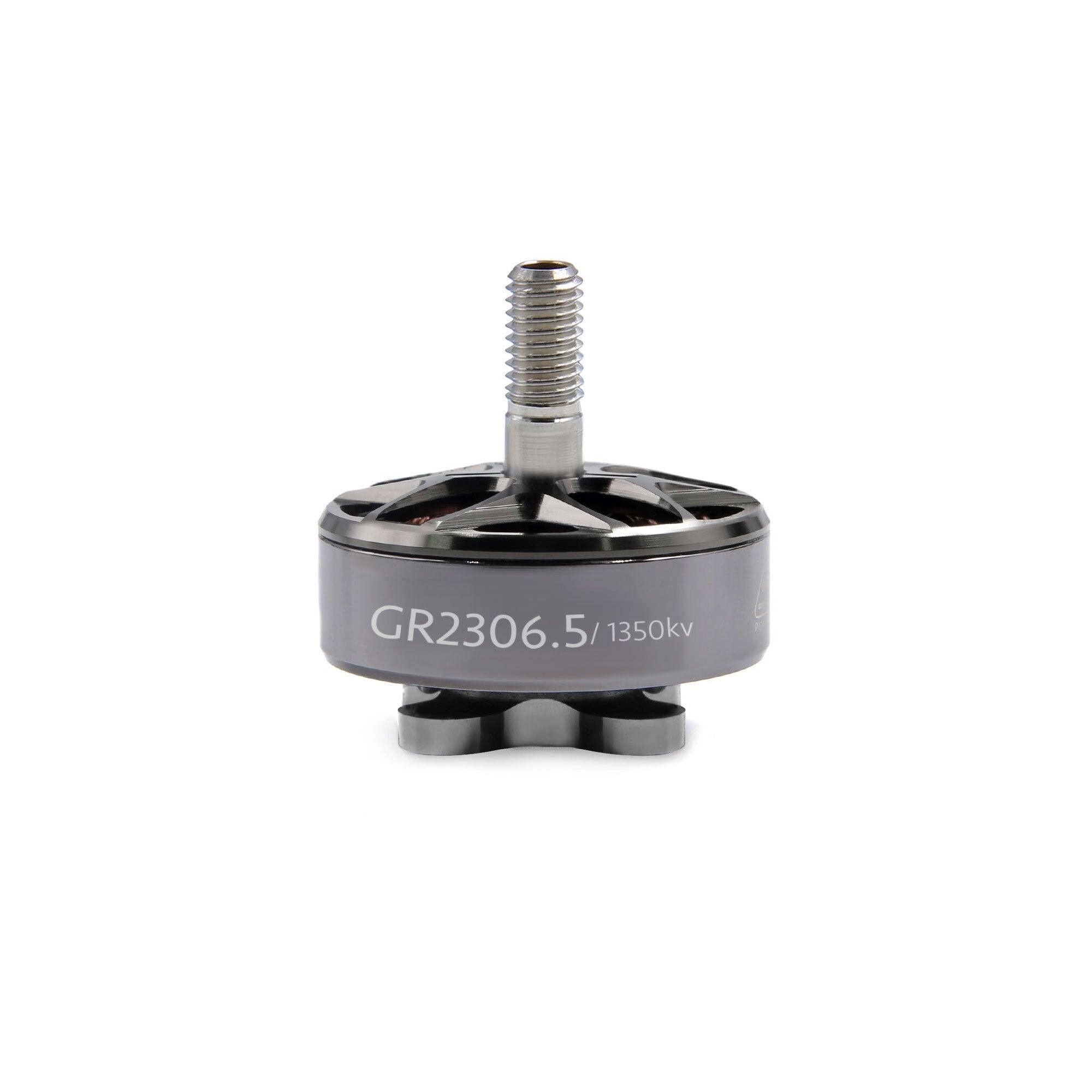

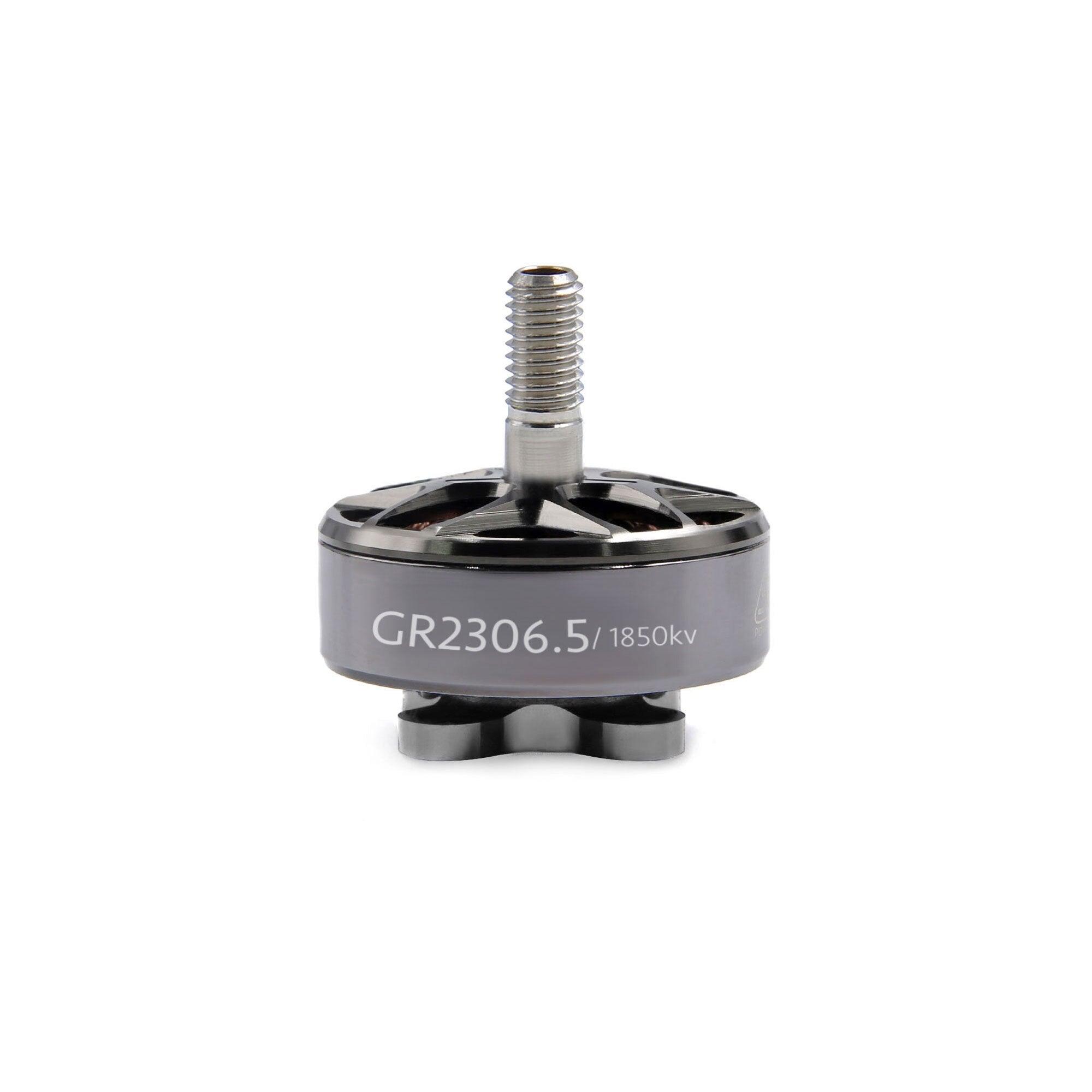

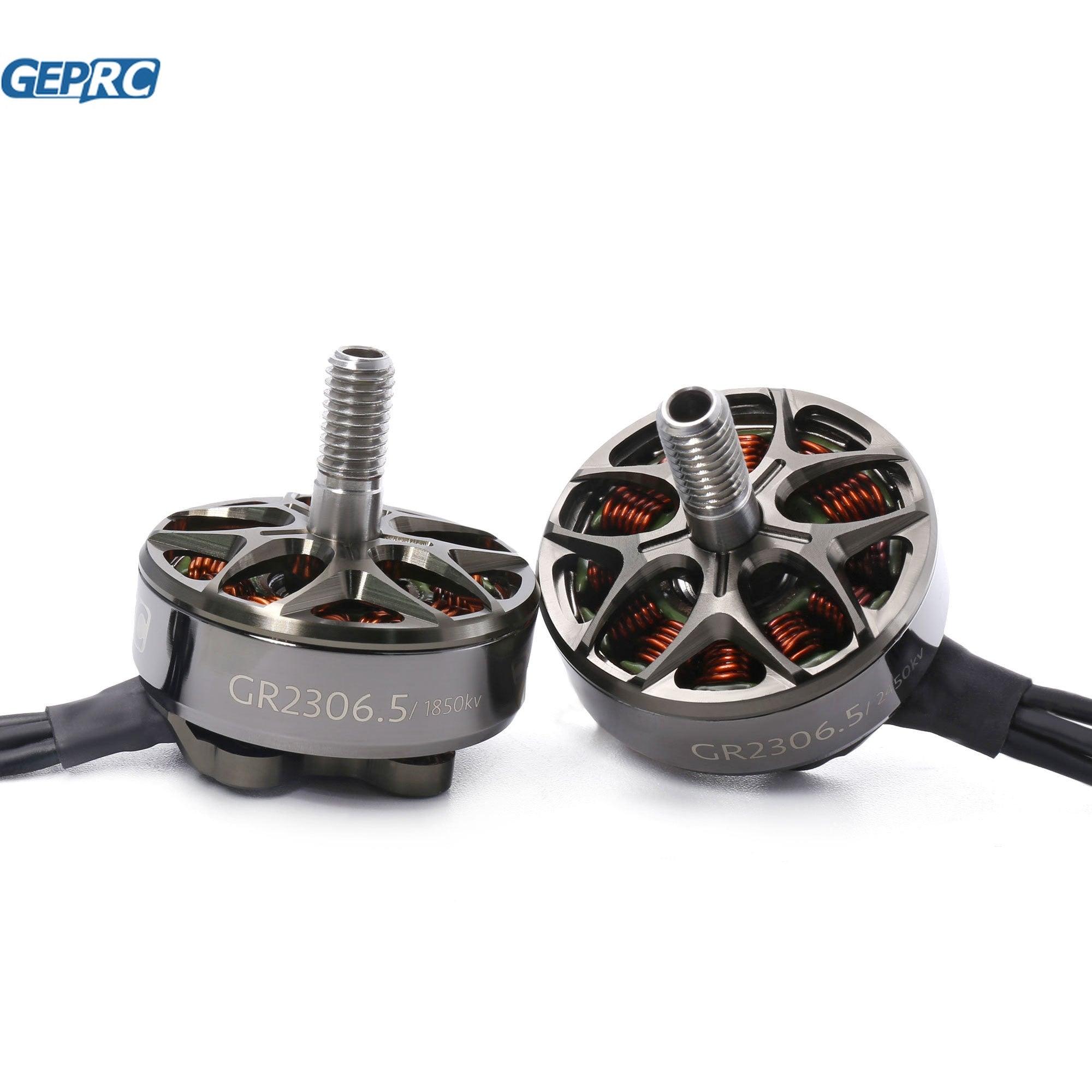

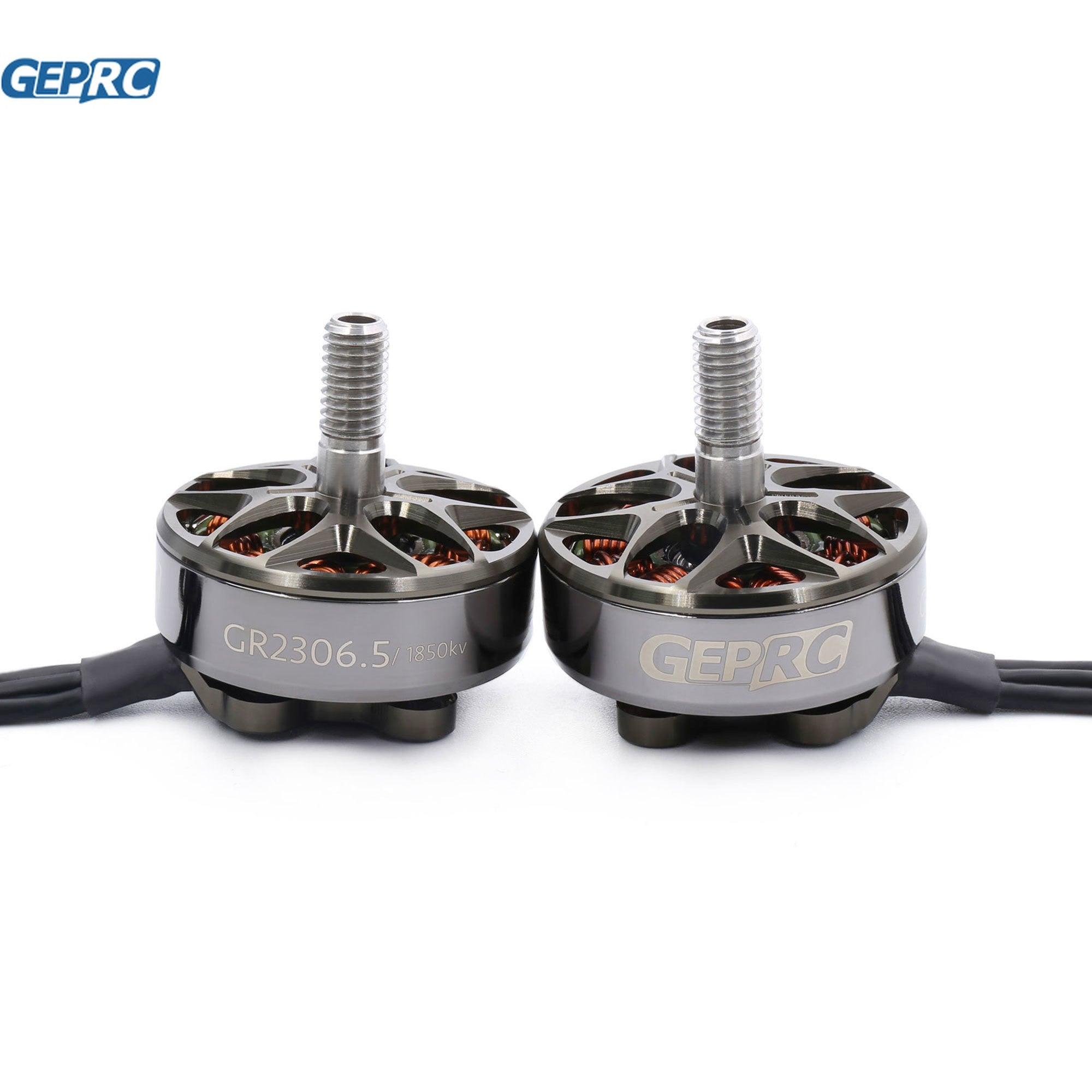

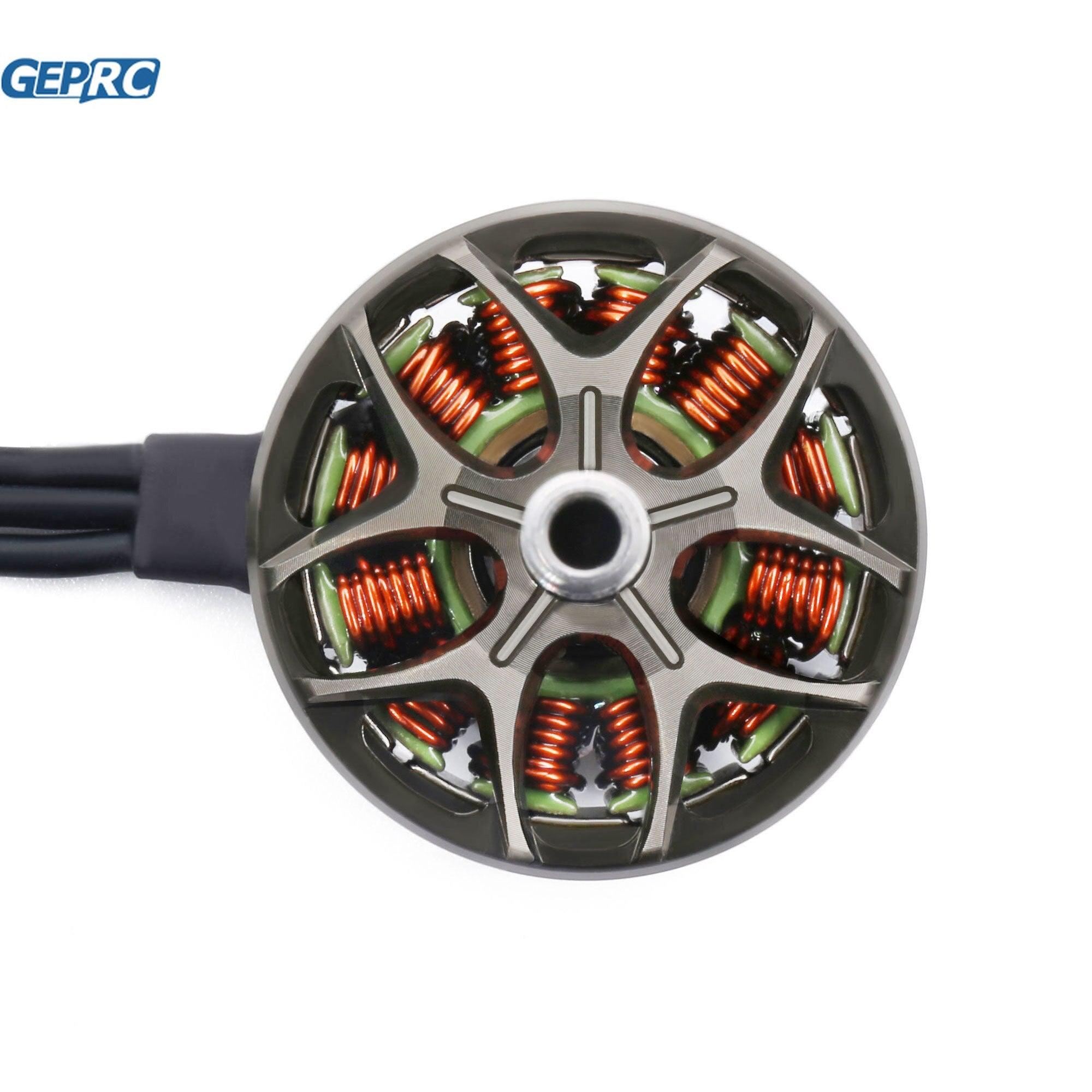

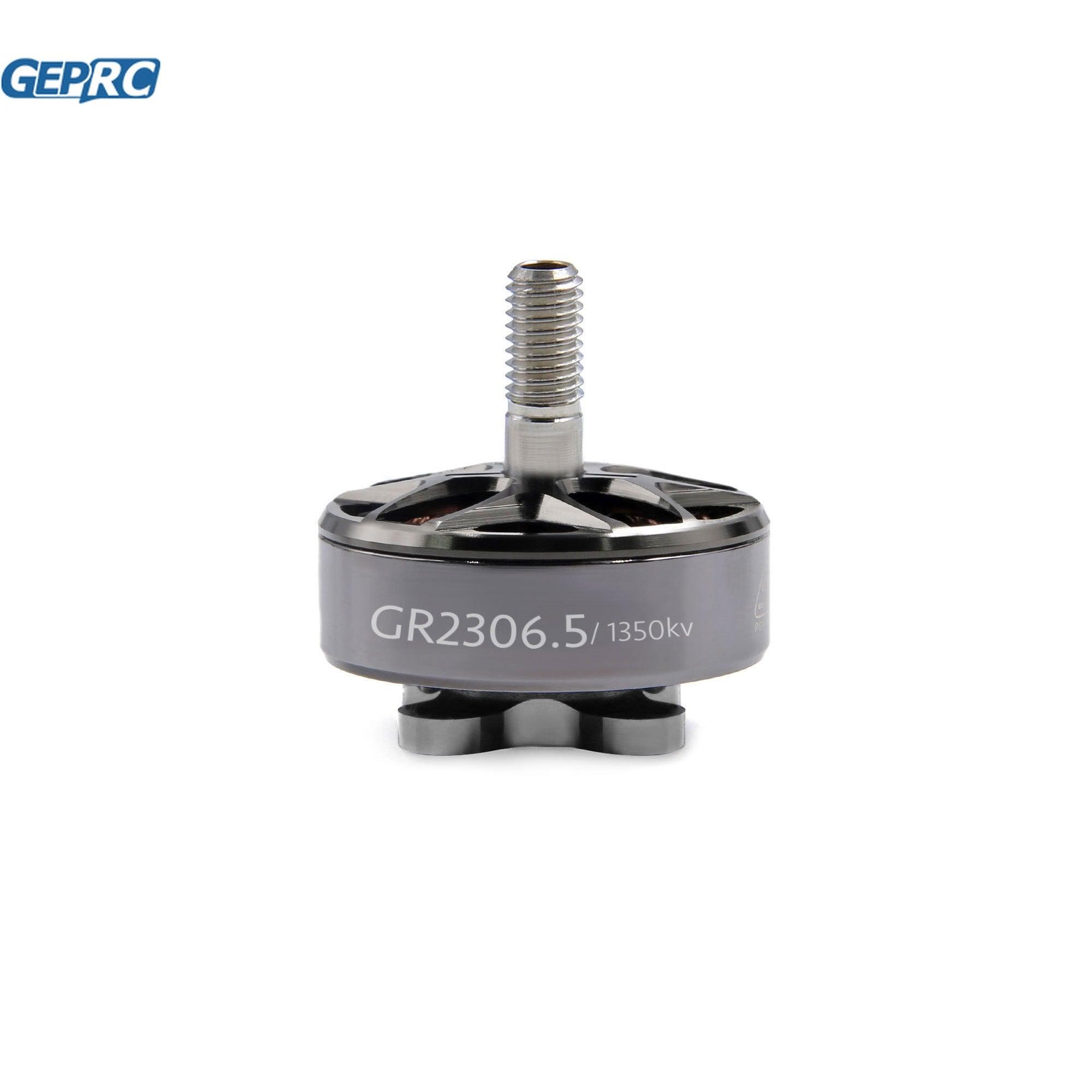

Item name:GR2306.5 Motors
-
KV:1350KV / 1850KV / 2450KV (Optional)
-
Configuration:12N14P
-
Stator Diamter:23mm
-
Stator Length:6.5mm
-
Shaft Diameter:4mm(Hollow)
-
Motor (Dimension(Dia.*Len)): Φ28.2*29.2mm
-
Idle current(10)@10V(A):1.95
-
of Cells(Lipo):4~5S
-
Max Continuous (Power(W)15S):1000
-
Internal Resistance:38mΩ
-
Max Current(15S):49A
-
Effciency Current:(3-7A)>85%
-
Rotor: N52H arc magnets
-
Bearings:JAPAN ISC
-
Base casing: Al 7075
-
Wire AWG: 20AWG
-
Weight(g):31g (not include wire)
Package included:
-
1x GEPRC GR2306.5 Motor
-
1x GEPRC M5 Aluminum Lock Nut
-
4x M3x7 Button head screws
-
4x M3x8 Button head screws
