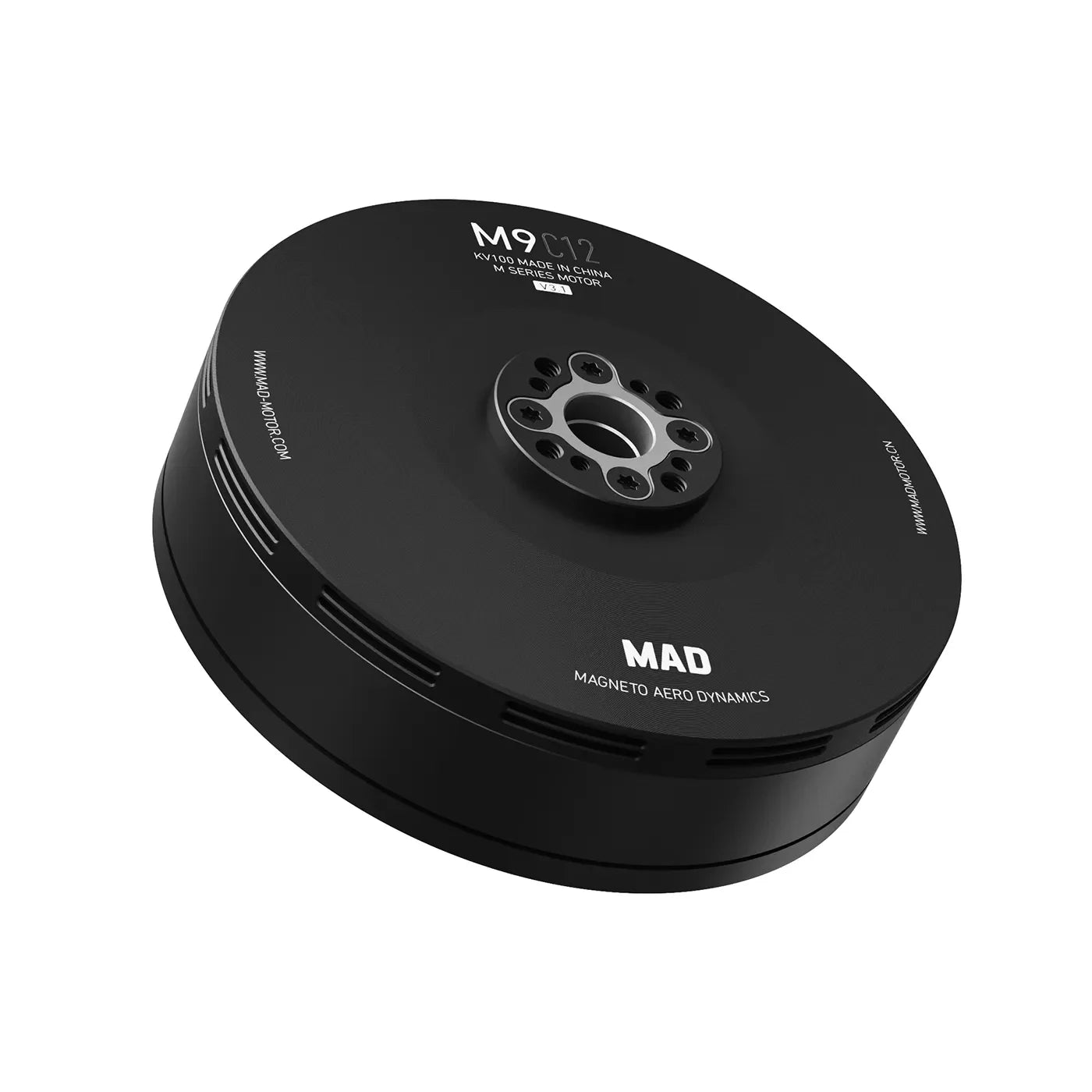

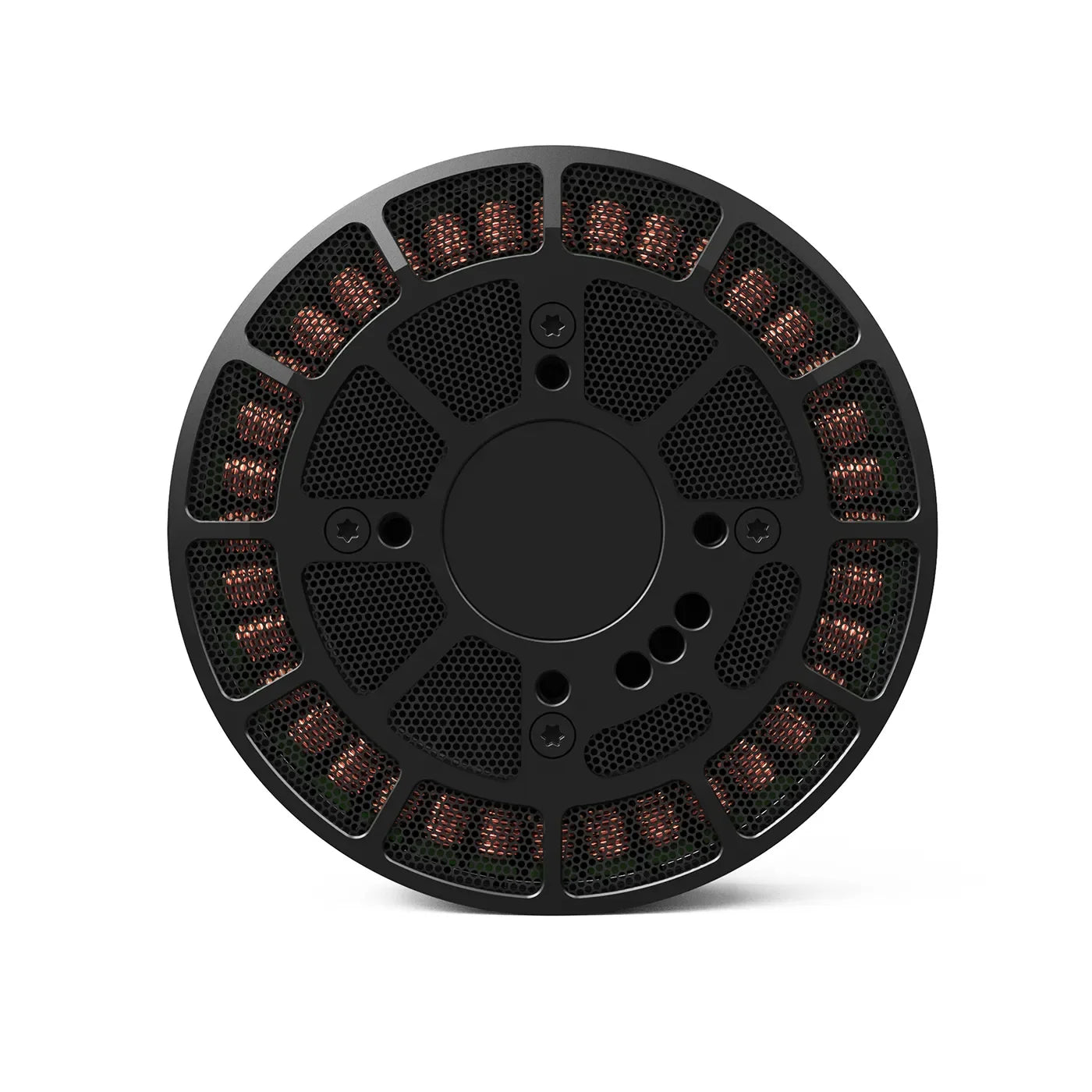

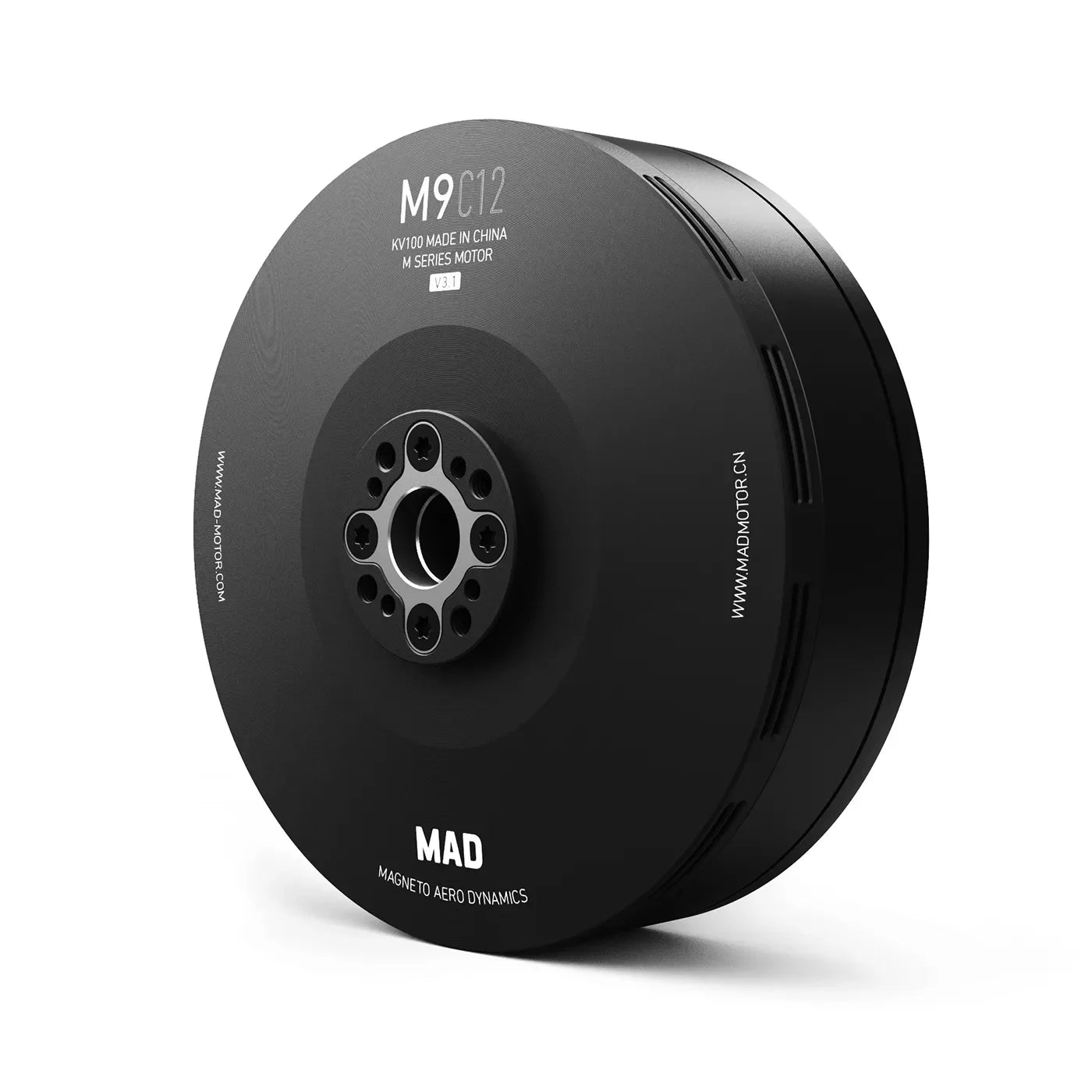

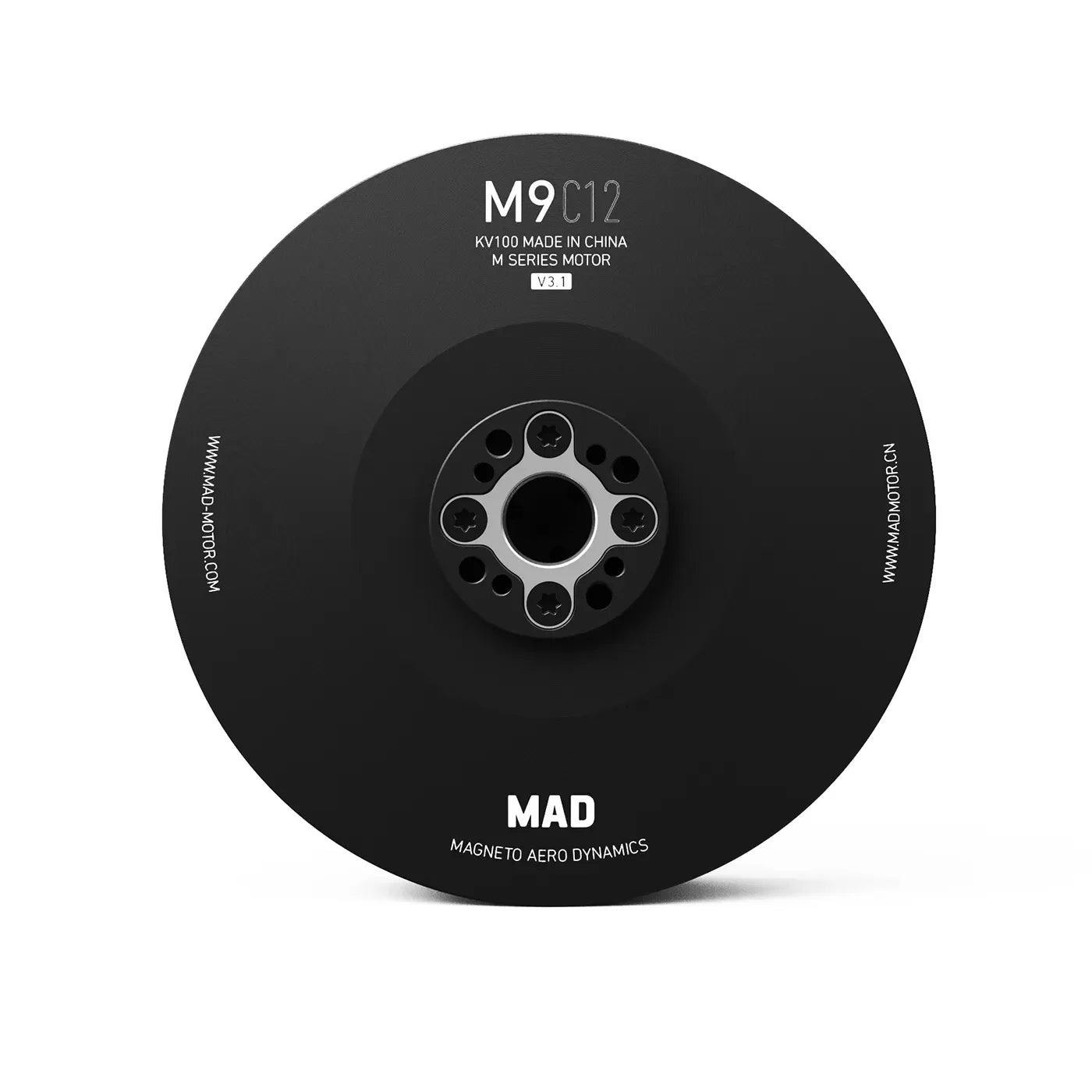

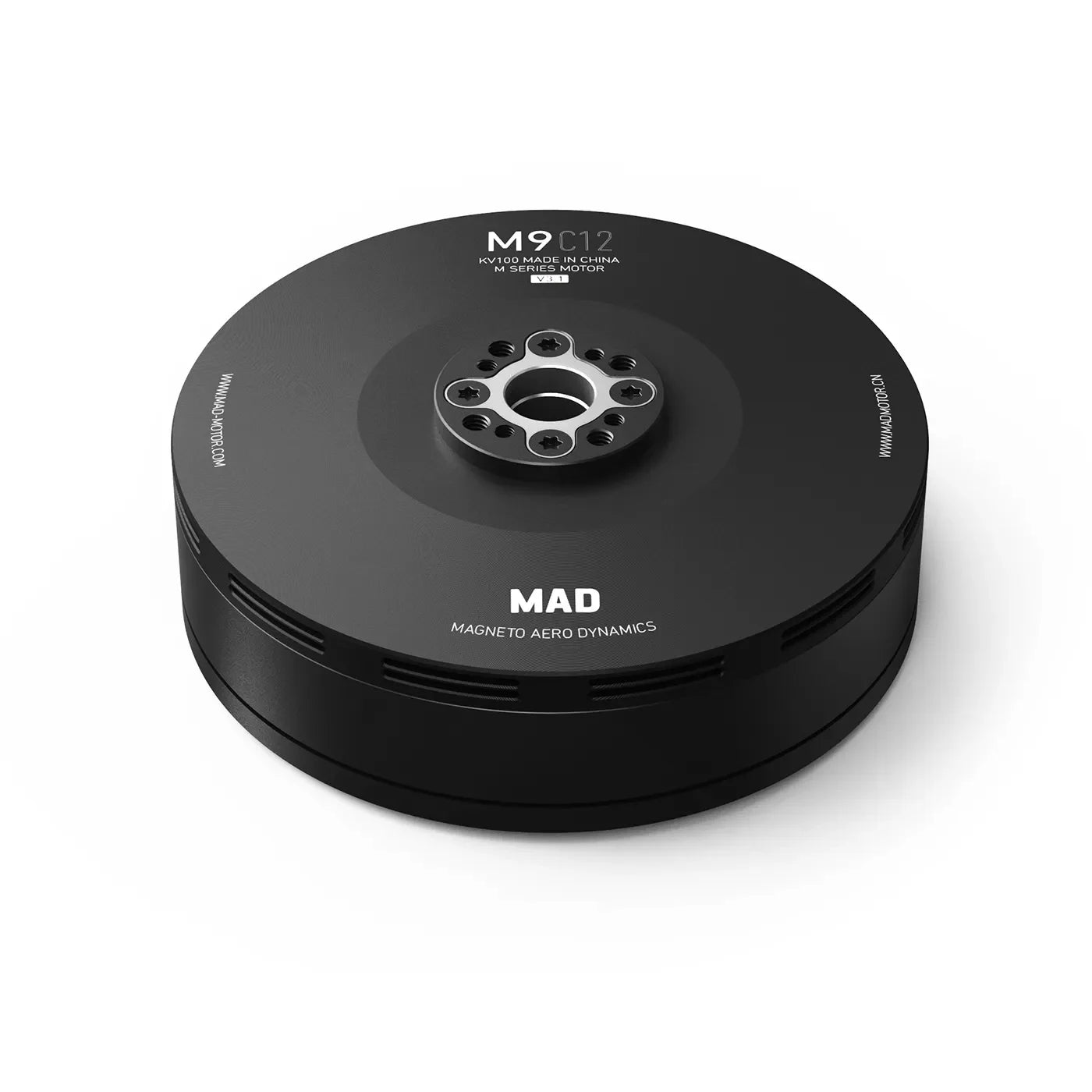

MAD M9C12 IPE V3.1 Brushless Motor SPECIFICATIONS
Brand Name: MAD COMPONENTS
Is Electric: No battery
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
Use: Vehicles & Remote Control Toys
MAD M9C12 Motor Data
| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD M9C12 IPE V3.1 | Number of pole pairs | 21 |
| Stator | TAIWAN / Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:98.5×33.55mm | Magnet Degree | 150°C |
| Degree of Protection | IP45 | Cable Length | 50mm 16# Awg(Black Yellow Red) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:30 M3×4, D:40 M4×4 |
| Bearing | EZO 6802ZZ*2 | Disruptive test | 500 V |
| Additional Accessories | Propeller Plate *1, Locating Pin 1, M410mm 4 (Motor Screws), M310mm 4 (Motor Screws), M316mm *4 (Propeller Screws), 3.5mm Bullet Connector *3, Heat Shrinkable Tube 3, Sticker2. |
MAD M9C12 100KV Specifications
| Specifications | |||
|---|---|---|---|
| RPM/V | 100 KV | Nominal Voltage | 12S lipo battery |
| No Load Current | 1.3A/30V | Internal resistance | 71 mΩ |
| Motor Weight | 486 g | Product Boxed Weight | 925g (200 x 200 x 70 mm) |
| Maximum Current | 51 A | Maximum Power | 2437W |
| Maximum thrust | 13.7 kg | Maximum Torque | 5.0 Nm |
| Recommended ESC | MAD AMPX 80A ESC (5-14S) | Recommended Propellers | 28×8.5, 29×8.7, 30×10.5, 32×9.6 |
| UAV take-off weight | 12S-30″/18kg–Quadcopter | ||
| 27kg–Hexacopter | |||
| 36kg–Octocopter | |||
| Single rotor take-off weight | 4kg ~ 5kg |
MAD M9C12 110KV Specifications
| Specifications | |||
|---|---|---|---|
| RPM/V | 110 KV | Nominal Voltage | 12S lipo battery |
| No Load Current | 1.3A/30V | Internal resistance | 50 mΩ |
| Motor Weight | 496 g | Product Boxed Weight | 902g (200 x 200 x 70 mm) |
| Maximum Current | 60 A | Maximum Power | 2823W |
| Maximum thrust | 13.7 kg | Maximum Torque | 5.0 Nm |
| Recommended ESC | MAD AMPX 80A ESC (5-14S) | Recommended Propellers | 28×8.4, 29×8.7, 29×10, 30×10 |
| UAV take-off weight | 12S-30″/21kg–Quadcopter | ||
| 31.5kg–Hexacopter | |||
| 42kg–Octocopter | |||
| Single rotor take-off weight | 4.5kg ~ 6kg |
Products Description
M series motors are the flagship motors specially designed for large-scale multi-rotor, electric paramotor,large agricultural VTOL. Used for aerial photography, mapping, electrical paragliding, agricultural spraying, surveying oranything in between where professional industry level propulsion systems are required. This type of motor ismade with industrial grade components and undergo intense testing and quality control.
* Very high efficient UAV motors. Designed for rigorous conditions and endurance flight
* Max thrust 13.7kg @12S with 30in prop,more power and efficient than same thrust motors in the market
* Water and dust resistant.IP45 degree of protection
* Get best efficiency with 30in propeller @ 4kg single axis
Motor Test Benchmarks
