GEP-CL35 Performance Frame SPECIFICATIONS
Название бренда: GEPRC
Происхождение: Материковый Китай
Материал: Пластик
Plastic Type: ПК
Рекомендуемый возраст: 14+y
RC Parts & Accs: Рама
Размер: 1 дюйм
Для типа автомобиля: Вертолеты
Используйте: Транспортные средства и игрушки с дистанционным управлением
Модернизация деталей/аксессуаров: Адаптер
Пульт дистанционного управления Периферийные устройства/устройства: Рама
Инструментальные принадлежности: Категория сборки
Количество: 1 шт.
Номер модели: GEP-CL35 Performance Frame/Parts,Vista Camera Protect,Damping Pad,Power Cord,Propeller Guard(Gree,2xAntenna Fixed Tube,Antenna Mount,Batteries Straps,TBS Nano RX Antenna,Arm Plate2,Cam Power Cable,Arm Plate1,Screw Package,Screwdriver,Mount of Camera,M7 Spanne,GEPRC GEP-Tern-LR40 Frame Parts - 4inch Propeller Accessory Screw Quadcopter Frame FPV Freestyle RC Racing Drone Tern-LR40, Gps Mount Plate, Aluminum Parts, Splint Plate, Power Cord Mount, Camera Mount, O3 VTx Gasket, Buzzer Mount, Receiver Mount, O3 Camera Mount, M10 Nano Cable,GEPRC GEP-CL35 V2 Frame Kits Suitable for CineLog35 V2 Drone Carbon Fiber Frame DIY RC FPV Quadcopter Drone Accessories Parts, GPS 3D print x2PCS, GEP-CL35 V2, iFlight Nazgul Evoque F4 F4X/F4D FPV Replacement Part for side Panels/middle plate/top plate/bottom plate/arm/screw pack/3D TPU,нижняя светодиодная панель,O3 крепление антенны,Battery Antislip Pad,Cable Ties Fix Parts,Propeller Guard 2PCS,O3 прокладка,Camera Mount 1 holes,Camera Mount 2 holes,Landing Cushion,GPS 3D Printout M,GPS 3D Printout S,Damping Ring ofGuard,GEPRC GEP-DoMain Frame Parts - Подходит DoMain3.6 DoMain4.2 Дрон Замена Ремонт RC DIY FPV Freestyle Стойка Аксессуары Запчасти,Кабель Части,Демпфирование Части,Демпфирование Кремния,Камера Демпфирование,GoPro Крепление,Рука Пластина Pad
Полный привод Атрибуты: Сборка
Колесная база: Винты
Резюме

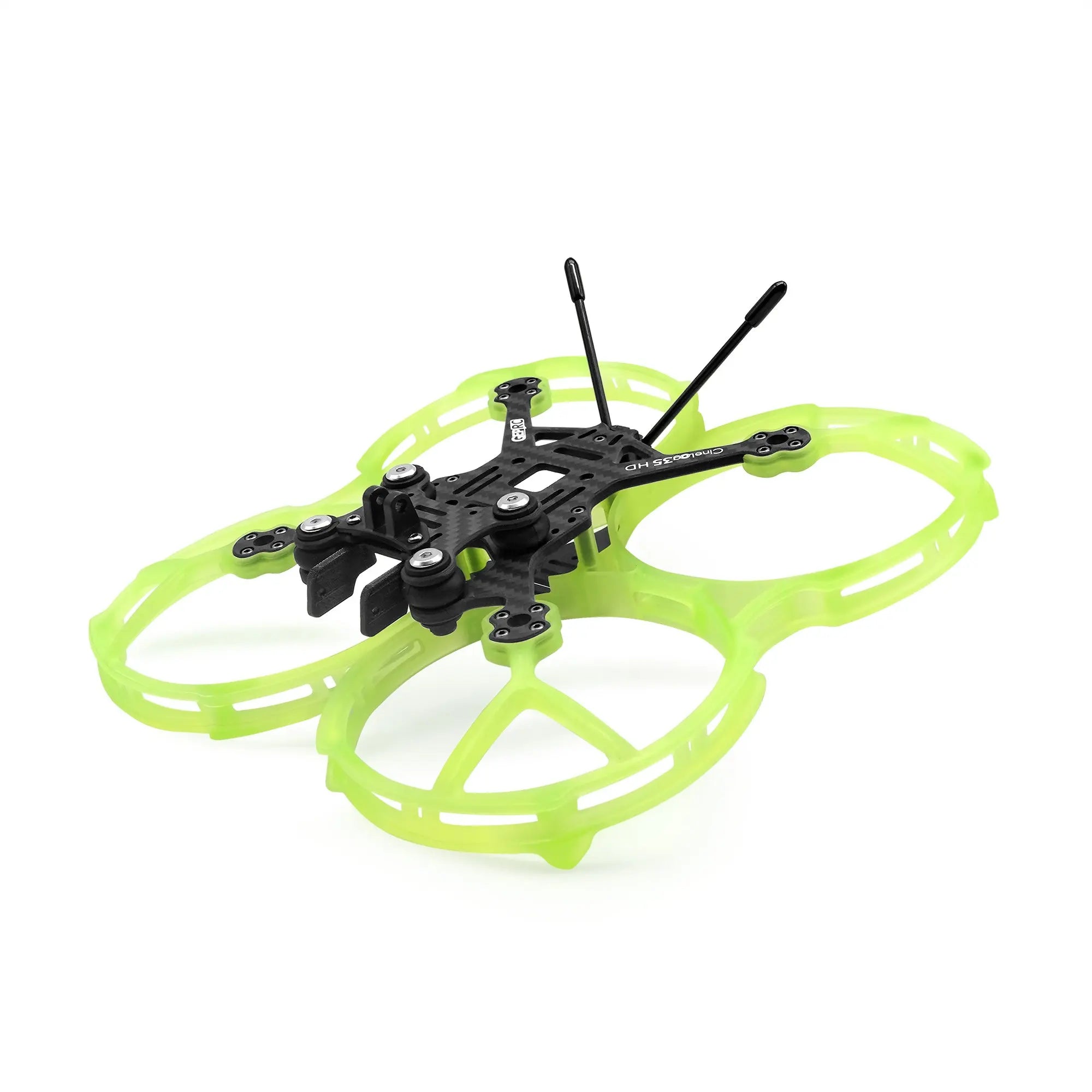

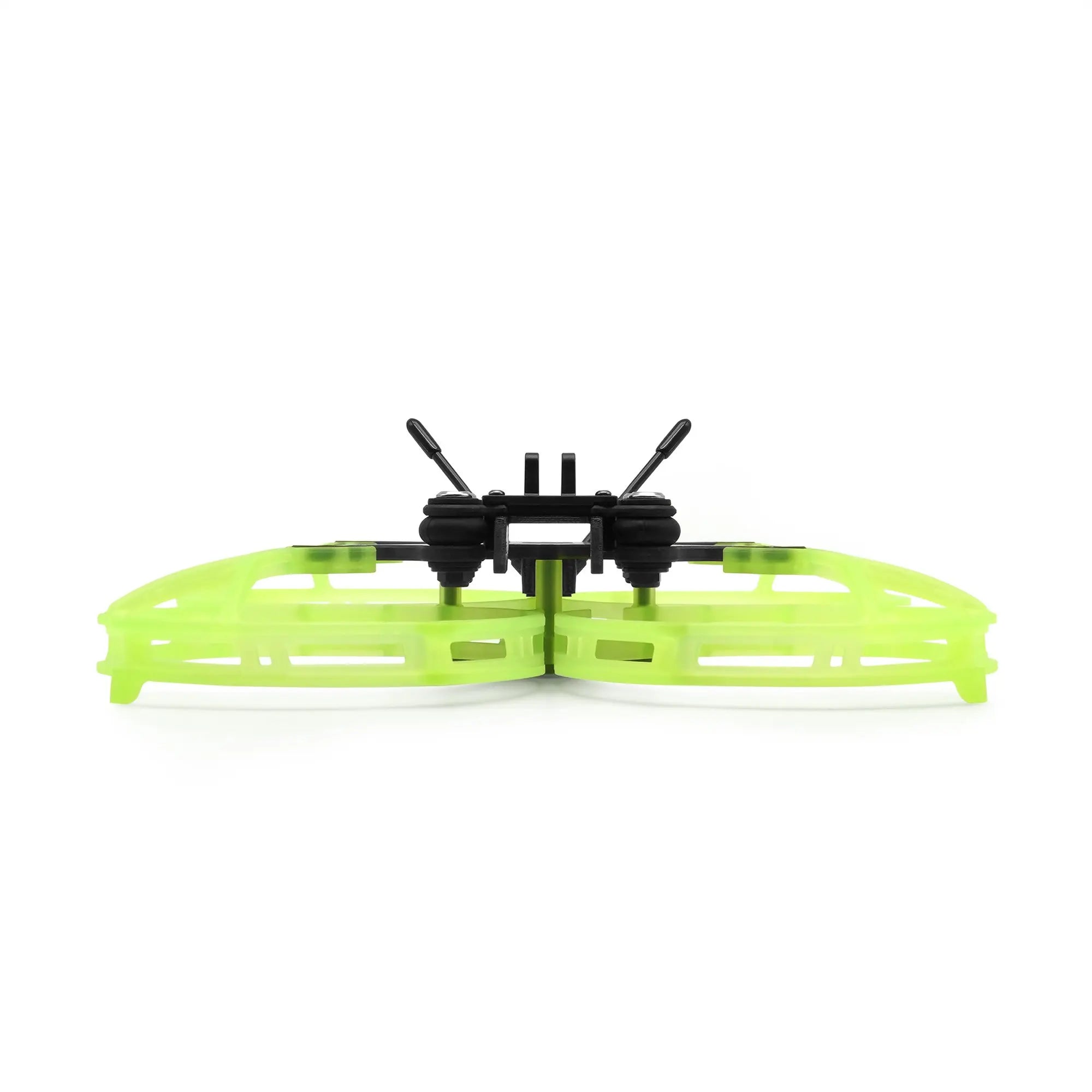

The GEP-CL35 Performance Frame developed by CEPRC for mounting camera is now officially released.
The CineLog35 Performance frame is improved and optimized on the basis of the CineLog35 frame. It supports the installation of mainstream AIO flight controllers with 25.5mm x 25.5mm holes. The mounting holes for 20mm x 20mm/25.5mmx25.5mm can be directly installed VISTA and AVATAR digital VTX. The propeller guard adopts an integrated design, and the overall structure is more solid. The GEP-CL35 Performance frame uses brand new materials that are stronger impact resistance and better toughness. Upgrade the power system, use a 12mm x 12mm motor holes, compared with the CL30, a larger 15-18-21 series motors can be installed. With 3.5 inch propellers, has a stronger power output. Greater mounting compatibility, you can use 3D printed parts to install 8/9/10 cameras, or use the base to install naked 8, Insta 360 GO2 and Caddx Peanut cameras.
We pursue lighter weight, better flying experience, and more extended functions of the FPV frame.
Технические характеристики
- Model: GEP-CL35 Performance
- Motor to Motor: 142mm
- Верхняя пластина: 2,5 мм
- Bottom plate: 2.0mm
- Arm plate: 3.5mm
- FC mounting hole: 25.5mm x 25.5mm
- VTX mounting hole: 20mm x 20mm/25.5mm x 25.5mm
- Motor mounting hole: 12mm x 12mm
- Camera installation space: 14~19mm
- Propeller guard internal diameter: 95mm
- Suitable propeller size: 3.5 inch propeller

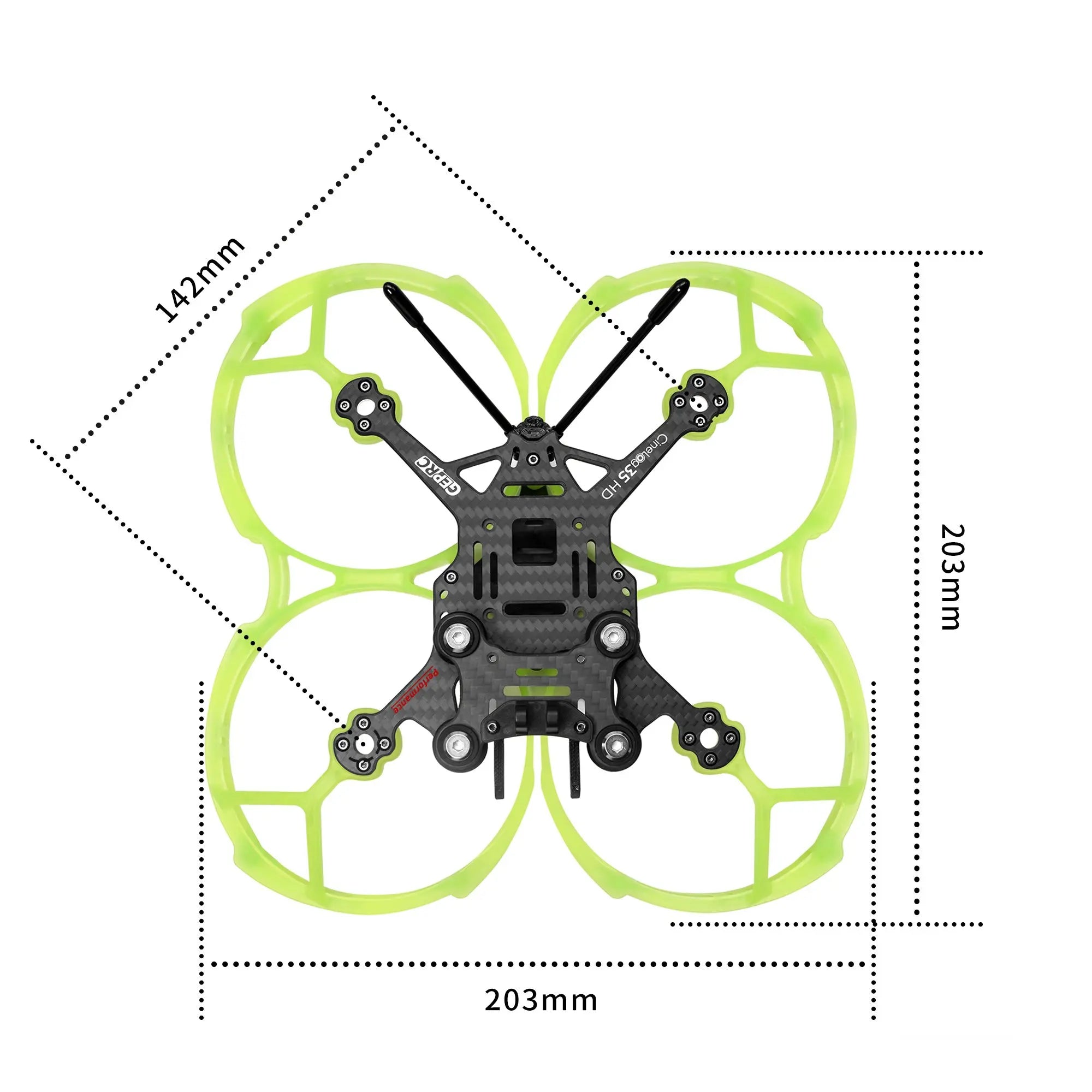

- Dimension: 203mm x 203mm x 42mm(Including propeller guard)

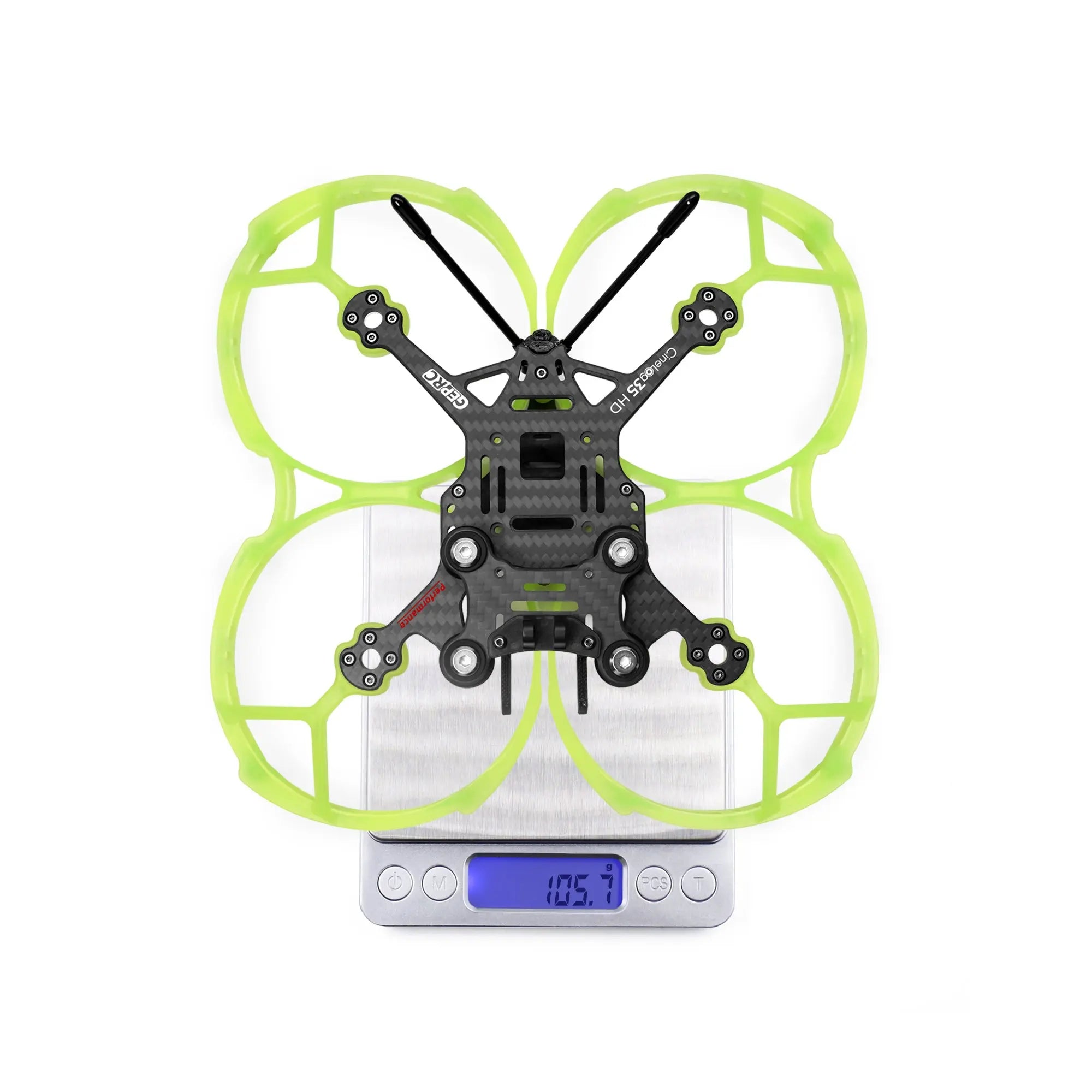

- Weight:105.7g(Including propeller guard, 3D print parts, Naked 8 mount )
Характеристика
1.3.5-inch injection-molded one-piece propeller guard, brand new appearance design, hollowed-out noise reduction design, quiet and safe flight.
2. Can install mainstream 14/19mm camera.
3. Improved shock absorption gimbal design, more stable and clearer shooting effect, reduce the jelly effect.
4. The 8/9/10 can be installed with 3D printed parts, you can also use the Naked 8 mount to install Naked 8, Insta 360 GO2 and Caddx Peanut camera.
5.12 x 12mm motor holes, support mounting 1507/1805/2004/2105.5 and other motors.
6. Support the installation of 3.5-inch propellers, with strong power output
7. Independent receiver cabin design, convenient and fast frequency binding.

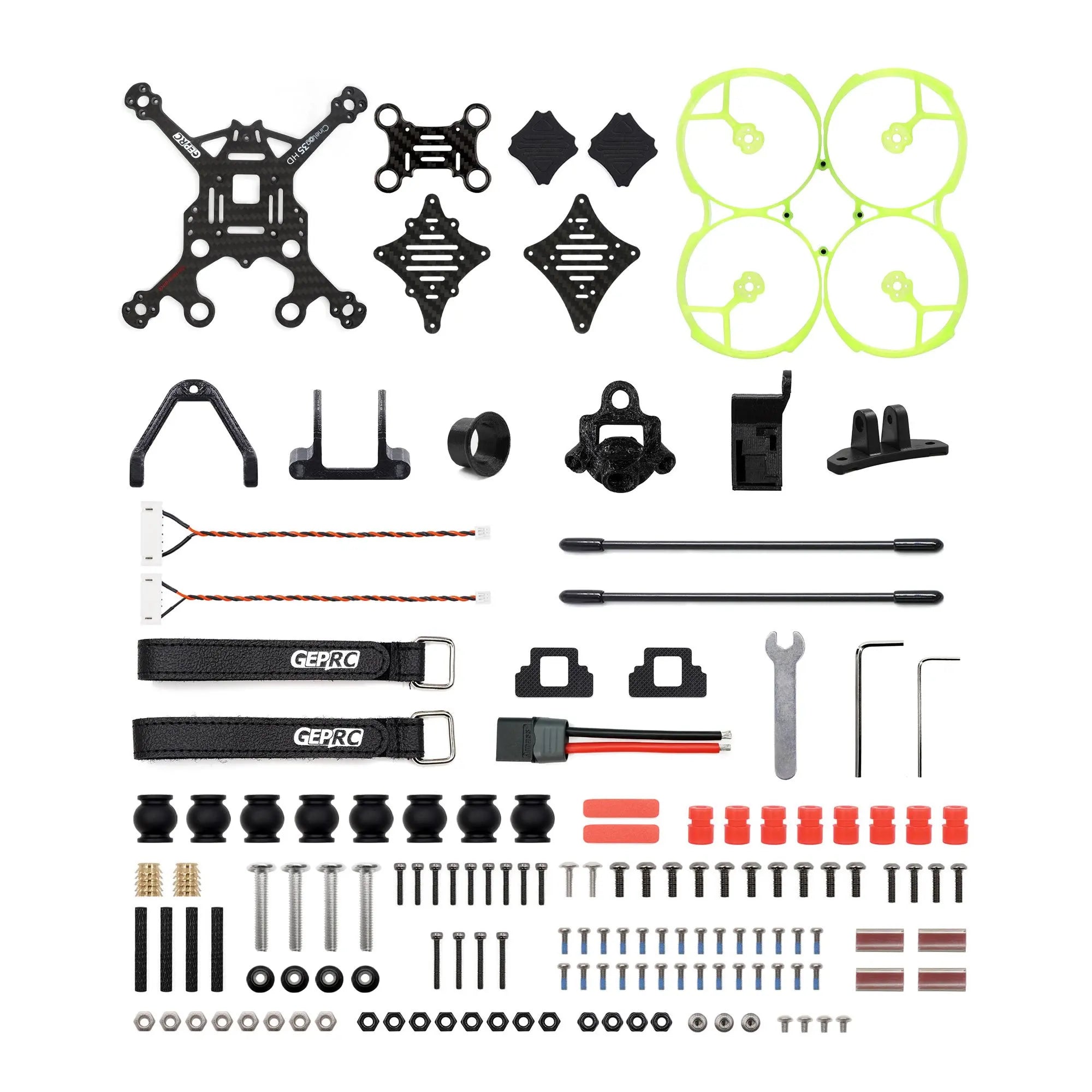

Включает
1 x Top Plate 2.5mm
1 x Arm Plate 3.5mm
1 x Bottom Plate 2.0mm
1 x Набор винтов
1 x Набор отверток
1 x Set of cables
1 x Set of 3D print parts
2 x 3.5 inch integrated propeller guards
2 x Battery Non-slip Mat
2 x M15x200mm battery straps
1 x Antenna Mounting Tube
Other parts
