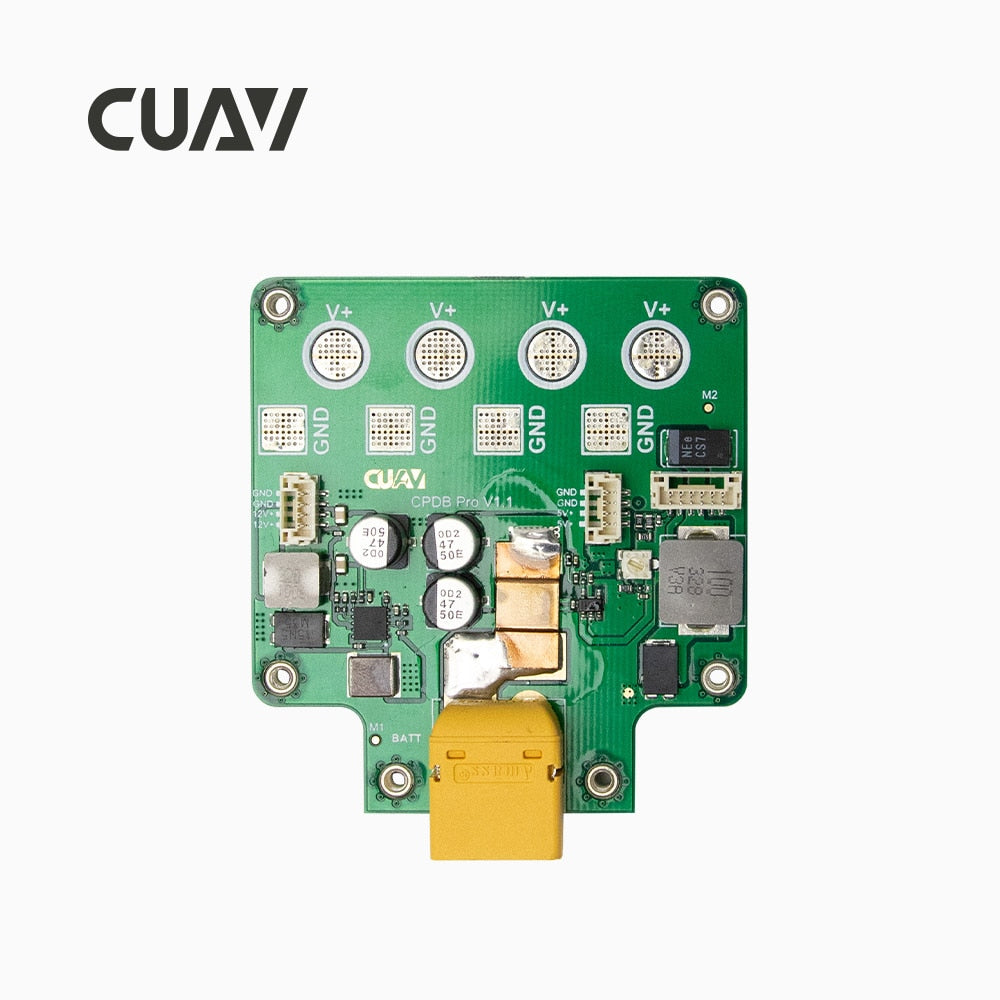

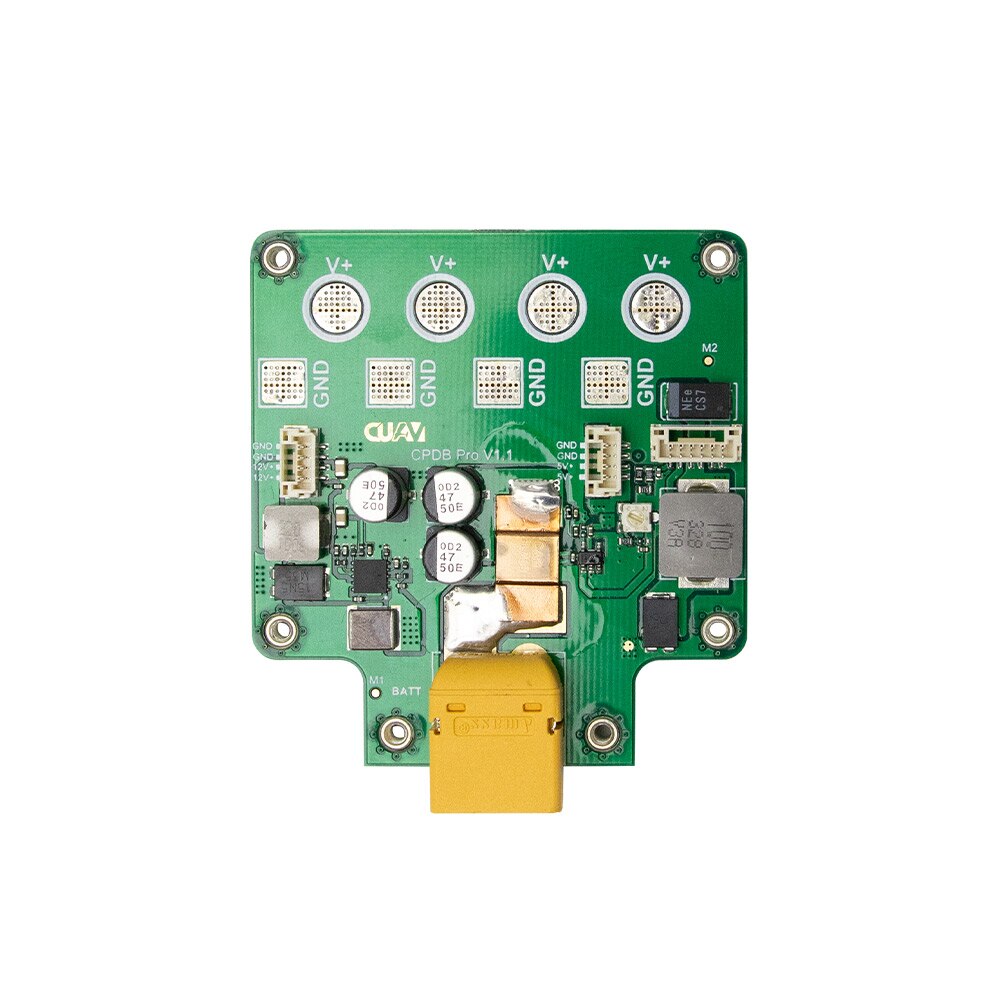

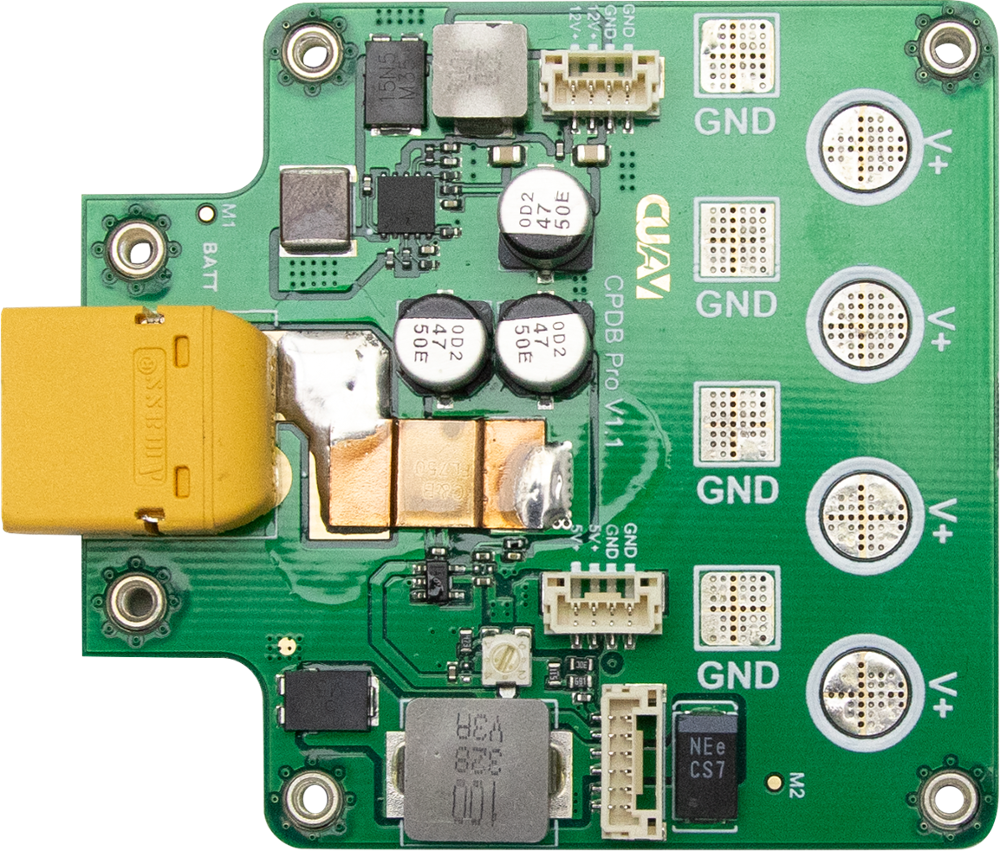

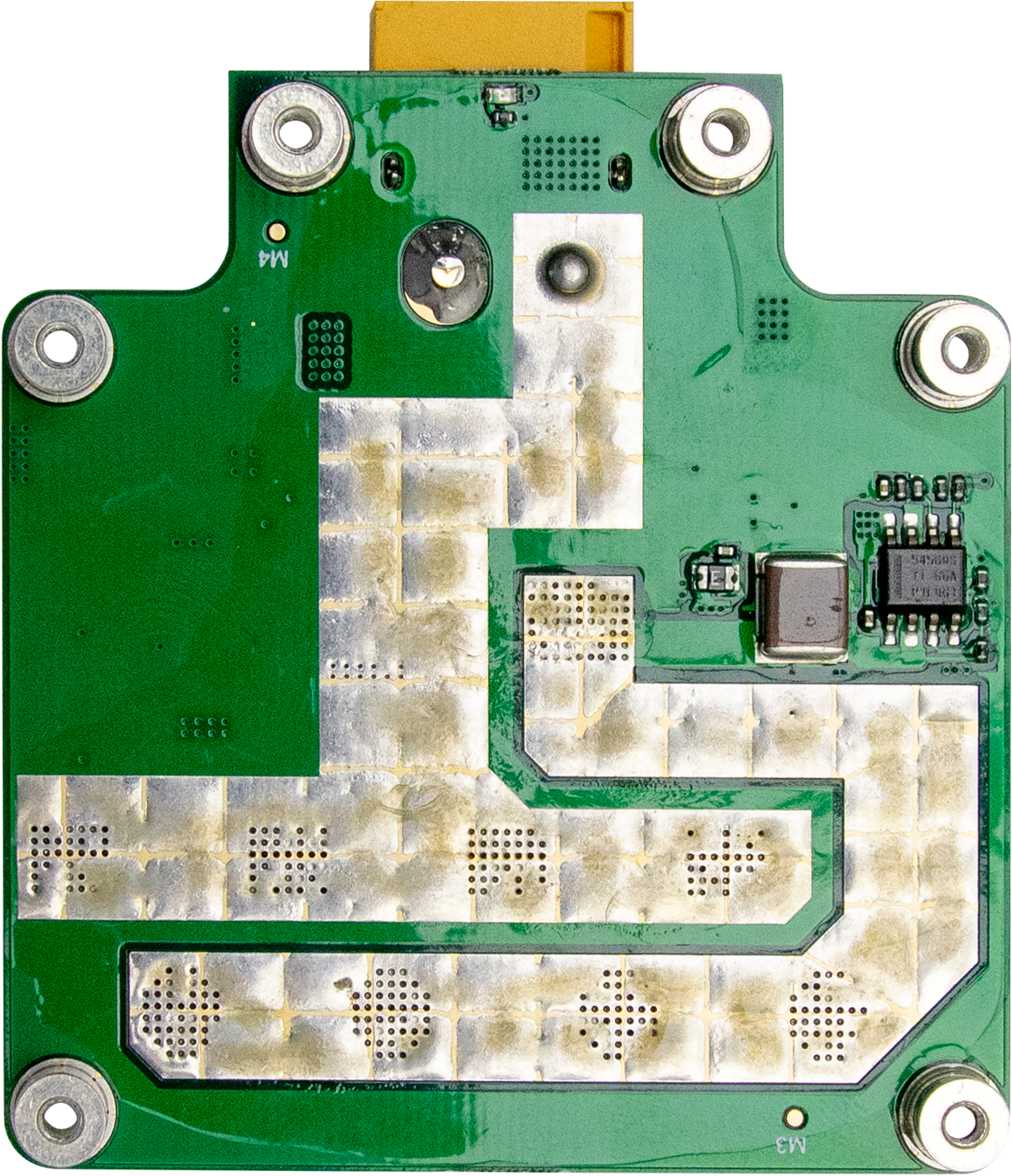

CUAV CPDB pro power module

CUAV CPDB Pro High-Voltage Drone Power Distribution Board 10-60V For Multirotor Drones

CPDB Introduction:

CPDB is an on-board device with voltage, current
detection and power distribution board functions,
providing the flight control with power, voltage and current signals, as well as a separate two interfaces to output 5V and 12V, this version of the equipment is not only suitable for four-rotor also suitable for six or eight-rotor drones (the same pad can weld two power cords),

CPDB pro features:

1 –Supports higher input voltage: 10V-60V.
2 –More accurate current and voltage detection: voltage detection accuracy: +-0.1v; Current detection accuracy: +-0.2A.
3 –Supports higher power output current: 5A.
4 –Maximum (detection) current: 60A.
5 –Maximum output current: 60A.
6 –Independent 12V4A interface.

– Support higher input voltage: 10V-60V (3s-14S battery) (Battery is not included)

– More precise current and voltage detection: voltage detection accuracy: ±0.1v; current detection accuracy: ±0.2A

– Support higher power port output current: 5A

– Maximum (detection) current: 60A

– Maximum output current: 60A

– Independent 12V 4A interface

Технические характеристики:

– Working voltage: 10~60v

– Working current: 0~80A (maximum measurable current 60A)

– Current accuracy: 0.2A

– Voltage accuracy: 0.1V

– ESC power interface: 4

– Power interface load capacity:

* 12v out: 4A

* 5V out: 2A

* FC power: 5A

– Interface Type:

* Battery interface: XT60 (Battery is not included)

* 12V OUT/5V OUT/FCP Power: GH1.2

– Product weight: 35g
