SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Flight controller
Tool Supplies: Assembly Category
Technical parameters: KV1100
Size: 89*42.5*33mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 14+y
RC Parts & Accs: Speed Controllers
Quantity: 1 pcs
Origin: Mainland China
Model Number: CPBD PRO
Material: Metal
Four-wheel Drive Attributes: Battery
For Vehicle Type: Helicopters
Certification: CE,FCC
Brand Name: CUAV
CUAV CPDB pro power module
CUAV CPDB Pro High-Voltage Drone Power Distribution Board 10-60V For Multirotor Drones
CPDB Introduction:
CPDB is an on-board device with voltage, current
detection and power distribution board functions,
providing the flight control with power, voltage and current signals, as well as a separate two interfaces to output 5V and 12V, this version of the equipment is not only suitable for four-rotor also suitable for six or eight-rotor drones (the same pad can weld two power cords),
CPDB pro features:
1 –Supports higher input voltage: 10V-60V.
2 –More accurate current and voltage detection: voltage detection accuracy: +-0.1v; Current detection accuracy: +-0.2A.
3 –Supports higher power output current: 5A.
4 –Maximum (detection) current: 60A.
5 –Maximum output current: 60A.
6 –Independent 12V4A interface.
– Support higher input voltage: 10V-60V (3s-14S battery) (Battery is not included)
– More precise current and voltage detection: voltage detection accuracy: ±0.1v; current detection accuracy: ±0.2A
– Support higher power port output current: 5A
– Maximum (detection) current: 60A
– Maximum output current: 60A
– Independent 12V 4A interface
Specifications:
– Working voltage: 10~60v
– Working current: 0~80A (maximum measurable current 60A)
– Current accuracy: 0.2A
– Voltage accuracy: 0.1V
– ESC power interface: 4
– Power interface load capacity:
* 12v out: 4A
* 5V out: 2A
* FC power: 5A
– Interface Type:
* Battery interface: XT60 (Battery is not included)
* 12V OUT/5V OUT/FCP Power: GH1.2
– Product weight: 35g
CPBB Pro is an integrated circuit board designed for unmanned aerial vehicles (UAVs), featuring high precision and high working voltage capabilities. Its primary application is in multi-rotor drones, supporting input voltages ranging from -6V to 24V (compatible with 3S to 14S battery configurations).

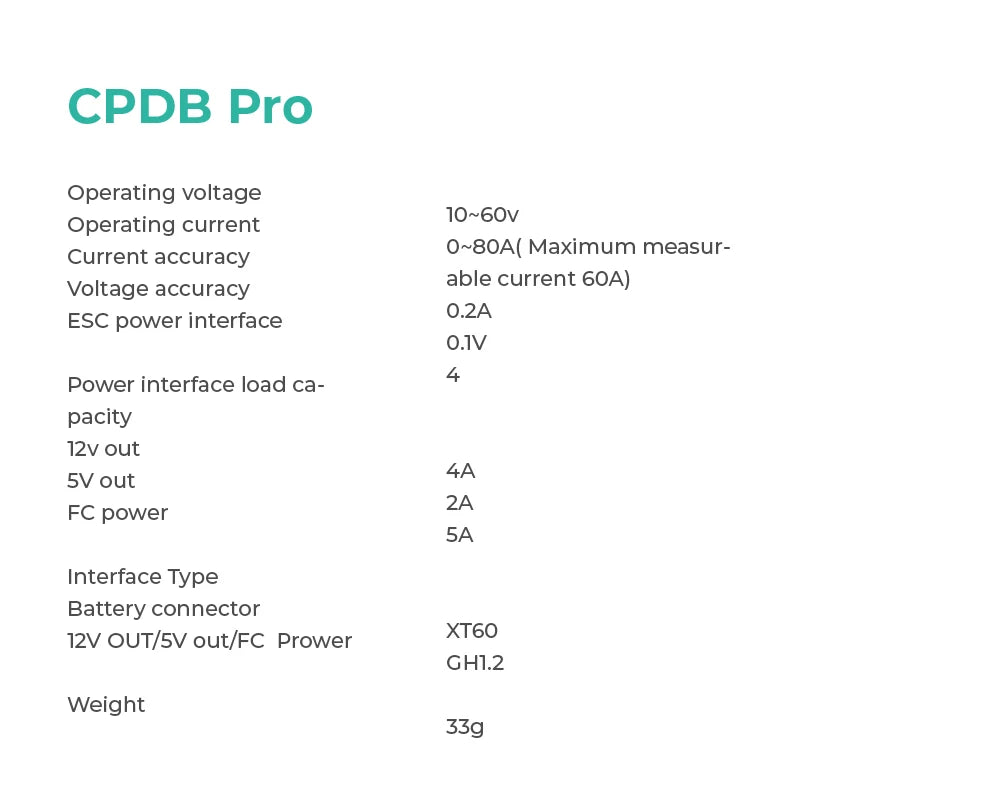

CPDB Pro Operating Specifications: Operating voltage: 10.60V; Operating current: up to 8A (Maximum measurable current: 6A); Voltage accuracy: ESC power interface: ±0.2V; Power interface load capacity: 12V OUT, SV out: 4A; FC power: 2A-5A; Interface Type: Battery connector XT60; 12V OUT/SV out/FC power: GH1.2; Weight: 33g.

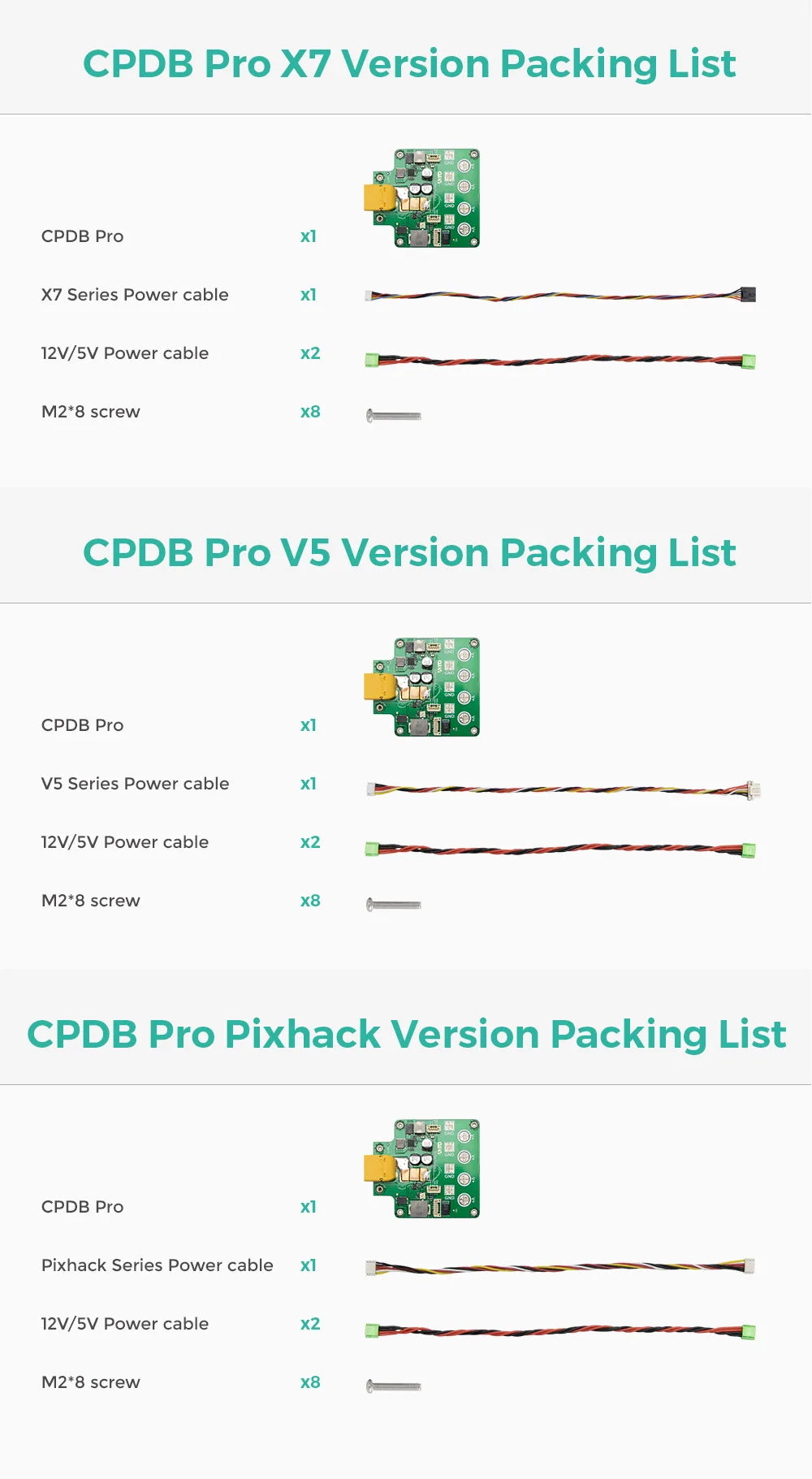

Packing List CPDB Pro X7 Series Power cable 12V/SV Power cable X2 M2*8 screw X8 .
