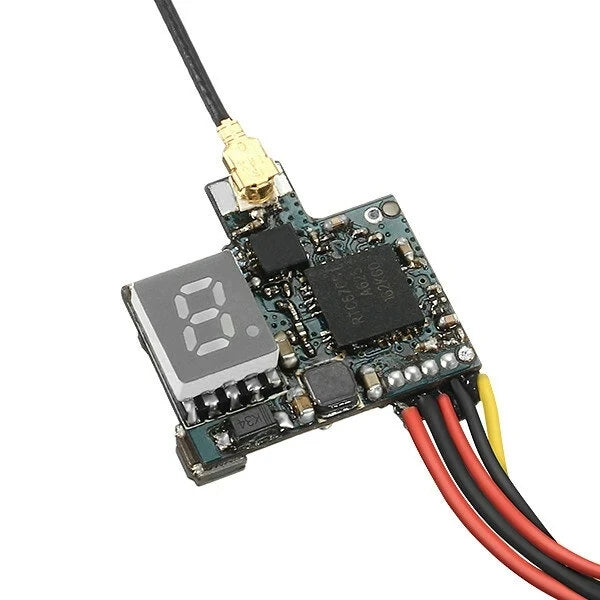

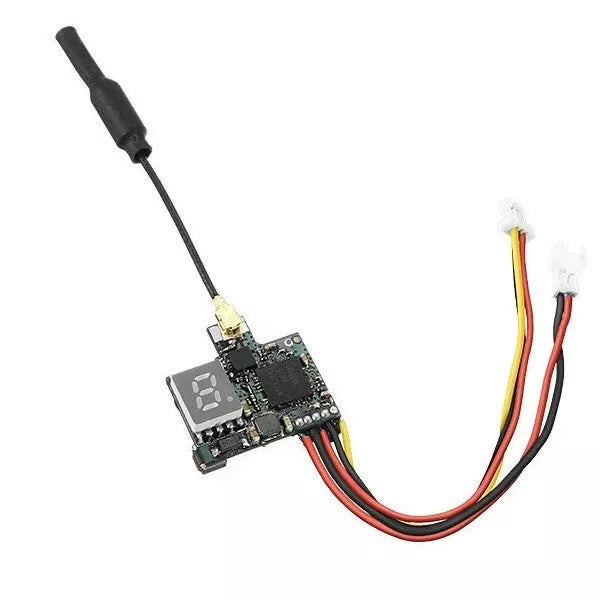

A10 5.8Ghz 40CH 200mW Mini FPV Transmitter for RC Tiny Racing Drone

Технические характеристики:
Brand name: Eachine
Item name: VTX02 Super Mini FPV Transmitter
Output power: 200mW
Input voltage: 3.2-5.5V
5V camera supply, 580mA (Max)
Video system: NTSC/PAL
Antenna dimensions: 55mm X 5mm diameter
Antenna: IPEX
Frequency: 5.8Ghz 5 bands 40 channels, with Raceband: 5658-5917MHz
Size: 20*14mm (L*W)
Weight: 2.8g

Operation:
Three adjustable gears, on/off switch, CH, FR automatically cycle display three gears on LED after power on.
Short press button to adjust “CH”, 1-8 adjustable.
Press and hold button 2s, transfer to FR, A, B, E, F, R adjustable, then short press button to adjust FR.
Press and hold button 5s to adjust on/off, “0” and “=” adjustable, short press button to adjust, “0” stands for “off”, and “=” stands for “on”.

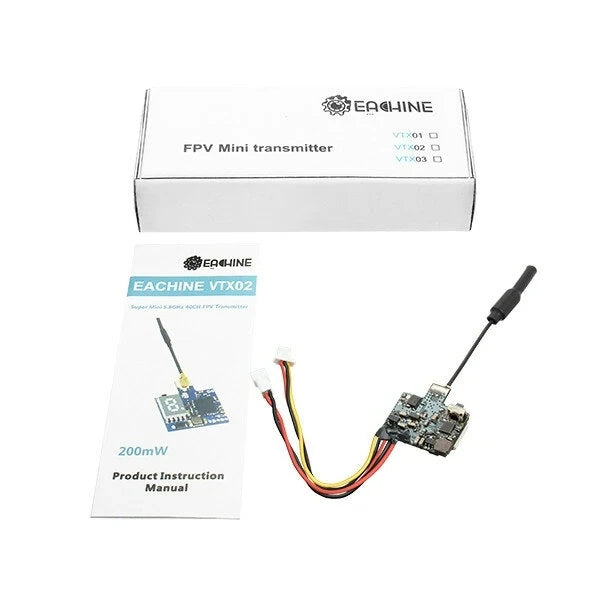

В комплект входят:
1 X FPV Transmitter
1 X IPEX antenna

Product Feature Press Is,select CH Press 2s and select FR Button LED display 3.2V-5V CAM GND GND .

The 5.8GHz IPEX antenna replaces the traditional, fragile clover leaf antenna, offering improved performance while being slightly lighter.

5.8Ghz 40CH 20OmW Transmitter Output power ZCOmw Input voltage 3.2-5.5V Video system NTSC/PAL SV camera supply, 58OmA (Max

В комплект входит:
– AKK Eachine A10 VTX mini FPV transmitter
– XIPEX antenna
– User Manual (EACHHINE VT701 M)
– Packaging and Accessories
