Description
SPECIFICATIONS
Video Capture Resolution: 1080p FHD
Type: Airplane
State of Assembly: Ready-to-Go
Remote Distance: 0-2km
Remote Control: Yes
Recommend Age: 12+y
Plugs Type: XT30
Package Includes: Camera
Package Includes: Original Box
Origin: Mainland China
Operator Skill Level: Expert
Operator Skill Level: Intermediate
Operator Skill Level: Beginner
Model Number: LAL3
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 5-10min
Features: FPV Capable
Features: Auto Return
Features: Other
Features: Integrated Camera
Dimensions: 3-Inch
Controller Mode: MODE1
Controller Mode: MODE2
Control Channels: 8 Channels
Certification: CE
Camera Mount Type: Fixed Camera Mount
CE: Certificate
Brand Name: TCMMRC
Specification:
Product Name: LAL3 3 Inch 3-4S FPV Racing Drone
Weight: 175.3g

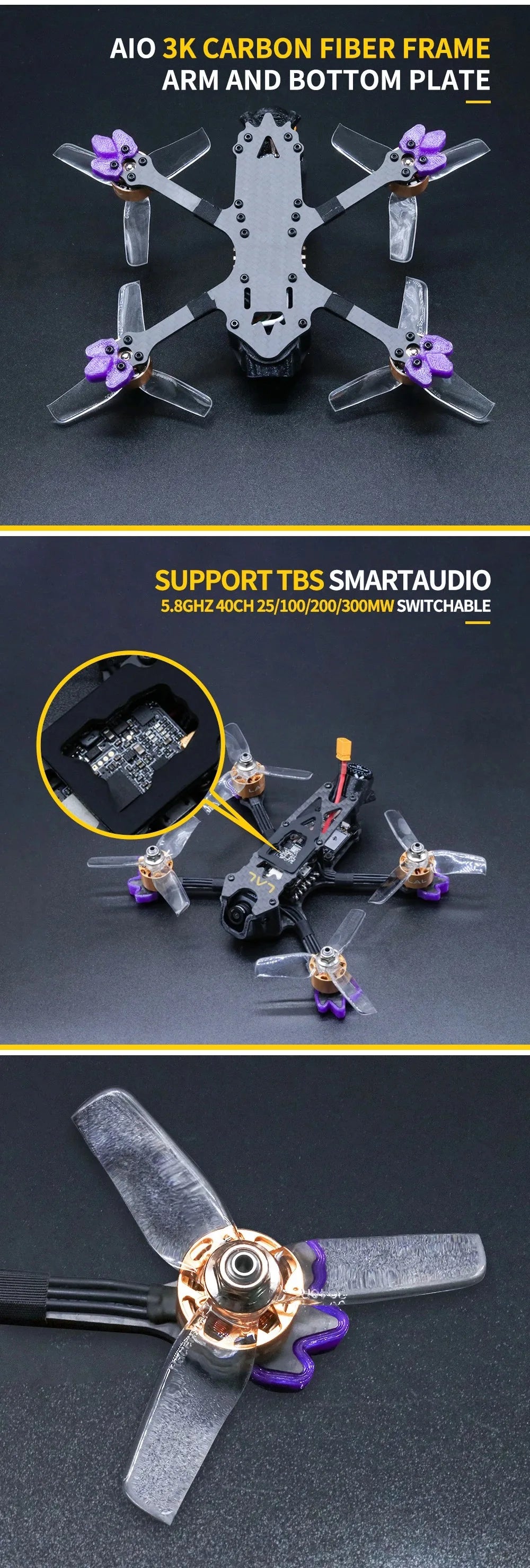

Frame Kit
Wheelbase: 145mm
Bottom plate: 3mm
Upper plate: 2mm

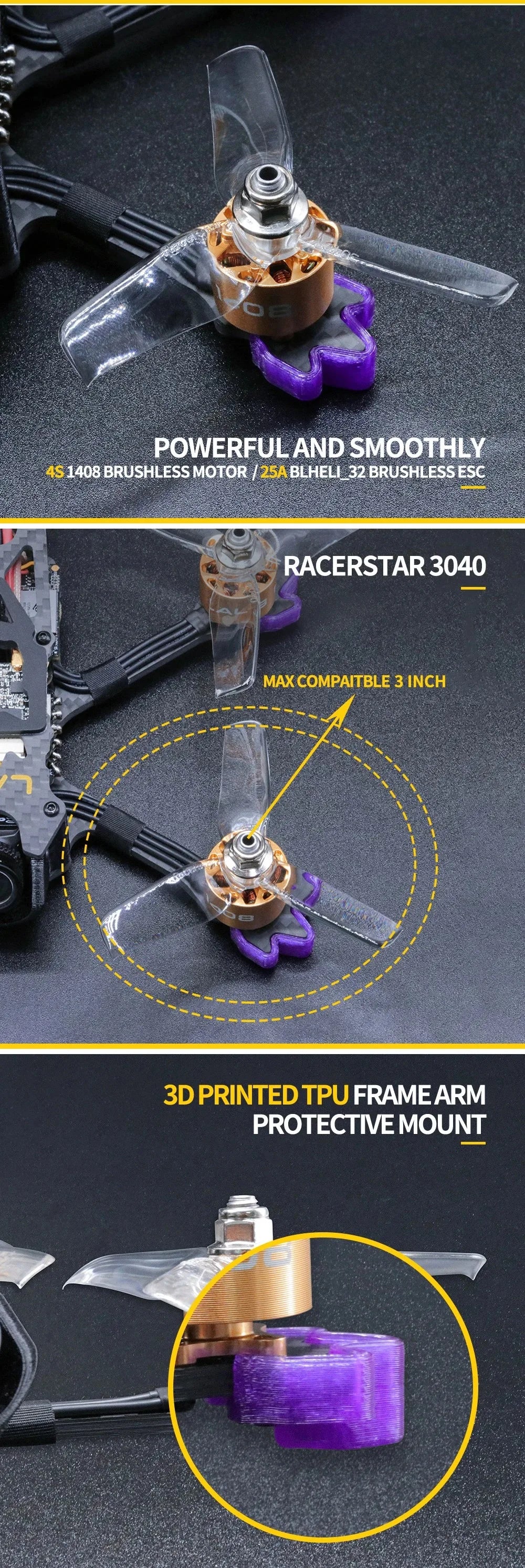

Motor
Mode: 1408
KV: 3750
Idle current (IO/10V): 0.6A
No.of Cells(Lipo): 3-4S
Peak current: 23A
Max. power: 386.4W
Max. thrust: 600g
Configu-ration:12N14P
Internal Resistance: 0.0495Ω
Stator diameter: 14mm
Stator thickness: 8mm
Height: 29.5mm
Width: φ20mm
Shaft diameter: φ5mm
Motor mount hole size: M2
Install hole distance: 12*12mm
Recommend propeller: 2-3 Inch
Weight: 17g
25A 3-4S Blheli_32 DSHOT1200 4 IN 1 ESC
Continue current: 25A
Burst current: 30A (10s)
Input voltage: 3-4S
BEC: NO
Current sensor: NO
Main control chip: STM32F051
Firmware: Blheli_32
Support DSHOT 150/300/600/1200/MULTISHOT/PWM/ONESHOT
Weight: 3.8g
Installation hole: 20x20mm/φ2
Dimension: 31*29mm
LAL3-F411 Flight Controller
Main control chip: stm32f411
IMU: mpu6000 6-axis sensor
BEC: 5v / 1a
Integrated OSD
PPM / DSM / IBUS / UAR sharing: UART1-RX
Installation size: 20 * 20
Weight: 3.0g
Supported firmware: betaflight / cleanflight / inav
Supports programmable LED Sprit
Reserved buzzer interface

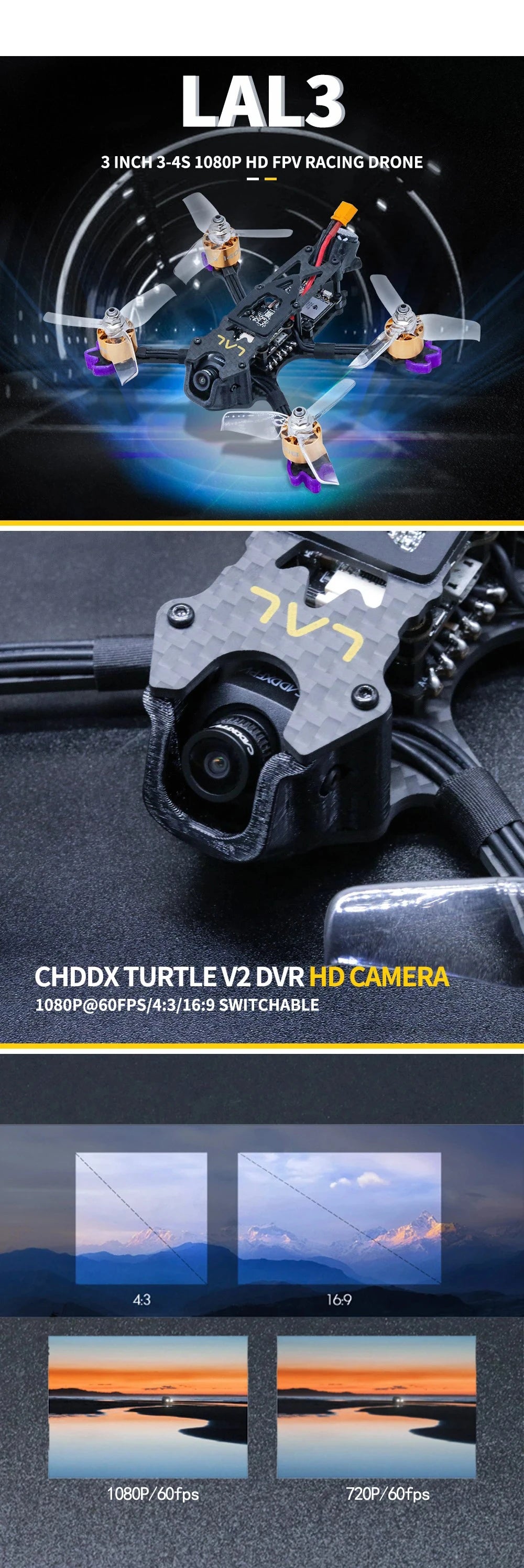

Caddx Turtle V2 1080p 60fps HD Camera
Horizontal: 800TVL
TV system: NTSC/PAL,changeable
Power Input: DC 5-20V
Lens: 1.8mm
FPV FOV: 155°
Recording FOV: 160°
DWR:YES
OSD:YES
Weight: 12g
Camera Size: 19*19mm (It comes with a holder to inscress the wide to 28mm)
Audio: Support
4:3 16:9 Switchable
Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)
XF5806 /5.8G 40CH 0/25/100/300mw VTX
Frequency: 5.8G
Channels: 40CH
Input voltage: 7V~26V
260mA(MAX)—-600mW@12V
Support TBS Smart Audio
Formate: NTSC/PAL
Power supply: 5V output for Camera
Output power: 0mW/25mW/100mW/300mW switchable
Antenna connector: ipex
Dimensions: 25x20x4mm
Weight: 3.2g(Withour antenna)
3040 3-blade Propeller
Meterial: PC
Blade: 3
Color: Transparent
Center thickness: 5.5mm
Center hole inner diameter: 5mm
Weight: 1.8g/pc
BLHELI_32 BRUSHLESSESC RACERSTAR 3040 MAX COMPAITBLE 3 INCH 3DPRINTED TPU FRAMEARM PROTECTIVE MOUNT .

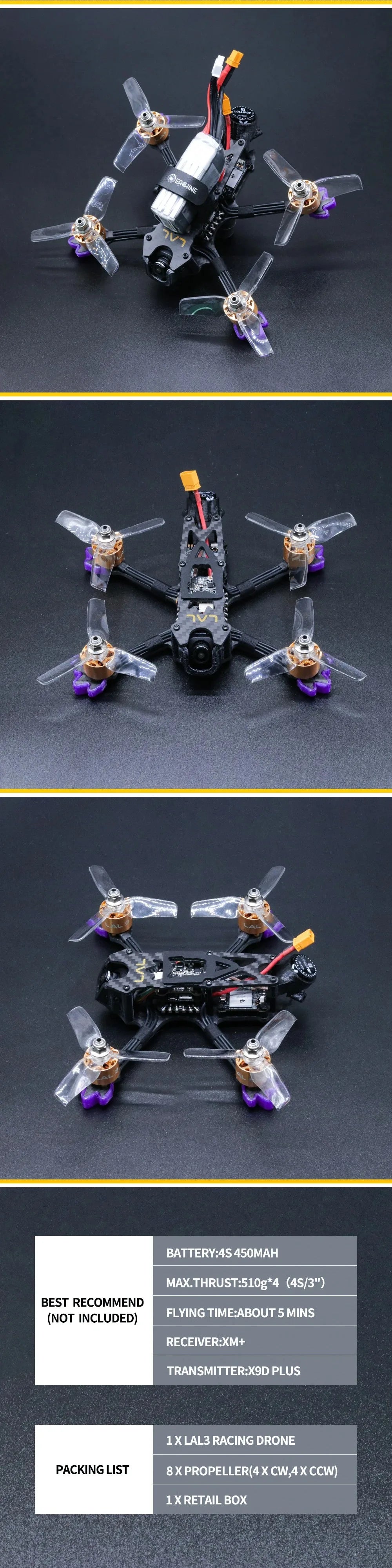

FLYING TIME:ABOUT 5 MINS RECEIVER:XM+ TRANSMITTER:XID PLUS 1XLAL3 RACING DRONE PACKING LIST 8XPROPELLER(4XCW,4XCCW) 1XRETAIL BOX #EAdHIINE
