TBS Crossfire Sixty9

SPECIFICATIONS

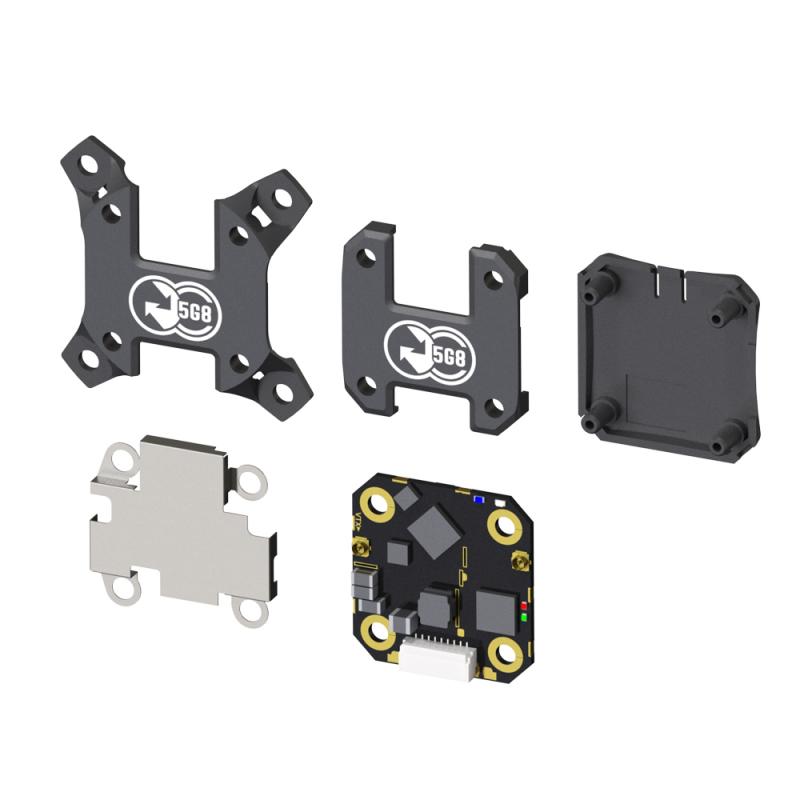

INCLUDES

• 1x TBS Crossfire Sixty9
• 1x TBS Crossfire Immortal-T antenna
• 1x u.FL to SMA mount (for VTx)
• 1x 30×30 heatsink / case
• 1x 20×20 heatsink / case
• 1x optional tin-shield (for added low-noise tolerance)
• 1x JST-SH x 9 connector

What could be better than the best Crossfire receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

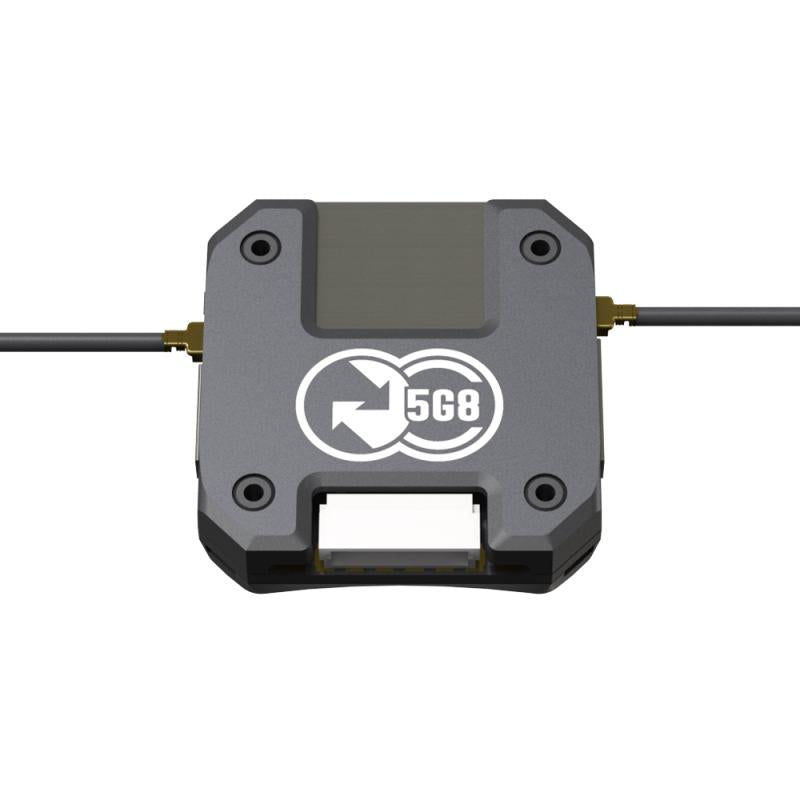

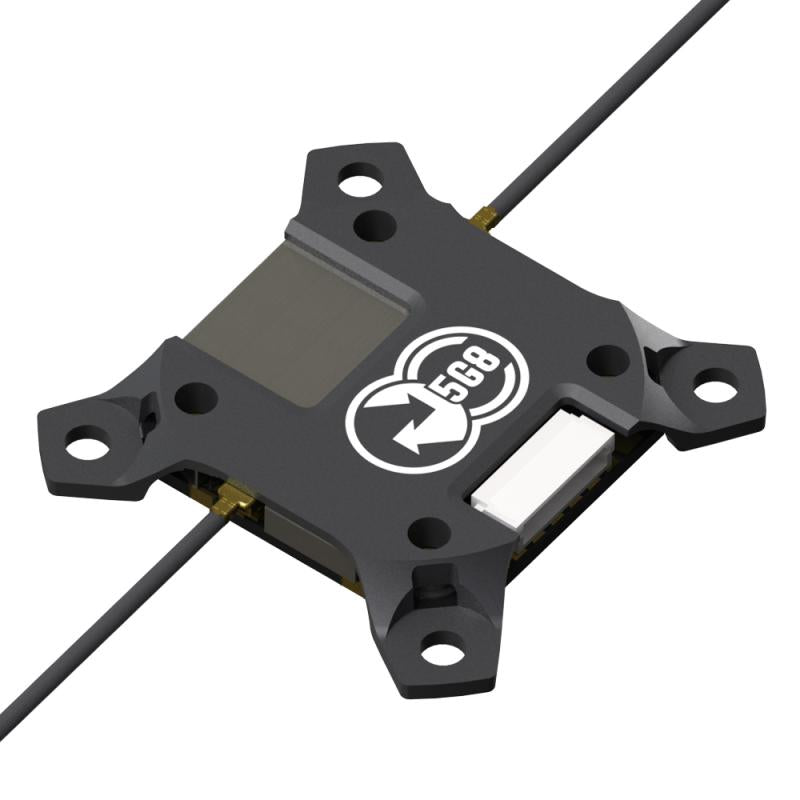

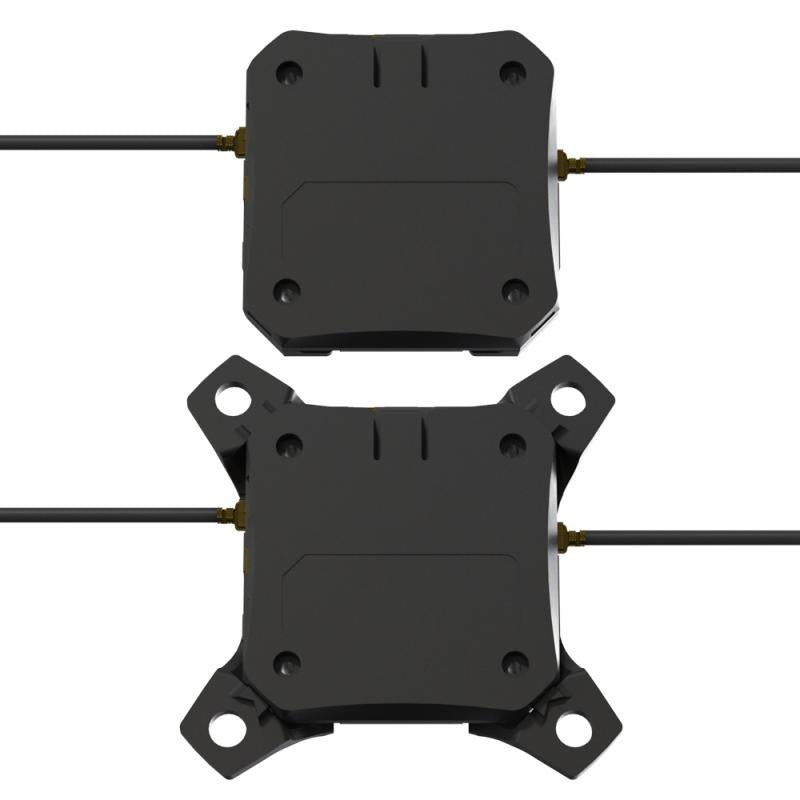

Introducing the TBS Crossfire Sixty9, a VTx and RC receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Crossfire side. Mounting holes are 20×20, but we do incldue adapters for your 30×30 stacks, and a plastic case for mounting the unit to your frame, without any stacking necessity.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).

FEATURES:

• Integrated video transmitter control with long range and (team-)race functions
• Dedicated low-noise power supply for receiver and video transmitter
• Sleek 20×20 mounting form factor
• Plug&play connection and solder pads connectivity

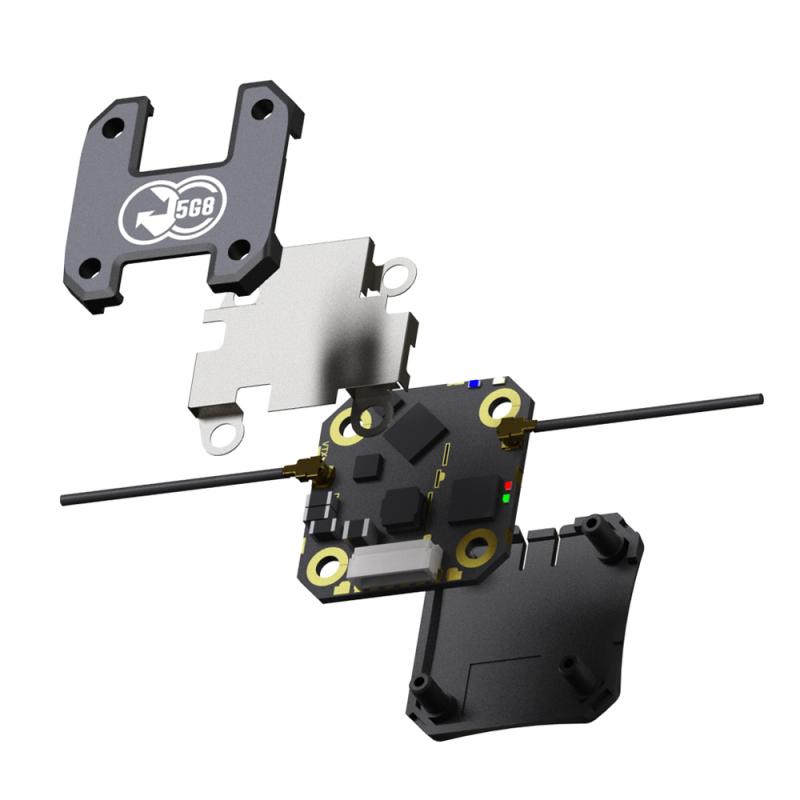

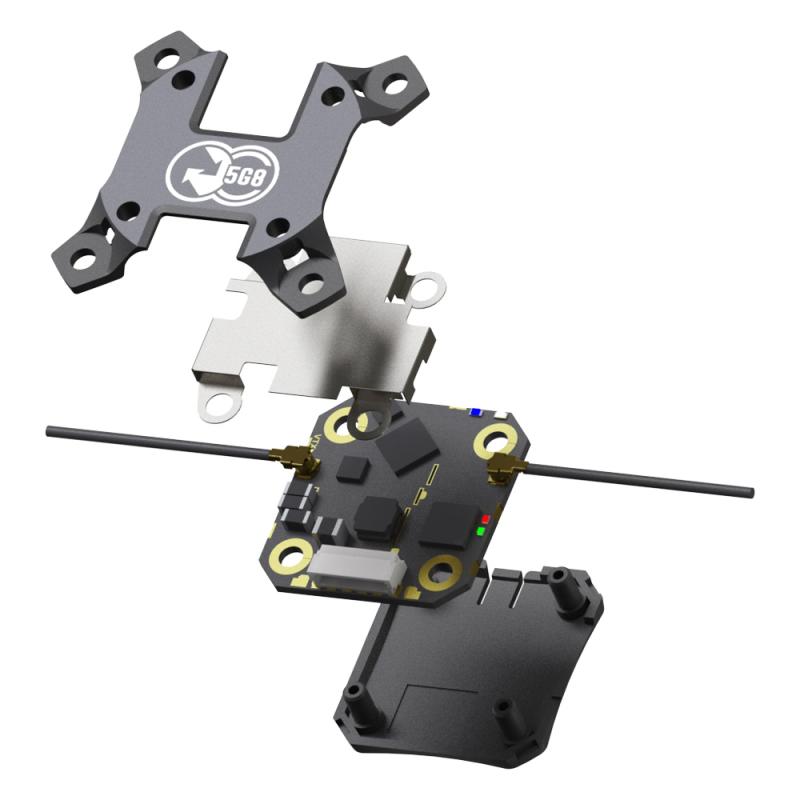

• 3 different mounting flavors, RF tin shields, and other accessories included
• High power analog adjustable video transmitter (up to 1W with perfect cooling)
• 5V regulator bulti-in, takes up to 6S
