Tmotor AT4130 SPECIFICATIONS

Name: T-MOTOR Tmotor AT4130 KV230 KV300 KV450 Brushless Motor Customized UAV Drone Electric Fixed Wing Motor OEM OR ODM - Drone
Price: 162.88 USD
Availability: InStock

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Tool Supplies: Cutting

Technical parameters: Value 2

Size: T-Motor AT4130

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Motor Components

Quantity: 1 pcs

Origin: Mainland China

Model Number: T-Motor AT4130

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

T-MOTOR Tmotor AT4130 KV230 KV300 KV450 Brushless Motor Customized UAV Drone Electric Fixed Wing Motor OEM OR ODM

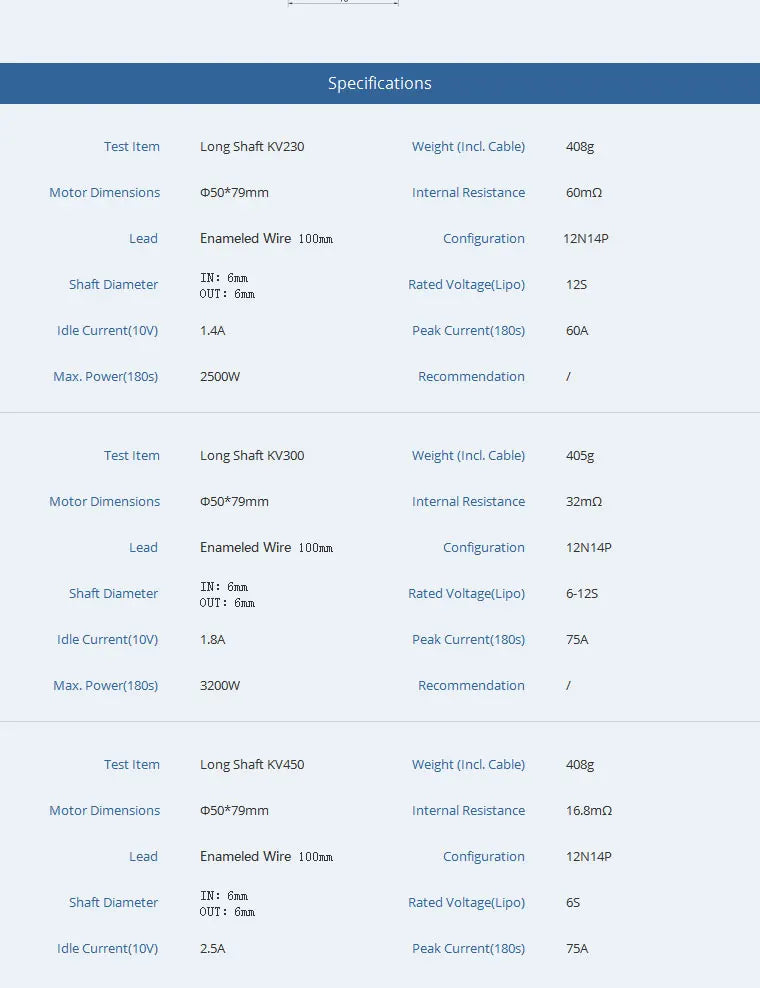

Specifications

Test item : KV230 Long Shaft

Weight (Incl. Cable) : 408g

Motor Dimensions : Φ50*79mm

Internal Resistance : 60mΩ

Lead : Enameled Wire 100mm

Configuration : 12N14P

Shaft Diameter : IN:6mm , OUT:6mm

Rated Voltage(Lipo) : 12S

ldle Current(10V) : 1.4A

Peak Current(180s) : 60A

Max. Power(180s) : 2500W

Recommendation : /

Test item : KV300 Long Shaft

Weight (Incl. Cable) : 405g

Motor Dimensions : Φ50*79mm

Internal Resistance : 32mΩ

Lead : Enameled Wire100mm

Configuration : 12N14P

Shaft Diameter : IN:6mm , OUT:6mm

Rated Voltage(Lipo) : 6-12S

ldle Current(10V) : 1.8A

Peak Current(180s) : 75A

Max. Power(180s) : 3200W

Recommendation : /

Test item : KV450 Long Shaft

Weight (Ind. Cable) : 408g

Motor Dimensions : Φ50*79mm

Internal Resistance : 16.8mΩ

Lead : Enameled Wire 100mm

Configuration: 12N14P

Shaft Diameter : IN:6mm , OUT:6mm

Rated Voltage(Lipo) : 6S

ldle Current(10V) : 2.5A

Peak Current(180s) : 75A

Max. Power(180s) : 1800W

Recommendation : /

T-MOTOR, Tmotor AT4130 KV230 KV300 KV450 Brushless Motor Customized

T-MOTOR, AT4120 KV56O Kei0 9 THE UPGRADED AT SER

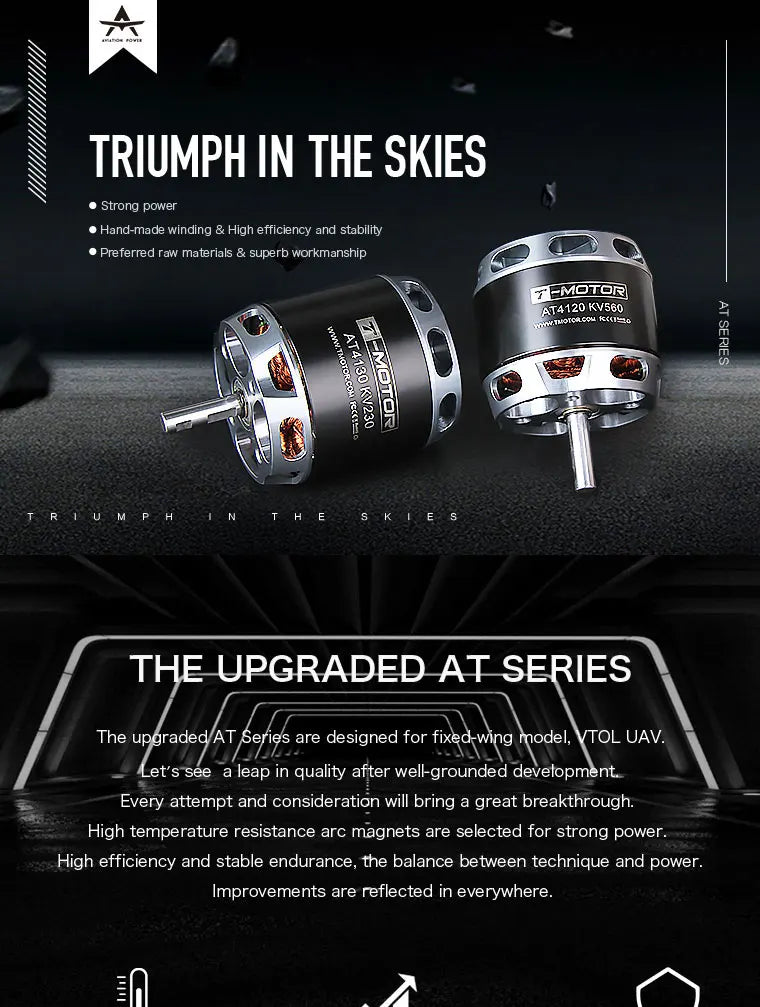

AT4120 KV56O Kei0 9 THE UPGRADED AT SERIES The upgraded AT Series are designed for fixed-wing model; VTOL UAV: See 1 leap in quality after well-grounded development .

T-MOTOR, design with lateral outlet hole and internal heat dissipation structure formed semi-box

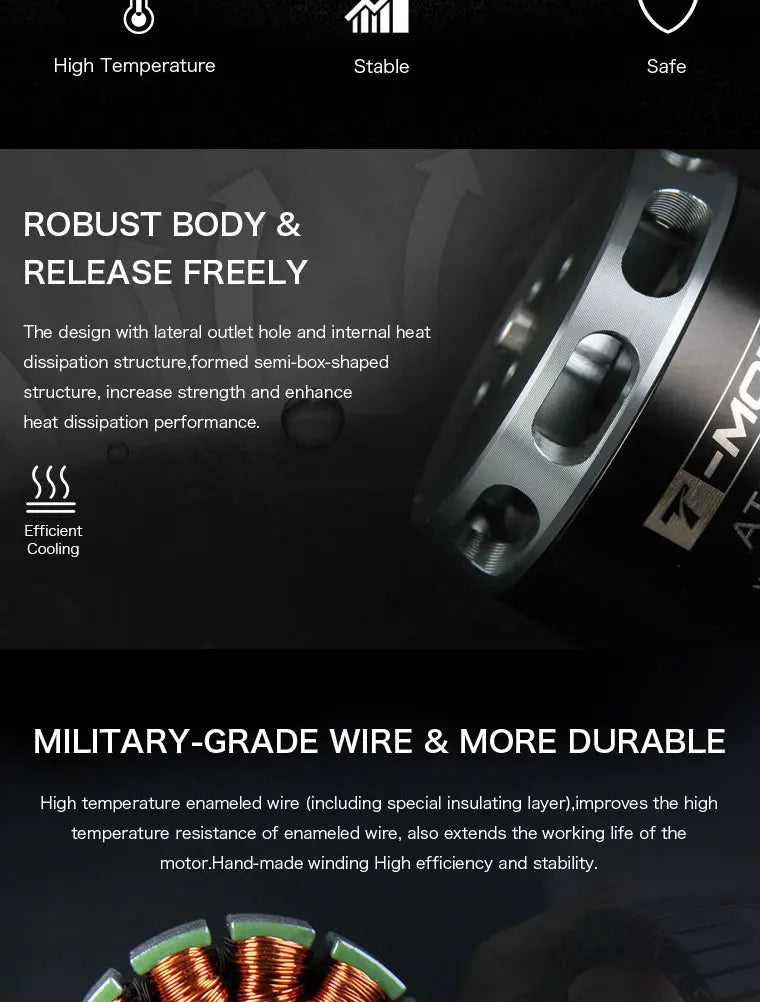

The design features a lateral outlet hole and an internal heat dissipation structure that forms a semi-box-shaped configuration, which enhances the motor’s strength and heat dispersal performance. Additionally, it boasts a 5S-efficient cooling system and features military-grade wire.

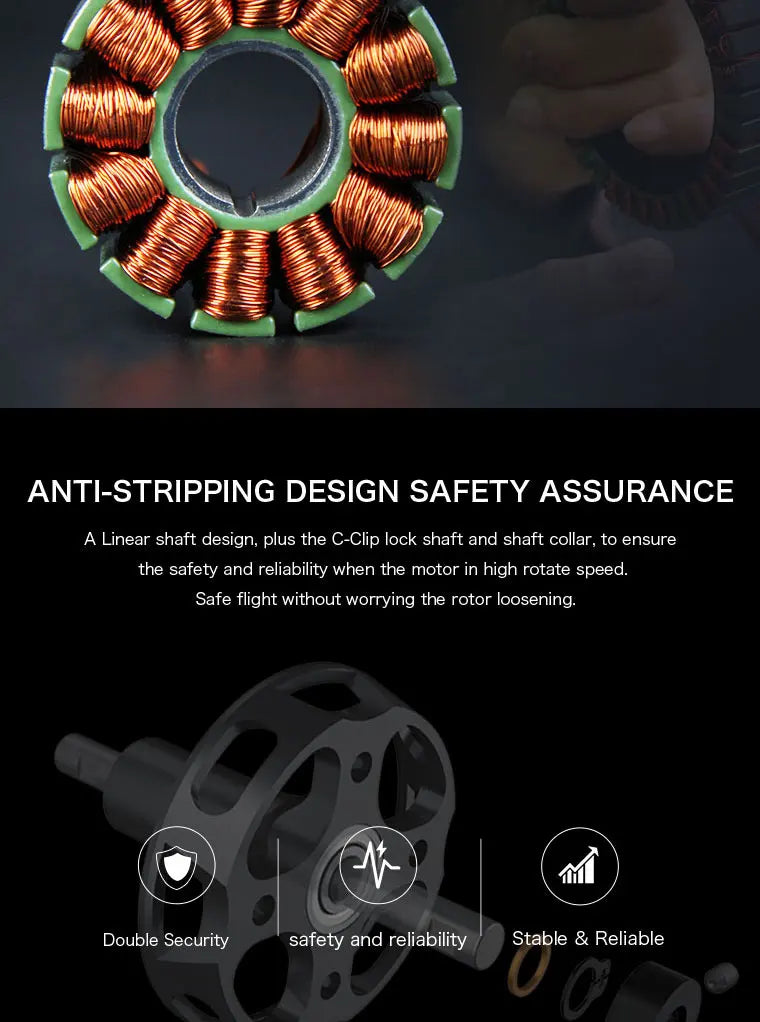

T-MOTOR, ANTI-STRIPPING DESIGN SAFETY ASSURANCE A Linear

Anti-Stripping Design Ensures Enhanced Safety: Our motor features a linear shaft design, reinforced by a C-Clip lock and shaft collar. This double-layered security mechanism guarantees stability and reliability even at high rotation speeds, eliminating the risk of rotor loosening and ensuring safe flight.

T-MOTOR, PREFERRED RAW MATERIALS SUPERB WORKMANSHIP Evenwn

Features premium raw materials and exceptional craftsmanship, combining the finest components with meticulous attention to detail.

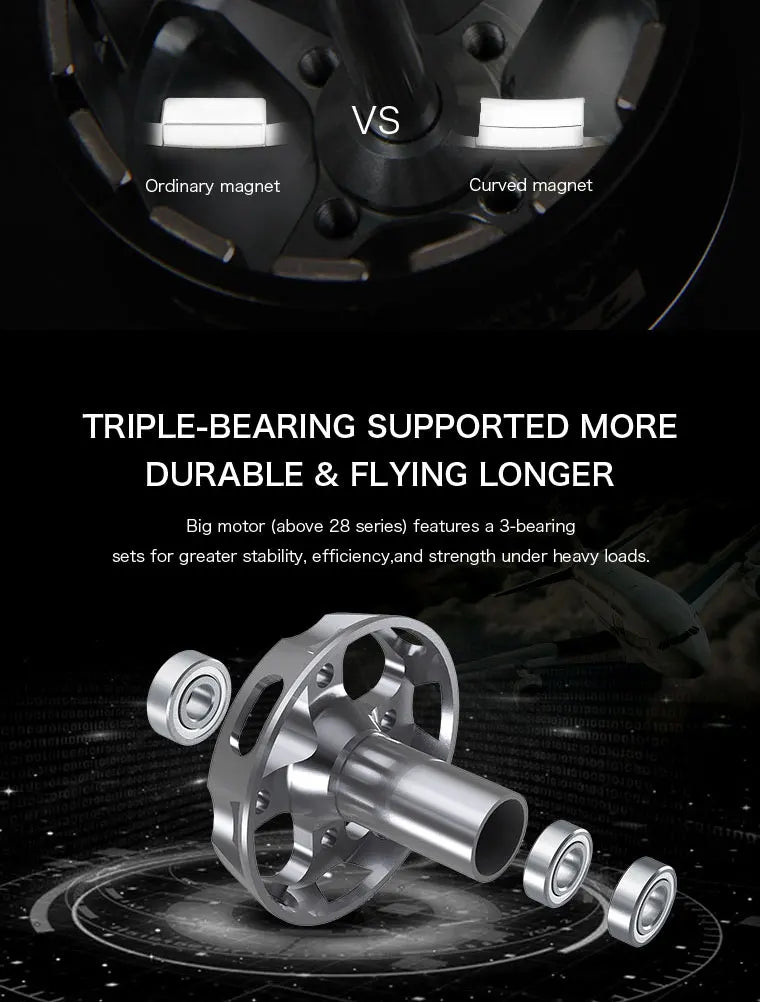

T-MOTOR, VS Ordinary magnet Curved magnet TRIPLE-BEARING SUPPORTED

Featuring triple-bearing support, this motor provides greater stability, efficiency, and strength under heavy loads, making it more durable and capable of flying longer distances.

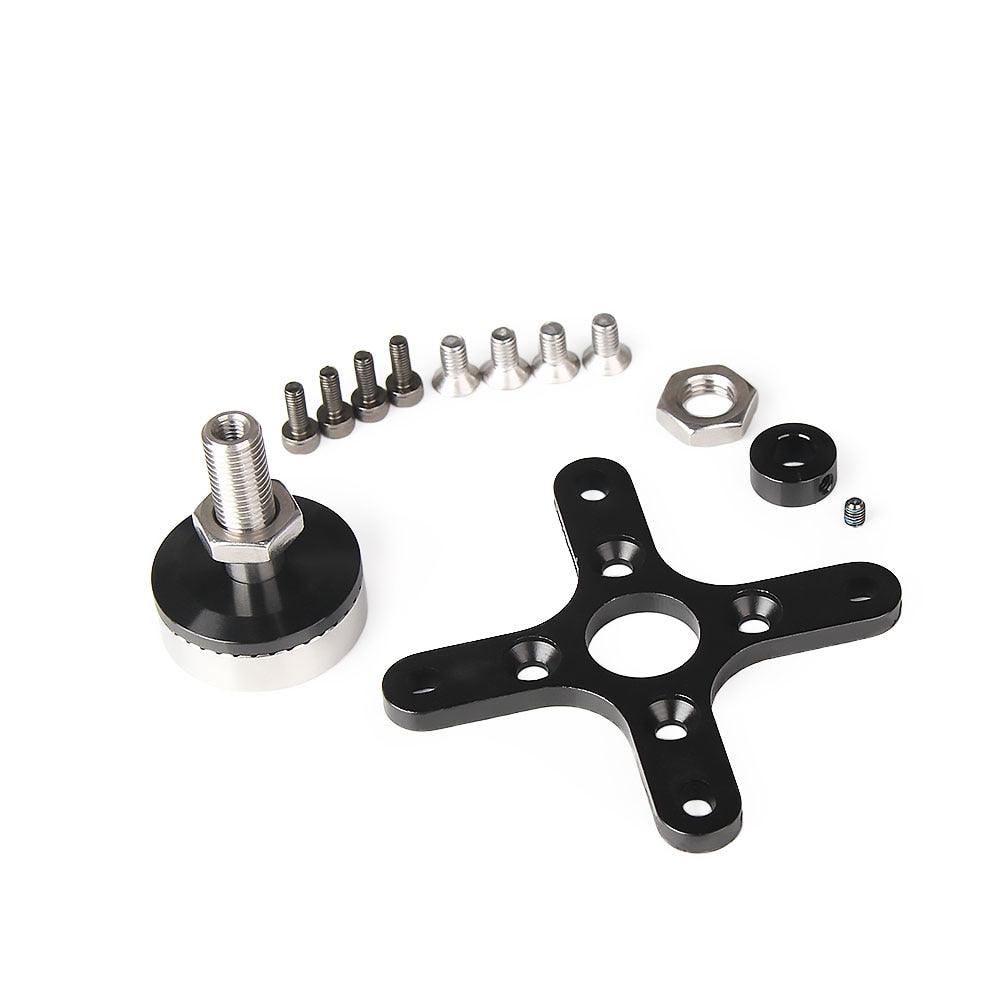

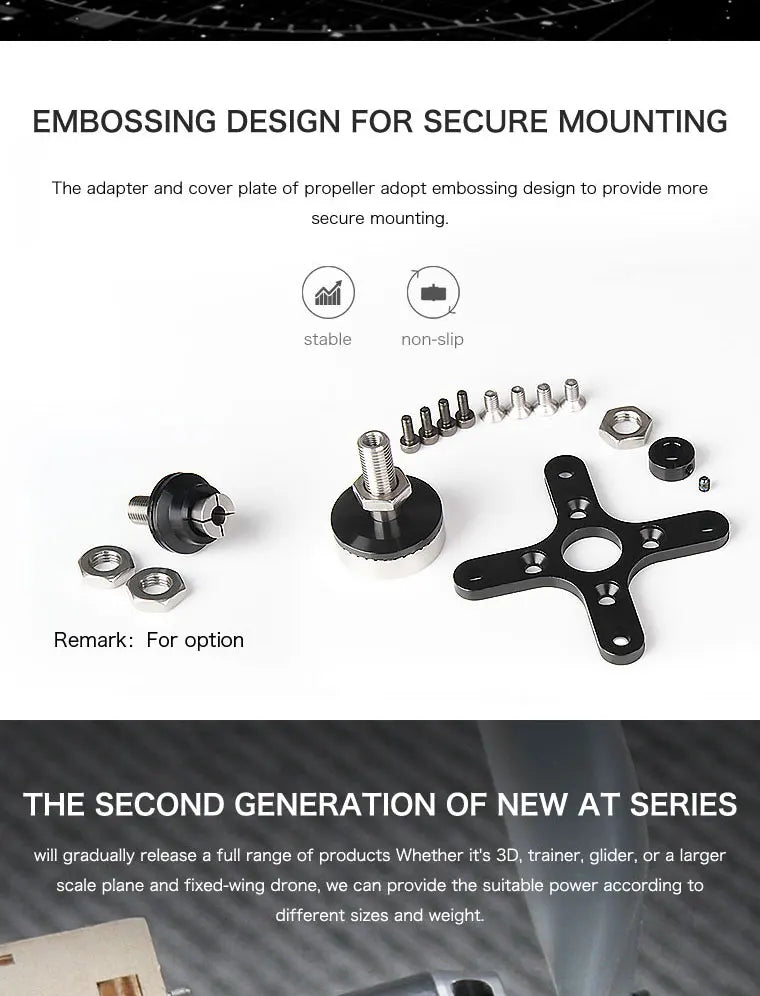

T-MOTOR, propeller adapter and cover plate adopt embossing design to provide more secure mounting

the adapter and cover plate of propeller adopt embossing design to provide more secure mounting . the second generation of new at SERIES will gradually release a full range of products . Whether it’s 3D, trainer, glider, or a larger scale plane and fixed-wing drone .

T-MOTOR, 50*79mm Internal Resistance : 32 m Lead : Ename T-MOTOR, 405g Motor Dimensions 050*79mm Internal Resistance 60mn Lead E

Specifications: Test Item – Long Shaft Motor (KV230):
* Weight (including cable): 405g
* Motor Dimensions: 50mm x 79mm
* Internal Resistance: 60mΩ
* Lead Enameled Configuration: 12N14P IN (6 turns per inch)
* Shaft Diameter: Not specified
* Rated Voltage (Lipo): 6-12.5V
* Idle Current (1.0V): 1.4A
* Peak Current (180s): 60A
* Maximum: Not specified

T-MOTOR, KV450 Long Shaft Weight (Ind. T-MOTOR, 408g Motor Dimensions : 50*79mm Internal Resistance : 60 T-MOTOR, 50*79mm Internal Resistance : 32 m Lead : Ename

T-MOTOR Tmotor AT4130

Please do nob bid if you are nob going to make bhe paymenb_ We accepb: We accept Alipay here: All major credib cards are accepted bhrough secure ESCROW payment processor .

T-MOTOR, Feedbacks 5 Sbar Feedback Please leave five sbars Posibive feedbackl Produc

Feedbacks 5 Sbar Feedback Please leave five sbars Posibive feedbackl Producb as agreed Any quesbion; please feel Communicabion free tO conbacb wibh us Shipping bime till you are sabisfie

Color	AT4130 450KV, AT4130 300KV, AT4130 230KV
