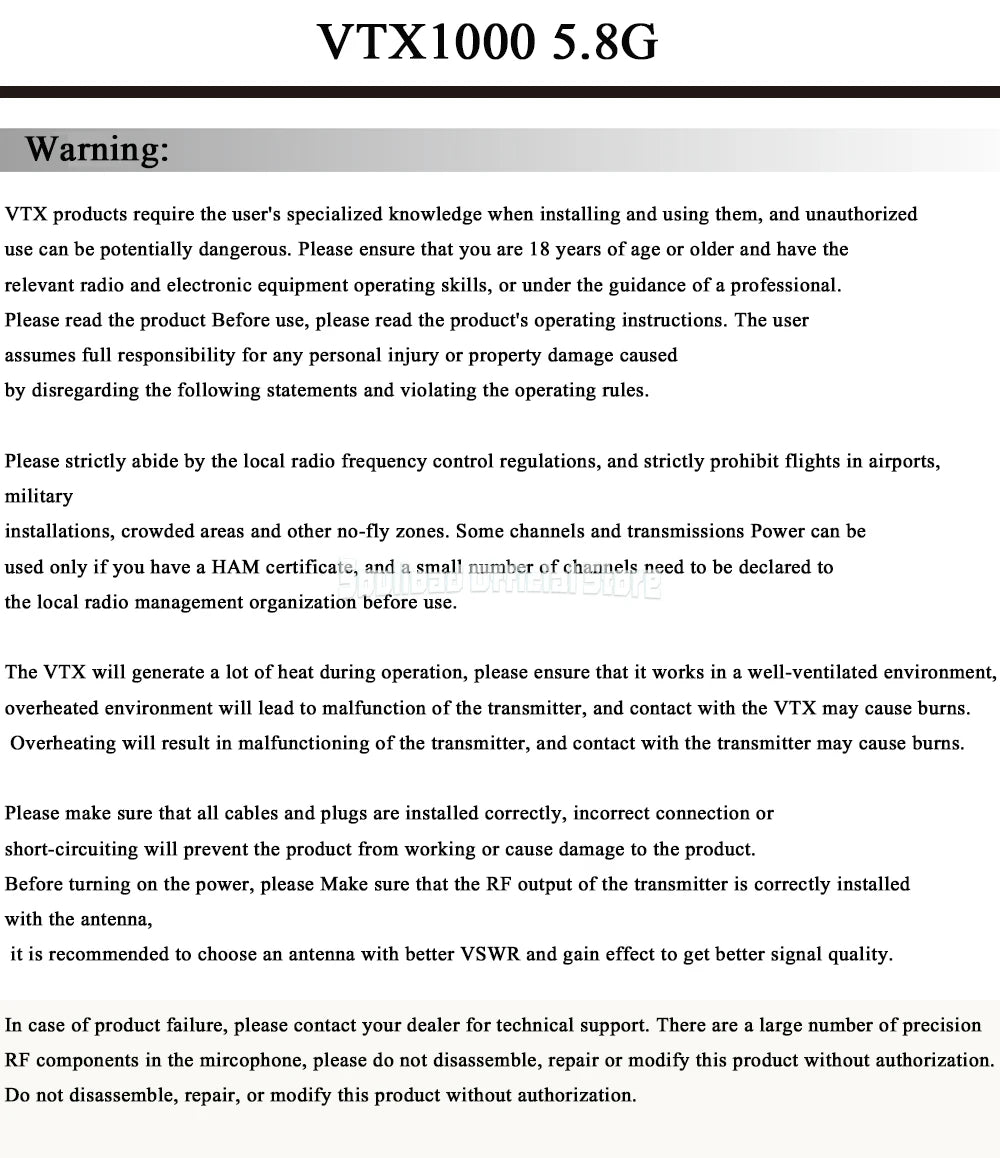

VTX1OOO 5.8G requires the user’s specialized knowledge when installing and using them . unauthorized use can be potentially dangerous . mircophone will generate a lot of heat during operation, please ensure it works in a well-ventilated environment .

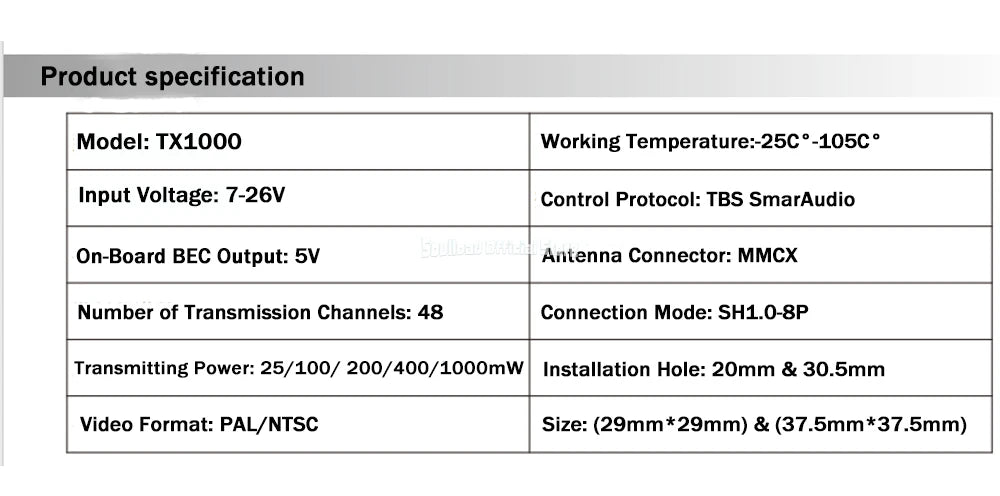

Product Specifications:

* Operating Temperature: -25°C to 105°C
* Input Voltage: 7-26V
* Control Protocol: TBS Smart Audio On-Board BEC (Battery Elimination Circuit)
* Output: SV (Single Vision) Antenna Connector: MMCX
* Number of Transmission Channels: 48
* Connection Mode: SH1.0-8P (Single Channel, 10 meters per second)
* Transmitting Power: 25/100/200/400/1000mW (adjustable)
* Installation Hole: 20mm or 30mm

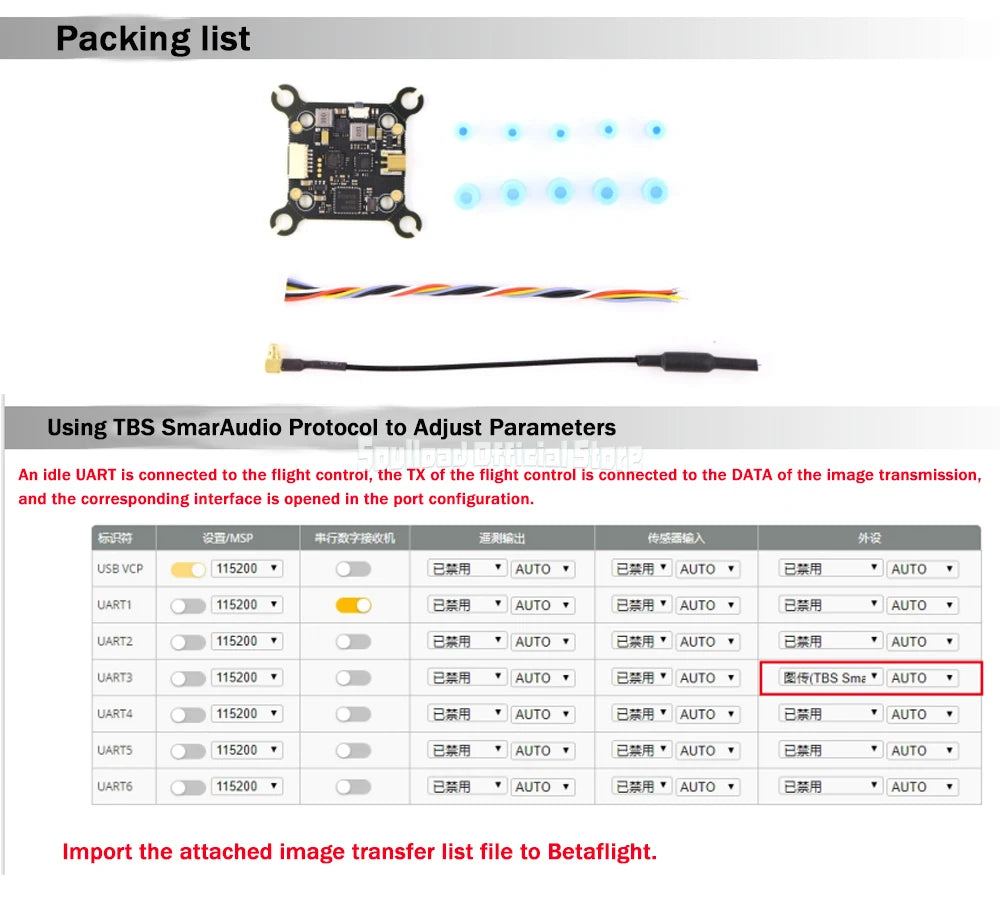

The SoloGood 5.8G antenna is designed for image transmission. The input voltage range is 7-26V, and the transmission power can be adjusted to 25mW, 100mW, 200mW, or 400mW/1W. As for the UART connection, an idle UART is connected to the flight control system, while the TX of the flight controller is linked to the corresponding interface in the port configuration.

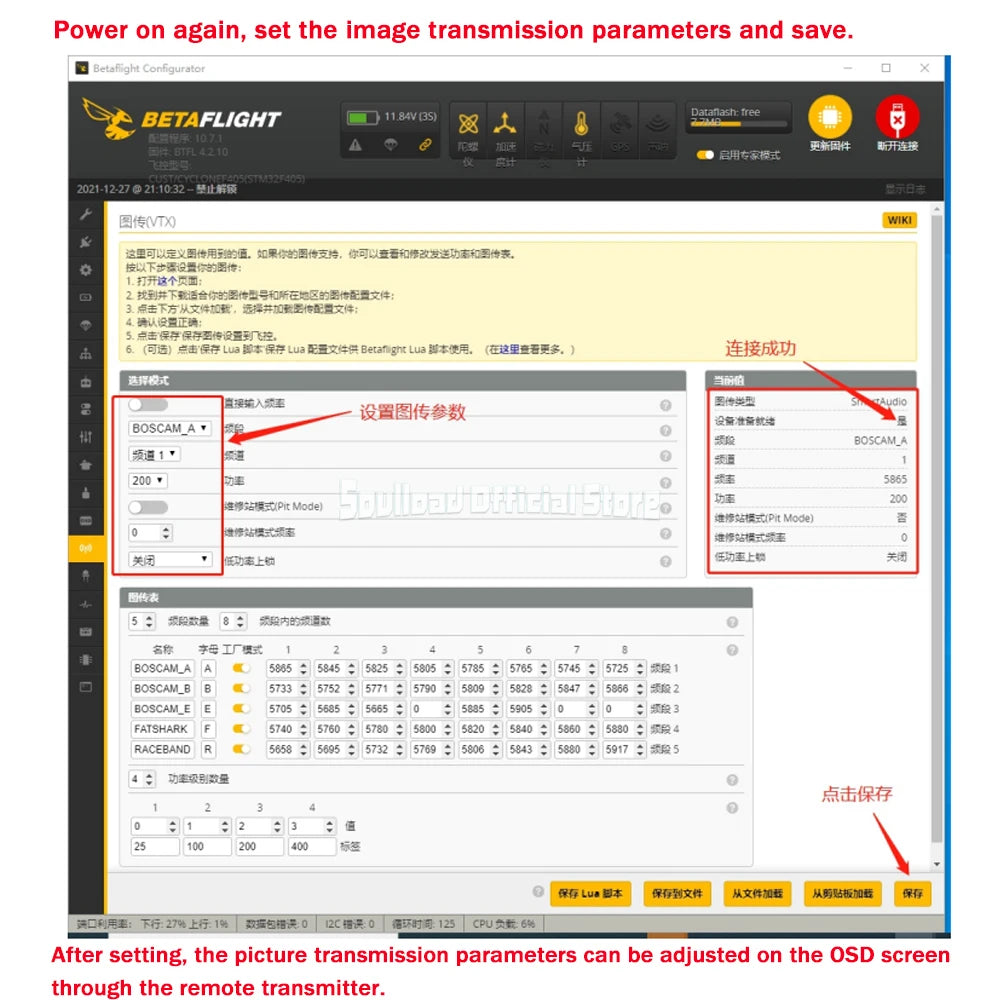

BTFL 7223 DlataFuryF#OSD(SUM3ZF-03) 3i -3 2 RACEBAND 5658 5695 5732 5769 5806 5343 5880 5917 J5 MACFe R&Lua 02 Rfflxi Mltr M5cendg Rs Zctirz: 1860 = 183 36207 I26 H3 0 G7dj0 27 CPUSE 2″

Betaflight Solo 11.84V, 351FET, 107° BA/BTFL4-2 x 72’3 Hotisttaiit for Aeofat Pmts (2021-12-27 21:03:32 En Srf7 AiX Wiki 22Jw3a6871)

The product features a SoloGood 5.8G 1W 48CH VTX antenna with an input voltage range of 7-26V and transmission power options of 25, 100, 200, or 400mW. Additionally, it includes a TOPMB/BOTMB/MMCX connector, a blue LED indicator, a 61-button remote control, and a high-gain LED headlight with 283 lumens.
