MAD V62 PRO VTOL Drone Motor - 210KV 280KV Fixed Wing Quadcopter Motor Brushless Airplane Motor For Drone

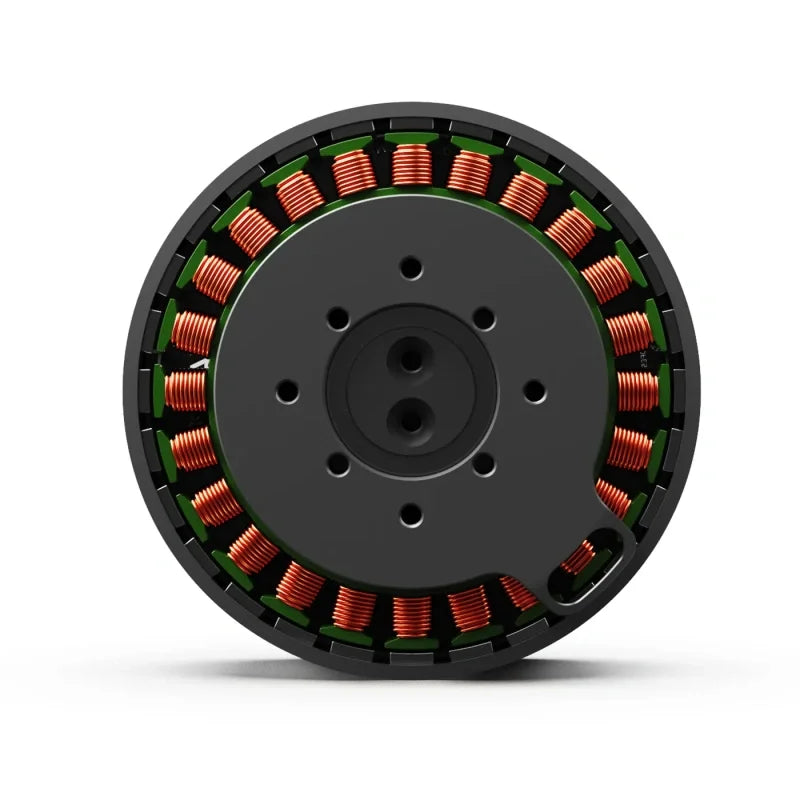

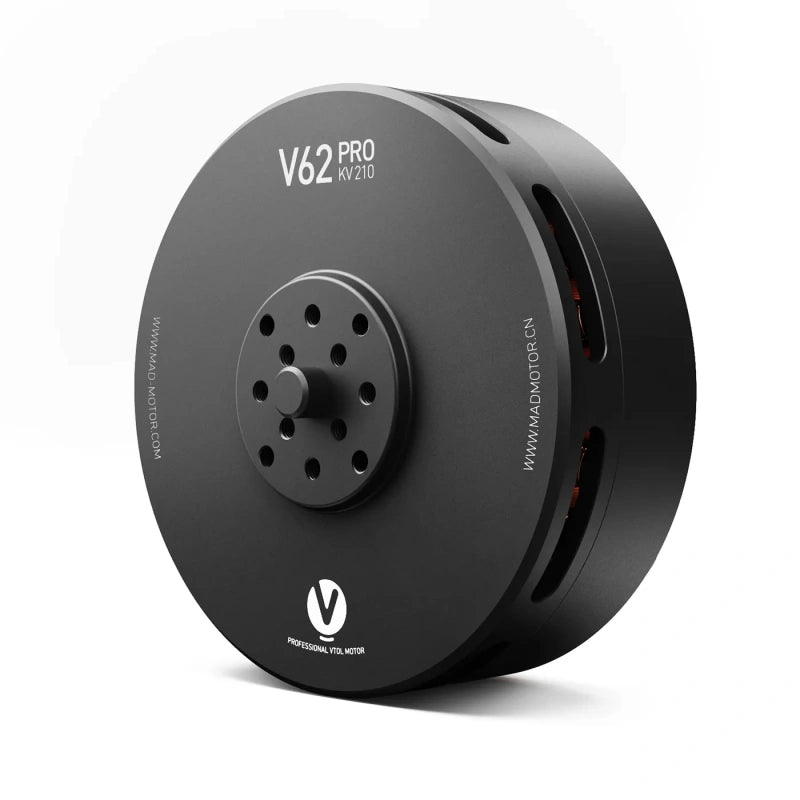

MAD V62 PRO VTOL Drone Motor - 210KV 280KV Fixed Wing Quadcopter Motor Brushless Airplane Motor For Drone - Image 2

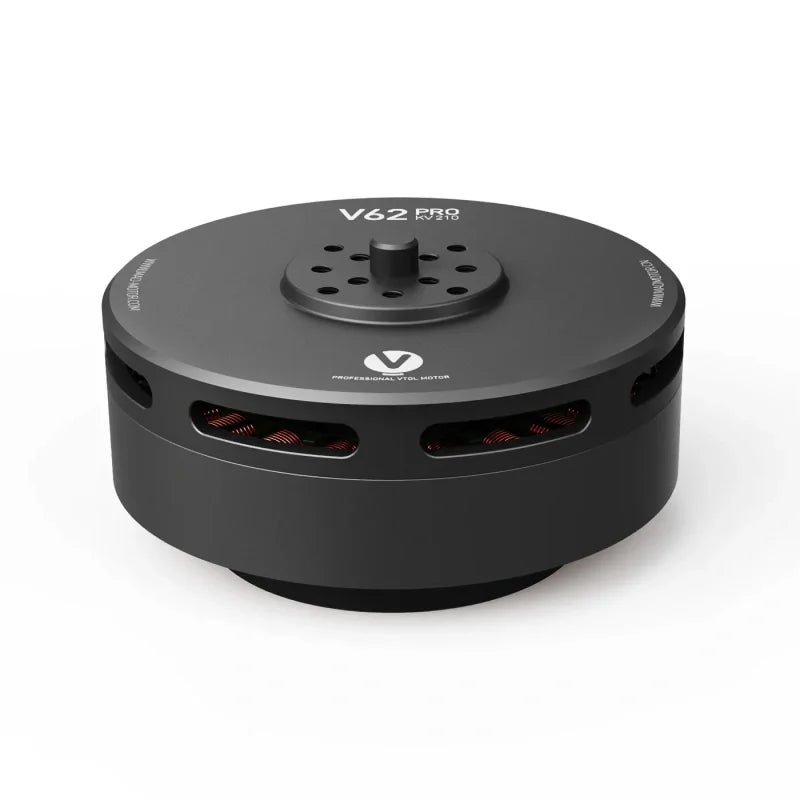

MAD V62 PRO VTOL Drone Motor - 210KV 280KV Fixed Wing Quadcopter Motor Brushless Airplane Motor For Drone - Image 3

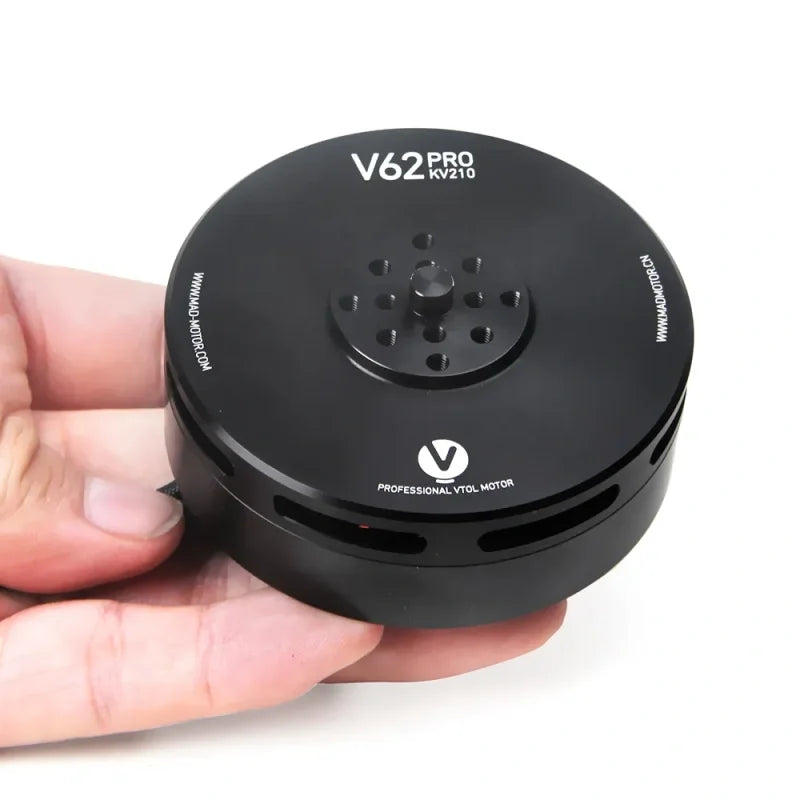

MAD V62 PRO VTOL Drone Motor - 210KV 280KV Fixed Wing Quadcopter Motor Brushless Airplane Motor For Drone - Image 4

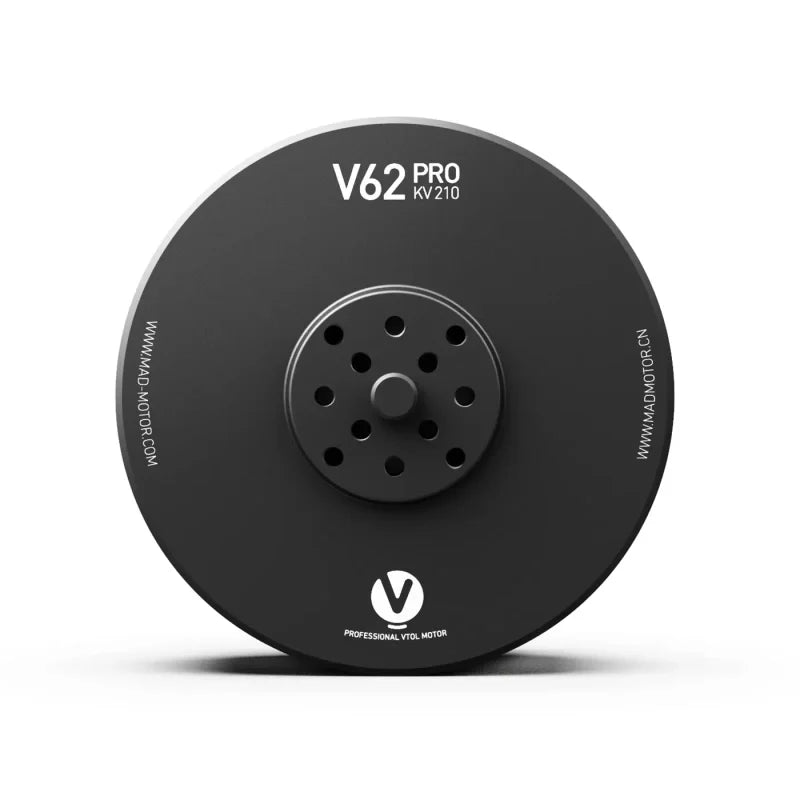

MAD V62 PRO VTOL Drone Motor - 210KV 280KV Fixed Wing Quadcopter Motor Brushless Airplane Motor For Drone - Image 5
, ,

MAD V62 PRO VTOL Drone Motor – 210KV 280KV Fixed Wing Quadcopter Motor Brushless Airplane Motor For Drone

$189.00

+ Free Shipping
280KV210KV
Clear
SKU: N/ACategories: , ,
Ask for more info

MAD V62 PRO VTOL Drone Motor SPECIFICATIONS

Motor Data

Motor ModelMAD V62 PRO V1.0Number of Pole Pairs14
StatorJapan / AnticorrosiveVarnished Wire Degree180°C
Motor SizeD:72 x 37.5mmMagnet Degree150°C
Degree of ProtectionRain ProtectionCable Length80 mm (extended Enameled wires)
Centrifugal Heat DissipationIndependentRotor Balance≤5 mg
Propeller Mounting HolesD:12 M3x4, D:18 M3x4, D:22 M3x4Motor Balance≤10 mg
Shaft DiameterIN: 12 mmMotor Mounting HolesD:25 M3x4, D:30 M3x4
BearingEZ0 6801ZZ*2Disruptive Test500 V
Additional AccessoriesM6 Propeller Plate 1, 3.5mm Bullet Connector3, Heat Shrinkable Tube3, M310mm 4 Motor Screws, M312mm 2, M318mm 2, Propeller Screws, Sticker1

Specifications

RPM/V210KVNominal Voltage12S lipo battery
No Load Current1.8A / 20VInternal Resistance47mΩ
Motor Weight323 gProduct Boxed Weight453g (110 x 110 x 55 mm)
Maximum Current59.3 AMaximum Power2846W
Maximum Thrust11.6 kgMaximum Torque3.13Nm
Recommended ESCMAD AMPX 80A (5-14S)Recommended Propellers22.1×7.4
UAV Take-off Weight125-22’’ / 20kg–Quadcopter, 30kg–Hexacopter, 40kg–OctocopterSingle Rotor Take-off Weight3.5kg ~ 6.0kg



MAD V62 PRO VTOL Drone Motor Description

MAD V62 PRO VTOL Drone Motor, Professional-grade VTOL drone motor for fixed-wing quadcopters with vertical takeoff and landing capabilities.

MAD V62 VTOL drone motor designed to carry payloads of 4-5kg per rotor, with 18-22″ carbon propeller. Max thrust is up to 11.5kg per rotor, unit motor only weighs 270g.

Built for 15-20kg MTOW professional industrial VTOL fixed-wing UAS, with large pitch VOTL CF propellers, achieving large load, high efficiency and superb reliability, providing reliable power support for various endurance flight of professional aerial photography and industry applications, i.e.: surveying, mapping exploration, security inspection, etc.

Motor Test Benchmarks

MAD V62 PRO VTOL Drone Motor, High-performance drone motor with 210KV and 280KV options, suitable for fixed-wing aircraft and quadcopters.MAD V62 PRO VTOL Drone Motor, Summary of motor test benchmarks and related information.MAD V62 PRO VTOL Drone Motor - 210KV 280KV Fixed Wing Quadcopter Motor Brushless Airplane Motor For Drone

Product Packaging

Company Profile

MAD V62 PRO VTOL Drone Motor, Introducing MAD, a reliable brushless motor designer and manufacturer for multirotor aerial vehicles and various industries.

FAQ

MAD V62 PRO VTOL Drone Motor, High-performance brushless motor for VTOL drones, fixed-wing aircraft, and quadcopters.

Certifications

MAD V62 PRO VTOL Drone Motor, High-performance drone motor with 210KV and 280KV options for fixed wing, quadcopter, or airplane use.

Color

280KV, 210KV
