iFlight Nazgul Evoque F5 FPV Drone – HD 5inch 6S FPV Drone BNF F5X F5D(Squashed-X or DC Geometry)with GPS module/ Nebula Pro Vista HD System


F5X with ELRS 2.4GHzF5X with ELRS 915MHzF5D with ELRS 2.4GHzF5D with ELRS 915MHzF5X TBScrossfireNANOF5X with Frsky R-XSRF5X with Frsky XMF5X No RX for DJI RCF5D TBScrossfireNANOF5D with Frsky R-XSRF5D with Frsky XMF5D No RX for DJI RC
ChinaUnited StatesRussian Federation



Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Size: 5inch

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: Nazgul Evoque F5 HD

Material: Carbon Fiber

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT


The Secret Of Ultimate Performance Is Passion

  • That was the slogan for our newest approach to creating this piece of art! Fully protected electronics, fully illuminated, coupled with all the latest and greatest electronics we can offer. Months of engineering went into this BNF and all the lessons learned before, making sure that beginners, as well as experienced pilots, would fully enjoy using the new Nazgul Evoque from the first second they use it.

Lightweight Side Panels – Keep Your Rig Clean

  • Ever felt like a lawnmower cutting through the grass in your early days, props cutting and throwing wet grass all over and inside your flight stack? Well… These days are over! The new side panels will not only protect from wetness but also protect the internals from any strikes hitting off little components from your flight controller.

Secured Integrated XT60 Battery Plug – As Safe, It Can Be

  • Dangling battery plugs will ALWAYS find a way in your props, there’s always that one time you forgot to secure it properly and almost cut off the cable while flying. There was only one way to get rid of that and we think we might have found a solution. The integrated XT60 connector on the back lets you securely plug in your battery leading all cables away from your props.

High-Performance Electronics – F7 55A Power Stack

  • Our BLITZ Mini F7 TwinG flight control with Gyro Fusion technology, modern USB type-C plug, 16MB flash for every tuning session, and 5 UARTs for whatever equipment you might possibly wanna use. Power from the gods with our new BLITZ Mini 55A ESC packed with better heat-dissipating Mosfets and a whole bunch of SMD capacitors to filter out possible motor noise, besides the pre-soldered directly installed Capacitor right next to your battery leads.

XING2 Performance Motors – The Best Motors Just Got Better

  • 7075 aluminum bell, 5mm titanium alloy shaft, NSK durable bearings, Center slotted magnets for better response, and lower air gaps for a higher magnetic flux with increased performance and efficiency. Not to mention the typical XING damping ring between the bell and bearing to increase durability and smoothen out your flights.

Illumination – Let It Be Green

  • 360-degree illumination for day and night. Maybe the prettiest BNF out there but also a practical one. The bottom light indicates battery voltage, a quick check gives you a hint of the voltage still remaining; Never lift off with an empty battery again. Installed LED wires in the side panels and the bottom of the arms are also illuminated and gives you some style at the next night’s race.


  • August 2021: The color of 915 antenna mount changed from green to black, change the foam inner packaging to blister material.

  • August 2021: Before two antennas changed to one.

  • October 23, 2021: Before Polar Caddx Vista changed to DJI Camera Vista.

  • October 2021: Before SucceX-E mini F7 Stack(F7+45AESC) changed to BLITZ MINI (F7+BLITZ E55 4-in-1 ESC)

  • November 2021:  TPU color is random, you may receive yellow, tiffany blue, green, or blackish green.

  • February 2022: Before BLITZ MINI F7 V1(MPU6000) changed to BLITZ MINI F7 V1.1 (BMI270)

  • July 2022:Before DJI Camera Vista HD System changed to Nebula Pro Vista HD System


  • Total Dimensions: 136*190mm (body dimension)

  • Geometry: Squashed-X or DC (DeadCat) frame available

  • Bottom to top distance: 28mm

  • Arm Thickness: 6mm

  • Bottom plate thickness: 3mm

  • Top plate thickness: 3mm

  • Upper(middle) plate thickness: 3mm

  • XING2 2207 motors (6S)

  • Nazgul F5 propellers

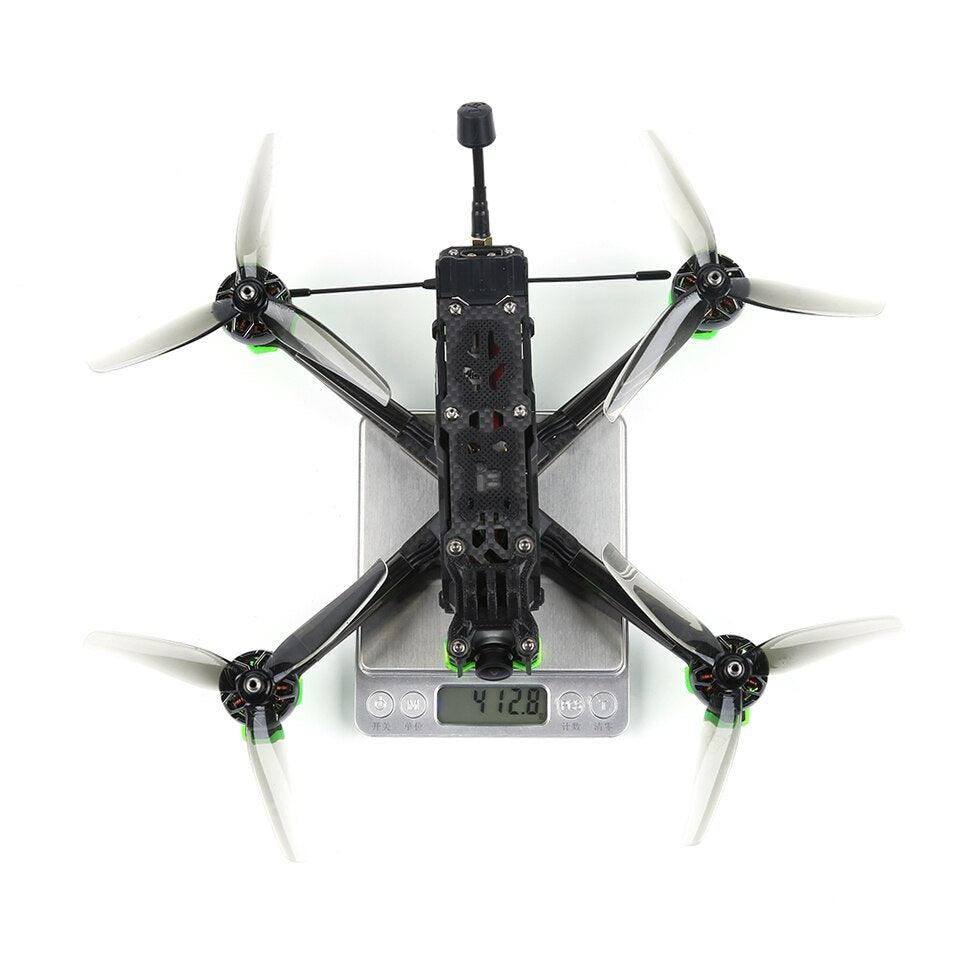

  • Weight: 412g (without battery and GoPro mount)


Top Features:

  • BlackBox: 16MB

  • DJI Air Unit Plug-and-Play. No need to solder tiny wires.

  • BAT, +5V, 3.3, Start indicator

  • With LC filter.


  • MCU:STM32 F722

  • Gyro:BMI270

  • Baro: DPS310

  • Betaflight OSD:IFLIGHT OSD (AT7456E)

  • Blackbox:16MB

  • 5 X Uarts

  • UART1 for VTX HD/Analog

  • UART2 for  Receiver

  • UART3、UART4 for GPS or 0ther sensors that require a serial port

  • UART6 for ESC Telemetry

  • 4×Dshot/PWMoutputs

  • 1×I2C

  • 1 xSH1.0 9pin connector for HD VTX/Analog VTX&CAM (5V/BAT/G/VO/T1/R1 /5V/G/VI)

  • 1 xSH1.0 8pin connector for ESC(R6/CUR/M4/M3/M2/M1/BAT/G)

  • 1xSH1.0 6pin connector for Any Receiver or DJI(3V3/R2i/5V /G/R2/T2)

  • 1xSH1.0 4Pin  connector GPS (T4/R4/G/5V)

  • 1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)

  • Smartaudio&IRCTramp  VTX protocol supported

  • WS2812ledStrip:Yes

  • Bepper:Yes

  • Firmware: IFRC-IFLIGHT_BLITZ_F722

  • Mounting:20*20mm/φ4

  • Dimensions:30.5*27mm

  • Weight:5.0g

ESC // BLITZ Mini 55A


  • Dimension: 35*42mm

  • Mounting Holes: 20*20mm/Φ4mm

  • Weight: 11.3g

  • Supports 2-6S lipo input

  • MCU:G071

  • Constant: 55 Amps

  • Burst: 60 Amps

  • Current sensor: Yes

  • BEC: No

  • Current rate: 100

  • Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

  • Firmware: BLHeli 32

  • Target:   IFLIGHT_BLITZ_G1

Package included:

  • 1 x Nazgul Evoque F5(Squashed X or Deadcat pattern)

  • 4 x Nazgul F5 Prop

  • 2 sets of Battery Pads

  • 2 x Battery straps

  • 1 x Screws bag

  • 1 x GPS module


  • All iFlight BNFs are tested before shipment to guarantee highest quality.

  • If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

  • iFlight takes no responsibility for issues with DJI or Caddx 3rd party gear (Video transmitters, Goggles, Radios, etc) and must be directly reported to www.caddxfpv.com/pages/contact-us or www.dji.com/support
